PRO-6800-W - Pregnant KLIPSCH - Free user manual and instructions

Product Type	In-wall / In-ceiling Speaker
Brand	Klipsch
Model	PRO-6800-W
Speaker Type	Passive, 2-way
Woofer Size	8 inches
Tweeter Type	1-inch Titanium Dome
Frequency Response	42 Hz - 20 kHz ± 3 dB
Power Handling (Continuous / Peak)	100 W / 400 W
Impedance	8 Ohms
Sensitivity	95 dB @ 1W/1m
Cut-Out Dimensions	10.9 x 14.9 inches (277 x 378 mm)
Overall Dimensions (H x W)	12.9 x 16.9 inches (328 x 429 mm)
Mounting Depth	4.1 inches (104 mm)
Weight	9.5 lbs (4.3 kg)
Grille	Painted White, paintable
Installation	Dogleg mounting system, magnetic grille
Compliance	UL 2043 rated for plenum air spaces
Wiring	Spring-loaded terminals for up to 14 AWG
Recommended Amplifier Power	25 - 200 W RMS per channel
Cabinet Material	ABS plastic, moisture-resistant
Warranty	5 years (parts and labor)

Frequently Asked Questions - PRO-6800-W KLIPSCH

What is the recommended amplifier power for the PRO-6800-W?

The Klipsch PRO-6800-W is rated for 100 watts continuous and 400 watts peak. It is recommended to use an amplifier delivering 25 to 200 watts RMS per channel for optimal performance.

What is the cut-out size needed for installation?

The required cut-out dimensions are 10.9 x 14.9 inches (277 x 378 mm). Ensure you have at least 4.1 inches (104 mm) of mounting depth inside the wall or ceiling.

Can the grille be painted to match my decor?

Yes, the grille is white and paintable. Use a high-quality spray paint suitable for plastic. Remove the grille before painting and allow it to dry completely before reattaching.

Is the PRO-6800-W suitable for outdoor use?

While designed primarily for indoor in-wall/ceiling use, the speaker features a moisture-resistant ABS cabinet and can be used in covered outdoor areas (e.g., under eaves). It is not rated for direct exposure to rain or extreme humidity.

What type of wire should I use for installation?

Use 16 to 14 AWG speaker wire. The spring-loaded terminals accept up to 14 AWG. For runs longer than 50 feet, use 14 AWG to minimize signal loss.

How do I adjust the tweeter level?

The PRO-6800-W does not have a built-in tweeter level switch. If you need to adjust high-frequency output, use your receiver or amplifier’s equalizer or tone controls.

Can I install this speaker in a ceiling?

Yes, the PRO-6800-W is designed for both wall and ceiling installations. The included dogleg mounting system securely holds the speaker in drywall.

What is the warranty on the Klipsch PRO-6800-W?

Klipsch offers a 5-year limited warranty covering defects in materials and workmanship. This applies to the original purchaser for non-commercial use.

Is a back box required for installation?

A back box is not required for typical installations, but it may be used to improve sound isolation or meet local fire codes. The speaker is UL 2043 rated for plenum air spaces without a back box.

How do I clean the speaker grille?

Remove the magnetic grille gently. Vacuum with a soft brush attachment to remove dust. If needed, wipe with a slightly damp cloth. Do not use abrasive cleaners or submerge the grille in water.

USER MANUAL PRO-6800-W KLIPSCH

OWNERS MANUAL

Klipsch®

PROFESSIONAL SERIES

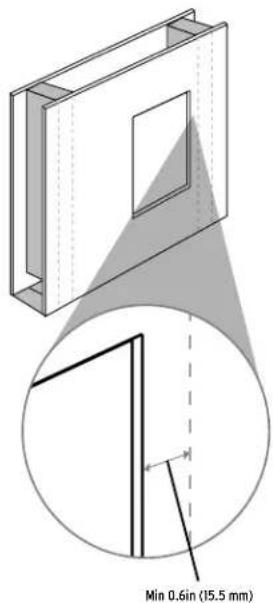

PLACEMENT

PLACEMENT

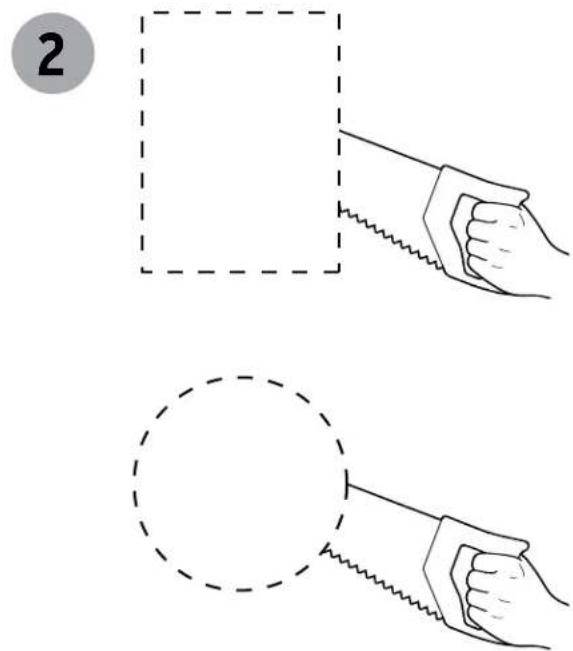

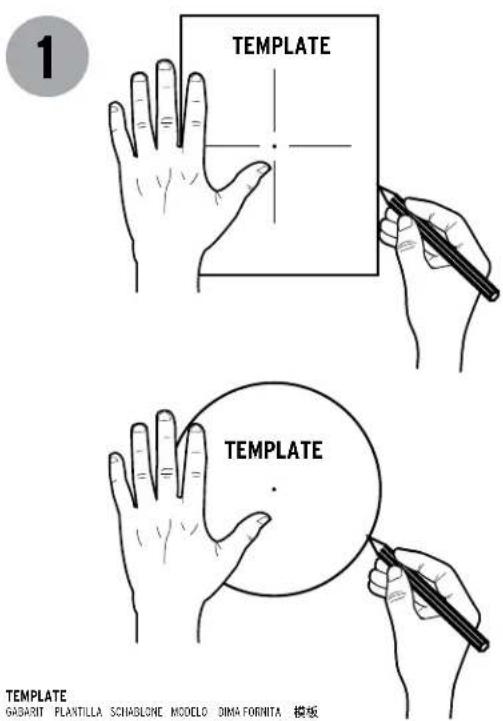

CUT OUT

DÉCOUPER SEPARAR AUSGESCHNITTEN RECORTAR RITAGLIARE 剪下

TEMPLATE GABARIT PLANTILLA SCHABLONE MODELO DIMA FORNITA 模板

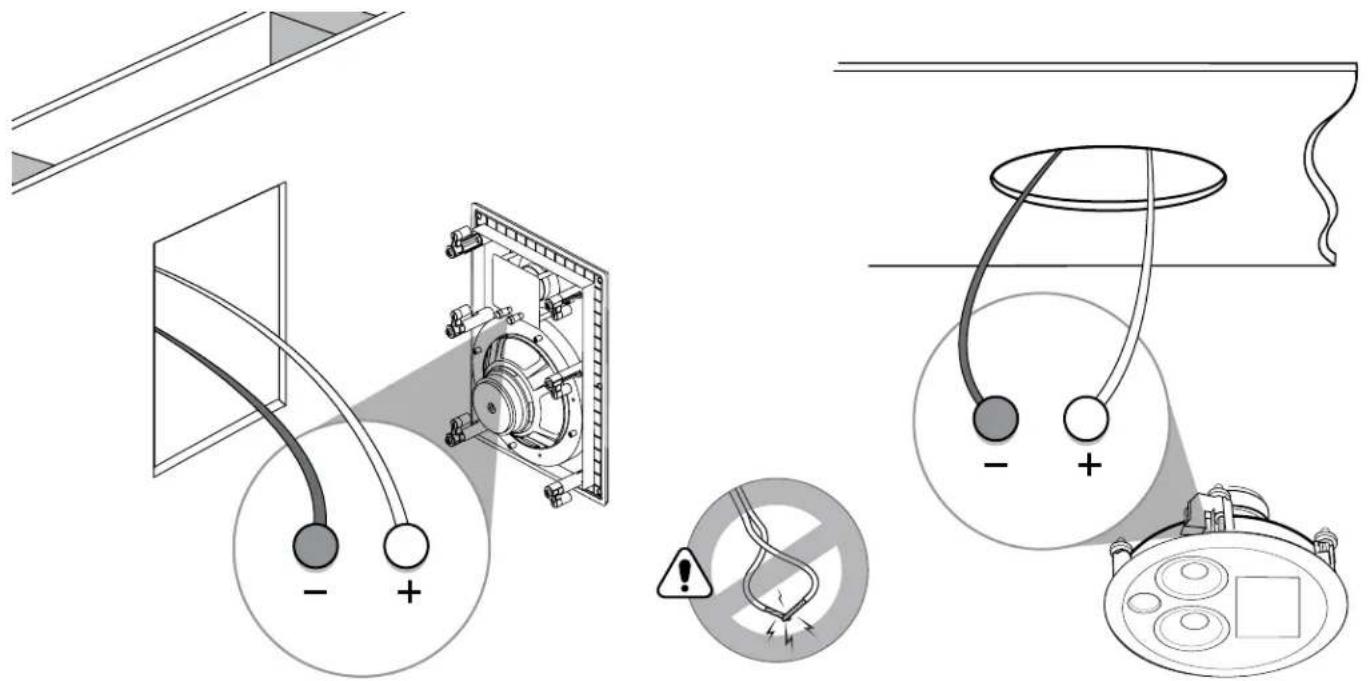

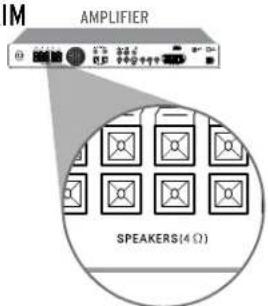

CONNECTIONS

BRANCHEMENTS CONEXIONES ANSCHLÜSSE CONNESSIONI CONEXÕES 连接

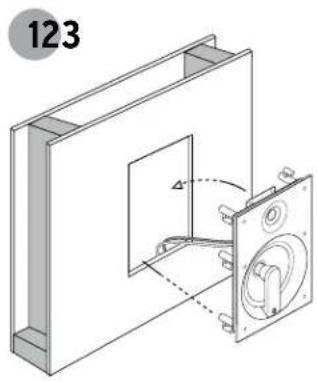

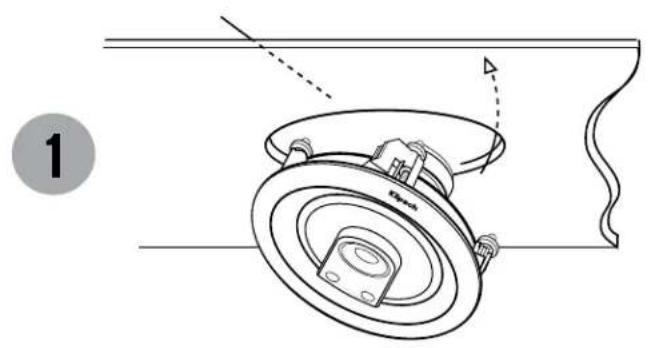

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

Technical line drawing of a mechanical assembly with a component and housing (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and mounting bracket (no text or symbols)

Technical illustration of a mechanical assembly with a component, showing internal components and a bracket (no text or symbols)

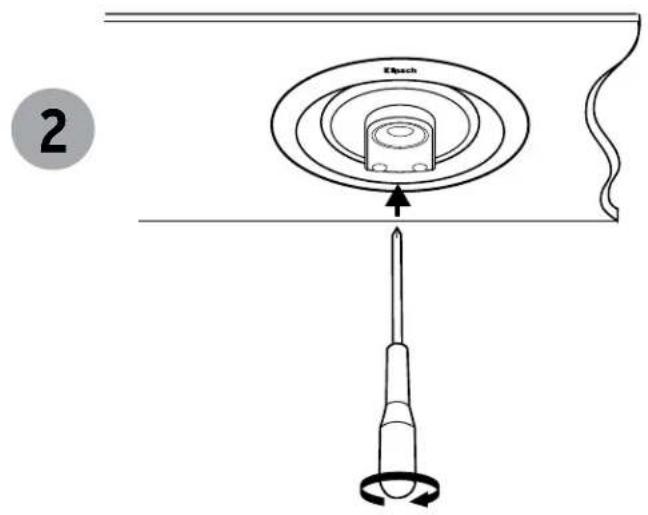

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

Technical line drawing of a mechanical assembly with no visible text or symbols

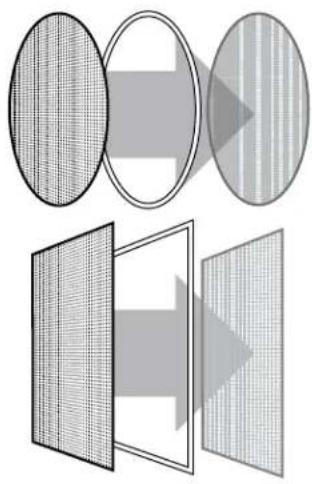

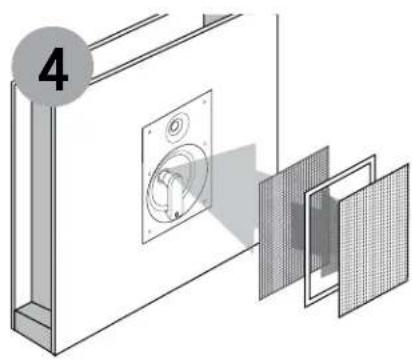

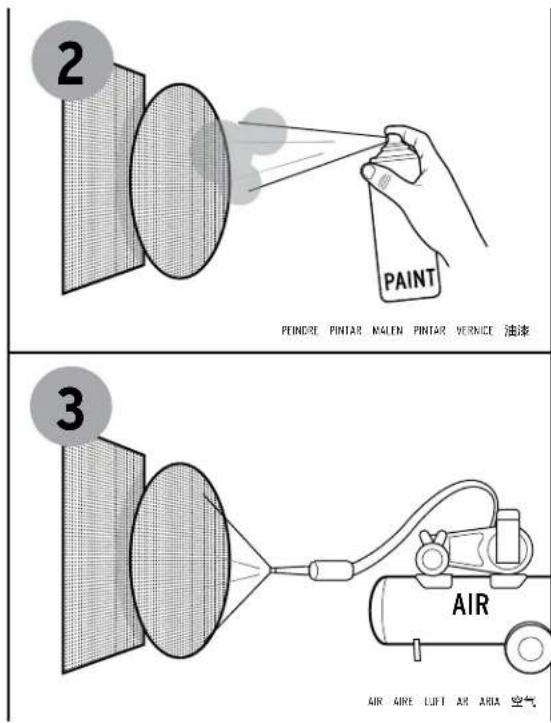

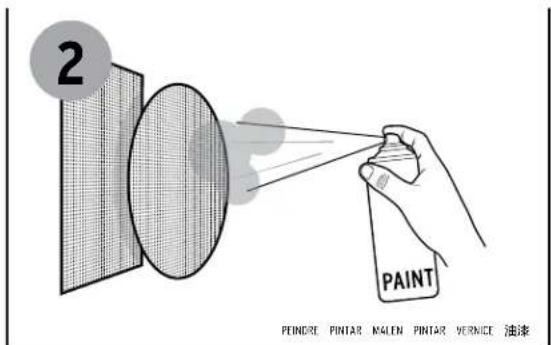

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

Technical diagram showing a solar panel installation and its cross-sectional view of a filter structure (no text or symbols present)

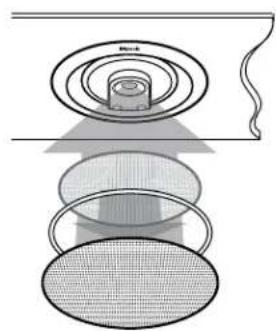

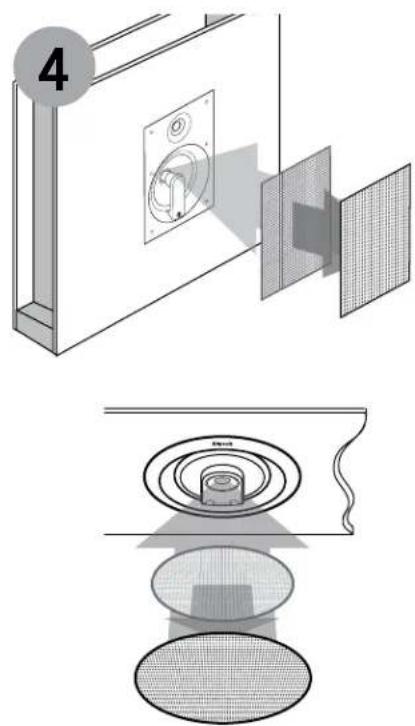

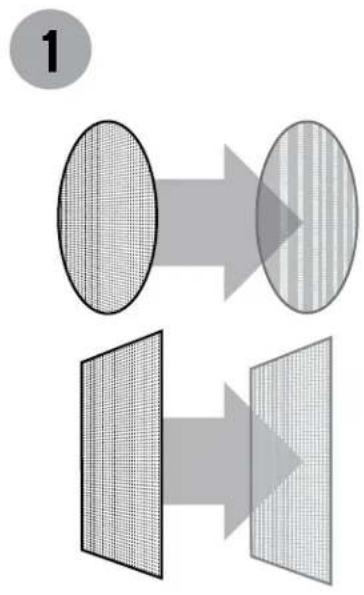

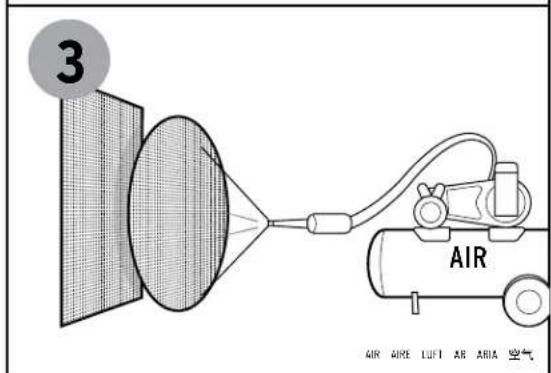

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

1

Diagram showing three types of optical filters with different patterns and light paths, no text or symbols present.

Diagram of a layered structure with concentric circular components and a wavy top section (no text or symbols)

ADJUSTMENTS

AJUSTEMENTS AJUSTES ANPASSUNGEN AJUSTES RETTIFICHE 调整

TWEETER LEVEL (TW)

MIDRANGE LEVEL (MR)

IMPEDANCE (Imp) ACOUSTIC AIM

AMPLIFICATEUR AMPLIFICADOR VERSTÄRKER AMPLIFICATORE 扩音器

Simple line drawing of a person in bed with sound waves and a circular diagram showing light rays (no text or symbols)

Simple line drawing of a person in bed with sound waves and a circular light source, no text or symbols present

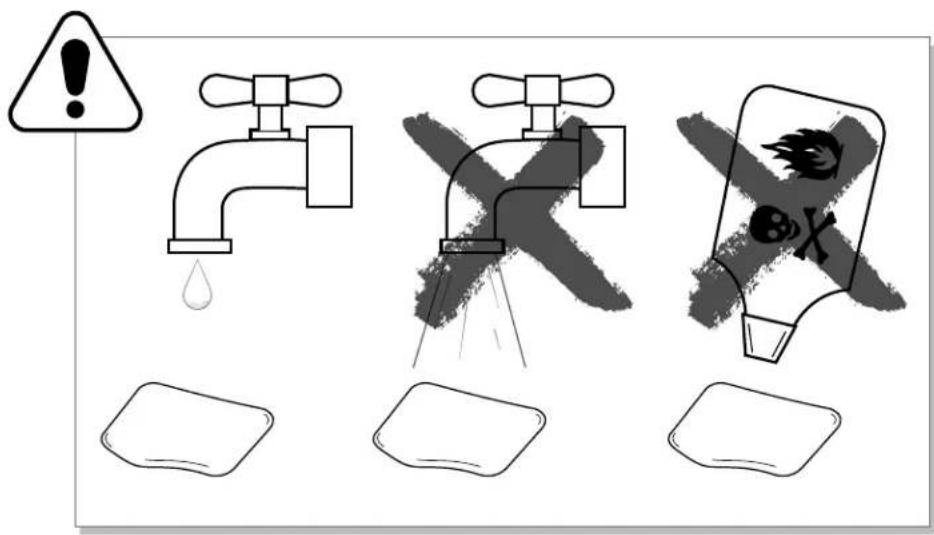

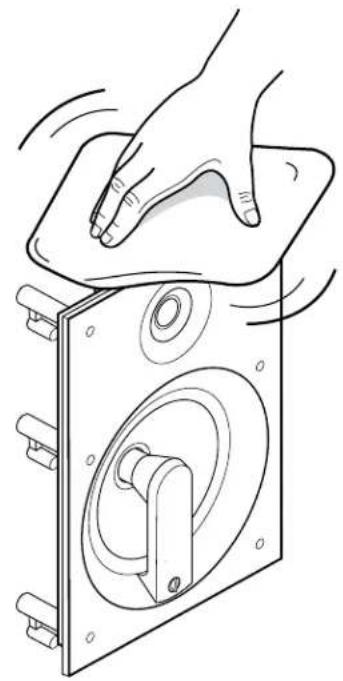

CARE AND CLEANING

ENTRETIEN ET NETTOYAGE CUIDADO Y LIMPIEZA PFLEGE UND REINIGUNG CURA E PULIZIA CUIDADOS E LIMPEZA 保养与清洁

Illustration of a hand cleaning a mechanical device with a circular component and handle (no text or symbols)

Klipsch®

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

1-800-KLIPSCH ©2015 KLIPSCH GROUP, INC. ALL RIGHTS RESERVED. KLIPSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KLIPSCH GROUP, INC. IN THE USA AND OTHER COUNTRIES. A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION.

V03-0407
