Mythos Gemstand - Speaker Stand DEFINITIVE TECHNOLOGY - Free user manual and instructions

Product Type	Speaker Stand
Brand	Definitive Technology
Model	Mythos Gemstand
Compatible Speakers	Definitive Technology Gem Loudspeakers
Base Material	Glass
Post Material	Metal
Cable Management	Hidden wire channel inside post
Speaker Mounting	Screw through post into rear insert nut
Included Carpet Spikes	Yes
Included Rubber Feet	Yes
Included Hardware	Cap screws (2), steel insert, bolt cover skirt, hex key
Bottom Pad	Translucent rubber pad included
Assembly Required	Yes
Custom Engineered	Exclusively for Gem Loudspeakers
Setup Recommendation	Equilateral triangle with listening position, toe-in optional
Stability on Carpet	Spikes push into carpet
Stability on Hard Floors	Rubber feet provide grip
Additional Offer	Free Mythos button via email ([e-mail])
Documentation	User’s guide included

Frequently Asked Questions - Mythos Gemstand DEFINITIVE TECHNOLOGY

What is the product type of the Mythos Gemstand?

The Mythos Gemstand is a speaker stand designed exclusively for Definitive Technology Gem Loudspeakers.

How do I assemble the Mythos Gemstand?

First, attach the post to the glass base using the included cap screws, steel insert, and bolt cover skirt. Then attach either carpet spikes or rubber feet depending on your floor type. Finally, secure the Gem speaker using the speaker screw through the post into the speaker's insert nut. Tighten firmly but do not overtighten.

How do I attach my Gem speaker to the stand?

Remove the plastic plug from the insert nut on the rear of the Gem speaker. Position the speaker to accept the stand's speaker screw. Insert a Phillips screwdriver through the post and tighten the screw into the nut. Tighten securely, but do not overtighten.

What type of speakers is this stand compatible with?

The Mythos Gemstand is custom engineered for Definitive Technology Gem Loudspeakers. It is not intended for other speaker models.

Does the stand include cable management?

Yes, the post features a hidden wire channel for routing speaker cables neatly.

What kind of floor protection is included?

The stand includes a translucent bottom pad for use on hard floors, and rubber feet are also included. For carpet, carpet spikes are provided to ensure stability.

Can I use the stand on carpet? Does it come with spikes?

Yes, the stand comes with carpet spikes for use on carpet. Push the spikes into the carpet for stability.

How should I position the speakers for best sound?

For best imaging performance, create an equilateral triangle between the speakers and your listening position. Aim the speakers inward if necessary.

What is the weight capacity of the stand?

The manufacturer did not specify a weight capacity, but the stand is designed to safely support the Definitive Technology Gem Loudspeakers.

Where can I find the user manual?

The user manual is included with the product. It is also available for free download on notice-facile.com and other manual websites.

USER MANUAL Mythos Gemstand DEFINITIVE TECHNOLOGY

Definitive Technology

MYTHOS GEMSTAND USER'S GUIDE

The only stand custom designed and engineered for Definitive Technology Gem Loudspeakers.

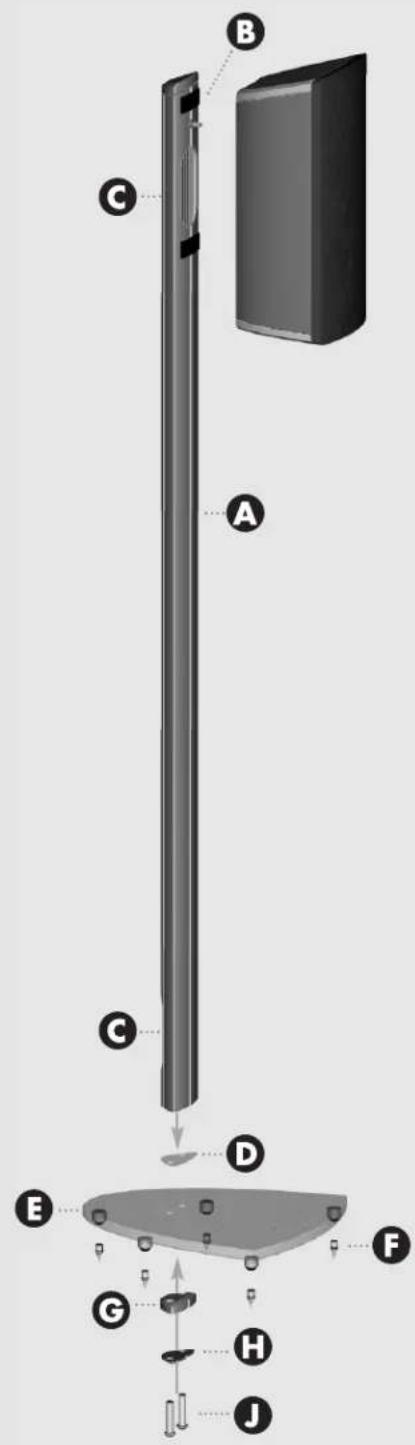

Parts:

• Post Including Top Cap, Pads, Speaker Screw, Hidden Wire Channel.
  • Translucent Bottom Pad
  • Glass Base Including preattached Feet.
  • Carpet Spikes, Rubber Feet F
• Bottom Assembly: Bolt Cover Skirt Steel Insert, Cap Screws (2).
• Hex Key.

Attach Post to Glass Base:

1. With Glass Base upside down (feet up), place the Bolt Cover Skirt open side up (with curve matching base) over Screw Holes.
2. Place the Steel Insert into the Bolt Cover Skirt. Insert the Two Cap Screws into this assembly.
3. Slide the Translucent Bottom Pad Over Screws on the other side of the Glass Base. This will hold the assembly in place.
4. Line up Cap Screws with bottom of Post A
5. Secure assembly to Post by tightening the two Cap Screws firmly using the Hex Key. Do not overtighten.
6. Attach Carpet Spikes (for use with carpet) or Rubber Feet (for hard floor use).
7. Set stand upright. Push Spikes (if used) into carpet for stability.

Attach Gem Speaker to GemStand:

1. Prewire the GemStand Post using the hidden wire channel provided.
2. Make your wire connections to the Gem Loudspeaker before attaching the loudspeaker to the stand.
3. Remove the plastic plug from the Insert Nut on the rear of the Gem Loudspeaker. This is the small hole located above the connectors.
4. Position the Gem Loudspeaker to accept the GemStand's Speaker Screw. Insert a Phillip's Head screwdriver through the GemStand's Post and tighten the Speaker Screw into the Insert Nut. Tighten securely, but do not overtighten.

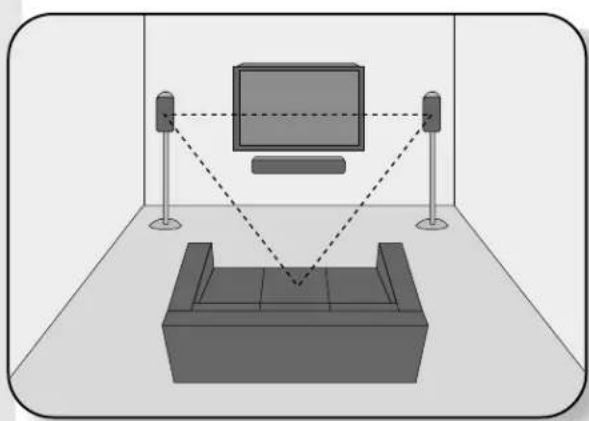

Diagram of a room setup with a monitor, two speakers, and a sofa, connected by dashed lines to a central display (no text or symbols present)

Gem Loudspeaker front stage speaker setup: For best imaging performance, create an equilateral triangle between the speakers and your listening position. Aim speakers "in," if necessary.
