Product Type	Electronic Ceramic Tower Heater
Brand	Lasko
Model	CT16550
Power Source	120V AC, 60Hz
Wattage	1500W (High) / 750W (Low)
Heating Element	Ceramic
Number of Heat Settings	2 (High and Low)
Oscillation	Yes, with oscillation button
Remote Control	Yes, requires 2 AAA batteries (not included)
Automatic Temperature Control	Yes, on High heat only; 5 preset temperatures plus Max
Power Indicator Light	Red light when plugged in
Safety Features	Thermal overload protector, automatic shut-off, polarized plug
Recommended Clearances	3 ft from front, 1 ft from sides and rear
Placement	Stable, flat, level surface
Cleaning	Vacuum intake grills every 2 weeks; soft cloth for body; do not immerse
Dimensions (approx.)	10.5 x 10.5 x 24.5 inches
Weight (approx.)	7 lbs
Warranty	3-year limited warranty (USA and Canada only)
Customer Service	1-800-233-0268, Mon-Fri 8AM-5PM EST

Frequently Asked Questions - Electronic Ceramic CT16550 Lasko

How do I turn on the Lasko CT16550 heater?

Plug the heater into a 120V outlet. The red power light will come on. Press the Power Button; the first press sets High heat (1500W) on Max, second press sets Low heat (750W), third press turns the heater off.

Can I use an extension cord with this heater?

No, never use an extension cord. Plug the heater directly into a 120V wall outlet. Using an extension cord, power strip, or surge protector may create a fire hazard.

How do I set the automatic temperature control?

Press the Temperature Button (a) to select a desired setting. The automatic function works only on High heat. The light under the chosen temperature blinks until the room reaches that temperature, then the heater cycles on/off to maintain it. Set to Max for continuous operation.

How do I use the oscillation feature?

Press the Oscillation Button to start the heater oscillating back and forth. Press again to stop. In automatic temperature mode, oscillation stops when the set temperature is reached and resumes when the heater turns back on.

Why did my heater shut off unexpectedly?

The heater has a thermal overload protector. If it overheats, it shuts off automatically. Unplug the heater, wait 10 minutes for it to cool, then plug it back in and follow the operation instructions. Also check that the temperature setting has not been reached, or that the heater needs cleaning.

How do I clean the Lasko CT16550 heater?

Always unplug the heater before cleaning. Use a vacuum with a brush attachment to remove lint and dirt from the surface and intake grills. Vacuum the intake grills every two weeks. Use a soft cloth for the body. Never use alcohol, solvents, or immerse the heater in water.

Does the remote control come with batteries?

No, the remote requires two AAA batteries (not included). Do not mix old and new batteries or different types. Dispose of batteries properly; do not throw them in fire.

What is the recommended placement for the heater?

Place the heater on a stable, flat, level surface. Keep combustible materials (furniture, bedding, curtains) at least 3 feet from the front and 1 foot from the sides and rear. Do not use on soft surfaces like beds. Keep away from water and do not use outdoors.

How long is the warranty on this heater?

Lasko offers a 3-year limited warranty from the date of original purchase for the original purchaser in the USA, its territories, and Canada. It covers defects in workmanship and materials. Proof of purchase is required. Contact Lasko customer service at 1-800-233-0268 for warranty claims.

Can I get replacement parts for the CT16550?

Many electronic and heater components are not available to consumers for installation or replacement due to safety reasons. For obsolete or discontinued products, parts may not be available. Contact Lasko customer service at 1-800-233-0268 for assistance with replacement parts.

USER MANUAL Electronic Ceramic CT16550 Lasko

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

This Heater is intended for use as supplemental heat. This Heater is for residential use only.

It is not intended to be used in commercial, industrial or agricultural settings.

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

Have a Question? Need a Part? Please Do Not Return Product to Store! Contact Lasko Customer Service:

1-800-233-0268 Monday-Friday 8AM - 5PM EST.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock and injury to persons:

Read all instructions before using this Heater.

WARNING

PLUG HEATERS DIRECTLY INTO A 120V WALL OUTLET/RECEPTACLE ONLY. NEVER USE WITH AN EXTENSION CORD. DO NOT PLUG HEATER INTO ANY OTHER CORD CONNECTED DEVICE, SUCH AS A POWER STRIP, SURGE PROTECTOR, MULTIPLE OUTLET ADAPTER, CORD REEL OR OUTLET-TYPE AIR FRESHENER. THE USE OF SUCH DEVICES MAY CREATE A FIRE HAZARD. DO NOT PLUG MULTIPLE DEVICES IN THE SAME OUTLET OR ON SAME CIRCUIT AS HEATER.
FAULTY WALL OUTLET CONNECTIONS MAY CAUSE THE WALL OUTLET TO OVERHEAT. BE SURE THAT HEATER PLUG FITS TIGHTLY INTO OUTLET BEFORE EACH USE. DURING USE, CHECK TO MAKE CERTAIN THE HEATER PLUG IS NOT OVERHEATING. IF NECESSARY HAVE A QUALIFIED ELECTRICIAN CHECK AND/OR REPLACE THE WALL OUTLET. DO NOT USE THIS HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES.
Make certain that the power source conforms to the electrical requirements of the Heater.
Extreme caution is necessary when any Healer is used by or near children or invalids. The Healer should not be left operating unattended. Never leave children unattended when the heater is on or plugged in.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
DO NOT use the Heater in areas where gasoline, paint, or flammable liquids are used or stored. DO NOT use Heater in locations where flammable or explosive chemicals are stored, or in wet atmospheres.
Do not operate any Heater with a damaged cord or plug or after the Heater malfunctions, or has been dropped or damaged in any manner. To disconnect Heater, turn the Heater OFF then remove the plug from the outlet.
Always unplug Heater when not in use. Unplug power cord before servicing or moving the Heater.
Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock. fire, or damage the Heater. Do not block or jamper with the Heater in any manner while it is in operation.
Do not block air intakes or exhaust in any manner. Do not place on soft surfaces, like a bed, where openings may become blocked. Do not depend on the anoff switch as the sole means of disconnecting power when servicing or moving the heater. Always unplug the power cord.

CAUTION

- Always place the Heater on a stable, flat, level surface when operating, to avoid the chance of the Heater overturning. Locate the Power Cord so the Heater or other objects are not resting on it. DO NOT run Power Cord under carpeting. DO NOT cover Power Cord with throw rugs, runners, or similar coverings as this may cause cord to overheat. Arrange Power Cord away from room traffic and where it will not be tripped over.

- This Heater is HOT when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use handle when moving this Heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9 m) from the front of the Heater and keep them at least 1 foot (0.3 m) from the sides and rear.

- This Heater is not intended for use in wet or damp locations. This Heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER locate a Heater where it may fall into a bathtub or other water container.

• DO NOT use Heater outdoors.

- This Heater is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS HEATER DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).

- This Heater is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS HEATER DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 13 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, or uses, is suitable for any other use of the equipment, and is not suitable for any other use of the equipment. The equipment is used to ensure that it is necessary for all other communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the equipment. The equipment is not intended to perform an interference with the equipment. The equipment is not intended to receive. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or manager should have a direct connection between the devices and their changes and modifications made to the equipment without the approval manufacturer could void the user's authority to operate this equipment.

Please contact Customer Service at 800-233-0266 Monday through Friday from 8am to 6pm EST for assistance.

SAVE THESE INSTRUCTIONS

MODELO CT16550

1. Carefully remove the Heater from the plastic bag and the carton.
2. Place the Heater on a firm and level surface.
   Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/or hardwood floors.
3. Plug the cord set into a 120 volt outlet.
   WARNING

Be sure that the plug fits tightly into outlet. When plugs fit loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious fire hazard: if covered by a curtain or drape, the fire hazard is even greater.

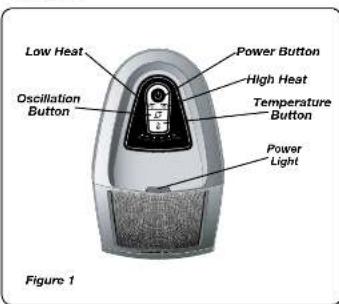

1. When the Heater is plugged in, the Power Light will come on indicating that there is power to the unit. The Power Light will remain lit until the Heater is unplugged from the electrical outlet.
2. Turn the Heater ON by pressing the Power Button
3. When initially turned on, the Healer will be in High heat (1500 Watts) on Max. (The High light will be steady and the Max light will be blinking).
4. Press the Power Button once and the Heater will be in Low Heat, indicated by the steady light beside Low.
5. Pressing the Power Button a third time will turn the Heater OFF.
6. When the Heater is 105, there is little change in Heater will
7. When the Heater is turned OFF, the red light on the Heater will remain lit until the Heater is unplugged from the electrical outlet.

Oscillation Function:

1. Pressing the Oscillation Button will allow the Heater to oscillate back and forth. To stop the oscillation, press the Oscillation Button again. When the Heater is in Automatic Temperature Control, the oscillation function will stop when the set temperature is reached and resume when the Heater turns back on.

Temperature Function

The automatic temperature function will only operate on "High" heat. You cannot set the temperature automatically when the unit is in the low heat mode.

1. To set the room at a specific temperature, press the Temperature Button (a) to the desired setting. The light under the chosen temperature will continue to blink until the room reaches the desired temperature. The Heater will cycle off and on to maintain the room temperature. When set on MAX, the Heater will run continuously.

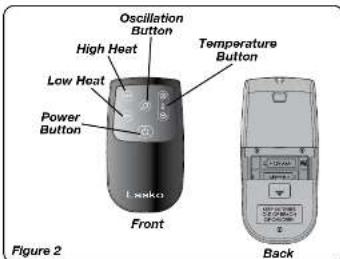

Remote Control (Figure 2):

1. Install two "AAA" batteries (not included).
2. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
3. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.
4. Press the power button on the remote to turn the heater on and off.
5. Press the "high" button to put the heater into high heat
6. Press the "low" button to put the heater into low heat
7. Press the "low" button to put the heater into low heat.
8. The oscillation button on the remote works identically to the
   oscillation button on the heater.
9. Press the plus or minus sign on the temperature control button.
   (3) to select the desired temperature setting.

If you lose your remote control, please call Customer Service to order a replacement at 1-800-233-0268. Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. EST.

MODEL CT16550

SAFETY FEATURE

1. A thermal overload protector is built in to prevent overheating.
2. If an overheat temperature is reached, the Heater will automatically shut off. It can only resume operation when the unit is reset. (See reset instructions below).
   To Reset Heater:
3. Unplug the Heater and wait 10 minutes for the unit to cool down.
4. After the 10 minutes, plug the Heater in again and follow the OPERATION INSTRUCTION described in this instruction manual.

MAINTENANCE

⚠ WARNING

TROUBLE SHOOTING TIPS

If your heater shuts off unexpectedly or fails to operate, the previously mentioned safety feature may have been activated to prevent overheating.
1. Be sure the power cord is plugged into a working electrical outlet.
2. Check your Temperature setting. The Heater may be off because it has reached the desired temperature setting.
3. If your Heater runs for several minutes and shuts off repeatedly, your Heater may require cleaning. See Maintenance section below.
If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at 1-800-233-0268, Monday through Friday, between the hours of 8am and 5pm EST.

To reduce the risk of electrical shock and fire please observe the following instructions. Cleaning the Heater regularly will help to maintain its efficiency.

• Always unplug the cord before moving, servicing or cleaning.
• NEVER place the Heater in or near water. DO NOT IMMERSE HEATER IN WATER.
• Clean the Heater only with a vacuum equipped with a brush attachment; the vacuum will remove
  the lint and dirt from the surface of the Heater.
• Vacuum intake grills every two weeks; this will help to maintain the optimum Heater performance.
• Use a toothbrush or other soft bristle brush to gently loosen any dirt not removed by the vacuum.
• NEVER attempt to take apart the Heater.
• Clean the body of the Heater with a soft cloth only.
• NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.

STORAGE: Store the Heater with these instructions in the original carton in a cool, dry place.
DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com®.

LASKO PRODUCTS, LLC LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.

HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for three (3) years from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO: Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, LLC at customer expense with proof of purchase within the warranty period. Contact the Lasko customer service department to obtain a Return Authorization ("RA"). DO NOT return products without an RA or the warranty claim will not be processed.

WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted, or the use of the product for commercial or nonresidential service. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement.

ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST THREE YEARS FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHVER FIRST OCCURDS AND IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIRS. ANY INFORMATION IS NOT TO BE USED IN ANY ANY THIS DRAWING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPiration OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.

Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:

Toll-Free [phone]. Email: [e-mail]

Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday

through Friday, 0am-0pm Eastern. Please have your model number available, as well as the type and style located on the underside of your

product). Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

(Please do not send product to this location) www.laskproducts.com

PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.

Manual printed in China

CT16550ES
