Elite Collection Revolution CC23630 - Heating Lasko - Free user manual and instructions

Brand	Lasko
Model	Elite Collection Revolution CC23630
Product Type	Electric Space Heater
Power Source	120V AC, 60Hz, Polarized Plug
Heat Settings	High (H3), Medium (H2), Low (H1)
Oscillation	Base oscillation and independent grill rotation
Timer	Up to 8 hours
Thermostat	Auto Eco™ with adjustable temperature setpoint
Remote Control	Digital remote with batteries included
Safety Features	Tip-over switch, thermal overload protector, auto shut-off
Dimensions (approx.)	Height 25 in. (63.5 cm), Width 11 in. (27.9 cm), Depth 11 in. (27.9 cm)
Weight (approx.)	12.5 lbs (5.7 kg)
Filter	Removable filter cover; vacuum intake grills every 2 weeks
Warranty	Limited 3-year warranty (USA, territories, Canada only)
Customer Service	1-800-233-0268 (Mon-Fri, 5AM-5PM EST)
Included Accessories	Remote control, batteries, filter cover
Usage	Indoor residential supplemental heat only

Frequently Asked Questions - Elite Collection Revolution CC23630 Lasko

How do I clean the filter on my Lasko CC23630 heater?

To clean the filter, first unplug the heater. Then push the tab on the back to remove the filter cover. Use a vacuum with a brush attachment to clean the intake grills every two weeks. For stubborn dirt, use a soft bristle brush like a toothbrush. Replace the filter cover after cleaning.

What does the Auto Eco™ thermostat do?

Auto Eco™ automatically adjusts the heat output to maintain your desired room temperature. When the ambient temperature is below the set point, the heater runs on High. When it reaches the set point, it switches to Low and continues until the temperature rises 2°F above the set point, then turns off the heating element while the fan runs for 15 seconds. The cycle repeats as needed.

My heater shut off unexpectedly. How do I reset it?

If the heater shuts off unexpectedly, it may have activated the thermal overload or tip-over safety feature. Unplug the heater and wait at least 10 minutes for it to cool down. After that, plug it back into a 120V outlet and turn it on. Make sure the heater is on a stable, level surface and not blocked.

Can I use an extension cord with this heater?

No. Never use an extension cord, power strip, surge protector, or any other cord-connected device. Plug the heater directly into a 120V wall outlet. Using extension cords creates a fire hazard.

How do I set the timer on the CC23630?

Press the Timer button repeatedly to cycle through hour settings up to 8 hours. The display will show the selected time. After a few seconds, the timer is set and the heater will run for that duration then automatically shut off.

What is the difference between base oscillation and grill rotation?

Base oscillation rotates the entire heater left and right for widespread heat distribution. Grill rotation rotates the front grille independently to direct airflow. You can use both simultaneously or separately for focused or wide-area heating.

The remote control does not work. What should I do?

First, check that the batteries are installed correctly and have fresh batteries. Ensure there are no obstacles between the remote and the heater. If the heater is placed near other electronic devices, interference may occur; move the heater to another location. If issues persist, contact Lasko customer service.

Is this heater safe to leave unattended?

The heater has safety features like tip-over and thermal overload protection, but it is not recommended to leave it unattended. Always unplug the heater when not in use and keep it away from children, pets, and flammable materials.

How do I change the temperature display from Fahrenheit to Celsius?

Press and hold the (+) and (-) buttons simultaneously to toggle between °F and °C. The display will change accordingly.

What is the warranty period and how do I claim warranty?

The Lasko CC23630 comes with a limited 3-year warranty for the original purchaser in the USA, its territories, and Canada. To claim warranty, contact Lasko customer service to obtain a Return Authorization (RA) number. Return the product with proof of purchase at your expense. Do not return without an RA.

USER MANUAL Elite Collection Revolution CC23630 Lasko

AUTO ECO™ THERMOSTAT

NEW 6/21 & CC23630ES

Lasko

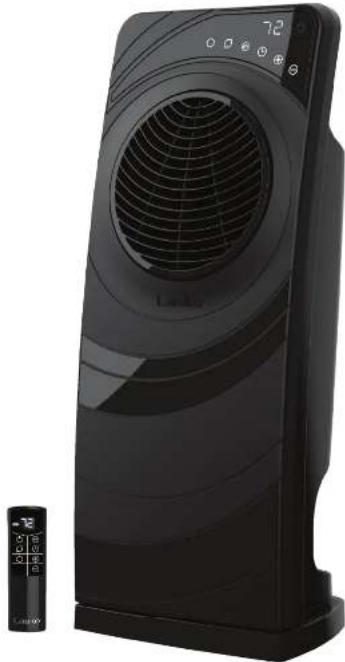

Revolution Full-Room Heater

with Digital Remote Control

Instruction Manual

Used for Model:

CC23630

Since 1906

Register Your Product Today

www.lasko.com/product-registration/

You will benefit from:

- Efficient and enhanced support

- Future product updates

Black industrial air conditioner with digital display and control panel (no visible text or symbols)

Have a Question? Need a Part?

Please Do Not Return Product to Store!

Contact Loco Customer Service:

[phone] Monday-Friday 5AM - 5PM EBL

(see in the USA, its contents, and contents only);

READ AND SAVE THESE INSTRUCTIONS

Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing uniformly information. Failure to comply with instructions could result in personnel injury and/or property damage. This Heater is intended for use as supplemental heat. This Heater is for residential use only. It is not intended to be used in commercial, industrial or agricultural settings.

NEW 6/21 1 CC23830ES

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock and injury to persons:

Read all instructions before using this Heater.

WARNING

• PLUG HEATERS DIRECTLY INTO A 120'N WALL OUTLET/RECEPTACLE ONLY. NEVER USE WITH AN EXTENSION CORD, DO NOT PLUG HEATER INTO ANY OTHER CORD CONNECTED DEVICE, SUCH AS A POWER STRIP, SURGE PROTECTOR, MULTIPLE OUTLET ADAPTER, CORD REEL OR OUTLET TYPE AIR FRESHENER. THE USE OF SUCH DEVICES MAY CREATE A FIRE HAZARD. DO NOT PLUG MULTIPLE DEVICES IN THE SAME OUTLET OR ON SAME CIRCUIT AS HEATER.
  • FAULTY WALL OUTLET CONNECTIONS MAY CAUSE THE WALL OUTLET TO OVERHEAT. BE SURE THAT HEATER PLUG FITS TIGHTLY INTO OUTLET BEFORE EACH USE. DURING USE, CHECK TO MAKE CERTAIN THE HEATER PLUG IS NOT OVERHEATING. IF NECESSARY HAVE A QUALIFIED ELECTRICIAN CHECK AND/OR REPLACE THE WALL OUTLET. DO NOT USE THIS HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES.
  • Make certain that the power source conforms to the electrical requirements of the Heater.
• Extreme caution is necessary when any Heater is used by or near children or invalids. The Heater should not be left operating unattended. Never leave children unattended when the Heater is on or plugged in.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• DO NOT use the Heater in areas where gasoline, paint, or flammable liquids are used or stored. DO NOT use Heater in locations where flammable or explosive chemicals are stored, or in wet atmospheres.
• Do not operate any Heater with a damaged cord or plug or after the Heater malfunctions, or has been dropped or damaged in any room. To dis-organized heater, how the Heater OFF then remove the plug from the outlet.
  • Always unplug Heater when not in use. Unplug power cord before servicing or moving the Heater.
• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock, fire, or damage the Heater. Do not block or tamper with the Heater in any manner while it is in operation.
• Do not block air intakes or exhaust in any manner. Do not place on soft surfaces, like a bed, where openings may become blocked. Do not depend on the on/off switch as the sole means of disconnecting power when servicing or moving the Heater. Always unplug the power cord.

CAUTION

• Always place the Heater on a stable, flat, level surface when operating, to avoid the chance of the Heater overturning. Locates the Power Cord so the Heater or other objects are not resting on it. DO NOT run Power Cord under carpeting. DO NOT cover Power Cord with throw rugs, runners, or similar ceilings as this may cause cord to overheat. Arrange Power Cord away from room traffic and where it will not be tripped over.
- This Heeler is HOT when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use handle when moving this Heeler. Keep combustible matensis, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet (0.9 m) from the front of the Heater and keep them at least 1 foot (0.3 m) from the sides and rear.
- This Heater is not intended for use in wet or damp locations. This Heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER locate a Heater where it may fall into a bathtub or other water container.
- DO NOT use Heater outdoors. - This Heater is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric
Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS Heater DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).
• This Heater is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS Heater DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).
- Romato controls for other appliances or electronic equipment can sometimes interfere with the operation of this Heater. If this occurs, move the Heater to another location.
- Keep Heater remote control unit away from chairs and your bed where it may be set or laid upon and inadvertently turn on the Heater.

Partes Incluidas

1

4

① Cuerpo

SAVE THESE INSTRUCTIONS

NEW 6/21 2 CC23630ES

NEW 6/21 7 CC23830ES

ADVERTENCIA

① Body 3 Remote Control
② Filter Cover ④ Batteries

Clean Filter

1. Push Tab In, then remove the Filter Cover from the back of the Heater.

2. Vacuum intake grills every two weeks; this will help to maintain the optimum Heater performance.

3. Use a toothbrush or other soft bristle brush to gently loosen any dirt not removed by the vacuum. Replace Filter Cover.

Controls

Power Button Turn Heater ON/OFF by pressing the Power Button.

Base Oscillation Button Press to Start/Stop the Base Oscillation function.

Grill Rotation Button Press to Start/Stop the Grill Rotation function. For a focused heat, press the the Grill Rotation Button again. This will stop the grill in your desired location, providing a more focused heat. Press the Grill Rotation Button again to restart rotation.

Heat Mode Button Heat can be adjusted to H3 (High), H2 (Mod), or H1 (Low).

Timer Button The timer can be set for up to 8 hours. Continue pressing the Timer Button to reach the desired time setting.

* Avin Ecn ^1 Thermostat Button (1)

Press to increase the desired room temperature.

* Auto Eco™ Thermostat Button (-) Press to Decrease the desired room temperature

CONSERVE ESTAS INSTRUCCIONES

NEW 6/21 6 CC23630ES

NEW 6/21 3 CC23830ES

* FOR MORE DETAILED DESCRIPTION OF AUTO ECO™ FUNCTION, SEE PAGE 4

AUTO ECO™ THERMOSTAT

Pressing the H or I buttons while in any Hester function or speed will turn on the Auto Eco™ junction.

1. To set the room at a specific temperature press the (+) or (+) buttons to the desired temperature. The temperature will be flashing on the display. The Un is now in Auto Eco™ Mode.

2. When you reach the temperature at which you want to set the unit, the set temperature will finish several times and then the display will return to indicate the current room temperature and will gradually change as the room temperature changes. NOTE: the temperature display does not indicate the temperature of the heated air being emitted by the Unit.

3. Heater will run on HIGH heat when the ambient temperature is less than the set temperature.

4. Heater will run on LOW heat when ambient temperature reaches set temperature and will continue to run on LOW heat until ambient temperature reaches 2 degrees Fahrenheit above set temperature.

5. Heater will turn OFF once the ambient temperature is greater than 2 degrees Fahrenheit above set temperature. The fan will continue to run for 15 seconds after the heater element is turned off.

All of this happens automatically with Lasko Auto Eco™ Technology. To deactivate the Auto Eco™ function, turn the Unit off or press the (A) button. NOTE: In Auto Eco™, the Unit will display the current room temperature in °C

Fahrenheit. Press the (+) and (+) buttons at the same time to change the display to ° Celsius. Press the same two buttons together again to change the display back to ° Fahrenheit.

SAFETY FEATURE

1. A Tip-Over Switch is built in to prevent operation if the Heater is tipped over.

2. A thermal overload protector is built in to prevent evacuation.

3. If an overheat temperature is reached, the Heater will automatically shut off.

To Reset Heater:

1. Unplug the Heater and wait 10 minutes for the Heater to cool down. For Miss the Heater has cooled down, give the wait into a 1976 clock

2. After the Heater has cooled down, plug the unit into a 120V electrical outlet and follow this operation instructions described in this manual. TROUBLE SHOOTING TIPS

THOOBLE SHOOTING TIPS

If your Heater shuts off unexpectedly or fails to operate, the previously mentioned safety feature may have been activated to prevent overheating. 1. Be sure the power cord is plapped into a working electrical outlet.

1. Make certain the batteries in the remote control are now and properly installed.

2. Check your Temperature setting. The Heater may be off because it has reached the desired temperature setting.

3. If your Heater runs for several minutes and shots off repeatedly, your Heater may require cleaning. See Maintenance section below.

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at [phone]. Monday through Friday, from Sun-Spm Eastern. STORAGE: Store the Heater with these instructions in the original carton in a cool, dry place.

DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com®.

MAINTENANCE

⚠ WARNING To reduce the risk of electrical shock and fire please observe the following instructions. Cleaning the Heater regularly will help to maintain its efficiency.

- Always unplug the cord before moving, servicing or cleaning.

- NEVER places the Heater in or near water. DO NOT IMMERSE HEATER IN WATER.

- Clean the Heater only with a vacuum equipped with a brush attachment; the vacuum will remove

the first and dirt from the surface of the Heater.

- Vacuum intake grills every two weeks; this will help to maintain the optimum Heater performance.

- Use a toothbrush or other soft bristle brush to gently loosen any dirt not removed by the vacuum.

- NEVER attempt to take apart the Heater.

- Clean the body of the Heater with a soft cloth only.

- NEVER use ALGOHOL, or SOLVENTS such as gasoline, benzene, paint thrine, or other hand wash channels.

LASKO PRODUCTS, LLC LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials. HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for three (3) years from the date of original purchase or and the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO: Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, LLC at customer expense with proof of purchase within the warranty period. Contact the Lasko customer service department to obtain a Return Authorization ("RA"). DO NOT return products without an RA or the warranty claim will not be processed.

WHAT THIS WARRANTY DOES NOT COVER. This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, or otherwise. The warranty is not to be reproduced, or it is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is not to be reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is also reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is all reproduced, or is a copy of this warranty. This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, or otherwise. The warranty is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is also reproduced, or its warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, or otherwise. The warranty is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is also reproduced, or its warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, or otherwise. The warranty is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is also reproduced, and/or its warranty does not apply if the product was damaged or failed because of accident, improper handling or operation; otherwise. The warranty is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is not to be reproduced, or it is also reproduced, and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its Warranty for any warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not apply if the product was damaged and/or its warranty does not only

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.

CUSTOMER SERVICE:

Toll-Free [phone]. Email: [e-mail] Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday.

Iam-From Eastern. Please have your model number available, as well as the type and style located on the underside of your product.

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19980

(Please do not send product to this location) www.laska.com

PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTS MAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.

Manual printed in China

NEW 6/21 4 CC23630ES

Lasko

NEW 6/21 5 CC23830ES

LEA Y GUARDE ESTAS INSTRUCCIONES
