USER MANUAL PE6110 Netis
10 Port Fast Ethernet PoE Switch/8 Port PoE/ 802.3af
PE6110


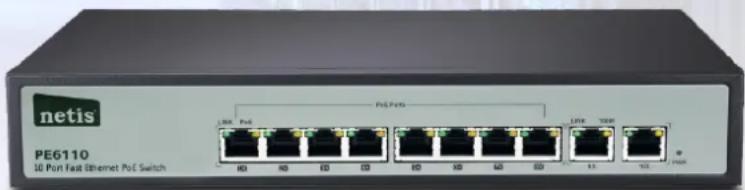

netis PE6110 10 Port Fast Ethernet PoE Switch POR LIFE TOMFeatures:
10 10/100Mbps Auto-Negotiation RJ45 ports, 8 PoE function
Complies with IEEE 802.3af standards
Supports PoE power up to 15.4W for each PoE port, 124W for all PoE ports
Supports PoE IEEE 802.3af compliant Powered Device (PD)
Supports 1K MAC address table, MAC address auto-learning & auto-aging
Supports IEEE 802.3x flow control for Full-duplex mode, Back-pressure flow control for Half-duplex mode ports
Plug and play, no configuration required
Steel desktop design, with internal power supply
What it does:
The netis PE6110 Fast Ethernet PoE Switch provides a great selection for expanding your home or office network. All the 8 10/100Mbps RJ45 ports support Power over Ethernet(PoE) function. It can automatically detect and supply power with the IEEE 802.3af compliant Powered Devices (PDs), like PoE APs, IP Phones,IP cameras, etc.In this case, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets.
Specification:
| Hardware | |
| Interface | 10 10/100Mbps RJ45 port, with8 PoE function |
| LED | PWR, 1-8 PoE, 1-10 100M |
| Power Supply | 100-240 V AC/50-60Hz |
| PoE Power | 48V/2.8A |
| Dimensions (L x W x H) | 280 x 173 x 43mm |
| Switching Features | |
| Standards | IEEE 802.3u 100BASE -TX, IEEE 802.3 10BASE -T, IEEE 802.3af, IEEE 802.3x Flow Control |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Switching Fabric Capacity | 2.0 Gbps |
| MAC Address Table | 1K, auto-learning & auto-aging |
| Flow Control | IEEE 802.3x Flow Control, Full-Duplex modeBack-Pressure Flow Control, Half-Duplex mode |
| PoE | 15.4 Watts (Max. each port) 124 Watts (Max. all ports) |
| Others | |
| Certification | FCC, CE |
| Environment | Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°COperating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
| Package | 1 * PE6110 1*Quick Installation Guide 2 * Brackets 1*Power Cord |
