| Product Type | Front-Load Washing Machine |
| Brand | Frigidaire |
| Model | ATFB6700FS |
| Capacity | 4.5 cu. ft. |
| Spin Speed | 1200 RPM |
| Dimensions (H x W x D) | 38.5 x 27 x 30 inches |
| Weight | 150 lbs |
| Power Supply | 120V, 60 Hz, 15A |
| Energy Star Certified | Yes |
| Number of Cycles | 12 (Normal, Heavy Duty, Delicates, Quick Wash, etc.) |
| Temperature Settings | Cold, Cool, Warm, Hot |
| Water Levels | Auto-sensing |
| Noise Level (Wash/Spin) | 52 dB / 72 dB |
| Detergent Dispenser | Yes, drawer with separate compartments |
| Door Lock | Child lock feature |
| Interior Drum Material | Stainless steel |
| Control Type | Electronic with LED display |
| Delay Start | Yes, up to 24 hours |
| End of Cycle Signal | Yes |
| Leveling Legs | Yes, adjustable |
| Warranty | 1 year parts and labor |
Frequently Asked Questions - ATFB6700FS FRIGIDAIRE
What is the capacity of the Frigidaire ATFB6700FS?
The Frigidaire ATFB6700FS has a capacity of 4.5 cubic feet, suitable for medium to large loads.
How do I clean the detergent drawer?

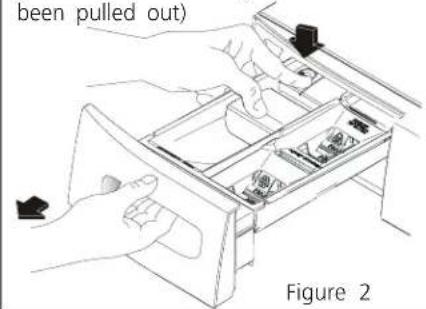

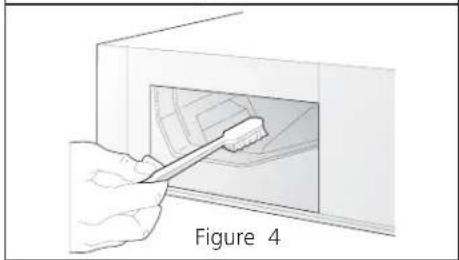

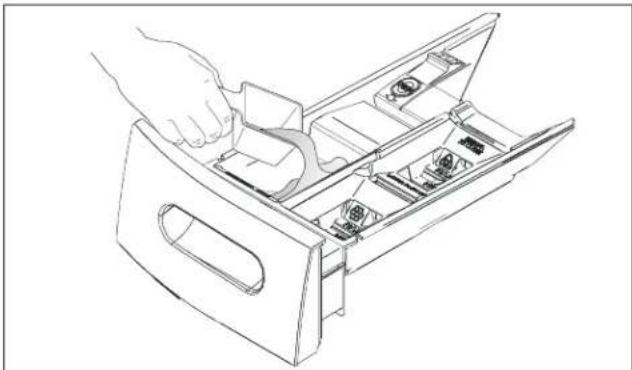

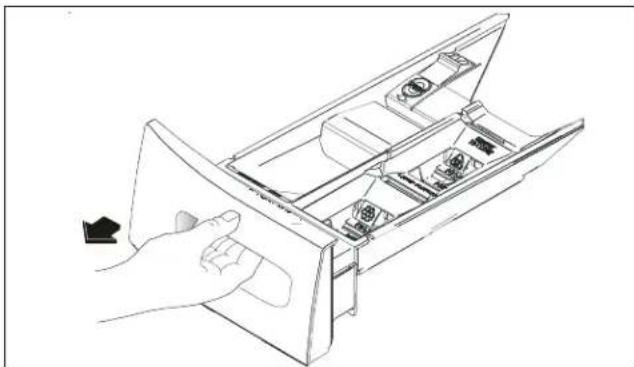

Remove the drawer by pressing the release lever. Wash it with warm water and a mild detergent. Use a small brush to clean the recess. Dry thoroughly before reinserting.
What should I do if the machine doesn't drain?
Check for kinked or clogged drain hose. Clean the pump filter located at the bottom front. Ensure the drain hose is not too high (max 8 feet).
How to use the child lock feature?
Press and hold the 'Child Lock' or 'Control Lock' button for 3-5 seconds until the indicator appears. Repeat to disable.
What are the dimensions of the Frigidaire ATFB6700FS?
The dimensions are approximately 38.5 inches high, 27 inches wide, and 30 inches deep.
Can I install a pedestal under this washer?
Yes, the ATFB6700FS is compatible with Frigidaire pedestals (sold separately) to raise the unit for easier loading.
How often should I clean the door gasket?
Wipe the door gasket and glass monthly with a damp cloth to prevent mold and odors. Leave the door open after use to air dry.
What does error code 'E21' mean?
Error code E21 indicates a draining issue. Clean the drain pump filter and check the drain hose for obstructions.
Is the drum self-cleaning?
The ATFB6700FS features a Clean Washer cycle that uses hot water and high-speed spin to remove residue.

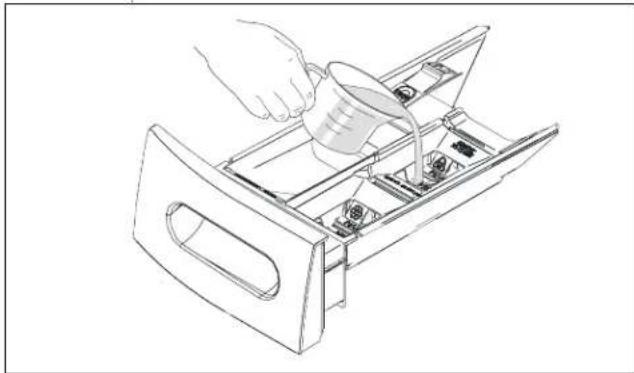

What type of detergent should I use?
Use HE (High Efficiency) detergent to avoid oversudsing. Liquid, powder, or pods are all acceptable.
