M175XUC - Battery CyberPower - Free user manual and instructions

Product Type	UPS Replacement Battery
Brand	CyberPower
Model	M175XUC
Battery Chemistry	Sealed Lead-Acid (SLA)
Voltage	12 V
Capacity	7.5 Ah
Dimensions (L x W x H)	151 x 65 x 94 mm
Weight	2.2 kg
Terminal Type	Faston Tab 0.25" (6.3 mm)
Compatible UPS Models	CyberPower VP900, CP900AVR, etc.
Cycle Life	200-300 cycles at 50% depth of discharge
Voltage Cut-off	10.5 V (under load)
Charging Voltage	13.8 - 14.1 V (float)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 50°C
Safety Features	Valve-regulated, spill-proof
Installation	Quick-connect terminals, drop-in replacement
Maintenance	Maintenance-free, no water refill needed
Disposal	Recycle according to local regulations (lead-acid)
Certifications	UL, CE, RoHS
Warranty	1 year limited

Frequently Asked Questions - M175XUC CyberPower

Will the CyberPower M175XUC battery work with my APC UPS?

The M175XUC is designed for CyberPower UPS systems with the same voltage and terminal type. It may not be physically compatible with other brands. Always check the voltage and dimensions of your existing battery before purchasing.

How long does the M175XUC battery last?

The lifespan depends on usage and environment. Typically, a sealed lead-acid battery lasts 3-5 years in standby use or 200-300 cycles at 50% depth of discharge. Higher temperatures can reduce lifespan.

Is the M175XUC a sealed battery?

Yes, it is a valve-regulated lead-acid (VRLA) battery, meaning it is sealed and maintenance-free. It will not leak even if tipped over.

What is the capacity of the M175XUC?

The M175XUC has a capacity of 7.5 Ah at a 20-hour discharge rate. This means it can provide 0.375 A for 20 hours under ideal conditions.

What tools are needed to replace the battery?

Typically, you will need a screwdriver to open the UPS battery compartment and possibly a pair of pliers to disconnect the terminals. The M175XUC uses Faston tabs for easy connection.

Can I install the M175XUC myself?

Yes, it is a user-replaceable battery. Ensure the UPS is unplugged and turned off. Disconnect the old battery, connect the new one, and close the compartment. Follow safety precautions.

How do I dispose of the old battery?

Lead-acid batteries are hazardous waste. Recycle them at a designated collection point, such as a battery retailer or municipal recycling center. Many stores offer free take-back programs.

What is the charging voltage for this battery?

The recommended float voltage is 13.8 to 14.1 V. The UPS charger manages this automatically, so no external charger is needed for normal replacement.

Does the M175XUC require any maintenance?

No, it is maintenance-free. There is no need to add water or check electrolyte levels. Keep it clean and ensure proper ventilation.

What is the weight of the M175XUC battery?

The battery weighs approximately 2.2 kg (4.85 lbs). It is a compact and portable unit suitable for small to medium UPS systems.

USER MANUAL M175XUC CyberPower

Convert DC power to AC power for laptops, mobile devices, and electronics

The 175 Power Inverter (M175XUC) from CyberPower converts power from your vehicle's 12V DC power outlet to simultaneously power and charge up to four devices (175-watt peak) with its two household AC outlets, one 2.4 Amp USB-A port, and one 15W USB-C port. Use the AC outlets to power portable electronics while you're traveling. The USB ports will charge tablets, smartphones or any other USB-enabled device.

Safety features such as a 15-Amp fuse, surge protection, and automatic shutdown protect your connected devices from power surges and your automotive battery from power drain. The CyberPower M175XUC, which comes with a 2.5-ft power cord and a DC power plug, is ideal for powering mobile devices and office electronics while you're traveling. For peace of mind, this product is backed by a two-year limited warranty.

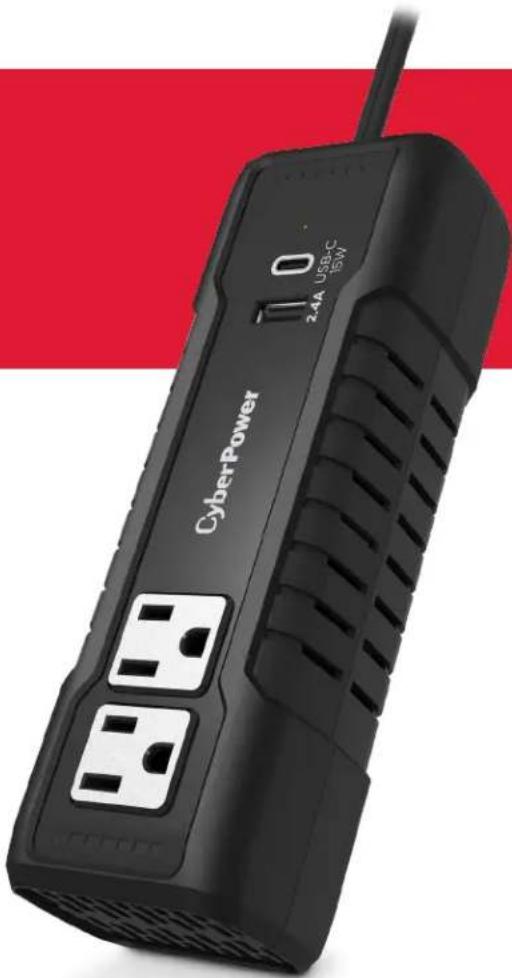

Black CyberPower device with two power plugs and a 10-pin cable, set against a red background (no readable text or symbols beyond branding)

TYPICAL APPLICATIONS

• Mobile Devices
• Laptop Computers
  • Consumer Electronics

FEATURES

• DC input: 11 - 15 VDC
• AC output: 175 watts peak, 150 watts continuous
- AC outlets: 2
• DC Power Cord Length: 2.5 ft
• USB-C charge ports: 1
• USB-C charge output: 15W
• USB-A charge ports: 1
• USB-A charge output: 2.4A
- Surge protection: Yes
• Automatic shutdown: Yes
• Warranty: Two-Year Limited

SPECIFICATIONS

INPUT

Input Plug Type 12VDC Auto Power Port

OUTPUT

Outlet Type 2 - NEMA 5-15R
Outlets - Total 2
Output Voltage 120 VAC
Output Watts - Continuous 150 Watts
Output Watts - Peak 175 Watts

OUTPUT - CONT.

USB Charge Port Yes
USB Charge Port Amperage 2.4 A (Shared)
USB Charge Port Quantity 2
USB Charge Port Type	1 Type A1 Type C
USB Charge Port Voltage	5 VDC
USB Charge Port Watts	15 Watts

SPECIFICATIONS CONT.

PHYSICAL
Color Black
PHYSICAL DIMENSIONS
Physical Dimensions - WxHxD (cm)	6.05 x 4.57 x 18.42 cm
Physical Dimensions - WxHxD (mm)	60 x 46 x 184 mm
Physical Dimensions - WxHxD (in.)	2.38 x 1.8 x 7.25 in.
Weight (kg) 0.17 kg
Weight (lb) 0.38 lbs.

SHIPPING DIMENSIONS
Shipping Dimensions - WxHxD (cm)	9.19 x 22.2 x 5.72 cm
Shipping Dimensions - WxHxD (mm)	91.95 x 222.0 x 57.15 mm
Shipping Dimensions - WxHxD (in)	3.62 x 8.74 x 2.25 in.
Shipping Weight (kg) 0.23 kg
Shipping Weight (lbs.) 0.50 lbs.
CERTIFICATIONS
Environmental RoHS Compliant
Safety FCC; DOE VI
WARRANTY
Product Warranty Two-Year Limited
