USER MANUAL EMM20K22W ELECTROLUX

EN Freestanding Microwave Oven

VN Lò Vi Sóng

Installation & User manual 2

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

BEFORE USING YOUR APPLIANCE

Check for any damage or marks. If you find the appliance damaged or marked you must report it within 7 days to claim for damages under the manufacturers warranty. This does not affect your statutory rights.

Before you use the appliance, we recommend that you read through the whole user manual which provides the description of the product and its functions. It is important that the product is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

For future reference, please store this booklet in a safe place.

CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments.
• Farm houses.
• By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.

BEFORE YOU CALL

Please ensure you read the instruction manual fully before you call for service, or a full service fee could be applicable.

RECORD MODEL AND SERIAL NUMBER HERE:

Model: ____ Serial No: ____

IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER'S WARRANTY

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Electrolux manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Electrolux manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

CONTENTS

General warnings....3

Safety instructions....4

Product description....5

Accessories 5

Control panel 5

Daily use....6

Using the accessories....8

Helpful hints and tips....8

Care and cleaning....9

Troubleshooting....9

Installation....10

Electrical Installation.... 11

Customer care center.... 11

SYMBOLS

WARNING!

This symbol indicates information concerning your personal safety.

CAUTION!

This symbol indicates information on how to avoid damaging the appliance.

IMPORTANT!

This symbol indicates tips and information about use of the appliance.

ENVIRONMENT!

This symbol indicates tips and information about economical and ecological use of the appliance.

INFORMATION ON DISPOSAL FOR USERS

ENVIRONMENT!

• Most of the packaging materials are recyclable. Please dispose of these materials through your local recycling depot or by placing them in appropriate collection containers.
• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

GENERAL WARNINGS

Important safety instructions, read carefully and keep for future reference. Pass the user manual on to possible new owners of the appliance.

NOTE! You must read these warnings carefully before installing or using the appliance. If you need assistance, contact your Customer Care Department. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.

Children and vulnerable people safety.

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children.
• If the appliance has a child safety device, we recommend that you activate it if children are present.
• WARNING: Accessible parts may become hot during use. Young children should be kept away.

CAUTION!

Important safety instructions, read carefully and keep for future reference.

General safety

• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance isolate the power supply.
• If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a competent person.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Only a competent person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

• Do not heat liquids and other foods in sealed containers. They are liable to explode.

• Only use utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.
• The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.
• The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any food deposits removed.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The temperature of accessible surfaces may be high when the appliance is operating.
• This appliance is designed for freestanding application. It must not be installed behind a decorative door or installed in an enclosed cupboard. Please follow the installation requirements in this manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service agent or similarly qualified persons in order to avoid a hazard.

CAUTION!

In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

WARNING!

Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

SAFETY INSTRUCTIONS

Installation

WARNING!

Only a qualified person must install this appliance.

Remove all the packaging.

Do not install or use a damaged appliance.

Obey the installation instructions supplied with the appliance.

Always be careful when you move the appliance because it is heavy. Always wear safety gloves.

Keep the minimum distance from the other appliances and units.

Electrical connection

WARNING!

Risk of fire and electrical shock.

·This appliance is supplied with a power cord and 10A power plug suitable for connection to standard 10A power socket. If a power socket needs to be installed, it must be done by a suitably qualified electrician.

·The appliance must be earthed.

·Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.

·Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

·Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service Centre or an electrician to change a damaged mains cable.

·Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING!

Risk of injury, burns or electric shock or explosion.

• Use this appliance in a household environment.

• Do not change the specification of this appliance.

• Make sure that the ventilation openings are not blocked.

• Do not leave the appliance unattended during operation.

• Do not apply pressure on the open door.

• Do not use the appliance as a work surface and do not use the cavity for storage purposes.

• Do not operate appliance without food.

• Metallic containers for food and beverages are not allowed during microwave cooking.

Care and cleaning

WARNING!

Risk of injury, fire or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Regularly clean the appliance to prevent the deterioration of the surface material.

• Do not allow food spills or cleaner residue to accumulate on door sealing surfaces.

• Remaining fat or food in the appliance can cause smoke/fire, particularly on the grill element.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• Do not use a steam cleaner to clean this appliance.

Disposal

WARNING!

Risk of injury or suffocation.

· Disconnect the appliance from the mains supply.

· Cut off the mains cable and discard it.

PRODUCT DESCRIPTION

1 Lamp
2 Safety Interlock system
3a Power level Knob
3b Timer Knob
4 Control panel
5 Brown mica cover
6 Turntable shaft

ACCESSORIES

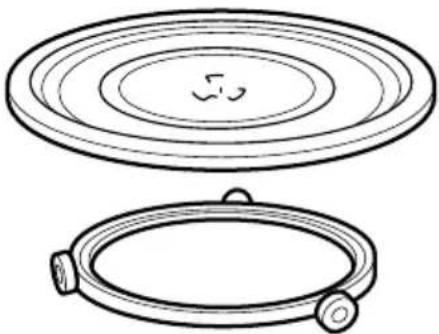

Turntable set

Glass cooking tray and roller guide.

Always use the turntable set to prepare food in the appliance.

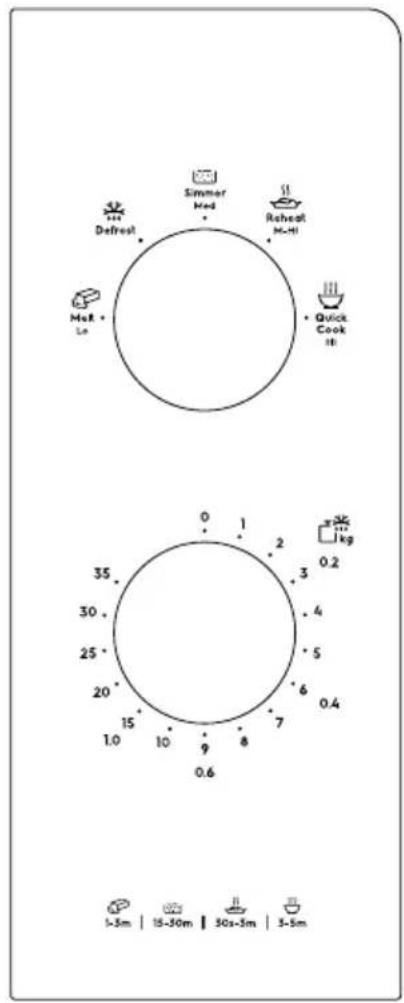

CONTROL PANEL

Symbol Function Description
1		Quick Cook Fast or normal cooking.
2		Reheat Normal cooking. Reheat.
3		Simmer Slow cooking, simmer and stew.
4		Defrost To defrost food by time.
5		Melt Keep warm. Melting/ soften.
6		Weight To defrost food by weight. Defrost weight.

DAILY USE

Suitable cookware and materials

Cookware / Material	Microwave								Grilling/ Convection
	Defrosting Heating Cooking
Ovenproof glass and porcelain (with no metal components, e.g. Pyrex, heat-proof glass)
Non-ovenproof glass and porcelain1)
Glass and glass ceramic made of ovenproof / frost-proof material (e.g. Arcoflam), grill shelf
Ceramic2), earthenware2)									--
Heat-resistant plastic up to 200°C3)									--
Cardboard, paper
Clingfilm
Roasting film with microwave safe closure3)									--
Roasting dishes made of metal, e.g. enamel, cast iron									■
Baking tins, black lacquer or silicon coated3)									■
Baking tray									■
Browning cookware, e.g. Crisp pan or Crunch plate									--
Ready meals in packaging3)

1) With no silver, gold, platinum or metal plating / decorations.

2) Without quartz or metal components, or glazes which contain metals.

3) You must follow the manufacturer's instructions about the maximum temperatures.

suitable

-- not suitable

DAILY USE (CONTINUED)

Power setting tables

Symbol	Power Level Output (W) Suitable Foods
		Quick Cook - High 800W	Heat beverage. Cook rice, vegetable & noodles.
		Reheat - Medium High 640W Cook poultry and meat. Reheat.
		Simmer - Medium 440W Simmer soup. Stew fish and seafood.
		Defrost - Medium Low 240W Thaw foods.
		Melt - Low 135W	Melt butter/ chocolate. Keep cooked food warm.

Defrosting

1. Turn the knob to

2. Select suitable time.

Note: If desired time is less than 3 minutes, turn the timer knob to over 3 minutes position and then turn back to the desired time setting.

1. Once the desired time is set, the cooking begins. If pausing in between is needed, just open the door at any time, and close it to resume operation.
2. When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off.

Note: If food is removed before time out, make sure to set back the timer to "0" position, this avoids the microwave oven from operating in empty load.

Below is some food defrosting time advice:

No.	Weight	Defrost time
1 200g	About 4 minutes
2 400g	About 8 minutes
3 600g	About 12 minutes

Do not use weight defrosting on food that is left out of the freezer for more than 20 minutes, or for frozen ready-made food.

USING THE ACCESSORIES

WARNING!

Refer to the safety chapters.

CAUTION!

Do not cook food without the turntable set. Use only the turntable set provided with the appliance.

Never cook food directly on the glass cooking tray.

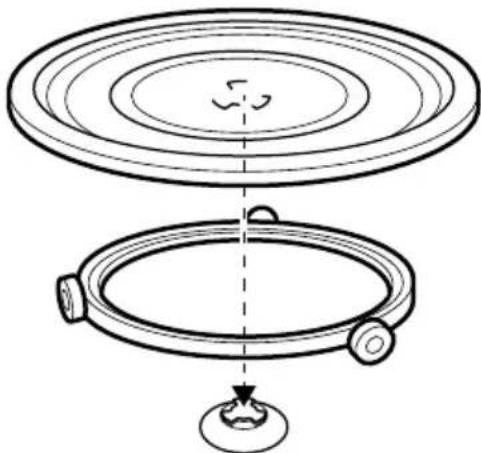

Inserting the turntable set

1. Place the roller guide around the turntable shaft.
2. Before first use remove the tape from the centre of the turntable shaft.
3. Place the glass cooking tray on the roller guide.

HELPFUL HINTS AND TIPS

Problem Remedy
You cannot find details for the amount of food prepared.	Look for a similar food. Increase or shorten the length of the cooking times according to the following rule:Double the amount = almost double the time, Half the amount = half the time
The food got too dry. Set shorter cooking time or select lower microwave power.
The food is not defrosted, hot or cooked after the time came to an end.	Set longer cooking time or set higher power. Note that large dishes need longer time.
After the cooking time comes to an end, the food is overheated at the edge but is still not ready in the middle.	Next time set a lower power and a longer time. Stir liquids halfway through, e.g. soup.

To get better results for rice use a flat, wide dish.

Defrosting

Always defrost roast with the fat side down. Do not defrost covered meat because this may cause cooking instead of defrosting. Always defrost whole poultry breast side down.

Reheating

When you reheat packed ready meals always follow the instructions written on the packaging.

Cooking

Always remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking. Let the meat, poultry, fish and vegetables stay covered after cooking.

Brush a little oil or melted butter over the fish. Add 30-45ml of cold water for every 250g of vegetables. Cut the fresh vegetables into even size pieces before cooking. Cook all vegetables with a cover on the container.

CARE AND CLEANING

WARNING!

Refer to the safety chapters.

Notes on cleaning:

- To clean front panel fingerprint-resistant stainless steel simply wipe with a soft cloth using warm water and a mild detergent. DO NOT use stainless steel cleaners, abrasive cleaners or harsh solvents.

• Clean the appliance interior after each use. Then you can remove dirt more easily and it does not burn on.
• Clean stubborn dirt with a special cleaner.
• Clean all accessories regularly and let them dry. Use a soft cloth with warm water and a cleaning agent.
• To soften hard to remove remains, boil a glass of water at full microwave power for 2 to 3 minutes.
• To remove odours, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.

TROUBLESHOOTING

WARNING!

Refer to the safety chapters.

Problem Possible cause Remedy
The appliance does not operate.	The appliance is deactivated. Activate the appliance.
	The appliance is not plugged in. Plug in the appliance.
	The fuse in the fuse box is blown. Check the fuse. If the fuse blows more than one time, contact a qualified electrician.
	The door is not closed properly. Make sure that nothing blocks the door.
The lamp does not operate. The lamp is defective. The lamp has to be replaced. Contact the customer service centre.
There is sparking in the cavity.	There are metal dishes or dishes with metal trim.	Remove the dish from the appliance.
	There are metal skewers or aluminium foil that touches the interior walls.	Make sure that the skewers and foil does not touch the interior walls.
The turntable set makes scratching or grinding noise or does not rotate smoothly.	There is an object or dirt below the glass cooking tray.	Clean the area below the glass cooking tray including rollers. Check turntable roller assembly and glass are installed correctly.
The appliance stops operating without a clear reason.	There is a malfunction. Check ventilation of the unit is not obstructed. If this situation repeats with correct installation call the customer service centre.
Microwave runs cooking cycle but food does not heat up.	Internal self-resetting thermostat has activated. The microwave is fitted with a thermostat to protect internal components from overheating.	Once the thermostat's temperature has reduced the unit should function normally. Wait 5 minutes then try the appliance again.
Steam accumulating on microwave oven door or leaking from vents.	Cooking foods with a high moisture content will always produce steam.	This is a normal part of the cooking process.
Smoke during cooking process.	Fat accumulated on cavity grill element.	Ensure inside of unit is cleaned regularly.

If you cannot find a solution to the problem yourself, contact your dealer or the customer service centre.

The necessary data for the customer service centre is on the rating plate on the appliance.

We recommend that you write the data here:

Model (M)

Product number (PNC)

Serial number (S.N.)

INSTALLATION

CAUTION!

Do not block the air vents. If you do that, the appliance can overheat.

CAUTION!

Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire.

• Put the appliance far away from steam, hot air and water splashes.
• If the appliance is stored/ transported at sub-zero temperatures, do not activate it immediately after installation. Allow at least two hours for it to be brought up to room temperature before turning on the unit.

Installation

• Remove all packing material and any promotional material from the microwave oven.
• Examine the oven for any damage such as dents or a broken door. Do not install if the oven is damaged. Call the service centre.
• Remove the protective film on the oven cabinet surface. Do not remove the light brown Mica cover that is attached to the right-hand side of the oven cavity to protect the magnatron.
• Do not leave the packing material so that small children can play with it. This can be hazardous.

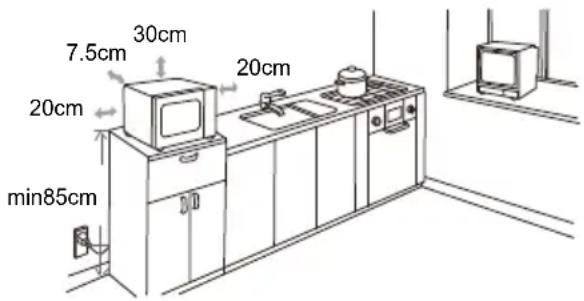

• Select a flat, level surface that provides enough open space for the intake and outlet vents and that is strong enough to bear the weight of the oven. A minimum clearance of 7.5cm is required between the oven and any adjacent walls. Leave a minimum clearance 30cm above the oven.

Blocking the intake or outlet vents can damage the oven. If air vents are blocked during operation, the oven may overheat, and this may lead to malfunctioning. Hot air escapes from the vents, so be sure not to obstruct it or let curtains come between the oven and the rear wall.

NOTE: It is recommended to have greater than 7.5cm clearance on at least one of the sides to improve product performance and operation.

• The oven should be placed in a stable position to avoid the possibility of causing vibration or noise.
• Do not remove the legs from the bottom of the oven.
• This oven should only be installed freestanding; not built-in or in a cabinet.
• Keep the oven away from heat and water. Exposure to heat and water can lower the efficiency and lead to malfunctioning.
• Place the oven as far away from radios and TV as possible. Operation of the oven may cause interference to your radio or TV reception.
• When there is interference, it may be reduced or eliminated by taking the following measures:
• Clean door and sealing surface of the microwave oven.
• Reorient the receiving antenna of the radio and/or television.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.
• Be sure the voltage and frequency where you connect the microwave oven is the same as specified on the rating plate on the microwave oven. If the microwave oven is connected to the socket via an extension cord, make sure the cord is earthed.

WARNING!

If installed near or over a heat source, the microwave oven could be damaged.

WARNING!

This microwave oven must not be used on a non-earth protected power supply. Contact an electrician if you are uncertain regarding electrical connection of the oven or provision of earth protection of the supply.

WARNING!

If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

ELECTRICAL INSTALLATION

WARNING!

Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter “Safety Instructions”.

This appliance is supplied with a main cable and main plug.

WARNING!

The microwave oven is fitted with a plug and must be only connected to a properly installed, earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible following installation an all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

Customer care center

ThailandConsumer Care Tel : [phone]Electrolux Thailand Co., Ltd.Electrolux Building 14th Floor1910 New Phetchaburi Road,Bangkapi, Huai Khwang, Bangkok 10310Office Tel : [phone]Office Fax : [phone]Email : [e-mail]	MalaysiaConsumer Care Center Tel: 1300-88-11-22Electrolux Home Appliances Sdn. Bhd.Corporate Office Address: Unit T2-7, 7th Floor, Tower 2, PJ33,No. 3, Jalan Semangat, Seksyen 13, 46200 Petaling Jaya, Selangor.Office Tel : [phone]Office Fax : [phone]Consumer Care Center Address: Lot C6, No. 28, Jalan 15/22,Taman Perindustrian Tiong Nam, 40200 Shah Alam, SelangorConsumer Care CenterFax : ([phone]Email : [e-mail]
IndonesiaHotline service: 08041119999PT. Electrolux IndonesiaElectrolux BuildingJl.Abdul Muis No.34, Petojo Selatan,Gambir Jakarta Pusat 10160Email:[e-mail] & WA : 0812.8088.8863	PhilippinesConsumer Care Center Toll Free : 1-800-10-845-CARE(2273)Consumer Care Hotline : (+63 2) 845-CARE(2273)Electrolux Philippines, Inc.Unit B 12F Cyber Sigma Bldg,Lawton Avenue, McKinley West,Taguig,Philippines 1634Trunkline: [phone]Website : www.electrolux.com.phEmail : [e-mail]
VietnamConsumer Care Center Toll Free: 1800-58-88-99Tel: [phone]Electrolux Vietnam Ltd.Floor 10th, Sofic Tower10 Mai Chi Tho Street – Thu Thiem Ward – District 2Thu Duc City, Ho Chi Minh City, VietnamOffice Tel: [phone]Office Fax: [phone]Email: [e-mail]	SingaporeConsumer Care Center Tel: [phone]Electrolux S.E.A. Pte Ltd.351 Braddell Road#01-04, 351 On BraddellSingapore 579713.Office Fax : [phone]Email : [e-mail]
KoreaContact Center: 1566-1238Electrolux Korea Ltd.9th Floor, Pine Avenue B, 100 Eulji-ro,Jung-gu, Seoul 04551, KoreaElectrolux Korea Home page:www.electrolux.co.krCustomer Care Home page:www.electroluxconsumer.co.krEmail: [e-mail]	TaiwanConsumer Care Center Toll Free: 0800-888-259Electrolux S.E.A Private Limited Taiwan Branch4F., No.3, Sec. 1, Dunhua S. Rd.Songshan Dist., Taipei City 105408Taiwan (R.O.C.)Email: [e-mail]

RoHS

Compliant

Conformed to the stipulation on permissible content limitation of some hazardous & restricted chemical substances.

(RoHS compliant)

(According to the Circular No. 30/2011/TT-BCT, Vietnam, dated 10th August, 2011)

TRƯỞC KHI BẠN YÊU CẦU
