SC-HC63C77 - Lawn mower Scarlett - Free user manual and instructions

Product Type	Lawn Mower
Brand	Scarlett
Model	SC-HC63C77
Power Source	Electric Corded
Cutting Width	32 cm
Cutting Height Adjustment	Manual, 25-60 mm
Grass Collector Capacity	30 L
Handle Type	Foldable
Weight	8.5 kg
Dimensions (L x W x H)	68 x 38 x 30 cm
Noise Level	≤ 82 dB(A)
Safety Features	Double Switch for Safety
Power Cord Length	10 m
Cleaning and Maintenance	Clean after each use; sharpen blade annually
Spare Parts Available	Blade, belt, wheels, grass bag
Warranty	2 years

Frequently Asked Questions - SC-HC63C77 Scarlett

How do I adjust the cutting height on my Scarlett SC-HC63C77 lawn mower?

To adjust the cutting height, locate the adjustment lever near the wheels. Move it to one of the preset positions (typically 25-60 mm). Ensure the mower is switched off and unplugged before adjusting.

What should I do if the mower does not start?

Check that the power cord is securely plugged into an outlet and that the circuit breaker has not tripped. Ensure the safety switch is engaged. If the problem persists, inspect the cord for damage.

How do I clean the grass collector?

Empty the collector after each use. Rinse with water if necessary and let it dry completely before storing. Avoid using abrasive cleaners to prevent damage.

Can I use an extension cord with this lawn mower?

Yes, use a heavy-duty outdoor extension cord with a minimum gauge of 14 AWG and a length not exceeding 30 m to avoid voltage drop. Ensure it is rated for outdoor use.

How often should I sharpen the blade?

Sharpen the blade at least once per season or after 10 hours of use for optimal cutting. A dull blade tears grass and can cause browning.

What is the maximum slope angle I can mow?

Do not use the mower on slopes steeper than 20 degrees. Mow across the slope (not up and down) for stability, and never use on wet grass to avoid slipping.

How do I replace the blade on my Scarlett mower?

First, unplug the mower. Tip it on its side, using a block to prevent the blade from rotating. Use a wrench to loosen the blade bolt. Replace with the correct Scarlett replacement blade and tighten securely.

Is the cutting height adjustable?

Yes, the SC-HC63C77 has a central cutting height adjustment lever with 6 positions ranging from 25 mm to 60 mm. Adjust it to your preferred grass length.

What type of grass is this mower suitable for?

It is suitable for most domestic lawns including fine and coarse grass. For very long or damp grass, mow in two passes at a higher setting first.

How do I store the lawn mower?

Clean the mower thoroughly, drain any fuel (if applicable), and store in a dry, sheltered area. For electric models, coil the power cord loosely and hang the mower or store it on a shelf to avoid damage.

USER MANUAL SC-HC63C77 Scarlett

Black and white SCARLETT hairpin (no visible text or symbols on body)

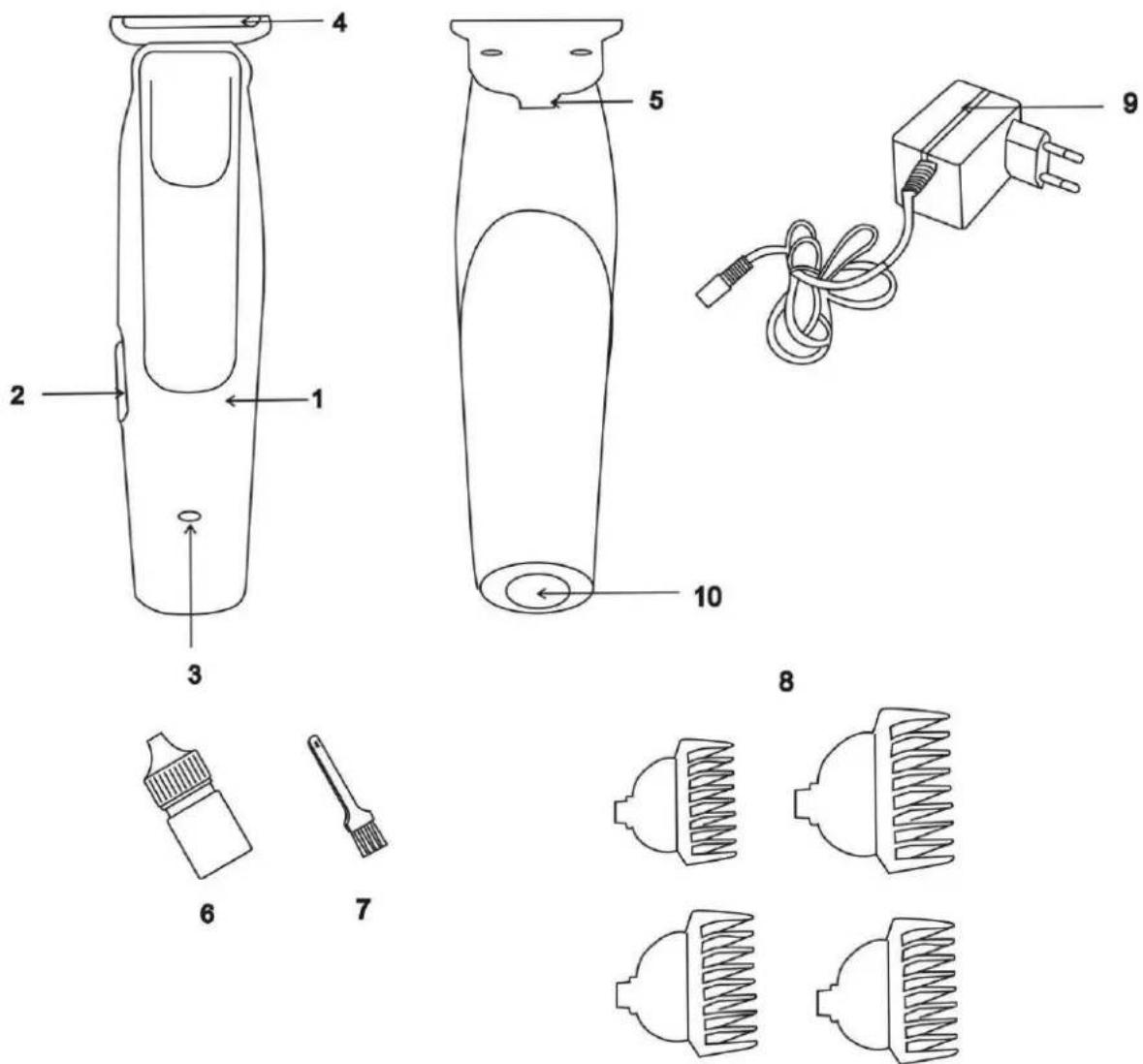

GB DESCRIPTION

1. Housing
2. On/Off switch
3. Charge indicator
4. Blade
5. Blades for trimming beard and mustache
6. Oiler
7. Brush for blades cleaning
8. Detachable comb (3/6/9/12 mm)
9. Adapter
10. Hole to connect the adapter and USB cord (USB wire not included)

UA ОПИС

GB INSTRUCTION MANUAL IMPORTANT SAFEGUARDS

• Please read this instruction manual carefully before use and keep in a safe place for future reference.
• Before switching on the appliance for the first time please check if the technical specifications indicated on the unit correspond to the mains parameters.
• For home use only. Do not use for industrial purposes. Do not use the appliance for any other purposes than described in this instruction manual.
• Do not use outdoors.
  • Always unplug the appliance from the power supply before cleaning and when not in use.
  • To prevent risk of electric shock and fire, do not immerse the appliance in water or any other liquids.
• Do not take this product to a bathroom or use near water.
• The appliance is not intended for use for physically, sensory or mental disabled person (including children) or for person with lack of life experience or knowledge, if only they are under supervision or have been instructed about the use of the unit by responsible person.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.
• Children must be under control in order not to be allowed to play with the appliance.Do not leave the appliance switched on when not in use.
• Do not use other attachments than those supplied.
• Do not operate after malfunction or cord damage.
  • In case of power cord is damaged, its replacement should be done by the manufacture or service department or the other high-skill person to avoid any danger.

- Never try to repair this appliance by yourself. In case of failure, contact the nearest seller.

- Keep the cord away from sharp edges and hot surfaces.

- Do not place or store the appliance where it can fall or be pulled into a tub or sink.

- Do not pull, twist, or wrap the power cord around the appliance.

- Never insert any objects into openings in the appliance housing.

- Do not put operating appliance on any surface, it may cause injury or damage.

- Do not use the appliance with damaged comb, or with teeth missing from the blades as injury may occur.

• NOTE: KEEP THE BLADES OILED.

- The appliance should be used only with the power supply supplied with the appliance.

- The instrument must be powered only by a safe, ultra-low voltage marked on the instrument.

- Do not use the hair clipper when the skin is infected.

- Do not use the hair clipper on animals.

- If the product has been exposed to temperatures below 0^ C for some time it should be kept at room temperature for at least 2 hours before turning it on.

- The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.

- Manufacturing date is indicated on the unit and/or on packing as well as in accompanying documents in the following format XX.XXXX where first two figures XX is the month of production, and following four figures XXXX is the year of production.

PREPARATION

- The device is designed for cutting hair, modeling beard, mustache.

- Before first use cutting blades of the machine should be thoroughly lubricated.

- Before the first use of the appliance completely discharge and then charge the battery.

- The charging time is 8-9 hours.

- The fully charged battery ensures 45 minutes of operation.

- The clipper can be charged with a USB wire. The clipper can work both from the network and during charging.

- The battery life is approximately 1 year, depending on the intensity of the use of the clipper. Recharge the battery at least once in 6 months, even if the clipper is not in use.

- To charge the battery, switch off the clipper and connect its power cord to mains. The indicator lamp lights.

- When the battery has charged, disconnect the clipper from mains. The clipper is ready for operation.

OPERATION

- Take one of the supplied combs, insert the comb guides into the matching slots and gently push until it clicks.

- Press the ON/OFF button to switch the clipper on.

• After use, press the ON/OFF button again to switch the clipper off.
- You may also use the clipper without any comb attached.
- The blades of hair clipper are reversible. Wide side of the blade is intended for hair cutting and beard trimming. Narrow side of the blade is intended for precise care of hard to reach zones like chin or area under nose, also it can be used for making sharply defined parting line.
- To change the working side of the blade, detach the blade from the unit. Turn the blade towards the “opened” sign. Choose the necessary side of the blade, set it back into the unit and turn towards the “closed” sign.

THINNING FUNCTION

• The blade allows you to use thinning function and improve quality of cutting.
• Thinning allows to make smooth passage between hair strands of different length. In this mode the blade reduces hair volume without making the hair shorter.

BLADE ATTACHMENT

• To detach the blade from the appliance, press it and pull it forward.
• To attach the blade, insert it into place and push until the click is heard.

REPLACEMENT OF THE COMB ATTACHMENT

• Turn off the device.
• To remove the comb press the latch and pull comb.
• Place the selected comb on the blades (the teeth facing up) and press the ledge at the bottom of the nozzle until it locks. Make sure that the nozzle fixed into its seat.

REMINDERS

• It is better to cut dry hair.
- Comb hair carefully before cutting.
• Always take off a little at a time.
- For even cutting do not force the clipper. Also remember to comb the hair more frequently to remove trimmed hair and check for uneven strands.
• Cutting options are given in fig. 1.
- You may use the appliance in the shower.

BATTERY REMOVAL

• The battery must be removed from the appliance before its disposal.
• When removing the battery, the appliance must be disconnected from power supply.

CARE AND CLEANING

• To ensure continuous and reliable operation of the clipper, oil the blades using special oil after each haircut.
• After oiling turn on the clipper to allow even distribution of oil between the blades and check their smooth operation. Remove excessive oil.
• Do not use hair oil, grease, oil mixed with kerosene or any solvent.
• Turn off the clipper and disconnect it from power supply.
• Clean the blades and the clipper from hair with the help of a brush supplied.
• Wipe the clipper with a dry soft cloth.

STORAGE

• Keep the appliance in a dry place.
• The blades must be oiled for storage period.

- The symbol on the unit, packing materials and/or documentations means used electrical and electronic units should not be toss in the garbage with ordinary household garbage. These units should be pass to special receiving point.

- The symbol on the unit, packing materials and/or documentations means the battery used in this product not be toss in the garbage with ordinary household garbage.

• For additional information about actual system of the garbage collection, address to the local authority.
• Valid utilization will help to save valuable resources and avoid negative work on the public health and environment which happens with incorrect using garbage.
