USER MANUAL Apocalypse AP-M67AN Deaf Bonce

Line drawing of a speaker grille with no text or symbols

AP-M65AN

AP-M67AN

APOCALYPSE SERIES

CONTENTS

1. Introduction
2. Safety instructions
3. Wiring diagrams
4. Filtering, recommended amplifier settings
5. Specifications
6. Dimensions
7. Box contents
8. Warranty and maintenance info
9. Information on disposal of the electrical and electronic equipment (for the European countries with separate waste collection)

GLOBAL SPONSOR

dbDRA

1. INTRODUCTION

Thank you for purchasing of this Deaf Bonce product! Our company is committed to the creation of extremely loud sound systems with no loss of quality.

To ensure proper use, please carefully read through this manual before using this product. It is especially important that you read and observe caution's in this manual. Please keep the manual in a safe and accessible place for future reference.

2. SAFETY INSTRUCTIONS

1. Fasten the speakers properly when installing it in the vehicle. If the component is disconnected during driving, it may cause serious damage to the passengers of the vehicle or another vehicle.
2. Before installing the components, if possible store the product in it's original package to avoid accidental damage to the product.
3. Be careful when installing and dismantling the speaker! Do not let the speaker drop to avoid damage of its moving parts.
4. When working with tools follow safety rules.
5. Before the installation switch off the head unit and all other audio devices to avoid their damage.
6. Make sure that the location of the speaker does not hinder the proper operation of mechanical and electrical devices of the vehicle.
7. Do not install components in places exposed to water, excessive humidity, high or low temperature, dust or dirt. ATTENTION!!! The product may be operated at +5 °C (41F) to +40 °C (104F). In case of moisture condensation, let the product to dry.
8. When performing plumbing, drilling or cutting works with the car, make sure that there is no wiring, brake lines, fuel pipe or other structural elements under the place of work. Follow the safety rules! Use protective glasses and gloves.
9. When stretching back the speaker cables make sure that they are not in contact with sharp edges or moving mechanical devices. Make sure that they are firmly fixed and protected over the entire length.
10. The diameter of the speaker cables must be selected in accordance with the length and applied power.
11. Never stretch the cables outside of the car and near the moving parts of the car. This can lead to destruction of the insulating layer, short circuit and fire.
12. To protect the cables use rubber gaskets if the wire passes through a hole in the plate, or other similar materials if it lies close to the parts exposed to heat.

CAUTION!!! High sound pressure can damage your health! Please use the common sense when controlling volume!

3. WIRING DIAGRAMS

Do not expose your amplifier to loads below the value predetermined by the manufacturer.

Various examples of connection types are given at the pages below. Use these examples to determine the required load impedance of your connection.

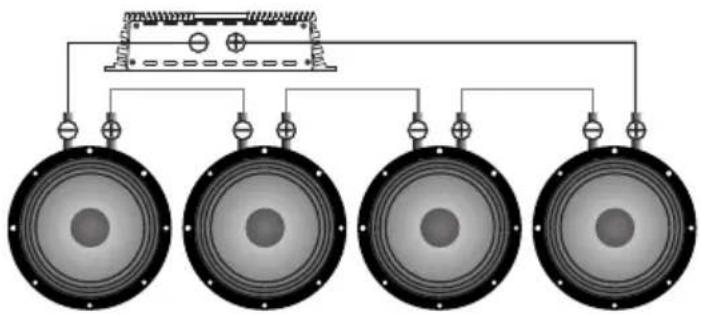

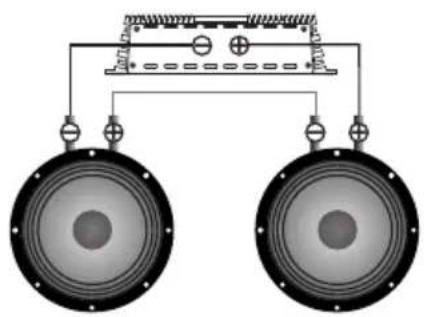

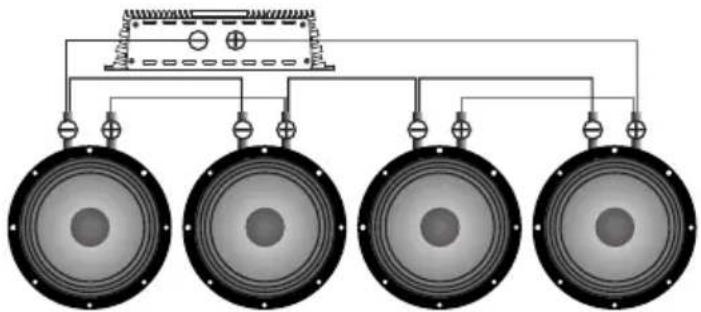

Serial connection of the speakers

Diagram of a speaker system with two speakers and an overhead circuit (no text or labels)

Voice coil	Total impedance
4 Ohm x 2 MR	8 Ohm

Diagram of three speakers with circuit connections (no text or labels)

Diagram of four speakers arranged in a row connected to a top-mounted device (no text or symbols present)

Voice coil	Total impedance
4 Ohm x 3 MR	12 Ohm

Voice coil	Total impedance

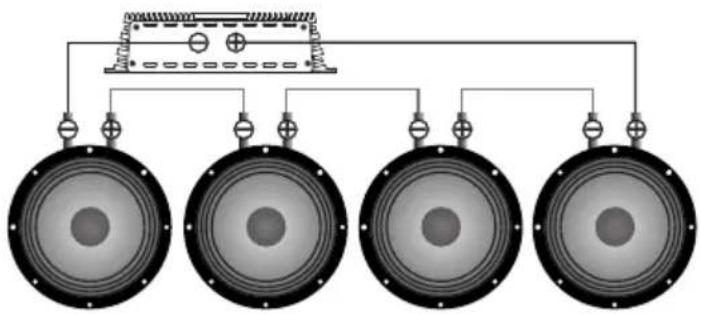

4 Ohm x 4 MR	16 Ohm

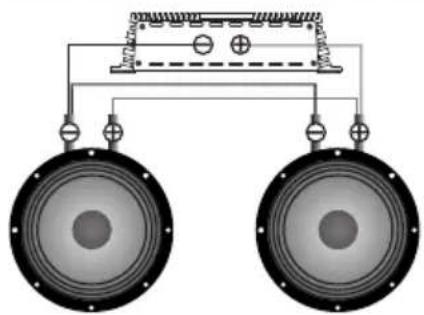

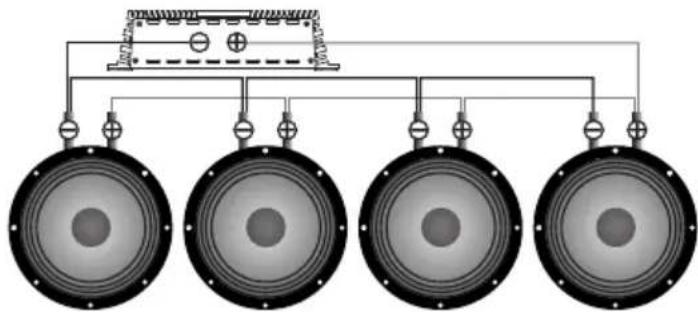

Parallel connection of the speakers

Diagram of two speakers with circuit connections and a suspended platform (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram of four speakers arranged in a row connected to a top-mounted device (no text or symbols present)

Voice coil	Total impedance
4 Ohm x 2 MR	2 Ohm

Voice coil	Total impedance
4 Ohm x 3 MR	1.33 Ohm

Voice coil	Total impedance
4 Ohm x 4 MR	1 Ohm

Diagram of four speakers arranged in a row connected to a speaker tower (no text or labels)

Voice coil	Total impedance
4 Ohm x 4 MR	4 Ohm

CAUTION!!! High sound pressure can damage your health!
Please use the common sense when controlling volume!

Selection of the diameter of speaker cables

Use the table below to select the desired diameter based on the length and the power consumption.

4. FILTERING, RECOMMENDED AMPLIFIER SETTINGS

The correct choice of amplifier, its settings, filtering and enclosure largely influence on the lifespan of your audio system. You should select an amplifier with a nominal power, not exceeding the nominal power of the speakers. Proper coordination of the head unit (HU) with the amplifier will allow to get a clean, undistorted signal applied to the component to prevent overheating and voice coil damage. Recommended settings of the amplifier and HU: Volume of HU should not exceed 80%. The amplifier sensitivity should be set to 50%.

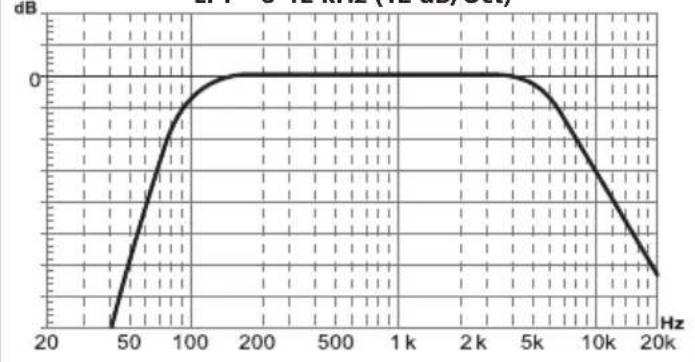

The recommended filter settings:

The high pass filter HPF (the filter that cuts all frequencies below those set for the filter) should be set to 150-250 Hz (24 dB/Oct), or 250-350 Hz (12 dB/Oct)

The low pass filter LPF (the filter that cuts all frequencies above those set for the filter) should be set to 8-12 kHz (12 dB/Oct)

Recommended amplifiers: AAB-1200.2D, AAB-1800.2D, AAP-500.2D, AAP-800.2D, AAP-400.4D.

APOCALYPSE

AP-M65AN/AP-M67AN: HPF - 150-250 Hz (24 dB/Oct) LPF - 8-12 kHz (12 dB/Oct)

1. SPECIFICATIONS

Model	AP-M65AN	AP-M67AN
Size (Inch)	6.5	6.5
Surround material	Cloth	Cloth
Cone material	Pressed paper	Pressed paper
Frame material	Aluminum	Aluminum
Magnet type	Neodymium	Neodymium
Power RMS (W)	200	300
Power MAX (W)	400	600
Voice coil size (Inch)	1.5	1.75
Voice coil wire	CCAW	CCAW
Frequency response (Hz)	200 - 17 000	200 - 14 000

THIELE-SMALL PARAMETERS

Impedance (Ohm)	4	4
Spl (dB)	102.5	102
Fs (Hz)	121	125
Vas (L)	6.14	5.72
Qts	0.30	0.31
BL	9.12	9.3

This specified sensitivity is not directly connected with the sound pressure in the vehicle, and therefore should not be used as the sole indicator for comparison with other speakers.

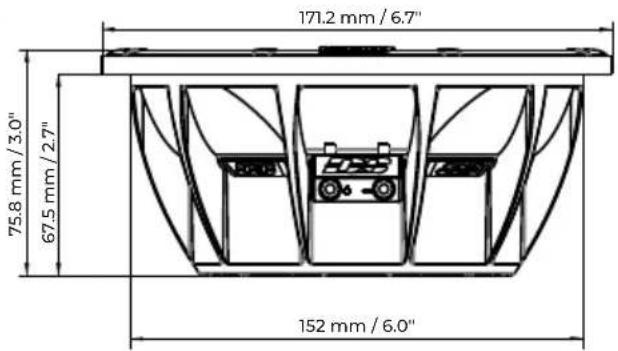

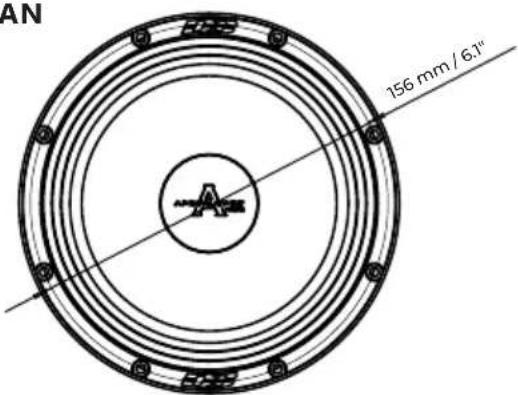

6. DIMENSIONS

EN

AP-M65AN

AN 156 mm / 6.1"

171.2 mm / 6.7" 75.8 mm / 3.0" 67.5 mm / 2.7" 152 mm / 6.0"

AP-M67AN

AN 156 mm / 6.1"

171.2 mm / 6.7" 75.8 mm / 3.0" 67.5 mm / 2.7" 152 mm / 6.0"

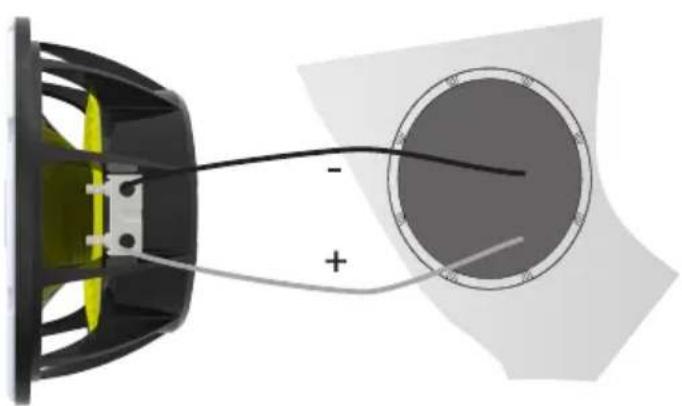

Connection of terminals

10 MM/0.4" 10 MM/0.4"

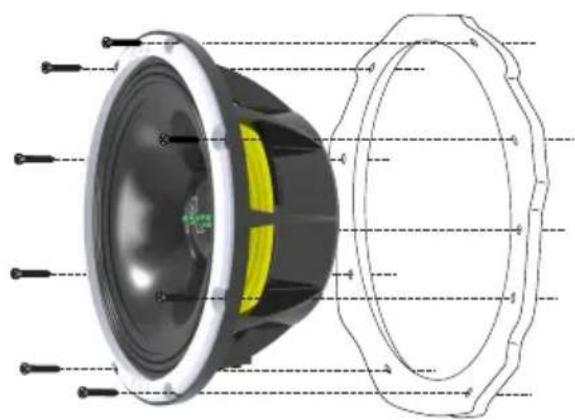

Installation

Diagram of a device with labeled components and wiring, showing a circular component with internal wiring and a yellow-green base (no text or symbols)

Cross-sectional diagram of a speaker cone with internal components and wiring (no text or labels)

7.BOX CONTENTS

EN

1. Mid-range speaker - 2 pcs.
2. Owner's manual - 1 pc.
3. Warranty card - 1 pc.

8. WARRANTY AND MAINTENANCE INFO

Deaf Bonce products are warranted against defects concerning materials and their manufacturing under normal functioning conditions.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer's discretion. The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in, complete with the original packaging. If the product is no longer under warranty, it will be repaired at the current costs.

Our company does not undertake any liability for damages due to transportation. Our company does not take any responsibility for costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer. Warranty according to laws in force. For more information visit our website and carefully read warranty card.

The manufacturer reserves the right to change design and specification without prior notice.

9. INFORMATION ON DISPOSAL OF THE ELECTRICAL AND ELECTRONIC EQUIPMENT (FOR THE EUROPEAN COUNTRIES WITH SEPARATE WASTE COLLECTION)

Items marked "crisscrossed wheeled bin" are not allowed to be disposed of together with usual household waste. These electrical and electronic products should be disposed of in special reception centers, equipped for recycling such products and components. For information about the location of the nearest disposal / recycling spot and the rules of delivery of waste please contact your local municipal office. Recycling and proper disposal helps to protect the environment and prevent harmful effects on health.

Manufacturer: Ningbo Sound Solution I&E Trading Co., Ltd Made in China

AP-M65AN

QR code image containing encoded data, no visible human-readable text

AP-M67AN

QR code image containing encoded data, no visible human-readable text
