Product Type	Microwave oven with grill and convection
Brand	SVAN
Model	SVMW270CVN
Rated Voltage	230V~ 50Hz
Microwave Input Power	1450W
Microwave Output Power	900W
Grill Power	1500W
Convection Power	2100W
Control Type	Knob and buttons with digital display
Functions	Microwave, grill, convection, combi, defrost by weight/time, auto menu, air fry, speedy cooking, kitchen timer, multi-stage cooking, child lock
Capacity	27 liters (typical)
Turntable	Yes, metal tray included
Interior Light	Yes
Safety Features	Door interlock system, child lock, grounding, overheat protection
Cleaning	Clean with damp cloth, avoid abrasive cleaners; lemon water method for cavity
Accessories Included	Metal tray, lower wire rack, instruction manual
Installation	Freestanding, minimum clearance 30 cm above, 20 cm sides, rear against wall
Warranty	Standard manufacturer warranty (check manual)
Weight	Approx. 18 kg (estimated)

Frequently Asked Questions - SVMW270CVN SVAN

How do I set the clock on the SVAN SVMW270CVN microwave?

Press Clock/Timer once. The hour figures will flash. Turn the knob to set the hour (0-23). Press Clock/Timer again. Turn the knob to set minutes (0-59). Press Clock/Timer to confirm.

How do I cook with microwave only?

Press Power repeatedly to select a power level (P100 to P10). Press Start/+30Sec./Confirm. Turn the knob to set cooking time (max 95:00). Press Start/+30Sec./Confirm to start.

How do I defrost food by weight?

Press Defrost once (display shows d-1). Turn the knob to set food weight (100-2000g). Press Start/+30Sec./Confirm to start defrosting.

How do I use the grill function?

Press Grill/Combi. once (display shows G-1). Press again or turn knob to select G-1, G-2, or G-3. Press Start/+30Sec./Confirm. Turn the knob to set time (max 95:00). Press Start/+30Sec./Confirm to start.

How do I preheat the convection oven?

Press Convec. to set temperature (140-230°C). Press Start/+30Sec./Confirm to confirm. Press Start/+30Sec./Confirm again to start preheating. When preheat is complete (two beeps), open door, place food, close door, set cooking time, and press Start/+30Sec./Confirm.

How do I activate the child lock?

Press and hold Stop/Clear for 3 seconds until a long beep sounds and the lock icon displays. To deactivate, press and hold Stop/Clear again for 3 seconds.

What utensils can I use in the microwave?

Use microwave-safe containers only. Avoid metal, aluminum foil, and metal-trimmed utensils. Test questionable utensils by heating a cup of water beside it for 1 minute; if the utensil gets warm, do not use.

How do I clean the microwave?

Unplug the appliance. Clean the cavity with a damp cloth. For stubborn residue, heat half a lemon in 300ml water for 10 minutes at 100% power, then wipe clean. Do not use abrasive cleaners or sharp scrapers on the door glass.

What should I do if the oven doesn't start?

Check that the power cord is plugged in tightly. If the fuse blows or circuit breaker trips, replace or reset. Ensure the door is closed properly. If the outlet is faulty, test with another appliance.

Can I use the microwave if the door seal is damaged?

No. If the door or door seals are damaged, do not operate the oven. Contact a qualified technician for repair to avoid exposure to excessive microwave energy.

USER MANUAL SVMW270CVN SVAN

Simple line drawing of a circular mechanical or architectural component with three small components, no text or symbols present.

Bandeja de metal

Simple line drawing of a circular object with horizontal stripes and two hanging clips (no text or symbols)

PANEL DE CONTROL

OPERACIÓN

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

Model:	SVMW270CVN
Rated Voltage:	230V~ 50Hz
Rated Input Power (Microwave):	1450W
Rated Output Power (Microwave):	900W
Rated Power (Grill):	1500W
Rated Power (Convection):	2100W

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave ovens.

10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and any food deposits removed.

15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

20. This appliance is intended to be used in household applications.

21. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
22. Metallic containers for food and beverages are not allowed during microwave cooking.
23. The appliance shall not be cleaned with a steam cleaner.
24. The appliance is intended to be used freestanding.
25. The rear surface of appliances shall be placed against a wall.
26. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
27. The temperature of accessible surfaces may be high when the appliance is operating.
28. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only ( meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

NAMES OF OVEN PARTS AND ACCESSORIES

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Pure diagram of concentric circular rings with no text, numbers, or symbols

Metal Tray

Instruction Manual

Simple line drawing of a circular object with horizontal stripes and two hanging clips (no text or symbols)

Lower Wire Rack( For the microwave and for baking and roasting in the oven. )

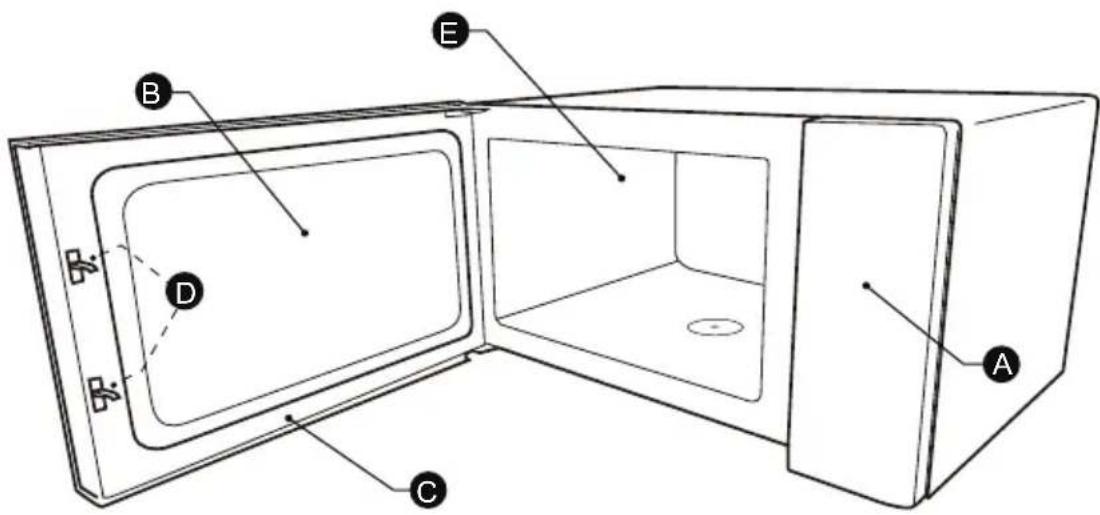

A) Control panel
B) Observation window
C) Door assembly

D) Safety interlock system

E) Oven cavity

COUNTERTOP INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

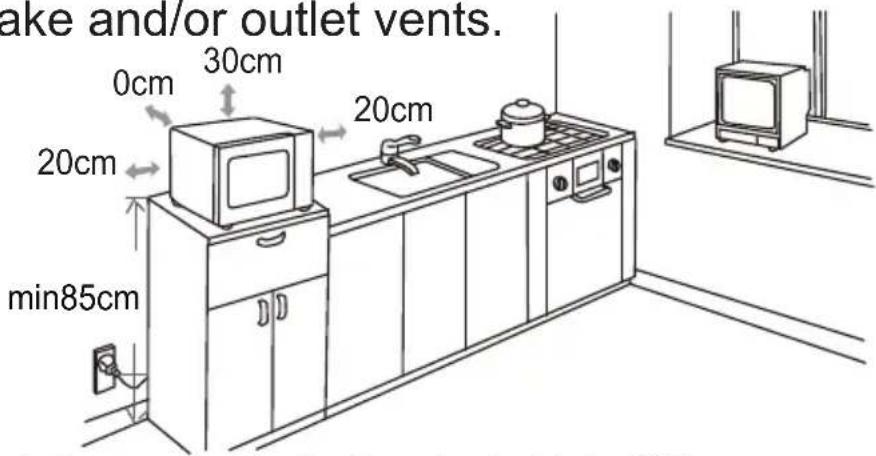

INSTALLATION

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30 ~cm above the oven. A minimum clearance of 20 ~cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty

would be void.

The accessible surface may be hot during operation.

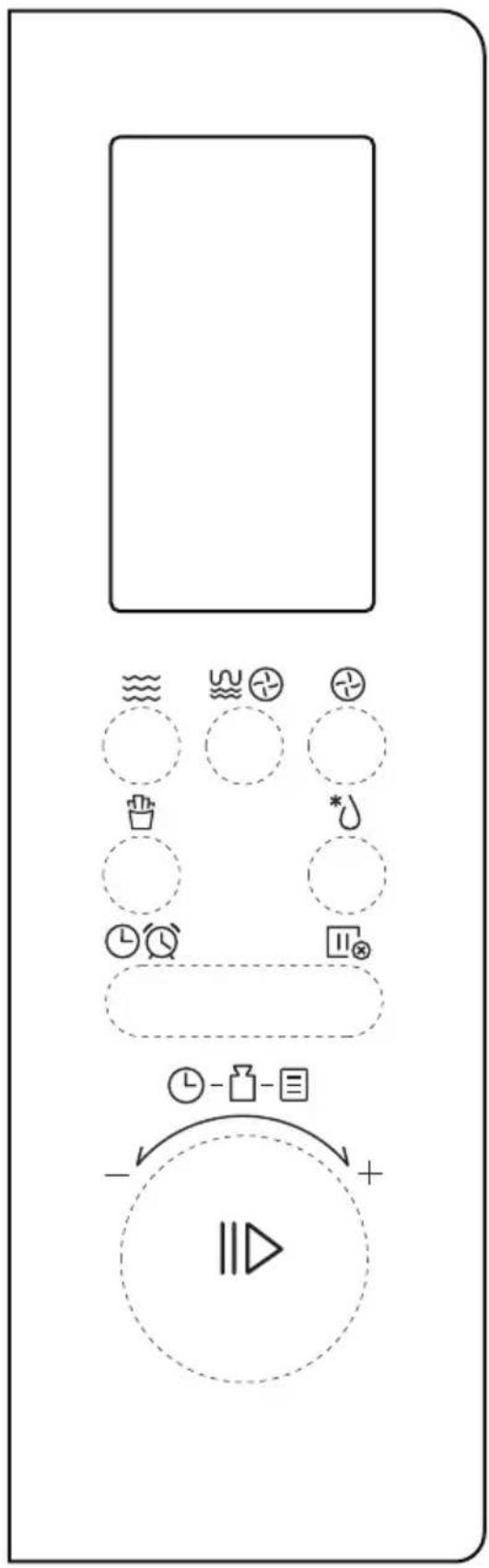

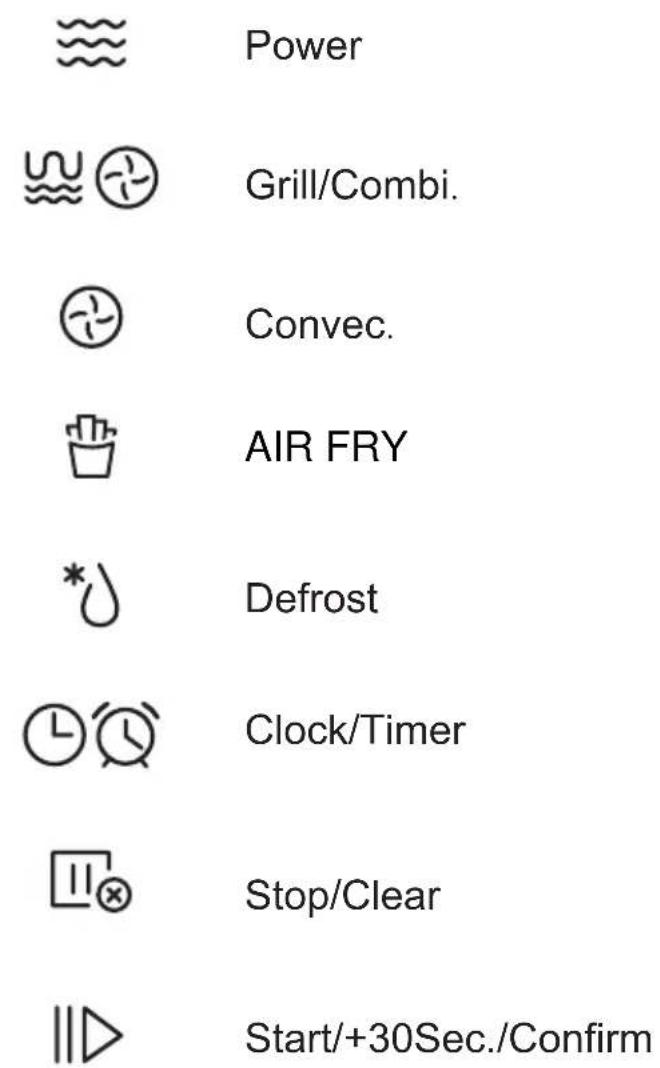

CONTROL PANEL

OPERATION

1. Setting the Clock

(1) Press "once, and double time 00" will display. The hour figures will flash.

(2) Turn the knob to set the hour figures. The time should be within 0-23.
(3) Press "C lock / Timer" to confirm.
(4) Turn the knob to set the minute figures. The time should be within 0-59.
(5) Press "Clock/Timer" to confirm. The clock is set.

Notes:

(1) If the clock is not set, it would not work when powered.
(2) In the process of clock setting, if the “Clock/Timer” button is not be pressed or there is no operation within 5 minutes, the oven will return to the former setting.

2. Microwave Cooking

(1) Press "Power then "P100" will display.
(2) Press “Power” repeatedly or turn the knob to set the power level. The 10 power levels are available.
(3) Press "Start/+30Sec./Confirm" to confirm.
(4) Turn the knob to adjust the cooking time.
(5) Press "Start/+30Sec./Confirm" to start cooking.

Power Chart

Level	10	9	8	7	6	5	4	3	2	1
Power	100%	90%	80%	70%	60%	50%	40%	30%	20%	10%
Display	P100	P90	P80	P70	P60	P50	P40	P30	P20	P10

3. Setting the Kitchen Timer

(1) Press "Clock/Timer" twice, and then "00:00" will display.
(2) Turn the knob to set the desired time. The maximum timer value is "95:00".
(3) Press "Start/+30Sec./Confirm" to confirm. The timer starts counting down.

8. Defrost by Weight

(1) Press "Defrost" once, and then the screen will display "d-1".
(2) Turn the knob to set the weight of food. The weight should be within 100-2000g.
(3) Press "Start/+30Sec./Confirm" to start defrosting.

9. Defrost by Time

(1) Press "Defrost" twice, and then the screen will display "d-2".
(2) Turn the knob to set the desired defrost time. The time should be 0:05-95:00.
(3) Press "Start/+30Sec./Confirm" to start defrosting.

Note: The buzzer will sound two times to remind you to turn over the food when half of the time has finished.

4. Grill Cooking

(1) Press “Grill/Combi.” once, and then “G-1” will display.
(2) Press “Grill/Combi.” repeatedly or turn the knob, “G-1” “G-2” “G-3” will display in order.
(3) Press "Start/+30sec./Confirm" to Confirm.
(4) Turn the knob right to enter cooking time. The maximum time value is "95:00".
(5) Press "Start/+30sec./Confirm" to start cooking.

5. Combi. Cooking

(1) Press “Grill/Combi.” repeatedly to select the mode, and then “G-1”, “G-2”, “G-3”, “C-1”, “C-2”, “C-3”, C-4” and “C-5” will display in order.
(2) Press "Start/+30sec./Confirm" to confirm.
(3) Turn the knob to enter cooking time. The maximum time value is "95:00".
(4) Press "Start/+30sec./Confirm" to start cooking.

Note: Combination instructions

Instructions	Display	Microwave	Upper grill	Lower grill	Convection
1	G-1
2	G-2
3	G-3
4	C-1
5	C-2
6	C-3
7	C-4
8	C-5

7. Convection Cooking(without preheating function)

(1) Press "Convec.", and then "140" will display.
(2) Turn the knob or press “Convec.” repeatedly to set temperature. 10 options are available including 140, 150, 160, 170, 180, 190, 200, 210, 220, 230°C
(3) Press "Start/+30Sec./Confirm" to confirm the temperature.
(4) Turn the knob to set the cooking time. The maximum time value is "95:00".
(5) Press "Start/+30Sec./Confirm" to start cooking.

6. Convection Cooking(with preheating function)

(1) Press "Conceçand then " 140" will display.
(2) Turn the knob or press “Cooperatedly to set temperature. 10 options are available, including 140, 150, 160, 170, 180, 190, 200, 210, 220, 230 ℃
(3) Press "Start/+30Sec./Confirm" to confirm the temperature.
(4) Press "Start/+30Sec./Confirm" again to enter preheating.
(5) When preheating is completed, the oven will beep twice. The temperature will display and flash on the screen, open the door and place food in the oven.
(6) Close the oven door.
(7) Turn the knob to set the cooking time. The maximum time value is "95:00".
(8) Press "Start/+30Sec./Confirm" to start cooking.

Notes: Opening the oven door or pressing "Stop/Clear" could interrupt the cooking.

10. Multi-Stage Cooking

Notes: (1) Only two cooking stages can be set. In the one stage, the buzzer will sound two times to remind you to turn over the food Once half of the time has elapsed, The buzzer will sound when the first stage has finished.
(2) Defrost function will work in the first stage.
(3) Kitchen Timer, Auto menu, preheat and speed cooking cannot be set as one of the multi-stage.
(4)The current time can be increased by pressing "Start/+30Sec./Confirm" during the multi-stage.

(1) Press “Defrost” once, and then the screen will display d-1.
(2) Turn the knob to set the desired defrost weight.
(3) Press “Power”, and then “P100” will display.
(4) Press "Start/+30sec./Confirm" to confirm.
(5) Turn the knob to set the cooking time.
(6) Press "Start/+30sec./Confirm" to start cooking.

11. Speedy Cooking

(1) In waiting state, press "Start/+30sec./Confirm" to work for 30 seconds with 100% power directly.

(2)Turn parameter knob left to set cooking time with 100% microwave power, then press "Start/+30sec./Confirm" to start cooking.

12. Lock Function for Children

You can use this function to prevent children from accidentally turning the appliance on.

To activate the lock:

In waiting state, press and hold "Stop/Clear" for three seconds. A long beep sounds. the locked icon will display.

To deactivate the lock:

In locked state, press and hold "Stop/Clear" for three seconds. A long beep sounds.

13. Air Fry

(2) Press "Air Fry", "F01" will display.
(3) Turn the knob or press "Air Fry" repeatedly to choose the menu. "F01\~F12" are available.
(2) Press "Start/+30sec./Confirm" to start cooking.

14. Auto Menu

(1) Turn the knob right to select the desired menu. "A01\~A10" are available.
(2) Press "Start/+30sec./Confirm" to confirm the menu.
(3) Turn the knob adjust the weight of the food.
(2) Press "Start/+30sec./Confirm" to start cooking.

Auto menu Chart

Menu	Weight(g)	Display	Power
A-01 PASTA	50	50g	P80
	100	100g
	150	150g
A-02 FISH	150	150g	P80
	250	250g
	350	350g
	450	450g
	650	650g
A-03 Rice	200	200g	P100+P50
	400	400g
	600	600g
A-04 CHICKEN	500	500g	C-5
	750	750g
	1000	1000g
	1200	1200g
A-05 AUTO REHEAT	150	150g	P100
	250	250g
	350	350g
	450	450g
	600	600g
A-06 POTATO	1	1	P100
	2	2
	3	3
A-07 Roasting	300g	300g	C-5
	500g	500g
	800g	800g
	1000g	1000g
	1200g	1200g
	1300g	1300g
A-08 Kebabs	100	100g	G-2
	200	200g
	300	300g
	400	400g
	500	500g
	600	600g

Note: When 2/3 time has passed for chicken menu, the buzzer will sound to remind you to turn the food over. If no operation, the oven will continue working.

A-09 Beverage	1cup	1	P100
	2cups	2
	3cups	3
A-10 Fresh vegetable	150g	150g	P100
	350g	350g
	500g	500g

Menu Chart

Menu	Weight(g) Display
Frozen French frie (9X9MM)	300g F01
Frozen Potato Wedges	450g	F02
Frozen Chicken Nuggets	350g	F03
Frozen Cheese sticks	300g	F04
Frozen Fried Squid	300g	F05
Frozen Onion Ring	300g	F06
Frozen Breaded Prawns	250g	F07
Frozen Fried Chicken Cutlet	400g	F08
Frozen vegetable Cutlets	360g	F09
Grilled Fresh Fish Fillets	300g	F10
Frozen Fried Chicken Wings	500g	F11
Frozen Fried Chicken Drumsticks	550g	F12

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble Possible Cause Remedy
Oven cannot be started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door is not closed well.	Close door well.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

svan

MANUAL DE INSTRUÇÕES

MODELO: SVMW270CVN

Simple line drawing of a circular mechanical component with mounting holes and a central hub (no text or symbols)

Tabuleiro de metal

Circular diagram with diagonal striped pattern and two small protrusions at the bottom (no text or symbols)

A) Painel de controlo
B) Janela do forno
C) Estrutura da porta

PAINEL DE CONTROLO

UTILIZAÇÃO

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.
