Type	UPS (Uninterruptible Power Supply) - Inverter
Model	UPS-PC-850AP
Brand	EnerGenie
Power Capacity	850 VA / 500 W
Input Voltage	230 VAC ± 25%
Output Voltage	220/230/240 VAC ± 10%
Frequency	50/60 Hz (auto-sensing)
Waveform	Simulated sine wave
Transfer Time	< 10 ms
Battery Type	Sealed lead-acid, replaceable
Battery Recharge Time	4-6 hours to 90%
Dimensions (W x D x H)	150 x 85 x 180 mm
Weight	2.5 kg
Protection Features	Surge protection, overcharge, over-discharge, short circuit
Additional Functions	Automatic Voltage Regulation (AVR), cold start, USB charging port
Indicators	LED status indicators for power, battery, and fault
Cooling	Smart fan (variable speed)
Operating Temperature	0°C to 40°C
Humidity	0% to 90% non-condensing
Maintenance & Cleaning	Wipe with dry cloth; avoid liquids. Check battery every 6 months.
Safety Notes	Do not open unit; disconnect from mains before cleaning; use only in dry areas.
Repairability & Spare Parts	Replaceable battery; authorized service center recommended for repairs.

Frequently Asked Questions - UPS-PC-850AP EnerGenie

What does the UPS-PC-850AP power capacity mean?

It is rated at 850 VA / 500 W, meaning it can support devices up to 500 watts of power consumption.

How long will the battery last during a power outage?

Battery runtime depends on load. For a typical 250W load, expect 5-10 minutes. Use the power management software for exact estimates.

Can I replace the battery myself?

Yes, the battery is user-replaceable. Follow the manual instructions to open the unit and replace with the same type (12V / 7Ah sealed lead-acid).

What is the transfer time to battery?

The transfer time is less than 10 milliseconds, ensuring connected devices continue operating without interruption.

Does the UPS protect against voltage fluctuations?

Yes, it features Automatic Voltage Regulation (AVR) that stabilizes output voltage without switching to battery, extending battery life.

How do I know if the battery needs replacement?

When the UPS beeps continuously or the battery indicator shows red, the battery may need replacement. Also, drastically reduced runtime indicates end of life.

Can I use the UPS with a generator?

Yes, but ensure the generator output is stable and within the input range (230V ± 25%). The UPS may switch to battery under unstable conditions.

What type of devices can I connect?

Suitable for computers, monitors, routers, modems, and other sensitive electronics. Do not exceed 500W total load.

How do I clean the UPS?

Unplug the UPS and wipe the exterior with a dry, soft cloth. Do not use liquids or sprays. Clean ventilation grilles regularly to prevent overheating.

Is there a USB port for data or charging?

Some models include a USB charging port for phones/tablets. Refer to the manual for your specific unit; it may also have a USB data port for monitoring.

USER MANUAL UPS-PC-850AP EnerGenie

UPS-PC-850AP

850VA UPS WITH AVR, ADVANCED

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

850VA UPS with AVR, advanced

Features

• Uninterruptable 850 VA power supply for PC's
  • Automatic output voltage regulation (AVR)
• USB interface

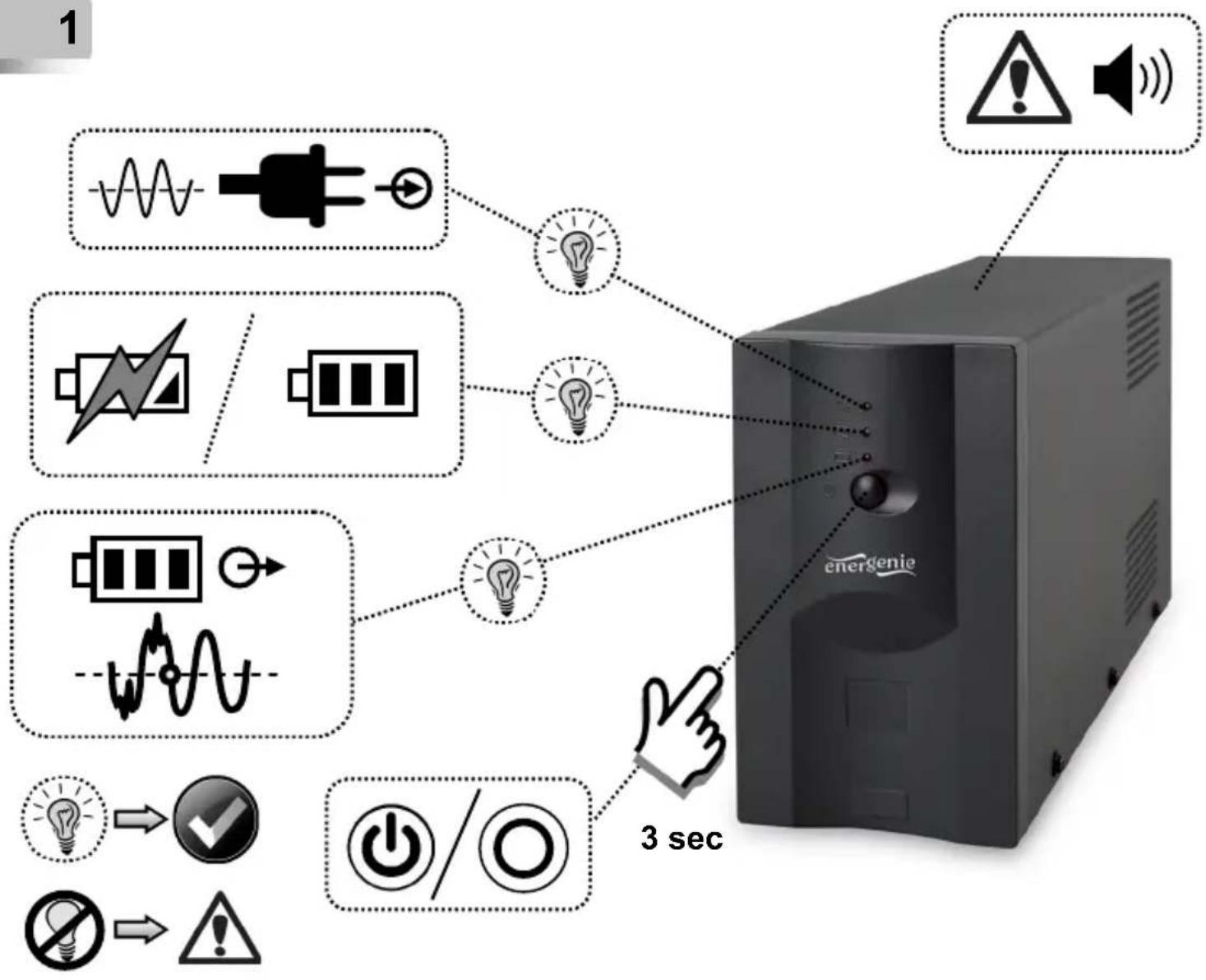

  • LED status indication
• Short circuit protection
• Surge, spike and lightning protection
  • Audible and visual alarms
  • Overcharge and overdischarge protection

• Including practical UPS Management software

Specifications

• UPS type: line interactive
• Input: AC 162 - 295 V, 50 Hz / 60 Hz ± 10 %
• Output: AC 188 - 254 V, 50 Hz / 60 Hz ± 0.5 % (on battery)
• Waveform: sine wave (AC mains), simulated sine wave (battery)
• Temperature compensation: -20mV/1 °C (per cell)
- Switching time: no more than 10 ms
- Backup time: 8...20 mins (depends on the load)
- Battery: sealed lead-acid 12V/7Ah x 1 pc
• Charge time: up to 12 hours
- Sockets: 1x C14 input, 3x C13 outputs; USB-BF connector
- Operating conditions: 0 °C\~40 °C, at humidity 20\~90 %RH non condensing
• Power: 850 VA (520 W)
• Dimensions: 340 x 95 x 165 mm
• Product weight: 7 kg
• "Cold-start" function

All brands and logos are registered trademarks of their respective owners

energenie

UPS-PC-850AP

850VA UPS with AVR, advanced

All brands and logos are registered trademarks of their respective owners

energenie

UPS-PC-850AP

850VA UPS with AVR, advanced

(ENG) Declaration of conformityThis product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found underwww.gembird.eu

(DE) KonformitätserklärungDieses Produkt wurde getestet und stimmt mit den grundlegenden Anforderungen der Richtlinie EMC(2014/30/EU), RoHS (2011/65/EU) überein. Die Konformitätserklärung kann auf unserer Webseitewww.gembird.euheruntergeladen werden.

(ES) Declaración de conformidadEste producto está probado y cumple con los requisitos esenciales de las leyes de los estados miembros con respecto a EMC (2014/30 / UE), RoHS (2011/65 / UE). La declaración CE se puede encontrar enwww.gembird.eu

(CZ) Prohlášení o shoděTento produkt je testován a splňuje základní požadavky právních předpisů členských států týkajících se EMC (2014/30 / EU), RoHS (2011/65 / EU). Prohlášení CE naleznete nawww.gembird.eu

(FR/BE) Déclaration de conformitéLe produit est contrôlé et rempli les exigences des directives nationales et de la directive EMC(2014/30/EU), RoHS (2011/65/EU). La conformité CE a été démontrée et les déclarations correspondantes sont déposées chez le fabricant a:www.gembird.eu

(HR) Izjava o sukladnostiOvaj je proizvod testiran i udovoljava osnovnim zahtjevima zakona država članica u vezi EMC-a (2014/30 / EU), RoHS (2011/65 / EU). Izjava CE se može naći podwww.gembird.eu

(IT) Dichiarazione di conformitàQuesto prodotto è testato ed è conforme ai requisiti essenziali delle leggi degli stati membri in materia di EMC (2014/30 / UE), RoHS (2011/65 / UE). La dichiarazione CE è disponibile all'indirizzowww.gembird.eu

(PT) Declaração de conformidadeEste produto foi testado e está em conformidade com os requisitos essenciais das leis dos estados membros sobre EMC (2014/30 / EU), RoHS (2011/65 / EU). A declaração CE pode ser encontrada emwww.gembird.eu

(PL) Deklaracja zgodnościTen produkt został przetestowany i jest zgodny z zasadniczymi wymaganiami prawnymi państw członkowskich dotyczącymi EMC (2014/30 / UE), RoHS (2011/65 / UE). Deklaracja CE znajduje się na stroniewww.gembird.eu

(RO) Declaratie de conformitateAcest produs este testat și respectă cerințele esențiale ale legislațiilor statelor membre privind EMC (2014/30 / UE), RoHS (2011/65 / UE). Declarația CE se găsește pewww.gembird.eu

(SK) Vyhlásenie o zhodeTento produkt je testovaný a spĺňa základné požiadavky právnych predpisov členských štátov týkajúcich sa EMC (2014/30 / EÚ), RoHS (2011/65 / EÚ). Vyhlásenie CE nájdete na stránkewww.gembird.eu

(SL) Izjava o skladnostiTa izdelek je preizkušen in ustreza bistvenim zahtevam zakonov držav članic o EMC (2014/30 / EU), RoHS (2011/65 / EU). Izjava CE je na voljo podwww.gembird.eu

(GR) Δήλωση συμμόρφωσηςΑυτό το προϊόν έχει ελεγχθεί και συμμορφώνεται με τις βασικές απαιτήσεις των νομοθεσιών των κρατών μελών όσον αφορά την Ευρωπαϊκή οδηγία g EMC (2014/30 / EU), RoHS (2011/65 / EU).Η δήλωση CE μπορεί να βρεθεί στην διεύθυνσηwww.gembird.eu

(ENG) Waste disposal:Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

(DE) Entsorgungshinweise:Werfen Sie dieses Gerät nicht in den Hausmüll. Unsachgemäße Entsorgung kann sowohl der Umwelt als auch der menschlichen Gesundheit schaden.Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihrer Stadtverwaltung oder einer autorisierten Stelle für die Entsorgung von Elektro-und Elektronikgeräten.

(ES) Deposito de basura:No deposite este equipo con la basura doméstica. La eliminación inadecuada puede dañar tanto el medio ambiente como la salud humana. Para obtener información sobre las instalaciones de recolección de desechos para dispositivos eléctricos y electrónicos usados, comuníquese con su ayuntamiento o una empresa autorizada para la eliminación de equipos eléctricos y electrónicos.

(CZ) Nakládání s odpady:Toto zařízení nevkládejte do domovního odpadu. Nesprávná likvidace může poškodit životní prostředí i lidské zdraví. Informace o zařízení pro sběr odpadu použitých elektrických zařízení získáte u městské rady nebo autorizované společnosti o likvidaci elektrických a elektronických zařízení.

(FR/BE) Traitement des déchets:Ne jetez pas cet appareil dans les déchets domestiques. Un traitement inapproprié peut être dommageable à l'environnement et à la santé humain. Vous trouvez des informations sur les centres de rassemblement des appareils vieux chez l'administration municipale ou chez un centre autorisé pour le traitement des appareils électriques ou électroniques.

(HR) Odlaganje smeća:Ovu opremu ne odlazite zajedno s kućnim otpadom. Nepravilno odlaganje može naštetiti okolišu i ljudskom zdravlju. Za informacije o objektima za prikupljanje otpada za rabljene električne i elektroničke uređaje obratite se gradskom vijeću ili ovlaštenom društvu za odlaganje električne i elektroničke opreme.

(IT) Smaltimento dei rifiuti:Non depositare questa apparecchiatura con i rifiuti domestici. Lo smaltimento improprio può danneggiare sia l'ambiente che la salute umana. Per informazioni sulle strutture di raccolta dei rifiuti per i dispositivi elettrici ed elettronici usati, contattare il comune o una società autorizzata per lo smaltimento delle apparecchiature elettriche ed elettroniche.

(PT) Depósito de lixo:Não deposite este equipamento no lixo doméstico. O descarte inadequado pode prejudicar o meio ambiente e a saúde humana. Para obter informações sobre instalações de coleta de lixo para dispositivos elétricos e eletrônicos usados, entre em contato com o conselho da cidade ou uma empresa autorizada para o descarte de equipamentos elétricos e eletrônicos.

(PL) Utylizacja odpadów:Nie należy deponować tego sprzętu razem z odpadami domowymi. Niewłaściwa utylizacja može zaszkodzić zarówno środowisku, jak i zdrowiu ludzkiemu. Aby uzyskać informacje na temat urządzeń do zbierania zużytych urządzeń elektrycznych i elektronicznych, należy skontaktować się z radą miasta lub upoważnioną firmą w celu usunięcia sprzętu elektrycznego i elektronicznego.

(RO) Eliminarea deşeurilor:Nu depuneti acest echipament cu deşeurile menajere. Eliminarea necorespunzátoare poate dăuna atât mediului, cât și sănătății umane. Pentru informații despre instalațiile de colectare a deşeurilor pentru dispozitive electrice și electronice folosite, vă rugăm să contactați consiliul municipal sau o companie autorizată pentru eliminarea echipamentelor electrice și electronice.

(SK) Likvidácia odpadu:Toto zariadenie nevkladajte do domového odpadu. Nesprávna likvidácia može poškodit životné prostredie a ľudské zdravie. Informácie o zariadeniach na zber použitého odpadu z elektrických a elektronických zariadení získate od mestského zastupitelštva alebo od autorizovanej spoločnosti o likvidácii elektrických a elektronických zariadení.

(SL) Odlaganje odpadkov:Te opreme ne odlagajte skupaj z gospodinjskimi odpadki. Nepravilno odstranjevanje lahko škoduje okolju in zdravju ljudi. Za informacije o napravah za zbiranje odpadnih električnih in elektronskih naprav se obrnite na mestni svet ali pooblaščeno podjetje za odstranjevanje električne in elektronske opreme.

(GR) Διαχείριση απορριμάτων:Μην καταθέτετε αυτόν τον εξοπλισμό στα οικιακά απορρίμματα. Η ακατάλληλη απόρριψη μπορεί να βλάψει τόσο το περιβάλλον όσο και την ανθρώπινη υγεία. Για πληροφορίες σχετικά με τις εγκαταστάσεις συλλογής απορριμμάτων για χρησιμοποιημένες ηλεκτρικές και ηλεκτρονικές συσκευές, επικοινωνήστε με το δημοτικό συμβούλιο ή μια εξουσιοδοτημένη εταιρεία για τη διάθεση ηλεκτρικών και

(ENG) WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products. Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands
