Product Type	Car Stereo Wiring Harness
Brand	Scosche
Model	CR1286B
Compatibility	Select GM vehicles (e.g., Chevrolet, GMC, Buick) with factory radio
Connector Type	OEM plug-and-play connector
Wire Gauge	18 AWG
Number of Wires	12
Color Coding	Standard aftermarket colors (yellow, red, black, etc.)
Wire Length	Approx. 6 inches (15 cm) each
Power Requirement	12V DC vehicle battery
Dimensions	4 x 3 x 1 inches (10 x 7.5 x 2.5 cm)
Weight	0.2 lbs (90 g)
Material	Plastic connector with copper wires
Installation	Color-matched wires for easy crimping or soldering
Maintenance	Wipe with dry cloth; avoid moisture
Safety	Disconnect vehicle battery negative terminal before installation
Spare Parts	Not applicable; integrated unit
Repairability	Non-repairable; replace if damaged
Included Items	Wiring harness, instruction manual

Frequently Asked Questions - CR1286B Scosche

What vehicles is the Scosche CR1286B compatible with?

The CR1286B is designed for select GM vehicles, including Chevrolet, GMC, Buick, and some Cadillac models from the 1990s to 2000s. Always verify your vehicle's radio connector before purchase.

Is this a plug-and-play harness?

Yes, it plugs directly into the factory radio connector. You then splice or crimp the wires to your aftermarket stereo's harness.

Does the harness come with instructions?

Yes, the product includes a basic installation guide. A detailed manual can also be downloaded from the Scosche website or via notice-facile.com.

What tools are needed for installation?

You'll need wire strippers, crimpers, electrical tape or heat shrink, and a multimeter for testing. A trim removal tool may be helpful to access the factory radio.

Can I use this harness with a non-GM vehicle?

No, it is specifically designed for GM vehicles. Using it on other makes may require adapter plugs or rewiring.

What do the wire colors mean?

Standard colors: Yellow (battery constant), Red (ignition switched), Black (ground), Gray (right front speaker+), Gray/Black (right front-), White (left front+), White/Black (left front-), Green (right rear+), Green/Black (right rear-), Purple (left rear+), Purple/Black (left rear-).

Is the harness pre-stripped?

The wires are pre-stripped about 1/4 inch (6 mm) for easy connection. You may need to trim if using butt connectors.

How do I test if the harness is working?

After splicing, use a multimeter to check for 12V on the yellow wire with battery connected. Turn ignition on to test red wire for 12V. Verify speaker wires with a test tone.

What is the warranty on this harness?

Scosche typically offers a limited lifetime warranty against defects. Check the included paperwork or their website for details.

Can I return the harness if it doesn't fit?

Most retailers accept returns within 30 days if unused. Verify compatibility before installation to avoid restocking fees.

USER MANUAL CR1286B Scosche

IN-DASH INSTALLATION KIT FOR SELECT 2004-UP CHRYSLER, DODGE & JEEP VEHICLES W/O NAVIGATION

CHRYSLER

2004-UP 300

DODGE

2006-UP CHARGER
2005-UP DAKOTA
2004-UP DURANGO
2004-UP MAGNUM
2006-UP RAM

JEEP

2005-UP GRAND CHEROKEE

INTRODUCTION / PRELIMINARY

Thank you for purchasing the Scosche CR1286 Kit. This kit was manufactured with the highest of quality standards.

NOTES:

• See your vehicle's instructions for any special tools your installation might require.
• Read all instructions accompanying your car stereo/cassette player for proper wiring and mounting instructions.

WIRE CODES

For Factory Wiring Codes go to: www.scosche-cars.com

LIABILITY DISCLAIMER

This instruction booklet is based on carefully documented data and research of automobile dash disassembly, wire harness/codes and information pertaining to installation of this kit in the listed vehicles. Manufacturer cannot be held responsible for discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or options, or damage that may occur in the automobile during the installation of components while using this booklet.

VEHICLE DISASSEMBLY

2004-UP Chrysler 300 2004-UP Dodge Magnum

1. Using a panel removal tool, carefully pry out ashtray and ashtray housing.
2. Starting from the bottom, carefully pry out the radio/climate control dash bezel. Disconnect and remove.
3. Remove four (4) Phillips head screws from radio bracket. Disconnect and remove.

2006-UP Dodge Charger

Radio Removal:

1. Using panel removal tool, unsnap the dash bezel surrounding the factory radio, lift away, disconnect and remove.
2. Extract (4) four Phillips head screws securing radio, lift away, disconnect and remove.

2005-UP Dodge Dakota

Radio Removal:

1. Extract two (2) Phillips head screws at bottom of center dash bezel.
2. Using panel removal tool, carefully unsnap center dash bezel from top to bottom, lift away, disconnect and remove.
3. Extract (4) four Phillips head screws securing radio, lift away, disconnect and remove.

2004-UP Dodge Durango

Radio Removal:

1. Using a Phillips screw driver, remove two (2) screws in an upward angle at bottom edge of radio and A/C control bezel.
2. Using panel removal tool, pop out radio dash bezel and remove.
3. Using a Phillips screw driver, remove four (4) screws from radio, disconnect and remove.

2006-UP Dodge Ram

Radio Removal:

1. Unsnap the top portion of center console using a panel removal tool.
2. Extract (3) Philips head screws securing the rest of the center console. Lift away and remove.
3. Extract (2) Philips head screws securing a trim panel that meets the carpet and the dash together.
4. Once trim panel is removed, unsnap the panel from behind that would originally hug the center console.
5. After the panel is removed, access and extract (2) Philips head screws screwed in a vertical direction securing the dash bezel surrounding the radio.
6. Using a panel removal tool, unsnap the dash bezel surrounding the radio. Lift away, disconnect and remove

2005-UP Jeep Grand Cherokee

Radio Removal:

1. Using panel removal tool, carefully unsnap radio trim bezel, lift away and remove.
2. Extract four (4) Phillips head screws securing the radio, lift away, disconnect and remove.

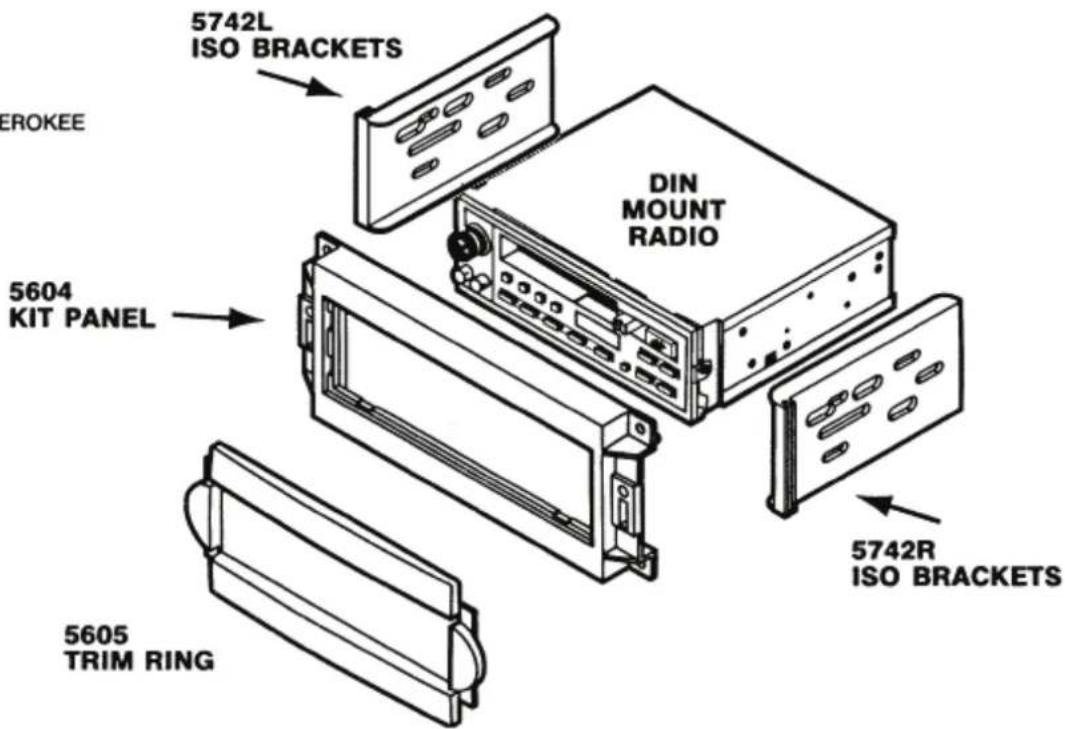

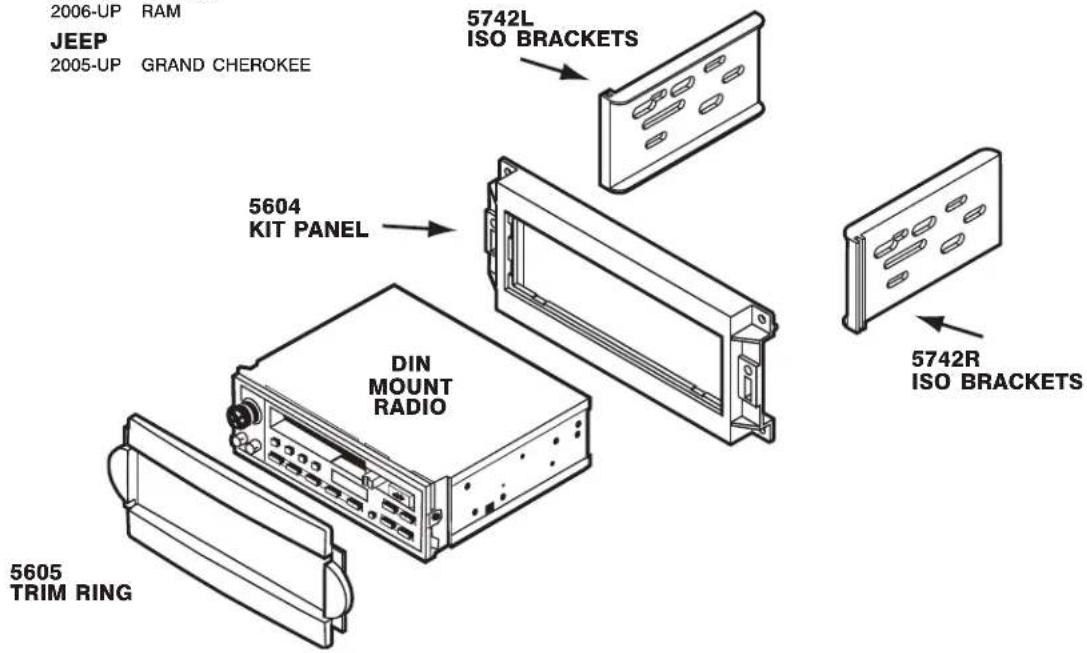

CHRYSLER

2004-UP 300

DODGE

2006-UP CHARGER

2005-UP DAKOTA

2004-UP DURANGO

2004-UP MAGNUM

2006-UP RAM

JEEP

2005-UP GRAND CHEROKEE
