PDWM91 - Microphone Pyle - Free user manual and instructions

Product Type	Wireless Microphone System
Brand	Pyle
Model	PDWM91
Frequency Range	UHF 500-900 MHz (varies by region)
Number of Channels	Dual (2 microphones)
Operating Range	Up to 100 feet (30 meters) line of sight
Microphone Type	Handheld dynamic
Transmitter Battery	2 x AA per microphone (not included)
Receiver Power	DC 12V via included adapter
Receiver Output	1/4" (6.35mm) unbalanced audio jack
Antenna	Fixed external antennas on receiver
Dimensions (Receiver)	8.3 x 4.7 x 1.6 inches (21 x 12 x 4 cm)
Weight (Receiver)	Approx. 1.2 lbs (0.54 kg)
Dimensions (Microphone)	10.2 x 1.6 inches (26 x 4 cm) each
Weight (Microphone)	0.7 lbs (0.32 kg) each with batteries
Audio Frequency Response	50 Hz - 15 kHz
Signal-to-Noise Ratio	>60 dB
THD	<0.5%
Indicator Lights	Power, RF signal, AF signal
Included Accessories	2 microphones, receiver, audio cable, power adapter, user manual
Battery Life (Microphone)	Approx. 6-8 hours continuous use
Operation Mode	Line of sight, avoid obstructions
Cleaning	Wipe with dry cloth; do not use liquid cleaners
Storage	Cool, dry place; remove batteries if not used for extended period

Frequently Asked Questions - PDWM91 Pyle

How do I set up the Pyle PDWM91 wireless microphone system?

Connect the receiver to a power source using the included adapter, then plug the audio cable into the receiver's output and your amplifier or mixer. Insert fresh AA batteries into each microphone (observe polarity). Turn on the receiver and then the microphones; they should auto-pair. Adjust volume as needed.

What is the operating range of the PDWM91?

The system has an operating range of up to 100 feet (30 meters) under ideal line-of-sight conditions. Walls, metal objects, and other obstacles can reduce the range. For best performance, keep the receiver in a central location and avoid obstructions between the receiver and microphones.

Why is there no sound from the microphone?

First, check that both the receiver and microphone are powered on. Ensure the receiver is properly connected to your audio system. Verify the microphone battery is inserted correctly and has sufficient charge. Also, check that the receiver's volume knob is turned up and the audio cable is fully inserted. If using multiple systems, ensure they are on different channels to avoid interference.

Can I use more than one PDWM91 system together?

Yes, but you must ensure each system operates on a different frequency channel to avoid interference. The PDWM91 has selectable channels; consult the manual for channel selection. Typically, each system comes with pre-set frequency groups; use distinct groups for multiple systems.

What type of batteries does the microphone use and how long do they last?

Each microphone requires 2 AA alkaline batteries (not included). Battery life is approximately 6-8 hours of continuous use, depending on battery brand and conditions. When the battery power is low, the microphone's LED may dim or turn off. Always replace both batteries at the same time.

How do I clean and maintain the PDWM91?

Use a soft, dry cloth to wipe the receiver and microphones. Do not use any liquids, solvents, or abrasive cleaners. Store the system in a cool, dry place. When not in use for extended periods, remove the batteries from the microphones to prevent leakage and damage.

The microphone is producing static or interference. What should I do?

Interference can be caused by other wireless devices, such as Wi-Fi routers, cell phones, or other microphones. Try changing the channel on the receiver and microphone (if selectable). Move the receiver away from metal objects and electronic equipment. Ensure the receiver's antennas are fully extended and positioned upright.

What audio output does the PDWM91 receiver have?

The receiver features a 1/4-inch (6.35mm) unbalanced audio output jack. It can be connected to most amplifiers, mixers, or sound systems using a standard 1/4-inch instrument cable. The output level is adjustable via the volume knob on the receiver.

Can I use rechargeable batteries in the PDWM91 microphones?

Yes, you can use rechargeable AA batteries (NiMH recommended). However, note that the battery life may be shorter compared to alkaline batteries. Ensure the rechargeable batteries are fully charged before use. The microphone's low-battery indicator may not be accurate with rechargeable batteries.

How do I know if the microphone is paired with the receiver?

When both units are powered on, the receiver's RF (radio frequency) LED should light up solidly for each microphone. The microphone itself may have a power LED that stays on. If the RF LED is off or flashing, the microphone is not paired. Ensure both are on the same channel and within range. Some models auto-pair; others require manual channel selection.

USER MANUAL PDWM91 Pyle

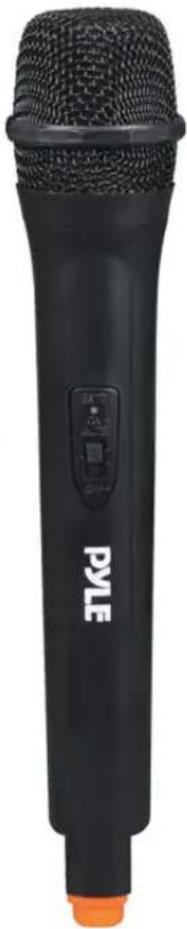

ON/OFF switch Grill LED indicator

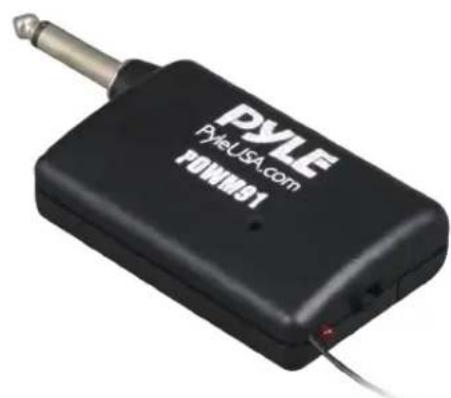

PYLE Pyle-USA.com PUMM91

Black PYLE microphone with orange base and black body (no visible text or symbols on device body)

HOW TO USE?

1. Open the battery cover of the receiver, put 1AA battery inside the battery compartment. Make sure the "+ -" polar is correct.
2. Turn ON/OFF switch to ON, the LED indicator is lit. Then insert the 1/4"(6.3mm) Input Jack into audio input socket, the LED indicator is become brighter after receiving RF signals.
3. Install 2PCS AA batteries correctly in handheld transmitter or install 1PC 9 V battery correctly into the belt-pack transmitter. Install the headset microphone to the beltpack input transmitter.
4. Turn ON the transmitter switch, the LED indicator is lit. Now the system is ready to use

Notice:

1. If there is any noise, distortion, dead points when using the this system, it may be caused from low battery, please replace with new battery.
2. After using it, please turn the switch to "OFF".
3. If you will not use this system for a long time, please take out the batteries.

Features:

• Pro Audio Microphone System
• Handheld Wireless Mic & Receiver Adapter
• VHF Narrow Band Audio Transmitter
- Portable Battery-Operated Design
- Simple Plug-and-Play Operation
- Includes Plug-in Audio Adapter Receiver
• Audio Receiver with 1/4" -inch (6.3mm) Jack
- Integrated Antenna for Extended Wireless Range
- Noise-Eliminating SMT Technology
• Built-in Acoustic Pop Filter
- Integrated Low Noise Circuitry
• Ultra-Wide Frequency Response
• Crisp Audio Clarity for Vocals & Singing
• Durable Mic Construction with Steel Mesh Grill
• LED Indicator Light
• Power ON/OFF Switch
• Perfect for Professional Audio Stage & Studio Performances

- Directly Connects to Amplifiers, Stereos, Audio Processors, DJ Mixers

• Used for Home Karaoke, Classroom, Office & Business Applications

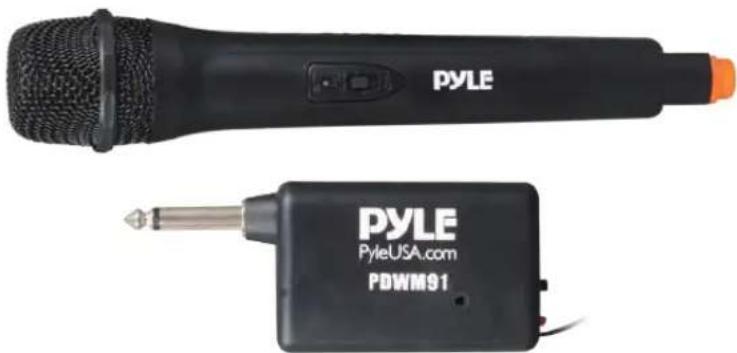

What's in the Box:

• Wireless Handheld Microphone
• Plug-in Adapter Receiver

Two black Pyle audio devices: a microphone and a PDWM91 device, both without visible text or symbols.

Technical Specs:

• Wireless Operation: VHF Band Transmitter
• Microphone Element/Type: Dynamic
• Pickup/Polar Pattern: Uni-Directional
  • Audio Transmission: Single Channel Mic
• Wireless Operating Range: Up to 100'+ ft.
• Receiver Connector Type: 1/4" -inch (6.3mm)
  • Frequency Stability: 50PPM
  • Frequency Response: 60Hz-13kHz
• Receiving Sensitivity: > 12dB (S/N=40dB)
  • S/N Ratio: 40dB
• Modulation Mode: FM
  • Output Power: 10mW
• Receiver Working Current: <100 mA
  • Mic Body Material: Engineered ABS
• Handheld Mic Size (L x W x H): 10.4" x 2.0" x 2.0"-inches
• Mic Receiver Size (L x W x H): 4.5" x 1.8" x 0.9" -inches

- Battery Operated Microphone, Requires (2) x 'AA' (Not Included)

- Battery Operated Receiver, Requires (1) x 'AA' (Not Included)
