| Product Type | Stainless Steel Double Drawer Sink Unit with Gooseneck Tap |
| Brand | Robinhood |
| Model | ST7003 |
| Material | Stainless Steel (body and tap) |
| Number of Drawers | 2 (top and bottom) |
| Tap Included | Yes, Robinhood Stainless Steel gooseneck tap (part STTAP7150A) |
| Tap Type | Gooseneck, single lever? (not specified), two handles for hot/cold? (knobs included) |
| Valve Configuration | Three-way ball valves for hot and cold (parts 752235HT, 752235CD) |
| Waste System | Complete with waste basket, overflow, hoses, and elbow |
| Overflow | Included with decorative cover and base |
| Installation Type | Undercounter or freestanding? (likely undercounter with foot assembly) |
| Foot Assembly | Included (Supertub foot assembly, bag of 4, part Y119900300) |
| Drawer Type | Square handle standard, bottom and top drawer assemblies included |
| Seals Included | Body seals (thin and thick), rubber seal, waste seal, taper waste seal |
| Hose and Connections | 3-way connection tube, hose 370, WMC clip, waste inlet, etc. |
| Knob Colors | Red (hot) and Blue (cold) knob assemblies |
| Dimensions | Not specified in manual; typical double drawer sink unit approx. 820mm width, 450mm depth |
| Weight | Not specified; estimated heavy duty stainless steel, approx. 25-30 kg |
| Cleaning and Maintenance | Clean with mild soap and water; avoid abrasive cleaners; dry after use |
| Safety | Sharp edges may be present; handle with care during installation; ensure proper drainage |
| Spare Parts Availability | Detailed parts list with part numbers; contact Robinhood for replacements |
| Warranty | Not specified; typically 1-5 years depending on region |
Frequently Asked Questions - ST7003 Robinhood
What type of product is the Robinhood ST7003?
It is a stainless steel double drawer sink unit with a gooseneck tap, designed for undercounter installation in kitchens or utility areas.
Is the gooseneck tap included with the ST7003?
Yes, the model includes a Robinhood Stainless Steel gooseneck tap (part number STTAP7150A) along with hot and cold knob assemblies.
How many drawers does the ST7003 have?
It has two drawers: a top drawer and a bottom drawer assembly, each with square handles.
What are the dimensions of the ST7003?
Exact dimensions are not provided in the manual. Typical double drawer sink units measure approximately 820mm width, 450mm depth, and 900mm height, but verify before installation.
What type of waste system does it use?
It includes a complete waste system with a waste basket assembly, overflow, hoses, and a 3-way connection tube. Refer to parts list for specifics.
How do I clean and maintain the ST7003?
Clean with mild soap and water using a soft cloth. Avoid abrasive cleaners or scouring pads that may scratch the stainless steel. Dry after each use to prevent water spots.
What safety precautions should I take during installation?
Be aware of sharp edges on stainless steel. Wear gloves. Ensure proper support and leveling using the included foot assembly. Follow local plumbing codes.
Can I replace parts on the ST7003?
Yes, many parts are replaceable. The manual includes a detailed parts list with part numbers. Contact Robinhood or a dealer for genuine spare parts.
Does the ST7003 come with a warranty?
Warranty information is not specified in the manual. Typically, Robinhood products may carry a 1 to 5-year warranty. Check with your retailer or manufacturer.
What is the purpose of the three-way ball valves?
The three-way ball valves control hot and cold water supply to the tap. They are color-coded with red (hot) and blue (cold) knobs for easy identification.
User questions about ST7003 Robinhood
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Kitchen sink in PDF format for free! Find your manual ST7003 - Robinhood and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ST7003 by Robinhood.
USER MANUAL ST7003 Robinhood
Description: ROBINHOOD SUPERTUB SERIES 3 DOUBLE DRAWER, S/S GOOSENECK TAP
Model Number: ST7003
Model pictured: ST7003
*Actual unit may vary from image shown

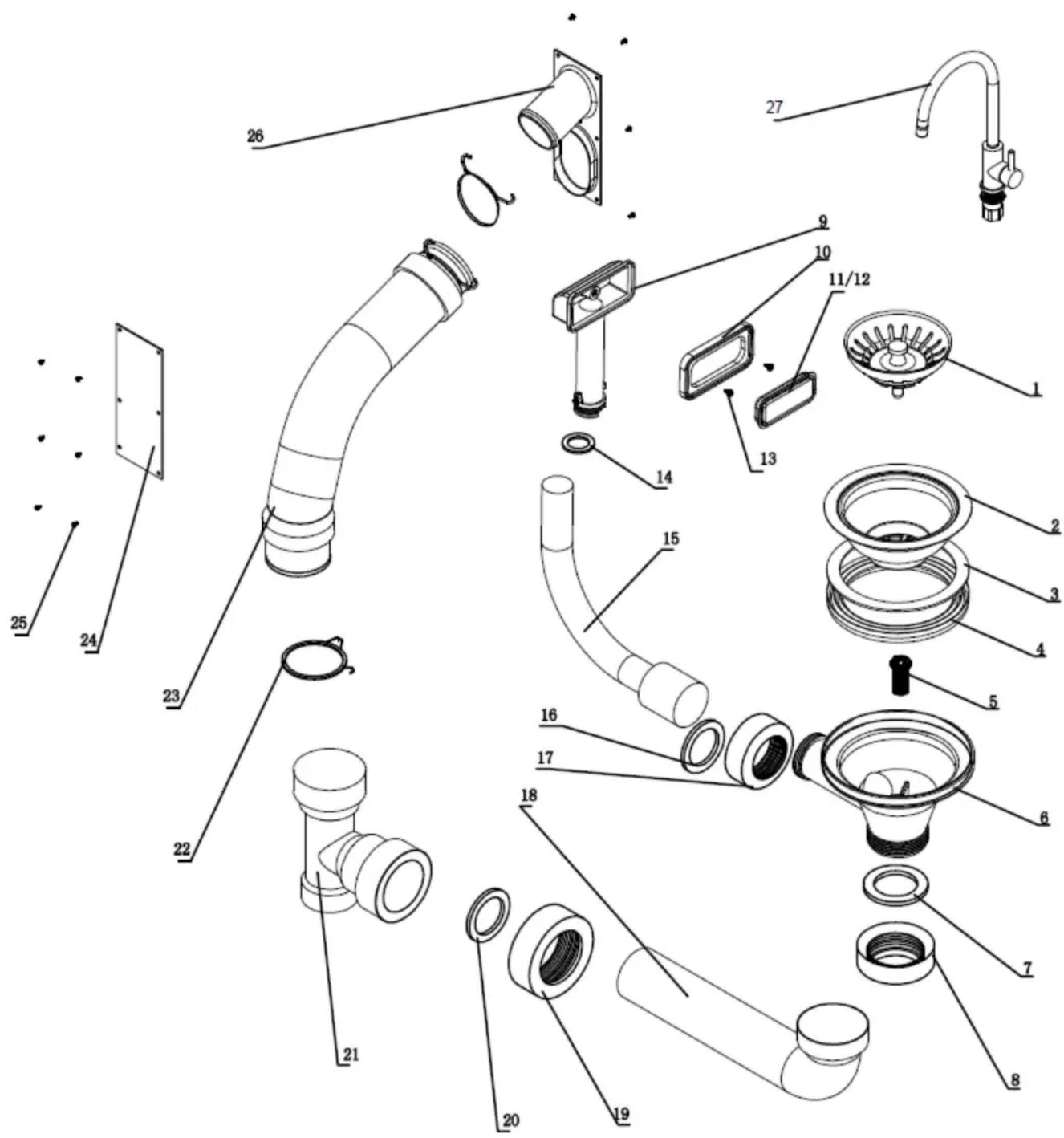

Exploded View
Parts List
| Item Description Part Number | ||
| 1 | Waste basket assembly | C090000008 |
| 2 | Stainless steel body | Y110101102 |
| 3 Seal of body (thin) Y112300001 | ||
| 4 Seal of body (thick) Y112300002 | ||
| 5 Screw nut Y100300011 | ||
| 6 Plastic body (include brass screw) Y110101011 | ||
| 7 Rubber seal Y112300013 | ||
| 8 Screw nut Y100400003 | ||
| 9 Overflow connection Y112002059 | ||
| 10 Overflow seal Y112300125 | ||
| 11 | Overflow decorated cover | Y119900320 |
| 12 | Overflow base | Y119900069 |
| 13 | Cross screw | Y100199030 |
| 14 | O ring | Y112300550 |
| 15 | Overflow hose | Y112001160 |
| 16 | Waste seal | Y112300015 |
| 17 | Tube nut I | Y100400011 |
| 18 | Waste elbow | Y110299013 |
| 19 | Tube nut II | Y100400004 |
| 20 | Taper waste seal | Y112300014 |
| 21 | 3 way connection tube | 752203 |
| 22 | Hose WMC clip | 752228 |
| 23 | Hose 370 | 752224 |
| 24 | Waste inlet cover | 752202 |
| 25 | Screws (pack of 6) | 999054 |
| 26 | Waste inlet | 752201 |
| 27 | Robinhood Stainless Steel gooseneck tap | STTAP7150A |

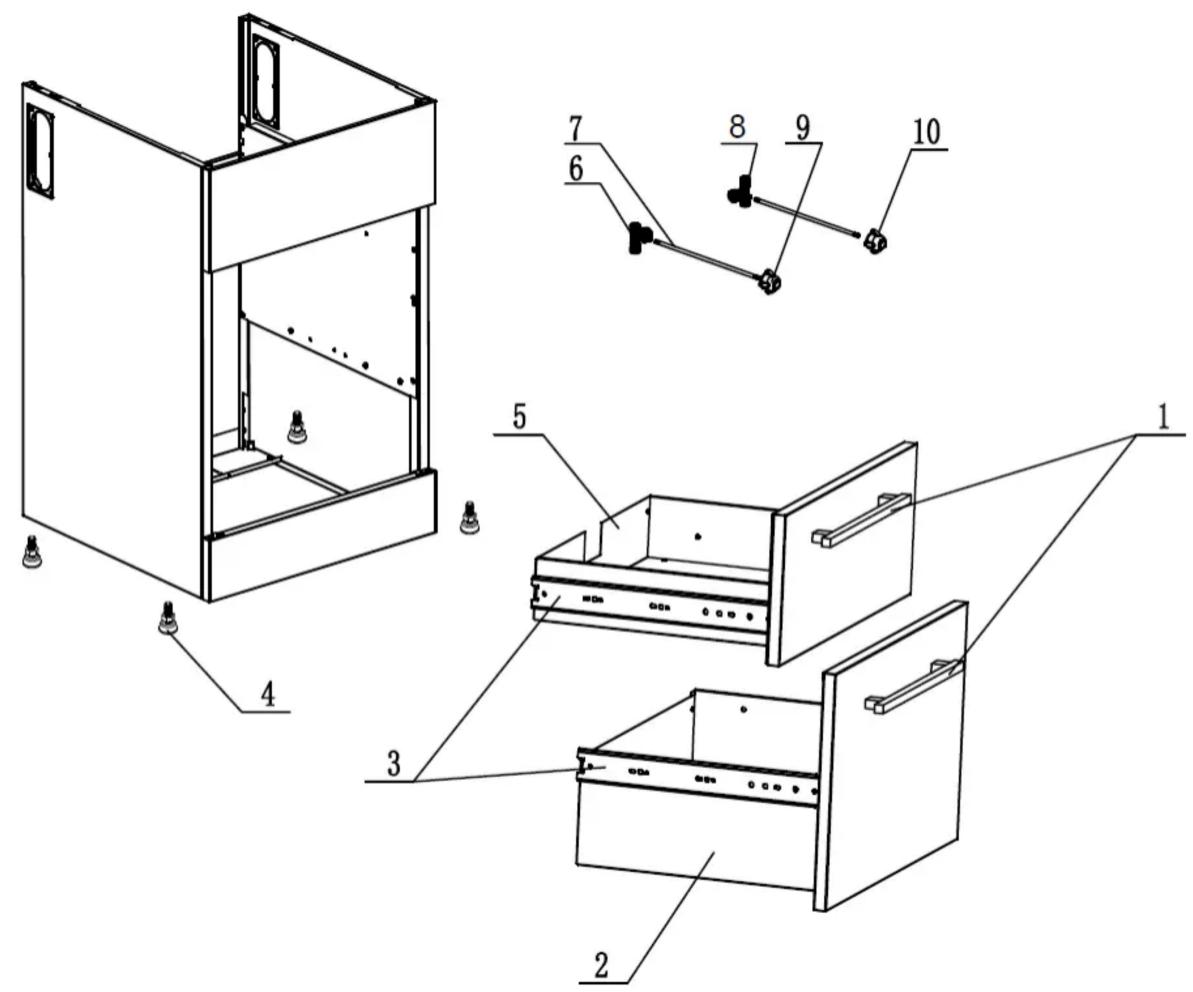

Exploded View & Parts List Continued
| Item Description Part Number | ||
| 1 | Square handle standard (with screws, 1 pc) | C990000061 |
| 2 | Bottom drawer assembly | C990000042 |
| 3 Runner (1 set) Y119900316 | ||
| 4 | Supertub foot assembly (Bag of 4) | Y119900300 |
| 5 Top drawer assembly C990000043 | ||
| 6 | Three way ball valve Hot (for drawer models) | 752235HT |
| 7 Ball valve 3 way extended handle 751019 | ||
| 8 | Three way ball valve Cold (for drawer models) | 752235CD |
| 9 Knob assembly Red 750909RD | ||
| 10 | Knob assembly Blue | 750909BU |
