USER MANUAL TCC-9610 LG

To fully enjoy the features and functions of this new unit, we recommend that you read this OWNER'S MANUAL carefully and completely.

Precautions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OF ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. To avoid electrical shock, do not open the cabinet, Refer servicing to qualified personnel only.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Warning:

Do not install this equipment in a confined space such a book case or similar unit.

Table of Contents

INSTRUCTION

Precautions....2
Table of Contents 3 DisplayWindow 2
Display Window....3 Front panel/Box panel....4
Front panel/Rear panel 4
Installation....5 Connection diagram....6
Connection diagram 7
Detachable Front Panel....8

OPERATION

Basic operation 9-10

Tape operation 11 Radio operation 12-13

Radio operation 12-13 CD changer Player(Optional) 14-15

CD changer Player(Optional)....14-15

REFERENCE

Specifications.... 16

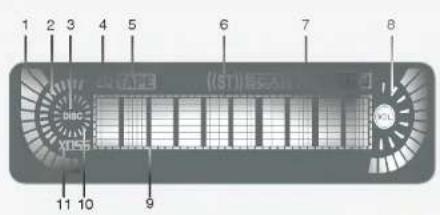

Display Window

1. SIGNAL LEVEL indicator
2. TUNING indicator
3. DISC indicator (Optional)
   4 EQUALIZER (EQ) indicator
4. TAPE indicator
5. STEREO indicator
6. CD CHANGER indicator (Optional)
7. VOLUME indicator
8. MAIN DISPLAY SECTION
9. • TAPE PLAY DIRECTION indicator
   • CD PLAY indicator (Optional)
10. XDSS Indicator

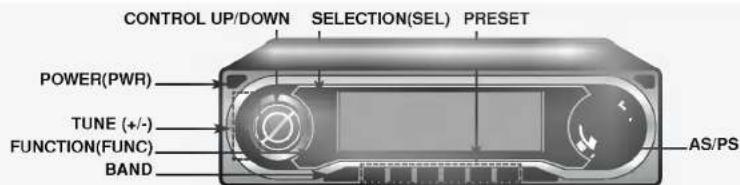

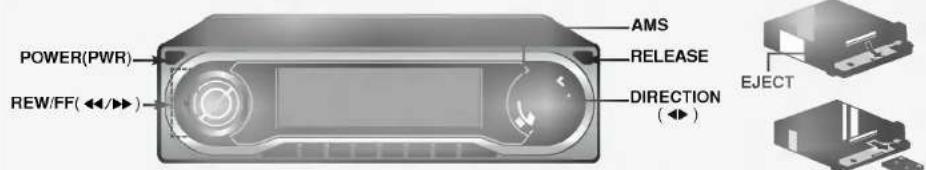

Front Panel/Rear Panel

Back panel of a server or electronic device showing ports and connectors (no text or symbols visible)

1. POWER (PWR) button
2. CONTROL UP/DOWN dial
3. SELECTION (SEL) button
4. DISPLAY WINDOW
5. AUTO MUSIC SEARCH (AMS) button
6. MUTE button
7. XDSS button
8. RELEASE ( 🔒 ) button
9. CLOCK (CLK) button

10. DIRECTION (◀▶) button

11. AS/PS (Auto store/Preset scan) button

12. EQUALIZER (EQ) button
    13 • Preset Station buttons (1\~6)
13. CD PLAY/PAUSE (▶/Ⅱ) button (Optional)
14. INTRO SCAN (SCAN) button (Optional)
    • REPEAT (RPT) button (Optional)
15. SHUFFLE (SHF) button (Optional)
    • DISC SELECTOR (D-/+ ) button (Optional)
16. BAND button

17. FUNCTION (FUNC) button

18. • REW/FF (◀◀/▶▶) button

19. SEEK/TUNE (+/-) button

20. EJECT (▲) button

21. TAPE slot

22. ANTENNA JACK

23. LINE OUT JACK (Optional)

24. CD CHANGER JACK (Optional)

25. POWER/ SPEAKER CONNECTOR

Installation

Two diagrams showing a device being inserted into a package, with arrows indicating the process (no text or symbols present)

Basic Installation

Before installing, make sure that the ignition-switch is set to OFF and remove the terminal of the car battery to avoid short-circuiting.

1 Remove the existing receiver unit.
2 Make the necessary connections.
3 Install the installation sleeve.
4 Install the unit in to the installation sleeve.

Removing existing receiver unit

If there is already an installation sleeve for the receiver unit in the dashboard, it must be removed.

ISO-DIN Installation

1 Slide radio into ISO-DIN frame.
2 Install screws removed from old radio.
3 Slide radio and frame into dash opening.
4 Install dash panel or adapter plate.
5 Install trim ring to radio. The thin part on trim ring must be positioned at the bottom.
6 Install faceplate by fitting right edge into position then pushing left edge closed.

When removing the unit from the installation sleeve

If you need to remove the unit from the installation sleeve, proceed as follows.

1 Remove the rear supporter from the unit.
2 Remove the front panel from the unit.
3 Insert the lever into hole on one side of the unit, and pull the lever toward you. Do the same operation on the other side and pull out the unit from the installation sleeve.

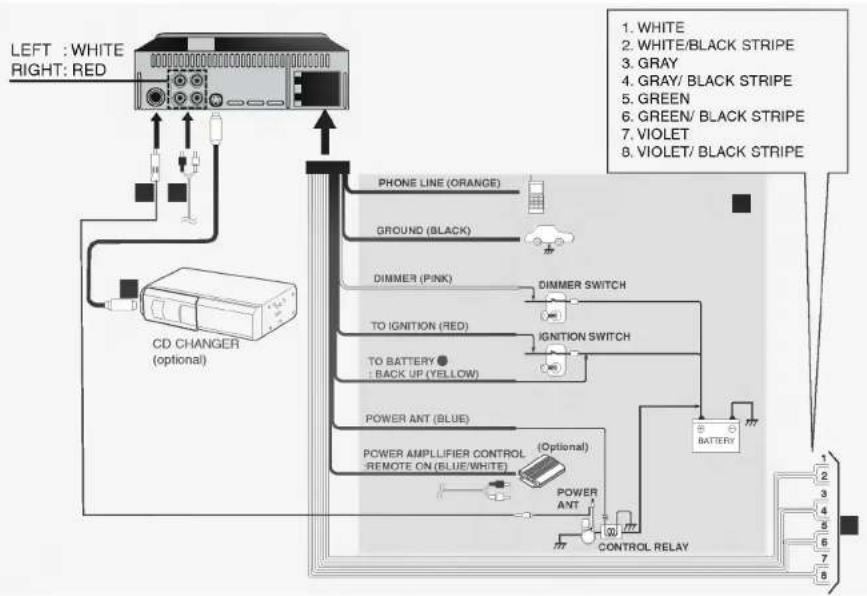

Connection Diagram

Connection

Precaution

Before connecting, make sure that ignition switch is set to OFF, and remove the terminal of the battery to avoid short circuits.

Notes

• Make correct connections as illustrated in the connection diagram.
• Never use the cord of each speaker in common.
  ■From antenna
  ■From power amplifier's input jack (2 channel or 4 channel Optional)
  ■To the wiring of vehicle Colors of leads
• BLUE/WHITE : This lead is for connection to the power amplifier (Remote on)
• ORANGE : This lead is for connection to the Phone line.
• YELLOW: This lead is for connection to the Battery (back-up) terminal from which the power is always supplied.
• BLUE: This lead is for connection to the full automatic power antenna. Power antenna load to be connected to

the terminal of the control relay switch for vehicles equipped with a power antenna.

This lead is not used for vehicles with manual or semiautomatic antennas.

• PINK: This lead is for connection to the Dimmer line
• RED: This lead is for connection to the terminal from which the power is supplied when the ignition switch is set to ACC.
• BLACK : This lead is for connection to the Ground.
  ■Connect the CD changer (optional)
• Your car receiver works as control unit for a CD changer which you can buy, if not yet done, later.
• The suitable cord shown on the scheme will be provided together with the CD changer.

2-Speaker Connections

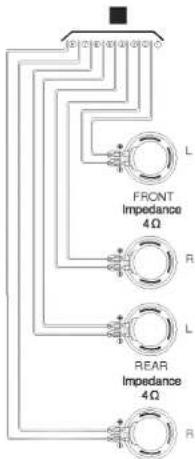

4-Speaker Connections

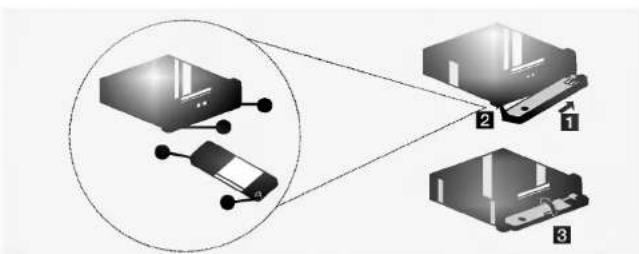

Detachable Front panel

Detachable Front panel

The front panel of this unit can be detached to prevent theft.

1 Press the RELEASE (▲) button to open the front panel.
2 Push the front panel to right.
3 Pull the front panel.
4 Place the front panel in the supplied protective case.

Attachable Front panel

1 Join ● on the front panel to ● on the main unit.
2 Join ● on the front panel to ● on the main unit while pushing the front panel to right.
3 Close the front panel

Notes

• When detaching or attaching the front panel, do not press the display or control buttons.

• The control buttons may not work properly if the front panel is not attached properly. If this occurs, gently press the front panel.

• Do not leave the front panel in any area exposed to high temperature or direct sunlight.

• Do not drop the front panel or otherwise subject it to strong impact.
• Do not allow such volatile agents as benzine, thinner, or insecticides to come into contact with the surface of the front panel.
• Do not try to disassemble the front panel.

Basic Operation

POWER ON and OFF

• Press POWER (PWR) button or any other button to turn the unit on.
• When you insert the TAPE in the TAPE slot, it's turn on
• Press POWER (PWR) to turn it off.
• When the front panel is opened for more than 30 seconds, it is turned automatically off

Notes

• When you turn off, the unit is memorized automatically the volume level currently before you turn off.
• Whenever you turn on the unit, it will operate at the volume level memorized.

MUTE FUNCTION

• MUTE button is operated as MUTE state on/off.
• The releasing mode mute state is when any button is pressed again.

SELECTION (SEL) Button

1 press the SELECTION (SEL) button repeatedly to select the mode you want to adjust from volume, bass, treble, balance and fader. The mode indicator lights up in the following order.

$$ \boxed {\begin{array}{l}\rightarrow V D L \rightarrow B R S \rightarrow T R B \rightarrow B R L \rightarrow F R D\end{array}} $$

2 Turn left or right CONTROL UP/DOWN dial to adjust the sound quality

	Turn right	Turn left
VOL	Increase the volume level.	Decrease the volume level.
BAS	Increase the bass level.	Decrease the bass level.
TRD	Increase the Treble level.	Decrease the Treble level.
BRL	Decrease the level of the left speaker(s).	Decrease the level of the right speaker(s).
FAD	Decrease the level of the front speaker(s).	Decrease the level of the rear speaker(s).

Note

The unit cannot adjust the bass and treble in the EQ on mode.

Each press of the EQ button switches the unit to the other equalizer mode, as follows.

$$ \text { Rock } \rightarrow \text { Pop } \rightarrow \text { Classic } \rightarrow \text { Jazz } \rightarrow \text { Vocal } $$

• Rock : Optimized for Hard Rock and Heavy Metal music.
• Pop : Optimized for R&B, Soul and Country music.
• Classic : Optimized for orchestral music.
  • Jazz : Sweet sound with soft feeling
  • Vocal : Powerful realism width strong sound quality

Basic Operation

1 After you have selected the proper mode by using the SELECTION (SEL) button, control the desired function by turning this dial within 5 seconds. After you finish selecting modes, the unit returns to the initial mode.

2 Operating display in all modes: A numeric display is converted by turning this dial.

SETTING THE CLOCK

1 Press CLOCK (CLK) button once momentarily to display the time.

2 Press the CLOCK (CLK) button for more than 2 seconds, and clock indication will be displayed for 5 seconds. Adjust the clock within 5 seconds.

- Press ▶▶ to adjust the hour.

- Press ◀ to adjust the minute.

3 Press the CLOCK (CLK) button, the display returns to the previous display

FUNCTION (FUNC) Button

This button serves to switch over between TAPE and RADIO operation. (TAPE ↔ RADIO)

Beep Sound Function

1 Press the SELECTION (SEL) button for more than 2 seconds.

2 "BEEP ALL" or "BEEP 2ND" appear in the Display window.

3 Turn left or right CONTROL UP/DOWN dial to select the "BEEP ALL" or "BEEP 2ND" indicator.

• BEEP ALL

When any button is pressed, beep sounds

• BEEP 2ND

When preset (1-6) are pressed for more than 2 seconds, beep sounds

XDSS (Extreme Dynamic Sound System)

Press XDSS button to reinforce treble, bass and surround effect.

Tape Operation

Basic Operation

1 Press the RELEASE (▲) button to open the front panel.
2 Insert a cassette. The cassette is automatically loaded and play begins.
3 The tape direction can be reversed by pressing DIRECTION(◀) button.
4 The tape direction automatically reverses when the tape end has been reached.
5 To stop playback, press the EJECT(▲) button and remove the cassette tape.
6 Fast forwarding and rewinding the tape

• Fast forwarding tapes : Press the FF( ▶▶ ) button.
• Rewinding tapes : Press the REW (◀◀) button.

Auto Music Search (AMS)

1 While the playing, press the AMS button.
2 Press the REW/FF(◄◄/►►) button.
- The cassette deck will search for and play the next (before) track.
- During searching "AMS" will be shown in the display.
- Music search may not function properly for the following types of recordings. This is due to the recording and is not a malfunction of the unit.
• There are noises in the spaces between tracks.
- A blank space is less than 4 seconds long.
- A track includes a long pause or continues at low volume for several seconds.

Ejecting a Cassette

1 Open the front panel.
2 Press the EJECT(▲) button.

Note

If more than 30 seconds have elapsed after opening the front panel, unit was turned off automatically.

Radio Operation

Presetting stations

Up to 6 stations for each band F1, F2, F3, MW can be stored on the preset station buttons.

1 Press BAND to select the desired band. If a TAPE is inserted in the unit, press FUNCTION (FUNC) button to select radio function.
2 Tune in the station to be preset by pressing TUNE(+/-) button.

- AUTO Tuning Press the TUNE(+/-) buttons for more than 1 seconds.

- MANUAL Tuning the TUNE(+/-) buttons for more than 2 seconds and then buttons repeatedly until the desired station appears.

3 Press one of the preset station buttons (1 - 6) for more than 2 seconds. The number of the pressed preset station button is displayed.
4 Repeat steps 2 and 3 to preset other stations.

Notes

• As F1, F2, F3 have the same frequency range, up to 18 station can be preset for FM.
• When a station is preset on the preset station button on which another station of the same band has already been preset, the previously preset station is automatically erased.

Automatic Store Stations

The automatic presetting function is used to automatically preset up to 6 stations for each band.

1 Press BAND to select the desired band.
2 Press and hold AS/PS (auto store/preset scan) down for more than 2 seconds. The scanning starts from the currently displayed frequency to higher frequencies and stops when 6 stations have been preset or the receivable frequencies have been scanned once.

Radio Operation

Notes

• The presetting is not performed if there is no station to be tuned in.
• When the automatic presetting is performed, the previously preset stations are automatically erased
  • To stop the automatic presetting, press AS/PS (auto store/preset scan) again or press any of the preset station buttons (1 - 6)

To scan the preset stations

Press AS/PS (auto store/preset scan) button briefly.

Each preset station is tuned in for 5 seconds in order.

To stop the scanning, press AS/PS again or any of the preset station buttons (1 - 6).

To tune in the preset stations

Press BAND to select the desired band and press the desired preset station buttons (1 - 6).

The number of the preset station

button is displayed and the preset station is received.

Listening to the radio

1 Press any button (except 🔒) to turn on the unit.
The radio frequency is displayed. If the unit is in the TAPE operation, press FUNCTION (FUNC) to select the radio operation.

2 Press BAND to select the desired band.
The band indicator F1, F2, F3, MW is displayed.

3 Tuning the TUNE(+/-) buttons for more than 2 seconds and then buttons repeatedly until the desired station appears.

Press TUNE(+) to increase and TUNE(-) to decrease the frequency. To change the frequency rapidly, press and hold TUNE(+/-) down longer.

Seek Tuning

The seek function is used to search for the station automatically.

• Press TUNE(+/-) to start the seek function.
• Press TUNE (+) to search for the higher frequencies and TUNE (-) for the lower frequencies.
  The seeking stops when the nearest station with good reception is tuned in
• Press TUNE(+/-) repeatedly until desired station is received.

CD Changer player(Optional)

You can play CDs with this unit by connecting the optional compact disc changer.

Make sure that the disc magazine loaded with the discs is inserted into the connected compact disc changer.

1 Press POWER button to turn on the power of the car stereo.
2 Slip a CD in the magazine with the sticker upwards.
3 Insert the magazine in the CD changer.
4 Press FUNCTION button to activate the CD function, one of the disc will be played automatically. If the CD changer is not connected, the CD function is not activated.
5 Press D -/+ button to select the CD.
6 Press one of buttons (◄◄/►►) to select another except of music from the disc being played.
7 Press and hold the(◄◄/►►) button during playback. The track is scanned by spiral in the forward or backward direction release the button to resume playback at the desired location.

Basic Play

To start play, press the( ▶/|| )button To pause, press it again.

The disc and track number blinks in the display window.

Repeat Play

- To play one track repeatedly, press RPT button (The RPT indication is displayed).

• To play all tracks repeatedly, press RPT button for more than 1.5 seconds (The RPT indication is displayed).

- To cancel the repeat play, press RPT button again.

Notes

• If the repeat play is not selected, all the discs are played repeatedly.
• The repeat play cannot be performed with the intro or shuffle play.

Shuffle play

• To play one disc randomly, press SHF button (The SHF indication is displayed).

• To play all discs randomly, press SHF button for more than 1.5 seconds (The SHF indication is displayed).

- To cancel the repeat play, press SHF button again.

Notes

• The shuffle play cannot be performed with the intro play. If the repeat play is selected during the shuffle play, the shuffle play is canceled.
• During the shuffle play, even if is pressed repeatedly, the track currently in play is restarted.

CD Changer player(Optional)

Intro Scan

Press SCAN button to scan a CD by playing only the first 10 seconds of each track.

• To play one disc intro scan, press SCAN button (The SCAN indication is displayed).

• To play the first 10 seconds of each track on all the discs intro scan, press SCAN button for more then 1.5 seconds (The SCAN indication is displayed).

When the desired track is found, press SCAN again.

The unit returns to the normal playback.

Notes

- The intro scan play cannot be performed with the repeat or shuffle play.

CD CHANGER DISPLAY

Specifications

GENERAL

Output Power	.50W x 4CH(Max.)
Power Source	.DC 12-15 V
Speaker impedance	.4 Ω
Ground System	.Negative
Dimensions(W x H x D)	.188 x 58 x 166 mm(Without Front Panel)
Net Weight	.1.3 kg

TAPE SELECTION

Tape Drive System	Full Auto Reverse
Tape Speed	.4 75cm/sec.
Wow/Flutter	0.3% (WRMS)
S/N Ratio	.45 dB
Frequency Response	40-14,000 Hz
Distortion (T.H.D. 0.5W)	1.5%

RADIO SELECTION

FM

Frequency Range	65-74MHz, 87.5-108 MHz
S/N Ratio	55 dB
Distortion	0.5%
Channel Separation	25 dB

AM(MW)

Frequency Range	522-1620 kHz
S/N Ratio	45 dB
Distortion	1.0%

EW(Optional)

Frequency Range	144-281 kHz
S/N Ratio	45 dB
Distortion	1.0%

Note

• The design and specification are subject to change without notice in the course of product improvement.
• The working life of this product is 7 years since the date of purchase.

____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____
____
____
____
____
____
____
____
____
____
____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____
____ ____

LG

P/NO:3834RR0002D
