TCH-M551 - Car stereo LG - Free user manual and instructions

Product Type	Car Stereo / Receiver
Brand	LG
Model	TCH-M551
Form Factor	Single-DIN (1DIN)
Dimensions (W x H x D)	Approx. 178 x 50 x 155 mm
Weight	Approx. 1.0 kg
Power Supply	12V DC (negative ground)
Max Power Output	50W x 4 (max)
RMS Power Output	22W x 4 (at 4 ohms, 10% THD)
Tuner Bands	FM, AM
RDS Support	Yes (Radio Data System)
Media Playback	CD, CD-R, CD-RW, MP3, WMA
USB Input	Front USB (MP3/WMA playback)
Auxiliary Input	3.5mm front AUX
Bluetooth	No (not specified)
Equalizer	Preset EQ modes (Pop, Rock, Classic, etc.)
Display	LCD with white illumination
Remote Control	Included (wired or infrared)
Steering Wheel Control Compatible	Yes (with optional adapter)
Security	Detachable faceplate
Cleaning	Use soft dry cloth; avoid liquids
Operating Temperature	-20°C to 60°C

Frequently Asked Questions - TCH-M551 LG

How do I install the LG TCH-M551 car stereo?

First, disconnect the vehicle's battery negative terminal. Remove the existing stereo and use the provided mounting sleeve and trim ring. Connect the wiring harness matching colors (red: ACC, yellow: constant 12V, black: ground, etc.). Insert the unit and secure it. Reconnect battery and test.

What media formats are supported?

The stereo supports CD-Audio, CD-R, CD-RW, and MP3/WMA files via CD or USB. For USB, MP3 and WMA with bitrates up to 320 kbps are playable.

How do I reset the unit?

If the unit malfunctions, press the reset button (inside the front panel or behind the faceplate) using a pointed object. This restores factory settings.

Can I play music from my phone?

Yes, via the front AUX input (3.5mm jack) or by connecting a USB cable if your phone supports mass storage mode. Note: Bluetooth is not available for this model.

How do I set the clock?

Press and hold the CLOCK button (or DISP) until the hours flash. Use the volume knob or preset buttons to adjust hours, then press again to set minutes. Press CLOCK to confirm.

Why is there no sound?

Check that the unit is powered (faceplate locked, ignition on). Ensure speaker wires are properly connected and not shorted. Also check the fader/balance settings and mute function.

How do I clean the faceplate?

Use a soft, dry cloth to wipe the faceplate. Do not use any solvents or abrasive cleaners. For the CD lens, use a CD lens cleaner disc occasionally.

What should I do if the radio reception is poor?

Ensure the antenna is fully extended and connected. For FM, try switching to MONO mode to reduce noise. Avoid metallic window tints that can block signals.

How do I store radio presets?

Tune to the desired station, then press and hold one of the preset buttons (1-6) until you hear a beep. The station is saved and can be recalled by a short press.

Where can I find the user manual?

The manual is available for download on notice-facile.com in PDF format. You can also request a translated version by providing your email and desired language.

USER MANUAL TCH-M551 LG

To fully enjoy the features and functions of this new unit, we recommend that you read this OWNER'S MANUAL carefully and completely.

Internet address : http://ua.lge.com

Customer Information Center LG ; (380-44) 490-7777, 8-800-303-0000

Precautions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OF ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. To avoid electrical shock, do not open the cabinet, Refer servicing to qualified personnel only.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified here in may result in hazardous radiation exposure.

Laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

This label is located on the interior.

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. WARNING: OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD STRÅLEN ÄR FARLIG.

This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the exterior.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Warning:

Do not install this equipment in a confined space such a book case or similar unit.

Before Use

• Do not attempt to disassemble this unit. Laser rays from the optical pickup are dangerous to the eyes.
• Make sure that pins or other foreign objects do not inside the unit; they may cause malfunctioning, or a safety hazard such as electrical shock or exposure of laser rays.
• When your car is parked under direct sunlight in summer, there may be a considerable rise in temperature inside the car. Ensure to let the ambient temperature cool down before operating the unit.
• This unit is designed to be operated on a 12 volt DC negative ground electrical system only.
• When replacing the fuse, be sure to use the fuse whose amperage rating is identical. Use of a fuse with higher amperage may cause serious damage to the unit.
• Periodically wipe the contacts on the back of the front panel with a cotton swap moistened with alcohol.

Illustration of a hand using a screwdriver to press a component on a rectangular panel (no text or symbols visible)

Notes on CD

• A defective or soiled disc inserted into unit can cause sound to drop out during playback.
• Handle the disc by holding its inner and outer edges.

• Do not touch the surface of the unlabeled side of the disc.

• Do not stick paper or tape etc. on the surface.

• Do not expose the disc to direct sunlight or excessive heat.
• Clean the disc before playback. Wipe the disc from the center outward with a cleaning cloth.
• Never use solvents such as benzine or alcohol to clean the disc.
• This unit cannot be operated by 8cm disc (using 12cm disc only).

Table of Contents

INTRODUCTION

Precautions....2
Before Use....3 Table of Contents....4
Display Window....4
Front panel/Rear panel 5
Installation....6
Detachable Front Panel....7
Connection diagram 8
Connection 9

OPERATION

Basic operation 10-11
CD Basic Operation(CD/MP3 CD)....12
CD Advanced Operation 13
Radio operation 14-15
CD changer Player(Optional)....16-17

REFERENCE

Specifications.... 18

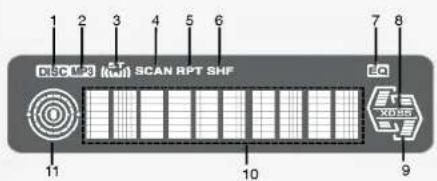

Display Window

1. DISC indicator
2. MP3 indicator
3. STEREO indicator
4. INTRO SCAN (SCAN) indicator
5. REPEAT (RPT) indicator
6. SHUFFLE (SHF) indicator
7. EQUALIZER (EQ) indicator
8. XDSS indicator
9. SIGNAL LEVEL indicator
10. MAIN DISPLAY SECTION
11. DISC PLAY indicator

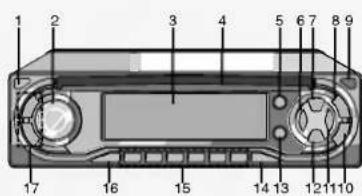

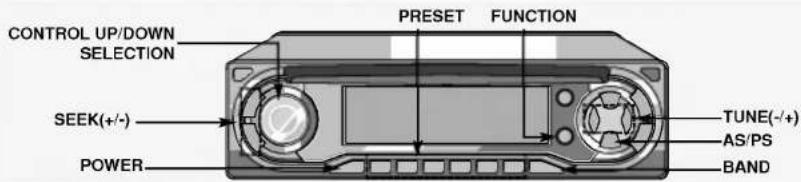

Front Panel/Rear Panel

1. EJECT (▲) button
2. • CONTROL UP/DOWN dial
   • SELECTION(SEL) button
3. DISPLAY WINDOW
4. CD disc slot
5. EQUALIZER (EQ) button
   6 BACKWARD SEARCH (◀◀)/TUNE-button
6. MUTE button
7. XDSS button
8. RELEASE ( 🔒 ) button

9. DISPLAY (DISP) button

10. FORWARD SEARCH (▶) /TUNE+ button

11. AS/PS (auto store/preset scan) button
12. FUNCTION (FUNC) button

13. BAND button
    15 • Preset Station buttons (1\~6)

14. CD PLAY/PAUSE (▶/||) button
    • INTRO SCAN (SCAN) button

15. REPEAT (RPT) button
16. SHUFFLE (SHF) button
    • DISC SELECTOR (D-/+ ) button(Optional)

17. MP3 TRACK 10 ◀◀/▶▶10 (D-/+) button

18. POWER (PWR) button

19. • CD SKIP ( |◀◀/▶▶| ) button
20. SEEK (+/-) button
21. ANTENNA JACK
    19 LINE OUT JACK (Optional)
22. CD CHANGER JACK (Optional)
23. POWER/ SPEAKER CONNECTOR

Installation

Two technical diagrams showing a device with connectors and a close-up view of its internal structure (no text or symbols present)

Basic Installation

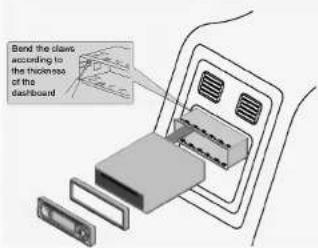

Before installing, make sure that the ignition-switch is set to OFF and remove the terminal of the car battery to avoid short-circuiting.

1 Remove the existing receiver unit.
2 Make the necessary connections.
3 Install the installation sleeve.
4 Install the unit in to the installation sleeve.

Removing existing receiver unit

If there is already an installation sleeve for the receiver unit in the dashboard, it must be removed.

ISO-DIN Installation

1 Slide radio into ISO-DIN frame.
2 Install screws removed from old radio.
3 Slide radio and frame into dash opening.
4 Install dash panel or adapter plate.
5 Install trim ring to radio. The notch on trim ring must be positioned at the bottom.
6 Install faceplate by fitting right edge into position then pushing left edge closed.

When removing the unit from the installation sleeve

If you need to remove the unit from the installation sleeve, proceed as follows.

1 Remove the rear supporter from the unit.
2 Remove the front panel from the unit.
3 Insert the lever into hole on one side of the unit, and pull the lever toward you. Do the same operation on the other side and pull out the unit from the installation sleeve.

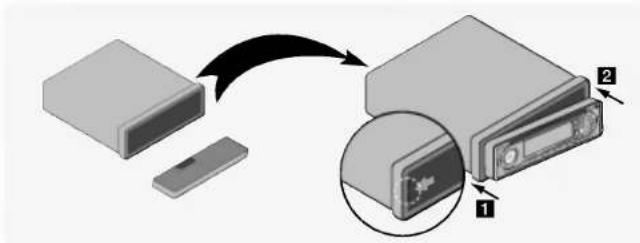

Detachable Front panel

Detachable Front panel

The Front panel is designed to be removable for antitheft purposes. It is recommended that you remove and carry the front panel with you when leave your car. A protective case is provided with the unit for this purpose.

1 Press the RELEASE button( 🔒) to open the front panel.
2 Hold the right part the front panel.
3 Pull it toward you gently.
4 Plase the front panel in the supplied protective case.

Attachable Front panel

1 Align the left side of the panel with stopper.
2 push the right side or panel into the unit until clicks.

Notes

• When detaching or attaching the front panel, do not press the display or control buttons.

• The control buttons may not work properly if the front panel is not attached properly. If this occurs, gently press the front panel.

• Do not leave the front panel in any area exposed to high temperatures or direct sunlight.

• Do not drop the front panel or otherwise subject it to strong impact.
• Do not allow such volatile agents as benzine, thinner, or insecticides to come into contact with the surface of the front panel.
• Do not try to disassemble the front panel.

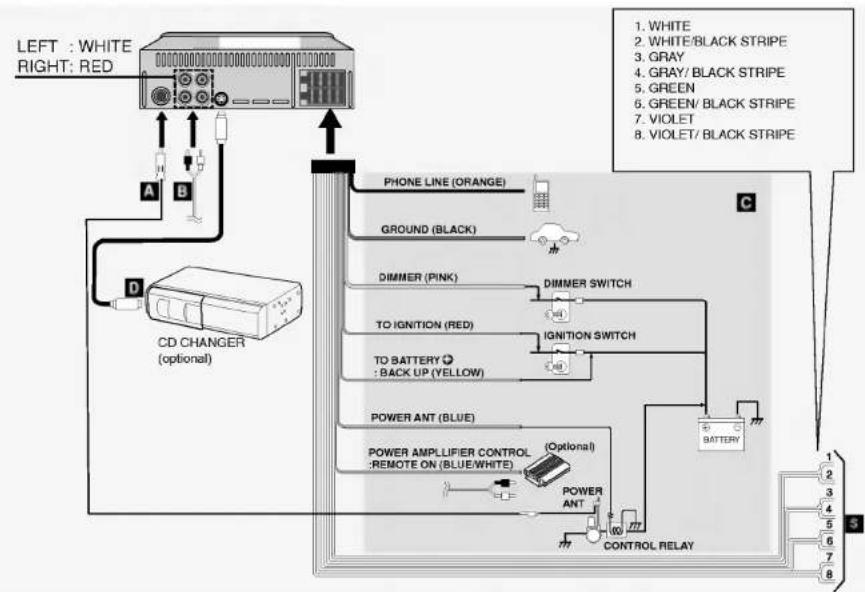

Connection Diagram

Connection

Precaution

Before connecting, make sure that ignition switch is set to OFF, and remove the terminal of the battery to avoid short circuits.

Notes

• Make correct connections as illustrated in the connection diagram.
• Never use the cord of each speaker in common.

A From antenna
B From power amplifier's input jack (2 channel or 4 channel Optional)
To the wiring of vehicle Colors of leads

• BLUE/WHITE : This lead is for connection to the power amplifier (Remote on)
• ORANGE: This lead is for connection to the Phone line.
• YELLOW: This lead is for connection to the Battery (back-up) terminal from which the power is always supplied.
• BLUE: This lead is for connection to the full automatic power antenna. Power antenna load to be connected to

the terminal of the control relay switch for vehicles equipped with a power antenna.

This lead is not used for vehicles with manual or semiautomatic antennas.

• PINK: This lead is for connection to the Dimmer line
• RED: This lead is for connection to the terminal from which the power is supplied when the ignition switch is set to ACC.
• BLACK: This lead is for connection to the Ground.

D Connect the CD changer (optional)

• Your car receiver works as control unit for a CD changer which you can buy, if not yet done, later.
• The suitable cord shown on the scheme will be provided together with the CD changer.

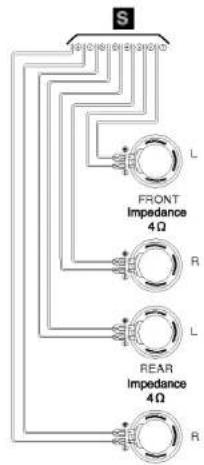

2-Speaker Connections

4-Speaker Connections

Basic Operation

POWER ON and OFF

• Press POWER (PWR) button or any other button to turn the unit on.
• When you insert the CD in the CD slot, it's turn on
• Press POWER (PWR) to turn it off.

Notes

• When you turn off, the unit is memorized automatically the volume level currently before you turn off.
• Whenever you turn on the unit, it will operate at the volume level memorized.

SOUND Adjustment

MUTE FUNCTION

• MUTE button is operated as Mute state on/off.
• The releasing mode mute state is when any button is pressed again.

Each press of the EQ button switches the unit to the other equalizer mode, as follows.

Pop→Classic→Rock

• Pop : Optimized for R&B, Soul and Country music.
• Classic : Optimized for orchestral music.
• Rock : Optimized for Hard Rock and Heavy Metal music.

XDSS (Extreme Dynamic Sound System)

Press XDSS button to reinforce treble, bass and surround effect.

SELECTION (SEL) Button

1 press the SELECTION (SEL) button repeatedly to select the mode you want to adjust from volume, bass, treble, balance and fader. The mode indicator lights up in the following order.
2 Turn left or right CONTROL

$$ \rightarrow V O L \rightarrow B A S \rightarrow T R B \rightarrow B A L \rightarrow F R D $$

UP/DOWN dial to adjust the sound quality

	Turn right	Turn left
VOL	Increase the volume level.	Decrease the volume level.
BAS	Increase the bass level.	Decrease the bass level.
TRD	Increase the Treble level.	Decrease the Treble level.
BAL	Decrease the level of the left speaker(s).	Decrease the level of the right speaker(s).
FRD	Decrease the level of the front speaker(s).	Decrease the level of the rear speaker(s).

Note

The unit cannot adjust the bass and treble in the EQ on mode.

Basic Operation

1 After you have selected the proper mode by using the SELECTION (SEL) button, control the desired function by turning this dial within 5 seconds. After you finish selecting modes, the unit returns to the initial mode.

2 Operating display in all modes: A numeric display is converted by turning this dial.

SETTING THE CLOCK

1 Press DISPLAY (DISP) button once momentarily to display the time.

2 Press the DISPLAY (DISP) button for more than 2 seconds, and clock indication will be displayed for 5 seconds. Adjust the clock within 5 seconds.

- Press ▶▶ to adjust the hour.

- Press ◀◀ to adjust the minute.

3 Press the DISPLAY (DISP) button, the display returns to the previous display after 5 seconds.

FUNCTION (FUNC) Button

This button serves to switch over between CD and RADIO operation. (CD ↔ RADIO)

BEEP SOUND FUNCTION

1 Press the SELECTION (SEL) button for more then 2 seconds. "BEEP ALL" or "BEEP 2ND" appear in the Display window.

2 Turn left or right CONTROL UP/DOWN dial to select the "BEEP ALL" or "BEEP 2ND" indicator.

• BEEP ALL When any button is pressed, beep sounds

- BEEP 2ND When preset(1\~6) are pressed for more than 2 seconds, beep sounds

CD Basic Operation(CD/MP3 CD)

Basic Playback

1 Insert a disc with the labeled side up to start playback. If a disc is already inserted, press FUNCTION (FUNC) to select the CD operation. Disc indicator lights up, and the track number and elapsed playing time are displayed.

2 Adjust the volume by turning CONTROL UP/DOWN dial.

Switching between audio source

Press FUNCTION (FUNC) to stop CD play and switch to radio play.

Press again to resume CD play at beginning of last track played.

Notes

• The disc is either inserted or ejected when the unit is not turned on.
• The playback starts from the first track on the disc only when inserting a disc. In other cases (when switching from the radio operation or turning on th unit), the playback starts from the beginning of the track being played when the playback has stopped.
• A disc can be inserted by putting it into the disc compartment slot, and either pushing it lightly with fingers or pressing
• Suitable CD: This unit is design to be operated on a 12 Cm(5") disc only.
• This unit can play a CD-R or CD-RW that contains audio titles or MP3 files.

CD/MP3 CD playback button

▲	Eject a disc.To with draw the CD, firmly depress .The unit automatically switches to radio reception.
▶/II	Play or Pause.The track number and elapsed playing time flash on and off.To resume play, press again.
▶▶	Forward on the disc. Press and hold down until the start of the desired passage, then release it.(Only CD)
◀◀	Reverse on the disc. Press and hold down until the start of the desired passage, then release it.(Only CD)
▶▶	Skip to the next track with a short press (for less than 1 seconds).Each extra press skips forward one extra track.To skip forward rapidly, press and hold down until the desired track number is displayed, then release it.
◀◀	Restart the track currently in play with a short press (for less than 1 seconds).Each extra press skips backward one extra track.To skip backward rapidly, press and hold down until the desired track number is displayed, then release it.

CD Advanced Operation

INTRO SCAN Play

Press SCAN during playback. SCAN indicator lights up and the first 10 seconds of all the tracks on the disc are played in order.

When the desired track is found, press SCAN again.

The unit returns to the normal playback.

Notes

• The intro scan play cannot be performed with the repeat or shuffle play.
  • After the first 10 seconds of all the tracks on the disc are played in order, the unit repeats until the intro scan stopped.

REPEAT Play

Press RPT during playback. RPT indicator lights up and the currently selected track is played repeatedly. To cancel the repeat play, press RPT again.

Notes

• If the repeat play is not selected, all the tracks on the disc are played repeatedly.
  • The repeat play cannot be performed with the intro or shuffle play.

SHUFFLE Play

Press SHF during playback. SHF indicator lights up and the tracks on the disc are played randomly.

To cancel the shuffle play, press SHF again.

Notes

• The shuffle play cannot be performed with the intro play. If the repeat play is selected during the shuffle play, the shuffle play is canceled.
• During the shuffle play, even if ◀◀ is pressed repeatedly, the track currently in play is restarted.

MP3 file information

Press twice the DISP button during MP3 file playback.

• The information ID3 TAG(Title, Artist, Album) of the MP3 file will be shown in the display window.
• If there is no the information of the MP3 file, "NO ID3 TAG" indicator will be shown in the display window.

MP3 TRACK -10/+10

Durning playback, press the 10◀◀ (D-) button to go back to the previous 10th track, and press 10▶◀ (D+) button to go forward to the next 10th track.

For your reference

• Auto Loading

When the disc is ejected by pressing ▲ during playback, it will be loaded automatically after 10 seconds unless you pull out the disc from the unit.

Radio Operation

Presetting stations

Up to 6 stations for each band F1, F2, F3, MW can be stored on the preset station buttons.

1 Press BAND to select the desired band. If a CD is inserted in the unit, press FUNCTION (FUNC) button to select radio function.
2 Tune in the station to be preset by pressing SEEK/TUNE(+/-) button.
- AUTO Tuning Press the SEEK(+/-) buttons for more than 1 seconds.
- MANUAL Tuning the TUNE(+/-) buttons for more than 1 seconds.

3 Press one of the preset station buttons (1 - 6) for more than 2 seconds. The number of the pressed preset station button is displayed.
4 Repeat steps 2 and 3 to preset other stations.

Notes

• As F1, F2, F3 have the same frequency range, up to 18 station can be preset for FM.
• When a station is preset on the preset station button on which another station of the same band has already been preset, the previously preset station is automatically erased.

Automatic Store Stations

The automatic presetting function is used to automatically preset up to 6 stations for each band.

1 Press BAND to select the desired band.
2 Press and hold AS/PS (auto store/preset scan) down for more than 2 seconds. The scanning starts from the currently displayed frequency to higher frequencies and stops when 6 stations have been preset or the receivable frequencies have been scanned once.

Radio Operation

Notes

• The presetting is not performed if there is no station to be tuned in.
• When the automatic presetting is performed, the previously preset stations are automatically erased
• To stop the automatic presetting, press AS/PS (auto store/preset scan) again or press any of the preset station buttons (1 - 6)

To scan the preset stations

Press AS/PS (auto store/preset scan) button briefly.

Each preset station is tuned in for 5 seconds in order.

To stop the scanning, press AS/PS again or any of the preset station buttons (1 - 6).

To tune in the preset stations

Press BAND to select the desired band and press the desired preset station buttons (1 - 6).

The number of the preset station button is displayed and the preset station is received.

Listening to the radio

1 Press any button (except 🔒) to turn on the unit.
The radio frequency is displayed. If the unit is in the CD operation, press FUNCTION (FUNC) to select the radio operation.

2 Press BAND to select the desired band.
The band indicator F1, F2, F3, MW is displayed.

3 Press TUNE(+) to increase and TUNE(-) to decrease the frequency. To change the frequency rapidly, press and hold TUNE(-/+) down longer.

Seek Tuning

The seek function is used to search for the station automatically.

• Press SEEK(+/-) to start the seek function.
• Press SEEK(+) to search for the higher frequencies and SEEK(-) for the lower frequencies.
  The seeking stops when the nearest station with good reception is tuned in.
• Press SEEK(+/-) repeatedly until desired station is received.

CD Changer player(Optional)

You can play CDs with this unit by connecting the optional compact disc changer.

Make sure that the disc magazine loaded with the discs is inserted into the connected compact disc changer.

1 Press POWER button to turn on the power of the car stereo.

2 Slip a CD in the magazine with the sticker upwards.

3 Insert the magazine in the CD changer.

4 Press FUNCTION button to activate the CDC function, one of the disc will be played automatically. If the CD changer is not connected, the CDC function is not activated.

5 Press D -/+ button to select the CD.

6 Press one of buttons (◄◄/►►) to select another except of music from the disc being played.

7 Press and hold the(◄◄/►►) button during playback. The track is scanned by spiral in the forward or backward direction release the button to resume playback at the desired location.

Basic Play

To start play, press the(▶/II)button To pause, press it again.

The disc and track number blinks in the display window.

Repeat Play

- To play one track repeatedly, press RPT button (The RPT indication is displayed).

- To play all tracks repeatedly, press RPT button for more than 1.5 seconds (The RPT indication is displayed).

- To cancel the repeat play, press RPT button again.

Notes

- If the repeat play is not selected, all the discs are played repeatedly.

- The repeat play cannot be performed with the intro or shuffle play.

Shuffle play

• To play one disc randomly, press SHF button (The SHF indication is displayed).

• To play all discs randomly, press SHF button for more than 1.5 seconds (The SHF indication is displayed).

- To cancel the repeat play, press SHF button again.

Notes

- The shuffle play cannot be performed with the intro play. If the repeat play is selected during the shuffle play, the shuffle play is canceled.

- During the shuffle play, even if is pressed repeatedly, the track currently in play is restarted.

CD Changer player(Optional)

Intro Scan

Press SCAN button to scan a CD by playing only the first 10 seconds of each track.

• To play one disc intro scan, press SCAN button (The SCAN indication is displayed).

• To play the first 10 seconds of each track on all the discs intro scan, press SCAN button for more then 1.5 seconds (The SCAN indication is displayed).

When the desired track is found, press SCAN again.

The unit returns to the normal playback.

Notes

- The intro scan play cannot be performed with the repeat or shuffle play.

CD CHANGER DISPLAY

Specifications

GENERAL

Output Power .50W x 4CH(Max.)

Power Source DC 12-15 V Snackes impedance

Speaker Impedance ....4 52 Ground System ...... Negative

Dimensions(W x H x D) ... 188 x 58 x 166 mm(Without Front Panel)

Net Weight 1.3 kg

CD SELECTION

Frequency Response .40 Hz-20 kHz

S/N Ratio 60 dB

Distortion 0.5%

Channel Separation(1kHz) 50 dB

RADIO SELECTION

FM

Frequency Range 65-74MHz, 87.5-108 MHz

S/N Ratio 55 dB

Distortion 0.5%

Channel Separation 25 dB

AM(MW)

Frequency Range .522-1620 kHz

S/N Ratio 45 dB

Distortion 1.0%

LW(Optional)

Frequency Range 144-281 kHz

S/N Ratio 45 dB

Distortion 1.0%

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Notice (the date of the production of goods).

First figure ( of the left ) of series number means Year, next 2 figures

- Month of the production of this goods.

Note

- The design and specification are subject to change without notice in the course of product improvement.

- The working life of this product is 7 years since the date of purchase.

LG

P/NO : 3834RR0050E
