Notice KLIPSCH RIC-65 - page 1
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type In-ceiling speaker
Brand Klipsch
Model RIC-65
Woofer Size 6.5 inches (165 mm)
Tweeter Size 1 inch (25.4 mm) pivoting dome
Power Handling (Continuous) 50 Watts RMS
Power Handling (Peak) 100 Watts
Frequency Response 55 Hz - 20 kHz ± 3 dB
Impedance 8 Ohms
Sensitivity 90 dB @ 1 watt/1 meter
Cutout Diameter 7.25 inches (184 mm)
Mounting Depth 3.5 inches (89 mm)
Overall Diameter 8.5 inches (216 mm)
Weight 2.5 lbs (1.13 kg)
Grille Material Paintable magnetic mesh grille
Color White (paintable)
Installation Type New construction or retrofit with cutout
Woofer Material Polypropylene cone with rubber surround
Tweeter Material Aluminum dome with neodymium magnet
Recommended Amplifier Power 10 - 100 Watts RMS per channel

Frequently Asked Questions - RIC-65 KLIPSCH

What is the cutout size needed for the Klipsch RIC-65?
The required cutout diameter is 7.25 inches (184 mm). Ensure the ceiling depth is at least 3.5 inches.
Can the grille be painted?
Yes, the grille is paintable. Use a thin layer of spray paint and avoid clogging the perforations for optimal sound.
What is the impedance of the RIC-65?
The nominal impedance is 8 Ohms, compatible with most home amplifiers and receivers.
How do I install the speaker in an existing ceiling?
For retrofit installation, cut a hole of 7.25 inches, feed the speaker wire through, connect to the terminals, and tighten the mounting clamps by turning the screws on the front baffle.
What is the power handling capacity?
The continuous power handling is 50 Watts RMS and peak power is 100 Watts. It pairs well with amplifiers delivering 10-100 Watts per channel.
Does the tweeter pivot for directional sound?
Yes, the 1-inch aluminum dome tweeter can pivot up to 15 degrees to aim sound toward the listening area.
What is the frequency response range?
The frequency response is 55 Hz to 20 kHz ± 3 dB, offering deep bass and clear highs.
Can I use the RIC-65 outdoors?
This speaker is designed for indoor use only. Exposure to moisture or extreme temperatures may damage it.
Is the speaker sold in pairs?
The RIC-65 is typically sold individually. For stereo, purchase two units.
What type of wire should I use?
Use 16-gauge or thicker speaker wire for runs up to 50 feet. For longer runs, 14-gauge is recommended.

User questions about RIC-65 KLIPSCH

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Pregnant in PDF format for free! Find your manual RIC-65 - KLIPSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RIC-65 by KLIPSCH.

USER MANUAL RIC-65 KLIPSCH

OWNERS MANUAL

Klipsch®

RIC-65

PLACEMENT

CUT OUT

DÉCOUPER SEPARAR AUSGESCHNITTEN RECORTAR RITAGLIARE 剪下

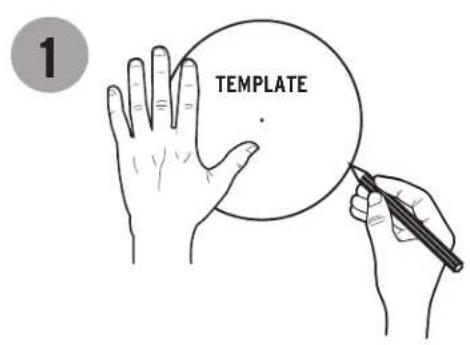

1 TEMPLATE

KLIPSCH RIC-65 - CUT OUT - 2

natural_image Simple line drawing of a hand using a saw to cut a circular hole, no text or symbols present

TEMPLATE

GABARIT PLANTILLA SCHABLONE MODELO DIMA FORNITA 槟板

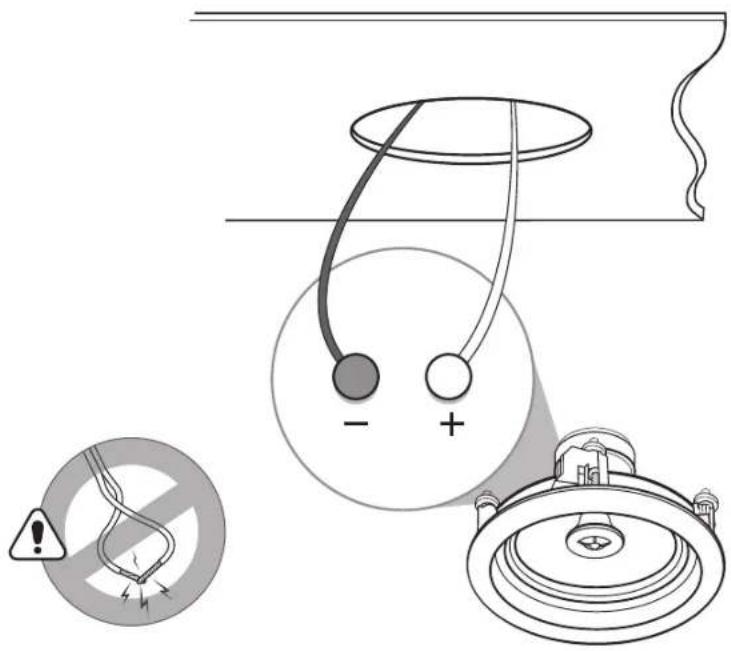

CONNECTIONS

BRANCHEMENTS CONEXIONES ANSCHLÜSSE CONNESSIONI CONEXÕES 连接

Diagram illustrating electrical safety warning with a bulb, warning symbol, and circuit breaker components

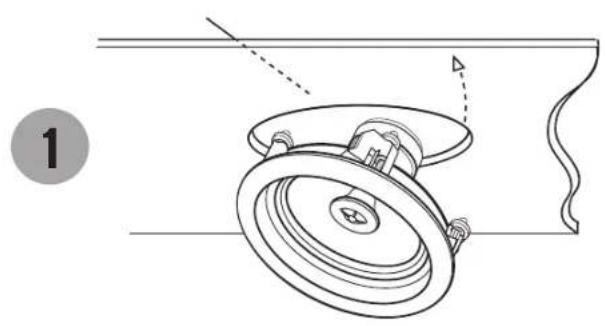

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

KLIPSCH RIC-65 - INSTALLATION - 1

natural_image Technical line drawing of a mechanical component with no visible text or symbols

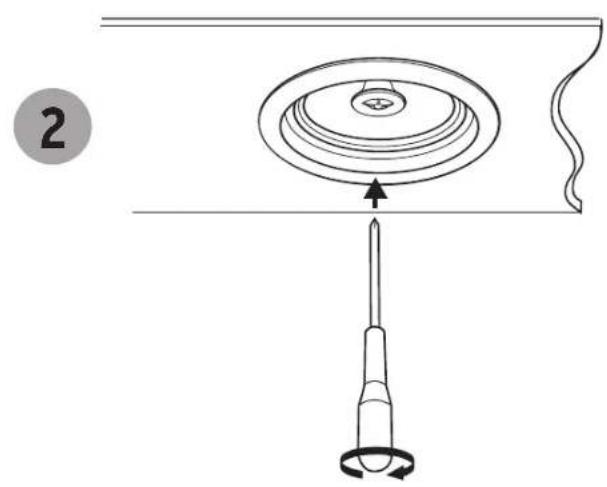

2

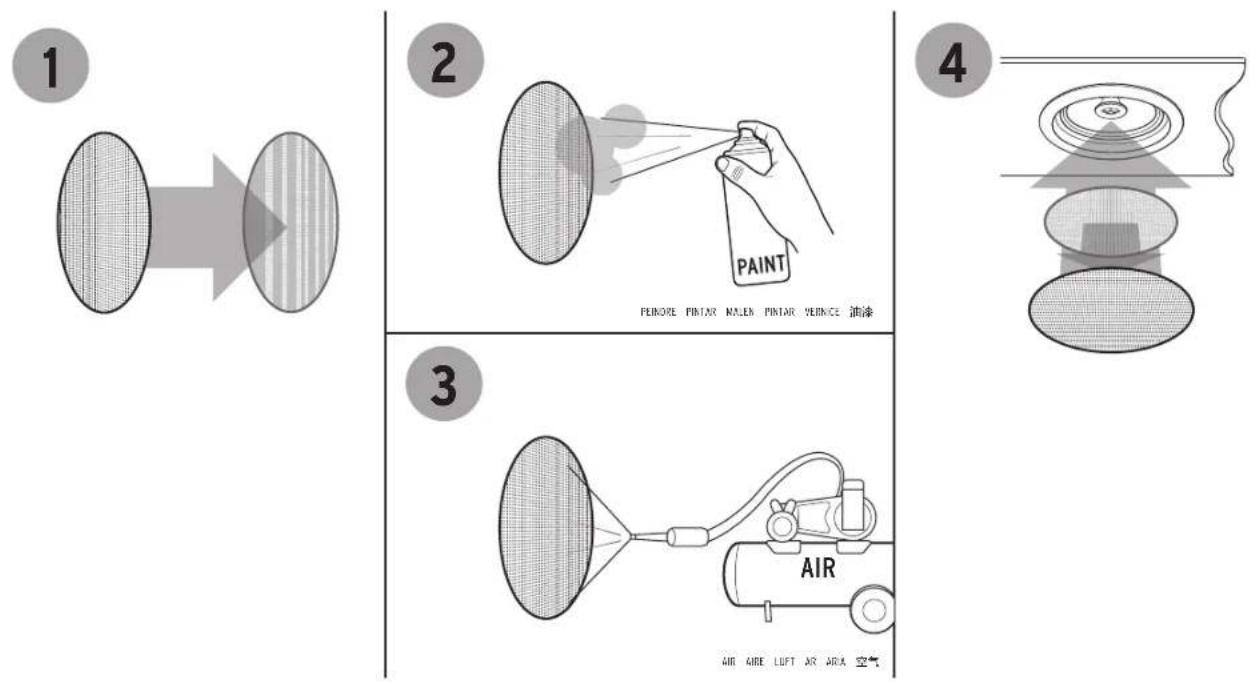

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

KLIPSCH RIC-65 - PAINTING - 1

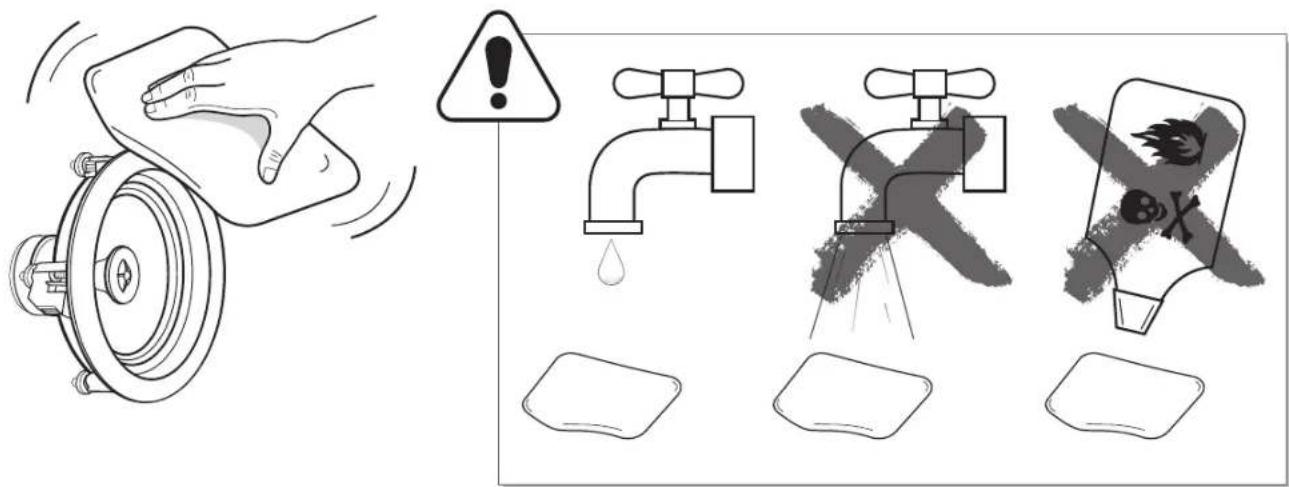

CARE AND CLEANING

ENTRETIEN ET NETTOYAGE CUIDADO Y LIMPIEZA PFLEGE UND REINIGUNG CURA E PULIZIA CUIDADOS E LIMPEZA 保养与清洁

Safety warning illustration showing hand holding a faucet, warning sign, water tap, and explosion hazard symbol

W EST. 1946 HOPE, AR

Klipsch®

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

1-800-KLIPSCH ©2015 KLIPSCH GROUP, INC. ALL RIGHTS RESERVED. KLIPSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KLIPSCH GROUP, INC. IN THE USA AND OTHER COUNTRIES.

A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION.

V02-1020
