Brand	Hestan
Model	Aspire 20 (AETRC20, AETC)
Product Type	Outdoor Trash & Recycling Cabinet with Countertop Trash Chute
Material	Stainless Steel
Dimensions (AETRC20)	Width: 17-1/4 in, Depth: 18 in, Height: 26 in
Dimensions (AETC)	Width: 6-1/8 in, Depth: 8-1/8 in, Height: 3-1/4 in (from island face)
Weight (Approx.)	Not specified; estimate 30-50 lbs per unit
Power Source	None (manual operation)
Main Functions	Store trash and recycling bins; countertop trash chute with cutting board and cover
Installation	Cutout in island structure; pre-installed doors/drawers removable for installation; use at least 2 screws per side
Warranty (General)	Limited 1 year from purchase; extended coverage on specific components (lifetime on stainless body, 10 years on grates, 5 years on valves, 2 years on other parts)
Certifications	Not specified; outdoor use
Accessories Included	Drawers, doors, slides, trash chute with cutting board and cover
Optional Accessories	Parts list available online; no specific optional accessories mentioned
Cleaning & Maintenance	Wipe with damp cloth; avoid abrasive cleaners; protect from corrosive atmosphere
Safety Warnings	Sharp edges - wear gloves; secure cabinet to prevent tipping; use appropriate mounting hardware
Repairability	Parts available via Hestan authorized service; user-replaceable drawer slides with adjustment screws
Compatibility	Designed for outdoor islands; AETC can be used with AETRC20

Frequently Asked Questions - Aspire 20 Hestan

How do I install the Aspire 20 cabinet?

First, remove doors and drawers by pressing release levers. Then slide the frame into the pre-cut island opening and secure using at least 2 screws per side through mounting holes. Reinstall drawers by aligning slides and pushing until they click. Adjust vertical alignment with screws if needed.

What are the cutout dimensions for the AETRC20 and AETC?

For the AETRC20 (Trash & Recycling Center), the cutout should match the cabinet dimensions: 17-1/4 in wide, 18 in deep, 26 in high. For the AETC (Chute), the cutout is 6-1/8 in wide, 8-1/8 in deep, with a 3-1/4 in depth from the island face (excluding any countertop overhang). Consult the manual table for exact specifications.

What tools are needed for installation?

You will need work gloves, safety glasses, an electric drill with assorted bits, Phillips and flat-blade screwdrivers, a level, and a tape measure. Use stainless steel mounting hardware (not included) for durability.

How does the trash chute (AETC) work?

The AETC is a countertop trash chute with a cutting board and cover. It mounts into a cutout and directs waste from the countertop into the trash bin below. The cutting board provides a prep surface when the chute is closed.

What is covered under the warranty?

The product has a 1-year limited warranty on defects. Extended coverage includes: lifetime on stainless steel body and burners, 10 years on cooking grates, 5 years on valves and sealed burner assemblies, and 2 years on other components. Warranty is for the original purchaser in non-commercial use within the US and Canada.

How do I obtain warranty service?

Contact the dealer from whom you purchased the product or Hestan at [phone]. You must make the product accessible for service. Travel costs beyond 50 miles from an authorized service provider are your responsibility.

Can I get replacement parts for the Aspire 20?

Yes, visit the Hestan website at www.hestanaspire.com for the parts list. Repairs should be performed by qualified service personnel. Always have the model number ready when contacting support.

What is the recommended maintenance?

Keep the cabinet and chute clean by wiping with a damp cloth. Avoid abrasive cleaners. Protect from corrosive environments (chlorine, fluorine). For slides, periodic lubrication may be needed. Inspect for damage before installation.

Is the Aspire 20 suitable for commercial use?

No, the warranty only covers non-commercial residential use. Commercial applications are not warranted and may void coverage.

Can I install the AETC without the AETRC20?

The AETC is designed as a countertop chute and requires a compatible trash cabinet below. It is typically used with the AETRC20, but may work with other bins if dimensions match. Ensure proper alignment and support.

USER MANUAL Aspire 20 Hestan

Installation Instructions

AETRC / AETC

IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN

INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER

Some parts have sharp edges. Care must be taken when handling the various components to avoid personal injury. Wear gloves when handling.

TOOLS REQUIRED:

Work gloves

Safety glasses

Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed

Phillips screwdriver

Flat-blade screwdriver

Level

Tape measure

Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.

Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of your cabinets. You may leave any exterior protective film on until after installation is complete.

CABINET INSTALLATION (AETRC)

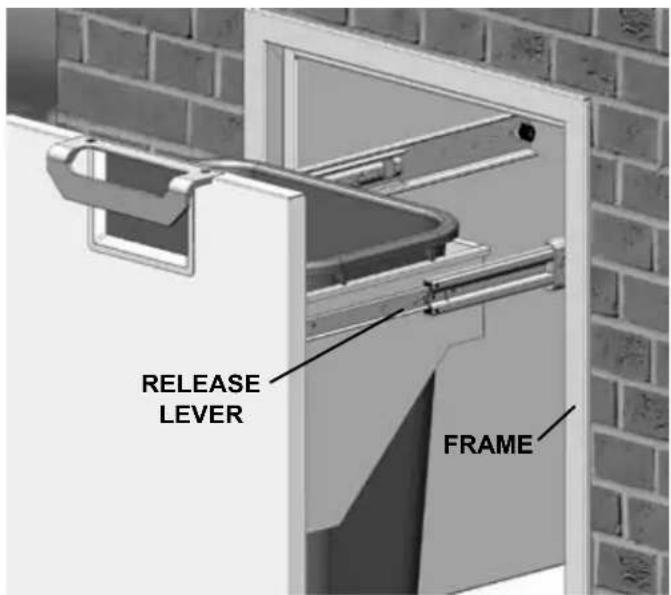

1. Your new Aspire cabinets come with doors and drawers pre-installed in their frames. It will be necessary to detach them before installing the frame in your island structure. To remove the drawer(s) from the frame, press the release lever (see below) on each side of the drawer to disengage the slide (up on the left, down on the right), then pull the drawer all the way out.

CABINET INSTALLATION(continued)

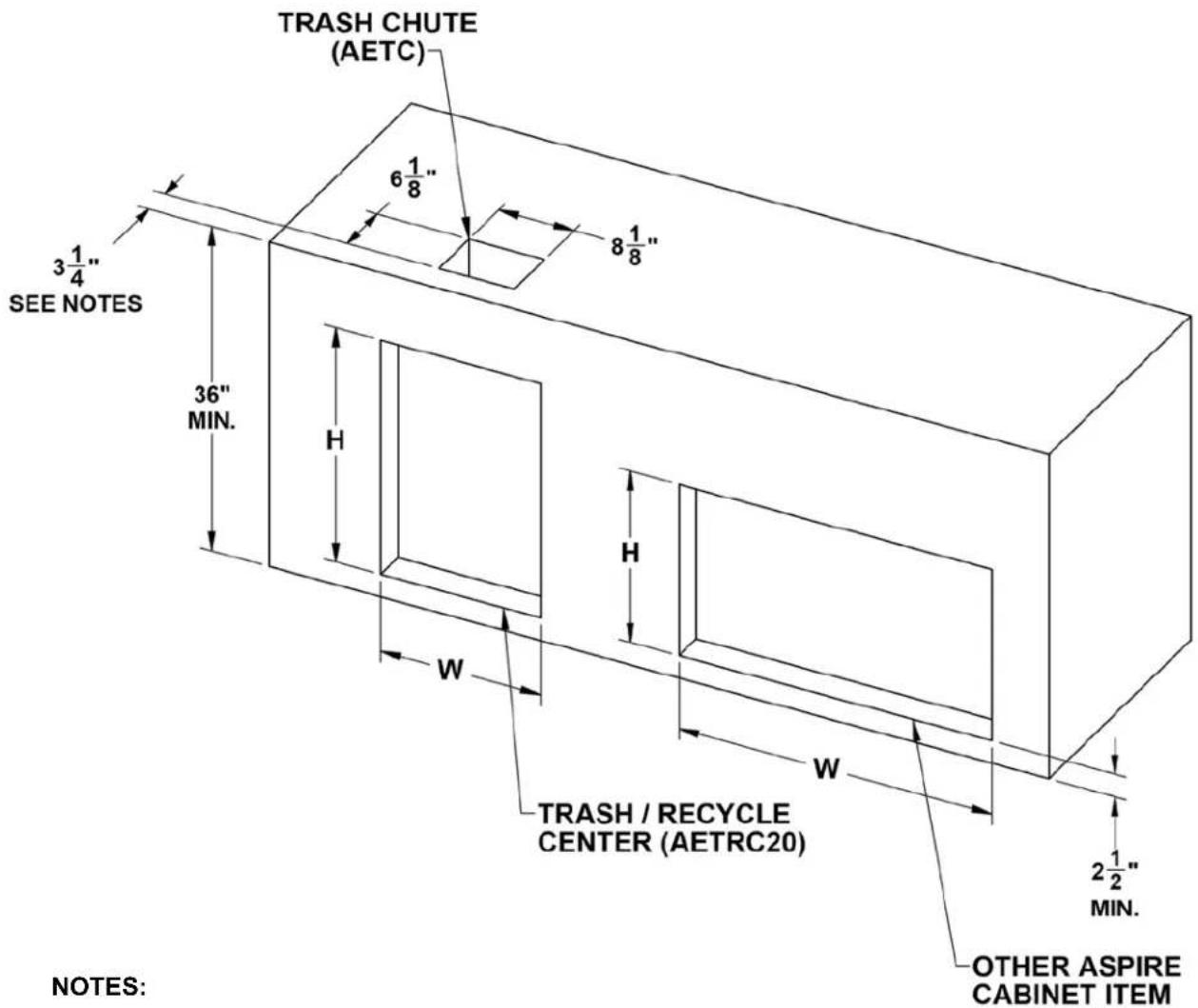

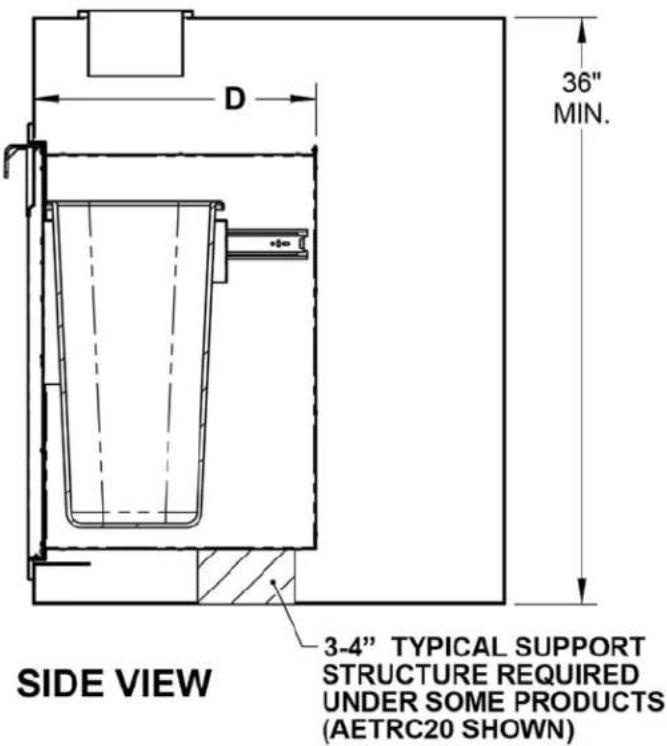

1. Consult the table at the end of this instruction manual to determine the appropriate cutout dimensions for the Aspire Outdoor cabinet product you are installing. The cutouts should be square at all corners for proper fitment of the cabinet. The installer will have to build up any internal structural elements or supports in the island in order to secure the cabinet in place. Stainless steel hardware (not included) is highly recommended.

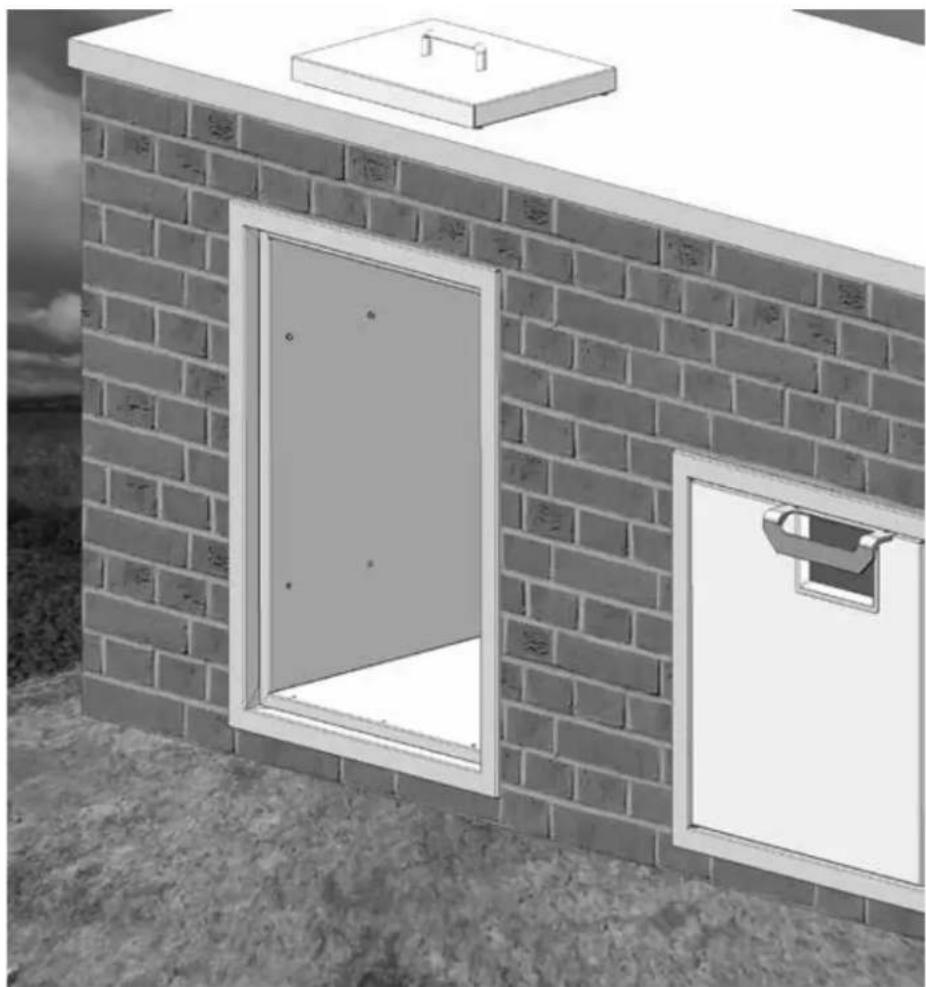

2. Slide the frame into the opening and check for proper alignment. Secure the frame to the structural members of your island using the various available mounting holes in the frame, and inside the cabinet itself. Use at least 2 screws per side.

Exterior view of a brick wall with two doors and a shelf top (no text or symbols)

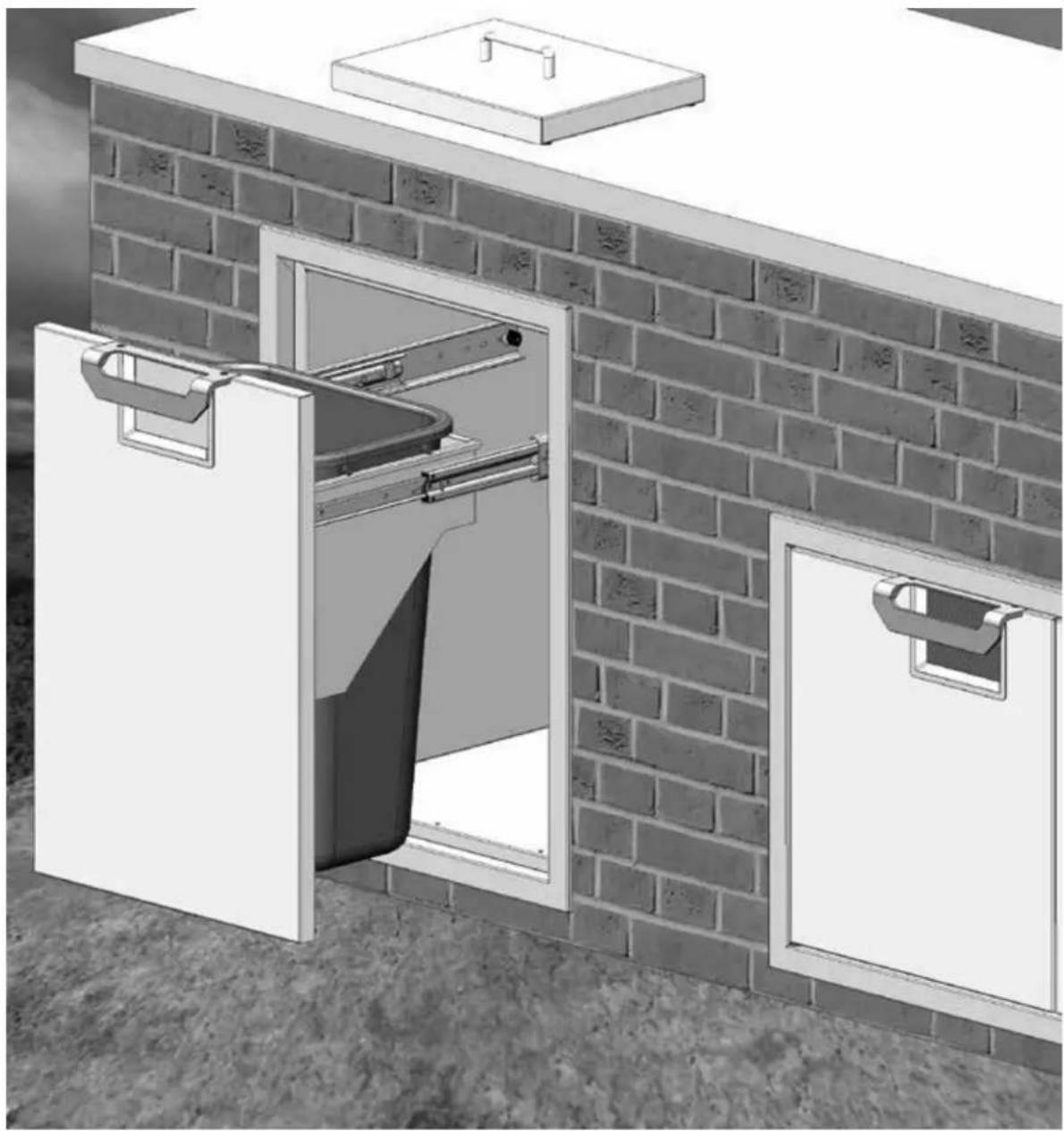

1. Reinstall the drawer(s) by aligning the slides on either side and pushing the drawer back into the opening. You will hear the release levers click. Open and close the drawer a few times to check for proper function and alignment. There are adjustment screws on either side of the drawer should vertical adjustment be needed.

2. Consult the table at the end of this instruction manual for proper location and cutout dimensions for the trash chute (AETC), when used in conjunction with the Aspire Trash & Recycling Center (AETRC20).

Architectural diagram of an open oven with brick walls and a roof, showing internal structure (no text or symbols)

Model Number	Description	W (in.)	D (in.)	H (in.)
AETRC20	Trash and Recycle Center Storage Drawer, 20"	17-1/4 18	26
AETC	Countertop Trash Chute with Cutting Board and Cover	6-1/8 8-1	/8 n/a

3-1/4" DIMENSION FOR TRASH CHUTE IS MEASURED FROM FACE OF ISLAND STRUCTURE AND DOES NOT INCLUDE ANY OVERHANG FROM A COUNTERTOP.

PARTS LIST

Please visit the Hestan website to access the parts list for your Hestan Outdoor product: www.hestanaspire.com.

SERVICE

All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an authorized service agent in your area, contact your Hestan dealer, local representative, or the manufacturer. Before you call, please have the model number information ready. This information is shown on a sticker affixed to one of the inside vertical surfaces of your product.

Hestan Commercial Corporation

3375 E. La Palma Avenue

Anaheim, CA 92806

[phone]

OUTDOOR GAS PRODUCT LIMITED WARRANTY

WHAT THIS LIMITED WARRANTY COVERS

Hestan Commercial Corporation ("HCC") warrants to the original consumer purchaser of an Aspire by Hestan outdoor gas product (the "Product") from an HCC authorized dealer that the Product is free from defective materials or workmanship for a period of one (1) year from the date of original retail purchase or closing date for new construction, whichever period is longer ("Limited Warranty Period"). HCC agrees to repair or replace, at HCC's sole option, any part or component of the Product that fails due to defective materials or workmanship during the Limited Warranty Period. This Limited Warranty is not transferable and does not extend to anyone beyond the original consumer purchaser ("Purchaser"). This Limited Warranty is valid only on Products purchased and received from an HCC authorized dealer in the fifty United States, the District of Columbia and Canada. This Limited Warranty applies only to Products in non-commercial use and does not extend to Products used in commercial applications.

HOW TO OBTAIN WARRANTY SERVICE

If the Product fails during the Limited Warranty Period for reasons covered by this Limited Warranty, the Purchaser must immediately contact the dealer from whom the Product was purchased or HCC at 888.905.7463.

Purchaser is responsible for making the Product reasonably accessible for service or for paying the cost to make the Product reasonably accessible for service. Service is to be provided during normal business hours of the authorized Hestan Commercial Service Provider. To the extent Purchaser requests service outside of the normal business hours of the authorized Hestan Commercial Service Provider, Purchaser will pay the difference between regular rates and overtime or premium rates. Purchaser is required to pay all travel costs for travel beyond 50 miles (one way) from the nearest authorized Hestan Commercial Service Provider.

EXTENSIONS TO ONE YEAR LIMITED WARRANTY PERIOD:

In addition to the One-Year Limited Warranty, the following components have extended warranty coverage as specifically set forth below:

1. The Product's stainless steel grill body, stainless tubular grill burners, Sear burners and rotisserie infrared burner (where applicable) are warranted to be free from defects in material and workmanship under normal non-commercial use and service for the lifetime of the original Purchaser. This excludes surface corrosion, scratches, and discoloration which may occur during normal use and is limited to replacement of the defective part(s), with the Purchaser paying all other costs, including labor, shipping and handling, as applicable.

2. The Product's cooking grates and warming rack are warranted to be free from defects in material and workmanship under normal non-commercial use and service, for a period of ten (10) years from the original date of purchase. This excludes surface corrosion, scratches, and discoloration which may occur during normal use and is limited to replacement of the defective part(s), with the Purchaser paying all other costs, including labor, shipping and handling, as applicable.

3. The Product's spit rod, briquette trays, manifolds, gas valves and sealed burner assemblies (where applicable) are warranted to be free from defects in material and workmanship, under normal non-commercial use and service, for a period of five (5) years from the original date of purchase. This is limited to replacement of the defective parts, with the Purchaser paying all other costs, including labor, shipping, and handling, as applicable.

4. All other grill components are warranted to be free from defects in material and workmanship, under normal non-commercial use and service, for a period of two (2) years from the original date of purchase. This is limited to replacement of the defective parts, with the Purchaser paying all other costs, including labor, shipping, and handling, as applicable.

WHAT THIS LIMITED WARRANTY DOES NOT COVER:

This Limited Warranty does not cover and HCC will not be responsible for and will not pay for: damage to or defects in any Product not purchased from an HCC authorized dealer; color variations in color finishes or other cosmetic damage; failure or damage from abuse, misuse, accident, fire, natural disaster, commercial use of the Product, or loss of electrical power or gas supply to the Product; damage from alteration, improper installation, or improper operation of the Product; damage from improper or unauthorized repair or replacement of any part or component of the Product; damage from service by someone other than an authorized agent or representative of the Hestan Commercial Service Network; normal wear and tear; damage from exposure of the Product to a corrosive atmosphere containing chlorine, fluorine, or any other damaging chemicals; damage resulting from the failure to provide normal care and maintenance to the Product; damage HCC was not notified of within the Limited Warranty Period; and incidental and consequential damages caused by any defective material or workmanship.

ARBITRATION:

This Limited Warranty is governed by the Federal Arbitration Act. Any dispute between Purchaser and HCC regarding or related to the Product or to this Limited Warranty shall be resolved by binding arbitration only on an individual basis with Purchaser. Arbitration will be conducted by the American Arbitration Association ("AAA") in accordance with its Consumer Arbitration Rules or by JAMS. The arbitration hearing shall be before one arbitrator appointed by the AAA or JAMS. The arbitrator shall not conduct class arbitration and Purchaser shall not bring any claims against HCC in a representative capacity on behalf of others.

LIMITATION OF LIABILITY:

This Limited Warranty is the final, complete and exclusive agreement between HCC and Purchaser regarding the Product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY AFTER THE LIMITED WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON HCC. HCC ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR PURPOSE, EXCEPT AS OTHERWISE PROVIDED BY APPLICABLE LAW.

HCC SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF HCC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NO RECOVERY OF ANY KIND AGAINST HCC SHALL BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT.

WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THE PRODUCT NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF HCC. THIS LIMITED WARRANTY STATES YOUR EXCLUSIVE REMEDY.

No oral or written representation or commitment given by anyone, including but not limited to, an employee, representative or agent of HCG will create a warranty or in any way increase the scope of this express Limited One Year Warranty. If there is any inconsistency between this Limited Warranty and any other agreement or statement included with or relating to the Product, this Limited Warranty shall govern. If any provision of this Limited Warranty is found invalid or unenforceable, it shall be deemed modified to the minimum extent necessary to make it enforceable and the remainder of the Limited Warranty shall remain valid and enforceable according to its terms.

INTERACTION OF LAWS WITH THIS LIMITED WARRANTY:

Some states, provinces or territories may not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. Some states, provinces or territories may provide for additional warranty rights and remedies, and the provisions contained in this Limited Warranty are not intended to limit, modify, take away from, disclaim or exclude any mandatory warranty requirements provided by states, provinces or territories, including certain implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary depending on location.

Any questions about this Limited Warranty may be directed to

Hestan Commercial Corporation at [phone]
