Product Type	Outdoor Gas Grill
Brand	Hestan
Model	AGIJ42
Material	Stainless Steel Body, DiamondCut Cooking Grates, Warming Rack
Burner Material	Stainless Steel Trellis Grill Burners, Sear Burners, Rotisserie Infrared Burner
Fuel Type	Gas (Natural Gas or Propane, depending on installation)
Required Clearance to Combustible Materials	12 inches (30 cm) on sides and rear
Ventilation Openings Required	Minimum 3 openings of 10 in² (65 cm²) each on left, right, and back of enclosure
Insulation Jacket Required	Yes, when installed in combustible enclosure
Control Panel	Removable with LED light bar and switches
Included Accessories	Grill grates, warming racks, radiant trays, rotisserie rod, drip pan, control knobs
Warranty (Standard)	1 year limited warranty
Extended Warranty	Lifetime on stainless steel body, grates, warming rack, burners; 5 years on spit rod, briquette trays, manifolds, gas valves, sealed burner assemblies
Service Contact	888-905-7463
Manufacturer Address	3375 E. La Palma Avenue, Anaheim, CA 92806
Installation Requirements	Two persons required for lifting; electrical and gas connections must be routed properly
Safety Warnings	Do not install over, under, or next to unprotected combustible construction; use insulation jacket
Parts List Availability	Online at www.hestanoutdoor.com
User Manual Pages	8 pages (English)

Frequently Asked Questions - AGIJ42 Hestan

What is the minimum clearance required from combustible materials?

The minimum clearance to vertical combustible materials is 12 inches (30 cm) on the sides and rear of the grill. All combustible materials must be outside this zone.

Do I need an insulation jacket for my Hestan grill?

Yes, an insulation jacket is required when installing the grill in an enclosure made of combustible materials, such as wood. It helps prevent heat damage to the structure.

How many ventilation openings are needed for the enclosure?

A minimum of three 10 in² (65 cm²) ventilation openings must be provided on both the left and right sides, as well as the back of the enclosure to safely dissipate gas vapors.

What is covered under the warranty?

The grill comes with a 1-year limited warranty. Extended coverage includes lifetime on the stainless steel body, DiamondCut grates, warming rack, and burners, and 5 years on spit rod, briquette trays, manifolds, gas valves, and sealed burner assemblies.

Can I install the grill myself?

Installation should be performed by qualified service personnel. Two persons are required to lift the grill head due to its weight. Follow all instructions for gas connections, leak testing, and burner adjustment.

What should I do if my grill arrives damaged?

Inspect the product immediately. If shipping damage is detected, call the shipper to initiate a damage claim. Hestan is not responsible for shipping damage. Do not discard packing materials until inspection is complete.

Where can I find replacement parts?

Visit the Hestan website at www.hestanoutdoor.com to access the parts list for your model. For warranty or non-warranty repairs, contact an authorized service agent.

What tools are required for installation?

You will need work gloves, safety glasses, electric drill with assorted bits, Phillips and flat-blade screwdrivers, a level, and a tape measure.

How do I clean and maintain the grill?

Remove loose items such as grates and drip pan before installation. For regular cleaning, refer to the Use & Care Manual. Avoid using corrosive chemicals; surface corrosion and discoloration from normal use are not covered by warranty.

Can I use the grill in a non-combustible enclosure?

Yes, if the enclosure is made of non-combustible materials (e.g., stucco on non-combustible frame), an insulation jacket may not be required. However, proper clearances and ventilation openings must still be maintained.

USER MANUAL AGIJ42 Hestan

IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER

Some parts have sharp edges. Care must be taken when handling the various components to avoid personal injury. Wear gloves when handling.

TOOLS REQUIRED:

Work gloves

Safety glasses

Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed

Phillips screwdriver

Flat-blade screwdriver

Level

Tape measure

Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.

Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of your cabinets. You may leave any exterior protective film on until after installation is complete.

ATTENTION

THIS APPLIANCE SHOULD NOT BE INSTALLED OVER, UNDER, OR NEXT TO UNPROTECTED COMBUSTIBLE CONSTRUCTION. An Insulation Jacket is required when installing your Hestan grill in an enclosure (island) made of combustible materials (such as wood). Hestan does not recommend construction of your island using such materials. If your island is constructed of these materials, see the INSTALLATION section of your Hestan Use & Care manual for cutout dimensions and allowances in your island. A minimum clearance to vertical combustible material is 12" (30 cm) on the sides and the rear of the grill is also required.

WARNING

The minimum vertical clearance to combustible materials means that ALL combustible materials must be outside this 12" (30 cm) zone. As an example, if you have an island with a stucco or tiled surface and wood-frame construction beneath, the wood is considered combustible, even though the grill is touching the stucco or tile surface, which is non-combustible. In extreme circumstances, the wood could potentially get hot enough to burn. In this case, an Insulation Jacket is required.

VENTILATION OPENINGS

A minimum of three 10 in ^2 (65 cm ^2 ) of ventilation openings must be provided for both left and right sides of your enclosure (island), as well as the back. These openings are required to safely dissipate gas vapors if there is a leak in your enclosure.

INSULATED JACKET INSTALLATION

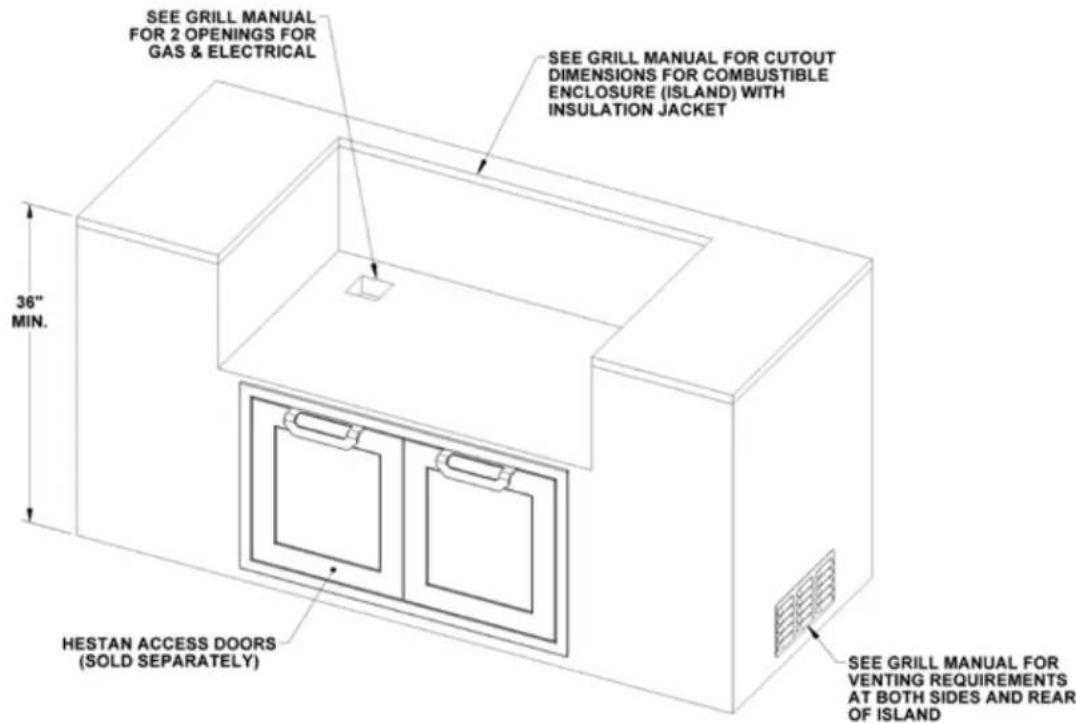

1. Please ensure your island meets the cutout dimensions shown in the Hestan grill manual for proper fitment of the Insulation Jacket and Grill. The installer will have to build up any internal structural elements or supports in the island in order to secure the jacket in place.

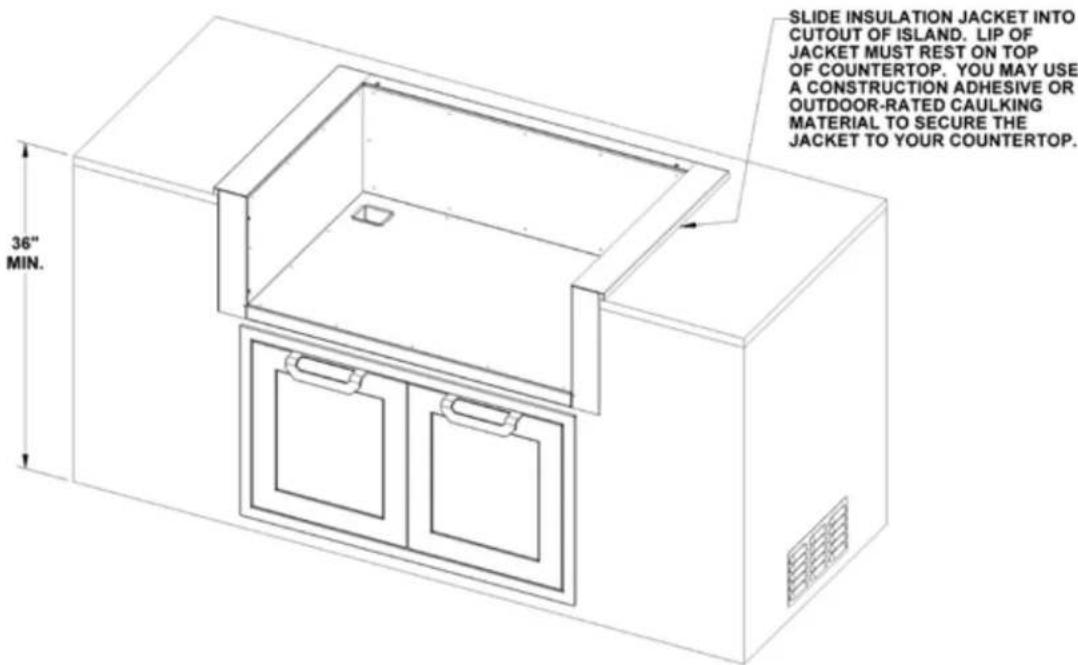

1. Slide in the Insulation Jacket as per the image below. The front face of the jacket should be flush to the face of your island.

INSULATED JACKET INSTALLATION (continued)

1. Remove all loose items inside the grill (grates, warming racks, radiant trays, rotisserie rod, etc.) Remove the drip pan and control knobs from the grill.

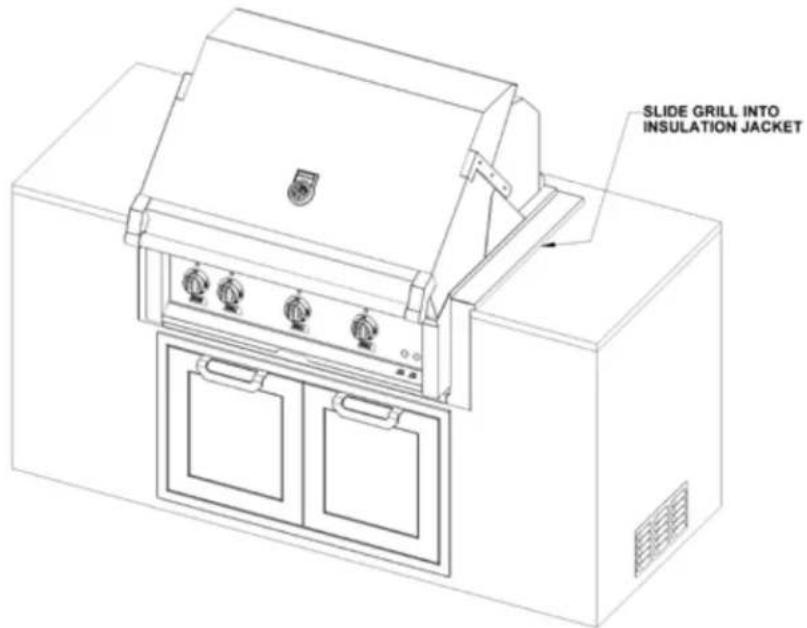

2. Two persons are required to lift the grill head into the jacket, as it is very heavy. Before lifting, be sure any wires are tucked out of the way and taped to the grill firebox so they don't dangle and get caught on anything as you lower the grill into the jacket. Slide the grill in and leave a few inches in the back open to route the electrical harness and gas connections to the area underneath the Insulation Jacket and island. This would be a good time to perform electrical tests, etc. before pushing the grill fully into the jacket and proceeding to the next step.

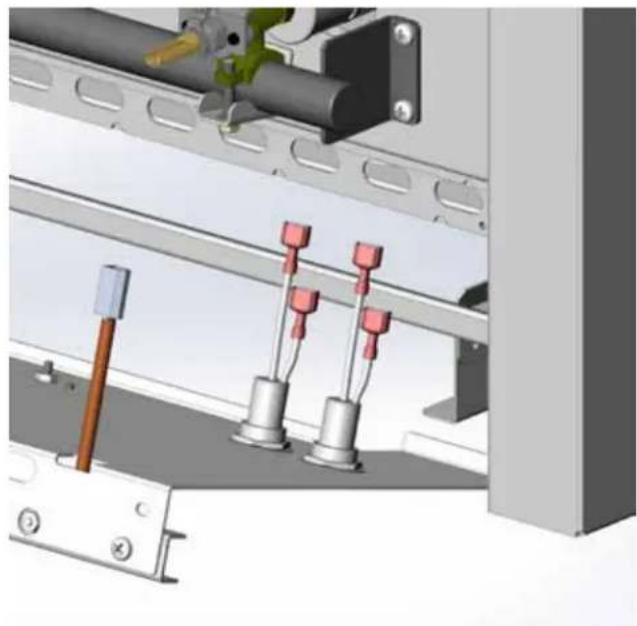

1. Remove the screws securing the control panel to the front of the grill. Carefully tilt down the control panel being careful not to damage the wires to the switches and LED light bar. Pull off the connectors to the 2 switches and the LED light bar at this time. Remove the control panel from the grill and set aside.

3D mechanical assembly diagram showing components like rods, bolts, and a rod inserted into a housing (no text or symbols visible)

INSULATED JACKET INSTALLATION (continued)

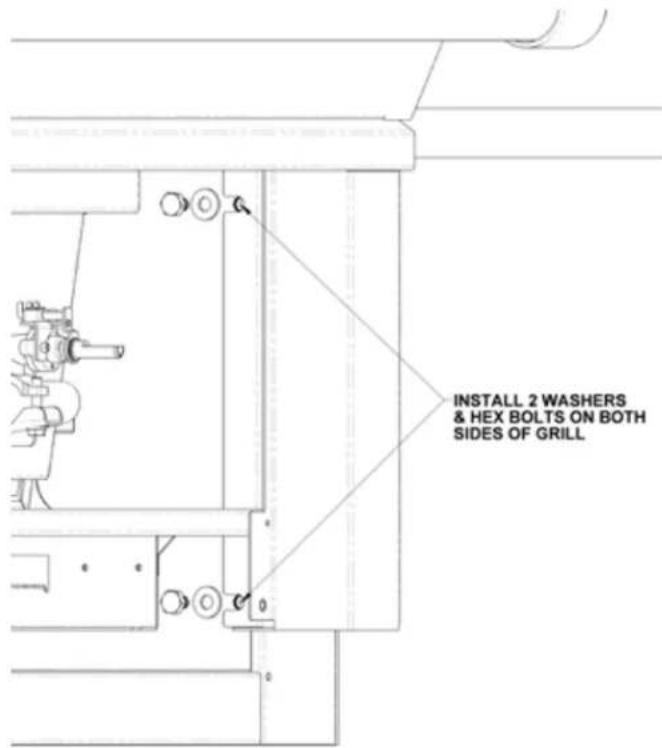

1. Reach inside the right front area of the jacket wall and secure the front of the grill to the jacket as shown below. Repeat this on the opposite side of the grill head.

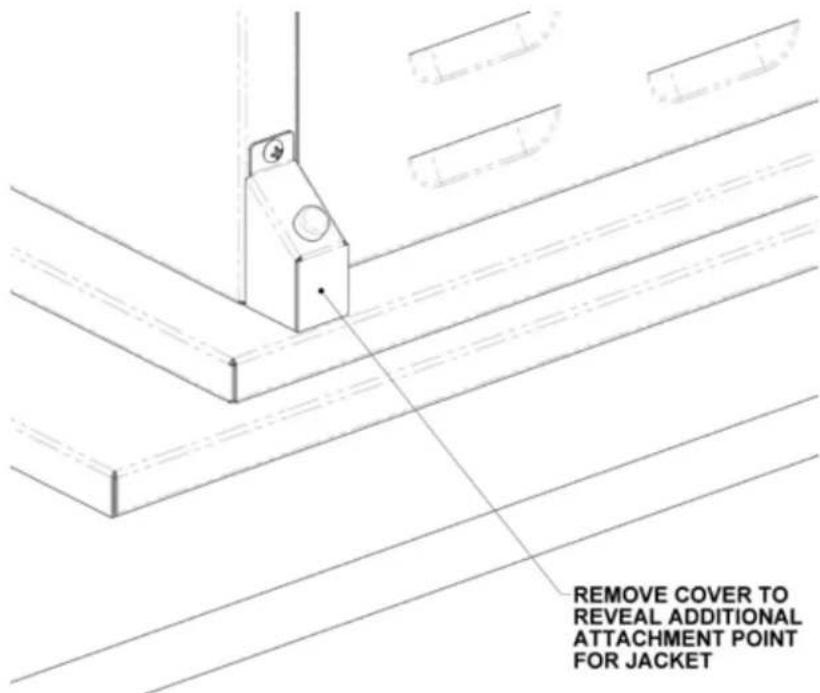

1. If needed, the rear of the grill can also be secured to the rear of the jacket. This step is optional.

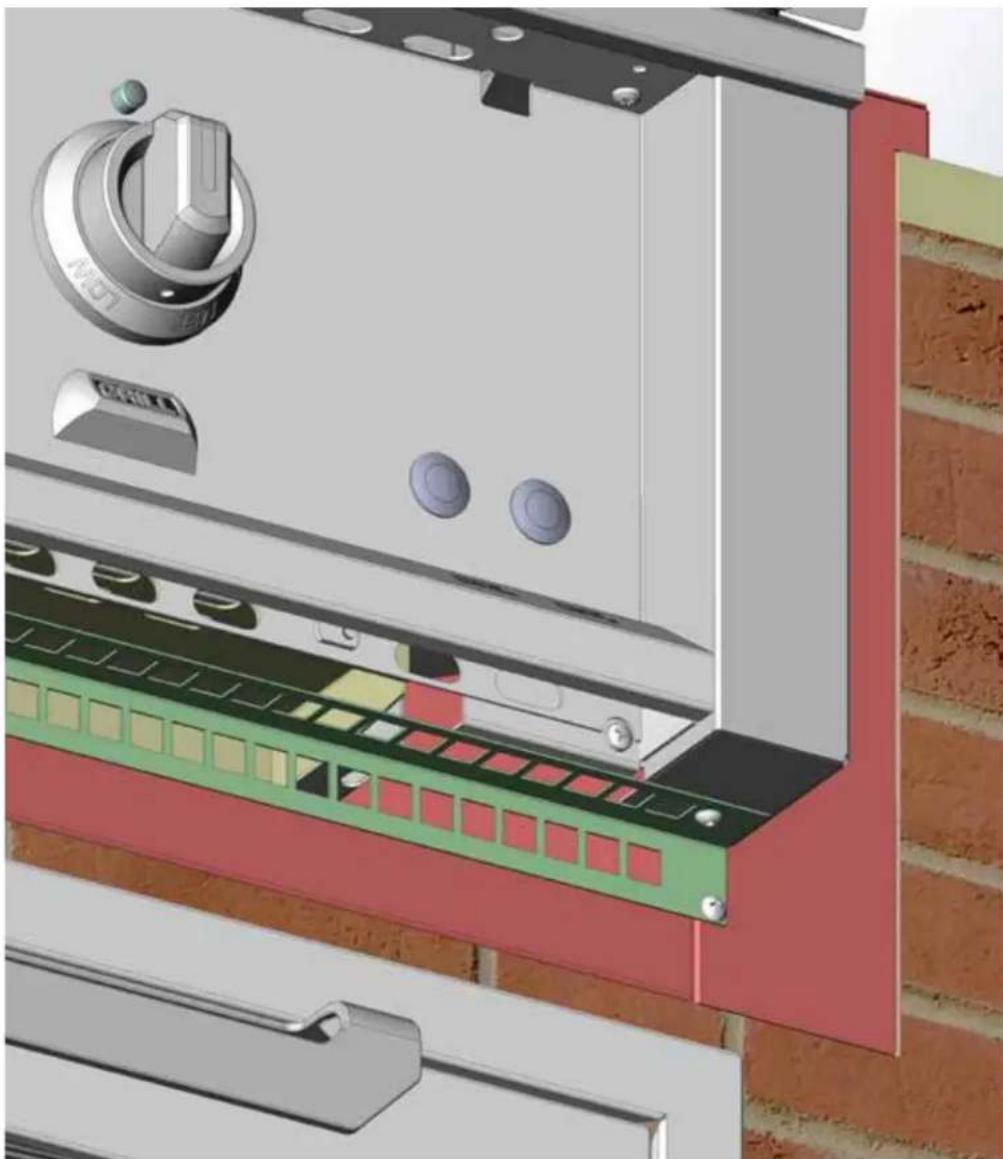

1. When everything is secured, you may reconnect all wires you disconnected in step 4. Install the screen trim (shown in green below) to the front of your grill to prevent the intrusion of vermin in your grill.

Cross-sectional diagram of a multi-level industrial machine with control panel and door (no text or symbols)

1. Proceed with the remainder of the grill installation as documented in the Use & Care Manual that came with your Hestan grill. Follow all instructions for regulator installation, gas connections, leak testing, burner adjustment, etc. before using your grill. After all these steps are completed, you can re-install the control panel and knobs.

PARTS LIST

Please visit the Hestan website to access the parts list for your Hestan Outdoor product: www.hestanoutdoor.com.

SERVICE

All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an authorized service agent in your area, contact your Hestan dealer, local representative, or the manufacturer. Before you call, please have the model number information ready. This information is shown on a sticker affixed to one of the inside vertical surfaces of your product.

Hestan Commercial Products

3375 E. La Palma Avenue

Anaheim, CA 92806

[phone]

LIMITED WARRANTY

WHAT THIS LIMITED WARRANTY COVERS

Hestan Commercial Corporation ("HCC") warrants to the original consumer purchaser of a Hestan outdoor product (the "Product") from an HCC authorized dealer that the Product is free from defective materials or workmanship for a period of one (1) year from the date of original retail purchase or closing date for new construction, whichever period is longer ("Limited Warranty Period"). HCC agrees to repair or replace, at HCC's sole option, any part or component of the Product that fails due to defective materials or workmanship during the Limited Warranty Period. This Limited Warranty is not transferable and does not extend to anyone beyond the original consumer purchaser ("Purchaser"). This Limited Warranty is valid only on Products purchased and received from an HCC authorized dealer in the fifty United States, the District of Columbia and Canada. This Limited Warranty applies only to Products in non-commercial use and does not extend to Products used in commercial applications.

HOW TO OBTAIN WARRANTY SERVICE

If the Product fails during the Limited Warranty Period for reasons covered by this Limited Warranty, the Purchaser must immediately contact the dealer from whom the Product was purchased or HCC at 888.905.7463.

Purchaser is responsible for making the Product reasonably accessible for service or for paying the cost to make the Product reasonably accessible for service. Service is to be provided during normal business hours of the authorized Hestan Commercial Service Provider. To the extent Purchaser requests service outside of the normal business hours of the authorized Hestan Commercial Service Provider, Purchaser will pay the difference between regular rates and overtime or premium rates. Purchaser is required to pay all travel costs for travel beyond 50 miles (one way) from the nearest authorized Hestan Commercial Service Provider.

EXTENSIONS TO ONE YEAR LIMITED WARRANTY PERIOD:

In addition to the One-Year Limited Warranty, the following components have extended warranty coverage as specifically set forth below:

1. The Product's stainless steel grill body, DiamondCut cooking grates and warming rack, stainless Trellis grill burners, Sear burners and rotisserie infrared burner (where applicable) are warranted to be free from defects in material and workmanship under normal non-commercial use and service for the lifetime of the original Purchaser. This excludes surface corrosion, scratches, and discoloration which may occur during normal use and is limited to replacement of the defective part(s), with the Purchaser paying all other costs, including labor, shipping and handling, as applicable.

2. The Product's spit rod, briquette trays, manifolds, gas valves and sealed burner assemblies (where applicable) are warranted to be free from defects in material and workmanship, under normal non-commercial use and service, for a period of five (5) years from the original date of purchase; This is limited to replacement of the defective parts, with the Purchaser paying all other costs, including labor, shipping, and handling, as applicable.

WHAT THIS LIMITED WARRANTY DOES NOT COVER:

This Limited Warranty does not cover and HCC will not be responsible for and will not pay for: damage to or defects in any Product not purchased from an HCC authorized dealer; color variations in color finishes or other cosmetic damage; failure or damage from

abuse, misuse, accident, fire, natural disaster, commercial use of the Product, or loss of electrical power or gas supply to the Product; damage from alteration, improper installation, or improper operation of the Product; damage from improper or unauthorized repair or replacement of any part or component of the Product; damage from service by someone other than an authorized agent or representative of the Hestan Commercial Service Network; normal wear and tear; damage from exposure of the Product to a corrosive atmosphere containing chlorine, fluorine, or any other damaging chemicals; damage resulting from the failure to provide normal care and maintenance to the Product; damage HCC was not notified of within the Limited Warranty Period; and incidental and consequential damages caused by any defective material or workmanship.

ARBITRATION:

This Limited Warranty is governed by the Federal Arbitration Act. Any dispute between Purchaser and HCC regarding or related to the Product or to this Limited Warranty shall be resolved by binding arbitration only on an individual basis with Purchaser. Arbitration will be conducted by the American Arbitration Association ("AAA") in accordance with its Consumer Arbitration Rules or by JAMS. The arbitration hearing shall be before one arbitrator appointed by the AAA or JAMS. The arbitrator shall not conduct class arbitration and Purchaser shall not bring any claims against HCC in a representative capacity on behalf of others.

LIMITATION OF LIABILITY:

This Limited Warranty is the final, complete and exclusive agreement between HCC and Purchaser regarding the Product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY AFTER THE LIMITED WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON HCC. HCC ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR PURPOSE, EXCEPT AS OTHERWISE PROVIDED BY APPLICABLE LAW.

HCC SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF HCC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NO RECOVERY OF ANY KIND AGAINST HCC SHALL BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT.

WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THE PRODUCT NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF HCC. THIS LIMITED WARRANTY STATES YOUR EXCLUSIVE REMEDY.

No oral or written representation or commitment given by anyone, including but not limited to, an employee, representative or agent of HCC will create a warranty or in any way increase the scope of this express Limited One Year Warranty. If there is any inconsistency between this Limited Warranty and any other agreement or statement included with or relating to the Product, this Limited Warranty shall govern. If any provision of this Limited Warranty is found invalid or unenforceable, it shall be deemed modified to the minimum extent necessary to make it enforceable and the remainder of the Limited Warranty shall remain valid and enforceable according to its terms.

INTERACTION OF LAWS WITH THIS LIMITED WARRANTY:

Some states, provinces or territories may not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. Some states, provinces or territories may provide for additional warranty rights and remedies, and the provisions contained in this Limited Warranty are not intended to limit, modify, take away from, disclaim or exclude any mandatory warranty requirements provided by states, provinces or territories, including certain implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary depending on location.

Any questions about this Limited Warranty may be directed to Hestan Commercial Products at [phone]

RETAIN THIS MANUAL FOR FUTURE REFERENCE
