USER MANUAL CS-TZ18SKEW PANASONIC

Operating Instructions Air Conditioner Thank you for purchasing this Panasonic Air conditioner. Installation instructions attached. Before operating the unit, please read these operating instructions thoroughly and keep them for future reference.

Operating Instructions

WARNING This symbol shows that this equipment uses a flammable refrigerant. If the refrigerant is leaked, together with an external ignition source, there is a possibility of ignition.

This symbol shows that the Operation Instructions should be read carefully.

CAUTION CAUTION This symbol shows that there is information included in the Operation Instructions and/or

Installation Instructions.

• Remote control • AAA or R03 batteries × 2 • Remote control holder • Screws for remote control holder × 2

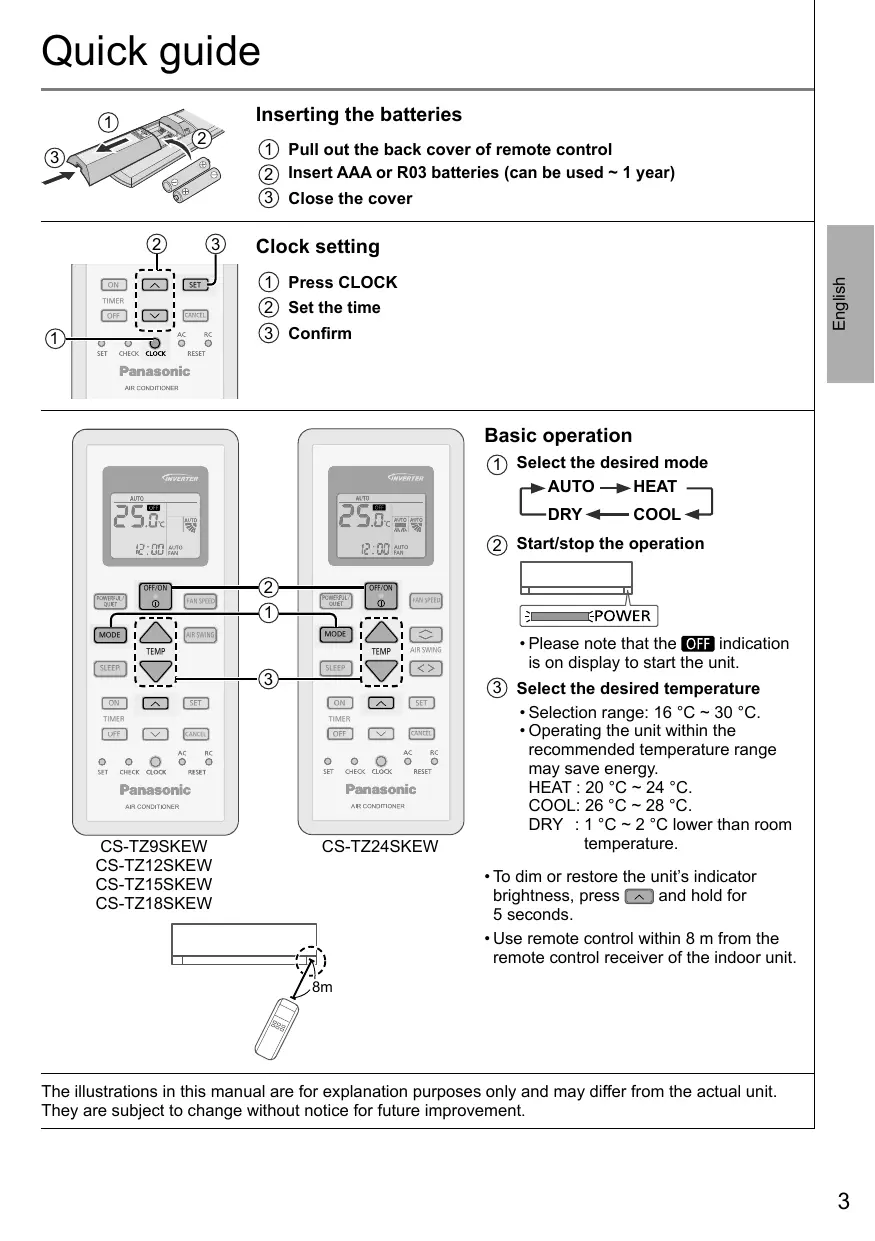

Inserting the batteries

1 Pull out the back cover of remote control

2 Insert AAA or R03 batteries (can be used ~ 1 year)

SET TIMER OFF CANCEL Clock setting

1 Press CLOCK English

1 Select the desired mode

2 Start/stop the operation

OFF/ON OFF/ON FAN SPEED FAN SPEED

MODE AIR SWING MODE TEMP TEMP SLEEP ON

ON SET SET TIMER TIMER OFF AIR SWING SLEEP OFF CANCEL

• Please note that the indication is on display to start the unit.

3 Select the desired temperature • Selection range: 16 °C ~ 30 °C. • Operating the unit within the recommended temperature range may save energy. HEAT : 20 °C ~ 24 °C. COOL: 26 °C ~ 28 °C. DRY : 1 °C ~ 2 °C lower than room temperature. • To dim or restore the unit’s indicator and hold for brightness, press 5 seconds. • Use remote control within 8 m from the remote control receiver of the indoor unit.

The illustrations in this manual are for explanation purposes only and may differ from the actual unit.

They are subject to change without notice for future improvement.

To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below: This appliance is filled with R32 (mild flammable refrigerant). If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.

WARNING This sign warns of death or serious injury.

CAUTION This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote actions

Indoor unit and outdoor unit

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The appliance shall be installed, and/or operated in a room with floor area larger than Amin (m²) and keep away from ignition sources, such as heat/sparks/ open flame or hazardous areas such as gas appliances, gas cooking, reticulated gas supply systems or electric cooking appliances, etc. (Refer to Table A of Installation instructions table for Amin (m²)) Be aware that refrigerant may not contain an odour, highly recommended to ensure suitable flammable refrigerant gas detectors are present, operating and able to warn of a leak. Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire. Confirm with authorised dealer or specialist on usage of any specified refrigerant type. Using refrigerant type other than the specified may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or flammable atmosphere.

Failure to do so could result in fire. Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock. Do not expose yourself directly to cold air for a long period to avoid excess cooling. Do not sit or step on the unit, you may fall down accidentally.

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard.

It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire. To prevent overheating, fire or electric shock: • Insert the power plug properly. • Dust on the power plug should be periodically wiped with a dry cloth.

Do not pierce or burn as the appliance is pressurized. Do not expose the appliance to heat, flame, sparks, or other sources of ignition. Else it may explode and cause injury or death.

To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment. • Do not operate with wet hands. • Do not over bend the power supply cord. • Do not operate or stop the unit by inserting or pulling out the power plug.

Do not use means to accelerate the defrosting process or to clean, other than those recommended by manufacturer.

Any unfit method or using incompatible material may cause product damage, burst and serious injury.

Stop using the product if any abnormality/ failure occurs and disconnect the power plug or turn off the power switch and breaker.

(Risk of smoke/fire/electric shock) Examples of abnormality/failure • The ELCB trips frequently. • Burning smell is observed. • Abnormal noise or vibration of the unit is observed. • Water leaks from the indoor unit. • Power cord or plug becomes abnormally hot. • Fan speed cannot be controlled. • The unit stops running immediately even if it is switched on for operation. • The fan does not stop even if the operation is stopped. Contact your local dealer immediately for maintenance/repair. This equipment must be earthed to prevent electrical shock or fire.

Prevent electric shock by switching off the power supply and unplug: - Before cleaning or servicing, - When extended non-use, or - During abnormally strong lightning activity.

Precaution for using R32 refrigerant

Pay careful attention to the following points when operating the appliances and dealing with different refrigerants. Since the working pressure is higher than that of refrigerant R22 models, some of the piping and installation and service tools are special. Especially, when replacing a refrigerant R22 model with a new refrigerant R32 model, always replace the conventional piping and flare nuts with the R32 and R410A piping and flare nuts on the outdoor unit side. For R32 and R410A, the same flare nut on the outdoor unit side and pipe can be used. Models that use refrigerant R32 and R410A have a different charging port thread diameter to prevent erroneous charging with refrigerant R22 and for safety. Therefore, check beforehand. [The charging port thread diameter for R32 and R410A is 12.7 mm (1/2 inch).] Be more careful than R22 so that foreign matter (oil, water, etc.) does not enter the piping. Also, when storing the piping, securely seal the opening by pinching, taping, etc. (Handling of R32 is similar to R410A.) This appliance shall be stored in a well ventilated area. This appliance shall be stored in a room without continuously operating open flames and ignition sources. This appliance shall be stored so as to prevent mechanical damage from occurring.

CAUTION Indoor unit and outdoor unit

Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit. Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc. Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation. Do not expose plants or pet directly to airflow to avoid injury, etc. Do not touch the sharp aluminium fin, sharp parts may cause injury. Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit. Do not install the unit in oily and smoky areas to prevent damage to the unit. Do not dismantle the unit for cleaning purpose to avoid injury. Do not step onto an unstable bench when cleaning the unit to avoid injury. Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock. Do not open window or door for long time during operation, it may lead to inefficient power usage and uncomfortable temperature changes.

After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.

Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control. To prevent malfunction or damage of the remote control: • Remove the batteries if the unit is not going to be used for a long period of time. • New batteries of the same type must be inserted following the polarity stated.

After a long period of use or use with any combustible equipment, aerate the room regularly.

Prevent water leakage by ensuring drainage pipe is:

- Connected properly, - Kept clear of gutters and containers, or - Not immersed in water

Do not disconnect the plug by pulling the cord to prevent electric shock.

To switch between powerful & quiet

(Remote control display)

POWERFUL QUIET Remote control receiver and indicator

POWERFUL: To reach temperature quickly

• This operation stops automatically after 20 minutes. QUIET: To enjoy quiet operation • This operation reduces airflow noise.

MODE To select operation mode

AUTO mode - For your convenience

• During operation mode selection the power indicator blinks. • Unit selects operation mode every 10 minutes according to setting temperature and room temperature. HEAT mode - To enjoy warm air • Unit takes a while to warm up. The power indicator blinks during this operation. COOL mode - To enjoy cool air • To reduce power consumption during COOL mode, use curtains to screen off sunlight and outdoor heat. DRY mode - To dehumidify the environment • Unit operates at low fan speed to give a gentle cooling operation.

SLEEP To maximise comfort while sleeping

Press and hold for approximately

10 seconds to show temperature setting in °C or °F.

Remote control display

OFF/ON OFF/ON FAN SPEED FAN SPEED AIR SWING MODE MODE TEMP TEMP ON SET ON SET TIMER TIMER OFF AIR SWING SLEEP SLEEP CANCEL OFF CANCEL

• This operation provides you with a comfortable environment while sleeping. It will automatically adjust the sleep pattern temperature during the activation period.

• The indoor unit indicator will dim when this operation is activated. This is not applicable if the indicator brightness has been manually dimmed. • This operation is incorporated with the activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9 hours). • This operation can be set together with single timer or twin timer. Sleep operation has the priority over OFF timer. • This operation can be cancelled by pressing the respective button when the sleep timer reaches 0.0h.

To adjust horizontal airflow direction

• Manually adjustable. (CS-TZ9SKEW, CS-TZ12SKEW, CS-TZ15SKEW, CS-TZ18SKEW)

Not used in normal operations.

CS-TZ9SKEW CS-TZ12SKEW CS-TZ15SKEW CS-TZ18SKEW Press to restore the remote control to default setting.

CS-TZ24SKEW Auto OFF/ON button

Use when remote control is misplaced or a malfunction occurs. Raise the front panel: • To use in AUTO mode, press the button once. • To use in COOL mode, press and hold the button until 1 beep is heard, then release. • To use in HEAT mode, press and hold the button until 1 beep is heard, then release. And press again until 2 beeps, then release. • Press the button again to turn off.

2 sets of ON and OFF timers are available to turn

ON or OFF the unit at different preset times.

(Remote control display)

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

• To have low noise priority operation, select the lowest fan speed ( ).

SET TIMER OFF To adjust vertical airflow direction

(CS-TZ9SKEW, CS-TZ12SKEW, CS-TZ15SKEW, CS-TZ18SKEW)

1 Select ON or OFF timer Example:

OFF at 22:00 • Each time pressed:

(Remote control display)

• Keeps the room ventilated.

• In COOL/DRY mode, if AUTO is set, the flap swings up/down automatically. • Do not adjust the flap by hand.

• To cancel ON or OFF timer, press or to select respective or then press

. • If timer is cancelled manually or due to power failure, you can restore the timer again by pressing or to select respective or then press . • The nearest timer setting will be displayed and will activate in sequence. • When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time. • Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick guide.

ON AIR SWING To adjust airflow direction

• Keeps the room ventilated.

• In COOL/DRY mode, if AUTO is set, the flaps swings left/right and up/down automatically. • In HEAT mode, if AUTO is set, the horizontal flap is fixed at the predetermined position. The vertical flap swings left/right after the temperature rises. • If manual is set, the horizontal and vertical flap are fixed at the predetermined position. • Do not adjust the flap by hand.

• If power is resumed after a power failure, the operation will restart automatically after a period of time with previous operation mode and airflow direction.

• This control is not applicable when TIMER is set.

(Remote control display)

• Can be activated in all modes and can be cancelled by pressing the respective button again.

Operation conditions

Use this air conditioner under the following temperature range.

COOL HEAT DBT : Dry bulb temperature

CU-TZ9SKE, CU-TZ12SKE,

CU-TZ15SKE, CU-TZ18SKE, CU-TZ24SKE DBT WBT 43 26 -10 24 18 -15 -16

WBT : Wet bulb temperature

Cleaning instructions

To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see error code “H99”. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.

• Do not touch the aluminium fin, sharp parts may cause injury. • Do not use benzine, thinner or scouring powder. • Use only soap ( pH 7) or neutral household detergent. • Do not use water hotter than 40 °C.

Air Purifying Filter

Wipe the unit gently with a soft, dry cloth.

Wash gently and dry.

• Wash/rinse the filters gently with water to avoid damage to the filter surface. • Dry the filters thoroughly under shade, away from fire or direct sunlight. • Replace any damaged filters. Remove air filter Attach air filter

Remove the front panel

Insert into the unit

Air Purifying Filter

• Do not wash the air purifying filter. • Replace the filter every 2 years or replace any damaged filter.

Part no.: CZ-SA31P Close it securely

1 Insert at both sides

Air Purifying Filter

3 Press both ends of the front panel 4 For CS-TZ18SKEW, CS-TZ24SKEW: Press at center of the front panel

For seasonal inspection after extended non-use

• Checking of remote control batteries. • No obstruction at air inlet and air outlet vents. • Use Auto OFF/ON button to select COOL/ HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:

COOL: ≥ 8 °C HEAT: ≥ 14 °C For extended non-use

• Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth. • Turn off the power supply and unplug. • Remove the remote control batteries.

The following symptoms do not indicate malfunction. Symptom

Check the following before calling for servicing.

Cleaning instructions / Troubleshooting

• Condensation effect due to cooling process.

• Refrigerant flow inside the unit. • This may be due to damp smell emitted by the wall, carpet, furniture or clothing. Indoor fan stops occasionally during automatic • This helps to remove the surrounding odour. fan speed setting. Airflow continues even after operation has • Extraction of remaining heat from the indoor unit stopped. (maximum 30 seconds). Operation is delayed a few minutes after restarting. • The delay is a protection to the unit’s compressor. Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes. TIMER indicator is always on. • The timer setting repeats daily once set. POWER indicator blinks during HEAT mode • The unit is in defrost mode (and AIR SWING is set to with no warm air supply (and flap is closed). AUTO). Indoor fan stops occasionally during heating • To avoid unintended cooling effect. operation. POWER indicator blinks before the unit is • This is a preliminary step in preparation for the switched on. operation when the ON timer has been set. Cracking sound during operation. • Changes of temperature caused the expansion/ contraction of the unit. Discoloration of some plastic parts. • Discoloration is subject to material types used in plastic parts, accelerated when exposed to heat, sun light, UV light, or environmental factor. Cooling/heating capacity reduced during the • The low fan speed is low noise priority operation, so lowest fan speed setting. cooling/heating capacity may be reduced (depending on the condition). Increase the Fan Speed to increase the capacity.

Mist emerges from indoor unit.

Water flowing sound during operation. The room has a peculiar odour.

Operation in HEAT/COOL mode is not working • Set the temperature correctly. efficiently.

• Close all doors and windows. • Clean or replace the filters. • Clear any obstruction at the air inlet and air outlet vents. Noisy during operation. • Check if the unit has been installed at an incline. • Close the front panel properly. • Insert the batteries correctly. Remote control does not work. (Display is dim or transmission signal is weak.) • Replace weak batteries. The unit does not work. • Check if the circuit breaker is tripped. • Check if timers have been set. The unit does not receive the signal from the • Make sure the receiver is not obstructed. remote control. • Certain fluorescent lights may interfere with signal transmitter. Please consult authorised dealer.

TURN OFF POWER SUPPLY AND UNPLUG then please consult authorised dealer under the following conditions:

• Abnormal noise during operation. • Water/foreign particles have entered the remote control. • Water leaks from Indoor unit. • Circuit breaker switches off frequently. • Power cord becomes unnaturally warm. • Switches or buttons are not functioning properly.

The unit stops and the TIMER indicator blinks.

Use remote control to retrieve error code.

5 seconds to quit checking

hear beep sound, then write down the error code

and reveal the error code to authorised dealer

• For certain errors, you may restart the unit for limited operation with 4 beeps when operation starts.

AVERTISSEMENT OFF/ON FAN SPEED FAN SPEED

MODE AIR SWING MODE TEMP TEMP SLEEP ON

ON SET SET TIMER TIMER OFF AIR SWING SLEEP OFF CANCEL CU-TZ9SKE, CU-TZ12SKE,

CU-TZ15SKE, CU-TZ18SKE, CU-TZ24SKE DBT WBT 43 26 -10 24 18 -15 -16

OFF/ON FAN SPEED FAN SPEED

MODE AIR SWING MODE TEMP TEMP SLEEP ON

ON SET SET TIMER TIMER OFF AIR SWING SLEEP OFF CANCEL OFF/ON FAN SPEED FAN SPEED

MODE TEMP TEMP SLEEP ON

ON SET TIMER TIMER OFF OFF CANCEL CU-TZ9SKE, CU-TZ12SKE,

CU-TZ15SKE, CU-TZ18SKE, CU-TZ24SKE DBT WBT DBT WBT 32 23 43 26 16 11 -10 30 24 18 16 -15 -16 Interna

CU-TZ9SKE, CU-TZ12SKE,

CU-TZ15SKE, CU-TZ18SKE, CU-TZ24SKE DBT WBT 43 26 -10 24 18 -15 -16

OFF/ON FAN SPEED FAN SPEED

ON SET SET TIMER TIMER OFF AIR SWING SLEEP OFF CANCEL CU-TZ9SKE, CU-TZ12SKE, CU-TZ15SKE,

CU-TZ18SKE, CU-TZ24SKE DBT WBT 43 26 -10 24 18 -15 -16

Information/Informations

English Information for Users on Collection and Disposal of Old Equipment and Used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
