| Product Type | Audio Receiver / Distribution Amplifier |
| Brand | Sonifex |
| Model | Redbox RB-DA6G |
| Dimensions (W x H x D) | 483 mm x 44 mm x 200 mm (19" rack, 1U) |
| Weight | 2.5 kg |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | 15 W |
| Number of Channels | 6 (balanced inputs and outputs) |
| Input Connectors | XLR-3 female |
| Output Connectors | XLR-3 male |
| Frequency Response | 20 Hz - 20 kHz (+0.5 dB) |
| Gain Range | -20 dB to +20 dB |
| Total Harmonic Distortion | < 0.05% at 1 kHz |
| Operating Temperature | 0°C to 40°C |
| Mounting | 19" rack-mountable, 1U |
| Indicators | Power LED, Signal present LEDs per channel |
| Maintenance | Clean with soft dry cloth; avoid solvents. |
| Safety | Operate in dry environment; do not expose to moisture. |
| Spare Parts & Repairability | Contact Sonifex for spare parts and service. |
| General Information | Professional audio distribution amplifier for studio and broadcast use. |
Frequently Asked Questions - Redbox RB-DA6G Sonifex
How do I connect audio sources to the RB-DA6G?
Each channel has a balanced XLR-3 female input. Use standard XLR cables to connect your audio source.
What are the power requirements?
The unit operates on 100-240 V AC, 50/60 Hz, and consumes up to 15 W.
What are the dimensions of the RB-DA6G?
It is a 1U rackmount device: 483 mm wide, 44 mm high, 200 mm deep.
How can I adjust the gain per channel?
Each channel has a gain control knob allowing adjustment from -20 dB to +20 dB.

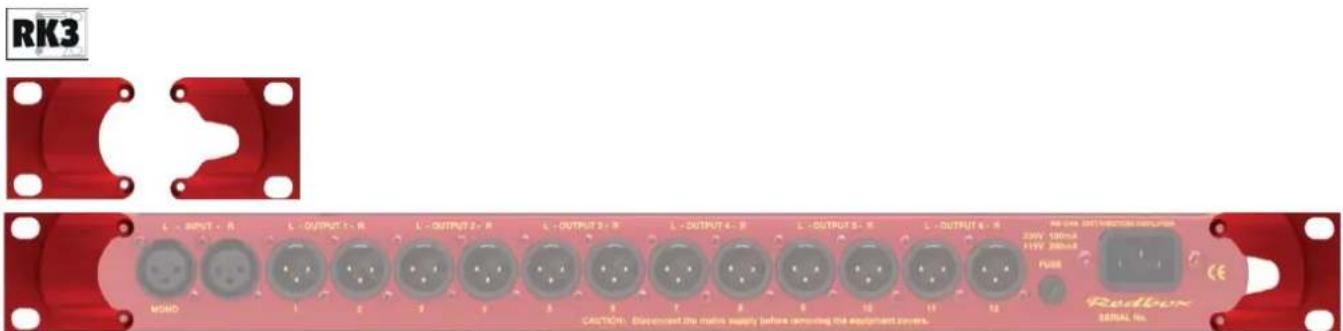

Does the unit come with rackmount ears?
Yes, it includes rackmount brackets for standard 19-inch racks.
What type of output connectors are used?
Balanced outputs are on XLR-3 male connectors.
How do I clean and maintain the device?
Use a soft, dry cloth to clean the exterior. Do not use abrasive cleaners or solvents.
What is the warranty period?
Sonifex typically offers a 2-year warranty. Check with your dealer for specific terms.
Can I use the RB-DA6G in a live sound environment?
Yes, it is designed for professional use including live sound, studio, and broadcast.
Where can I find the user manual?
The manual is available for free download on the notice-facile.com website.
