USER MANUAL ESWL03 Etekcity

natural_image Line drawing of a front-mounted kitchen appliance with control panel and door (no text or symbols)

Vefync

Thank you for purchasing the Smart WiFi 3-Way Light Switch by Etekcity.

The smart light switch is a standard multi-way wall light switch that can be controlled with your iOS ^TM or Android ^TM smartphone. With the VeSync app, connect the smart light switch to your home WiFi network to control your lights and create custom lighting automations from anywhere, at any time.

If you have any questions or concerns, please reach out to our helpful Customer Support Team at support@etekcity.com. We hope you enjoy your new smart light switch!

Become an Etekcitizen

Exclusive deals, giveaways, and product registration.

Better products for better living.

Find us here: etekcity.com

Table of Contents

Specifications 4

Safety Information 5

Product Requirements 7

Product Diagram 8

WiFi Indicator 9

Installation 10

• What You'll Need 10
- Checking Wires 11
- About the Wires 13
- Removing the Old Light Switch 15
• Installing the Smart Light Switch 16

VeSync App Setup 18

Configuration 19

Functions 26

  • Turning the Light Switch On/Off 26

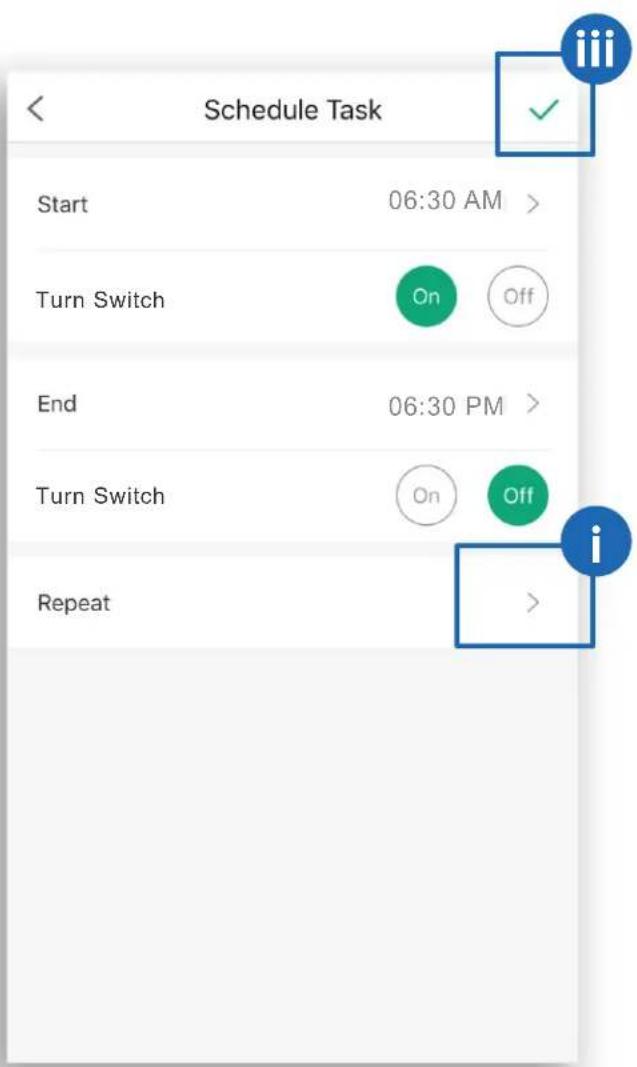

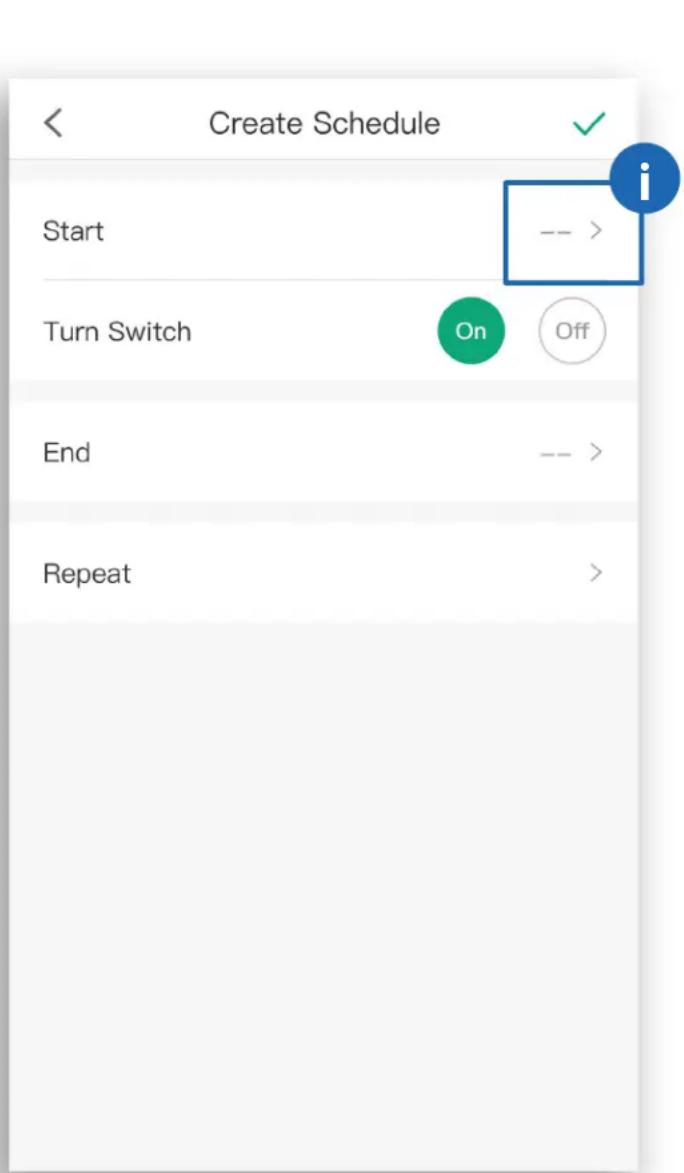

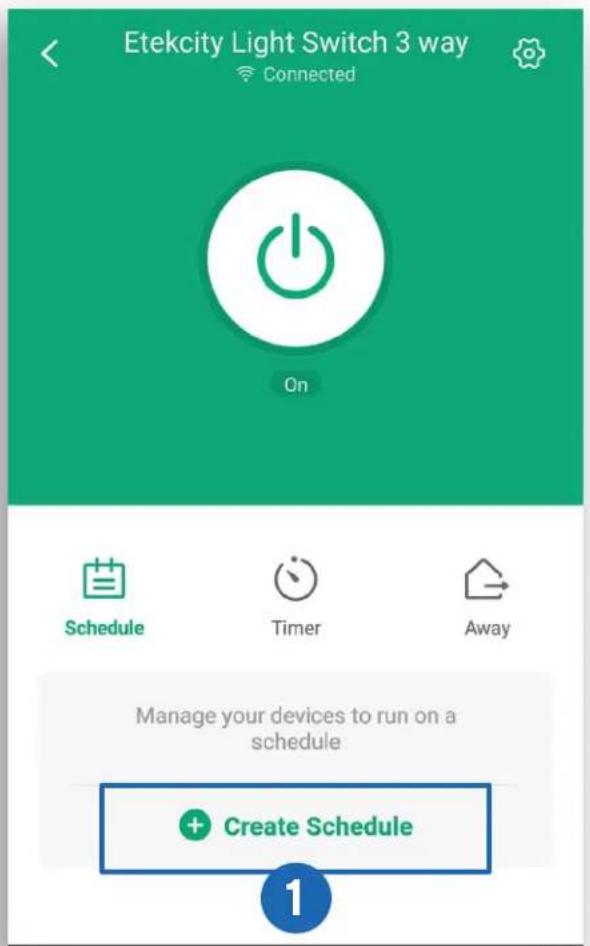

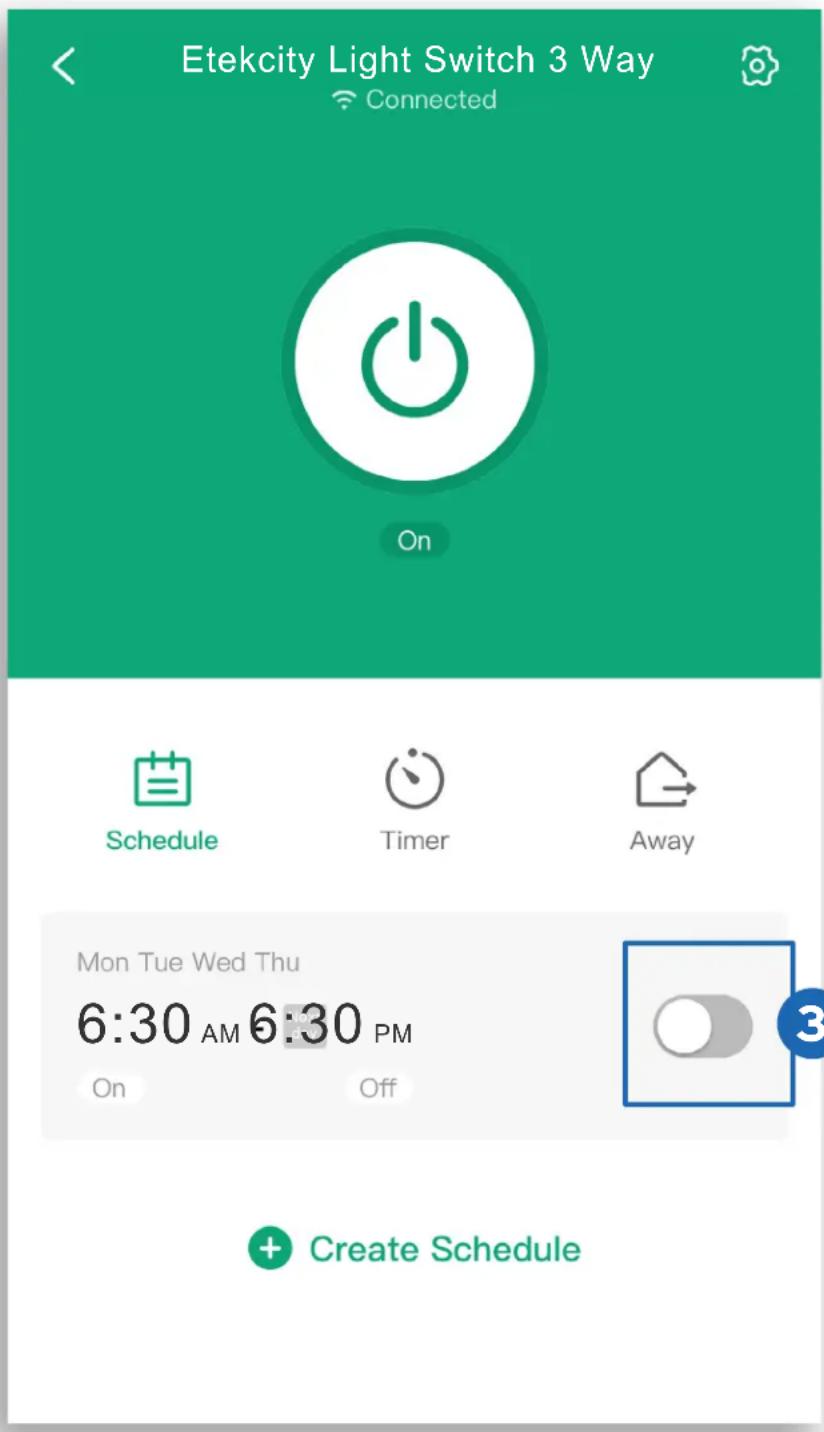

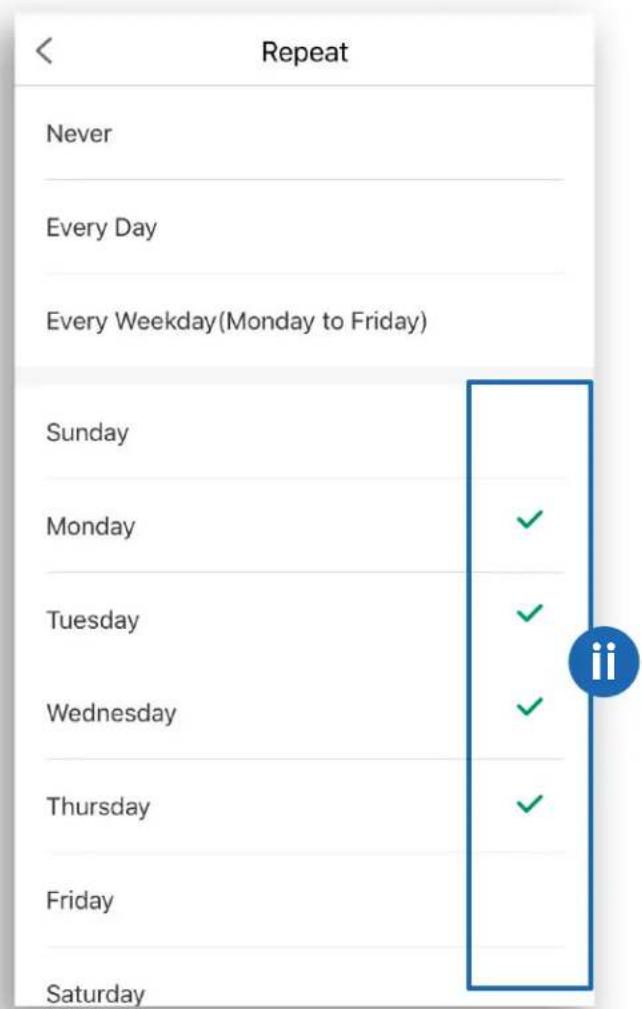

  • Schedules 27

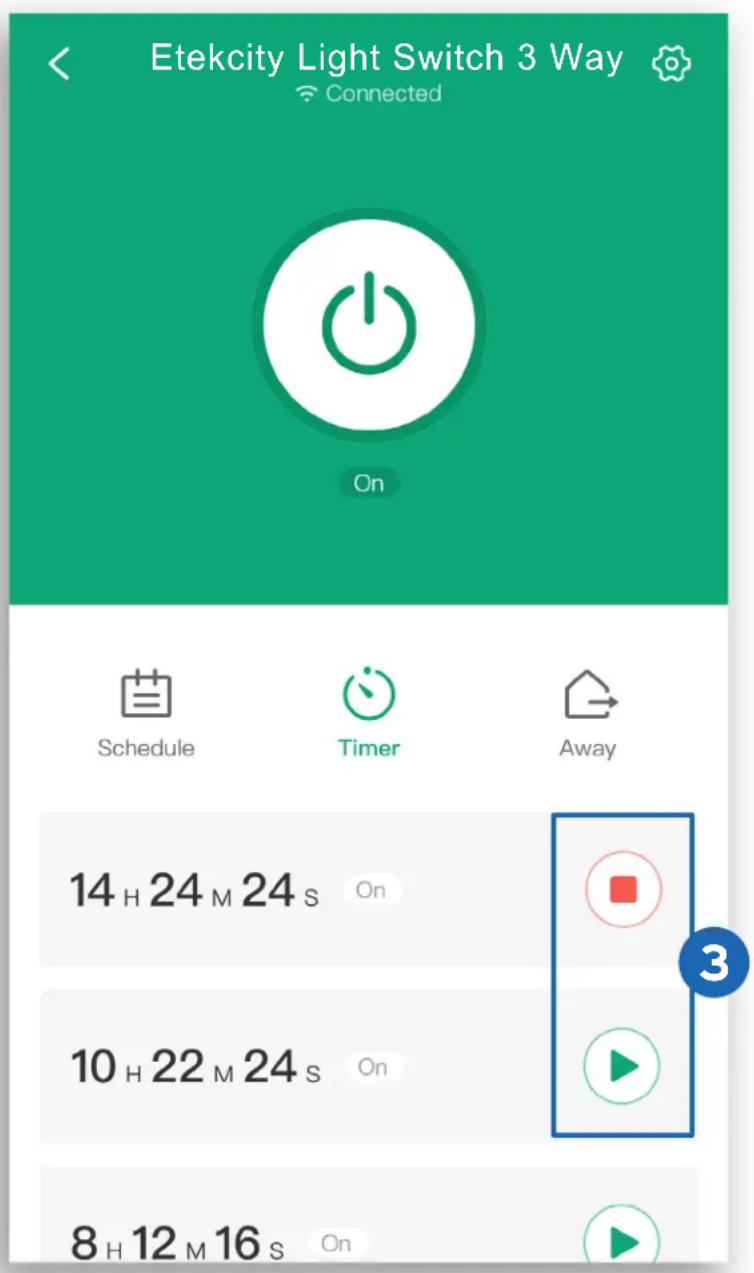

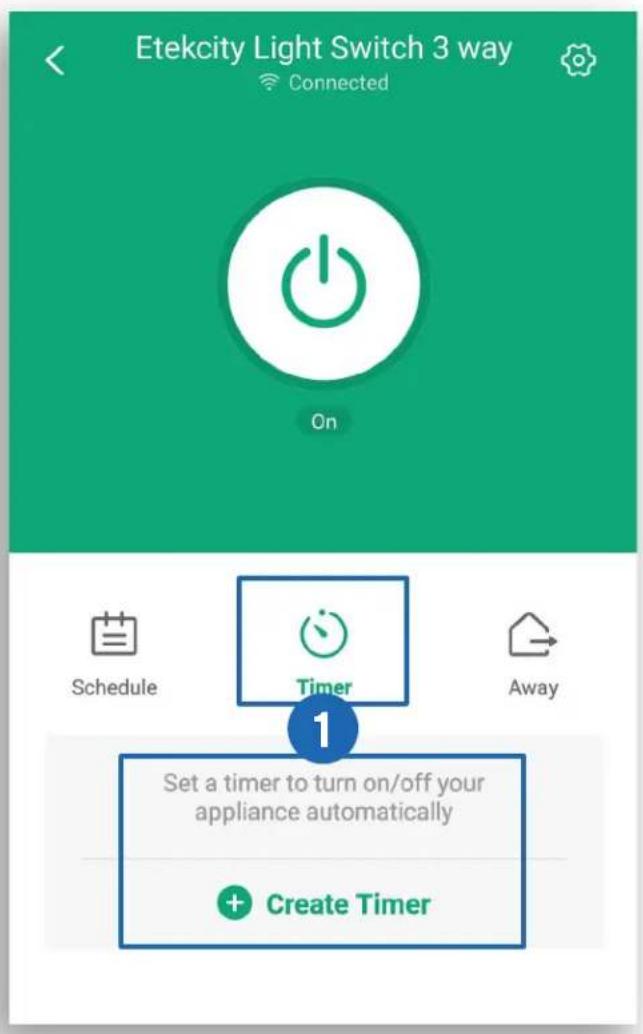

  • Set Timer 34

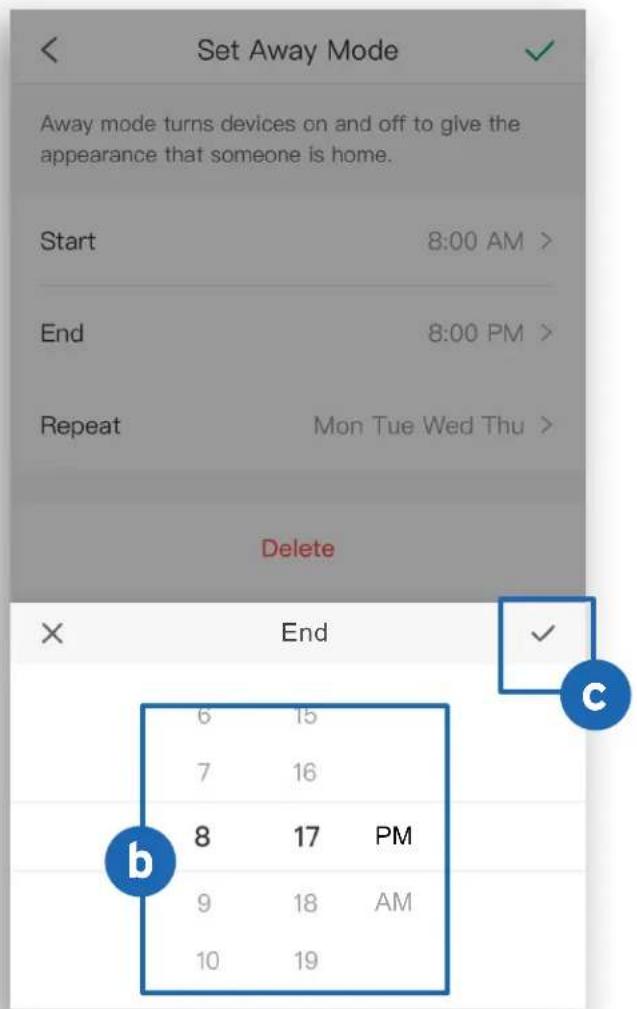

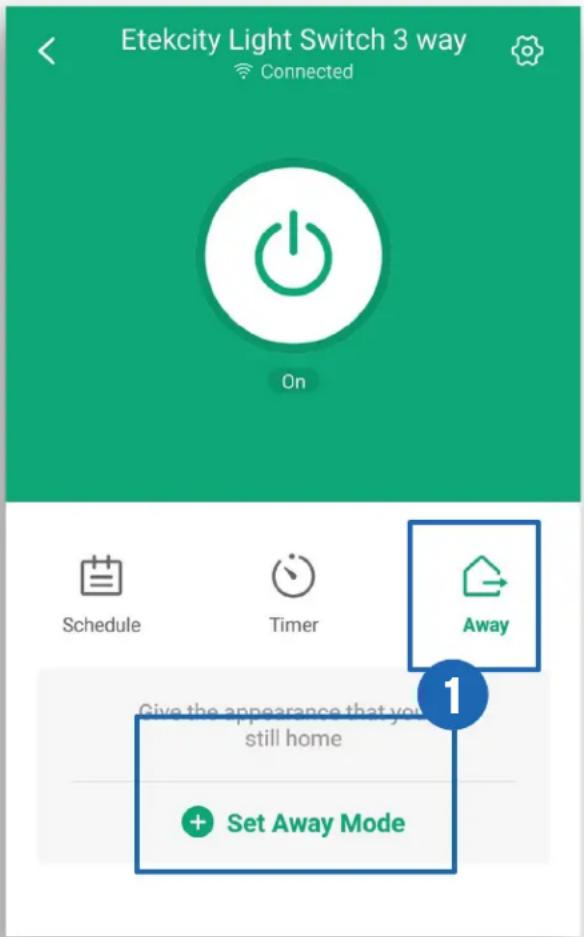

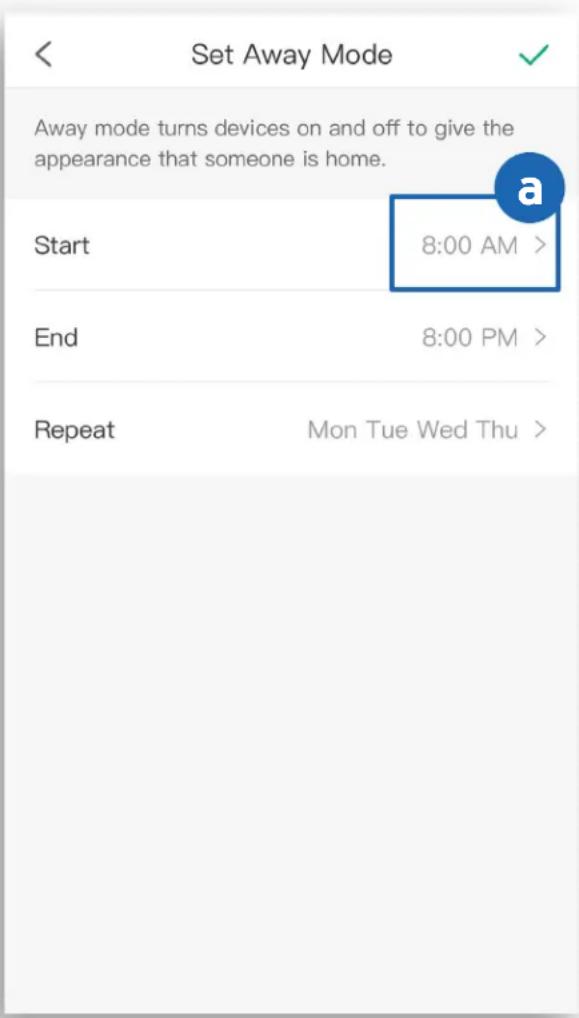

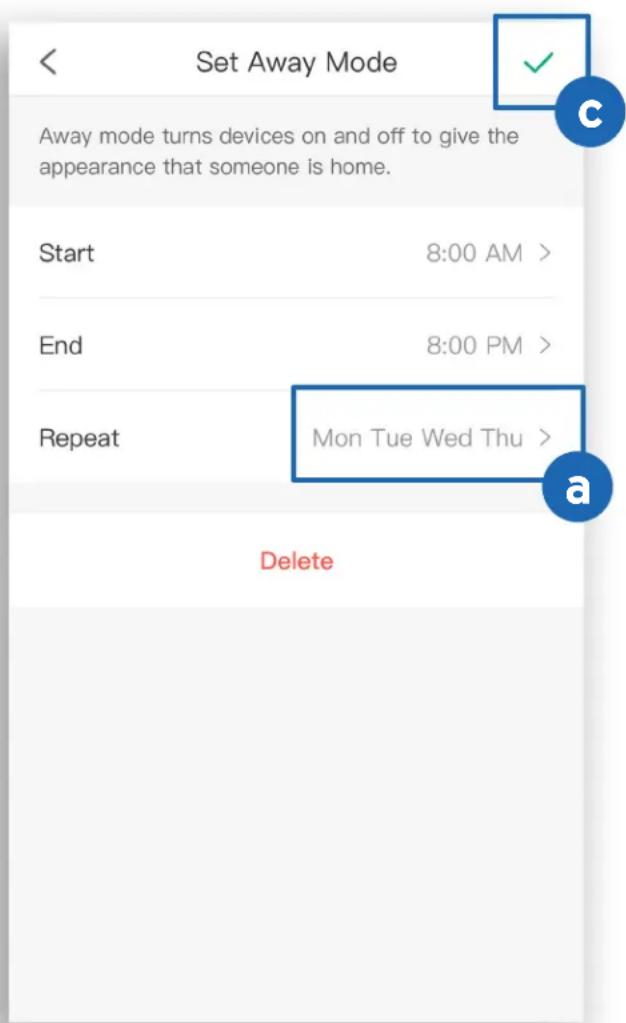

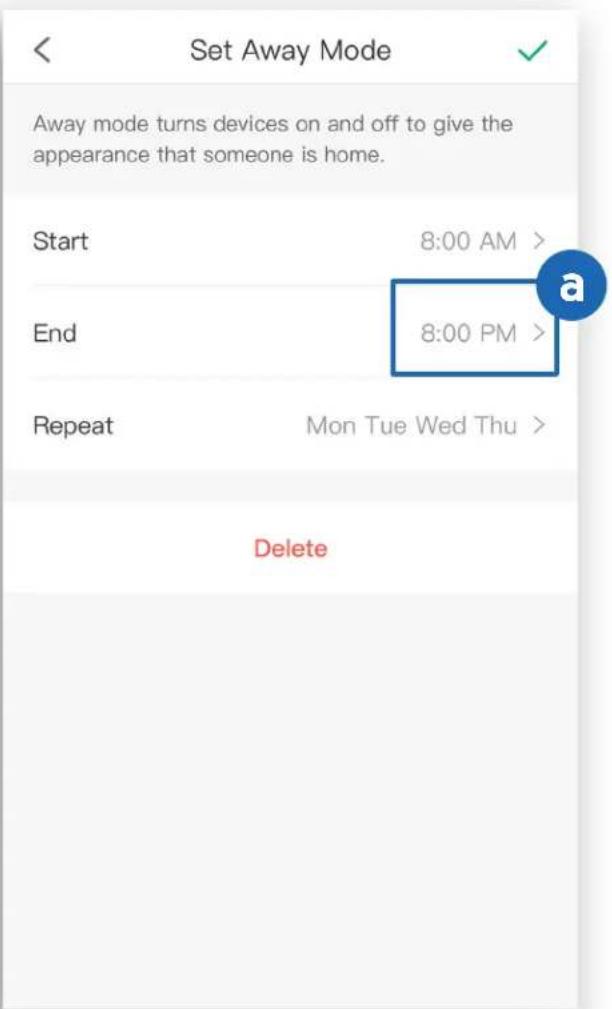

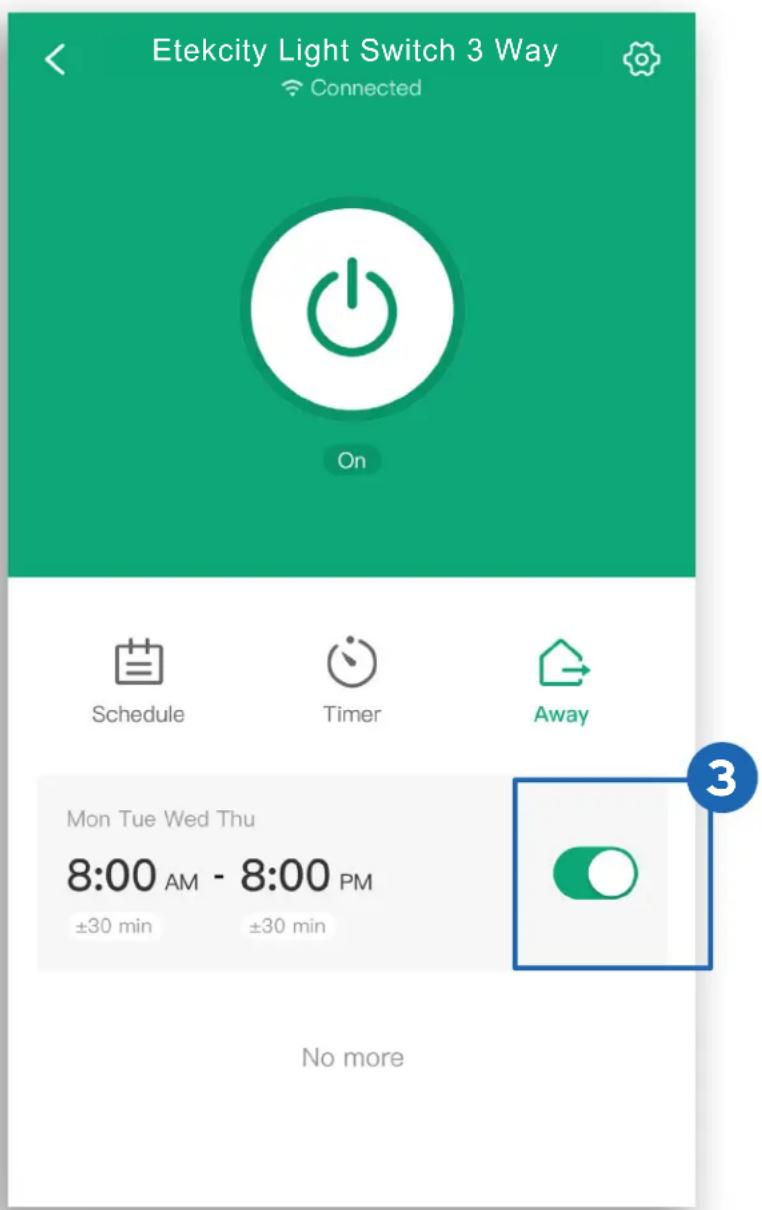

  • Away Mode 36

Smart Light Switch Settings 41

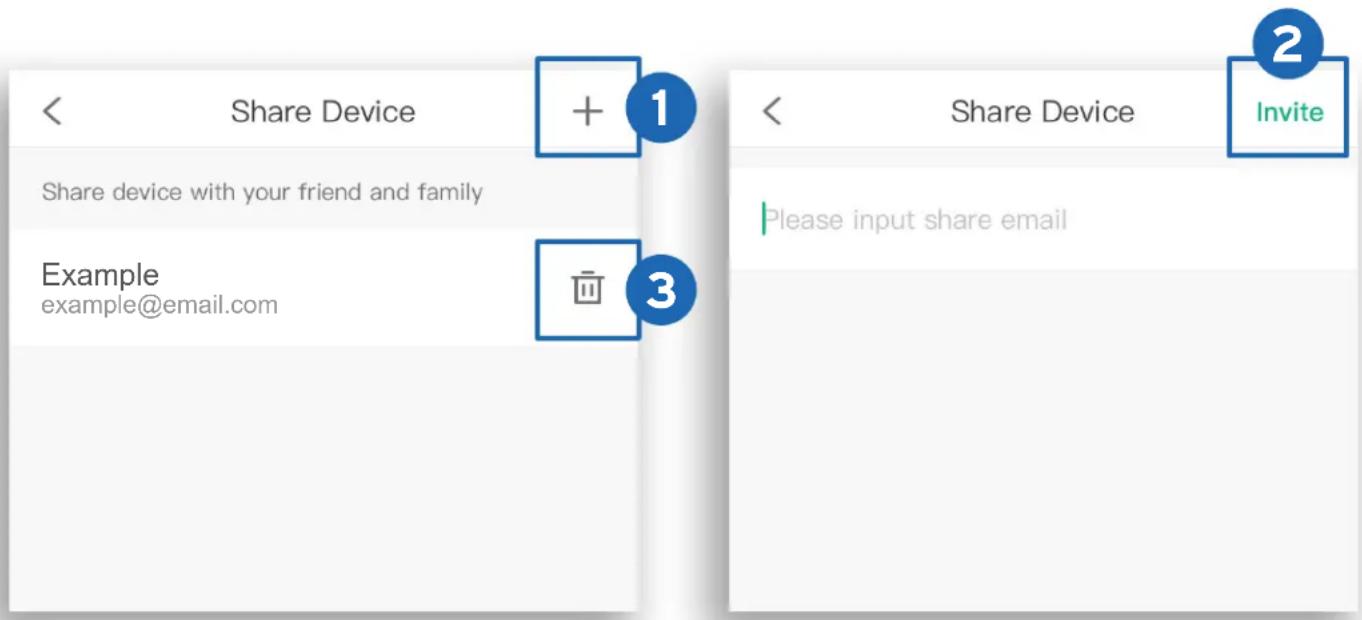

Share Your Smart Light Switch 42

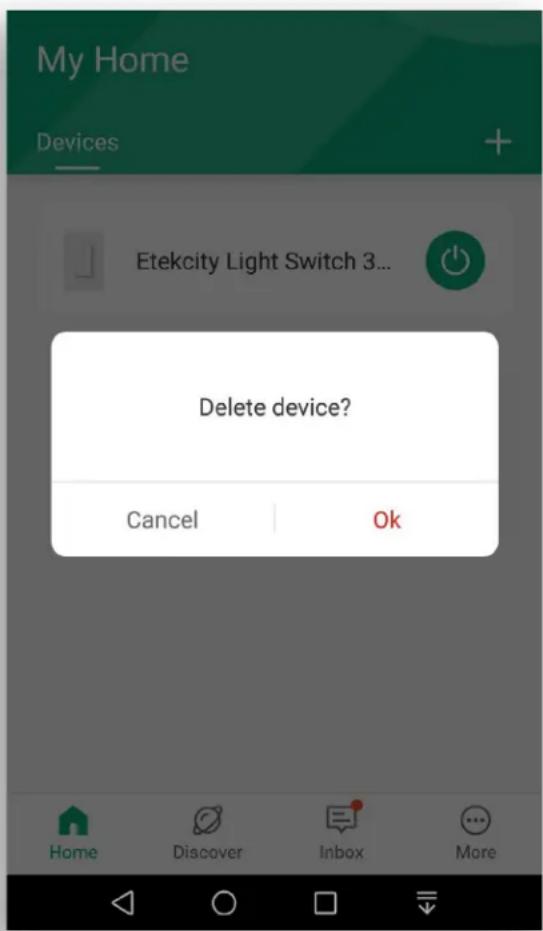

Delete a Smart Light Switch 43

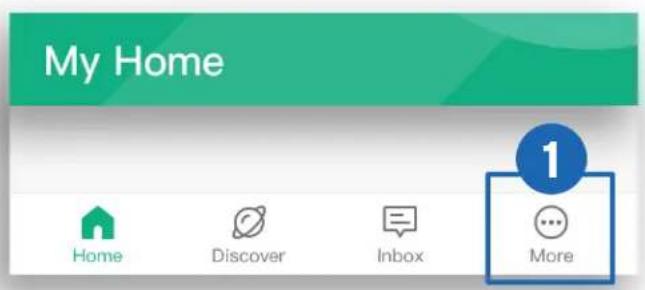

More Features 45

  • Connecting with Amazon Alexa 45
  • Connecting with Google Assistant 45

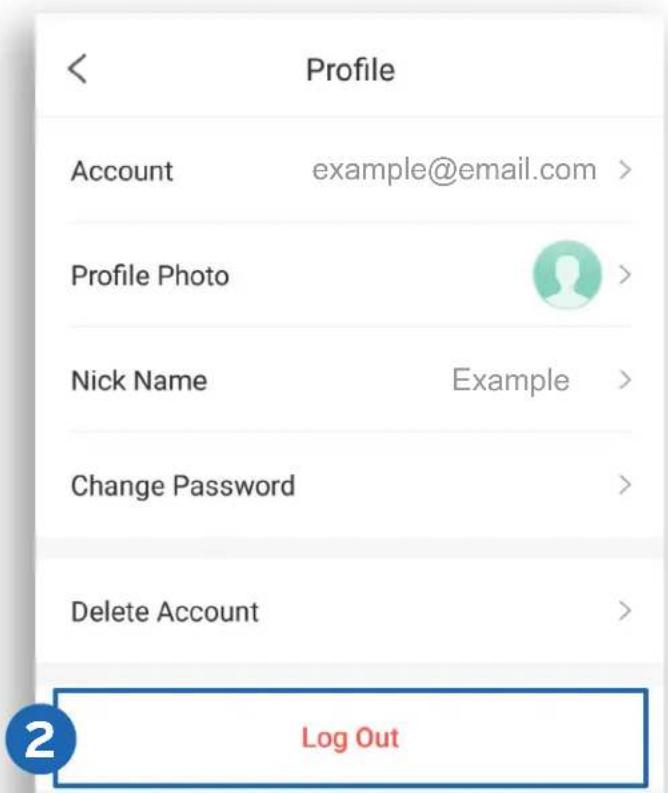

  • Log Out 46
  • Contact Customer Support 47

Maintaining Your Smart Light Switch 48

Troubleshooting 49

Warranty Information 54

Customer Support 56

Specifications

Dimensions4.92 x 3.14 x 1.67 in / 12.5 x 8 x 4.25 cm
Communication ModeIEEE802.11b/g/n (WiFi)
Communication Frequency2.4GHz
Wireless Distance(Switch to Router)98-164 ft / 30-50 m (max visible range)
Maximum Switch Current15A / 1800W
Power120V, 60Hz
Maximum Load1800W incandescent
Operating Environment14°-104°F / -10°-40°C
Storage and TransportationEnvironment-4°-158°F / -20-70°C
Compatible SystemsiOSTM 8.0 or higher / AndroidTM 4.3 or higher

Safety Information

To reduce the risk of injury and/or damage to these light switches, please read and follow all instructions and safety guidelines in this manual.

Installation

WARNING: RISK OF ELECTRIC SHOCK OR FIRE.

  • Before installing and wiring, TURN OFF POWER by locking the appropriate circuit breaker in the OFF position or removing the appropriate fuse. Use a non-contact voltage tester to ensure all electrical power is off. Installing and wiring with active electrical power may result in serious injury or death.
  • Only install the smart light switch if you are comfortable with electrical work. If not, contact a qualified electrician. Improper installation significantly increases risk of fire, electric shock, and other injuries.
  • The smart light switch must be installed and used in accordance with the National Electric Code (NEC) or your local electrical code.
  • Do not install the smart light switch with wet hands or when standing on wet or damp surfaces.

Note: Etekcity cannot guarantee the quality of installation, and cannot cover associated costs.

General Safety

  • Only use your smart light switch to control incandescent, LED, halogen, and compact fluorescent light bulbs. Using your smart light switch for other purposes may result in serious injury, property damage, or death.
  • Only use indoors, in a dry location with ambient temperature controls, avoiding extreme heat and freezing temperatures.
  • Do not modify the smart light switch hardware or software. This may cause injury or property damage, and will void the warranty.
  • Household use only.

SAVE THESE INSTRUCTIONS

Back to Table of Contents

Etekcity ESWL03 - SAVE THESE INSTRUCTIONS - 1

Product Requirements

  • In-wall installation with hardwired connections.
  • Neutral wire.

Note: The smart light switch is not suitable for a single-wire switch box.

- 3-way switches. The electrical box should be more than 2 inches deep.

Note: 3-way switching is when a light can be controlled from 2 locations. This is most commonly seen in hallways, staircases, and living rooms. In this configuration, you can turn the light on and off from either location.

  • A smartphone running iOS 8.0 or higher, or running Android 4.3 or higher.
    • A 2.4GHz WiFi connection (supports 802.11b/g/n standard).

Note: The smart light switch is compatible with incandescent, LED, halogen, and compact fluorescent light bulbs.

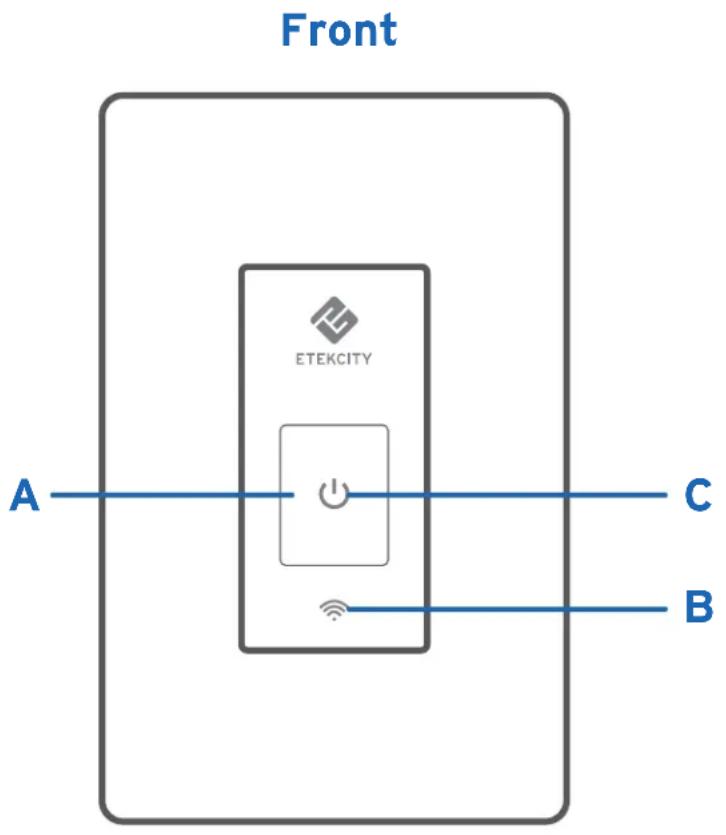

Product Diagram

A. Power Button
B. WiFi Indicator
C. On/Off Indicator

Etekcity ESWL03 - Product Diagram - 1

Power Indicator

  • After installation, the light switches and the On/Off Indicator will be off.
  • Press ⏻ to turn the light on and off.
  • The On/Off Indicator will light up when the light is off.

WiFi Indicator

WiFi Indicator Status
WiFi Indicator Status
WiFi Indicator is offSmart light switch is not configured.
WiFi Indicator is turned off in the VeSync app.
WiFi Indicator is solid whiteSmart light switch configuration was successful.
WiFi Indicator blinks 1 time per secondSmart light switch is in Configuration Mode (see page 19).
WiFi Indicator blinks 4 times per second (for 10 seconds)Smart light switch has been reset (see page 48).
WiFi Indicator blinks 2 times per 5 secondsSmart light switch has not connected with router.
WiFi Indicator blinks 1 time per 5 secondsSmart light switch has connected with router, but is not connected to the internet.

Installation

What You'll Need

• Non-contact voltage tester
- Wire nuts (twist-on wire connectors)
- Pliers
- Philips screwdriver
- Flathead screwdriver
- Insulated gloves

CAUTION:

  • Only install the smart light switch if you are familiar and comfortable with electrical work. If not, contact a qualified electrician. Improper installation significantly increases risk of fire, electric shock, injuries, or even death.
  • Wear insulated gloves while installing the smart light switch.

Note: The smart light switch is a multi-way switch meaning that it can be controlled by more than 1 light switch.

Checking Wires

  1. Use the voltage tester to test a powered electrical cable to make sure the voltage tester is working. If the voltage tester lights up, it's working.
  2. To avoid risk of electric shock, before installation, TURN OFF THE POWER by turning off the circuit breaker.

Note: You may need to shut off more than 1 circuit breaker or switch to make sure the power is off.

  1. Unscrew and remove the faceplate from the old light switch. Do not detach the wires yet.

  2. Use the voltage tester to test around the old light switch, and flip your light switch on and off a few times to make sure that the power is OFF. The voltage tester should not light up, and the light should not turn on.

  3. Unscrew and pull out the old light switch (without detaching the wires).

  4. Check to see if there are 5 wires connected to your old light switch. These wires are the ground, 2 travelers, a line (or "live"), and neutral wires. If you do not see 5 wires in the junction box, the smart light switch may not be compatible. You can check other light switches in your home to see if there are any compatible light switches, or contact an electrician to install the light switch.

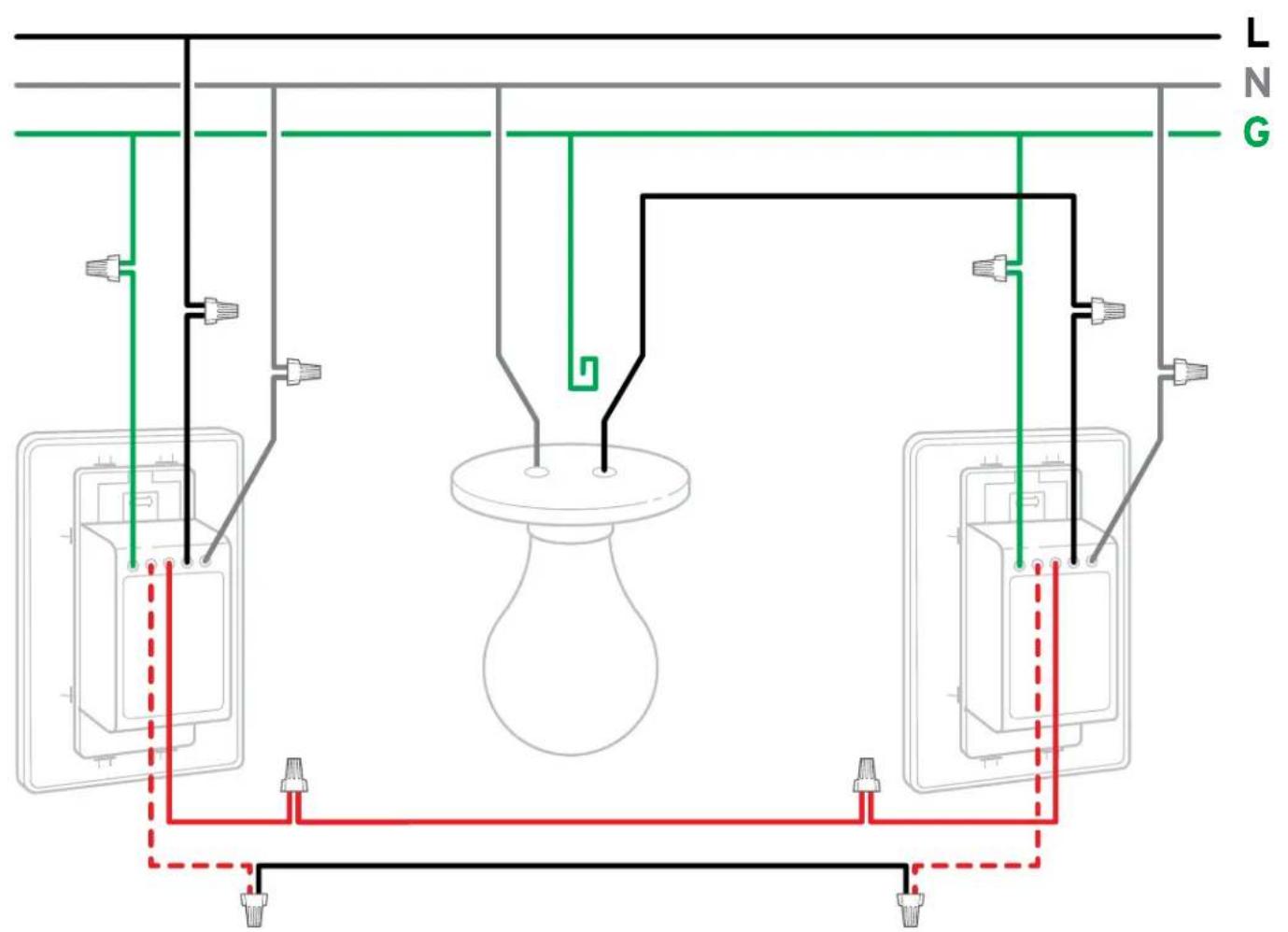

Connection Schematic
L G

3-Way Switch A
3-Way Switch B

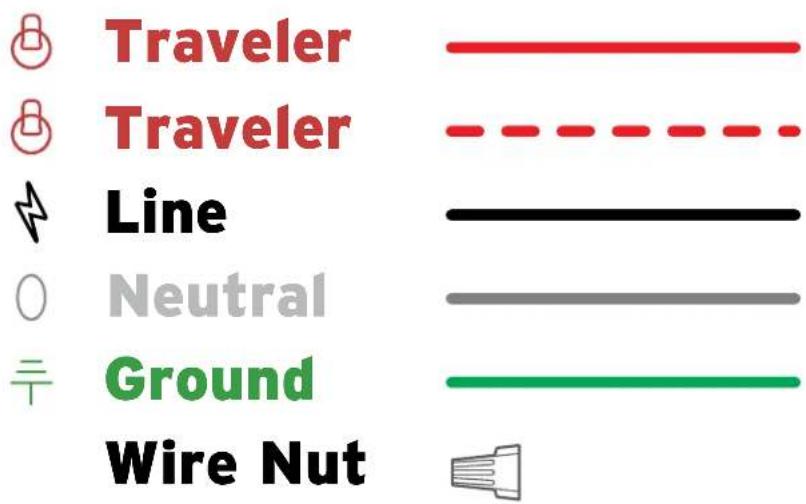

Traveler Traveler Line Neutral Ground Wire Nut

About the Wires

Etekcity ESWL03 - About the Wires - 1

Wire Nuts

• These cap-like objects, also known as twist-on wire connectors, connect wires together.

Etekcity ESWL03 - Wire Nuts - 1

Traveler

• These wires connect the 2 light switches together and allow power to pass between them. 1 of the 2 wires always carries current when the power is on. All 3-way switches have 2 traveler wires.

Etekcity ESWL03 - Traveler - 1

Line ("Live")

- Switch A: This wire carries power into the circuit from the main service panel. This is the source of power for your light and will always carry current, regardless of how the light switches are configured.

- Switch B: This wire carries power from the light switches to the light fixture. This wire will only carry current when the light is on. All light switches have a live wire.

CAUTION:

  • Never twine the traveler wire and the live wire together or connect them both to the power line.
  • Never connect the neutral wire with any other wire.

Etekcity ESWL03 - CAUTION: - 1

Neutral

  • Some old light switches do not have a neutral wire. However, a neutral wire is required to install this smart light switch. This is because the smart light switch needs to be powered on at all times to operate.
  • If you cannot find a neutral wire in your light switch junction box, contact a qualified electrician to rewire the light switch.

Etekcity ESWL03 - Neutral - 1

Ground

  • A ground wire is not required for the smart light switch to work, as not all light switches need ground wires.
  • However, if a ground wire is present, it must be connected to the smart light switch.

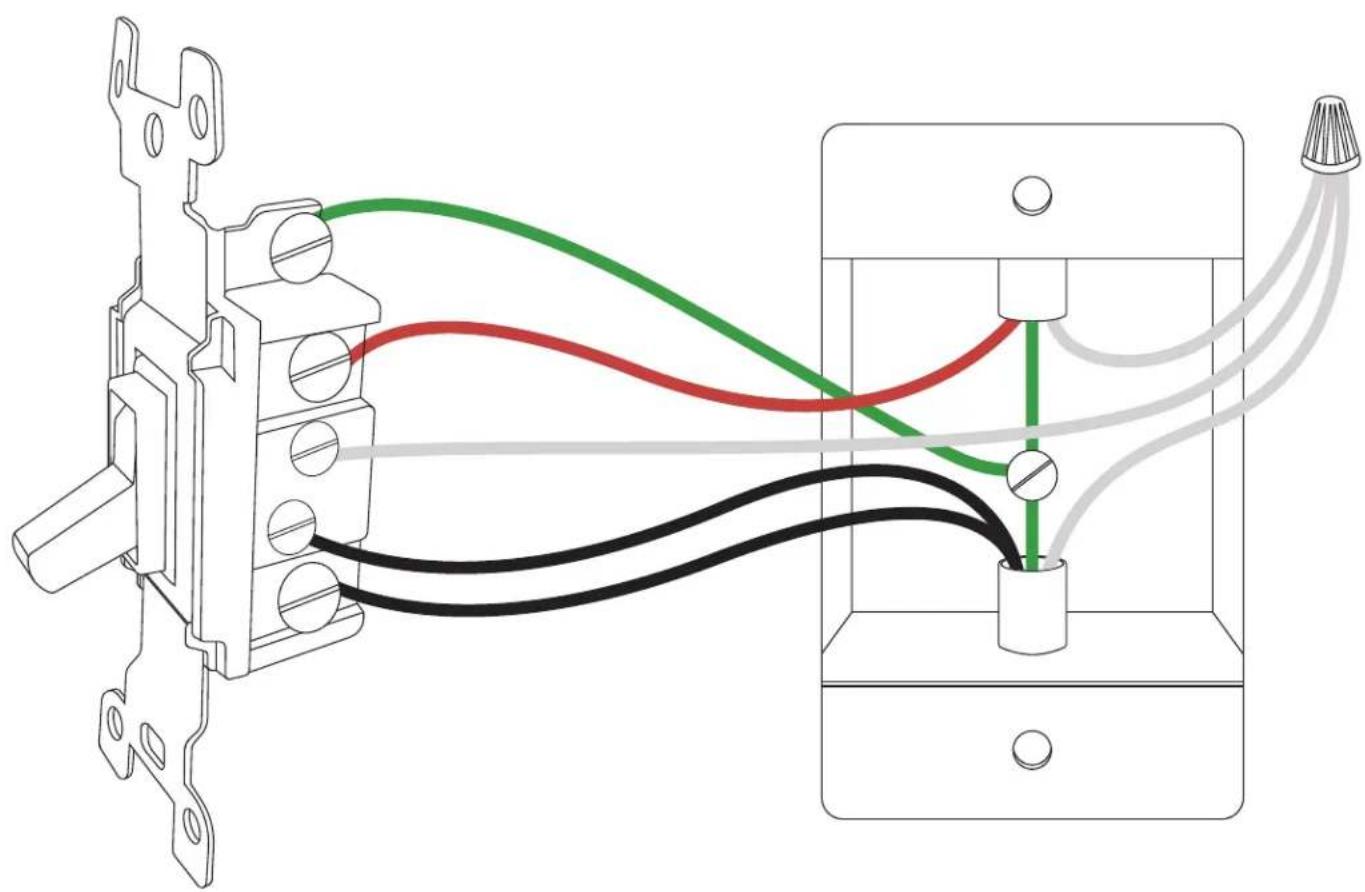

Removing the Old Light Switch

  1. After taking off the faceplate and checking the wires, use the voltage tester again to test for any current around the wires.
  2. Straighten out the 5 wires.
  3. Unscrew a wire from the old light switch. Use pliers to straighten the wire. Then, screw a wire nut on that wire.
  4. Follow the same steps for the other 4 wires.

Etekcity ESWL03 - Removing the Old Light Switch - 1

natural_image Pure electrical circuit lines without any symbols

Installing the Smart Light Switch

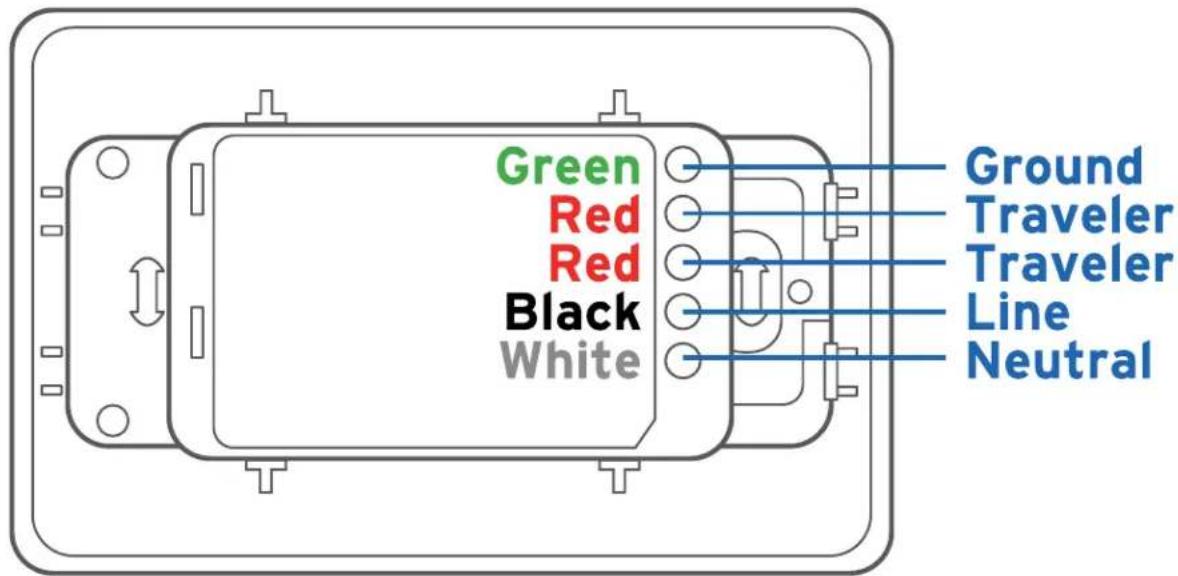

  1. Make sure you understand the 5 wires on your smart light switch and the wires inside the junction box. Check the labels on the light switch next to each wire.

Green Red Red Black White Ground Traveler Traveler Line Neutral

  1. Connect the white wire from switch A to the neutral wire, which is usually white, and screw a wire nut tightly on the end.

Note: If you cannot tell the difference between the black live wire and black traveler wire, contact a licensed electrician.

Do not continue installation.

  1. For extra safety, wrap electrical tape around the wires to make sure the copper conductor is fully concealed.

  2. Connect the green wire from switch A to the ground wire, which is usually green, and screw a wire nut tightly on the end.

  3. Connect the black wire from switch A to cable "L" and screw a wire nut tightly on the end.
  4. Connect the red traveler wires from switch A to the connection wires in the junction box. These connection wires will be connected to a brass or bronze screw terminal.
  5. Connect the white line of the switch to the "N" line of the circuit, which is also usually white.
  6. Push the wires and the wire nuts back into the wall (into the junction box).
  7. Line up the smart light switch faceplate and screw on the mounting screws.
  8. Snap the smart light switch faceplate on tightly.
  9. Repeat steps 1-10 with switch B.
  10. Turn the power back on at the circuit breaker, and test the light switches by turning them on.

VeSync App Setup

Note: Due to continuing updates and improvements, the VeSync app may appear slightly different. In case of any differences, follow the in-app instructions.

  1. To download the VeSync app, scan the QR code or search "VeSync" in the Apple App Store® or Google Play™ Store.

Note: For Android users, you must select Allow to use VeSync.

  1. Open the VeSync app. If you already have an account, tap Log In. To create a new account, tap Sign Up.

QR code image containing encoded data, no visible human-readable text

Download on the App Store
GET IT ON Google Play

Note: You must create your own VeSync account to use third-party services and products, such as the Amazon® Echo™ or Google Home™. These will not work with the guest account. With a VeSync account, you can also allow your family or friends to control your smart light switch.

Configuration

Set up your outlet with the VeSync app.

  1. Connect your smartphone to a secure 2.4GHz WiFi network.

Note: The smart light switch can only be set up on a secure 2.4GHz network.

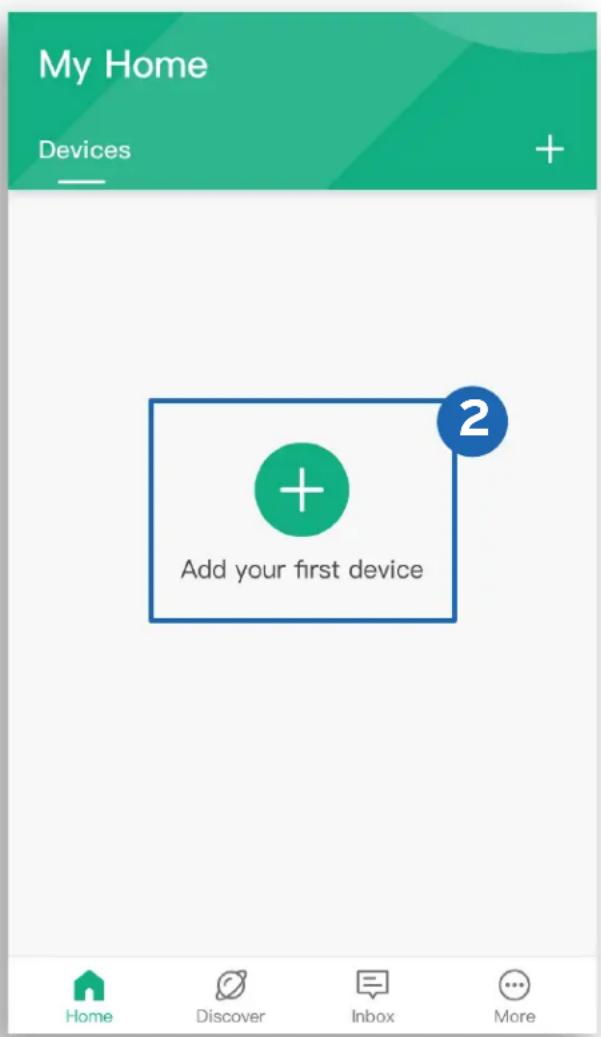

  1. Tap to add your light switch.

My Home Devices + 2 + Add your first device Home Discover Inbox More

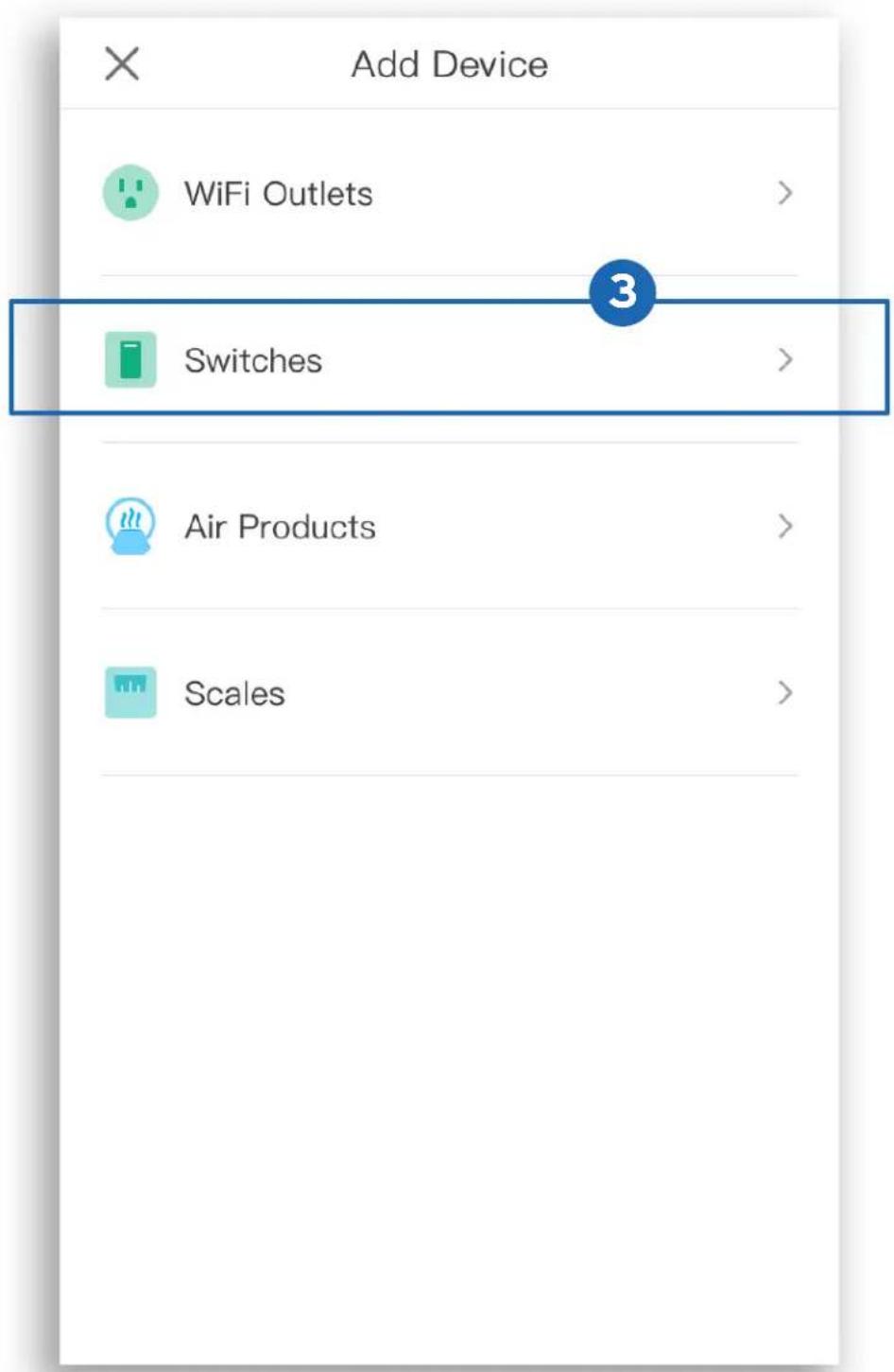

3. Tap Switches.

Add Device WiFi Outlets 3 Switches Air Products Scales

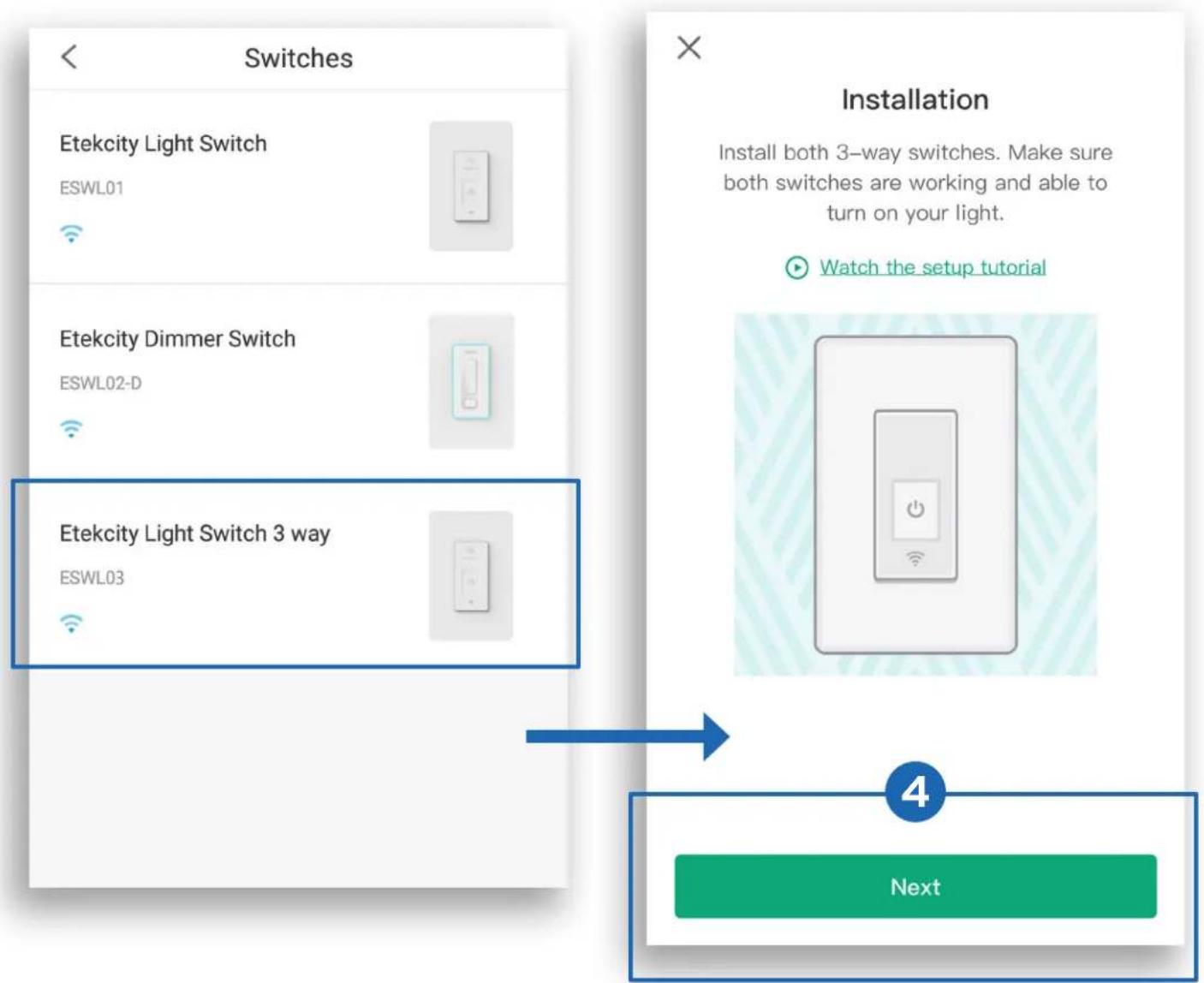

4. Tap Etekcity Light Switch 3 way and tap Next.

Switches Etekcity Light Switch ESWL01 Etekcity Dimmer Switch ESWL02-D Etekcity Light Switch 3 way ESWL03 Installation Install both 3-way switches. Make sure both switches are working and able to turn on your light. Watch the setup tutorial Next

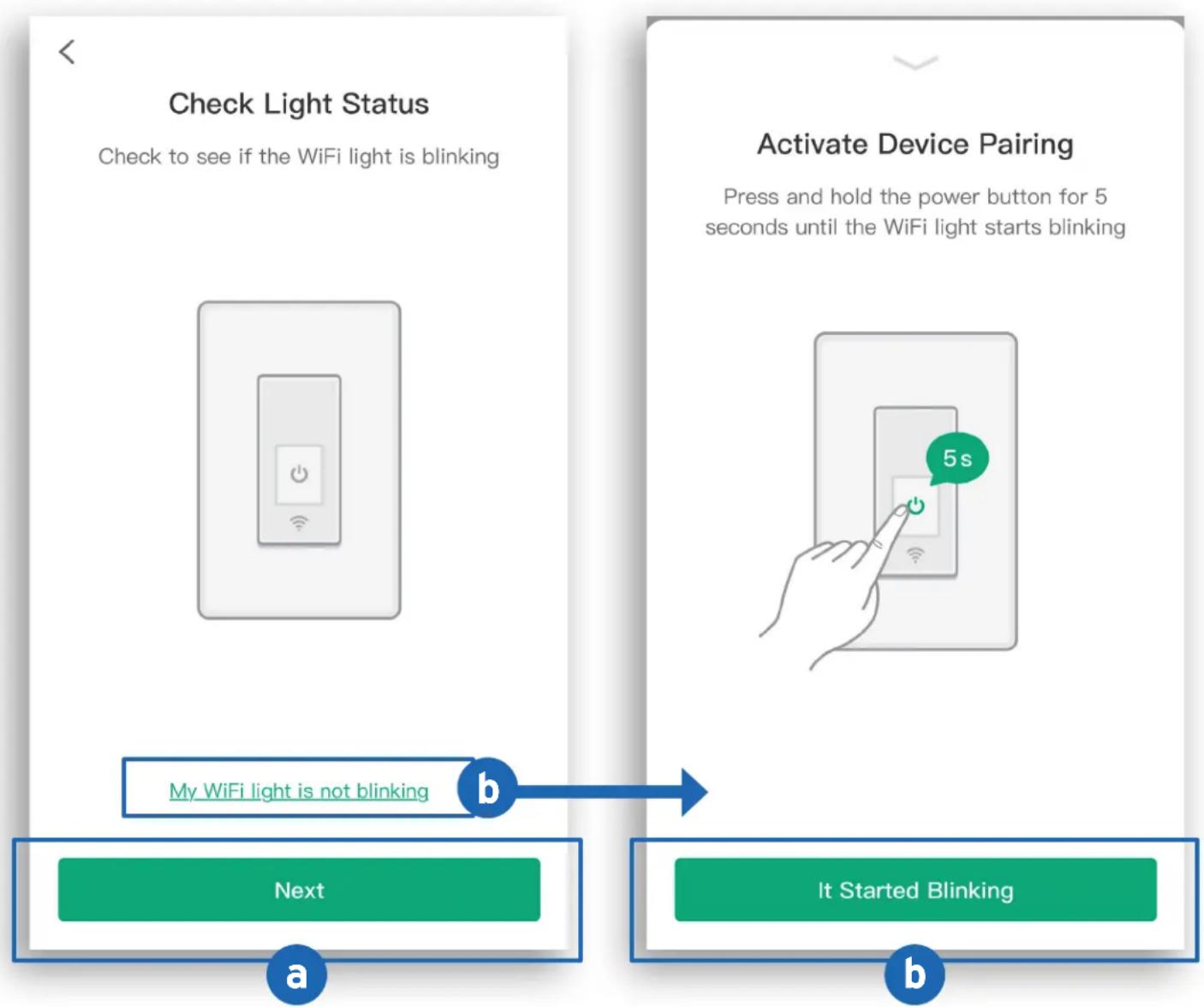

  1. Turn on your smart light switch. The WiFi indicator should blink white (1 blink per second).

a. If the WiFi indicator is blinking, tap Next.
b. If the WiFi indicator is not blinking, tap My WiFi light is not blinking. Press and hold the power button for 5 seconds until the WiFi indicator blinks. Then, tap It Started Blinking.

Note: Configuration Mode will turn off after 10 minutes.

Etekcity ESWL03 - Tap Etekcity Light Switch 3 way and tap Next. - 2
  1. Enter the information for your home WiFi network, then tap Join Network.

Note: Configuration requires a secure 2.4GHz WiFi network.

Etekcity ESWL03 - Tap Etekcity Light Switch 3 way and tap Next. - 3

Join WiFi Network

Devices will only work with 2.4GHz WiFi networks. Learn how to switch networks

WiFi Name

Example123

Password

Etekcity ESWL03 - Join WiFi Network - 1

Etekcity ESWL03 - Join WiFi Network - 2

○ Remember my password

○ My network doesn't have a password

√ I have agreed to the Terms of Use and Privacy Policy

Advanced Configuration >

Join Network

6

  1. Tap Connect and select the network that starts with "Etekcity".

Etekcity ESWL03 - Join WiFi Network - 3

Connect Your Devices

1 Go to your Wi-Fi settings (under Settings > Connections/Wireless & Networks > WiFi).

Etekcity ESWL03 - Connect Your Devices - 1

WLAN

Etekcity ESWL03 - Connect Your Devices - 2

2 Connect to "Etekcity_LightSwitch3Way_xxx".

Etekcity ESWL03 - Connect Your Devices - 3

WLAN Etekcity_LightSwitch3Way_xxx

3 Return to VeSync.

Etekcity ESWL03 - Connect Your Devices - 4

I don't see VeSync's WiFi network

Connect

7

  1. Wait for the app to connect.
  2. Give your light switch a unique name, or use the default name and tap OK.

Note: You can change the light switch name and icon at any time. Tap 📋 then tap Device Settings.

Connecting

Etekcity ESWL03 - Connect Your Devices - 5

natural_image Illustration of a wireless router with Wi-Fi signal icon (no text or symbols)

80%

Activating your device. You're almost there!

Etekcity ESWL03 - Connect Your Devices - 6

natural_image White electrical outlet light switch with a green circular icon at the bottom right (no text or symbols on the switch itself)

Connection Successful!

Give your device a name you'll remember, like "My Light Switch".

My Light Switch

Etekcity ESWL03 - Connect Your Devices - 7
OK

Functions

Turning the Light Switch On/Off

To turn the light switch on/off:

A. Press the power button on the switch.
B. Tap 📷 on the My Home screen or the smart light switch screen in the VeSync app.

Note: The light switch will remain connected to the internet even when it is turned off.

Etekcity ESWL03 - Turning the Light Switch On/Off - 1

Device is off

Etekcity ESWL03 - Turning the Light Switch On/Off - 2

Device is on

Schedules

You can use a schedule to turn your smart light switch on and off.

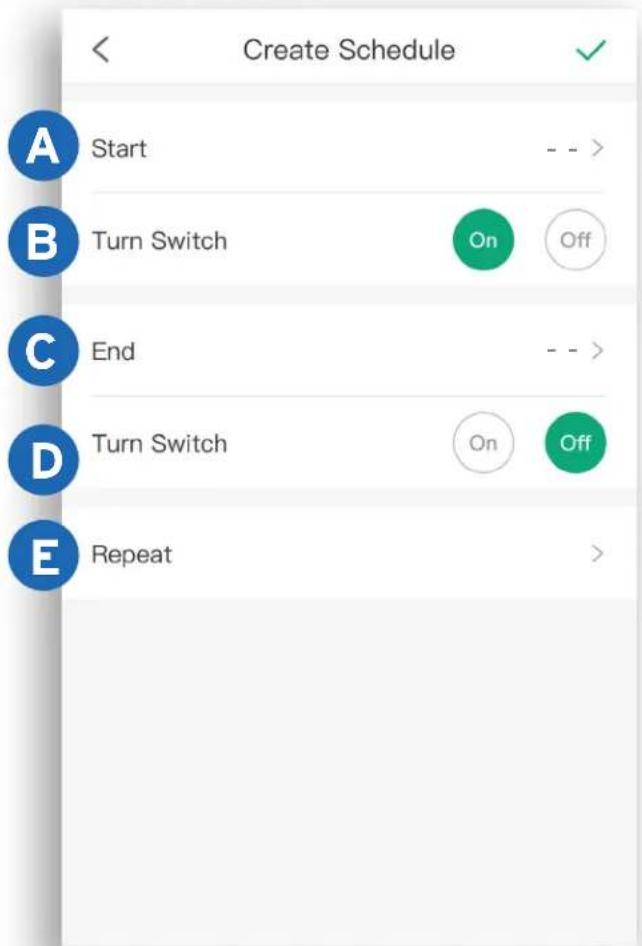

1. Tap Create Schedule.

Etekcity Light Switch 3 way Connected On Schedule Timer Away Manage your devices to run on a schedule + Create Schedule 1

Create Schedule Start B Turn Switch On Off End D Turn Switch On Off Repeat

2. Set a start and end time.

A. To set a start time:

i. Tap > next to "Start".

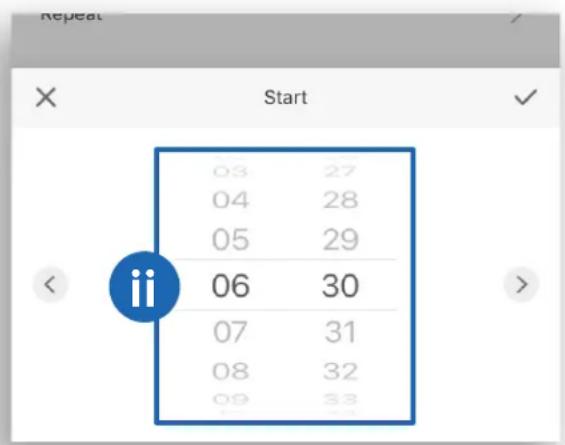

ii. Scroll up and down to select time. Alternatively, tap < for "Sunrise" and > for "Sunset" and tap √ to confirm.

Note: You must allow the VeSync app to access your location to determine when sunrise and sunset are for your area.

Create Schedule Start -- > Turn Switch On Off End -- > Repeat >

Start 03 27 04 28 05 29 06 30 07 31 08 32 09 33

Repeat Start Sunrise

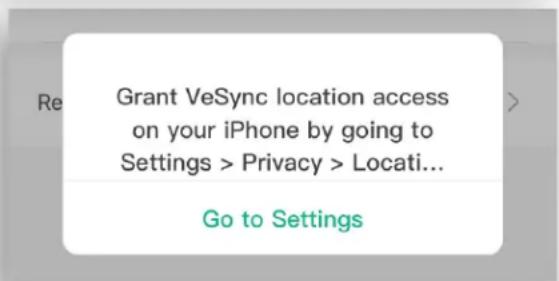

Grant VeSync location access on your iPhone by going to Settings > Privacy > Locati... Go to Settings

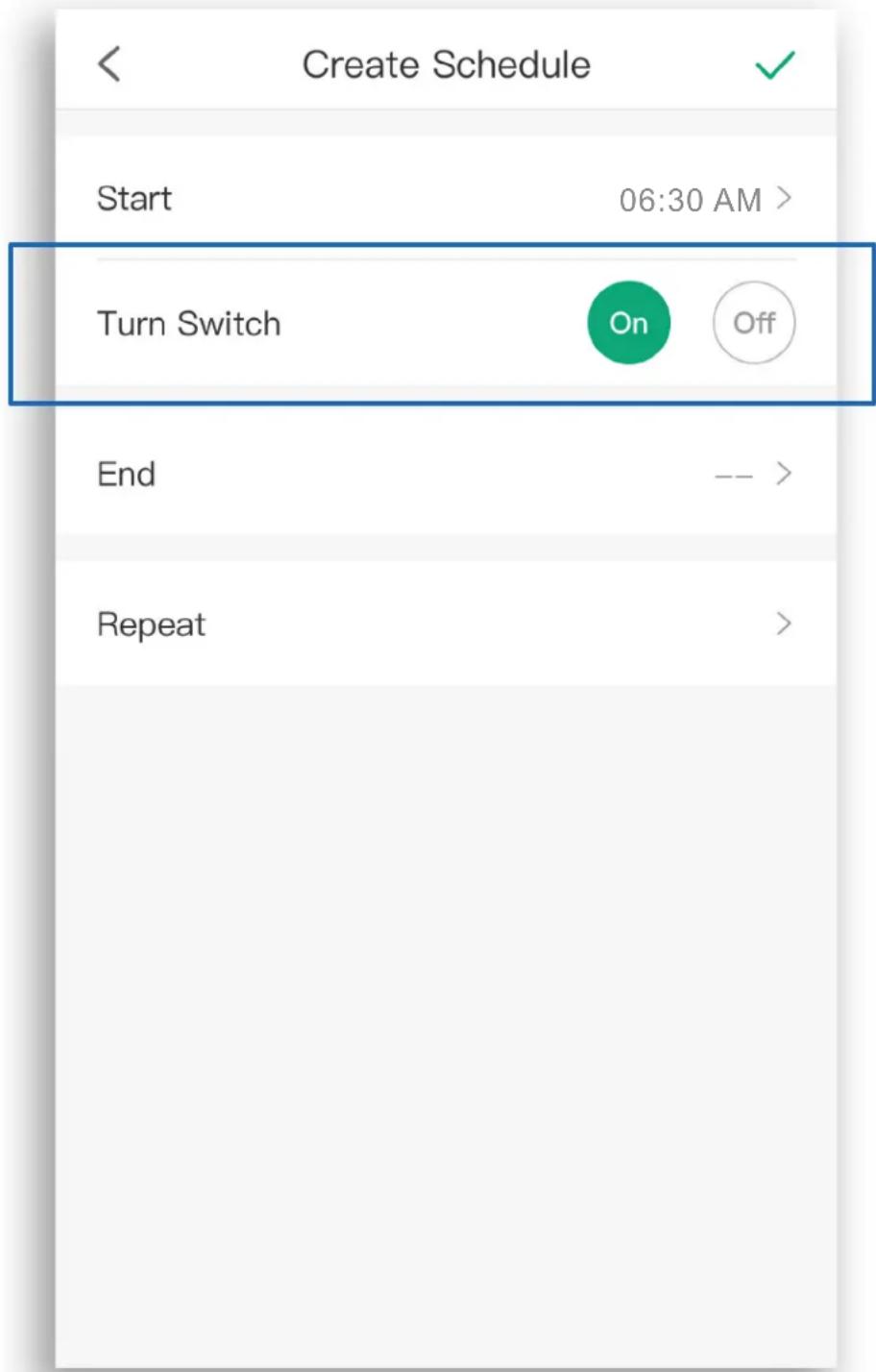

B. Choose On or Off under the start time.

Create Schedule Start 06:30 AM > Turn Switch On Off End -- Repeat >

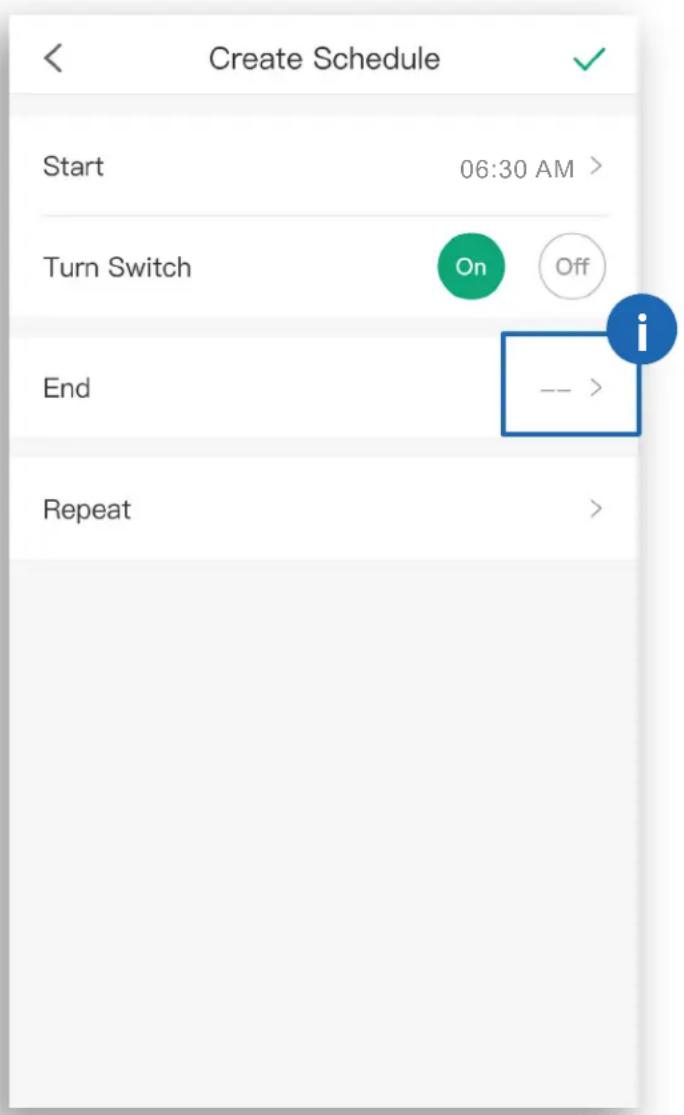

C. To set an end time (optional):

i. Tap > next to "End".

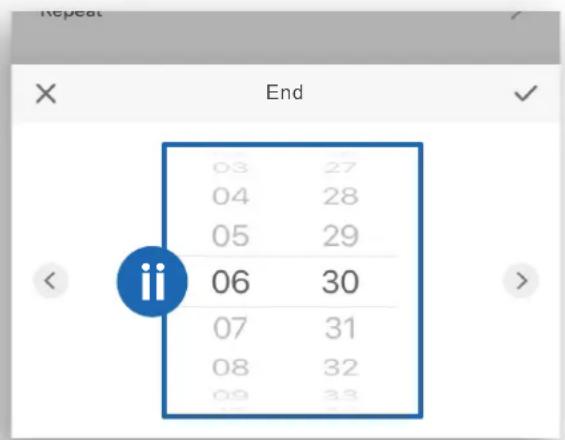

ii. Scroll up and down to select time. Alternatively, tap < for "Sunrise" and > for "Sunset" and tap √ to confirm.

Note: You must allow the VeSync app to access your location to determine when sunrise and sunset are for your area.

Create Schedule Start 06:30 AM > Turn Switch On Off End --- > Repeat >

Etekcity ESWL03 - Choose On or Off under the start time. - 3

other | Month | Value | |---|---| | 03 | 27 | | 04 | 28 | | 05 | 29 | | 06 | 30 | | 07 | 31 | | 08 | 32 | | 09 | 33 |

Repeat End Sunset

Grant VeSync location access on your iPhone by going to Settings > Privacy > Locati... Go to Settings

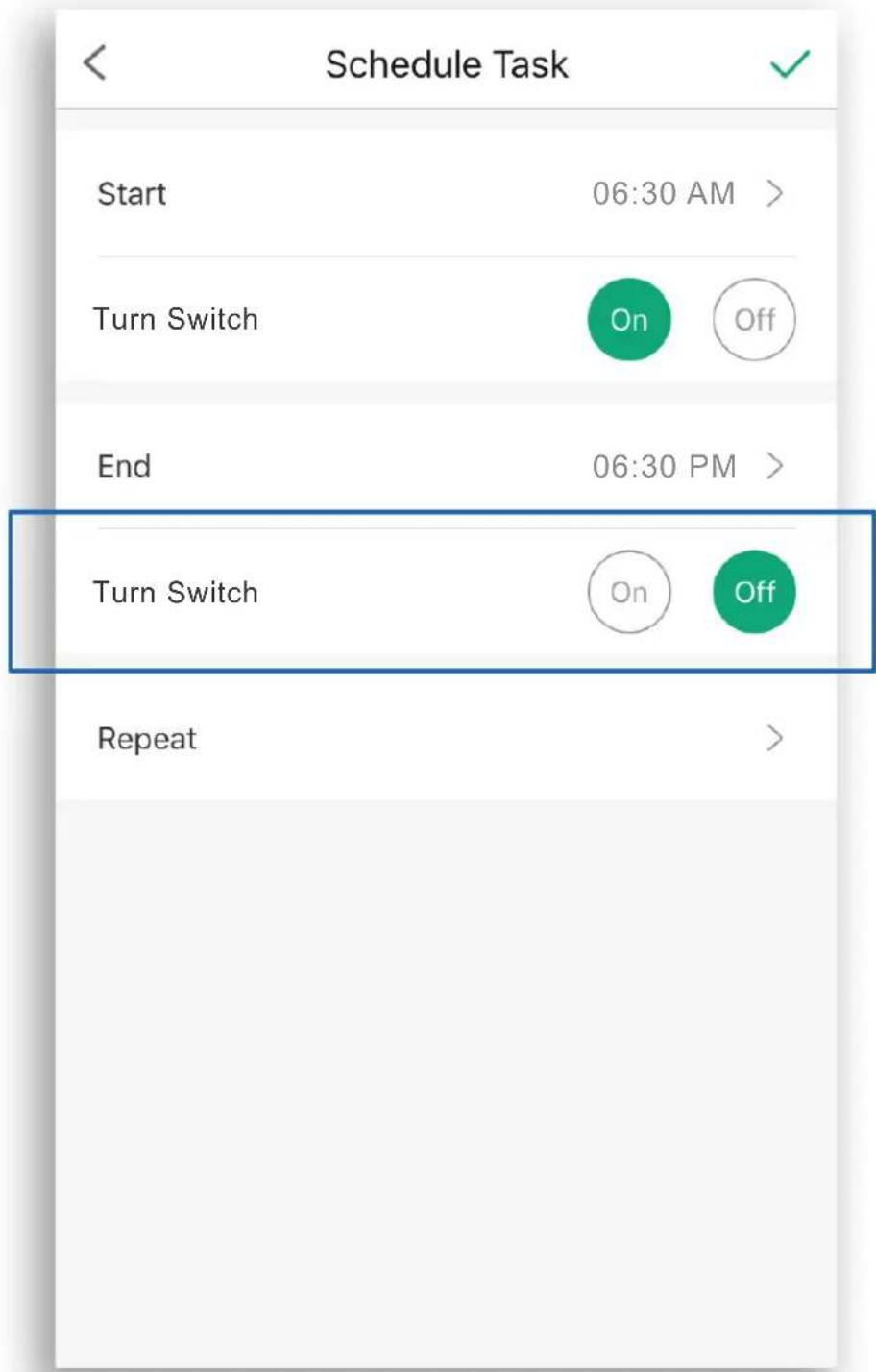

D. Choose On or Off under the end time.

Schedule Task Start 06:30 AM > Turn Switch On Off End 06:30 PM > Turn Switch On Off Repeat >

E. Repeat (Optional) - Select days you want this schedule to repeat.

i. Tap > next to "Repeat".
ii. Select days you want Away Mode to repeat.
iii. Tap √ to confirm.

Schedule Task Start 06:30 AM > Turn Switch On Off End 06:30 PM > Turn Switch On Off Repeat >

Repeat Never Every Day Every Weekday(Monday to Friday) Sunday Monday ✓ Tuesday ✓ Wednesday ✓ Thursday ✓ Friday Saturday

  1. Turn the schedule on or off on the smart light switch display page by tapping the toggle next to the scheduled time.

Note: To delete the schedule, tap on the schedule entry, then tap Delete.

Etekcity Light Switch 3 Way Connected On Schedule Timer Away Mon Tue Wed Thu 6:30 AM 6:30 PM On Off + Create Schedule

Set Timer

You can set a timer to turn your smart light switch on and off.

  1. Tap Timer. Then, Create Timer.

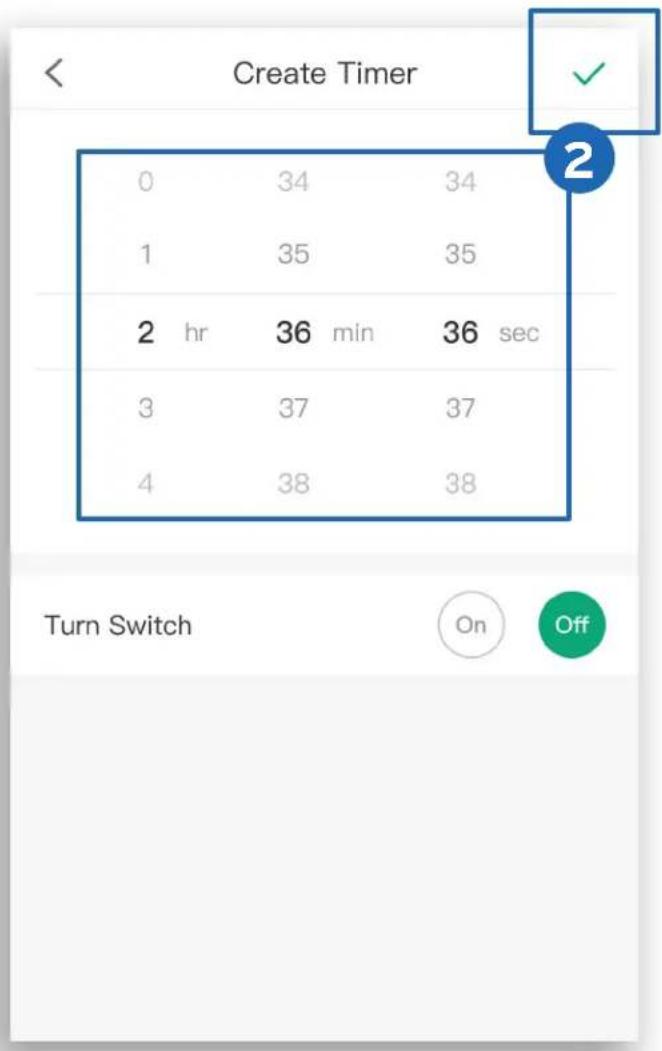

  2. Scroll up and down to set time and select On or Off. Tap √ to confirm and start timer.

Etekcity Light Switch 3 way Connected On Schedule Timer Set a timer to turn on/off your appliance automatically + Create Timer

Create Timer 0 34 34 1 35 35 2 hr 36 min 36 sec 3 37 37 4 38 38 Turn Switch On Off

  1. Tap to stop the timer. Tap to restart the timer.

Note: To remove the timer entry, tap on the timer entry, then tap Delete.

Etekcity Light Switch 3 Way Connected On Schedule Timer Away 14 H 24 M 24 S On 10 H 22 M 24 S On 8 H 12 M 16 S On

Away Mode

Turn your lights on and off periodically to give the appearance that someone is home while you're away.

1. Tap Away, then Set Away Mode.

Etekcity Light Switch 3 way Connected On Schedule Timer Away Give the appearance that you still home + Set Away Mode

Set Away Mode Away mode turns devices on and off to give the appearance that someone is home. Start 8:00 AM > End 8:00 PM > Repeat Mon Tue Wed Thu >

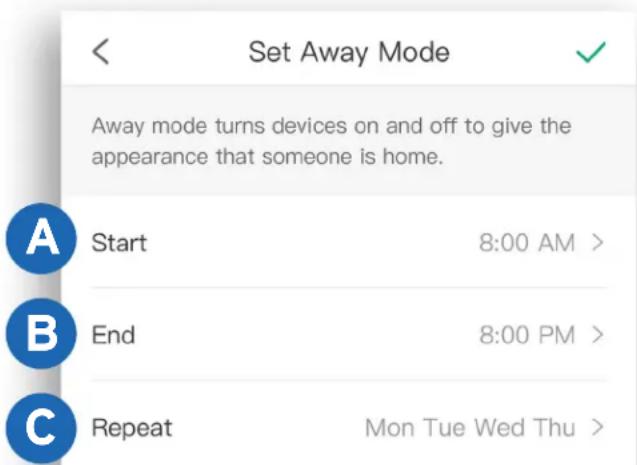

2. Select a start and end time.

A. Start

Set time to start Away Mode.

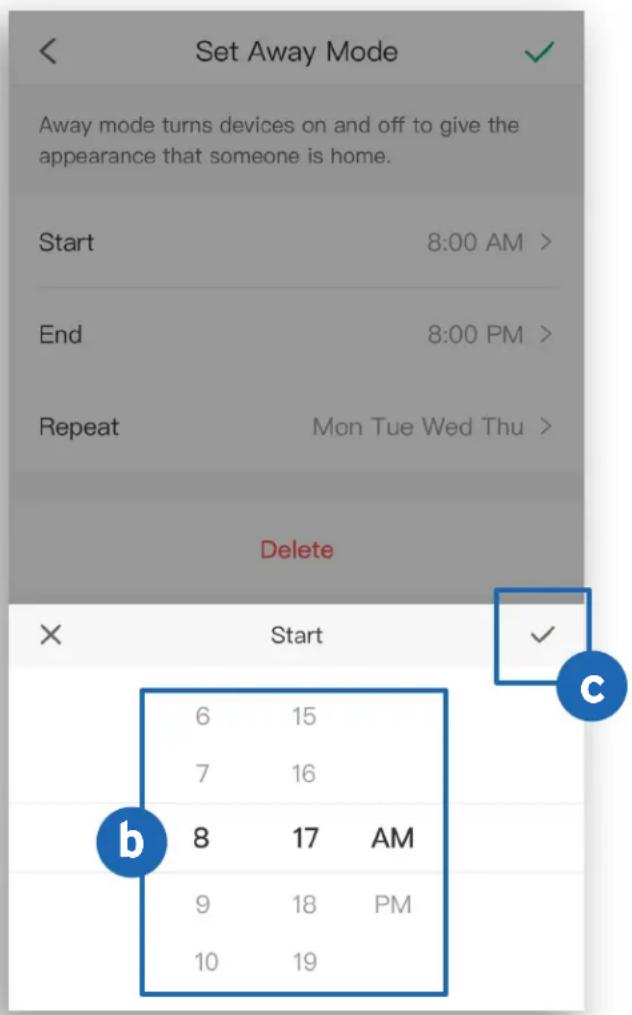

a. Tap > next to "Start".
b. Scroll up and down to select time.
c. Tap √ to confirm.

Set Away Mode Away mode turns devices on and off to give the appearance that someone is home. Start 8:00 AM > End 8:00 PM > Repeat Mon Tue Wed Thu >

Set Away Mode Away mode turns devices on and off to give the appearance that someone is home. Start 8:00 AM > End 8:00 PM > Repeat Mon Tue Wed Thu > Delete × Start 6 15 7 16 8 17 AM 9 18 PM 10 19 b ✓ c

B. End

Set time to end Away Mode.

a. Tap > next to "End".
b. Scroll up and down to select time.
c. Tap √ to confirm.

Set Away Mode Away mode turns devices on and off to give the appearance that someone is home. Start 8:00 AM > End 8:00 PM > Repeat Mon Tue Wed Thu > Delete

Set Away Mode Away mode turns devices on and off to give the appearance that someone is home. Start 8:00 AM > End 8:00 PM > Repeat Mon Tue Wed Thu > Delete End 6 15 7 16 8 17 PM 9 18 AM 10 19 b

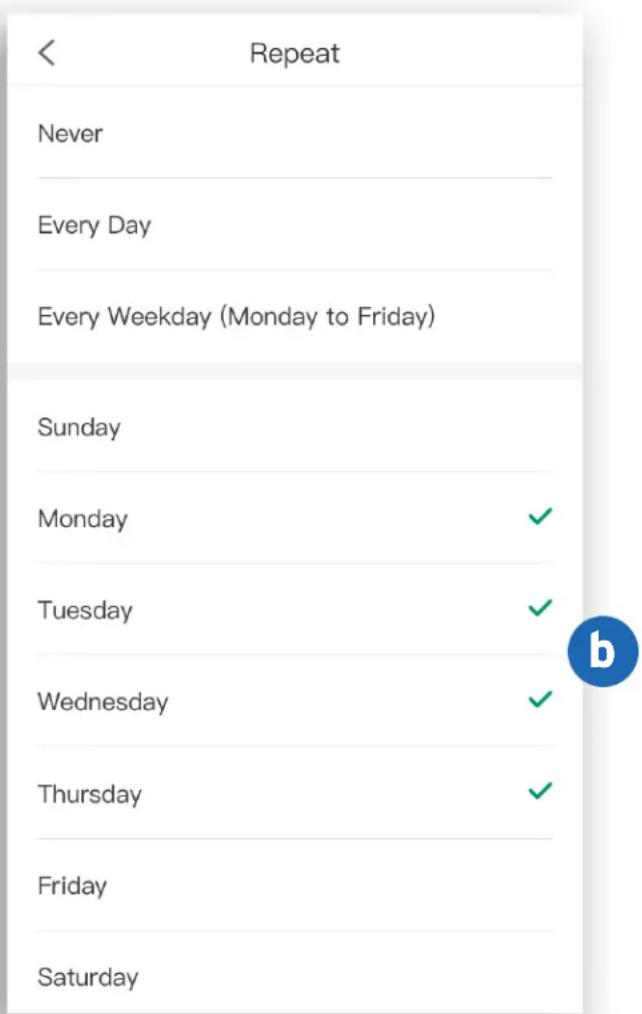

C. Repeat

Select days you want to repeat Away Mode.

a. Tap > next to "Repeat".
b. Select days you want Away Mode to repeat.
c. Tap √ to confirm.

Set Away Mode Away mode turns devices on and off to give the appearance that someone is home. Start 8:00 AM > End 8:00 PM > Repeat Mon Tue Wed Thu > Delete

< Repeat Never Every Day Every Weekday (Monday to Friday) Sunday Monday ✓ Tuesday ✓ Wednesday ✓ Thursday ✓ Friday Saturday

  1. You can turn Away Mode on/off at any time by tapping the toggle to the right of the timer.

Note: To delete Away Mode, tap on the Away Mode entry, then tap Delete.

Etekcity Light Switch 3 Way Connected On Schedule Timer Away Mon Tue Wed Thu 8:00 AM - 8:00 PM ±30 min ±30 min No more

Smart Light Switch Settings

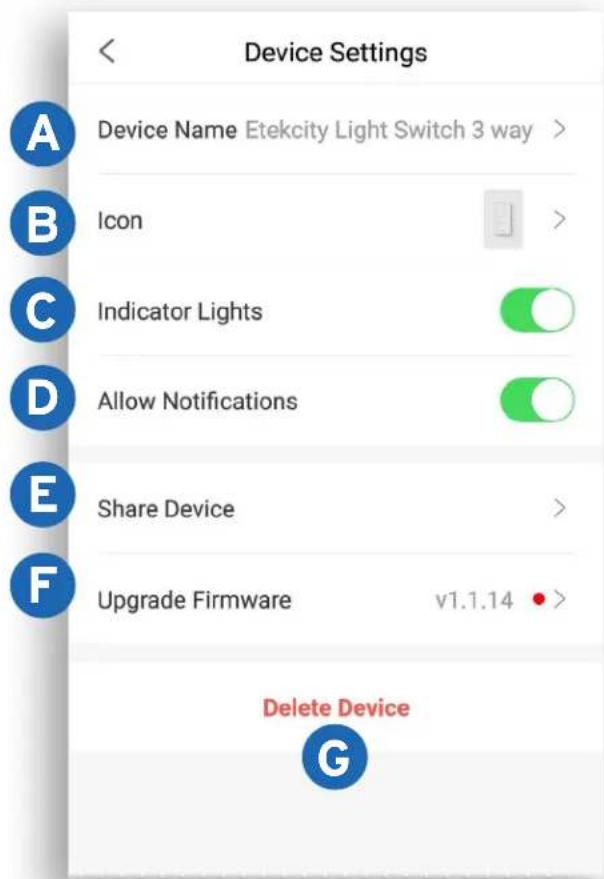

Tap 📋 to see Device Settings. The Device Settings menu allows you to:

Device Settings Device Name Etekcity Light Switch 3 way > Icon Indicator Lights Allow Notifications Share Device Upgrade Firmware v1.1.14 # Delete Device G

A. Edit your smart light switch name by tapping on the current name next to "Device Name".
B. Edit your smart light switch picture by tapping on the current image next to "Icon".
C. Turn indicator lights on/off by tapping the toggle next to "Indicator Lights".
D. Turn smart light switch notifications on/off by tapping the toggle next to "Allow Notifications".
E. Share your smart light switch (see page 42).
F. Tap to update firmware.
G. Delete your smart light switch (see page 43).

Share Your Smart Light Switch

Use Share Device to allow someone else to control your smart light switch (such as family, friends, roommates, or anyone you choose).

Note: People who you share your smart light switch with cannot edit or delete any of your settings.

  1. Tap + on the Share Device screen.
  2. Type in the email of the person you want to share your light switch with. Tap Invite.
  3. Tap 📋 to remove people you have shared your light switch with. They will no longer be able to control your smart light switch.

Share Device + 1 Share device with your friend and family Example example@email.com 3 Please input share email 2 Invite

Delete a Smart Light Switch

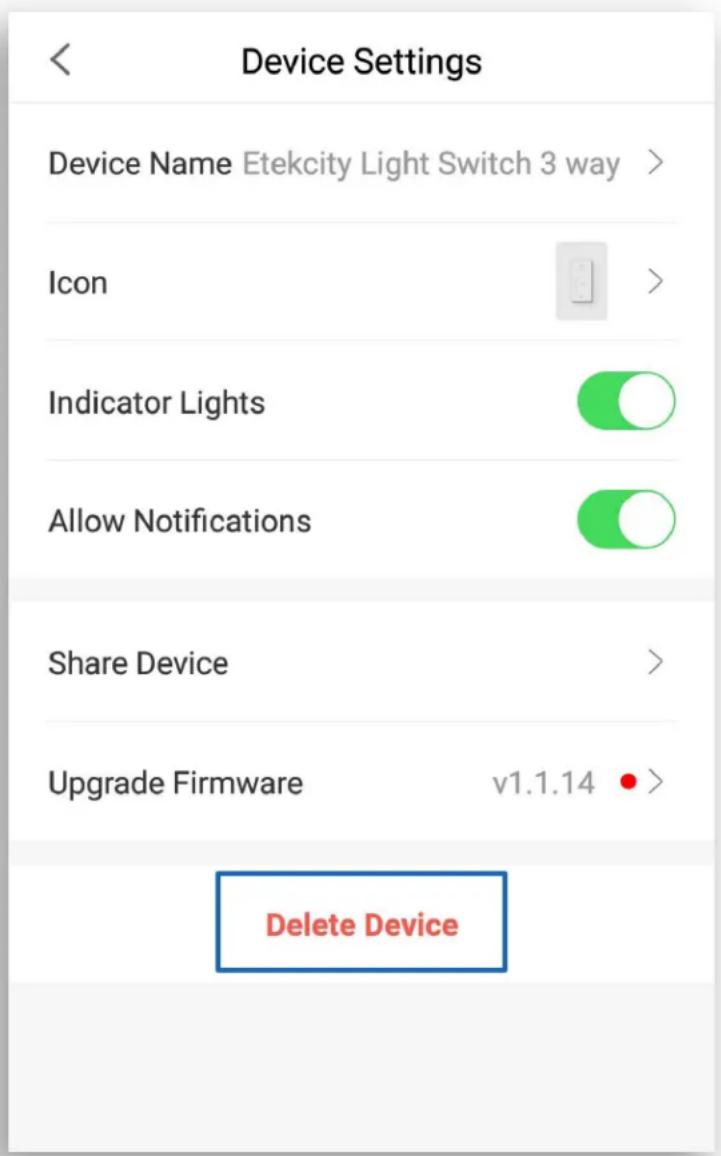

You can delete your smart light switch from the VeSync app in Device Settings.

To delete your light switch, tap Delete Device.

Device Settings Device Name Etekcity Light Switch 3 way > Icon Indicator Lights Allow Notifications Share Device Upgrade Firmware v1.1.14 •> Delete Device

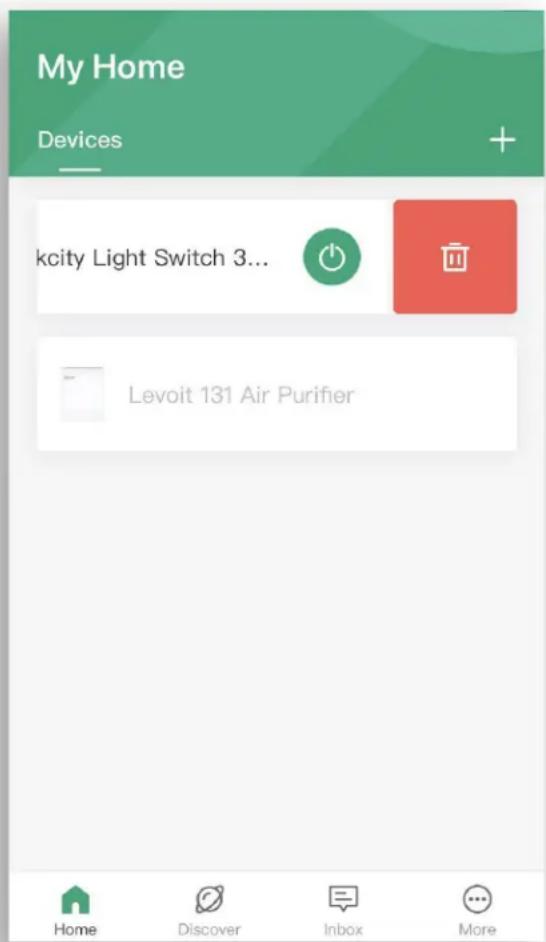

You can also delete your smart light switch from the My Home screen in the VeSync app.

A. iOS™: Swipe left on the smart light switch's name to delete.
B. Android™: Press and hold for 2 seconds on the smart light switch's name to delete.

A
My Home Devices + kcity Light Switch 3... Levoit 131 Air Purifier Home Discover Inbox More

B
My Home Devices + Etekcity Light Switch 3... Delete device? Cancel Ok Home Discover Inbox More

More Features

Connecting with Amazon® Alexa™

To view instructions in the VeSync app, tap More, then tap Link to Alexa.

Note: You must create your own VeSync account to connect with Alexa.

Connecting with Google Assistant™

To view instructions in the VeSync app, tap More, then tap Link to Google Assistant.

Note: You must create your own VeSync account to connect with Google Assistant.

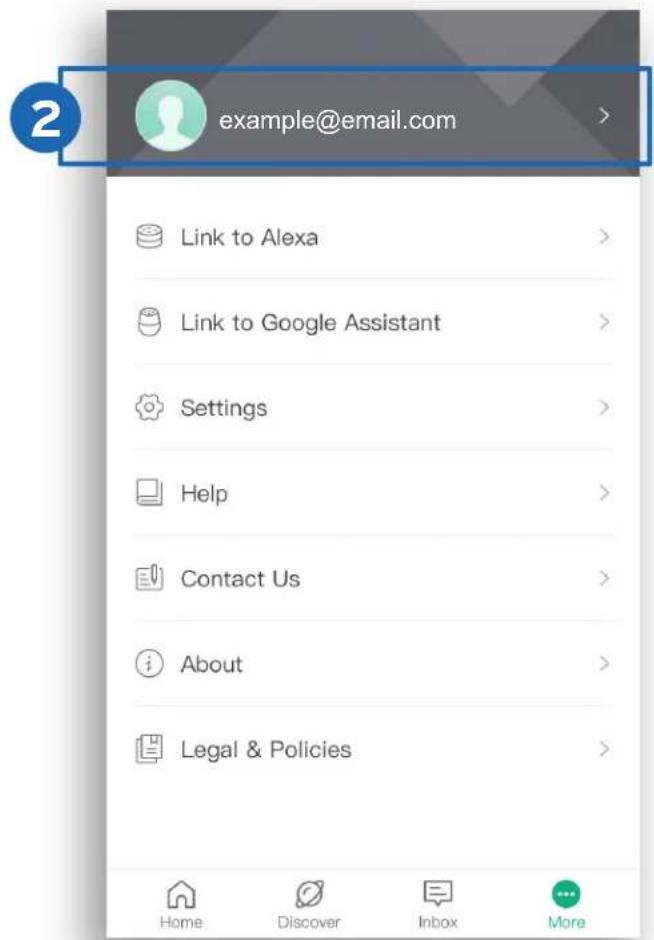

Log Out

  1. Tap More at the bottom of the screen.
  2. Tap your profile, then tap Log Out.

Note: You do not need to log out if you are not using a VeSync account.

My Home Home Discover Inbox More

example@email.com Link to Alexa Link to Google Assistant Settings Help Contact Us About Legal & Policies Home Discover Inbox More

Profile Account example@email.com > Profile Photo Nick Name Example > Change Password > Delete Account > Log Out

Contact Customer Support

You can contact our friendly Customer Support Team through the VeSync app, in addition to the help line.

- To chat directly with our US office Customer Support Team, tap Inbox at the bottom of the screen. Then, tap Online support to send a chat message.

Note: Chat hours are Mon-Fri, 9:00 am-5:00 pm PST/PDT.

Messages sent outside chat hours will receive an email response.

- To send feedback directly to our VeSync app team, tap More at the bottom of the screen, then tap Contact Us. Please note that our VeSync app team may have a longer response time.

- You can also contact Customer Support by email or phone (see page 56).

Maintaining Your Smart Light Switch

Firmware Updates

To keep the smart light switch up to date with the latest improvements and fixes, you should always update the firmware when available.

On the Device Settings screen, tap Upgrade Firmware.

Resetting

Resetting the smart light switch can help you troubleshoot many issues you may have. Please keep in mind that resetting a device will erase all of your custom settings and restore the default settings.

Press and hold the power button for more than 15 seconds, or until the WiFi Indicator blinks white rapidly then turns solid white.

Troubleshooting

Why aren't my light switches connecting to the VeSync app?

  • During the setup process, you must be on a secure 2.4GHz WiFi network.
  • Make sure the WiFi password you entered is correct.
  • Try moving your router closer to your light switch (164 ft / 50 m visible range is best).
  • Make sure you don't have too many devices connected to your router (10 or fewer is best).
  • Close and reopen the VeSync app.
  • Clear your VeSync app cache.
  • Reset your smart light switch (see Resetting, page 48).

How do I change my WiFi network to a 2.4GHz WiFi network?

  • Most dual-band routers support both 2.4G and 5G networks. Select the WiFi name that does not end in “_5G”.
  • If your phone is attempting to connect to the 5G network, try "forgetting" or temporarily disabling the 5G network.
  • If you are unsure, or if the 2.4G and 5G networks do not have separate names, please contact your internet service provider.

I can't find the "Etekcity" access point during configuration.

- Press and hold the power button on the light switch for 5 seconds to trigger Configuration Mode. The “Etekcity” access point will appear in your list of available WiFi connections.

- During Configuration Mode, the WiFi Indicator will slowly blink white (1 blink per second). You will have 10 minutes to pair the light switch with your phone.

My light switch is offline.

  1. Make sure your router is connected to the internet, and your phone's network connection is working properly.
  2. Delete the offline light switch from the VeSync app. Swipe left (iOS) or tap and hold (Android), and tap Delete.
  3. Reset the light switch by pressing and holding the power button for more than 15 seconds. The WiFi Indicator will blink rapidly then turn a solid white.
  4. Once the light switch has been deleted and reset, reconfigure your light switch with the VeSync app (see page 19).
  5. When the light switch is online again, go to Device Settings, and tap Upgrade Firmware.

Note: Power outages, internet outages, or changing WiFi routers may cause your light switches to go offline.

After adding my smart light switch to the VeSync app, why won't the smart light switch icon appear on the My Home screen?

  • Refresh the VeSync menu by swiping down on the screen.
  • Close and reopen the VeSync app.

Amazon Alexa or Google Assistant can't find my app or can't discover my smart light switch.

  • Make sure your wireless network router is close enough to your smart light switch. The smart light switch must be within a 164 ft / 50 m visible range from the router.
  • Check that your Amazon Alexa or Google Assistant is working properly.

Why isn't my smart light switch turning on/off as scheduled?

- Make sure that the schedule is still turned on. The toggle switch should look like , not .

- Make sure that your phone's Location Services are turned on.

- Make sure the smart light switch is connected to a working network and is not offline.

If your problem is not listed, please contact Customer Support (see page 56).

FCC Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following 2 conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Notice

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

Warranty Information

Terms & Policy

Etekcity warrants all products to be of the highest quality in material, craftsmanship, and service, effective from the date of purchase to the end of the warranty period.

Etekcity will replace any product found to be defective due to manufacturer flaws based on eligibility. Refunds are available within the first 30 days of purchase. Refunds are only available to the original purchaser of the product. This warranty extends only to personal use and does not extend to any product that has been used for commercial, rental, or any other use in which the product is not intended for. There are no warranties other than the warranties expressly set forth with each product.

This warranty is non-transferrable. Etekcity is not responsible in any way for any damages, losses, or inconveniences caused by equipment failure by user negligence, abuse, or use noncompliant with the user manual or any additional safety, use, or warnings included in the product packaging and manual.

This warranty does not apply to the following:

  • Damage due to abuse, accident, alteration, misuse, tampering, or vandalism.
  • Improper or inadequate maintenance.
  • Damage in return transit.
  • Unsupervised use by children under 18 years of age.

Etekcity and its subsidiaries assume no liability for damage caused by the use of the product other than for its intended use or as instructed in the user manual. Some states do not allow this exclusion or limitation of incidental or consequential losses so the foregoing disclaimer may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.

ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Additional 1-Year Warranty

You can extend your 1-year warranty by an additional year. Log onto www.etekcity.com/warranty and enter your order number (for example, from Amazon or Houzz) to register your new product for the extended warranty.

If you are unable to provide the order number for your product, please type a short note in the order number field along with the date you received your product.

Defective Products & Returns

If your product proves defective within the specified warranty period, please contact Customer Support via support@etekcity.com with your order number. DO NOT dispose of your product before contacting us. Once Customer Support has approved your request, please return the unit with a copy of the invoice or your order number.

Customer Support

If you encounter any issues or have any questions regarding your new product, please contact our helpful Customer Support Team. Your satisfaction is our goal!

Etekcity Corporation

1202 N. Miller St., Suite A

Anaheim, CA 92806

Email: support@etekcity.com

Toll-Free: (855) 686-3835

Support Hours

Monday-Friday

9:00 am-5:00 pm PST/PDT

*Please have your order confirmation number ready before contacting Customer Support.

v01.04

Back to Table of Contents

Etekcity ESWL03 - Support Hours - 1

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Etekcity

Model : ESWL03

Category : Uncategorized
