USER MANUAL SB-7118 QSC
Main Number (714) 754-6175 Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
Cinema Loudspeaker Systems User Manual
SB-5118 and SB-7118 SINGLE-18" Subwoofers
Introduction
The SB-5118 and SB-7118 are specially designed cinema subwoofers, featuring 500 and 700 watt, respectively, 18" (460mm) low-frequency transducers mounted in ported enclosures. The enclosures are tuned to 25 hertz and use a B6 alignment. These should be used with the B6 boost filter option provided by the QSC SF-1 or SF-3 Subwoofer Filter modules or the QSC Digital Cinema Monitor to ensure extended response to the lowest audible frequencies.
Meeting cinema requirements for the extended low frequency response differentiates the SB-5118 and SB-7118 from more conventional "rock-and-roll" subwoofer systems. Their frequency range extends to below 25 hertz when used with the correct B6 filter.
The two custom 500 watt (700 watt, SB-7118), 18" transducers were developed especially for cinema use. The woofers feature 4" (100mm) voice coils and vented pole pieces to ensure cool operation, even at high power levels. Cooler temperatures increase driver lifespan and decrease problematic power compression at high drive levels. Undercut pole pieces provides a Symmetrical Magnetic Gap (SMG), reducing second harmonic distortion. Enclosures are constructed of high quality MDF panels.
Large, Fully Radiused Ports (FRP) ensure smooth air flow through the ports, especially at higher drive levels. This prevents potentially audible port turbulence noise. Both internal and external port openings are fully radiused.
With Symmetrical Port Loading (SPL) bass ports are evenly spaced on each side of the transducers, making internal pressure more uniform across the back surface of the transducer. This prevents the cone from being displaced to one side or another by unbalanced air pressure, reducing the chance of driving the voice coil out of the center of the gap at high drive levels.
Enclosure is not designed to be suspended, flown, or rigged. Do not suspend, fly, or rig this enclosure.
This product is capable of producing sound pressure levels that can permanently damage human hearing. Always keep sound pressure levels in the listening area below levels that can damage human hearing.
Install in accordance with QSC Audio Product's instructions and a licensed, professional engineer. Only use attachments, mounts, accessories, or brackets specified by QSC Audio Products, Inc. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way.
WARNING! Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed or non-load rated component could significantly reduce the strength of the installation, placement, or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected overloading. Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.
TD-000269-00 rev.A
© Copyright 2007, QSC Audio Products, Inc.
QSC® is a registered trademark of QSC Audio Products, Inc.
"QSC" and the QSC logo are registered with the U.S. Patent and Trademark Office
Connections
Normal Connection
The SB-5118/7118 has barrier strip screw terminals for connection. The terminals accept up to #10 AWG (5.3mm ^2 ) stranded loudspeaker wiring. Use the largest wire size and shortest wire length possible for a given installation. Observe the polarity markings and keep polarity consistent throughout the system for best performance.

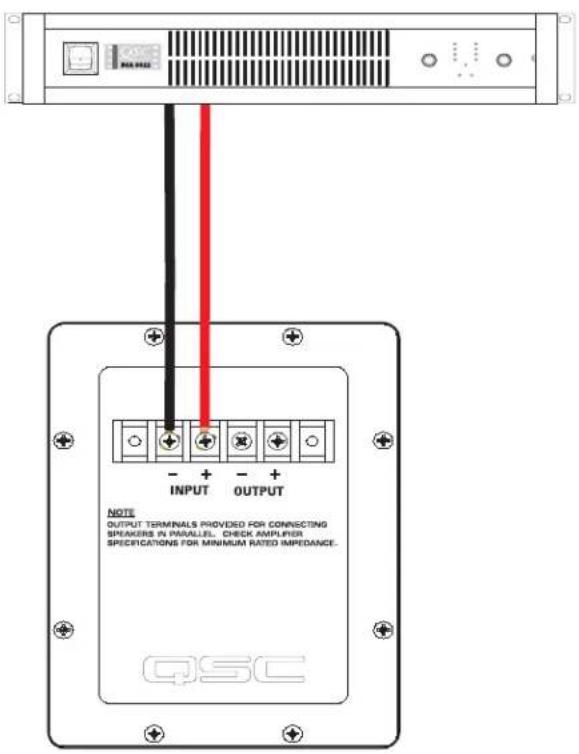

Normal Connection Example:
Parallel Connection of Second SB-5118/7118
The terminals marked OUTPUT may be used to connect another SB-5118/7118 in parallel. Connect the wires as shown in the illustration, at right.
Parallel Connection Example:
CLASSIFICATION: CONFIDENTIAL - AUTHORIZED QSC PARTNERS WITH Specifications (subject to change without notice)
SB-5118 SB-7118
Frequency Range: 24 - 100 Hz (±3 dB) 24 - 100 Hertz (±3 dB)
20 - 250 Hz useable range (-10 dB) 20 - 250 Hertz useable range (-10 dB)
Maximum Output:
130 dB SPL calculated peak 133 dB SPL calculated peak
1 meter, half space, at rated rms power with 6 dB crest factor pink noise input, 25 - 250 Hertz.
124 dBA SPL calculated maximum continuous 127 dBA SPL calculated maximum continuous
1 meter. The dBA scale is typically used to identify sound sources which can cause permanent hearing loss.
Impedance:
8 ohms, nom. (8.5 @ 25 Hz., 96 @ 46 Hz.)
8 ohms, nom. (6.2 @ 27 Hz., 78 @ 54 Hz.)
Maximum Input Power:
100 hours of 6 dB crest factor 400 watts rms 600 watts rms
pink noise, 25 - 250 Hertz
2 hours of 6 dB crest factor
500 watts rms 750 watts rms
pink noise, 25 - 250 Hertz, AES method
Recommended Amp Power: 800 watts rms maximum 1300 watts rms maximum
Sensitivity: 97 dB half space
98.0 dB half space
160 lbs. shipping, 140 lbs. net (102/93 kg.)
163 lbs. shipping, 143 lbs. net (104/95 kg.)
Both Models-
Nominal Coverage:
Omnidirectional (80 Hz)
Recommended Processing:
LF boost- freq.=25 Hz, Q=2.0, gain=+6 dB. QSC DSP configurations are available at www.qscaudio.com. Parameters for alternative processing hardware are available upon request.
Connectors:
Barrier strip screw terminals accept up to #10 AWG stranded wire. Four terminals: (two INPUT and two PARALLEL OUT).
Transducers:
18" (457mm) high efficiency subwoofer transducers featuring vented 4" (100mm) copper voice coils on Kapton® formers. High excursion/low distortion design, with extremely high power handling, and low thermal and port compression.
Enclosure:
B6 alignment, vented enclosure with symmetrical port design, tuned to 25 Hz, constructed of medium density fibreboard and heavily braced. Features vandal resistant woofer mounting bolts.
Size:
30" wide X 35" high X 20.25" deep (762 mm X 889 mm X 514 mm)
line
| Frequency (Hz) | With 80 filter (dB SPL) | Without 80 filter (dB SPL) | With 80 filter (LMS) | Without 80 filter (LMS) | | -------------- | ---------------------- | ------------------------- | ------------------- | ----------------------- | | 16 | -45 | -40 | 18 | 18 | | 20 | -25 | -15 | 34 | 34 | | 30 | 0 | -5 | 9 | 9 | | 40 | 0 | 0 | 9 | 9 | | 50 | 0 | 0 | 9 | 9 | | 60 | 0 | 0 | 9 | 9 | | 70 | 0 | 0 | 9 | 9 | | 80 | 0 | 0 | 9 | 9 | | 90 | 0 | 0 | 9 | 9 | | 100 | 0 | 0 | 9 | 9 | | 200 | 0 | 0 | 9 | 9 | | 300 | 0 | 0 | 9 | 9 | | 400 | 0 | 0 | 9 | 9 | | 500 | 0 | 0 | 9 | 9 |
line
| Frequency (Hz) | With 60 filter (dB SPL) | Without 60 filter (dB SPL) | Lms | | -------------- | ---------------------- | ------------------------- | --- | | 16 | -45 | -45 | 9 | | 20 | -15 | -25 | 18 | | 30 | 6 | 6 | 34 | | 40 | 6 | 6 | 45 | | 50 | 6 | -15 | 72 | | 60 | 6 | 6 | 9 | | 70 | 6 | 6 | 9 | | 80 | 6 | 6 | 9 | | 90 | 6 | 6 | 9 | | 100 | 6 | 6 | 9 | | 200 | 6 | 6 | 9 | | 300 | 6 | 6 | 9 | | 400 | 6 | 6 | 9 | | 500 | 6 | 6 | 9 |Warranty (USA only; other countries, see your dealer or distributor)
Disclaimer
QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
QSC Audio Products 3 Year Limited Warranty
QSC Audio Products, Inc. ("QSC") guarantees its products to be free from defective material and / or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the warranty period.
Customer may have additional rights, which vary from state to state.
In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC's warranty statement, please visit www.qscaudio.com. Contact us at 800-854-4079 or visit our website at www.qscaudio.com.
