Product Type	Installation Kit for Double DIN Aftermarket Stereo
Brand	Alpine
Model	KIT-8KSG
Color	Grey
Compatible Vehicles	Kia Sportage III (2010 and later)
Compatible Devices	Alpine INE-W928R
Material	High-quality plastic and metal brackets
Dimensions (approximate)	Double DIN standard (180 x 100 mm)
Weight (approximate)	0.5 kg
Installation Type	Professional installation recommended
Included Components	Double DIN facia plate, metal mounting brackets, clips, installation manual
Primary Function	Allows installation of Alpine navigation unit into Kia Sportage III dashboard
Safety Note	All work must be performed by a qualified professional installer
Maintenance	Periodic check of bracket tightness if vibration occurs
Cleanability	Wipe with a soft, dry cloth
Reparability	Individual parts not sold separately; entire kit replacement may be needed
Warranty	Standard Alpine limited warranty
Country of Origin	Not specified in manual

Frequently Asked Questions - KIT-8KSG ALPINE

Is the KIT-8KSG compatible with other Alpine head units?

The KIT-8KSG is specifically designed for the Alpine INE-W928R navigation device. Compatibility with other models is not guaranteed.

What vehicles is this kit for?

This kit fits the Kia Sportage III (model year 2010 and later). It may not work with other generations.

Can I install this kit myself?

Professional installation is recommended to avoid damage to the vehicle or device. If you have experience with car audio installation, you may attempt it at your own risk.

What tools are required for installation?

Common tools include screwdrivers, panel removal tools, and possibly a socket wrench. The manual does not list specific tools.

Does the kit include all necessary wiring?

No, the KIT-8KSG is a mechanical installation kit only. It does not include wiring harnesses or adapters.

Is the color of the facia plate exactly as shown?

The KIT-8KSG is grey. The color may appear slightly different under various lighting conditions.

What is the weight of the kit?

The approximate weight is 0.5 kg.

Can I return the kit if it doesn't fit?

Return policy depends on the retailer. Check with your point of purchase before buying.

Are there any safety precautions during installation?

Disconnect the vehicle's battery before starting. All work should be done by a qualified professional to prevent electrical shorts or damage.

Where can I find the full installation manual?

The manual is available for free download on notice-facile.com in PDF format.

USER MANUAL KIT-8KSG ALPINE

Close-up of a black LCD screen mounted on a mechanical device (no visible text or symbols)

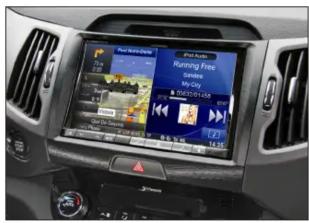

1. Connect all required circuit points Fix Alpine INE-W928R on dashboard

1. Remove hazard light switch (1) from OEM head unit - attach it to double DIN facia plate

Remove upper instrumental panel (2) - attach it to double DIN facia plate

Fix clips to double DIN facia plate

Place double DIN facia plate

Reinstall everything in reverse order to finish installation

All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

ALPINE®

Installation Manual INE-W928R Kit

• Kia Sportage III 2010-> colour / part-no.:

black: KIT-8KSB

grey: KIT-8KSG

Compatible with these Alpine navigation devices
INE-W928R

Interior view of a car showing the dashboard and air intake knob (no visible text or symbols)

1. Remove screws of OEM head unit (left and right)

Close-up of a car's front grille with a red tool inserted, showing white arrows pointing to specific areas (no text or symbols visible)

1. Unclip right side panel

Interior view of a car dashboard with hands adjusting the grille (no visible text or symbols)

1. Remove right side panel by pulling it towards your direction

Interior view of a car dashboard with steering wheel, air vent, and control panel (no visible text or symbols)

1. Unclip left side panel

Close-up of a car dashboard with a hand adjusting the left side of the control panel (no visible text or symbols)

1. Remove left side panel by pulling it towards your direction

Close-up of a hand pressing a camera module on a car dashboard (no visible text or symbols)

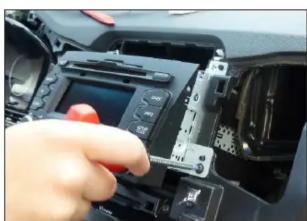

1. Remove screws of OEM head unit Remove OEM head unit

Pure technical line drawing of a mechanical assembly with no text, numbers, or symbols

1. Attach metal mounting brackets to Double-DIN Navigation

Close-up of a mechanical assembly with visible components and a white arrow pointing to a component (no text or symbols)

1. Bend down metal bar (see arrows) in order to clear space for Alpine INE-W928R
