Product Type	Canopy Range Hood
Model	SL107 S 1200
Brand	Sirius
Width	1200 mm
Installation Height (min-max)	600-700 mm (electric cooktop), 650-750 mm (gas cooktop)
Duct Diameter	150 mm or 200 mm
Power Supply	240 V, 50 Hz
Number of Speeds	4 speeds + booster
Control Type	Manual push buttons
Lighting	LED (integrated)
Timer Function	10-minute shut-off
Grease Filter Type	Metal (removable, dishwasher safe)
Filter Cleaning Indicator	Flashing buttons after 30 hours
Motor Type	Onboard (single or twin depending on model)
Warranty	3 years (6 years with Sirius ducting)
Weight (approx.)	25 kg
Electrical Class	Class I or II (check rating label)
Ducting Restrictions	Flexible ducting not permitted; use semi-rigid or solid
Max Duct Length	7 metres
Exhaust Outlet Diameter	160 mm (single motor), 210 mm (twin motor)
Included Accessories	Bracket, screws, plastic dowels, flue covers

Frequently Asked Questions - SL107 S 1200 SIRIUS

What is the recommended installation height for the Sirius SL107 S 1200 range hood?

For electric cooktops, the minimum height is 600 mm and maximum is 700 mm from the trivets to the underside of the hood. For gas cooktops, it is 650 mm to 750 mm.

Can flexible ducting be used with this range hood?

No, flexible ducting is not permitted. Use Sirius semi-rigid or solid ducting to maintain performance and warranty.

How do I clean the grease filters?

Remove the metal grease filters by pushing the handles towards the back and pulling downwards. Wash them by hand or in a dishwasher every two months, or more often if heavy frying is done.

What does the flashing button indicate?

After 30 hours of operation, the control panel buttons will flash to signal that the grease filters need cleaning. Press the timer button to reset the indicator.

What is the warranty period for this range hood?

The standard warranty is 3 years for parts and labour. It extends to 6 years if Sirius ducting is installed. Off-board motors have a 10-year warranty for manufacturing defects.

How do I operate the booster speed?

Press the speed 4 button (marked 'E' on manual controls) to activate the booster function for high-power extraction.

Can the range hood be used without ducting?

It is designed for ducted extraction. The manual does not specify recirculation mode; external venting is required.

What should I do if the range hood is not working?

Check the power supply (240V), ensure the plug is connected, and verify that the circuit breaker has not tripped. If the issue persists, contact a qualified technician or Sirius service.

Is the range hood heavy?

Yes, the range hood is quite heavy. Two people are recommended for installation to avoid injury and damage.

Can I use screws to attach ducting to the range hood?

No, do not use screws to fix ducting to the range hood as they may prevent the non-return valves from opening properly. Use a ring clamp for semi-rigid ducting.

USER MANUAL SL107 S 1200 SIRIUS

Congratulations on your purchase! Thank you for choosing a Sirius product.

CANOPY RANGEHOOD

ONBOARD INSTALLATION INSTRUCTIONS

SLTC 97 900 EAN# 9351116001612

SL22 900

SL22 900B

SL7 1200

SL107 S900

SLTC 107 G900 EAN# 9351116001735

SL107 S1200

EAN# 9351116000660

EAN# 9351116002237

EAN# 9351116000813

EAN# 9351116001728

EAN# 9351116001742

20000

TABLE OF CONTENTS

BEFORE YOU INSTALL - DUCTING INFORMATION 4

CANOPY RANGEHOOD INSTALLATION 6

USING THE RANGEHOOD 8

MAINTENANCE 8

SLTC 97 900 WIRING DIAGRAM 9

SL22 900 WIRING DIAGRAM 10

SL107 S900 WIRING DIAGRAM 11

SLTC 107 G900 WIRING DIAGRAM 12

SL 107 S1200 WIRING DIAGRAM 13

BRACKET 14

WARRANTY INFORMATION 15

BEFORE YOU INSTALL - DUCTING INFORMATION

Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be the cause of failure or issue then charges will apply for service and parts.

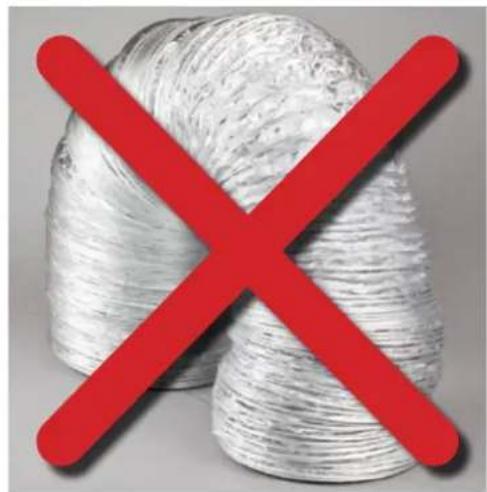

Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a range available to suit any application.

WARNING

The appliance must be installed and connected to the power supply only by a qualified technician.

• There should be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Ducting available at www.siriusbrand.com

6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.

See website for terms & conditions.

A reduction in the duct diameter from stated ducting size will void warranty.

If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation

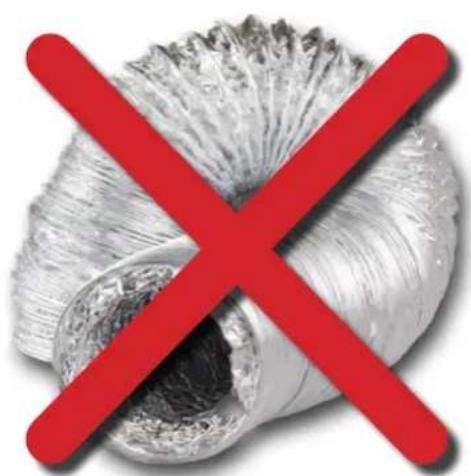

Cross-shaped red prohibition symbol over a composite image of rolled paper or plastic (no text or symbols)

Red X symbol crossed over a bundle of white yarn spools (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, enclosed in a rounded square (no text or numbers present)

The symbol on the product or on its packaging indicates that this product may not be treated as house-hold waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. This appliance is marked according to the European directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

WARNING

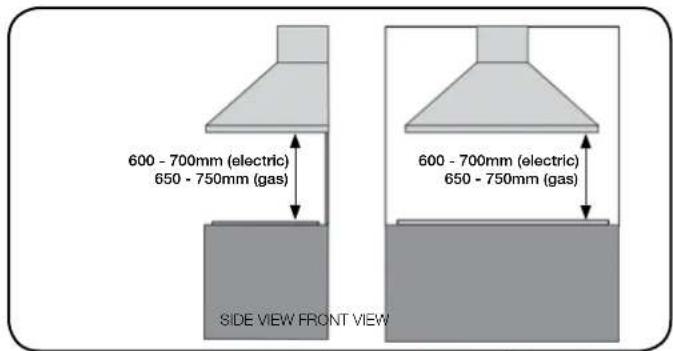

Min. 600mm - Max. 700mm for electric cooktops. Min. 650mm - Max. 750mm gas cooktops.

If the rangehood is positioned above the max height recommended, warranty may be compromised as performance of the rangehood will be affected. Measurement is taken from the top of the trivets to the underside of the hood. (Fig.1)

(Fig. 1)

• The air being drawn can't be conveyed through or into a duct used to let out fumes from appliances fed by energy other than electric power (eg. centralized heating, radiators, water heaters, etc.).
• Attention: remove any possible PVC film from the stainless steel, including the filters.
• To externally vent, please comply with the pertaining rules given by competent authorities.
• Provide the room with an adequate ventilation when a rangehood and appliances fed by energy other than electric power (gas, oil, or coal stoves, etc.) are used simultaneously. The rangehood, when evacuating the air, could generate a negative pressure in the room which can't exceed the limit of 0.04 mbar, in order to avoid the suck of exhausts deriving from the heat source. Therefore the room should be provided with air intakes to allow a constant flow of fresh air.

If the rating label in the rangehood shows the symbol ☐, the appliance is built in class II° and it does not need any earth connection.

If the rating label in the rangehood does not show the symbol □, the appliance is built in class I° and it needs the earth connection.

When performing the electrical connections on the appliance, please make sure that the current-tap is provided with earth connection and that voltage values correspond to those indicated on the label placed inside the appliance itself.

Before carrying out any cleaning or maintaining operations, the appliance needs to be switched off. If the appliance is not provided with a non-separable flexible cable and plug, or with another device ensuring omnipolar disconnections from the grid, with an opening distance between the contacts of at least 3mm, then such disconnecting devices must be supplied within the fixed installation.

If the fixed appliance is endowed with a supply cord and a plug, the appliance has to be put in a place where the plug can be reached easily.

The use of materials which can burst into flames should be avoided in close proximity of the appliance. When frying, please pay particular attention to fire risk due to oil grease. Being highly flammable, fried oil is especially dangerous. Do not use uncovered electric grills. In order to avoid possible fire risk, all instructions for grease-filter cleaning and for removing eventual grease deposits should be strictly followed.

When ducting rangehood, options are as follows:

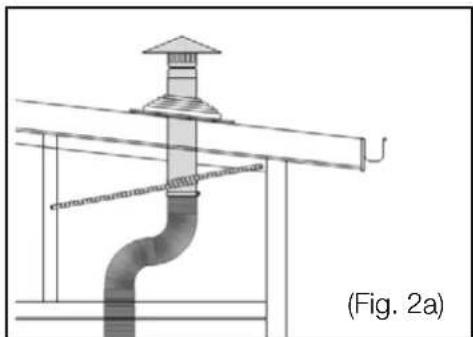

Roof vent - EASYROOF 150T/M EASYROOF 200T/M

*Kit includes roof flashing

Download installation guide

Technical line drawing of a pipe system with a conical outlet and support structure, labeled (Fig. 2a)

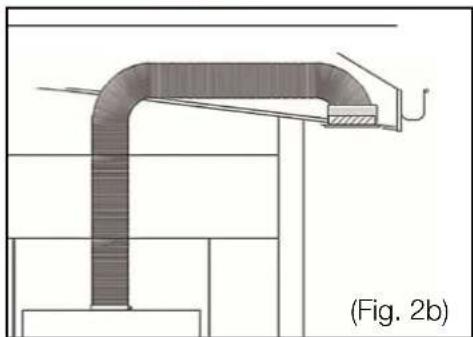

Eave vent - EASYEAVE 150/200

Download installation guide

Technical line drawing of a pipe assembly with a handle and base, labeled (Fig. 2b) (no text or symbols on the diagram itself)

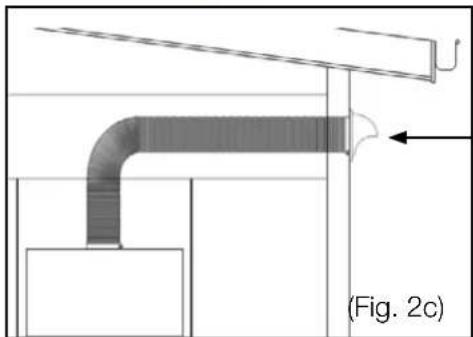

Wall vent - EASYWALL 150/200

Download installation guide

Technical diagram of a pipe connection with a labeled section (Fig. 2c), showing ductwork and support structure without any text or symbols.

Dome featured on 200mm kit only

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

CANOPY RANGEHOOD INSTALLATION - ONBOARD MOTOR

NOTE

Before installing the appliance, make sure that none of the parts are damaged in any way. In case of damaged parts, contact your retailer and do not proceed with installation. Read all of the following instructions with care before installing the appliance.

• Use ducting within the min/max specifications
• Limit the number of ducting bends.
• Do not make any changes in ducting diameter (recommended constant diameter: ∅ 150 mm / ∅ 200 mm or equal surface area).

Before installing the appliance - in order not to damage the appliance itself - the metal grease filter should be removed. These filters could be removed by pushing the handles towards the back side of the rangehood and pulling it downwards to unfasten it from its slot. (Fig.3).

To install the appliance please follow these instructions:

- The appliance must be installed by qualified technicians, or where possible use a Sirius recommended installer. See siriusbrand.com. In order to avoid damage to the electronic parts of the appliance, please do not use additional screws.

1. Prepare the power supply - 240 volts.
2. Prepare a hole for the exhaust - 160mm diameter for single motor & 210mm for for twin motor versions.
3. Maximum length of ducting should not exceed 7 metres.
4. Do not use screws to fix the ducting to the rangehoods as they will prevent the movement of non-return valves.
5. Limit the number of elbows in the ducting, since each elbow reduces the duct efficiency by 1 metre. (i.e. if you use two 90^ elbows, the length of ducting must not exceed 5 metres.)
6. Avoid abrupt direction changes.
7. Use 150mm constant diameter ducting for the whole length for the single motor, 200mm ducting for the twin motor model.
8. The use of Sirius ducting will increase the warranty of the unit to 6 years.

WARNING

1. The rangehood is quite heavy, so two people will be needed for installation.

CAUTION

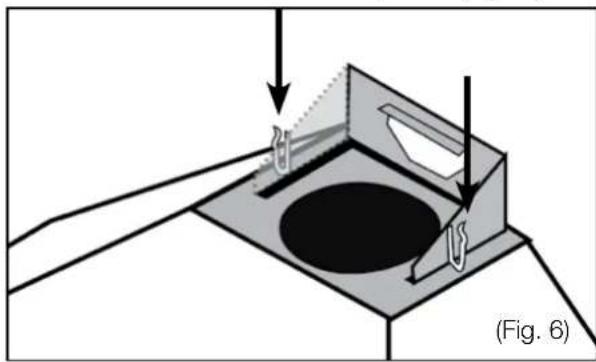

1. Before connecting any ducting to the motor, make sure the non-return valves - which are on the air outlet of the motor - can swing open.

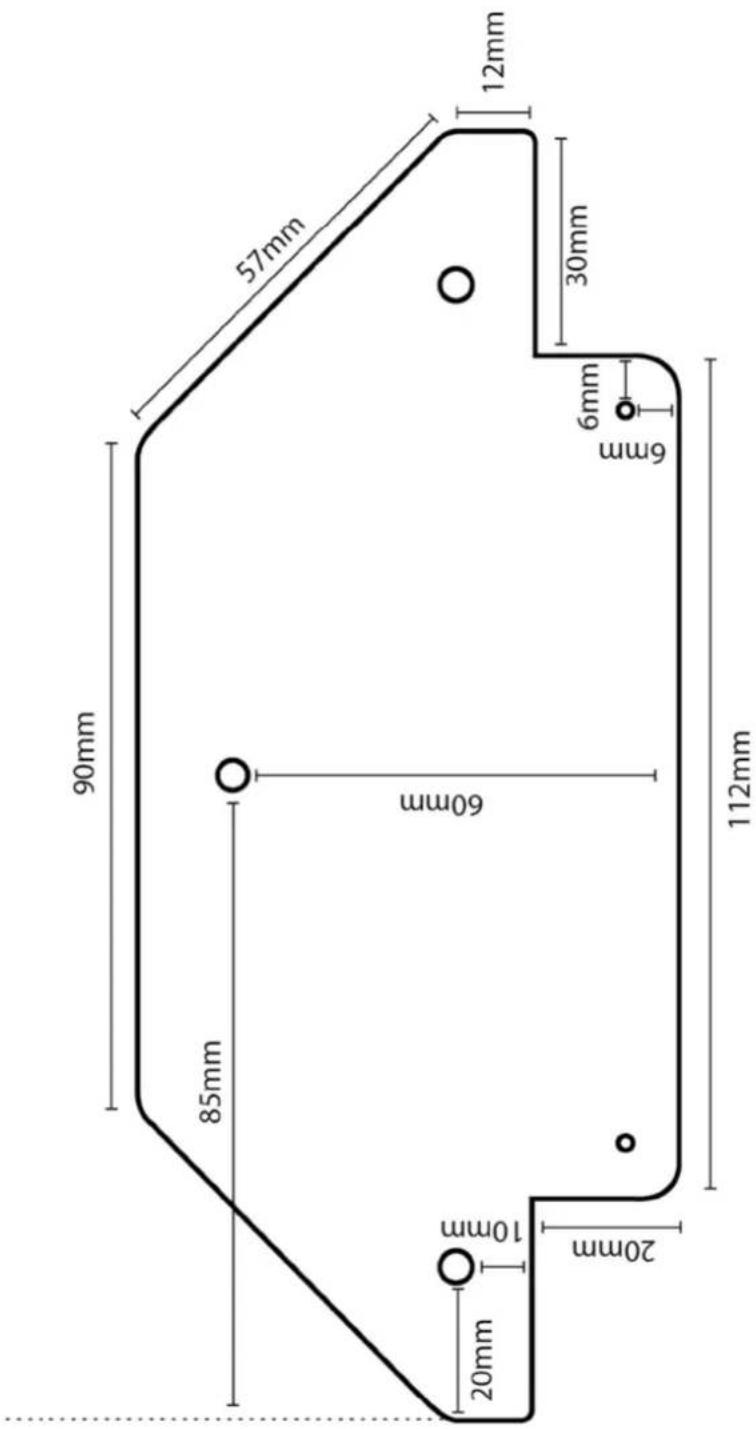

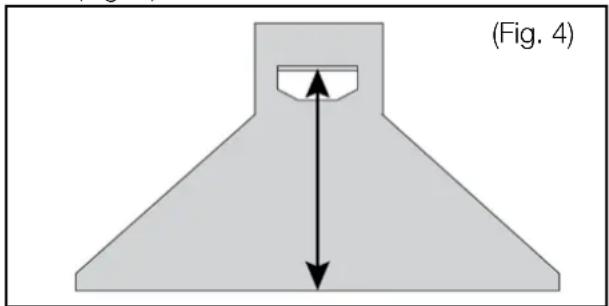

2. Using the supplied bracket template (pg. 7), mark the location of the holes that need to be drilled in the wall, being careful to make sure that the wall behind is clear of electrical wiring, plumbing, pipes etc. Note: Be sure to set the height of the rangehood between the minimum and maximum height requirements as per diagram Fig. 1(Pg. 3). This can be done by measuring from the lowest point of the rangehood to the horizontal support bar. (Fig. 4)

Diagram of a conical funnel with a central slot and two downward arrows indicating flow or direction (no text or symbols)

NOTE: Model measurements will vary. Please check specific model specs.

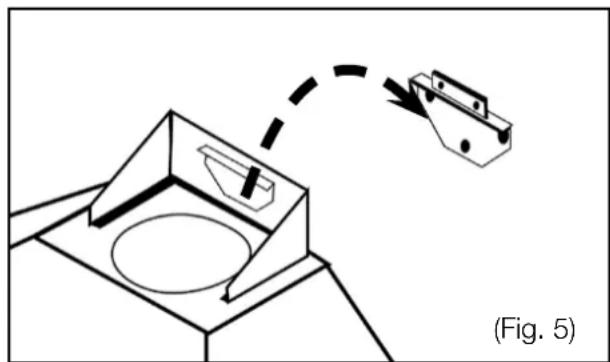

1. Using an 8mm drill bit, pre-drill the holes that will hold the bracket to the wall. (Using bracket template)
2. Insert the supplied plastic dowels to the pre-drilled holes and fix bracket to the wall with the supplied screws. (Note: Please use a spirit level to make sure the bracket is perfectly level.)
3. Once the bracket is secure, using two people, lift the hood and drop the horizontal support bar onto the fixed bracket (Fig. 5).

Technical diagram showing a mechanical assembly with a dashed arrow indicating motion or force, labeled (Fig. 5) (no text or symbols on the diagram itself)

(Note: There are additional holes on the inside of the hood to secure the rangehood flush to the wall and completely stable. (Hole locations will vary per model.)

1. Connect your Sirius ducting (see www.siriusbrand.com for approved ducting) to the outlet collar on the rangehood and secure in place with a ring clamp if you are using semi rigid ducting. If you are using solid/rigid ducting and external duct connector is required. (Note: do not fix the ducting in place with screws as they will prevent the movement of the non-return valves). (See Fig. 2 for ducting options). Complete all of the duct work to the atmosphere before fixing the flue covers in place to ensure the ducting has not come free.

2. Insert the upper flue cover into the cover into the lower flue cover and mount into the channel on the top of the rangehood. There are two spring loaded clips that need to be on the inside of the lower flue cover to secure in place. (Fig 6.)

Diagram of a mechanical assembly with arrows indicating force or movement, no text or symbols present

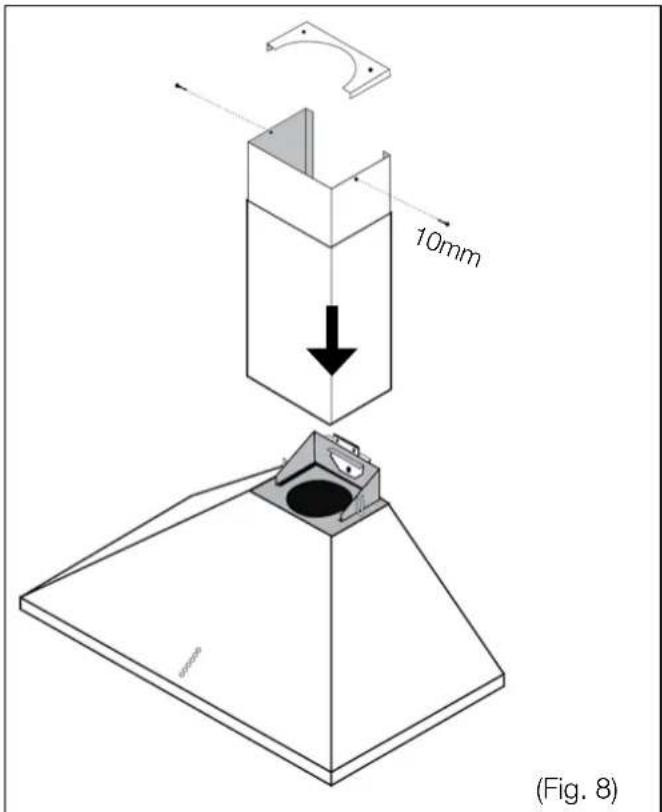

1. Telescope the upper flue cover to the ceiling and mark with a pencil the outer line of the cover, this will give you the exact location of where the top fixing bracket needs to be fitter to the ceiling.

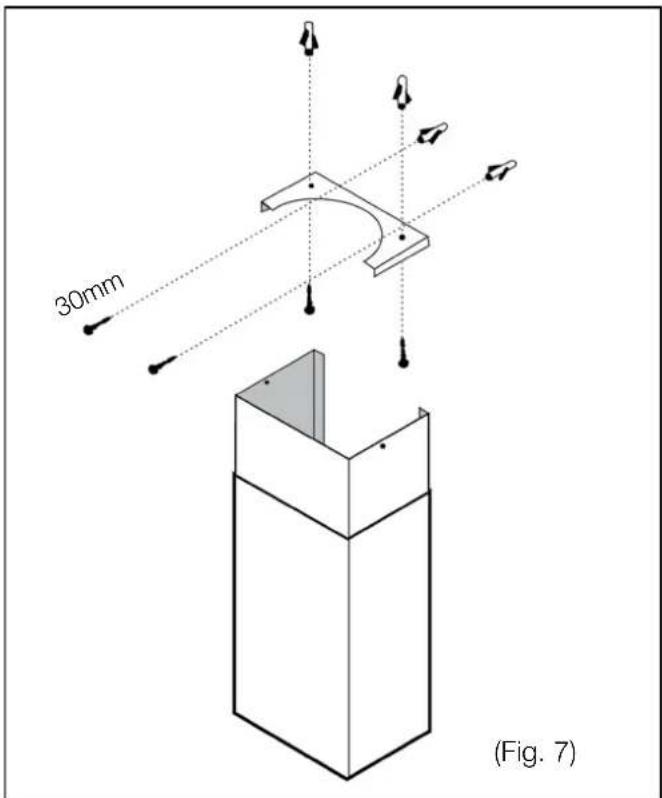

2. Fix the top fixing bracket into place using the supplied 30mm screws (Fig.7) and telescope the upper flue cover over the bracket and secure in place with the very small 10mm supplied screws. (Fig 8.)

Please do not fix shroud permanently. Must be removable for servicing purposes.

USING THE RANGEHOOD

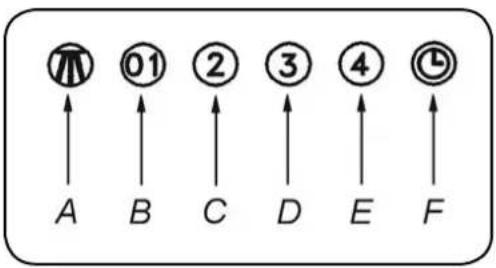

Manual control buttons:

SL22 900, SL7 1200, SL107 S900, SL107 S1200

A: Light switch on/off

B: Motor switch on speed 1/off - (low/simmer)

C: Motor switch on speed 2 - (general cooking)

D: Motor switch on speed 3 - (high power)

E: Motor switch on speed 4 - (booster)

F: 10 minute shut-off timer


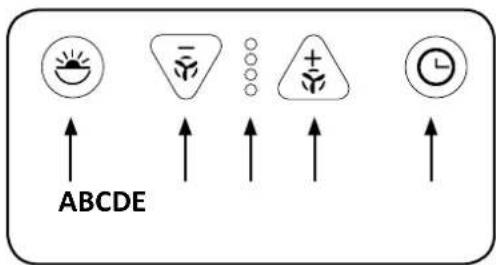

Electronic touch control

SLTC 97 900, SLTC 107 G900

A: Light switch on/off

B: Motor speed decrease / motor off

C: Motor speed indicator

D: Motor speed increase

E: 10 minute shut-off timer

MAINTENANCE

- Accurate maintenance guarantees good functioning and long-lasting performance.

- Particular care is due to the grease filter panel. It can be removed by pushing its handle toward the back side of the rangehood and pulling the filter downwards so to unfasten it from its slot (Fig.2). To insert the filter just perform the opposite operation.

- After 30 hours of operation, the buttons on the control panel will flash, signaling the filters are due for cleaning. Press the timer button ⏻ to reset. The grease filter needs cleaning by regular handwashing or in dishwashers every two months at least, depending on its use.

- Filters may require cleaning sooner if frequent heavy frying is done.

- To clean the appliance itself, water and detergent are recommended, while abrasive products should be avoided. For steel appliances specialized detergents are recommended (please follow the instructions indicated on the product itself to obtain the desired results).

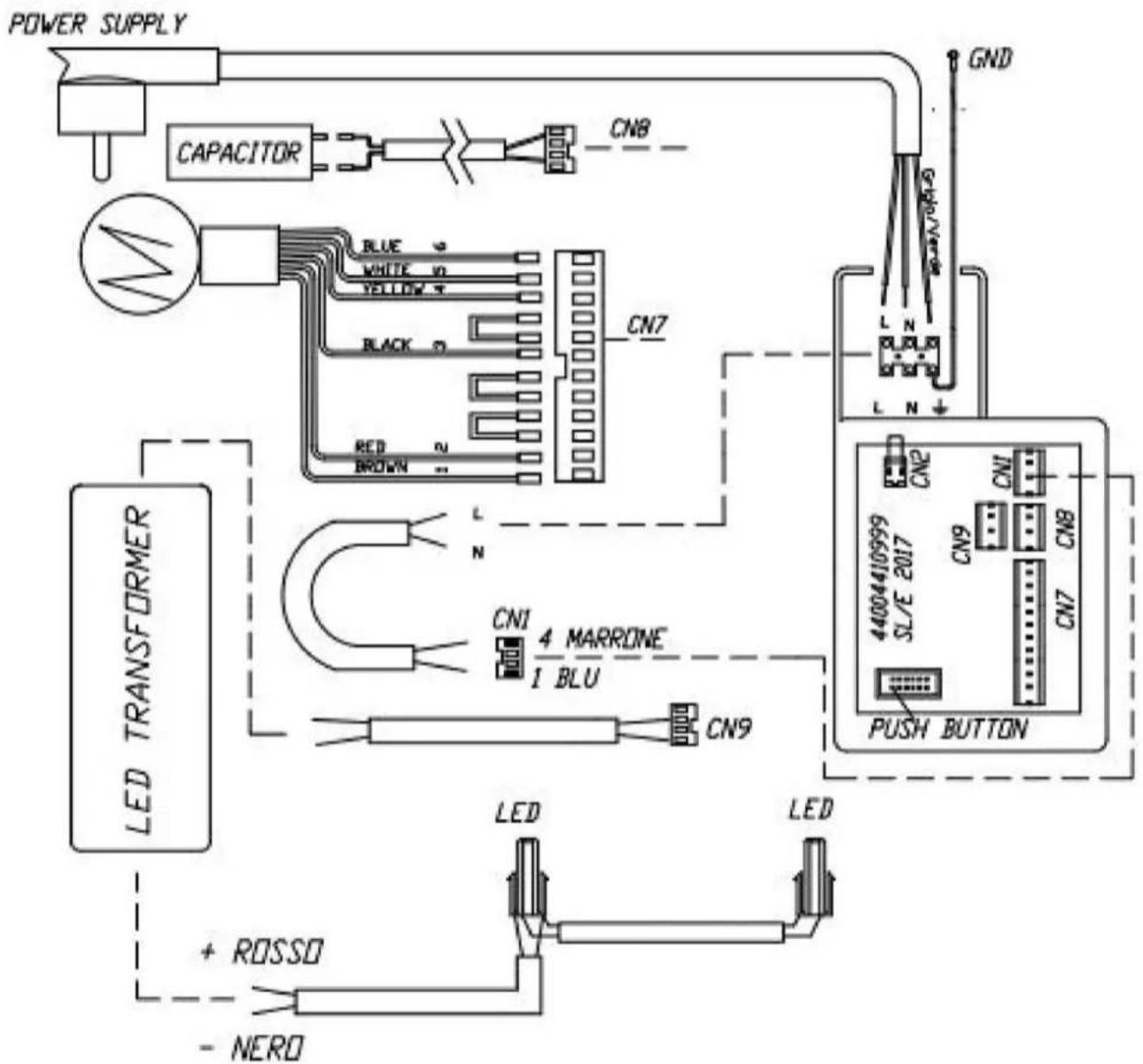

WIRING DIAGRAM SLTC97 900


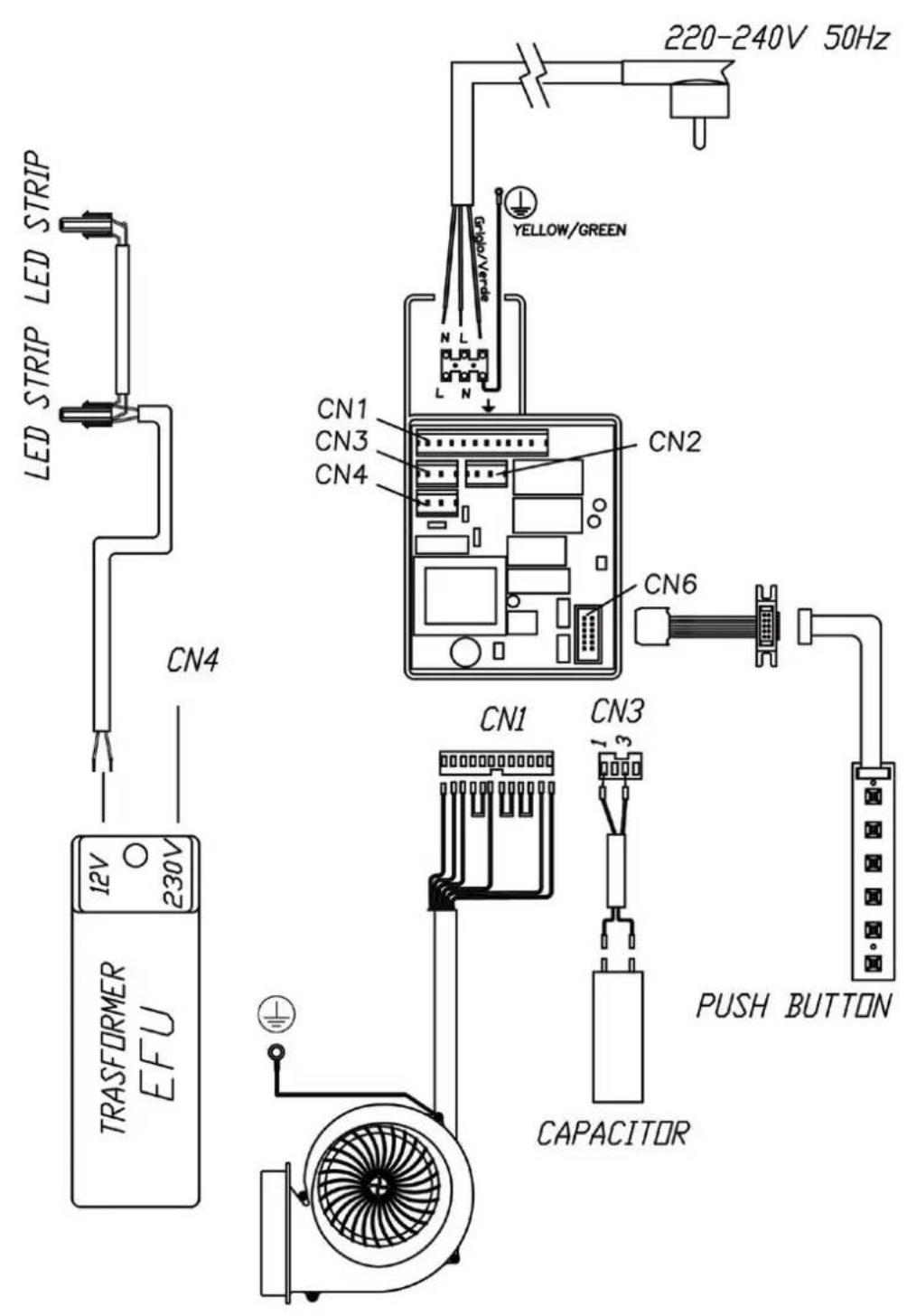

WIRING DIAGRAM SL107 S 900

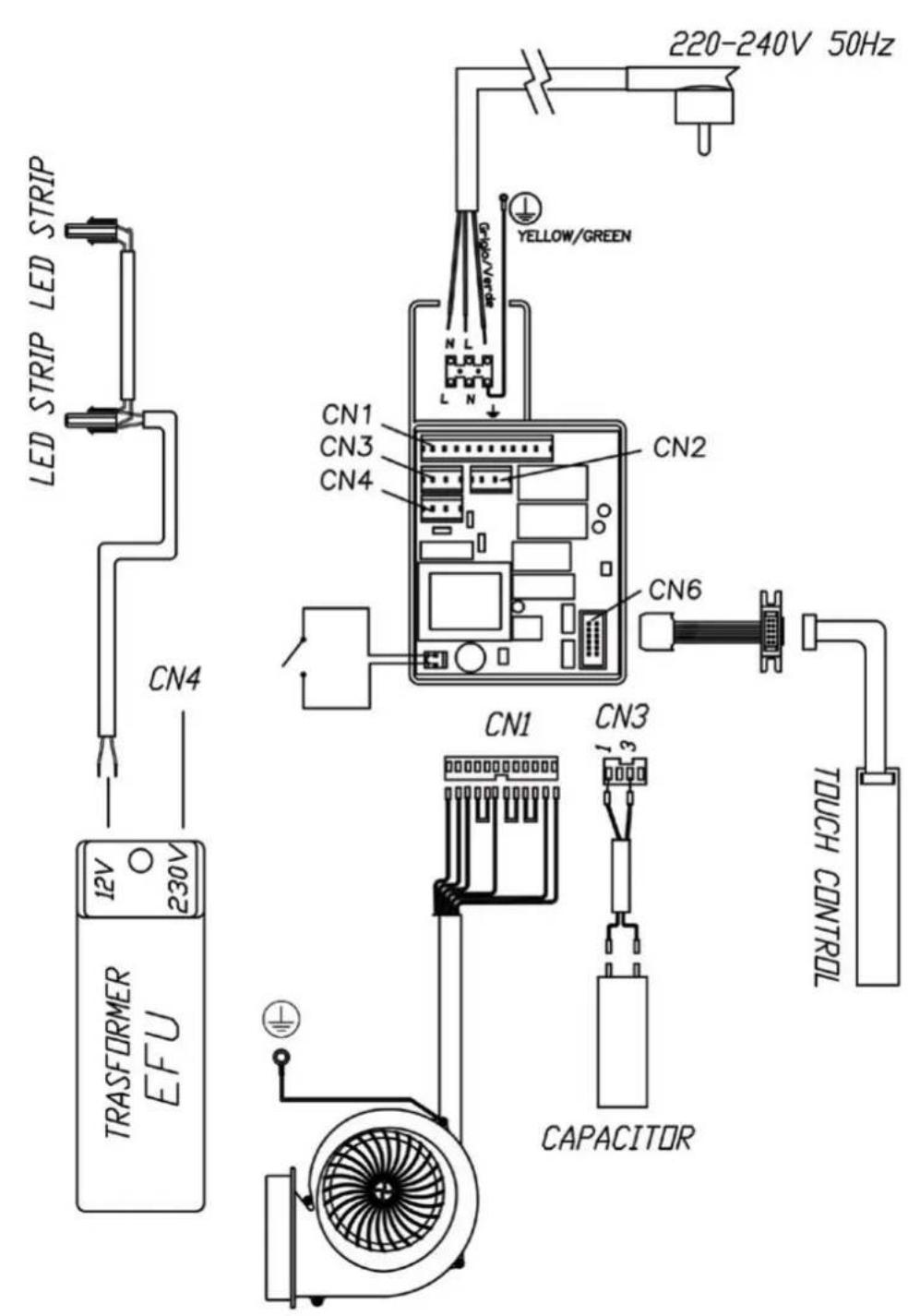

WIRING DIAGRAM SLTC107 G 900

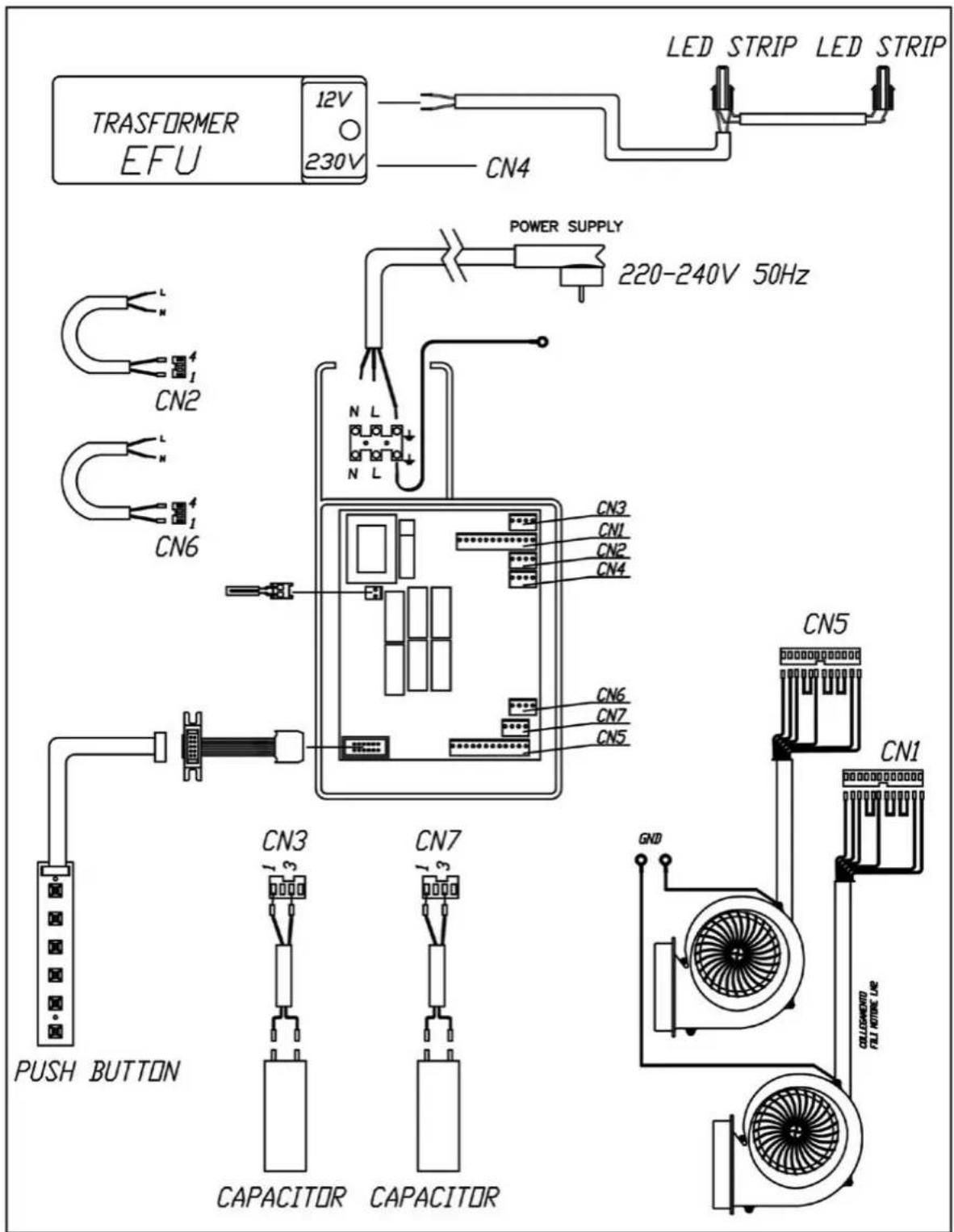

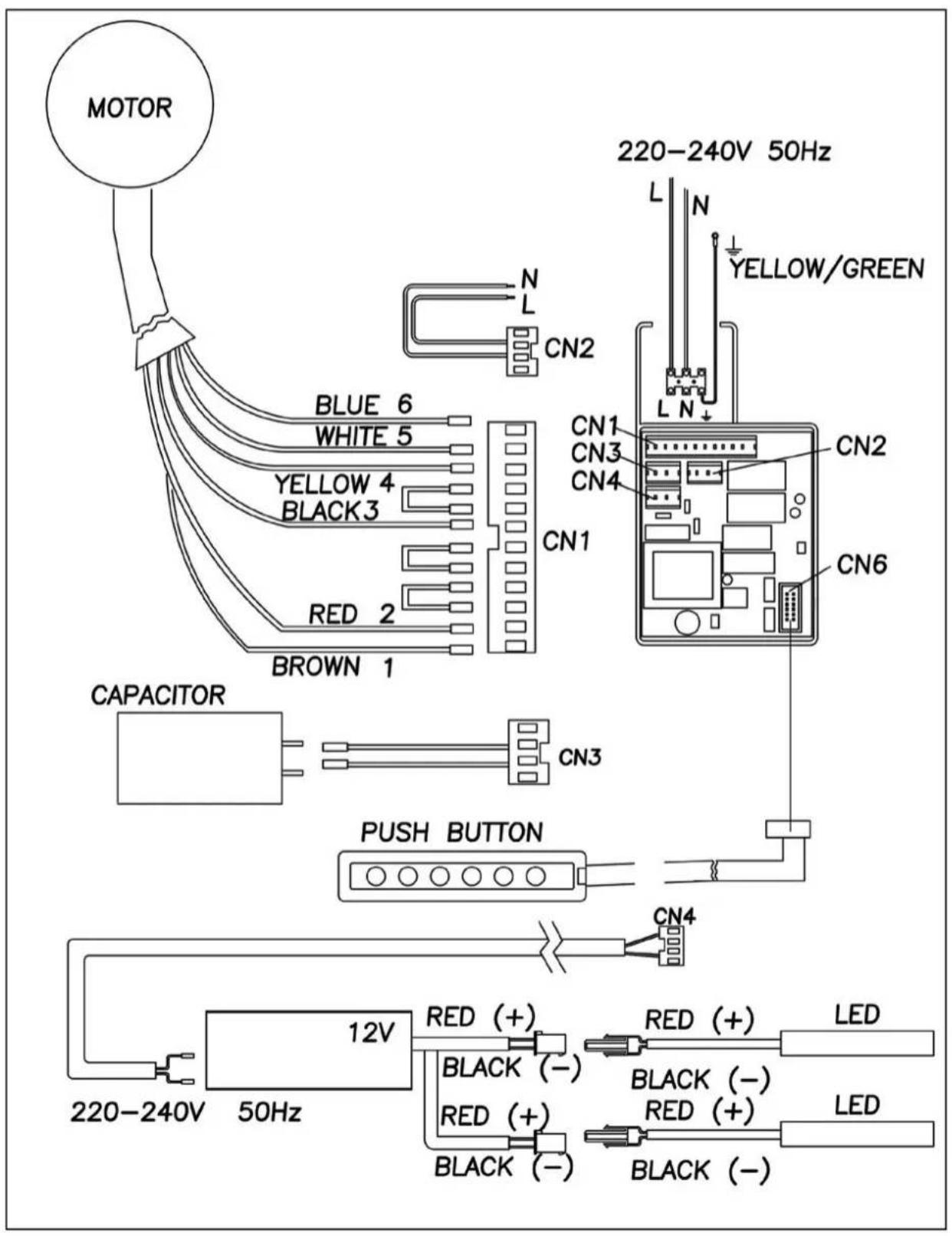

WIRING DIAGRAM SL107 S 1200

Dear Customer,

Thank you for choosing this Sirius Rangehood.

We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring that our customers receive the best possible after-sales care.

The Sirius ‘Protection Plan’ has been devised to give you added peace of mind. Should you encounter any problems with your appliance, our nationwide team of specially trained technicians will deal with your call swiftly and efficiently.

PRIORITY SERVICE, ACCESSORIES & SPARE PARTS

AUSTRALIA

ARISIT PTY LIMITED

40-50 Mark Anthony Drive, Dandenong South,

VIC 3175, Australia

Phone: [phone]

Email: [e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

1A Howe Street, Newton,

Auckland 1145, New Zealand

Phone: [phone]

Email: [e-mail]

Warranty

By registering your ownership NOW, you qualify for Sirius's Total Peace of Mind Protection Plan.

Australian & New Zealand 3 / 6 Year Protection Plan*

This guarantees your appliance for a full 3 years parts and labour & 10 years for the off-board motors (covering manufacturing defects only) from the date of purchase, subject to the Terms and Conditions overleaf.

*3 Year warranty is extended to a 6 year period only when Sirius ducting is installed.

Your Warranty

Register now to qualify.

Terms & Conditions

These Terms and Conditions apply only to Sirius products distributed in Australia and New Zealand by Arisit Pty Limited.

1. This warranty applies for a period of 3 years on all products.
   a) Warranty is extended to a 6 year period when Sirius ducting is installed.
   b) All off-board motors are covered under warranty for a 10 year period for manufacturing defects only.
2. Warranty applies for parts and labour in Australia and New Zealand, commencing from date of purchase.
3. This warranty applies only to the original purchaser/hire purchaser of this appliance and cannot be assigned or transferred. Failure to produce documentary proof of the date of original acquisition by the original purchaser will result in a charge being levied for work done, labour and parts supplied.
4. This warranty does not apply to:
   a) Consumable items such as filters, fuses, and light bulbs.
   b) Damage to body work, paint work, glass, and plastic items (such as, but not limited to windows, covers, baskets, trays, worktops, door handles, control and kick panels.)
   c) Corrosion & rust damage.

A fee may be charged following warranty claims where no fault is found with the appliance.

1. This warranty will not apply where:
   a) The fault is caused by accident, misuse, an infestation of insect and or vermin, fire, flood or the use of products not approved by Arisit Pty Limited.
   b) There has been a failure to comply with the manufacturer's operating and installation instructions.
   c) Service, modification or repair has been carried out by anybody other than an approved Arisit Service Technician.
   d) The appliance has been used/installed anywhere other than a private dwelling, or where it has been used other than for domestic use.
   e) The appliance is subject to a rental agreement.

2. Any defective part that has been replaced becomes the property of Arisit Pty. Limited.

3. This warranty applies only to Sirius appliances purchased and installed in Australia and New Zealand.

4. Loss of use of the appliance or consequential loss of any nature is not covered.

5. A charge may be levied at the discretion of Arisit Pty Limited if the call is deemed unnecessary or if the cause of failure is traced to external sourced such as, but not limited to: blown fused, power failure, faulty installation, customer misuse or negligence, etc

6. Where the appliance, the subject of a warranty claim or repair, is used or installed more than TWENTY (20) kilometres from the nearest Arisit Service Division or Authorised Service Agent, the cost of delivery to the nearest Service

Division or travel costs for a technician or Authorised Service Agent shall be for the account of the Purchaser. Where a built-in appliance is located or installed outside the Arisit Authorised Service Agent's normal service area, additional travel and labour costs shall be the account of the Purchaser.

1. Service is offered during normal business hours only, also appliances to have a clear access in a serviceable area

2. Arisit Pty Limited shall not under any circumstances be responsible in terms of this warranty for the replacement or repair of any part of the equipment which may have been damaged in transit, during and after installation or imperfections after installation.

3. Losses caused by act of God, failure to obtain spare parts, strikes or lockouts are not covered.

4. External off board motors must be installed a minimum of 2 metres and maximum of 7 metres away from the rangehood. This is for optimum sound and performance.

5. All motors must be accessible for servicing purposes and if installed above 2 metres from ground height additional cost will be incurred due to OH&S standards for service agents. Prior to install please check minimum & maximum installation details on the Sirius website, FAQ under support tab.

We reserve the right to amend any of the above without prior notice.

1. This warranty does not affect your statutory rights.

To register for your warranty, please visit:

www.arisitwarranties.com.au/Customer-Registration.aspx or scan the QR code.

ARISIT PTY LIMITED (Australia)

ABN 23 091 616 294

40-50 Mark Anthony Drive

Dandenong South VIC 3175

P: Sales & Service: 1300 762 219

F: Sales & Service: [phone]

E: [e-mail]

ARISIT PTY LIMITED (New Zealand)

1A Howe Street Newton, Auckland 1145

PO Box 68-140 Newton, Auckland 1145

P: [phone] - Fax: [phone]

E: [e-mail]

www.arisit.com

www.siriusbrand.com

Year Warranty

when Sirius ducting is used.

Full replacement warranty on parts and labour. Check website for T&Cs.

Sirius Hocos and ducting products are only available from our select group of Sirius Professional Stockists nationwide. For the latest list of Sirius Stockists near you, please refer to www.siriusbrand.com

All efforts have been made to ensure that the information provided in this brochure is correct at the time of printing. Due to continuous product improvement and ongoing development, Sirius

reserves the right to make changes to the products and technical data without prior notice. Some products appearing in this brochure may be for illustrative purposes only. Diagrams are indicative measures only. Prior to commencing

cabinetry outputs the operating/installation instructions accompanying the product must be referred to at www.sir.usbrand.com
