Heating Pad Wrap 24-610 - Electric heating blanket Veridian Healthcare - Free user manual and instructions

Product Type	Electric Heating Pad Wrap
Brand	Veridian Healthcare
Model	Heating Pad Wrap 24-610
Power Supply	120 V AC, 60 Hz
Power Consumption	60 W
Current	0.5 A
Heat Settings	Variable heat with digital controller
Maximum Temperature	158°F (70°C) on highest setting
Auto Shut-Off	After approximately 2 hours
Usage	Moist or dry heat therapy
Washable	Hand or machine washable (cold, gentle cycle)
Drying	Hang or lay flat to dry; do not machine dry
Safety Certifications	Conforms to UL Std. 130; FCC Part 15
Polarized Plug	Yes (one blade wider)
Warranty	3-year limited warranty
Manufacturer	Veridian Healthcare, Gurnee, IL, USA
Country of Origin	Made in China

Frequently Asked Questions - Heating Pad Wrap 24-610 Veridian Healthcare

When should I use a heating pad?

Heating pads are recommended for temporary relief of minor aches and pains or as directed by a healthcare professional for heat therapy.

How does heat therapy help?

Heat therapy enlarges blood vessels in muscles, increasing oxygen and nutrient flow, which helps relieve discomfort, reduce stiffness, and improve flexibility.

Why did my heating pad stop working or cool down?

This device has an automatic shut-off after approximately 2 hours for safety. Simply unplug and then plug it back in to reset.

What is the maximum temperature of this heating pad?

On the highest setting, the pad reaches a maximum temperature of 158°F (70°C), which complies with UL standards.

Can I wash the heating pad?

Yes. Disconnect the power cord first. Hand wash with mild detergent in cool water, or machine wash on cold gentle cycle. Hang or lay flat to dry. Do not machine dry.

Can I use the heating pad while sleeping?

No. Do not use while sleeping to prevent burns. Always stay awake and check skin frequently.

Is the heating pad safe for children or pets?

No. Do not use on infants, animals, or persons with poor circulation without supervision. Children should not use without adult supervision.

How do I position the heating pad correctly?

Place the pad on top of the treatment area, not underneath. Avoid sitting or lying on it. The neck wrap has a snap to hold it in place without restricting breathing.

What should I do if the cord is damaged?

Do not use the pad if the cord is damaged. There are no user-serviceable parts; contact Veridian Healthcare for service.

How do I store the heating pad?

Unplug and allow to cool. Store in a cool, dry place. Loosely coil the cord to avoid damage. Do not fold sharply.

USER MANUAL Heating Pad Wrap 24-610 Veridian Healthcare

PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE PROPER USE AND SAFE OPERATION OF YOUR HEATING PAD.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING THIS OR ANY OTHER ELECTRICAL APPLIANCE, ALWAYS FOLLOW THESE BASIC SAFETY INSTRUCTIONS: THIS PRODUCT HAS BEEN ENGINEERED TO PRODUCE THE MAXIMUM TEMPERATURE ALLOWED BY INDUSTRY STANDARDS. CONSULT THIS INSTRUCTION MANUAL FOR DETAILED PRODUCT USE AND CARE INFORMATION.

WET PROOF VARIABLE HEAT ELECTRIC HEATING PAD FOR HOUSEHOLD/PERSONAL USE ONLY

DANGER: BURNS WILL RESULT FROM IMPROPER USE. TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK AND FIRE, THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS:

1. READ ALL INSTRUCTIONS.
2. DO NOT USE WHILE SLEEPING.
3. BURNS MAY OCCUR REGARDLESS OF CONTROL SETTING. CHECK THE SKIN UNDER THE PAD FREQUENTLY TO AVOID BURNING AND BLISTERING.
4. DO NOT USE ON AN INFANT OR ON AN ANIMAL.
5. THIS PAD IS NOT TO BE USED BY OR ON AN INVALID, SLEEPING OR UNCONSCIOUS PERSON, OR A PERSON WITH POOR BLOOD CIRCULATION UNLESS CAREFULLY ATTENDED.
6. DO NOT USE A HEATING PAD ON AREAS OF SENSITIVE SKIN.
7. NEVER USE PAD WITHOUT THE COVER IN PLACE.
8. DO NOT USE IN AN OXYGEN ENRICHED ENVIRONMENT OR NEAR EQUIPMENT WHICH STORES/EMITS OXYGEN.
9. PLACE PAD ON TOP OF AND NOT UNDER THE PART OF THE BODY NEEDING HEAT.
10. DO NOT SIT ON, OR AGAINST PAD; DO NOT CRUSH PAD. AVOID SHARP FOLDS.
11. DO NOT PUT THIS PAD IN A MICROWAVE.
12. NEVER PULL THIS PAD BY THE SUPPLY CORD. DO NOT USE CORD AS A HANDLE.
13. UNPLUG WHEN NOT IN USE.
14. CAREFULLY EXAMINE COVER BEFORE EACH USE. DISCARD THE PAD IF VINYL SHOWS ANY SIGNS OF DETERIORATION (SUCH AS BLISTERING OR CRACKING).
15. LOOP CORD LOOSELY WHEN STORING AS TIGHT WRAPPING MAY DAMAGE CORD AND INTERNAL PARTS.
16. THIS UNIT SHOULD NOT BE USED BY CHILDREN WITHOUT ADULT SUPERVISION.
17. DO NOT TAMPER WITH THIS PAD IN ANY WAY.
18. NEVER USE PINS OR OTHER METALLIC MEANS TO FASTEN THIS PAD IN PLACE.
19. THERE ARE NO USER-SERVICEABLE PARTS. IF FOR ANY REASON THIS PAD DOES NOT FUNCTION SATISFACTORILY, SEE WARRANTY FOR CONSUMER SERVICE INFORMATION.
20. DO NOT USE THIS PAD WITH LINIMENT, SALVE OR OINTMENT PREPARATIONS, ESPECIALLY ONES THAT CONTAIN HEAT-PRODUCTION INGREDIENTS AS SKIN BURNS MAY RESULT.
21. DO NOT BEND OR PINCH CORD; DO NOT USE IF CORD IS DAMAGED.
22. NEVER LEAVE THE HEATING PAD UNATTENDED, ESPECIALLY IF CHILDREN ARE PRESENT.
23. USE THIS PAD ONLY ON A 120 VOLT AC CIRCUIT.
    CAUTION: READ AND FOLLOW ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS.

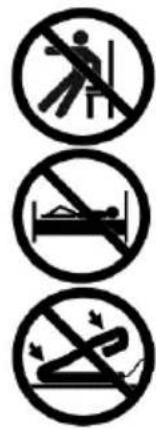

DANGER

• Do not sit on pad.
  • Do not use while sleeping.
• Never position pad underneath the body.
• Do not fold pad.
• Avoid sharp folds that may damage the product.

DANGER

Hot Surfaces.

DANGER-- TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK AND FIRE, THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS.

Intertek

4002849 CONFORMS TO UL STD.130 MOIST OR DRY HEATING PAD

CAUTION: READ ALL INSTRUCTIONS BEFORE USING

Warnings & Cautions 2-3

Introduction....5

Power/Polarized Plug 5

How to Use Your Heating Pad 6

Care and Maintenance 7

Electrical Specifications....7

Frequently Asked Questions 8

FCC Information....9

Warranty 10

Monday - Friday 8:30 a.m. - 4:30 p.m. CST

Manufactured for

Veridian Healthcare

1175 Lakeside Drive

Gurnee, IL 60031

Made in China

93-1353 02/17

©2017 Veridian Healthcare, LLC

INTRODUCTION

Thank you for purchasing your TheraCare Heating Pad Wrap. Please read this instruction manual completely before using your unit to ensure safe and effective use, as well as long life of the product.

Heating pads are intended for personal comfort, including temporary relief of minor aches and pains.

POWER / POLARIZED PLUG

This heating pad has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way.

If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. NEVER ATTEMPT TO OVERRIDE THIS SAFETY FEATURE.

DO NOT REMOVE THE CLOTH COVER. DOING SO MAY RESULT IN SERIOUS INJURY INCLUDING BURNS. Read the WARNINGS AND CAUTIONS section of this manual before use and always use common sense care when operating any electrical device.

1. Connect the AC power cord to the port on the heating pad. The arrows on the cord should line up to the arrow on the port —> <—.
2. Plug the product into a standard 120-volt AC electrical outlet.

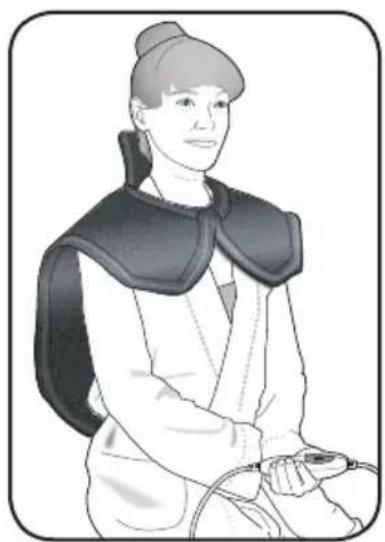

3. Position the heating pad for desired treatment. The 'neck' of the wrap features a plastic snap to help hold the wrap in place. Take care that the pad is comfortable and not restricting your airway.
4. The pad should always be positioned on top of the treatment site.

Never sit or lay on the heating pad, as the temperature can increase to uncomfortable levels when the heat is trapped.

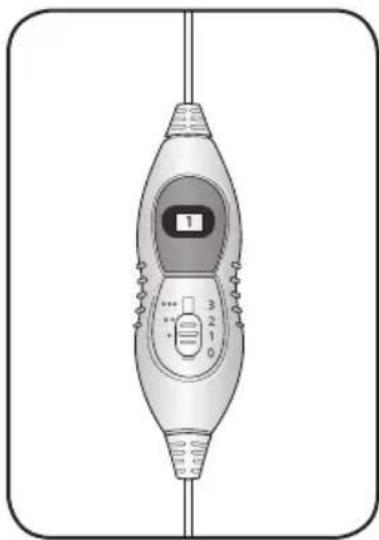

1. Use the controller to set the desired temperature level. The digital display will illuminate the corresponding number of the current setting.
2. Closely monitor your comfort level during use and adjust the heat intensity level as needed.
3. The heating pad will turn off after approximately 2 hours. Always unplug the device when not in use.

CARE AND MAINTENANCE

DISCONNECT THE HEATING PAD FROM THE ELECTRICAL OUTLET AFTER USE; DISCONNECT THE POWER CORD FROM THE HEATING PAD UNIT BEFORE CLEANING.

Heating pad may be hand or machine washed. Hand washing is recommended to preserve the long-life of the heating pad.

• Hand wash the heating pad unit only using a mild detergent with cool water only.
• For machine washing, disconnect the power cord; wash on the cold setting, a gentle/delicate cycle.
• To dry, hang or lay it flat. Do not machine dry.
• Do not reconnect the power cord until the pad and connector port are completely dry.
• Do not store the heating pad until completely dry.
• Store the heating pad in a cool, dry location after each use.
• When storing, avoid sharply folding the pad as over time cracks may occur in the vinyl.

ELECTRICAL SPECIFICATIONS

VOLTAGE	FREQUENCY	WATTAGE	AMPERAGE
120 VAC 60 HZ	60 W 0.5 A

FREQUENTLY ASKED QUESTIONS

When should a heating pad be used?

Heating pads as recommended by a health care professional can be used for heat therapy or as desired for personal comfort.

How does heat therapy help?

Heat therapy enlarges the blood vessels of muscles, increasing the flow of oxygen and nutrients to the muscles. This therapy helps relieve painful discomfort, decreases muscle stiffness and increases flexibility.

Why did my heating pad stop working or cool down?

For safety purposes, this device will automatically shut-off after 2 hours.

What temperature does this product reach?

This heating pad is designed to reach the temperature limit allowed by Underwriters Laboratories, 158°F (70°C) when set on the highest setting.

IMPORTANT INFORMATION REQUIRED BY THE FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; and (2) this device must accept any interference received, including interference that may cause undesirable operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

3-YEAR LIMITED WARRANTY

The warrantor guarantees that its Heating Pad Wrap will be free from manufacturing defects under normal use for a period of three-years. This warranty covers only normal use, and does not apply to use in any clinical or commercial applications. This warranty is voided if the unit is misused or abused in any manner.

If the Heating Pad fails to conform to this limited warranty, return the Heating Pad postage prepaid to: Attn: Repair Department, 1175 Lakeside Drive, Gurnee, IL, 60031. When returning a product, please also include: (i) a copy of your receipt, bill of sale or other comparable proof of purchase; (ii) a written description of the problem; and (iii) your name, address and telephone number. Carefully package the product to avoid any damage that may occur while in transit; shipping insurance with returned receipt is recommended. At our option, the warrantor will repair or replace the unit found to be defective in materials or workmanship under normal consumer usage. The purchaser will be notified of any additional repairs required prior to completing the repair, and will be responsible for parts charges, if any, and repair charges not covered by this limited warranty.

EXCEPT AS PROVIDED FOR IN THIS LIMITED WARRANTY, ALL EXPRESS AND IMPLIED WARRANTIES AND CONDITIONS ARE DISCLAIMED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL THE WARRANTOR BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR FOR DAMAGES TO, OR LOSS OF, OTHER PROPERTY OR EQUIPMENT OR PERSONAL INJURIES TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.

THERA CARE

LEA LAS INSTRUCCIONES DETENIDAMENTE PARA ASEGURAR EL USO APROPIADO Y EL FUNCIONAMIENTO SEGURO DE SU ALMOHADILLA ELÉCTRICA.

CONSERVE ESTAS INSTRUCCIONES

CAUTION: READ AND FOLLOW ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS.

DANGER

DANGER

SUPERFICIES CALIENTES

PELIGRO-- PARA REDUCIR LOS RIESGOS DE QUEMADURAS, DESCARGAS ELÉCTRICAS E INCENDIOS, ESTE PRODUCTO SE DEBE UTILIZAR SIGUIENDO LAS SIGUIENTES INSTRUCCIONES.

Intertek

4002849 CONFORMS TO UL STD.130 MOIST OR DRY HEATING PAD

©2017 Veridian Healthcare, LLC

INTRODUCCIÓN

CÓMO UTILIZAR SU ALMOHADILLA ELÉCTRICA
