Product Type	Refrigerated Countertop Display / Plate Warmer
Brand	Fagor
Model	CPR-60-4
Cabinet Material	Stainless steel exterior and interior
Interior Features	Coved corner floor for easy cleaning (NSF compliant)
Dimensions (W x D x H)	28 1/8 x 16 x 11 inches (715 x 406 x 279 mm)
Weight (Crated)	112 lbs (50.8 kg)
Power Source	115V, 2.3 Amps, 1/4 HP
Refrigerant	R-134a (CFC-free)
Temperature Range	33°F to 41°F (1°C to 5°C) in pans
Number of Pans Included	4
Pan Type	Clear polycarbonate, 1/6 size
Pan Depth	4 inches
Pan Lid	Included for serving utensil
Temperature Control	Digital controller with automatic defrost and temperature display
Refrigeration System	Static cold wall, self-contained capillary tube
Insulation	High density, CFC-free polyurethane foam
Legs	4 non-adjustable rubber feet
Power Cord	8 ft (2.4 m), Nema 5-15P plug
Certifications	UL & NSF-7 compliant
Warranty	3 years parts & labor + 2 years compressor (continental US & Canada)
Intended Use	Commercial countertop food holding and display
Cleaning Instructions	Wipe with warm water and mild detergent; avoid abrasive cleaners
Safety Features	Grounding plug, meets NSF sanitation standards
Construction	Heavy duty stainless steel with mirror finish on top

Frequently Asked Questions - CPR-60-4 FAGOR

What type of product is the Fagor CPR-60-4?

The Fagor CPR-60-4 is a refrigerated countertop display warmer (plate warmer) designed to hold and maintain food temperatures between 33°F and 41°F. It comes with 4 clear polycarbonate 1/6 size pans.

What are the dimensions and weight of the CPR-60-4?

The cabinet dimensions are 28 1/8" (W) x 16" (D) x 11" (H). The crated weight is 112 lbs (50.8 kg).

What electrical requirements does the CPR-60-4 have?

It requires a 115V electrical supply, draws 2.3 Amps, and has a 1/4 HP motor. It comes with an 8-foot power cord and Nema 5-15P plug.

How does the refrigeration system work?

The unit uses a self-contained capillary tube system with environmentally friendly R-134a refrigerant. It has a static cold wall coil located at the bottom, and a digital controller with automatic defrost.

What pans are included with the CPR-60-4?

It includes (4) clear polycarbonate 1/6 size pans, 4" deep, each with a lid for serving utensil.

Is the unit easy to clean?

Yes, the interior has coved corner floors and is made entirely of stainless steel for easy cleaning. Use mild detergent and warm water. Avoid abrasive cleaners.

What certifications does the CPR-60-4 have?

It conforms to UL and NSF-7 standards, ensuring safety and sanitation for commercial use.

What is the warranty on the Fagor CPR-60-4?

It comes with a 3-year parts and labor warranty plus an additional 2-year compressor warranty (valid in continental U.S. and Canada only).

Can the CPR-60-4 be used outdoors?

No, this unit is designed for indoor commercial use only. It should be operated at an ambient temperature of 85°F or less.

How do I adjust the temperature?

The unit has a digital temperature controller. You can set the desired temperature to maintain 33°F to 41°F in the pans. The display shows current temperature.

USER MANUAL CPR-60-4 FAGOR

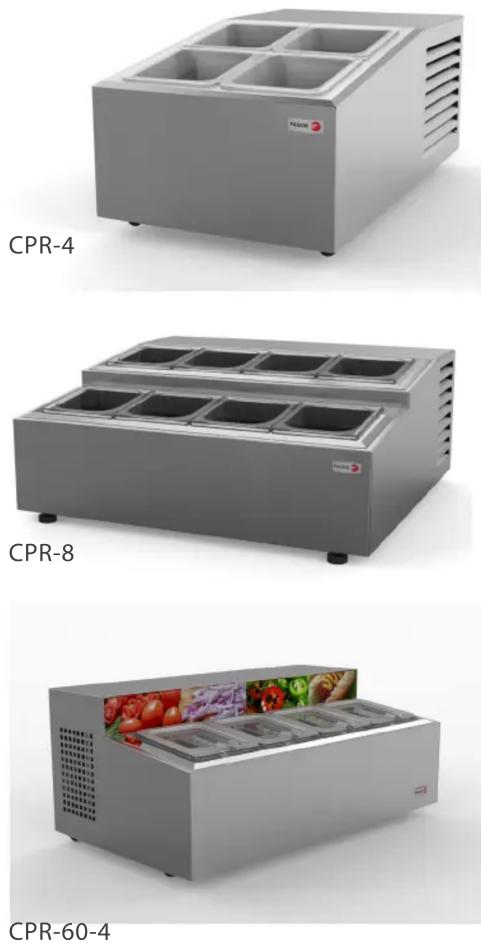

Refrigerated Countertop Rail

CPR Series

- CPR-4

- CPR-8

- CPR-60-4

Item #

Standard Features

• Our "CPR" series counter top display is designed for durability and strength that you will not find in any other products in its class.
• All stainless steel interior and exterior construction for a clean and safe food environment. Coved corner floor to meet NSF requirements.
• Elegant top surface with mirror stainless steel finish and full color display.
• Refrigeration is designed to maintain 33^ to 41^ in the pans at all times.
• Digital temperature controller with automatic defrost and temperature display to keep food quality for a longer period of time.
• Static refrigeration system to keep pans at NSF required temperatures.
• High density CFC-free polyurethane insulation and balanced CFC-free refrigeration system, R-134A.
• Units come standard with clear poly carbonate 1/6 size pans. CPR-60-4 comes with (4) 4" deep pans, with lid for serving utensil. CPR-8 come with (8) 6" deep pans and CPR-4 with (4) 6" deep pans.
• Mounted on 4 non adjustable rubber legs.

*Conforms to UL & NSF-7 standards

Model Pans Volts Amps HP					Crated Weight (Ibs)	Cabinet Dimensions
						W	D	H
Tapas Cases
CPR-4	4 115 3 1/6 135					15-3/4" 26-1/4" 11 1/4"
CPR-8	8 115 3 1/6 168					28-1/8" 26-1/4" 11-1/4"
CPR-60-4	4	115	2.3	1/4	112	28-1/8"	16"	11"
CPR-4 only options	Description
-4L	Fixed plexiglass hinged lid system for (4) 1/6th size pans. (Pans included with unit)
-5L	Fixed plexiglass hinged lid system for (2) 1/6th pans / (3) 1/9th pans. (Pans included)
-6L	Fixed plexiglass hinged lid system for (6) 1/9th pans. (Pans included)
Togo-8	8 section “To-go” condiment packet station. Stainless steel with black acrylic.
Base-2	Step up high volume pump station in stainless steel and black acrylic
** All specifications are subject to change without notice

* Does not include 1" for bumper
** Does not include 1" for legs

Specifications CPR Series

Construction

Heavy duty stainless steel exterior front, sides and back. Interior completely constructed of heavy duty stainless steel with coved cornered floor. Unit comes complete with a 2" CFC-Free polyurethane insulation, foamed in place.

Refrigeration System

Self-contained capillary tube system using environmentally friendly (CFC Free) refrigerant. (R-134a) Bottom mount condensing unit and static cold wall coils are located on the bottom.

Refrigerator is designed to maintain temperatures between 33^ F to 41^ F during normal operations at an ambient temperature of 85^ F.

Energy savings digital controllers and thermostats. Automatic defrost, time initiated.

Pans

CPR-60-4 includes (4) clear poly carbonate 1/6 size pans, 4" deep, with lid for serving utensil. CPR-4 comes with (4) clear poly carbonate 1/6 size pans, 6" deep.

CPR-8 comes with (8) clear poly carbonate 1/6 size pans, 6" deep.

Others

Unit is supplied standard with a 8' cord and plug (Nema 5-15p). Standard with non adjustable feet.

Warranty

3 year parts and labor warranty plus 2 additional year compressor warranty. (Continental U.S.A. & Canada only).

CPR-60-4
Top View

CPR-60-4
Front View

CPR-60-4
Side View

CPR-4
Top View

CPR-4
Front View

CPR-4
Side View

28 1/8" [715mm]

27 1/2° [698mm]

The manufacturer reserves the rights to modify materials and specifications without notice.
