USER MANUAL CDR7011 JENSEN

SOURCES MONDAY 18:14 AM JAN 1 87.5 No Device DISCONNECTED Media Player Handsfree JENSEN SRC/0 MUTE USB AT-AUDIO3 AUX IN USB

CDR7011

DVD Multimedia Receiver with Bluetooth® featuring a 7" Touch Screen Display

INSTALLATION & OWNER'S MANUAL

Safety Notes

Video playback will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash video functions will only operate when vehicle is in Park and the parking brake is engaged. It is illegal in most jurisdictions for the driver to view video while the vehicle is in motion.

Copyright Notes

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.

Other trademarks and trade names are those of their respective owners.

Table of Contents

Warning Statement 4
Safety Information/Precautions 5
Preparation/Mounting 6
Wiring Diagram 7
Control Locations. 8
General Operation 9-10
AM/FM Tuner Operation 11-12
Media Player Operation 13
Media Compatibility 14-16
DVD Operation 17-18
Bluetooth Operation 19-20
Auxiliary Inputs/Rear Camera Operation. 21
SWC Input Operation 22
Notes 23
Troubleshooting 24
Specifications.... 25
Warranty 26
FCC Compliance 27

Page

WARNING

Upon installation of this monitor/media player ("unit") into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.

Several states prohibit the installation of monitors/media players if the screen is visible from the driver's seat. If you reside in a jurisdiction which has enacted such a law, this unit must not be installed so that the screen is visible from the driver's seat. When installing this unit in the front console/dashboard, the unit must be positioned so that it is facing the front passenger seat only. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.

This unit is designed so that it may be operated only when the vehicle is in “Park” and the parking brake is fully engaged. To this end, this unit includes a parking brake lock-out feature which prohibits the unit from operating if the vehicle is not in “Park” and/or the parking brake is not fully engaged. When installing this unit, the installer must connect the parking brake detect wire to the parking brake mechanism in order to make the parking brake lock-out feature operable. DO NOT simply ground the parking brake detect wire to a metal portion of the vehicle. Failure to properly install the parking brake lock-out feature could lead to driver distraction which could result in serious injury or death to the driver’s occupants or persons outside the vehicle and/or property damage.

Once the parking brake lock-out feature is installed, the owner/user must not attempt to disrupt/neutralize the parking brake lock-out feature by (a) partially engaging the parking brake and/or (b) purchasing/using any device or unit designed to send necessary brake signals to the unit. Failure to follow these instructions could lead to driver distraction which could result in serious injury or death to the driver's occupants or persons outside the vehicle and/or property damage.

When operating this unit, keep the unit's volume level low enough so that the vehicle's occupants can hear traffic-related sounds such as police and emergency vehicles. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle's occupants or persons outside the vehicle and/or property damage.

Safety Information

Please read all instructions carefully before attempting to install or operate.

Due to its technical nature, it is highly recommended that your radio is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

To prevent damage or injury:

• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause the unit to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness first.
• Use only the provided hardware and wire harness.
• You cannot view video while the vehicle is moving. Find a safe place to park and engage the parking brake.
• If you experience problems during installation, consult your nearest Jensen dealer.
• If the unit malfunctions, reset the unit as described on page 10 first. If the problem still persists, consult your nearest Jensen dealer or call tech assistance @ 1-888-921-4088.
• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use a stiff cloth, or volatile solvents such as paint thinner and alcohol. They can scratch the surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the screen will become darker than usual. Normal brightness will return after using the monitor for a while.
• When extending the ignition, battery or ground cables, make sure to use automotive-grade cables or other cables with an area of 0.75mm (AWG 18) or more to prevent voltage drops.
• Do not touch the liquid crystal fluid if the LCD is damaged or broken. The liquid crystal fluid may be hazardous to your health or fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

[2] this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Preparation

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

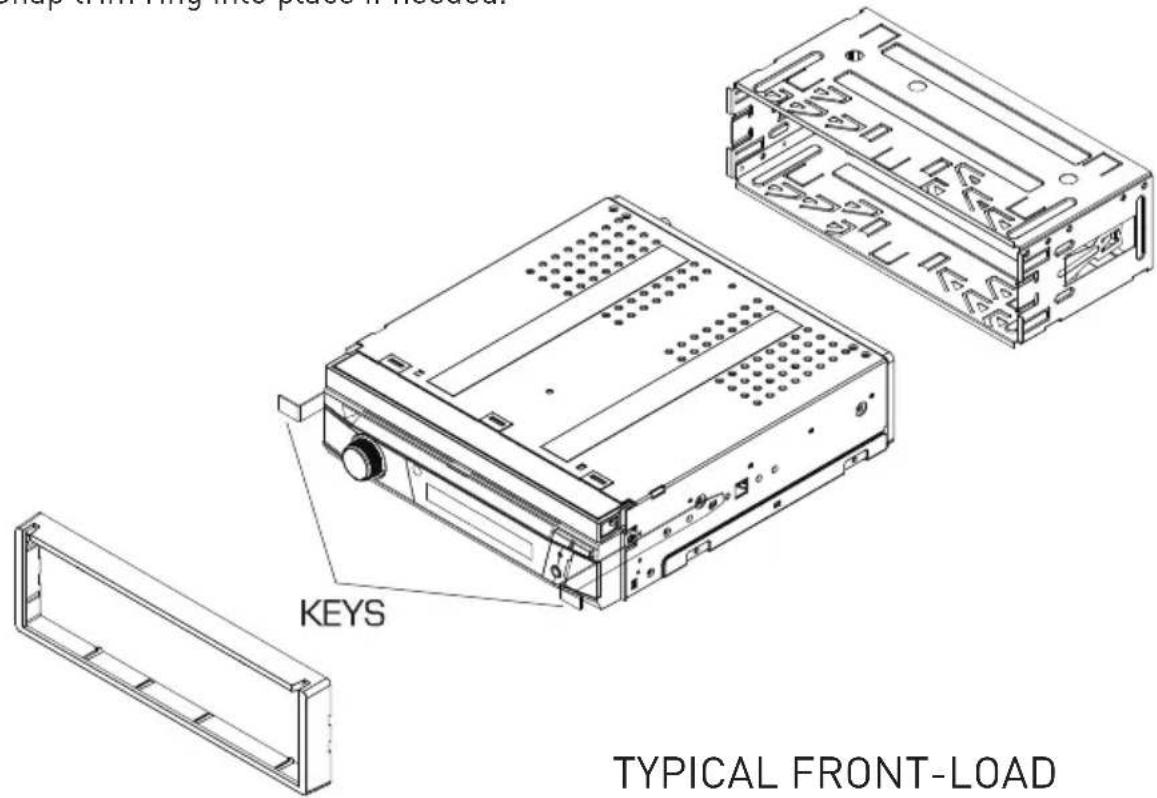

Getting Started

• Remove trim ring from unit.
• Remove 2 transit screws located on top of the unit.
• Insert the supplied keys into the slots as shown, and slide the unit out of the mounting sleeve.
  • Install mounting sleeve into opening, bending tabs to secure.
• Connect wiring harness and antenna. Consult a qualified technician if you are unsure.
• Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately).
• Test for correct operation and secure back into dashboard.
• Snap trim ring into place if needed.

KEYS TYPICAL FRONT-LOAD

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

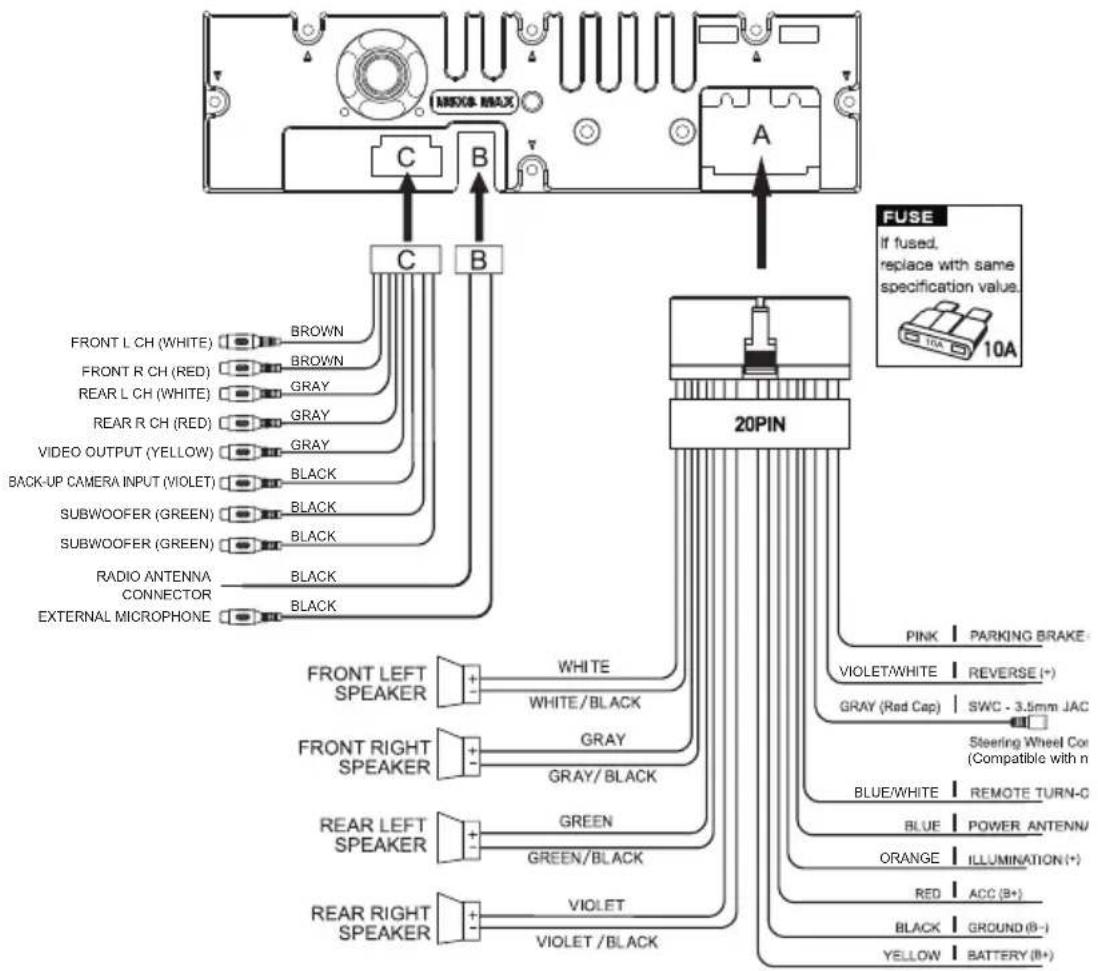

Wiring Diagram

MIXA MAX C B A C B FRONT L CH (WHITE) BROWN FRONT R CH (RED) BROWN REAR L CH (WHITE) GRAY REAR R CH (RED) GRAY VIDEO OUTPUT (YELLOW) GRAY BACK-UP CAMERA INPUT (VIOLET) BLACK SUBWOOFER (GREEN) BLACK SUBWOOFER (GREEN) BLACK RADIO ANTENNA CONNECTOR BLACK EXTERNAL MICROPHONE BLACK 20PIN PINK | PARKING BRAKE- VIOLET/WHITE | REVERSE (+) GRAY (Red Cap) | SWC - 3.5mm JAC Steering Wheel Cor (Compatible with n BLUE/WHITE | REMOTE TURN-C BLUE | POWER ANTENN/ ORANGE | ILLUMINATION (+) RED | ACC (B+) BLACK | GROUND (B-) YELLOW | BATTERY (B+) FRONT LEFT SPEAKER WHITE WHITE/BLACK FRONT RIGHT SPEAKER GRAY GRAY/ BLACK REAR LEFT SPEAKER GREEN GREEN/BLACK REAR RIGHT SPEAKER VIOLET VIOLET /BLACK

Note:

When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp blade-type fuse located on the back of the unit.

Wiring Notes:

Subwoofer Output

The subwoofer preamp output (black jacket with green RCA) is active in all audio modes.

Rear camera input

A rear view camera (not included) can be used with the Camera input.

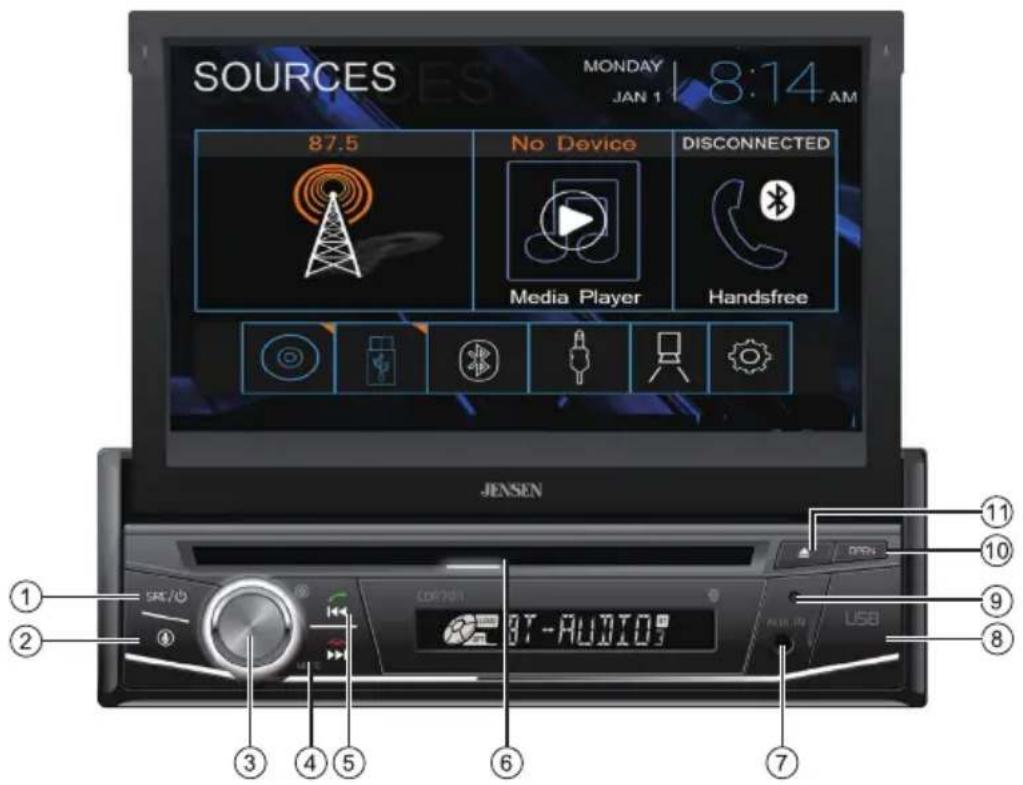

Control Locations

SOURCES MONDAY 18:14 AM JENSEN 87.5 No Device DISCONNECTED Media Player Handsfree 11 10 9 8 3 4 5 6 7

① Source / Power
② Mode / Voice Activation
③ Volume / Mute
④ Tune/Track Up / End Call

⑤ Tune/Track Down / Call
⑥ Disc Slot
⑦ Auxiliary Input
⑧ USB Slot

⑨ Reset Button
⑩ Panel Open
⑪ Eject

General Operation

Power On/Off

Source

Press 🔒 or any other button (except Eject) to turn the unit on. Press and hold 🔒 to turn the unit off.

Press SRC to access available input modes: Radio, Disc, USB, Bluetooth Phone, Bluetooth Audio, AUX, Camera and Settings. Disc or USB device must be connected/inserted to appear in the mode selection string.

Volume

Mute

Rotate the volume knob to increase or decrease the volume level.

Momentarily press ⏻ to silence the audio. Momentarily press ⏻ again to return to the previously selected volume. Rotating the volume knob while the muted will also cancel the mute function.

Auxiliary Input

USB Port

Connect external audio devices to the 3.5mm auxiliary input on the front panel.

Connect a USB device to the USB port on the front panel to play MP3 files or view AVI, MP4 video files or JPG photos.

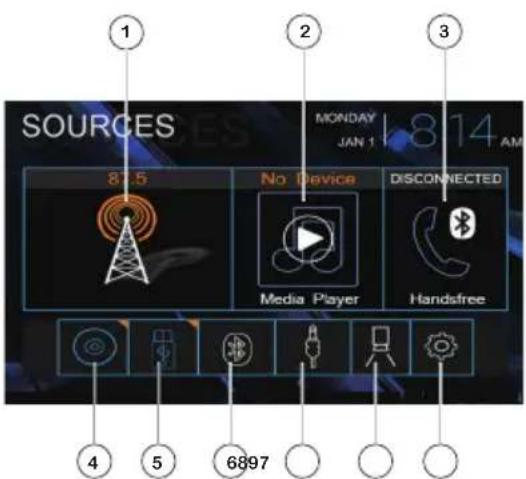

Main Menu

From any operational mode, press the arrow icon in the top left corner to access the Main Menu screen. Use the right and left arrows in the bottom corners to navigate between the two Main Menu screens, and touch any icon to directly access the corresponding mode.

1. Radio
2. Media Player
3. Bluetooth Phone
4. Disc
5. USB
6. Bluetooth Audio
7. Auxiliary Input
8. Rear Camera
9. Settings

SOURCES MONDAY JAN 1 814 AM 815 No Device DISCONNECTED Media Player Handfree 6897

General Operation

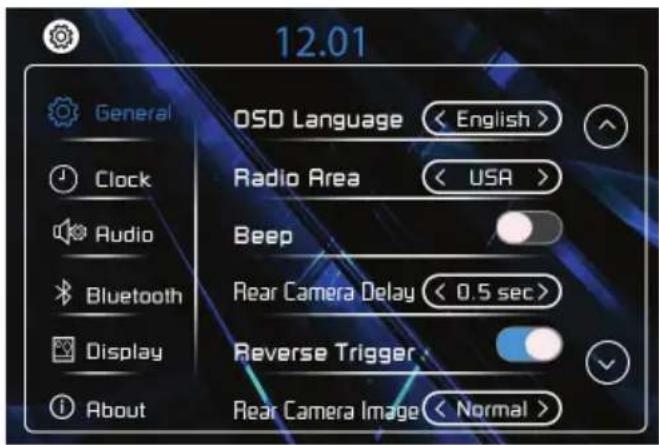

Setup Menu

From the Main Menu screen, select Settings to access the Setup menu and select from categories displayed on the left side of the screen: General, Clock, Audio, Bluetooth, Display and About. Use the touch screen to navigate and adjust individual options within each category.

12.01 General Clock Audio Bluetooth Display About OSD Language < English > Radio Area < USA > Beep Rear Camera Delay < 0.5 sec > Reverse Trigger Rear Camera Image < Normal >

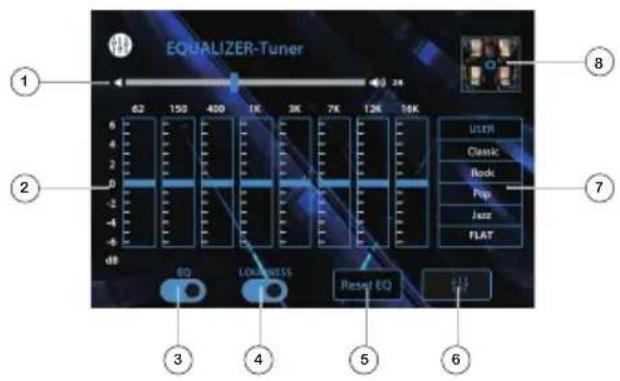

EQUALIZER-Tuner 62 150 400 1K 3K 7K 12K 16K 8 9 user Classic Rock Pop Jazz FLAT 7 dB EQ LOCKNESS Reset EQ 415 3 4 5 6

Audio Settings:

1. Volume
2. EQ Settings
3. EQ On/Off
4. Loudness On/Off
5. EQ Reset
6. Return to Source
7. EQ Presets / Custom
8. Balance / Fader

EQALIZER-Radio Balance/Fader Reset Suboperator 1 2 3 4 5

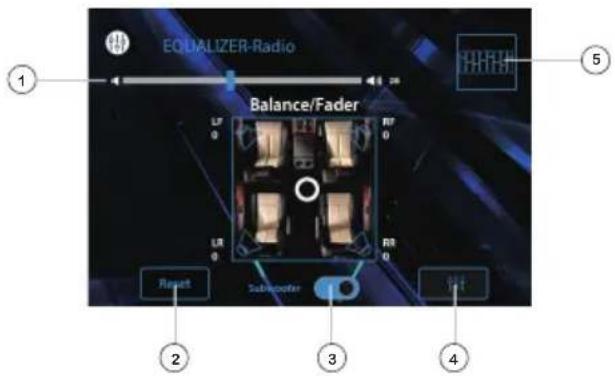

Balance/Fader Settings:

1. Volume
2. Fader Reset
3. Subwoofer On/Off
4. Return to Source
5. Return to EQ Controls

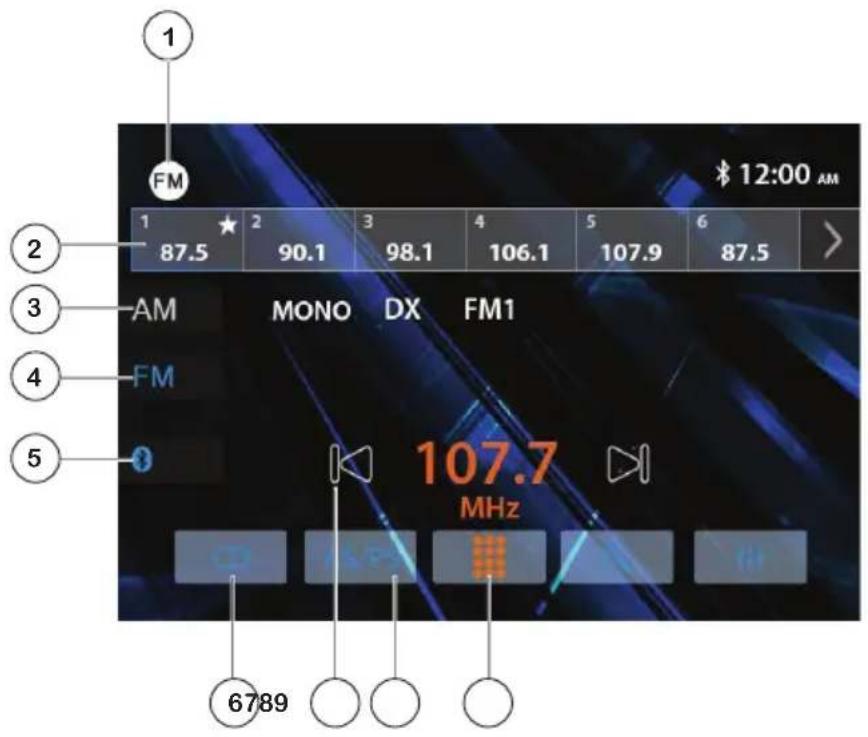

Radio Operation

1 FM ¥ 12:00 AM 1 2 3 4 5 6 > 87.5 90.1 98.1 106.1 107.9 87.5 AM MONO DX FM1 FM 107.7 MHz 6789

Radio Operation

Current Mode / Main Menu ①

Tuner Presets②

AM ③

FM 4

Bluetooth ⑤

Stereo / Mone ⑥

Tune Down⑦

AS/PS 8

Direct Tuning 9

Select the Radio icon from the Main Menu screen.

Displays current mode of operation. Press to return to Main Menu screen.

Displays the preset stations stored in the current band. To store a preset station, tune unit to desired station, then press and hold the desired preset button to store the current station in that preset spot. Up to 18 FM and 12 AM stations can be stored in memory. Momentarily press any preset station to play it instantly.

Press to access AM bands.

Press to access FM bands.

Press to directly access Bluetooth hands-free mode.

Press to select Stereo or Mono operation.

Press to tune down by seeking the next strong station. Press and hold to tune manually and adjust the frequency one step at a time.

Press and hold to automatically store the six strongest stations in the current band as presets. Press briefly to scan all preset stations in the current band.

Press to directly enter the desired station number and begin playback of that station.

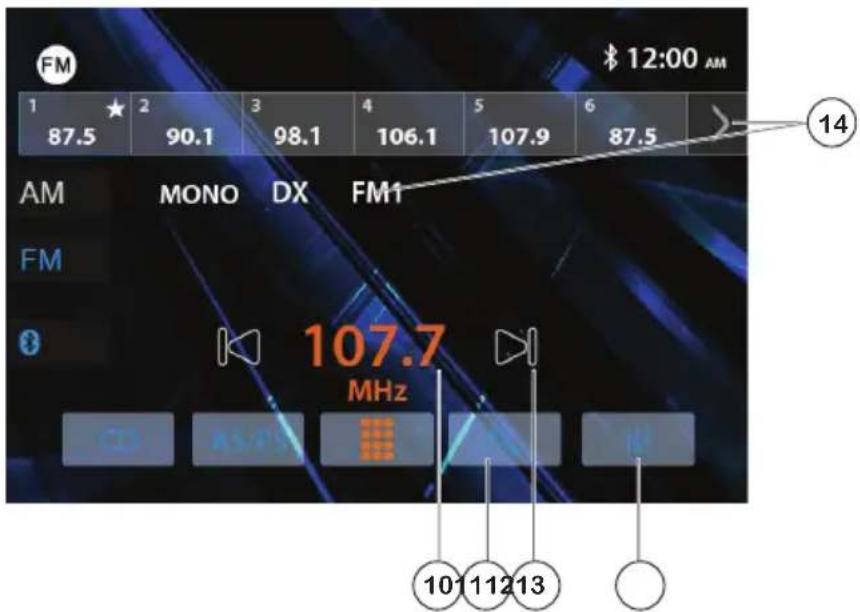

Radio Operation

FM 12:00 AM 87.5 90.1 98.1 106.1 107.9 87.5 AM MONO DX FM1 FM 107.7 MHz 1011213

Station Number 10

Station Search ⑪

Tune Up 12

Audio Settings 13

Band 14

Displays the current station number.

Press to search for a specific station.

Press to tune down by seeking the next strong station. Press and hold to tune manually and adjust the frequency one step at a time.

Press to enter the Audio Settings menu and adjust the following audio options:

• EQ - Use the touch screen to adjust equalization curvesn to suit individual listening preferences. The following equalizer frequencies are available for adjustment: 62Hz, 150Hz, 400Hz, 1KHz, 3KHz, 7KHz, 12KHz, 16KHz. An adjustment range of +16dB to -16dB is available for each frequency band.
• Fader-Balance - Use the touch screen to adjust the balance of the audio output levels throughout the vehicle (+6dB to -6dB). The fader adjusts levels front to back, and the balance adjust from left to right.
• Loudness - Use the touch screen to adjust Loudness (On or Off).
• SRC Level - Adjust audio levels for each audio source (Disc, USB, etc.)

Press to select between 2 AM and 3 FM bands.

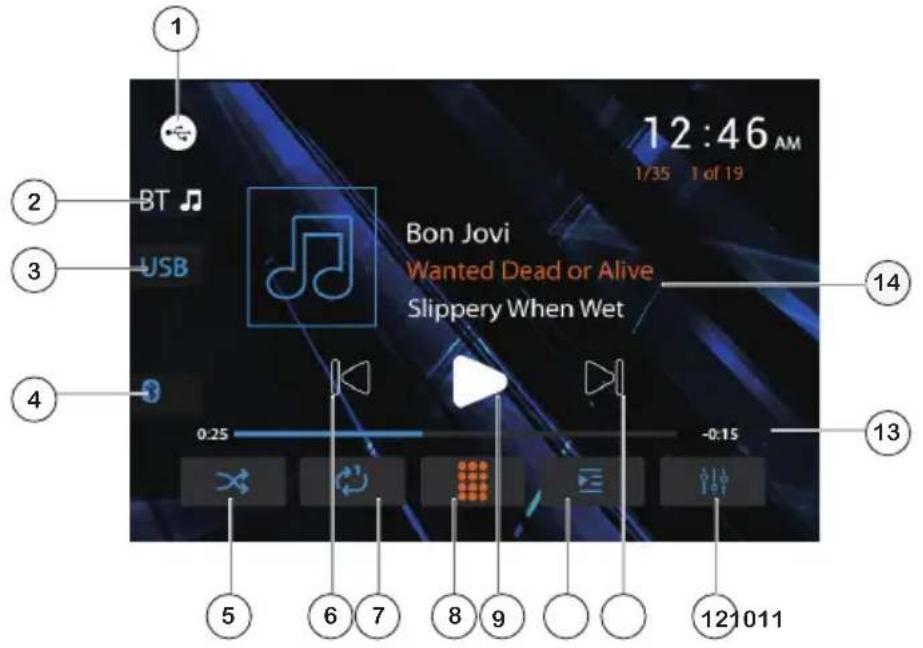

Media Player Operation

12:46 AM 1/35 1 of 19 Bon Jovi Wanted Dead or Alive Slippery When Wet 0:25 -0:15 14 13 121011

Media Player Operation

Current Mode/Main Menu ①

Bluetooth Music 2

USB ③

Bluetooth Phone 4

Random ⑤

Tune Down 6

Repeat ⑦

Direct File Entry ⑧

Play / Pause ⑨

File List 10

Tune Up 11

Audio Settings 12

Time Indicator 13

ID3 Metadata 14

Select the Media Player icon from the Main Menu screen.

Shows current mode of operation. Press to return to Main Menu.

Press to access Bluetooth music.

Press to access files on USB device.

Press to access Bluetooth phone.

Press to enable or disable Random playback.

Press << to tune radio to a lower frequency. Press and hold to tune the unit down one step at a time.

Press to enable or disable Repeat playback.

Press to display the keypad and enter the desired file number.

Press to pause or resume playback.

Press to display a list of all files on the device.

Press >> to tune radio to a higher frequency. Press and hold to tune the unit up one step at a time.

Press to access and adjust audio settings.

Displays elapsed time/remaining time for the current file.

Displays current file information.

Media Compatibility - CD/DVD

File Type MP3
File System	ISO9660	Level 1, Level 2		√
		Level 3 X
	ISO9660 Extension	JOLIET	Playback	√
			Filename 32	bytes
	Other Extensions	ROMEO	Playback X
			Filename X
		Apple ISO X
File Extension	.mp3/.MP3/.Mp3/.mP 3			√
	.rmp/.m4a X
MPEG Format	MPEG 1			√
	MPEG 2			√
	MPEG 2.5			√
Sampling Frequency	MPEG 1 32/44.1/48kHz
	MPEG 2 12/16/22.05/24kHz
	MPEG 2.5 8/11.025/12kHz
Bitrate	MPEG 1 32 ~ 320kbps
	MPEG 2 8 ~ 160kbps
	MPEG 2.5			8 ~ 160kbps
Other Information	Directory Depth			Unlimited
	File Name Length			32 bytes
	Total File Number 2000 files
	Total Folder Number			200 folders
	File Number via Folder			2000 files
	MP3 ID3 TAG	ver.1.x		√
		ver.2.x		√
		Title, Artist, Album		√

Notes:

• It is not possible to view JPG files on the in-dash monitor while the vehicle is moving. This is a safety feature to prevent driver distraction.
• The JPG image viewer function will only operate when vehicle is in park and the parking brake is engaged.

Media Compatibility - USB

File Type MP3
File System FAT		FAT 12 X
		FAT 16/FAT 32	√
File Extension	.mp3/.MP3/.Mp3/.mP 3		√
	.rmp/.m4a X
MPEG Format	MPEG 1		√
	MPEG 2		√
	MPEG 2.5		√
Sampling Frequency	MPEG 1 32/44.1/48kHz
	MPEG 2 12/16/22.05/24kHz
	MPEG 2.5 8/11.025/12kHz
Bitrate	MPEG 1 32 ~ 320kbps
	MPEG 2 8 ~ 160kbps
	MPEG 2.5 8 ~ 160kbps
Other Information	Directory Depth Unlimited
	File Name Length 32 bytes
	Total File Number 2000 files
	Total Folder Number 200 folders
	File Number via Folder		2000 files
	MP3 ID3 TAG	ver.1.x	√
		ver.2.x	√
		Title, Artist, Album	√

Notes:

• For USB mode, it is not possible to view JPG files on the in-dash monitor while the vehicle is moving. This is a safety feature to prevent driver distraction.
• The JPG image viewer function will only operate when vehicle is in park and the parking brake is engaged.
• Due to ongoing technological advancement, some USB flash drives may be incompatible with this unit.

Media Compatibility

Media Compatibility

The following types of discs/files are compatible:

• CD-DA, CD-ROM (ISO), CD-R, CD-RW
  • DVD Video, DVD+R/RW, DVD-R/RW

The following types of discs/files are not compatible:

• WMA files that are protected by DRM (Digital Rights Management)
  • WMA lossless format
  • Discs recorded with Track At Once or packet writing
  • MP3 PRO format, MP3 playlists
• RMP format
• WAV format
• WMV format
  • AAC, protected AAC, M4A format

Some recordable DVD's and CD's may be incompatible with this unit, depending on media type and recording method.

Playback Order

MP3 playback sequence begins in the root folder of the disc, USB flash drive or SD card. Any empty folders or folders that do not include MP3/JPG files are skipped.

Compatible Recording Formats

ISO9660 standards:

• Maximum nested folder depth is 8 (including the root folder).
- Valid characters for folder/file names are letters A-Z (all caps), numbers 0-9, and “_” (underscore). Some characters may not be displayed correctly, depending on the character type.
- This device can play back discs in Joliet and other standards that conform to ISO9660. MP3 written in the formats other than the above may not play and/or their file names or folder names may not be displayed properly.

Notes

Some files may not play or be displayed correctly, depending on sampling rates and bit rates.

For best results, use the following settings when ripping MP3 files: 128kbps or higher constant bit rate 44.1kHz or higher sampling frequency

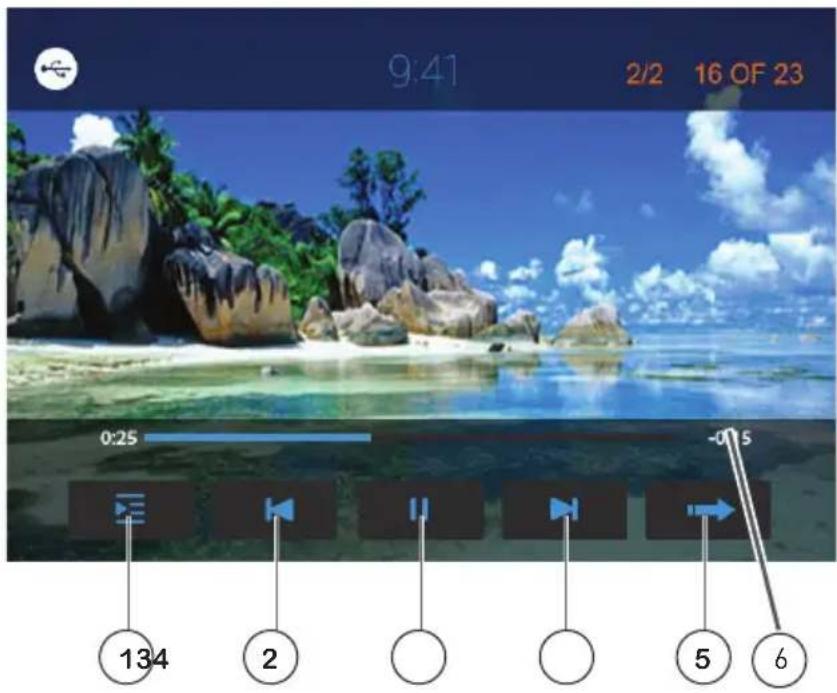

DVD Operation

9:41 2/2 16 OF 23 0:25 -0.15 134 2 ○ ○ ○ 5 6

Inserting a Disc

Ejecting the Disc

Touchscreen Controls

Disc Menu ①

Audio Settings ②

Previous Chapter ③

Play / Pause 4

Next Chapter 5

Next Page 6

Insert disc into the slot, and playback will begin automatically. Sub-menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features.

Press to eject the disc.

Press anywhere on the LCD to display touch screen controls.

Press to select disc menu.

Press to adjust audio settings.

Press to return to the previous chapter.

Press to pause or resume playback.

Press to advance to the next chapter.

Press to display the next page of options.

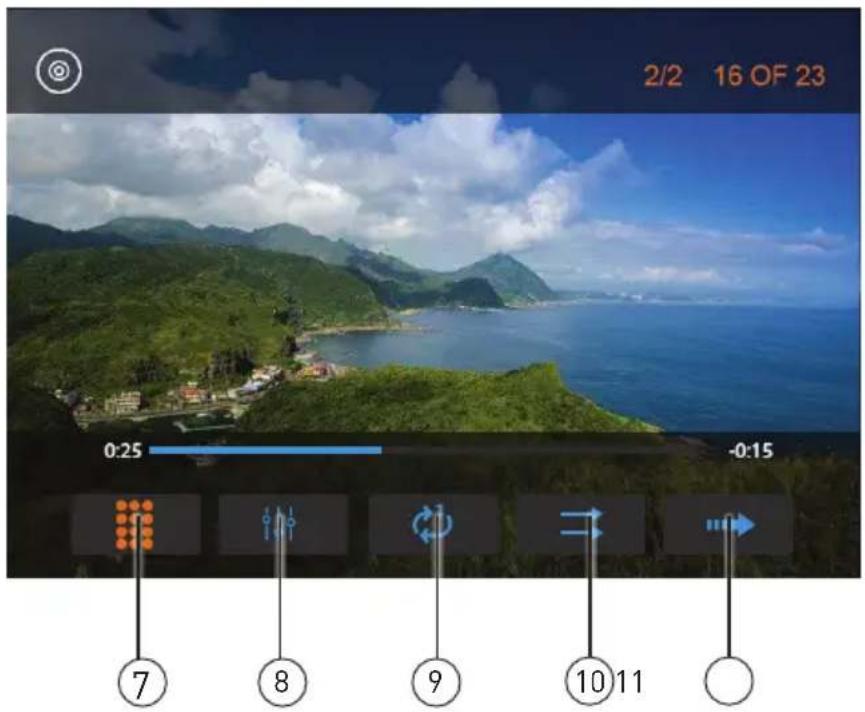

DVD Operation

2/2 16 OF 23 0:25 -0:15 ⑦ ⑧ ⑨ ⑩ ⑪

Direct Entry⑦

Audio 8

Repeat ⑨

Random 10

Next Page ⑪

Enter a chapter number directly to begin playback.

Press to access and adjust audio settings.

Press to repeat current chapter.

Press to enable or disable random playback.

Press to display the next page of options.

Bluetooth Operation

1 2 1 2 ABC 3 DEF 4 ON 5 JBL 6 MNO 7 PORS 8 TUV 9 WXYZ * 0 # X Keypad Contacts Recents Device 567 1-800-555-1234

Preparation	Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process.
Microphone	Connect an external microphone to the MIC jack in the back of the unit (no internal microphone is included).
Pairing a New Device	The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "JENSES CDR7011". The Bluetooth passcode is "0000". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once.
Connecting a Paired Device	Most Bluetooth devices support the auto-connect feature and will connect automatically if the device is in range when the unit is powered-on. If your device was previously paired but does not connect, enter the Bluetooth setup menu and ensure that Auto Connect is On.

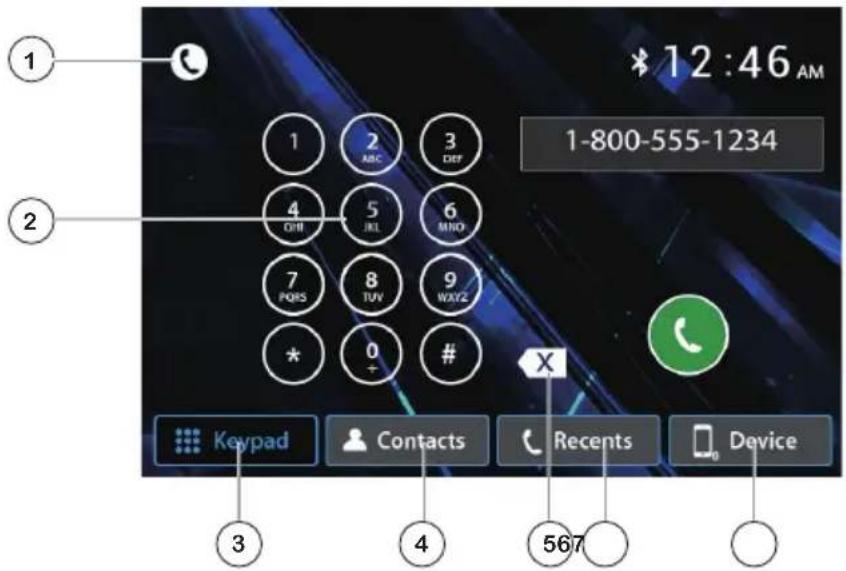

Bluetooth Phone	To access the phone, select Bluetooth Phone from the Main Menu or press the phone icon from any operational mode.
Current Mode / Main Menu1	Displays current mode of operation. Press to return to the Main Menu screen.
Phone Keypad2	Use the phone keypad to dial the desired phone number. Alternately, numbers can be dialed directly from the phone.
Display Keypad3	Press to display phone keypad.
Contacts4	Press to access the contact list.
Backspace5	Press to backspace when typing a phone number.
Recent Calls6	Press to display a list of recent calls.
Devices7	Press to view available devices.

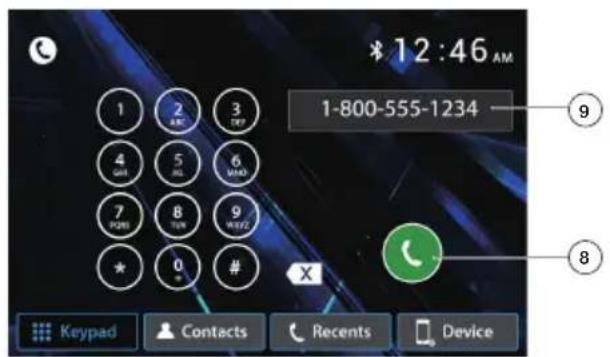

Bluetooth Operation

12:46 AM 1-800-555-1234 9 8 Keypad Contacts Recents Device

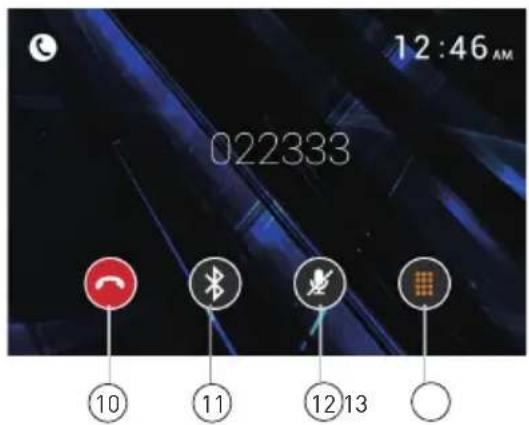

12:46 AM 022333 ⑩ ⑪ ⑫ ⑬

Talk⑧

Phone Number 9

Press to connect a call.

End Call 10

Shows the phone number dialed.

Settings 11

Press to end the current call.

Mute 12

Press to transfer call between the head unit and the mobile phone.

Keypad 13

Press to mute call audio.

Press to display the keypad.

Front 3.5mm Aux Input

Auxiliary Input

Connect an optional audio source into the 3.5mm (front panel) input.

Select auxiliary input from the Main Menu to listen to audio.

Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

Rear Camera Operation - (Optional)

Using Rear Camera

Connect an optional rear camera to the Camera Input (Black RCA connector). Refer to the wiring diagram for details.

Auto Selection

Manual selection - Touch CAMERA icon from the Main Menu or from any operational mode (when enabled) to select camera mode. Touch the top left area on the screen to exit camera mode.

Note: The manual mode is for dedicated cameras that are ALWAYS on while driving, it is not meant for cameras that are connected to the vehicle's reverse light.

The unit will automatically select camera mode when connected to the reverse lamp circuitry.

Note: The external video output is not active when using the rear camera input.

Voice Assistant

Your receiver is designed with an easy access voice activation button to use Siri® or the Google Assistant™ via your car's Bluetooth. Interact with your smartphone assistant while you drive with only the push of a button!

Bluetooth should be paired between your smartphone and the receiver. Press the voice activation button, and the receiver will switch into Bluetooth mode, This will activate Siri® or Google Assistant™ on your smartphone. You will need to manually switch back to the previous or desired mode once this operation is terminated.

SWC Input Operation

The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the XDVD600 to be compatible with any steering wheel controls. The following controls are available for most vehicles.

1. Volume Up (+) 4. Preset (+) 7. Seek/Track Up (+) 10. BT Talk
2. Volume Down (-) 5. Preset (-) 8. Seek/Track Down (-) 11. BT End
3. Mute 6. Mode 9. Band

Note: Not all OE steering wheel functions may be supported by the XDVD600.

PAC SWI-RC Installation Hints

1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".

2. To program, use the Pioneer/Sony/Other radio function mapping order for CDR171 units.

3. When programming the SWI-RC, if a function is not supported (or not desired), then the

function MUST be skipped as per the PAC SWI-RC instructions.

Function Order	Function Mapping	SWI-RC (3.3VDC Reference)
		Center Pin (Ring) Voltage(Function Select)	Tip Pin Voltage
1 Volume + H 5.0v 2.07
2 Volume - H 5.0v 2.32
3 Mute	H 5.0v 1.01
4	Preset +	L 0.0V 1.54
5	Preset -	L 0.0V 1.81
6	Source	H 5.0v 0.60
7	Seek + / Track +	H 5.0v 1.54
8	Seek - / Track -	H 5.0v 1.81
9	Band	H 5.0v 2.73
10	BT Talk	L 0.0V 0.60

Notes

Troubleshooting

Problem Cause	Action
Unit will not turn on (no power)	Yellow wire not connected or incorrect voltage Red wire not connected or incorrect voltage	Check connections for proper voltage (11~16VDC)
	Black wire not connected Check	connection to ground
	Fuse blown Replace fuse
Unit has power (but no sound)	Speaker wires not connected	Check connections at speakers
	One or more speaker wires touching each other or touching chassis ground	Insulate all bare speaker wires from each other and chassis ground
Unit blows fuses	Yellow or red wire touching chassis ground	Check for pinched wire
	Speaker wires touching chassis ground	Check for pinched wire
	Incorrect fuse rating Use fuse	with correct rating
Excessive skipping	Unit is not mounted correctly or backstrap is not secure	Check mounting sleeve and backstrap support
	Physical defect in media (CD, CD-R or CD-RW)	Check media for scratches
ERR FILE appears on display	Disc read error Press ejector RESET
	Focus error or disc is in upside down	Press eject or RESET
NO FILE appears on display	No playable MP3files found on the device	Check the device for valid MP3 files
Unit will not accept a disc	CD mechanism position out of alignment	Press EJECT to reset CD mechanism position
	CD transit screws still in place	Remove 2 transit screws located on top of the unit
NO SUPPORT appears on display	An invalid ID3 tag version is present	Version 1.0 to 2.0 ID3 tags are supported.

Specifications

CD Player

Frequency response: 20Hz-20kHz

Channel separation @ 1kHz: >60dB

D/A converter: 1 Bit

FM Tuner

Tuning range: 87.5MHz-107.9MHz

Usable sensitivity: 8.5dBf

50dB quieting sensitivity: 10dBf

Stereo separation @ 1kHz: >30dB

Frequency response: 30Hz-13kHz

AM Tuner

Tuning range: 530kHz-1710kHz

Usable sensitivity: <42dBu

Frequency response: 30Hz-2.2kHz

General

USB Charge: 1A

Speaker output impedance: 4\~8 ohms

Line output voltage: 4 Volts RMS

Dimensions: 7" x 7" x 2" (178 x 178 x 50 mm)

Design and specifications subject to change without notice.

Amplifier Power Standard CEA- Power Output: 6 CEA-2006 Compliant

CEA-2006 Power Standard Specifications

(reference: 14.4VDC +/- 0.2V, 20Hz\~20kHz)

Power Output: 16 Watts RMS x 4 channels at 4 ohms and < 1%

THD+N

Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)

Limited One Year (Or Two Year\*) Warranty

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Samsung America Inc warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

Samsung America Inc agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period.

Who is covered? This warranty is extended to the original retail purchaser for products purchased from an authorized JENSEN dealer and used in the U.S.A.

What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered: software, installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product. Specific license conditions and copyright notices for the software can be found via www.jensenmobile.com.

Warranty Coverage

Limited 1-year warranty when purchased from an authorized Jensen dealer. or

*Limited 2-year warranty when purchased from and professionally installed by an authorized Jensen dealer.(Proof of purchase and Installation required)

What to do?

1. Before you call for service, check the troubleshooting guide in your owner's manual. A slight adjustment of any custom controls may save you a service call.

2. If you require service during the warranty period, you must carefully pack the product (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.

3. Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.

4. For more information and for the location of the nearest authorized service center please contact us by one of the following methods:

• Call us toll-free at [phone]
• E-mail us at [e-mail]

Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company's negligence, actual or imputed. No person or representative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Circular icon featuring the United States flag design (no text or symbols)

Customer Support

1-888-921-4088

(Monday-Friday, 9AM-5PM EST)

Visit https://www.jensenmobile.com

Designed and Engineered in USA

JENSEN®

All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of NAMSUNG AMERICA INC.
