Product Type	Active Antenna Splitter Kit (2-Way)
Brand	Audio-Technica
Model	ATW-49SP
Frequency Range	440 MHz to 900 MHz
Gain	0 dB typical
Impedance	50 ohms typical
VSWR	< 1.7:1
Number of Outputs per Splitter	2
Connector Type	BNC Female (3 per splitter)
Input Voltage	+5 to +14V DC (from receiver or distribution amplifier)
Current Consumption	30 mA at 12V DC
Pass-Through Current (max)	100 mA
Weight (each splitter)	1.8 oz (51 g)
Dimensions (each splitter)	2.38" W x 1.83" L x 0.92" H (61 x 47 x 23 mm)
Material	6063T52 extruded aluminum (sides), 5052-H32 aluminum (top/bottom)
Finish	Chemical film per MIL C 5541
Included Accessories	Two splitters, four 18" BNC-to-BNC cables, two BNC barrel adapters
Compatibility	Audio-Technica 4000/5000 Series receivers & ATW-A49 antennas; other receivers with BNC and antenna voltage
Power Indicator	LED on each splitter lights when powered correctly
Antenna Power Pass-Through	User-selectable internal switch for preamps/boosters (max 100 mA)
Installation	Connect to antenna inputs of receivers; at least one must provide +12V DC
Cleaning	Wipe with a dry, soft cloth; do not use liquids or solvents
Safety Precautions	Disconnect power before opening; use only specified voltage; avoid moisture
Warranty	One-year limited warranty (U.S.)

Frequently Asked Questions - ATW-49SP Audio-Technica

What is the ATW-49SP Active Antenna Splitter Kit?

The ATW-49SP is a kit containing two 2-way active antenna splitters designed to split an incoming RF signal into two identical outputs. It provides unity gain (0 dB) to compensate for splitting loss and is ideal for feeding multiple wireless receivers from a single antenna.

Which receivers are compatible with the ATW-49SP?

The splitters are designed for use with Audio-Technica 4000 and 5000 Series UHF wireless receivers and ATW-A49 LPDA antennas. They are also suitable for other receivers operating in the 440–900 MHz band with BNC antenna connectors and that provide antenna terminal voltage (5–14V DC).

How is the ATW-49SP powered?

The splitter requires +12V DC from a connected receiver or distribution amplifier (or +5 to +14V DC from any compatible source). At least one antenna input on the receiver or distribution amplifier must supply this voltage. A green LED indicator on the splitter confirms power is applied.

Can I use the ATW-49SP with antennas that need power (e.g., preamps)?

Yes. If your antenna system requires power (e.g., a preamp or booster), you can enable the pass-through feature by opening the splitter and flipping an internal switch. The pass-through current is limited to 100 mA max. The switch is shipped in the 'off' position.

How do I enable the pass-through power for antennas?

First, disconnect the splitter from any power source. Remove the two screws on the access panel, lift the panel, and use tweezers to gently flip the internal switch to the 'on' position. Replace the panel and tighten screws securely. Ensure the connected preamp draws no more than 100 mA.

What do the indicator lights on the splitters mean?

Each Active Antenna Splitter has a small LED light that illuminates when the unit receives proper DC power from a connected receiver or distribution amplifier. If the light does not turn on, check the power source and connections.

What is the frequency range of the ATW-49SP?

The splitter operates across a broadband range from 440 MHz to 900 MHz, covering UHF bands used by many wireless microphone systems. It has a VSWR of less than 1.7:1 within this bandwidth.

How many splitters and cables are included in the kit?

The ATW-49SP kit includes two Active Antenna Splitters, four 18-inch BNC-to-BNC RG 58 coaxial antenna cables, and two BNC male-to-male barrel adapters for direct connection.

What are the dimensions and weight of each splitter?

Each splitter measures 2.38" W x 1.83" L x 0.92" H (61 x 47 x 23 mm) and weighs 1.8 oz (51 g). The enclosure is made of extruded aluminum with a chemical film finish.

Is there a warranty for the ATW-49SP?

Yes. Audio-Technica U.S., Inc. provides a one-year limited warranty covering defects in materials and workmanship. Proof of purchase is required. The warranty does not cover normal wear, abuse, or unauthorized modifications. For details, contact Audio-Technica's Service Department.

USER MANUAL ATW-49SP Audio-Technica

Professional UHF Wireless Systems

ATW-49SP Active Antenna Splitter Kit

Installation and Operation

audio-technica®

The Audio-Technica ATW-49SP Active Antenna Splitter Kit includes two one-input, two-output Active Antenna Splitters designed for use with Audio-Technica 4000 and 5000 Series UHF wireless receivers and ATW-A49 LPDA antennas.* Each Active Antenna Splitter is a broadband device (frequency range from 440 to 900 MHz) that splits an incoming RF signal into two identical outgoing RF signals. One set of Active Antenna Splitters enables one set of antennas to feed wireless receivers of different frequency bands. To compensate for RF signal loss associated with signal splitting, the Active Antenna Splitter provides unity gain: there is no RF signal loss from the original antenna signal.

Each kit includes: two Active Antenna Splitters, four 18" BNC-to-BNC RG 58 coaxial antenna cables, and two BNC-to-BNC barrel adapters.

NOTE: The ATW-49SP Antenna Splitter requires +12V DC power from any Audio-Technica 4000 or 5000 series receiver or +5 to +14V DC from any wireless receiver or antenna distribution system that offers antenna power. At least one of the receiver's or distribution amplifier's antenna terminals must provide this voltage source. A light on each Active Antenna Splitter indicates that power has been correctly applied.

* The ATW-49SP Active Antenna Splitter Kit is also suitable for use with other receivers that are in its specified band, use BNC antenna connectors, and provide antenna terminal voltage; it may also be used with a variety of other antennas from Audio-Technica and other manufacturers.

HOW TO INSTALL THE ATW-49SP ACTIVE ANTENNA SPLITTERS

1. Connect one 18" BNC-to-BNC RG 58 coaxial antenna cable (four supplied) to an OUT connector on one Active Antenna Splitter (two supplied). Connect the other end of this cable to the ANTENNA A input on either a receiver or distribution amplifier, as shown in Figure 1. NOTE: A BNC male-to-male barrel adapter (two supplied) may be used in place of this cable, for convenience.
2. Use a second 18" BNC-to-BNC RG 58 coaxial antenna cable to connect the opposite OUT connector on the Active Antenna Splitter to the ANTENNA A input of a second receiver or distribution amplifier.

NOTE: At least one of the receiver's (or distribution amplifier's) antenna input terminals must provide +12V DC to power the splitter box.

1. Repeat steps 1 and 2 for the ANTENNA B inputs, using the second Active Antenna Splitter.

2. Use coaxial antenna cables (not included) to connect the IN connector on each Active Antenna Splitter to a UHF antenna, as shown in Figure 1.

3. NOTE: ATW-A49 antennas do not require power. If you are using ATW-A49 antennas, skip Step 5. If you have an antenna system that requires power (such as an antenna preamp or booster) you must open the ATW-49SP Active Antenna Splitter assembly and activate a switch on the circuit board. (This enables the splitter to pass power through to the antenna.) Current consumption of the preamp or booster should not exceed 100 mA.

The unit is shipped with the switch in the "off" position. To flip the switch to the "on" position, first be certain the splitter is not attached to any power source. Next, use a Phillips screwdriver to remove the two screws on the Active Antenna Splitter's access panel; remove the access panel; use tweezers to flip the switch gently into the "on" position. Finally, replace the access panel and securely tighten the two screws. (See Figure 2.)

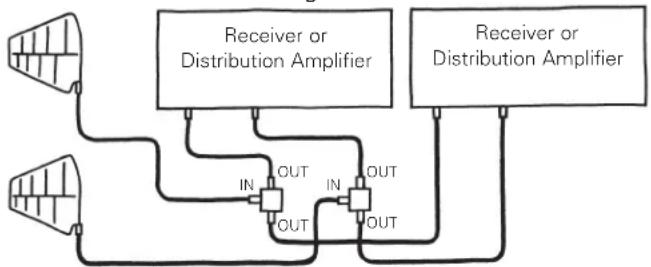

Figure 1

Figure 2

Active Antenna Splitter with access panel removed.

SPECIFICATIONS ^† FOR ATW-49SP

DESCRIPTION 2-Way Active Antenna Splitter
BANDWIDTH 440 MHz to 900 MHz
VSWR < 1.7:1(within specified bandwidth)
GAIN 0 dB typical (within specified bandwidth)
IMPEDANCE 50 ohms typical (within specified bandwidth)
TERMINATION TYPE 3-BNC Female
WEIGHT 1.8 oz. (51 g)
DIMENSIONS	2.38" (61 mm) W x 1.83" (47 mm) L x 0.92" (23 mm) H
DC INPUT	5-14V DC
CURRENT	30 mA @ 12V DC
FINISH ON ENCLOSURE	Chemical film per MIL C 5541
MATERIAL	6063T52 extruded aluminum (sides) 5052-H32 aluminum (top and bottom)
PASS-THROUGH CURRENT	100 mA

*Specifications are subject to change without notice.

One-Year Limited Warranty

Audio-Technica brand products purchased in the U.S.A. are warranted for one year from date of purchase by Audio-Technica U.S., Inc. (A.T.U.S.) to be free of defects in materials and workmanship. In event of such defect, product will be repaired promptly without charge or, at our option, replaced with a new product of equal or superior value if delivered to A.T.U.S. or an Authorized Service Center, prepaid, together with the sales slip or other proof of purchase date. Prior approval from A.T.U.S. is required for return. This warranty excludes defects due to normal wear, abuse, shipping damage, or failure to use product in accordance with instructions. This warranty is void in the event of unauthorized repair or modification, or removal or defacing of the product labeling.

For return approval and shipping information, contact the Service Dept., Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224.

Except to the extent precluded by applicable state law, A.T.U.S. will have no liability for any consequential, incidental, or special damages; any warranty of merchantability or fitness for particular purpose expires when this warranty expires.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

Outside the U.S.A., please contact your local dealer for warranty details.
