USER MANUAL Rollover Grotime

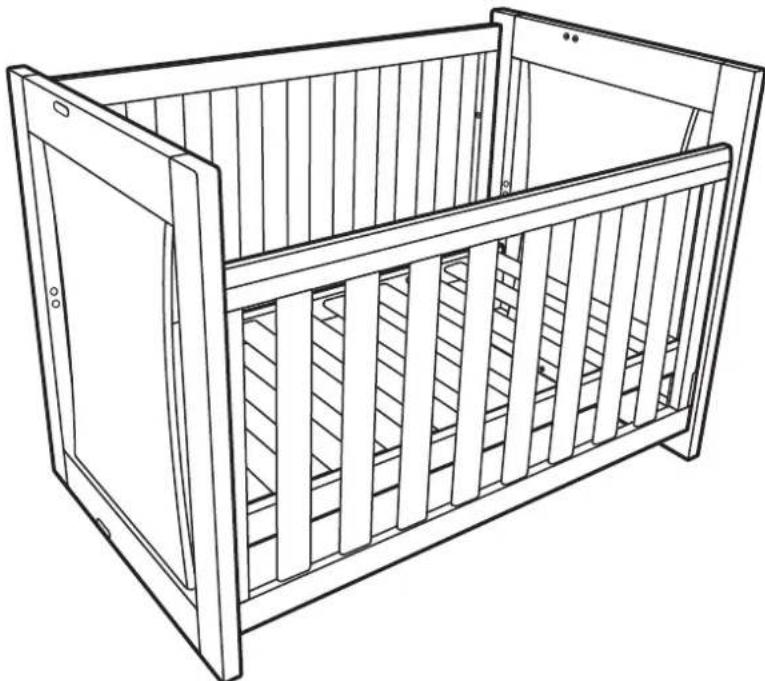

5 in 1 cot to full size single bed

This product is covered by a number of registered designs, trademarks and patents pending

Line drawing of a baby crib with wooden frame and vertical slats (no text or symbols)

! Two adults required to assemble this cot.

The manufacturer's assembly instructions must be followed in detail to ensure the safety features to the cot are not compromised.

HARDWARE INVENTORY

PRE-INSTALLED HARDWARE

Gro-Time

Oval Badges x 4 pcs with 40mm Bolts x 8 pcs

Technical line drawing of a screw with a hexagonal nut (no text or symbols)

Locking Bolts

PARTS LIST

Pure diagram of vertical bars with no text, numbers, or symbols

1 x Fixed Side PA

Simple line drawing of a rectangular frame with a curved top and two corner holes (no text or symbols)

2 x End Panels PB

Simple line drawing of a fence with vertical slats and horizontal supports (no text or symbols)

1 x Drop Side PC

Pure vertical bar structure with no text, numbers, or symbols

1 x Cot Base PD

4 x BILATERAIL Base Rails PE

11 x Single Bed Slats PF

2 x BILATERAIL™ Base Bracketss PG

STEP 1

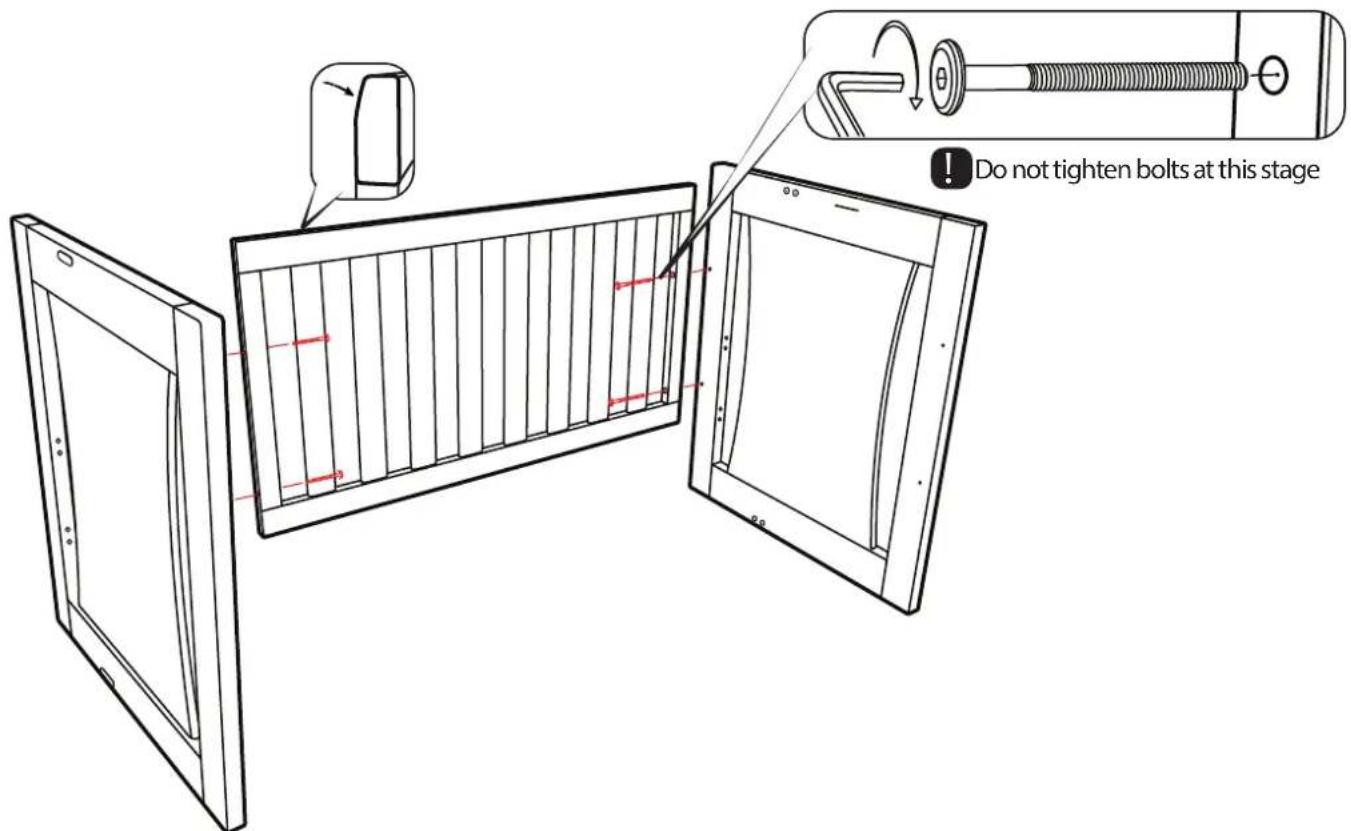

ASSEMBLE FIXED SIDE TO ENDS

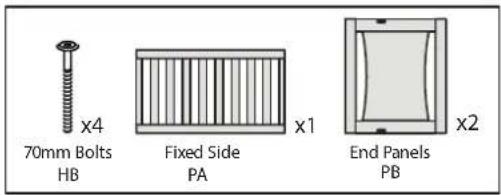

70mm Bolts HB x4 Fixed Side PA x1 End Panels PB x2

Do not tighten bolts at this stage

STEP 2

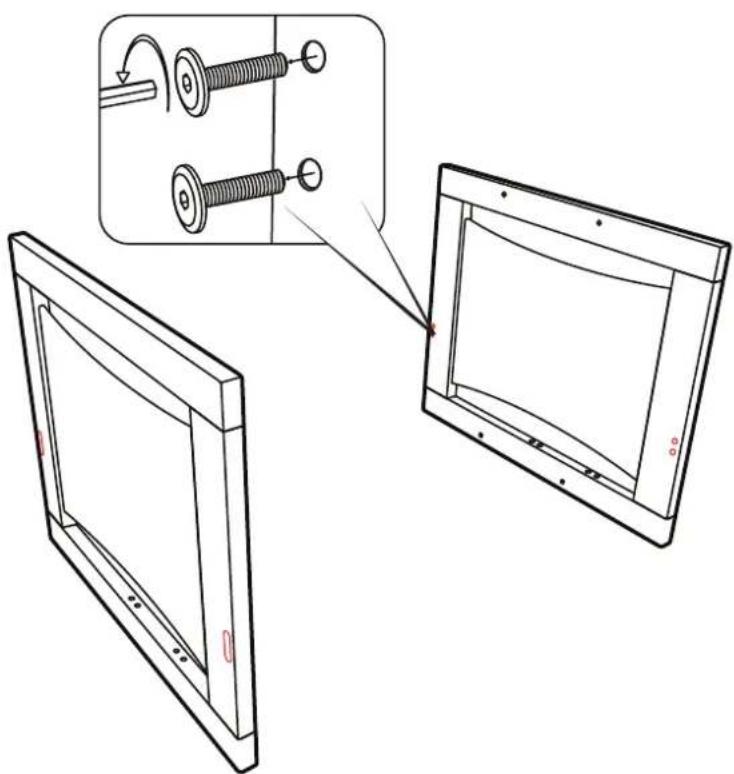

FIX FOUR CAMDOCK™ BASE PLATES\*

*Patent pending

x8 16mm Bolts HA CAMDOCK™ Base Plates HF x4

Chose high or low position for mattress base HIGH Bassinet level LOW Toddler level Do not tighten bolts at this stage

STEP 3

PLUG FINGER ENTRAPMENTS

GER ENTRAPMENTS x8 16mm Bolts HA

STEP 4

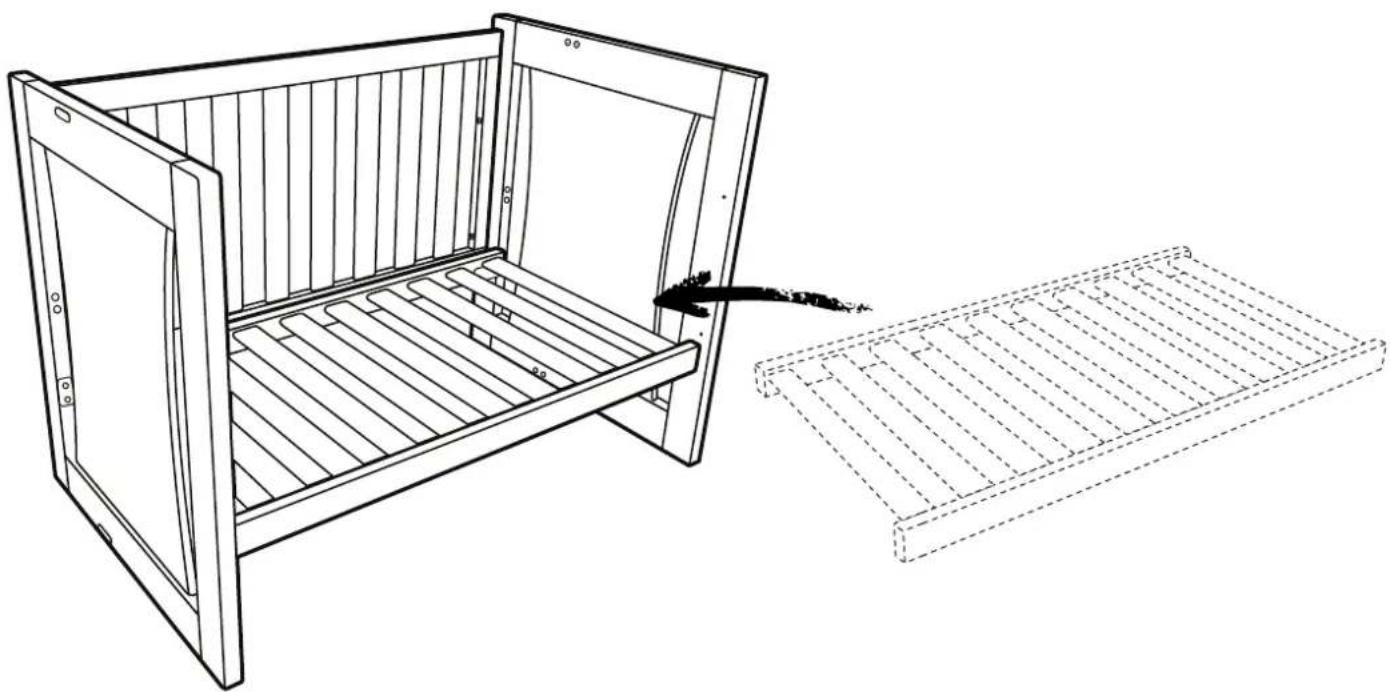

PLACE COT BASE ON TOP OF BASE PLATES

1 x Cot Base PD

Line drawing of a baby crib with an open drawer and a separate empty tray (no text or symbols)

STEP 5

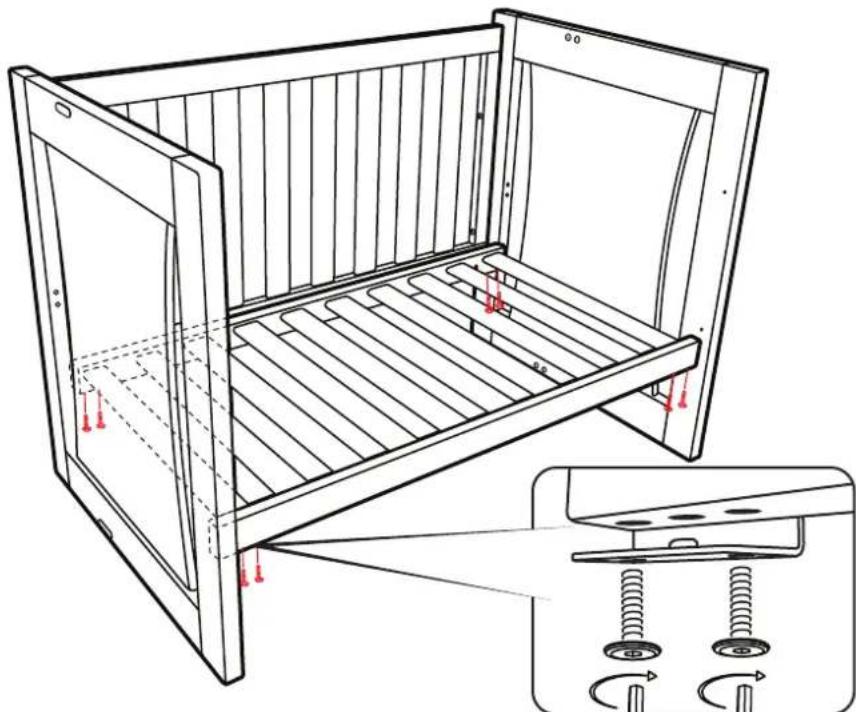

ASSEMBLE COT BASE

Technical line drawing of a refrigerator with internal compartments and mounting fixtures (no text or symbols)

! Do not tighten bolts at this stage

STEP 6

SCREW FOUR GUIDE PINS INTO ENDS FIRMLY

Guide Pins HC Screw Driver

X4 Guide Pins HC Screw Driver

STEP 7 ASSEMBLE DROP SIDE

Align two access holes in the built-in runner with the guide pins on one end. Now repeat on other end.

GRO TIME Now repeat on other end.

! Ensure correct side is facing out.

STEP 8 FULLY SCREW IN LOCKING BOLTS

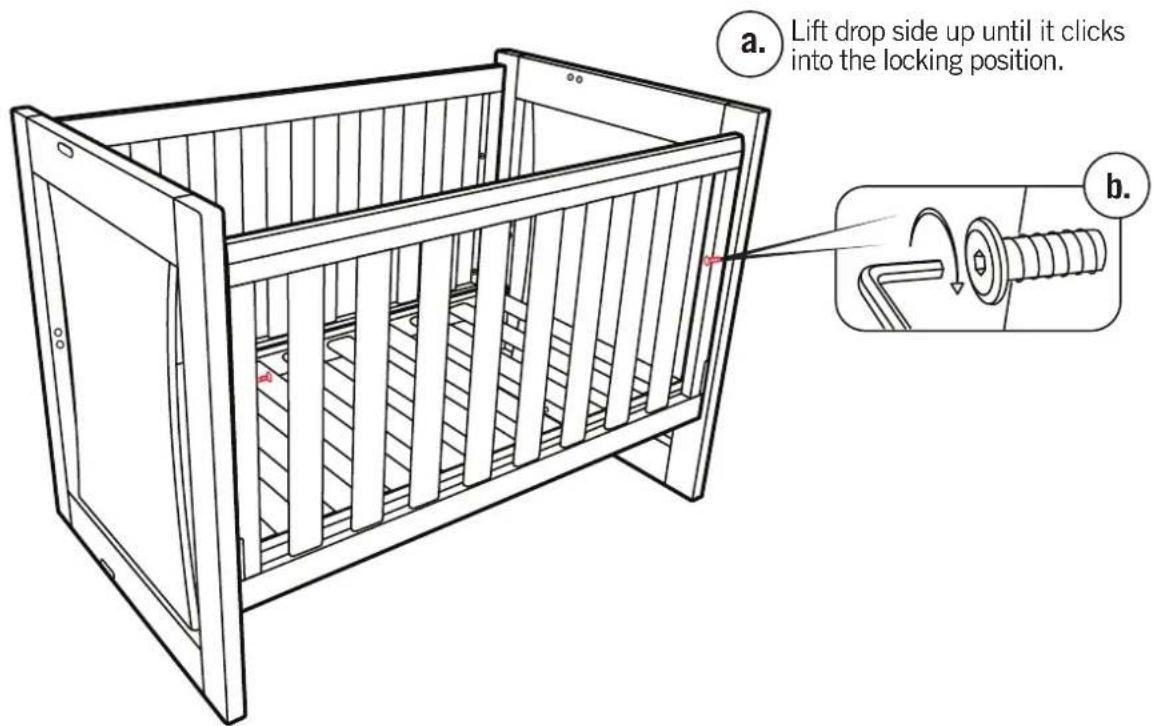

a. Lift drop side up until it clicks into the locking position. b.

STEP 9 TIGHTEN ALL BOLTS

Diagram of a door handle mechanism showing rotational motion and adjustment (no text or symbols)

STEP 10 OPERATION

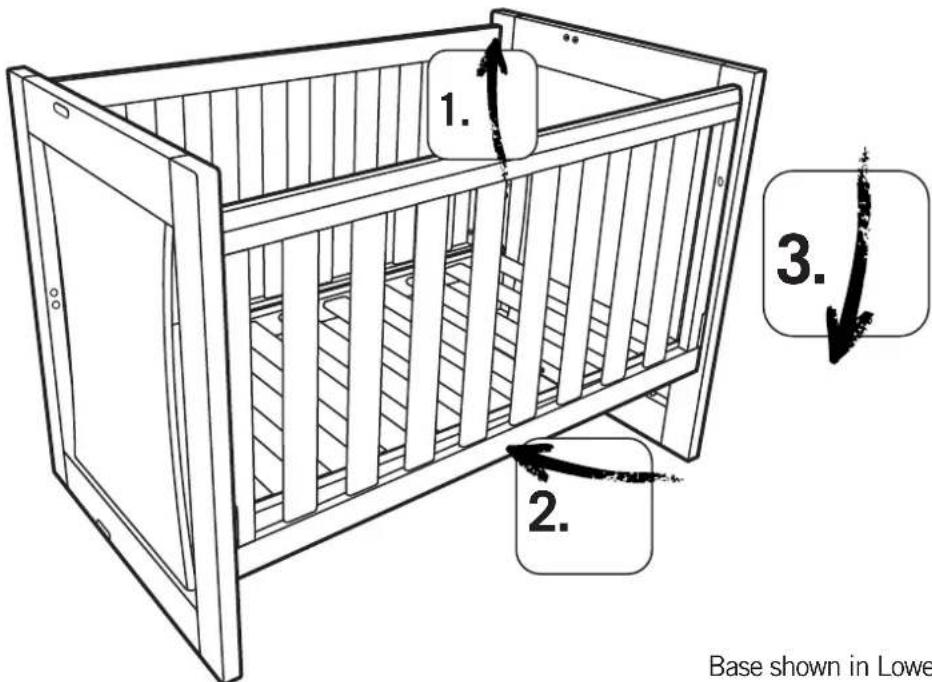

To lower drop side, lift from centre of top rail, hold side in that position while using your leg to push inward on centre of bottom rail. Then allow to slide gently down.

1. 2. 3. Base shown in Lowe

Base shown in Lower Position.

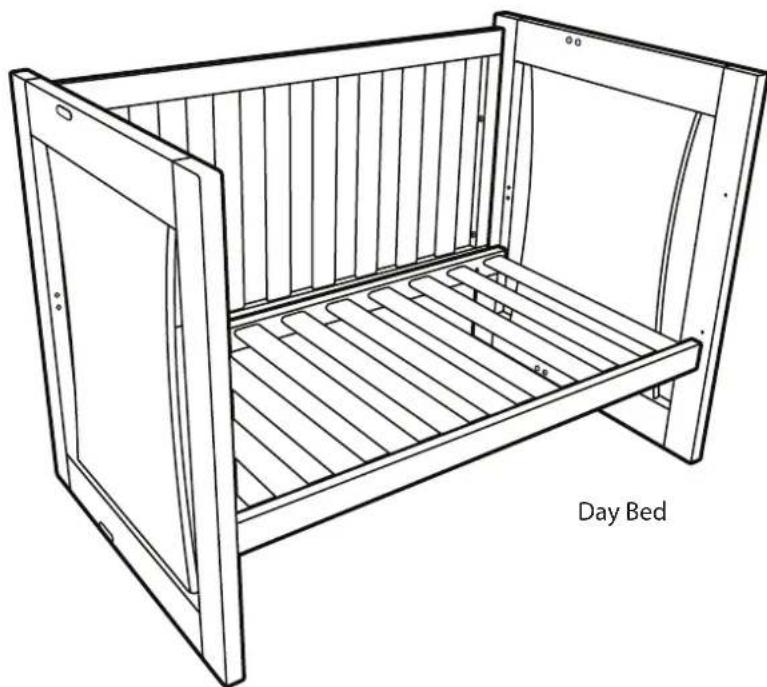

DAY BED CONVERSION

Remove dropside by reversing to step 5.

Remove dropside guide pins (HC) from the ends to prevent injury.

Line drawing of a baby crib with open door and horizontal slats, labeled 'Day Bed' (no other text or symbols)

COT BED CONVERSION

a. Remove dropside by reversing to step 5.

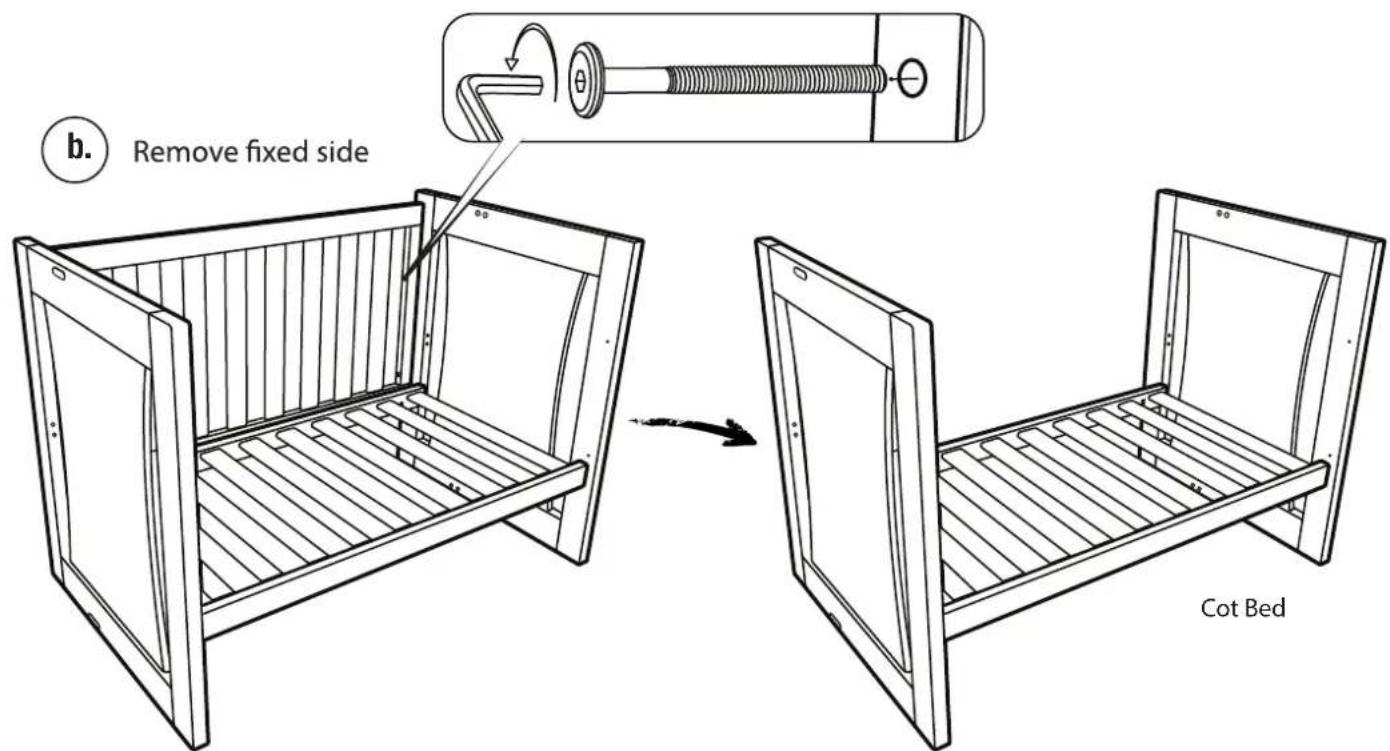

b. Remove fixed side Cot Bed

FULL SIZE SINGLE BED CONVERSION

Rollover action Patent Pending

STEP 1
a. Disassemble the cot following the assemble instructions in reverse order.

STEP 2

REMOVE FOUR GROTIME BADGES

Technical diagram showing assembly of two computer monitors with spring bolts and a close-up view of the main components.

STEP 3

ASSEMBLE BILATERALBED RAILS

Patent pending

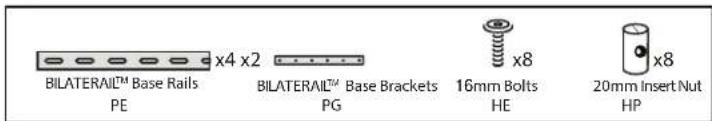

BILATERAIL™ Base Rails PE x4 x2 BILATERAIL™ Base Brackets PG 16mm Bolts HE x8 20mm Insert Nut HP x8

Place insert sleeves into base rail. (2 at each end of rail) Align insert sleeve so the slot is facing out

STEP 4

ASSEMBLE SINGLE BED BASE

Lay one side rail down then slot all slats into the mortises. Place the second side rail on top. Working from one end slot all stats into the mortises.

Ensure the slat with the warning labels is correctly positioned in the middle and the "this way down" lable is facing down as directed by the warning lable on the rails.

down then slot all slats into the mortises. side rail on top. end slot all stats into the mortises. with the warning labels is correctly positioned and the "this way down" lable is directed by the the rails. 1. 2. 3.

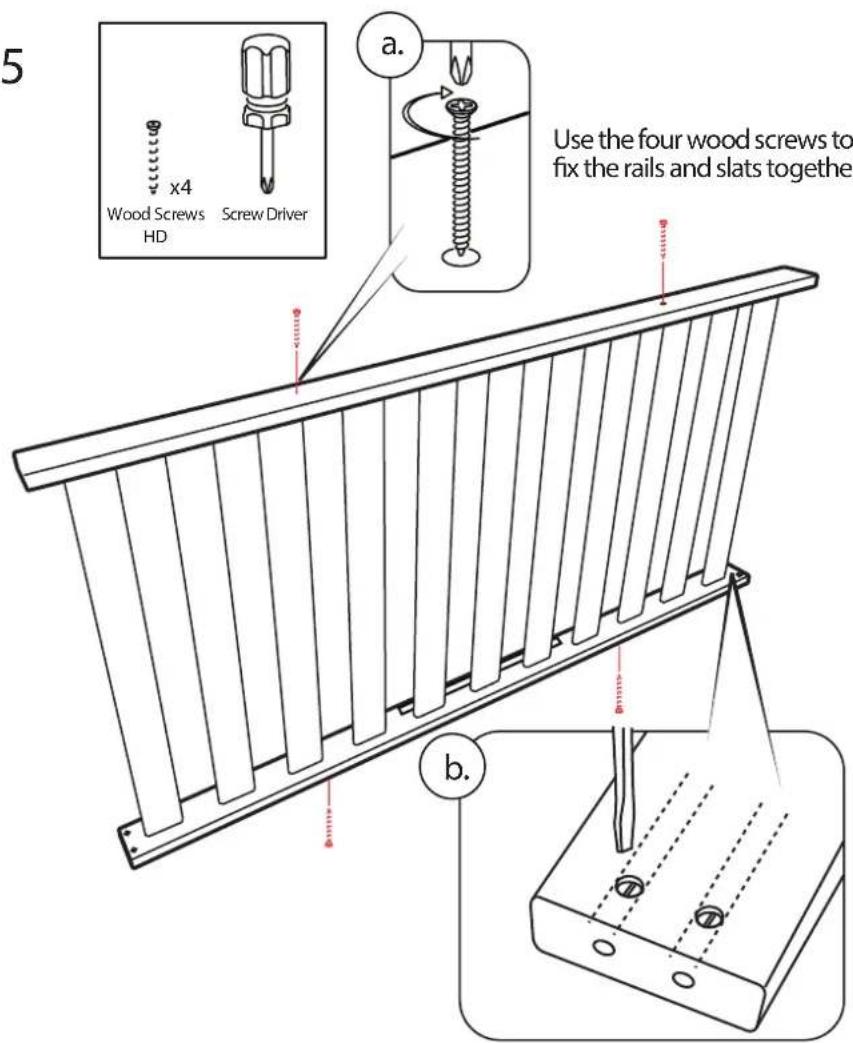

Use the four wood screws to fix the rails and slats together.

x4 Wood Screws Screw Driver HD

STEP 5

5 x4 Wood Screws HD Screw Driver a. Use the four wood screws to fix the rails and slats together b.

Adjust insert nut cbckwise/anticlockwise so that threaded holes in insert nut align with bolt holes in end of base rail

STEP 6

ASSEMBLE SINGLE BED BASE BETWEEN TWO ENDS

a. b. TIGHTEN ALL BOLTS Your single bed is now co

Your single bed is now complete.

MAINTENANCE

Check your cot regularly. Retighten all bolts. For after sales service contact Grotime Service Australia on

1300 799 912; or New Zealand on 0508 476 932;

RECOMMENDED MATTRESS SIZE

This cot has been manufactured for use with a mattress which measures 760mm in width and 1300mm in length and 130mm in thickness. The width and length are specified because it is important that the gaps between the mattress and the sides and ends of the cot will not exceed 40mm. This is to minimise the risk of the child's limb becoming caught in the gap. The thickness of the mattress has been specified to ensure that the depth of the cot is greater than 500mm with the mattress base in the lowest position to minimise the risk of a child climbing or falling out of the cot.
