USER MANUAL SL906EM-L 520 SIRIUS

Congratulations on your purchase! Thank you for choosing a Sirius product.

SL906 OFFBOARD series

UNDERMOUNT RANGEHOOD INSTALLATION INSTRUCTIONS

SL906EM-L 520

EAN #9351116000646

SL906EM-L 850

EAN #9351116000691

SL906EM-L 1000

EAN #9351116000769

SL906EM-L 1200

EAN #9351116000790

BEFORE YOU INSTALL 4

INSTALLING THE RANGEHOOD 6

OPERATION 8

MAINTENANCE 8

REPLACING THE LED STRIP 9

WIRING DIAGRAM 10

WARRANTY 11

BEFORE YOU INSTALL - DUCTING INFORMATION

Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as flexible ducting, Sirius will only warrant the rangehood and motor. If installation is found to be the cause of failure or issue then charges will apply for service and parts.

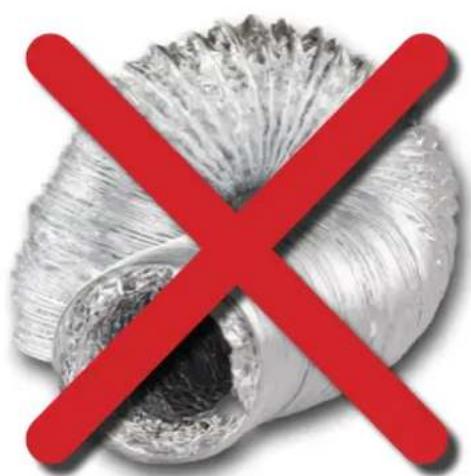

Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a range available to suit any application.

WARNING

The appliance must be installed and connected to the power supply only by a qualified technician.

• There should be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Ducting available at www.siriusbrand.com

6 Year Warranty when Sirius Ducting is used. Full replacement warranty on parts and labour.

See website for terms & conditions.

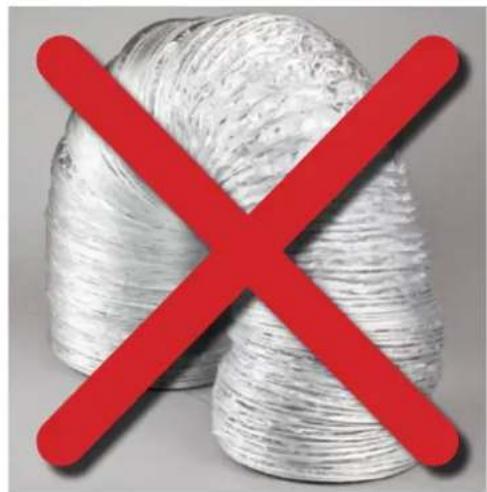

A reduction in the duct diameter from stated ducting size will void warranty.

If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation

Cross-shaped red prohibition symbol over a composite image of rolled paper or plastic (no text or symbols)

Red X symbol crossed over a coiled white textile, no text or symbols present

Symbol of a trash bin crossed with a horizontal line and a black rectangle below (no text or numbers present)

The symbol on the product or on its packaging indicates that this product may not be treated as house-hold waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. This appliance is marked according to the European directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

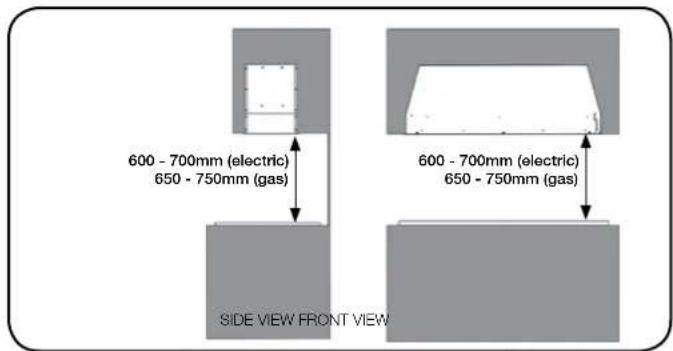

Min. 600mm - Max. 700mm for electric cooktops. Min. 650mm - Max. 750mm gas cooktops.

If the rangehood is positioned above the max height recommended, warranty may be compromised as performance of the rangehood will be affected. Measurement is taken from the top of the trivets to the underside of the hood. (Fig.1)

(Fig. 1)

• The air being drawn can't be conveyed through or into a duct used to let out fumes from appliances fed by energy other than electric power (eg. centralized heating, radiators, water heaters, etc.).
• Attention: remove any possible PVC film from the stainless steel, including the filters.
• To externally vent, please comply with the pertaining rules given by competent authorities.
• Provide the room with an adequate ventilation when a rangehood and appliances fed by energy other than electric power (gas, oil, or coal stoves, etc.) are used simultaneously. The rangehood, when evacuating the air, could generate a negative pressure in the room which can't exceed the limit of 0.04 mbar, in order to avoid the suck of exhausts deriving from the heat source. Therefore the room should be provided with air intakes to allow a constant flow of fresh air.

If the rating label in the rangehood shows the symbol ☐, the appliance is built in class II° and it does not need any earth connection.

If the rating label in the rangehood does not show the symbol ☐, the appliance is built in class I° and it needs the earth connection.

When performing the electrical connections on the appliance, please make sure that the current-tap is provided with earth connection and that voltage values correspond to those indicated on the label placed inside the appliance itself.

Before carrying out any cleaning or maintaining operations, the appliance needs to be switched off. If the appliance is not provided with a non-separable flexible cable and plug, or with another device ensuring omnipolar disconnections from the grid, with an opening distance between the contacts of at least 3mm, then such disconnecting devices must be supplied within the fixed installation.

If the fixed appliance is endowed with a supply cord and a plug, the appliance has to be put in a place where the plug can be reached easily.

The use of materials which can burst into flames should be avoided in close proximity of the appliance. When frying, please pay particular attention to fire risk due to oil grease. Being highly flammable, fried oil is especially dangerous. Do not use uncovered electric grills. In order to avoid possible fire risk, all instructions for grease-filter cleaning and for removing eventual grease deposits should be strictly followed.

When ducting rangehood, options are as follows:

- NOTE: For SEM 1: From motor to exit point, additional lengths of duct will be required from the rangehood to the SEM 1 motor.

Roof vent - EASYROOF 150T/M EASYROOF 200T/M

*Kit includes roof flashing

Download installation guide

Eave vent - EASYEAVE 150/200

Download installation guide

Wall vent - EASYWALL 150/200

Download installation guide

Ducting kits are not needed for SEM 2 motors as not all components are required.

Individual Sirius Ducting components can be purchased at www.siriusbrand.com.au or one of our retail partners.

MOTOR INSTALLATION GUIDES

SEM 1, 2, 7, 8 MOTOR

Download installation guide

SEM 5 MOTOR

Download installation guide

Rangehood and SEM motor cannot be installed back-to-back. There must be a minimum of 2 metres between rangehood and motor for noise reduction reasons.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

SL906-L series INSTALLATION - OFFBOARD

NOTE

Before installing the appliance, make sure that none of the parts are damaged in any way. In case of damaged parts, contact your retailer and do not proceed with installation. Read all of the following instructions with care before installing the appliance.

• Use ducting within the min/max specifications
• Limit the number of ducting bends.
• Do not make any changes in ducting diameter (recommended constant diameter: ∅ 150 mm

Before installing the appliance - in order not to damage the appliance itself - the metal grease filter should be removed. These filters could be removed by pushing the handles towards the back side of the rangehood and pulling it downwards to unfasten it from its slot. (Fig.2).

3D rendering of a red and white industrial machine with internal vertical slats and mounting brackets (no text or symbols visible)

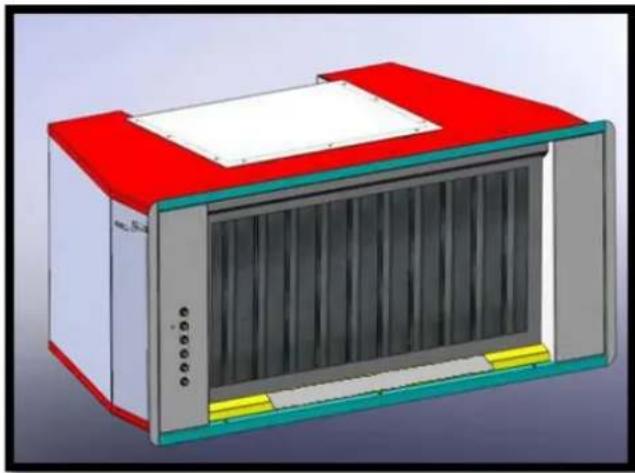

(Fig.2a)

3D rendering of a red and white industrial machine with internal cooling fins and ventilation slots (no text or symbols visible)

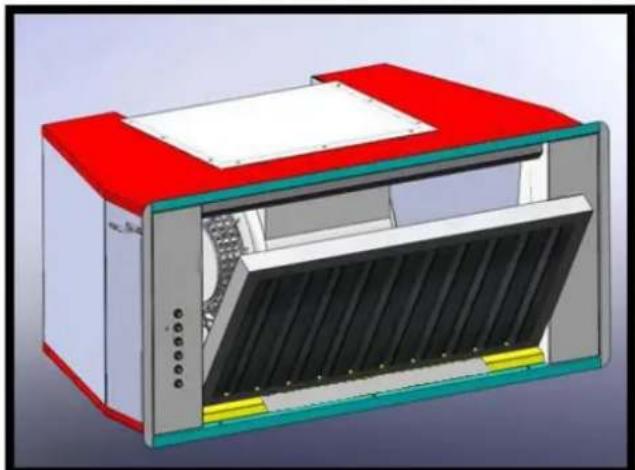

(Fig.2b)

To install the appliance please follow these instructions:

• The appliance must be installed by qualified technicians, or where possible use a Sirius recommended installer (see website for details). In order to avoid damage to the electronic parts of the appliance, please do not use additional screws.
• Essential precautions to respect before installing the appliance are the following:

To have made a cutout on the bottom of the cabinet which is suitable to hold the appliance in position (fig. 3):

SL906 EM-L 520 - 501 x 265mm

SL906 EM-L 850 - 835 x 265mm

SL906 EM-L 1000 - 985 x 265mm

SL906 EM-L 1200 - 1100 x 265mm

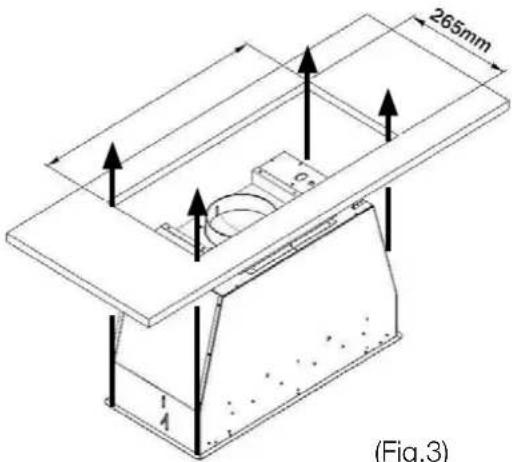

(Fig.3)

1. Prepare the power supply - 240 volt.
2. Prepare a hole for the ducting - 160 mm diameter.
3. Maximum length of ducting should not exceed 7 metres to motor - minimum 2 metres.
4. (SEM 1) Additional 5 metres from motor to atmosphere.
5. Do not use screws to fix the outlet pipe to the rangehoods as they will prevent the movement of non-return valves.
6. Limit the number of elbows in the ducting, since each elbow reduces the duct efficiency by 1 metre. (i.e. if you use two 90^ elbows, the length of ducting must not exceed 5 metres.)
7. Avoid abrupt direction changes.
8. Use 150mm constant diameter ducting for the whole length.
9. The use of Sirius ducting will increase the warranty of the unit to 6 years.

Download motor installation manual at www.siriusbrand.com for SEM 1, 2, or 5

WARNING

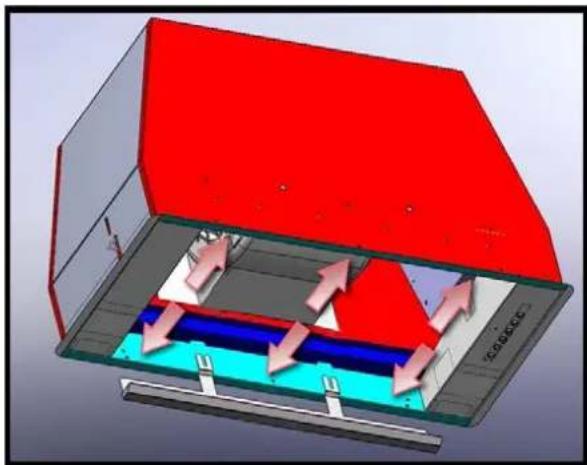

The rangehood is quite heavy, so two people will be needed for installation.

1. To install the appliance, adjust the position of the adjustable side-springs using the supplied screws (fig.4), according to the thickness of the board, in which the appliance will be fixed.

1. Insert the rangehood into the cutout made in the cabinet until the stop click of the side-springs is heard and the rangehood is supported.

2. Insert the 15mm screws provided into the holes inside the rangehood (Fig.5) to fix it to cabinetry.

3D diagram of a red-roofed structure with internal blue and cyan layers, showing airflow or heat transfer (no text or symbols)

1. Insert the grease channel.

(Fig.5)

1. Insert the grease filter (Fig.2b)

OPERATION

SL906-L series

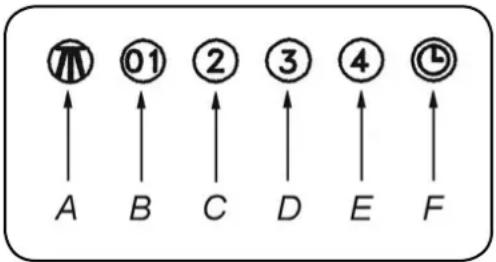

A: Light switch on/off
B: Motor switch on speed 1/off - (low/simmer)
C: Motor switch on speed 2 - (general cooking)
D: Motor switch on speed 3 - (high power)
E: Motor switch on speed 4 - (booster)
F: 10 minute shut-off timer

MAINTENANCE

• Accurate maintenance guarantees good functioning and long-lasting performance.
• Particular care is due to the grease filter panel. It can be removed by pushing its handle toward the back side of the rangehood and pulling the filter downwards so to unfasten it from its slot (Fig.2). To insert the filter just perform the opposite operation.

- After 30 hours of operation, the button control panel will flash, signaling the filters are due for cleaning. Press the timer button ⏻ to reset. The grease filter needs cleaning by regular handwashing or in dishwashers every two months at least, depending on its use.

- Filters may require cleaning sooner if frequent heavy frying is done.

- To clean the appliance itself, water and detergent are recommended, while abrasive products should be avoided. For steel appliances specialized detergents are recommended (please follow the instructions indicated on the product itself to obtain the desired results).

WARNING

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

REPLACING THE LED STRIP ON THE SL906-L

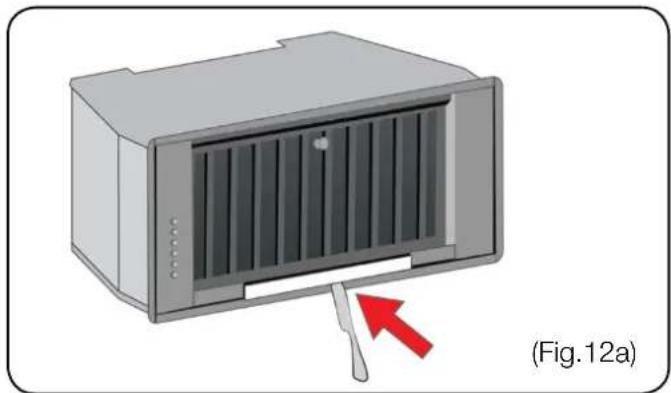

1. Before replacing the LED light, switch off the rangehood, then - by using appropriate tools - remove the LED light from its slot. (Fig 12a - b)

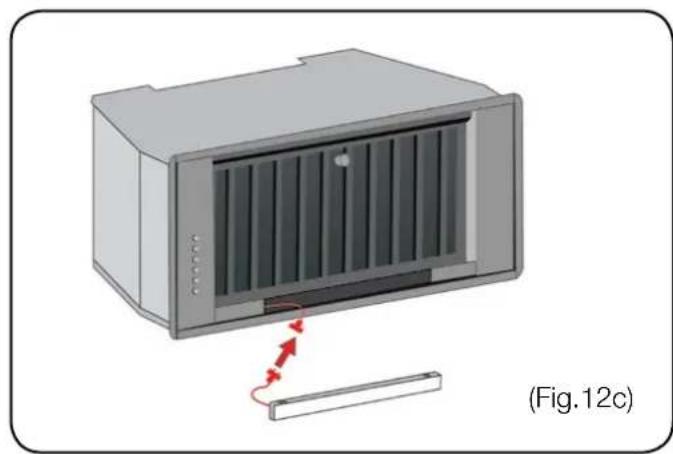

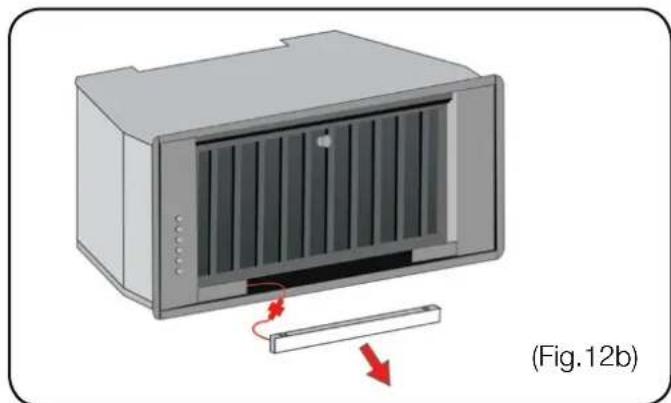

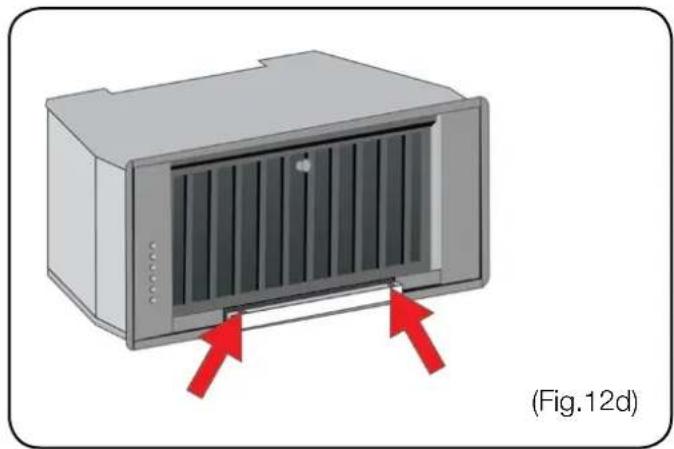

2. Take out the LED light from its connector and replace. (Fig 12c - d)
3. To find the correct LED light, please contact Sirius directly on our toll-free number: 1300 762 216.
4. NB: light is easier to remove from the centre of LED strip. Use a small, flathead screwdriver, pallette knife or blunt butter knife.

Diagram of a computer monitor with ventilation slots and a red arrow pointing to the speaker (no text or symbols on the device itself)

Diagram of a server rack unit with red arrows pointing to its side panel (no text or symbols present)

Diagram of a server rack with ventilation slots and a cable, showing red directional arrows indicating movement (no text or symbols)

Diagram of a server rack with ventilation slots and a cable, showing no text or symbols

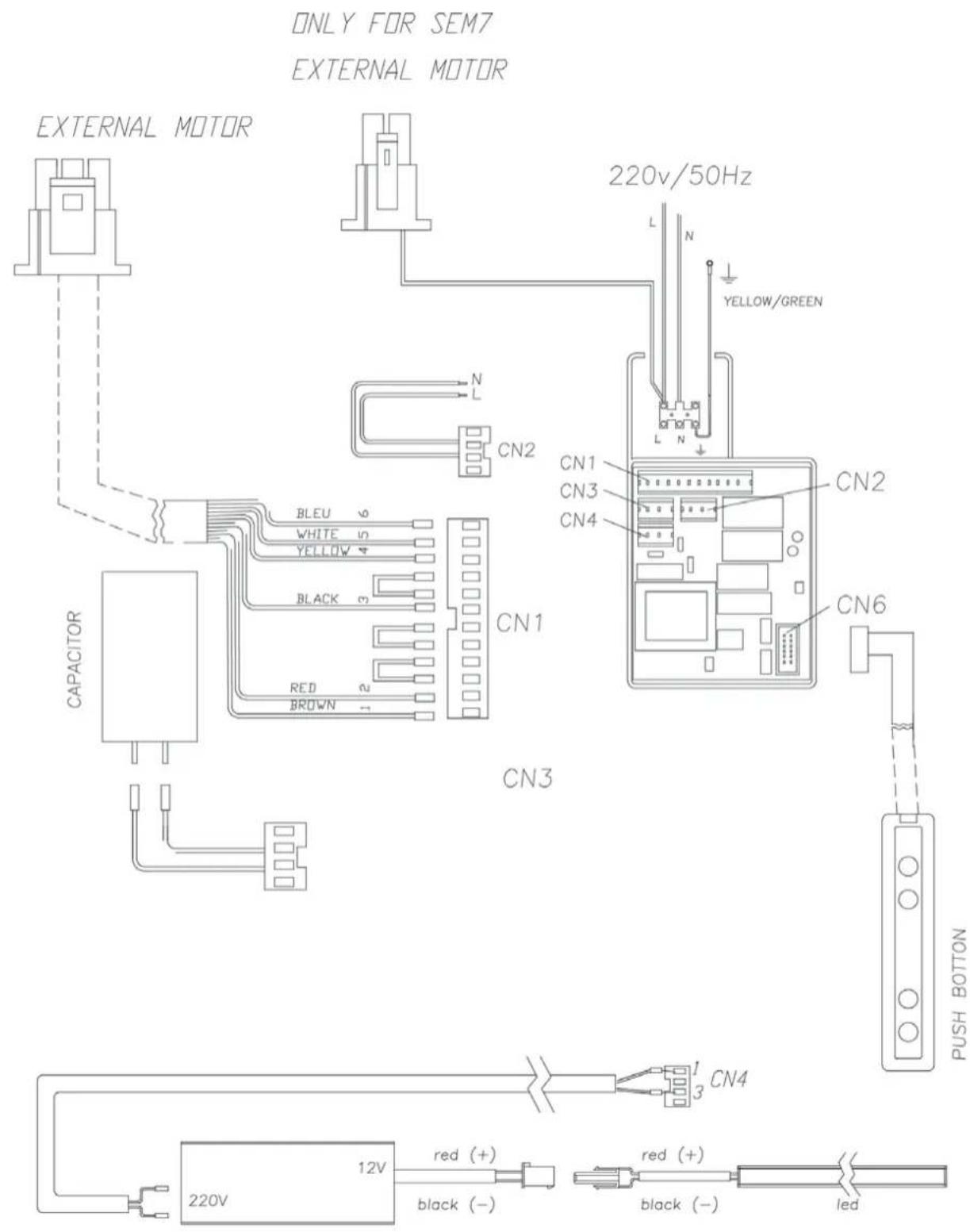

WIRING DIAGRAM SL906 EM-L

Dear Customer,

Thank you for choosing this Sirius Rangehood.

We are sure that it will provide you with many years of excellent service. At Arisit Pty Limited we are dedicated to ensuring that our customers receive the best possible after-sales care.

The Sirius ‘Protection Plan’ has been devised to give you added peace of mind. Should you encounter any problems with your appliance, our nationwide team of specially trained technicians will deal with your call swiftly and efficiently.

PRIORITY SERVICE, ACCESSORIES & SPARE PARTS

AUSTRALIA

ARISIT PTY LIMITED

40-50 Mark Anthony Drive, Dandenong South,

VIC 3175, Australia

Phone: [phone]

Email: [e-mail]

NEW ZEALAND

ARISIT PTY LIMITED

1A Howe Street, Newton,

Auckland 1145, New Zealand

Phone: [phone]

Email: [e-mail]

Warranty

By registering your ownership NOW, you qualify for Sirius's Total Peace of Mind Protection Plan.

Australian & New Zealand 3 / 6 Year Protection Plan*

This guarantees your appliance for a full 3 years parts and labour & 10 years for the off-board motors (covering manufacturing defects only) from the date of purchase, subject to the Terms and Conditions overleaf.

*3 Year warranty is extended to a 6 year period only when Sirius ducting is installed.

Your Warranty

Register now to qualify.

Terms & Conditions

These Terms and Conditions apply only to Sirius products distributed in Australia and New Zealand by Arisit Pty Limited.

1. This warranty applies for a period of 3 years on all products.
   a) Warranty is extended to a 6 year period when Sirius ducting is installed.
   b) All off-board motors are covered under warranty for a 10 year period for manufacturing defects only.
2. Warranty applies for parts and labour in Australia and New Zealand, commencing from date of purchase.
3. This warranty applies only to the original purchaser/hire purchaser of this appliance and cannot be assigned or transferred. Failure to produce documentary proof of the date of original acquisition by the original purchaser will result in a charge being levied for work done, labour and parts supplied.
4. This warranty does not apply to:
   a) Consumable items such as filters, fuses, and light bulbs.
   b) Damage to body work, paint work, glass, and plastic items (such as, but not limited to windows, covers, baskets, trays, worktops, door handles, control and kick panels.)
   c) Corrosion & rust damage.

A fee may be charged following warranty claims where no fault is found with the appliance.

1. This warranty will not apply where:
   a) The fault is caused by accident, misuse, an infestation of insect and or vermin, fire, flood or the use of products not approved by Arisit Pty Limited.
   b) There has been a failure to comply with the manufacturer's operating and installation instructions.
   c) Service, modification or repair has been carried out by anybody other than an approved Arisit Service Technician.
   d) The appliance has been used/installed anywhere other than a private dwelling, or where it has been used other than for domestic use.
   e) The appliance is subject to a rental agreement.

2. Any defective part that has been replaced becomes the property of Arisit Pty. Limited.

3. This warranty applies only to Sirius appliances purchased and installed in Australia and New Zealand.

4. Loss of use of the appliance or consequential loss of any nature is not covered.

5. A charge may be levied at the discretion of Arisit Pty Limited if the call is deemed unnecessary or if the cause of failure is traced to external sourced such as, but not limited to: blown fused, power failure, faulty installation, customer misuse or negligence, etc

6. Where the appliance, the subject of a warranty claim or repair, is used or installed more than TWENTY (20) kilometres from the nearest Arisit Service Division or Authorised Service Agent, the cost of delivery to the nearest Service

Division or travel costs for a technician or Authorised Service Agent shall be for the account of the Purchaser. Where a built-in appliance is located or installed outside the Arisit Authorised Service Agent's normal service area, additional travel and labour costs shall be the account of the Purchaser.

1. Service is offered during normal business hours only, also appliances to have a clear access in a serviceable area

2. Arisit Pty Limited shall not under any circumstances be responsible in terms of this warranty for the replacement or repair of any part of the equipment which may have been damaged in transit, during and after installation or imperfections after installation.

3. Losses caused by act of God, failure to obtain spare parts, strikes or lockouts are not covered.

4. External off board motors must be installed a minimum of 2 metres and maximum of 7 metres away from the rangehood. This is for optimum sound and performance.

5. All motors must be accessible for servicing purposes and if installed above 2 metres from ground height additional cost will be incurred due to OH&S standards for service agents. Prior to install please check minimum & maximum installation details on the Sirius website, FAQ under support tab.

We reserve the right to amend any of the above without prior notice.

1. This warranty does not affect your statutory rights.

To register for your warranty, please visit:

www.arisitwarranties.com.au/Customer-Registration.aspx or scan the QR code.

ARISIT PTY LIMITED (Australia)

ABN 23 091 616 294

40-50 Mark Anthony Drive

Dandenong South VIC 3175

P: Sales & Service: 1300 762 219

F: Sales & Service: [phone]

E: [e-mail]

ARISIT PTY LIMITED (New Zealand)

1A Howe Street Newton, Auckland 1145

PO Box 68-140 Newton, Auckland 1145

P: [phone] - Fax: [phone]

E: [e-mail]

www.arisit.com

www.siriusbrand.com

Year Warranty

when Sirius ducting is used.

Full replacement warranty on parts and labour. Check website for T&Cs.

Sirius Hocos and ducting products are only available from our select group of Sirius Professional Stock's nationwide. For the latest list of Sirius Stockists near you, please refer to www.siriusbrand.com

All efforts have been made to ensure that the information provided in this brochure is correct at the time of printing. Due to continuous product improvement and ongoing development, Sirus

reserves the right to make changes to the products and technical data without prior notice. Some products appearing in this brochure may be for illustrative purposes only. Diagrams are indicative measures only. Prior to commencing

cabinetry outputs the operating/installation instructions accompanying the product must be referred to at www.sir.usprend.com

10 year warranty on SEM motors.
