Brand	Blaupunkt
Model	Mercedes Benz MPW 1801
Category	Car Speaker (Subwoofer)
Product Type	Pair of Plug & Play 2-Way Subwoofers
Compatible Vehicle Brands	Mercedes-Benz
Compatible Models	C-Class (W205, S205, C205, A205), GLC (X253, C253), E-Class (W213, S213, C238, A238), S-Class (W222)
Mounting Position	Front and/or Rear Doors
Max Output Power	120W
RMS Power	50W
Impedance	2 ohms
Frequency Response	55 Hz - 2,000 Hz
Sensitivity	86 dB
Mounting Depth	58 mm
Mounting Hole Diameter	165 mm
Material	Fiberglass Sandwich Cone
Included Accessories	Mounting hardware, power extension cable, connector with integrated crossover
Installation Requirement	Disconnect battery negative terminal; use cable cross-section ≥ 2.5 mm² for long runs
Power Supply	12V DC (vehicle battery)
Protection	Integrated fuse (do not replace with higher current)
Auto On/Off	Automatic with music signal detection
Designed by	Blaupunkt Competence Center

Frequently Asked Questions - Mercedes Benz MPW 1801 BLAUPUNKT

How do I install the Blaupunkt MPW 1801 speakers?

Disconnect the negative battery terminal. Select a dry, well-ventilated location. Ensure screw holes are suitable and ground is stable. Use the supplied power cable to connect to the positive battery terminal and ground lead to a bare metal point. The device automatically turns on/off with music signal.

What is the maximum power output of the MPW 1801?

The maximum output power is 120W, with an RMS power of 50W.

Which Mercedes-Benz models are compatible with this speaker?

It is compatible with C-Class (W205, S205, C205, A205), GLC (X253, C253), E-Class (W213, S213, C238, A238), and S-Class (W222) models, installed in front or rear doors.

What are the speaker's impedance and sensitivity?

Impedance is 2 ohms and sensitivity is 86 dB.

What is the frequency response range?

The frequency response is 55 Hz to 2,000 Hz, making it a dedicated subwoofer.

What are the mounting dimensions?

Mounting depth is 58 mm and the hole diameter is 165 mm.

Can I use this product in the USA or Canada?

This product is not intended for sale in the USA and Canada. If purchased there, it is sold as-is with no warranty.

What should I do if the fuse blows?

Do not replace with a higher current fuse. Replace with the same rating as the original integrated fuse.

How do I control the volume?

Control is via the preamplifier output of the car sound system, or via a single channel (left or right) since low-frequency content is similar.

How should I dispose of the product?

Dispose responsibly according to local electronic waste regulations.

USER MANUAL Mercedes Benz MPW 1801 BLAUPUNKT

Close-up of black speaker components with no visible text or symbols

Two black plastic speaker fans with radial blades, no text or symbols visible

Enjoy it.

INTRODUCTION

Proper system planning is vital in order to maximize the device's performance and road safety. Plan your installation carefully to avoid compromising performance reliability of the system. Consult an authorized Blaupunkt dealer for installation or preparation. Read the manual carefully before operating the device for the first time.

Safety notes

Ensure to follow below safety notes during installation and wiring connection: -

- Disconnect the negative terminal of the battery. Refer to the safety notes of vehicle manufacturer.

- Ensure positions of the holes are nowhere near the vehicle component to avoid any damage during drilling.

- Ensure cross section of the cable is no less than 2.5mm2 if the positive and negative cables are too long.

- Incorrect installation may result in malfunction of the device or the car sound system. Installation and Connection Instructions

- Select a dry and well-ventilated location to install the device.

- The device must not be installed in overly exposed location such on the rear shelf, rear seat etc.

- The installation location must be suitable for screw holes and have stable ground support. Disclaimer

- In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of our products.

- USA & CANADA: Products not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased as-is. No warranty, express or implied is provided in the U.S. and Canada.

Voltage Supply

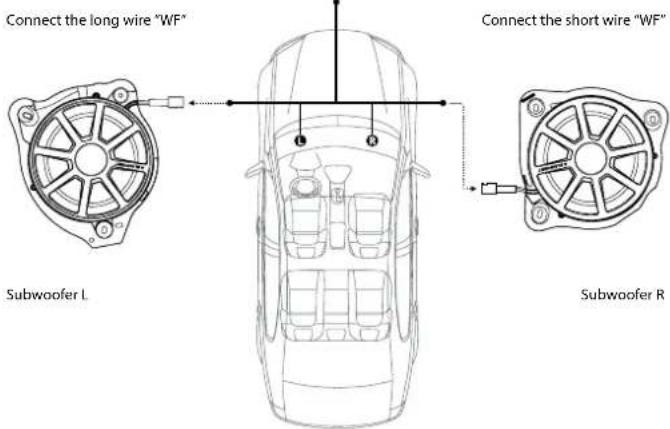

• Use the supplied power extension cable to connect to the positive battery terminal.
• Firmly and carefully connect the ground lead to a bare metal point on the vehicle chassis.
• The control of the device should be a two-channel control, either via the preamplifier output of the car sound system.
• A control solely via the right or left channel is also possible since the low-frequency portion of the music is generally identical on both channels.

Integrated Fuse

The integrated fuse in the device protects the output voltage and the entire electrical system in case of malfunction. Do not replace damaged fuse with higher current.

Switching On/Off

This device will automatically turn on if a music signal is detected. The device will also automatically turn off if no music signal is received.

Recycling and Disposal

Please dispose responsibly. Subject to change.

SPECIFICATION

MPW 1801 MB

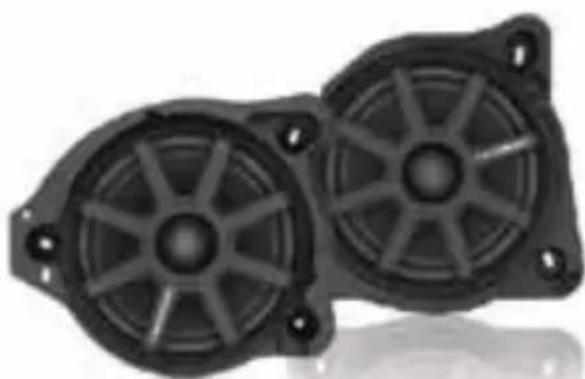

Pair of M-Benz plug & play 2-way subwoofer to upgrade OE speaker installed for selected M-Benz models with berglass sandwiched including mounting hardware

• Max. output power: 120W
  • Normal output power (RMS) : 50W
  • Impedance : 2 ohms
  • Frequency response : 55Hz - 2,000Hz
• Sensitivity : 86dB
• Mounting depth : 58mm
  • Diameter hole : 165mm

NPV 1801 MD 13

HPW130 ME-R

MPS 1402C MB

Pair of M-Benz plug & play 2-way component speaker to upgrade OE speaker installed for selected M-Benz models with berglass including mounting hardware

• Max. output power : 30W
• Normal output powe (RMS) : 15W
- Impedance: 3.6 ohms
• Frequency response : 90Hz - 10kHz
• Sensitivity : 89dB
- Mounting depth : 37mm
• Diameter hole: 165mm

MPS 1402 MB (Tweeter)

MPS 1402 M8 (MidRange)

MPW 1801 MB INSTALLATION

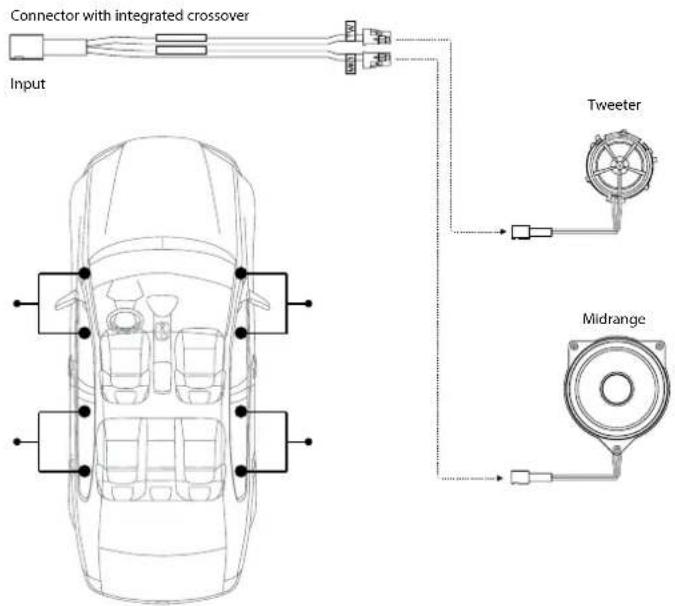

Connector with intergrated crossover

MPS 1402C MB INSTALLATION COMPATIBILITY LIST

The plug that connects the Midrange and Tweeter output signals

MPW 1801 MB and MPS 1402C MB can be installed in the following list of car models :

Class	Model	Mounting Position
C	W205/ Sedan	Front/rear door
	S205/ Estate	Front/rear door
	C205/ Coupe	Front/rear door
	A205/ Convertible	Front/rear door
GLC	X253/ SUV	Front/rear door
	C253/ SUV Coupe	Front/rear door
E	W213/ Sedan	Front/rear door
	S213/ Estate	Front/rear door
	C238/ Coupe	Front/rear door
	A238/ Covertible	Front/rear door
S	W222/ Limousine/ Sedan	Front/rear door

Designed and engineered by Blaupunkt Competence Center

MPW 1801 MB 1 112 19 005 02 01

MPS 1402C MB 1 111 19 017 02 01
