42PN451D - Television LG - Free user manual and instructions

Product Type	Plasma Television
Screen Size	42 inches (diagonal)
Display Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Dimensions (with stand)	1020 x 685 x 260 mm
Dimensions (without stand)	1020 x 635 x 55 mm
Weight (with stand)	22.5 kg
Weight (without stand)	20.0 kg
Power Consumption (typical)	250 W
Standby Power	< 1 W
Audio Output	20 W (2 x 10 W)
Connectivity	HDMI x2, USB x1, Component, Composite, RF
Smart TV	No (basic model)
Energy Efficiency Class	B (EU)
Cleaning Instructions	Wipe with soft dry cloth; do not use liquid cleaners
Security Features	Child Lock, Kensington Lock slot
Spare Parts & Repairability	Spare parts available for 5 years; user manual guides basic troubleshooting
General Information	Manufacturer: LG; Model: 42PN451D; Year: 2010

Frequently Asked Questions - 42PN451D LG

How do I connect external devices like a DVD player to my LG 42PN451D TV?

Use the HDMI ports for best quality. For older devices, use the Component or Composite inputs. Connect the cables and select the corresponding input source on the TV using the 'Input' or 'Source' button on the remote.

Why is there no sound from my TV?

Check if the TV is muted or the volume is set low. Ensure external speakers are not connected if you want internal speakers. Also verify the audio settings in the menu, and try a different input source.

How can I clean the screen of my LG 42PN451D?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen. Avoid using any liquids, ammonia, or abrasive cleaners as they may damage the screen.

What is the optimal viewing distance for a 42-inch plasma TV?

For a 1080p plasma, a distance of about 1.5 to 2.5 meters (5 to 8 feet) is recommended for comfortable viewing.

How do I set up the TV for the first time?

Connect the TV to your antenna or cable, plug in the power, and press the power button. Follow the on-screen setup wizard to select language, country, and auto-tune channels.

Why does the TV turn off by itself?

This could be due to the sleep timer being set, or overheating. Check the sleep timer settings. Ensure the TV has proper ventilation. If the issue persists, it may require professional service.

Can I mount this TV on the wall?

Yes, the LG 42PN451D is VESA-compatible. Use a VESA 400x400 mm wall mount. Ensure the mount can support the weight (20 kg without stand). Follow the instructions included with the wall mount.

How do I update the firmware?

This model does not support online firmware updates. If a firmware update is required, contact LG support or check the user manual for instructions on updating via USB (if applicable).

What should I do if the remote control is not working?

First, check the batteries and replace them if needed. Ensure nothing is blocking the IR sensor on the TV. Try using the manual controls on the TV. If still not working, consider replacing the remote.

Where can I find the user manual for the LG 42PN451D?

You can download the PDF user manual for free from notice-facile.com or the official LG support website. The manual contains detailed instructions and troubleshooting.

USER MANUAL 42PN451D LG

Printing specification

	Drawn Approved	Checked
SignatureMMM/DD/YYYY	Danbi.park Jongok.kimNov/06/2012 Nov/06/20	Yena.parkNov/06/2012

1. Model Description

Model name	: 42PN450D-ZA LG MF Brand name	:	Part number	:
2nd, 3rd Suffix	: RU/DR 42PN450D (13 Product name)	:	(Revision number)

1. Printing Specification

1. Trim size (Format) : 182 mm x 257 mm (B5)
2. Printing colors
• Cover : 1 Color (Black)
• Inside : 1 Color (Black)
3. Stock (Paper)
• Cover : Coated, Snow white paper 150 g/ m ^2
• Inside : Uncoated, wood-free paper 60 g/ m ^2
4. Printing method : Off set
5. Bindery : Perfect binding
6. Language : Eng/Rus/Kaz/Ukr (4)
7. Number of pages : 108
NOTE	“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,Details should be followed Eco-SCM management standard[LG(56)-A-2524].Especially, Part should be followed and controlled the following specification.(1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

1. Origin Notification

:LGEPKntedUGEKPakhLgERS	Printed in Korea	Printed in Mexico
:LGEPKntedUGEMAIL :LGESY	Printed in Poland	Printed in China
:LGEEG :LGEMX :LGETH		Printed in ThailandPrinted in MexicoPrinted in Egypt
:LGERTintedUGENIA :LGEVN	Printed in China	Printed in Vietnam
:LGENTnitedUGERAnesUGEWR	Printed in Russia	Printed in Poland

1. Changes

10
[BGHY]
[CBAT]
	Feb/06/2013	Danbi Park	EKPD200040	Requested by standards team, changed standards mark of Ukraine.
	Jan/11/2013	Danbi Park	EKPD100095	Requested by standards team, changed standards mark of Russia and Ukraine.
Rev. Number	MMM/DD/YYYY	Signature	ECO Number	Change Contents

Pagination sheet

:Part number

MFL67710008

(1302-REV02)(Revision number)

:Total pages

108 pages

Front Cover (Eng) P/No. A-2 A-3 A-4 Front (Eng) 2 .... 21 Blank Front (Rus) 2 .... 21 Blank Front (Kaz) 2 .... 21 Blank Front (Ukr) 2 .... 21 Blank Making Back Connect Cover B-2 .... B-14 Blank (Eng)

OWNER'S MANUAL PLASMA TV

Please read this manual carefully before operating your set and retain it for future reference.

PN45**

PN65**

P/NO : MFL67710008 (1302-REV02)

Printed in Korea

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-4 Tidying cables

COMMON

LANGUAGE LIST

English

Русский

Қазақша

Українська

LANGUAGE

B-1 MAKING CONNECTIONS

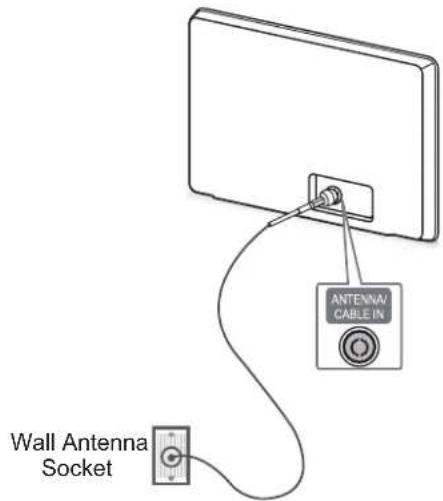

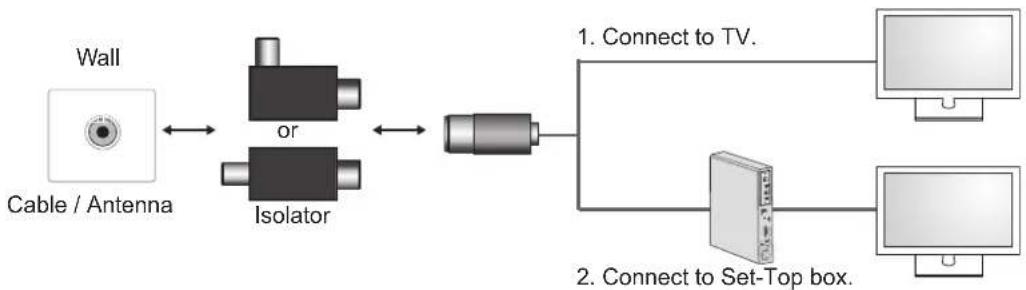

B-1 Antenna Connection

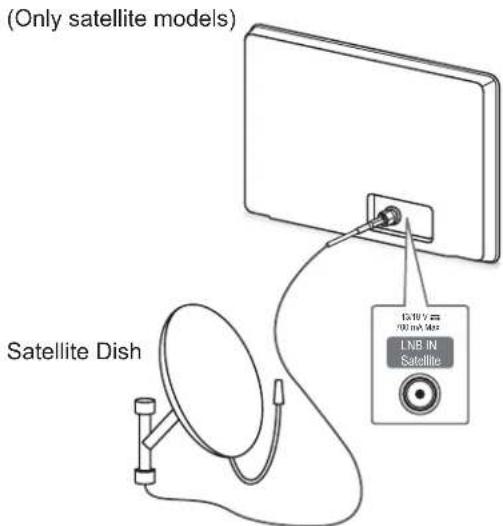

B-2 Satellite dish Connection

B-2 HDMI Connection

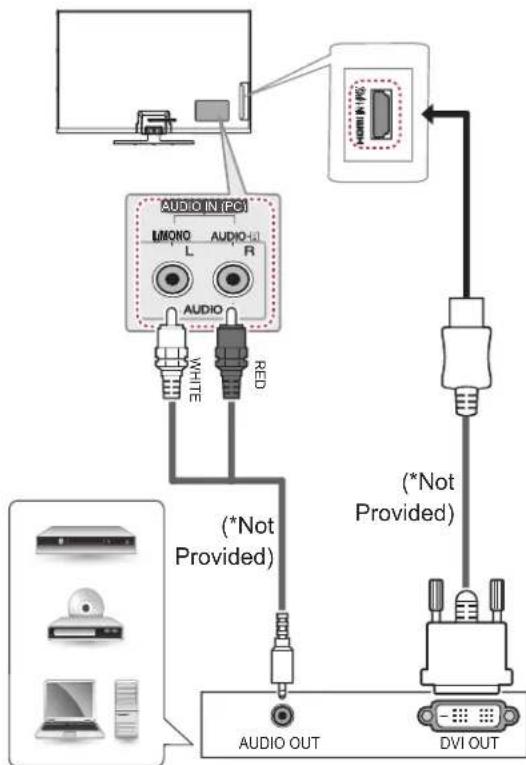

B-4 DVI to HDMI Connection

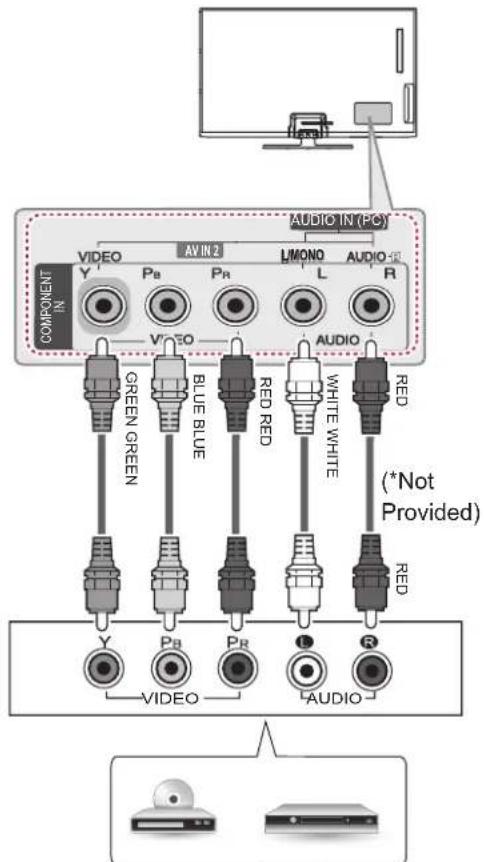

B-5 Component Connection

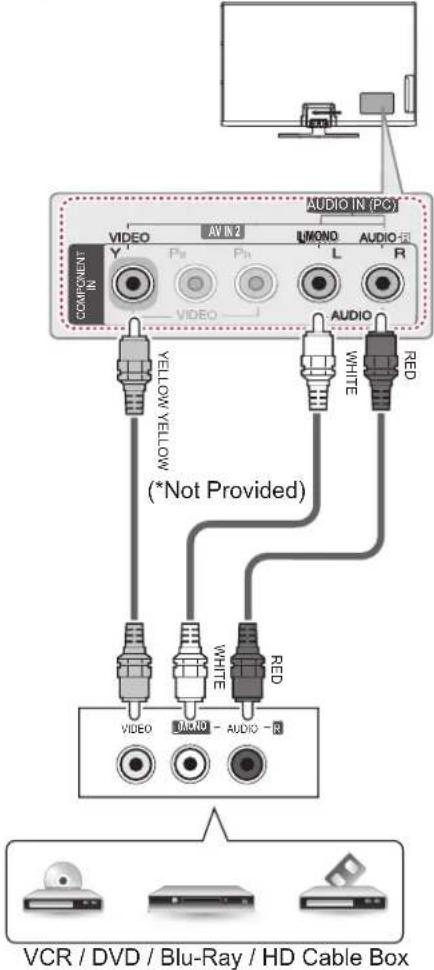

B-6 Composite Connection

B-6 Audio Connection

B-6 - Digital optical audio connection

B-8 USB Connection

B-8 CI module Connection

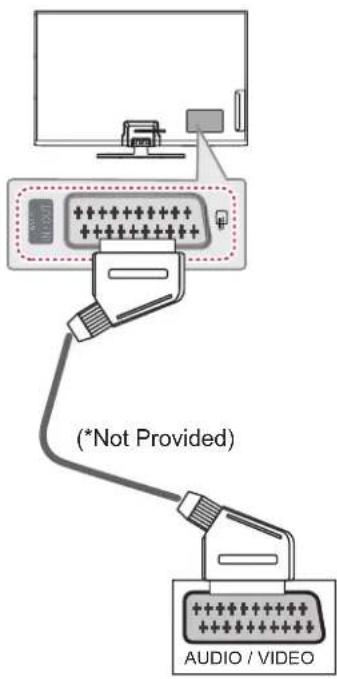

B-9 Euro Scart Connection

B-13 SPECIFICATIONS

COMMON

SETTING UP THE TV

Image shown may differ from your TV.

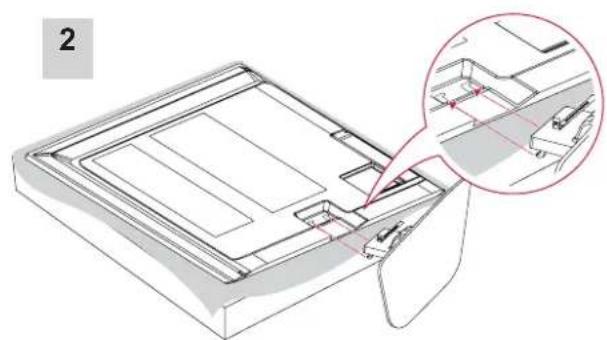

Attaching the stand

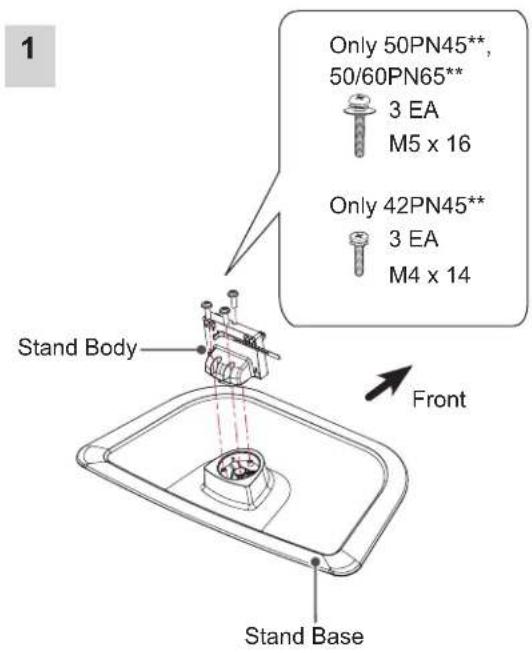

1 Only 50PN45**, 50/60PN65** 3 EA M5 x 16 Only 42PN45** 3 EA M4 x 14 Stand Body Front Stand Base

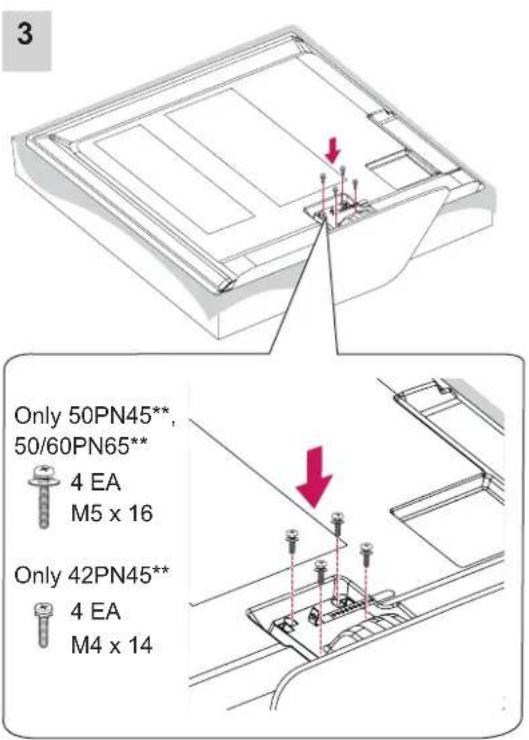

3 Only 50PN45**, 50/60PN65** 4 EA M5 x 16 Only 42PN45** 4 EA M4 x 14

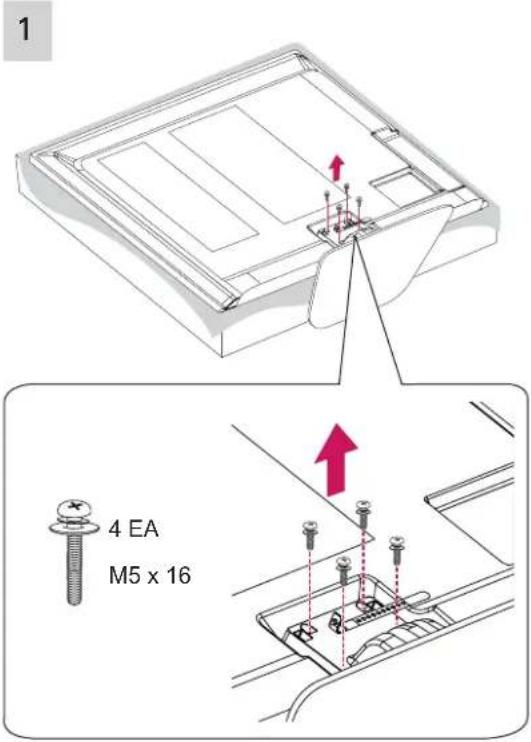

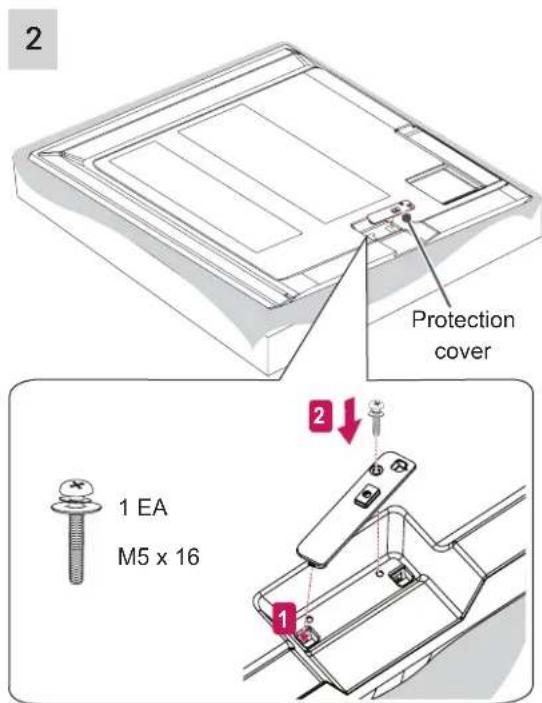

To detach the stand

(Only 50PN45**, 50PN65**)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

1 4 EA M5 x 16

2 Protection cover 1 EA M5 x 16 2 ↓ 1

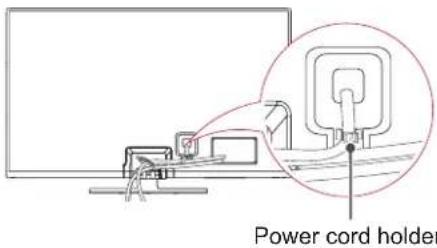

Tidying cables

1 Install the Power Cord Holder and Power Cord. It will help prevent the power cable from being removed by accident.

(Only 42PN45**)

Power cord holder

(Only 50PN45**, 50/60PN65**)

Power cord holder

2 Gather and bind the cables with the Cable Holder.

Cable holder

CAUTION

- Do not move the TV by holding the cable holder and power cable holder, as the cable holders may break, and injuries and damage to the TV may occur.

CAUTION

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
• Make sure that the screws are inserted correctly and fastened securely. If they are not fastened securely enough, the TV may tilt forward after being installed. Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

NOTE

• When installing the wall mounting bracket, use the Protection Cover.
  • This will protect the opening from accumulating dust and dirt.
• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

OWNER'S MANUAL

PLASMA TV

Please read this manual carefully before operating your set and retain it for future reference.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

3 EXTERNAL CONTROL DEVICE SETUP

4 SAFETY INSTRUCTIONS

10 INSTALLATION PROCEDURE

10 ASSEMBLING AND PREPARING

10 Unpacking
14 Separate purchase

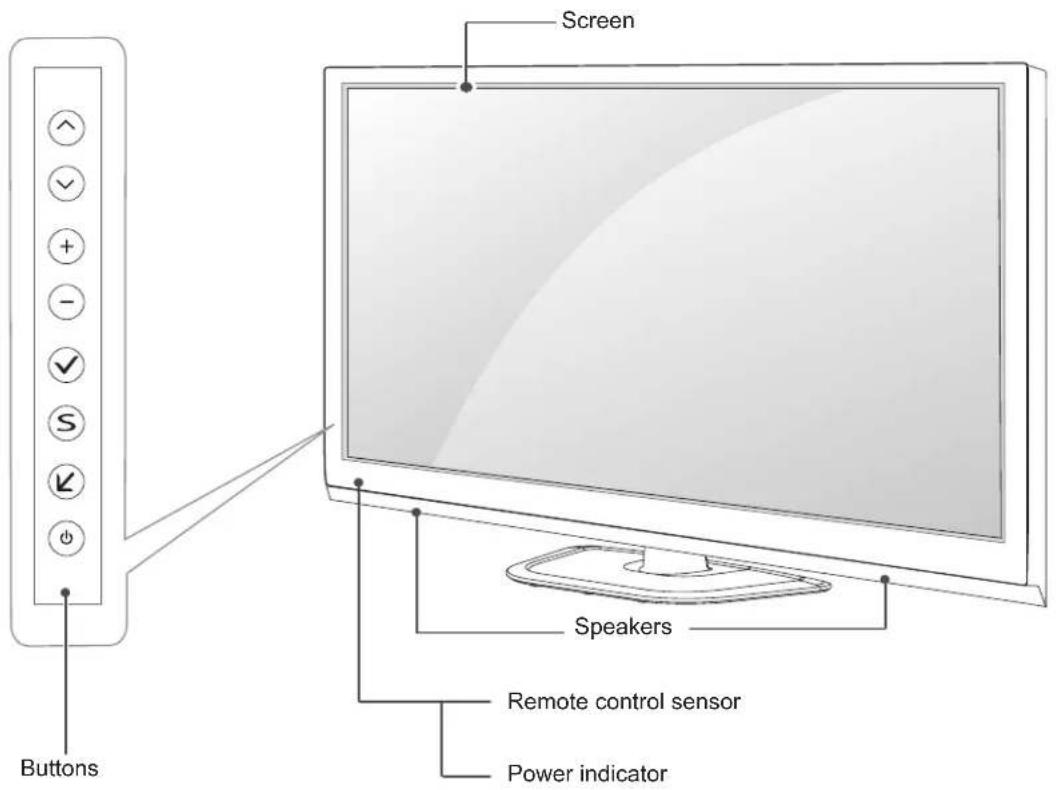

15 Parts and buttons

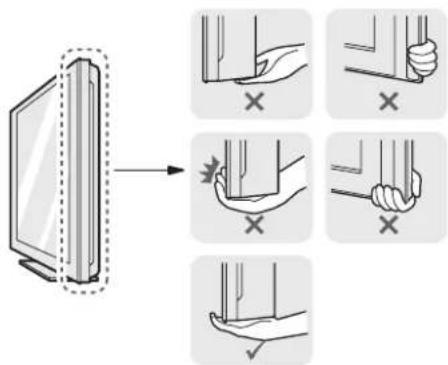

16 Lifting and moving the TV

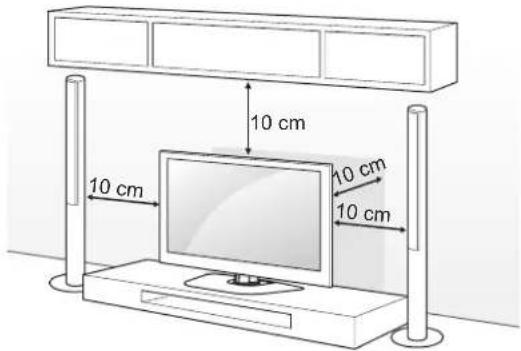

17 Mounting on a table
18 Mounting on a wall

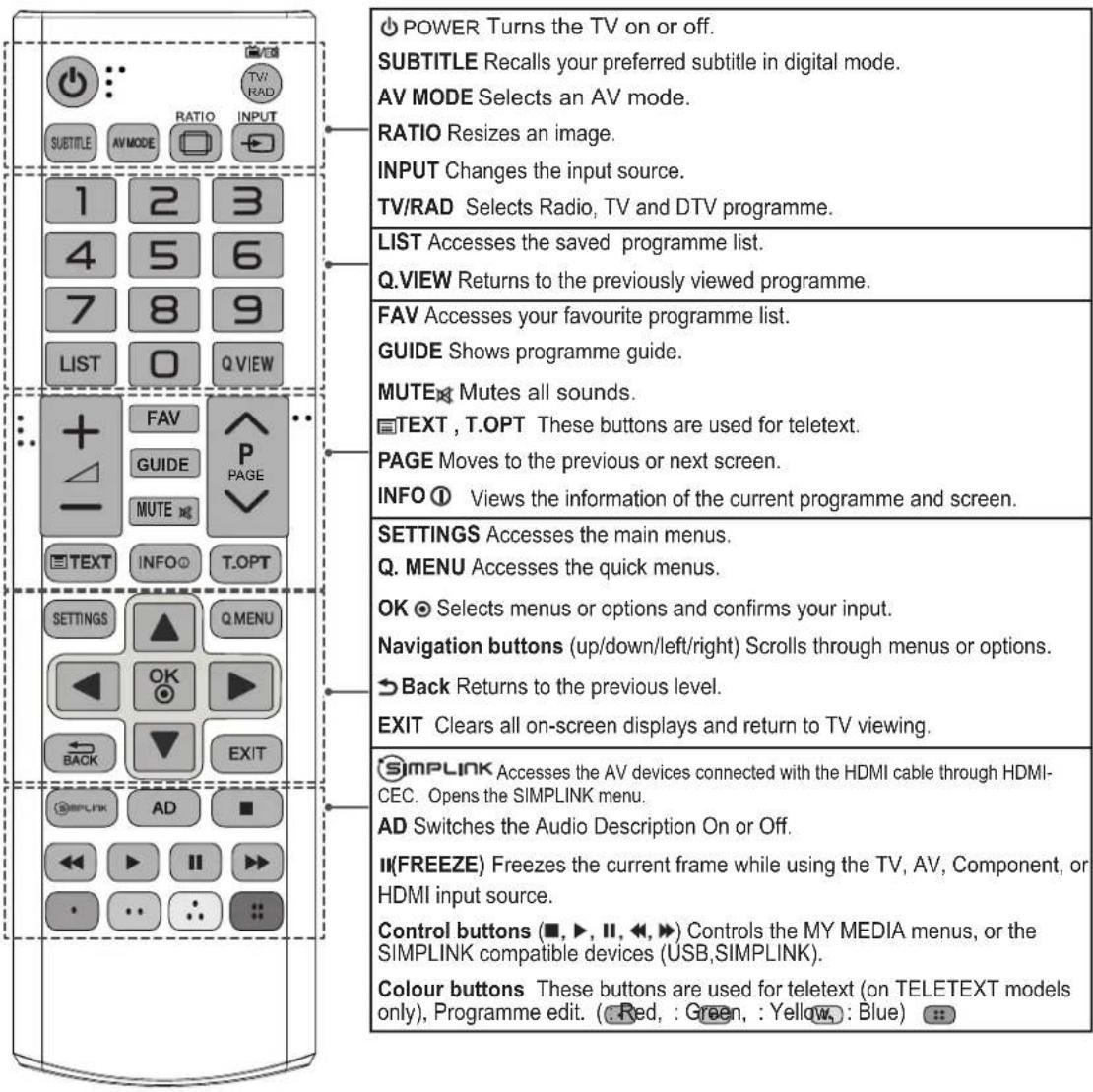

19 REMOTE CONTROL

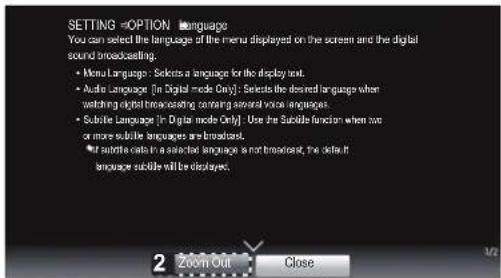

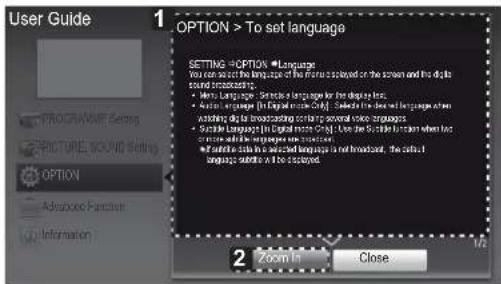

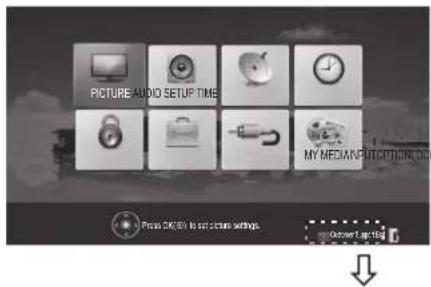

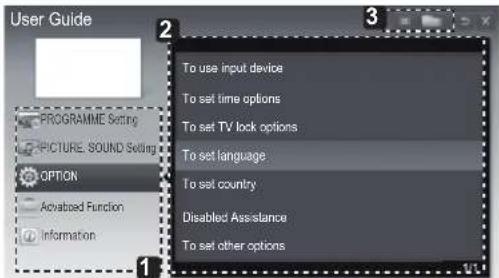

20 USING THE USER GUIDE

21 MAINTENANCE

21 Cleaning your TV
21 - Screen, frame, cabinet and stand
21 - Power cord

21 TROUBLESHOOTING

WARNING

- If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

AUTION

- If you ignore the caution message, you may be slightly injured or the product may be damaged.

OTE

- The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY. DIGITAL PLUS

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI ^TM

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DIVX HD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

Do not place the TV and remote control in the following environments:

- A location exposed to direct sunlight

- An area with high humidity such as a bathroom

- Near any heat source such as stoves and other devices that produce heat

- Near kitchen counters or humidifiers where they can easily be exposed to steam or oil

- An area exposed to rain or wind

- Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

Mains plug is the disconnecting device. The plug must remain readily operable.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

Make sure to connect the power cable to the grounded current. (Except for devices which are not grounded.)

You may be electrocuted or injured.

Insert the power cable completely into wall socket.

If the power cable is not inserted completely into wall socket, a fire could break out.

Ensure the power cord does not come into contact with hot objects such as a heater.

This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in.

This may cause water damaged inside the Product and could give an electric shock.

When mounting a TV on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV.

It may cause fire, electric shock.

	Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.
	Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.
	Keep the packing anti-moisture material or vinyl packing out of the reach of children.Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
	Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.
	Dispose of used batteries carefully to protect a child from eating them.Please seek Doctor- Medical Attention immediately if child consumes batteries.
	Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal.You may be electrocuted.(Depending on model)
	Do not put or store inflammable substances near the product.There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.
	Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention.Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.
	Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.
	Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen.You may be injured or the product can be damaged.
	Never touch this product or antenna during a thunder or lighting storm.You may be electrocuted.
	Never touch the wall outlet when there is leakage of gas, open the windows and ventilate.It may cause a fire or a burn by a spark.
	Do not disassemble, repair or modify the product at your own discretion.Fire or electric shock accident can occur.Contact the service centre for check, calibration or repair.
	If•any of the following occur, unplug the product immediately and contact your local service centre.- The product has been impacted by shock- The product has been damaged- Foreign objects have entered the product- The product produced smoke or a strange smellThis may result in fire or electric shock.
	If•you don’t intend to use the product for a long time, unplug the power cable from the product.Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
	Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

Illustration of three cartoon scenes: a house with a smiling face, a smiling house with a microphone and a computer monitor, and a windmill emitting smoke (no text or symbols)

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

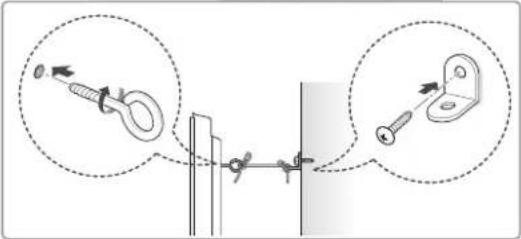

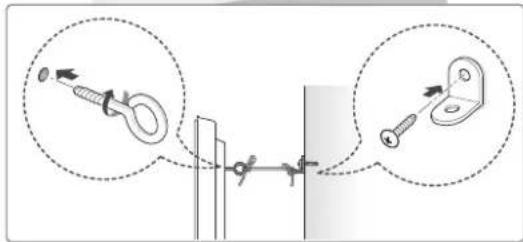

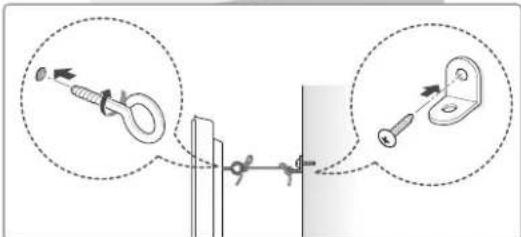

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Make sure there are no objects between the remote control and its sensor.

Signal from the remote control may be disturbed by sun light or other strong light. In this case, darken the room.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

	Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)It may cause mechanical failure or could give an electric shock.
	Please follow the installation instructions below to prevent the product from overheating.- The distance between the product and the wall should be more than 10 cm.- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).- Do not install the product on a carpet or cushion.- Make sure the air vent is not blocked by a tablecloth or curtain.Otherwise, this may result in fire.
-ZYXX]	Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
	Prevent dust collecting on the power plug pins or outlet.This may cause a fire hazard.
	Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
	Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
	Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.
	When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel.Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
A€ long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
	When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.
	When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
	When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
	Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
	Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
	If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
	The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
	You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

NOTE

• Image shown may differ from your TV.
- Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
- The available menus and options may differ from the input source or product model that you are using.
- New features may be added to this TV in the future.
- The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
- The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the manufacturer's warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

Remote Control, Batteries (AAA)(See p. 19)	Owner's manual	Power Cord	Ferrite core(Depending on model)(See p. 12)
Power Cord Holder(See p. A-4)	x 1	x 7M4 x 14	x 7M5 x 16
	Desk-mount Screw(Only 42PN45**) (See p. 17)	Screw for assembly(Only 42PN45**) (See p. A-3)	Screw for assembly(Only 50PN45**, 50/60PN65**) (See p. A-3)
Stand Body / Stand Base(See p. A-3)	Protection Cover(Only 50PN45**, 50PN65**) (See p. A-4)	Isolator(Depending on model)(See p. 13)

NOTE

The items supplied with your product may vary depending on the model.

Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

How to use the ferrite core

1 Use the ferrite core to reduce the electromagnetic interference in the power cable.

Wind the power cable on the ferrite core once. Place the ferrite core close to the TV and a wall plug.

[to a wall plug]

[Figure 1]

[to the TV]

(Black)

[Cross Section of Ferrite Core]

2 Use the ferrite core to reduce the electromagnetic interference in the cable.

Place the ferrite core close to the TV.

Wind the component Y, Pb, Pr, L, R cable on the ferrite core once.

[to an External device]

10 mm(+ / - 5 mm)

[to the TV]

[Figure 2-1]

Gather and bind the component Y, Pb, Pr, L, Rand scart cable with the ferrite core.

[to an External device]

Pure electrical connector diagram showing two connectors connected via a central connector, with no text or symbols present.

[to the TV]

[Figure 2-2]

(Black)

[Cross Section of Ferrite Core]

Wind the PC audio cable on the ferrite core once.

[to an External device]

[to the TV]

[Figure 2-3]

3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN cable once on the ferrite core B and thrice on the ferrite core A. Place the ferrite core close to the TV and an External device.

[to the TV]

Diagram of two connected electrical components labeled A and B, showing wiring or connections without any text or symbols.

[to an External device]

[Figure 3]

[Cross Section of Ferrite Core]

• If there are three ferrite cores, follow as shown in Figures 1 and 2.
• If there is LAN port, additionally follow as shown in Figure 3.

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

*A ≦0 mm

*B ≤ 18 mm

NOTE

- Antenna Isolator Installation Guide

- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.

» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.

- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.

- Before starting, be sure that the TV antenna is connected.

Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.

"Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"

When applying the RF Isolator, a slight loss of signal sensitivity can occur.

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification. Contact your dealer to buy these items.

These devices only work with certain models.

LG Audio Device

Compatibility	PN45** PN65**
LG Audio Device	•	•

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

Parts and buttons

Screen Buttons Speakers Remote control sensor Power indicator

Button Description
∅	Turns the power on or off.
√	Selects the highlighted menu option or confirms an input
S	Accesses the main menus, or saves your input and exits the menus.
↙	Changes the input source
- +	Adjusts the volume level.
√ ∧	Scrolls through the saved programmes.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

- Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.
• When holding the TV, the screen should face away from you to avoid damage.

Prohibition sign showing a person holding a device, crossed out by a diagonal line (no text or symbols)

- Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

Diagram illustrating a device being locked, with six hand gestures and a close-up of the lock mechanism.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

Silhouette of two people holding a large rectangular device with a computer monitor (no text or symbols visible)

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (minimum) space from the wall for proper ventilation.

10 cm 10 cm 10 cm 10 cm

2 Connect the power cord to a wall outlet.

CAUTION

- Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward, damage, and potential injury.

Mount the TV on a table, and then insert and tighten the supplied screw on the rear of the stand. (Only 42PN45**)

Line drawing of a monitor setup with a mounted device on top (no text or symbols)

WARNING

- To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

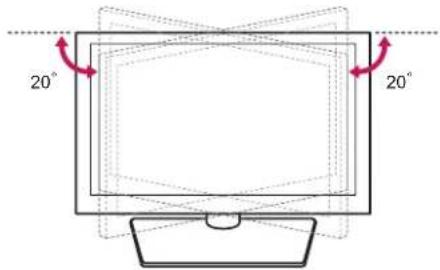

Adjusting the angle of the TV to suit view

(This feature is not available for all models.) Adjusting the angle of the TV to suit view Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

20° 20°

CAUTION

- When adjusting the angle of the product, watch out for your fingers.

- Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Securing the TV to a wall

(This feature is not available for all models.)

Illustration of a computer monitor with multiple screens and a dotted circle highlighting one screen (no text or symbols present)

Diagram illustrating cable mounting technique with magnified insets showing pin installation and mounting details

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall.

Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

• Make sure that children do not climb on or hang on the TV.

NOTE

- Use a platform or cabinet that is strong and large enough to support the TV securely. - Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

10 cm 10 cm 10 cm 10 cm

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	42/50PN45**50/60PN65**
VESA (A x B) 400 x 400
Standard screw M6
Number of screws 4
Wall mount bracket	PSW420BX

A B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer's warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ⊕ and ⊖ ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

- Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

POWER Turns the TV on or off. SUBTITLE Recalls your preferred subtitle in digital mode. AV MODE Selects an AV mode. RATIO Resizes an image. INPUT Changes the input source. TV/RAD Selects Radio, TV and DTV programme. LIST Accesses the saved programme list. Q.VIEW Returns to the previously viewed programme. FAV Accesses your favourite programme list. GUIDE Shows programme guide. MUTE Mutes all sounds. TEXT , T.OPT These buttons are used for teletext. PAGE Moves to the previous or next screen. INFO Views the information of the current programme and screen. SETTINGS Accesses the main menus. Q. MENU Accesses the quick menus. OK Selects menus or options and confirms your input. Navigation buttons (up/down/left/right) Scrolls through menus or options. Back Returns to the previous level. EXIT Clears all on-screen displays and return to TV viewing. SIMPLINK Accesses the AV devices connected with the HDMI cable through HDMI-CEC. Opens the SIMPLINK menu. AD Switches the Audio Description On or Off. II(FREEZE) Freezes the current frame while using the TV, AV, Component, or HDMI input source. Control buttons (■, ▶, II, ◀, ▶) Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK). Colour buttons These buttons are used for teletext (on TELETEXT models only), Programme edit. (Red, Green, Yellow, Blue)

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer Support menus.
3 Press the Navigation buttons to scroll to User Guide and press OK.

PICTURE AUDIO SETUP TIME MY MEDIA PROVISIONS

User Guide 1 OPTION > To set language SETTING =OPTION ● Language You can select the language of the first language selected on the screen and the digit sound broadcasting. ● Meta-Language ● Selected language for the display list. ● Audio-language (In Digital clock Only) ● Select the first-line and language after with activity by breaking coming up to some audio languages. ● Sound-Language (In Digital clock Only) ● Select the second-line and language after with activity by breaking coming up to some audio languages. ● Sound-late-late in selected language is not broadcast, the default language available in it is displayed. 2 Zoom in Close

SETTING =OPTION language You can select the language of the menu displayed on the screen and the digital sound broadcasting. • Menu Language: Selects a language for the display text. • Audio Language (In Digital mode Only): Selects the desired language when watching digital broadcasting covering several voice languages. • Subtile Language (In Digital mode Only): Use the Subtile function when two or more subtile languages are broadcast. • But subtile calls in a selected language is not broadcast, the default language subtile will be displayed.

1 Shows the description of the selected menu. You can use ▲ ∨ to move between pages.
2 Zooms in or out the screen.

User Guide PROGRAMME Setting PICTURE SOUND Setting OPTION Advanced Function Information To use input device To set time options To set TV lock options To set language To set country Disabled Assistance To set other options

1 Allows to select the category you want.
2 Allows to select the item you want. You can use ^ √ to move between pages.
3 Allows to browse the description of the function you want from the index.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

- Make sure to turn the power off and disconnect the power cord and all other cables first.

- When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again.Check if there is any obstacle between the product and the remote control.Check if the batteries are still working and properly installed (⊕ to ⊕ to ).⊖
No image display and no sound is produced.	Check if the product is turned on.Check if the power cord is connected to a wall outlet.Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted.Check if the Auto sleep feature is activated in the Time settings.If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI DVI), ‘No signal’ or ‘Invalid Format’ is displayed.	Turn the TV off/on using the remote control.Reconnect the HDMI cable.Restart the PC with the TV on.

|

| |

[Non-Text]

- -

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

- -

[Non-Text]

| |

|

[Non-Text]

[Non-Text]

[Non-Text]

7,295,673; 7,460,668; 7,515,710; 7,519,274»

Illustration of a house with a smiling face and wind turbines, no text or symbols present

Three grayscale images showing vertical streaks over a blurred background, no text or symbols present.

Line drawing of a kitchen sink with a hand holding a tool above it (no text or symbols)

Pure electrical circuit lines without any symbols

[Рис. 3]

Prohibition sign showing a person holding a TV with a diagonal line (no text or symbols)

Diagram illustrating hand positioning and stress application on a device, with labeled X marks indicating specific states.

Silhouette of two people holding a large monitor with a computer on top (no text or symbols visible)

Line drawing of a monitor setup with a small electronic device mounted on top (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ!

Line drawing of a computer monitor with abstract layout and a highlighted section (no text or symbols)

Diagram illustrating cable mounting technique with magnified insets showing pin installation and mounting details

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HD

7,295,673; 7,460,668; 7,515,710; 7,519,274"

АШЫК МЭТИН БАФДАРЛАМАЛЫК КУРАЛ ЕСКЕРТУІ

Illustration of a house with a smiling computer monitor and a smiling house with a wind turbine, set against a snowy landscape (no text or symbols)

Three grayscale close-up images showing vertical streaks against a cloudy sky (no text or symbols)

Line drawing of a kitchen sink with a hand holding a small object (no text or symbols)

Prohibition sign showing a person holding an electronic device, crossed out by a diagonal line (no text or symbols)

Diagram illustrating how to press a screen, showing hand positioning and stress application steps with X marks.

Silhouette of two people holding a large rectangular device with a monitor on top (no text or symbols visible)

Line drawing of a monitor setup with a small electronic device mounted on top (no text or symbols)

АБАЙЛАНЫЗ

Diagram illustrating cable installation steps with labeled components and directional arrows

Illustration of a smart home with a smiling computer monitor and a smiling house, both emitting exhaust smoke (no text or symbols)

Three grayscale rectangular frames showing vertical streaks against a cloudy sky background (no text or symbols)

Line drawing of a hand holding a small object above a rectangular basin (no text or symbols)

Diagram of two coaxial connectors with multiple 3-pin connectors and a central connector, shown without any text or symbols.

[до телеві- зора]

[Малюнок 2-2]

(чорне)

Pure electrical circuit lines without any symbols

Prohibition sign showing a person holding a device inside a circle (no text or symbols)

Diagram illustrating how to press a device, showing hand positioning and tool movement with checkmark indicators.

Silhouette illustration of two people holding a large screen with a computer monitor (no text or symbols)

Line drawing of a kitchen sink with a mounted tool on a monitor (no text or symbols)

ПОПЕРЕДЖЕННЯ

Illustration of a computer monitor with multiple screens and a highlighted screen (no text or symbols)

Diagram illustrating cable mounting technique with magnified insets showing pin alignment and mounting details

This section on MAKING CONNECTIONS mainly uses diagrams for the PN45** models.

Antenna Connection

Wall Antenna Socket ANTENNA CABLE IN

English

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
  • Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Русский

Satellite dish Connection

(Only satellite models) Satellite Dish 10kV 700 mV LNB IN Satellite

English

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Русский

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

• It is recommended to use the TV with the HDMI connection for the best image quality.
• Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
• Supported HDMI Audio format : Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k, DTS Not supported.)

Русский

DVI to HDMI Connection

DVD / Blu-Ray / HD Cable Box / PC

English

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable.

OTE

- Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.

Русский

Component Connection

AUDIO IN (PC) VIDEO AV IN 2 L/MONO AUDIO COMPONENT Y Pb Pr L R V ISO AUDIO GREEN GREEN BLUE BLUE RED RED WHITE WHITE RED (*Not Provided) Y Pb Pr L R AUDIO VIDEO AUDIO

DVD / Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

- If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.

Русский

Composite Connection

AUDIO IN (PCI) VIDEO AV IN 2 UMONO AUDIO Y Pn Pn L R COMPONENT IN VIDEO AUDIO YELLOW YELLOW (*Not Provided) WHITE RED VIDEO AUDIO -R VCR / DVD / Blu-Ray / HD Cable Box

English

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the e composite cable as shown.

Русский

English

You may use an external audio system instead of the built-in speaker.

Digital optical audio connection

Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

NOTE

• Do not look into the optical output port. Looking at the laser beam may damage your vision.
  • Audio with ACP (Audio Copy Protection) function may block digital audio output.

Русский

USB (*Not Provided) USB

English

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the My Media menu to use various multimedia files.

Русский

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

OTE

- Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

Русский

Euro Scart Connection

(*Not Provided) AUDIO / VIDEO

English

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.

Current input mode\Output Type	AV1(TV Out ^1 )
Digital TV Digital TV
Analogue TV, AV	Analogue TVComponent
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

- Any Euro scart cable used must be signal shielded.

Русский

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV po
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
• Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

Русский

Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product.

MODELS		42PN45** 50PN45**
		42PN450D-ZA	50PN450D-ZA
		42PN451D-ZA	50PN451D-ZA
		42PN452D-ZA	50PN452D-ZA
		42PN450B-ZA	50PN450B-ZA
		42PN4503-ZA	50PN4503-ZA
		42PN450D-ZE	50PN450D-ZE
		42PN451D-ZE	50PN451D-ZE
		42PN452D-ZE	50PN452D-ZE
		42PN450B-ZE	50PN450B-ZE
		42PN450D-ZF	50PN450D-ZF
		42PN451D-ZF	50PN451D-ZF
		42PN452D-ZF	50PN452D-ZF
		42PN450B-ZF	50PN450B-ZF
Dimensions(W x H x D)	With stand (mm)	983.6 x 650.3 x 250.0 1168.0	x 755.4 x 292.7
	Without stand (mm)	983.6 x 595.6 x 57.0 1168.0	x 698.6 x 57.0
Weight	With stand (kg)	19.6 25.4
	Without stand (kg)	18.4 24.0
MODELS		50PN65** 60PN65**
		50PN6500-ZA	60PN6500-ZA
		50PN650S-ZA	60PN650S-ZA
		50PN650T-ZA	60PN650T-ZA
		50PN651T-ZA	60PN651T-ZA
		50PN6500-ZB	60PN6500-ZB
		50PN650S-ZB	60PN650S-ZB
		50PN650T-ZB	60PN650T-ZB
		50PN6504-ZB	60PN6504-ZB
		50PN6506-ZB	60PN6506-ZB
		50PN651T-ZB	60PN651T-ZB
		50PN6500-ZC	60PN6500-ZC
		50PN650S-ZC	60PN650S-ZC
		50PN650T-ZC	60PN650T-ZC
		50PN651T-ZC	60PN651T-ZC
Dimensions(W x H x D)	With stand (mm)	1168.0 x 755.4 x 292.7 1386.8	x 874.0 x 340.0
	Without stand (mm)	1168.0 x 698.6 x 57.0 1386.8	x 821.7 x 57.0
Weight	With stand (kg)	26.1 37.7
	Without stand (kg)	24.7 34.5

CI Module Size(W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity Less than 80 %
	Storage Temperature -20 °C to 60 °C
	Storage Humidity Less than 85 %

	Satellite Digital TV1	Digital TV2	Digital TV	Analogue TV
Television system	DVB-TDVB-CDVB-S/S2	DVB-T/T2DVB-C	DVB-TDVB-C	PAL/SECAM B/G/I/D/K,SECAM L/L3
Programme coverage	VHF, UHFC-Band, Ku-Band	VHF, UHF		VHF: E2 to E12, UHF :E21 to E69, CATV: S1 toS20, HYPER: S21 to S47
Maximum number of storable programmes	6,000	1,800
External antenna impedance	75 Ω

1 Only satellite models
2 Only DVB-T2 support models
3 Except for DVB-T2 support models

HDMI/DVI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480	31.46931.5	59.9460
720x576 31.25 50
1280x720	37.544.9645	5059.9460
1920x1080	33.7233.7528.12526.972733.71633.7556.2567.4367.5	59.94605023.972429.97630.005059.9460

Component port connecting information

Component ports on the TV

Y

P_B

P_R

Video output ports on DVD player	Y	P_B	P_R
	Y B-Y	R-Y
	Y Cb	Cr
	Y Pb	Pr

Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080p	O(50 Hz / 60 Hz only)

HDMI/DVI-PC supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640x350 31	468 70.09
720x400 31	469 70.08
640x480 31	469 59.94
800x600 37	879 60.31
1024x768 48	363 60.00
1360x768 47	712 60.01
1280x1024 63	981 60.02
1920x1080 67	7.5	60.02

(Only 50PN65**, 60PN65**)

|

| |

[Non-Text]

- -

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

- -

[Non-Text]

| |

|

[Non-Text]

[Non-Text]

[Non-Text]

LG

Life's Good

Please contact LG First.

If you have any inquiries or comments, please contact LG customer information centre.

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB®

Digital Video Broadcasting

LG Customer Information Centre
Country	LG Service	Country	LG Service
Österreich	0 810 144 131 0	No 0 6543	5 454
Belgie	015 200 255 80	Norge 187 40
Luxemburg	0032 15 200 255	Polska	801 54 54 54
България	07001 54 54 80	801 78 54 54
Česká Rep.	810 555 810 03	Rozsakia 3542
Danmark	8088 5758 085	Sovnihsko4
Suomi	0800 0 54 54	902 500 2	34
France	3220dib4LG ou tapez	Sverige	0770 54 54 54
Deutschland	01803 11 54 11	Schweiz 543	543
Еллáдα	801 11 200 900 210 4800 564	United Kingdom	0844 847 5454
		Россия	8 800 200 7676
Magyarország	06 40 54 54 54	E800 9990
Éire	0818 27 6955	Украина 303	000
Italia	199600099 8 8	000 805 Казахстан	805, 2255(GSM)
Беларусь	8 820 0071 1111
Latvija	80200201	Узбекистан	8 800 120 2222
Lietuva	880008081 8	Корюкстан	005

www.lg.com
