USER MANUAL WH-SHF09D3E8 PANASONIC

MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

Operating Instructions

Air-to-Water Heatpump Model No. Indoor Unit

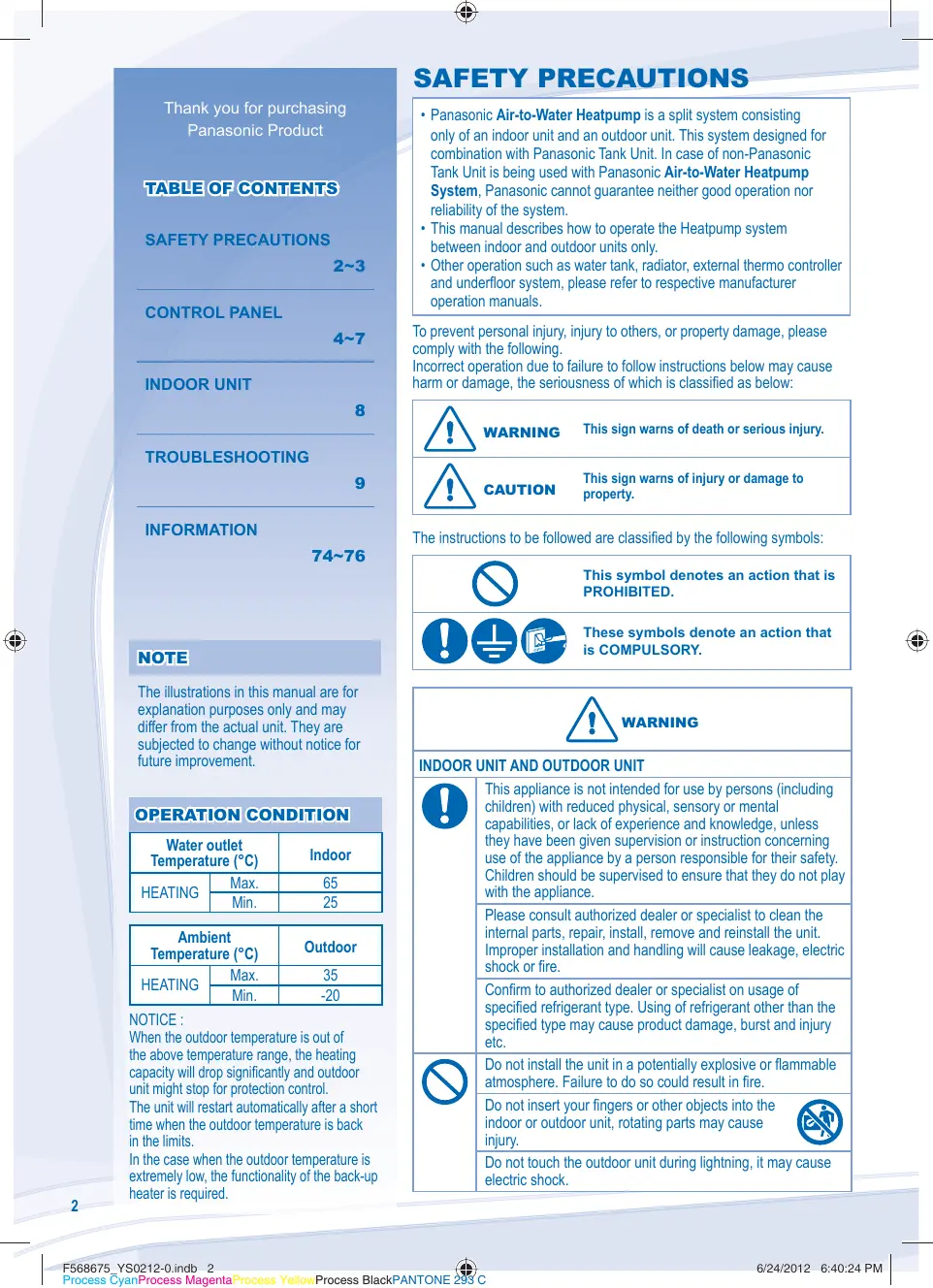

SAFETY PRECAUTIONS Thank you for purchasing

Panasonic Product TABLE OF CONTENTS SAFETY PRECAUTIONS 2~3 CONTROL PANEL 4~7 INDOOR UNIT 8

• Panasonic Air-to-Water Heatpump is a split system consisting only of an indoor unit and an outdoor unit. This system designed for combination with Panasonic Tank Unit. In case of non-Panasonic

Tank Unit is being used with Panasonic Air-to-Water Heatpump System, Panasonic cannot guarantee neither good operation nor reliability of the system. • This manual describes how to operate the Heatpump system between indoor and outdoor units only. • Other operation such as water tank, radiator, external thermo controller and underfloor system, please refer to respective manufacturer operation manuals. To prevent personal injury, injury to others, or property damage, please comply with the following. Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING This sign warns of death or serious injury.

CAUTION This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED. These symbols denote an action that is COMPULSORY.

NOTE The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subjected to change without notice for future improvement.

OPERATION CONDITION Water outlet Temperature (°C) Max. HEATING Min. Ambient Temperature (°C) Max. HEATING Min.

65 25 Outdoor 35 -20

When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly and outdoor unit might stop for protection control. The unit will restart automatically after a short time when the outdoor temperature is back in the limits. In the case when the outdoor temperature is extremely low, the functionality of the back-up heater is required.

WARNING INDOOR UNIT AND OUTDOOR UNIT This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance. Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire. Confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire. Do not insert your fingers or other objects into the indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock.

INDOOR UNIT AND OUTDOOR UNIT Do not sit or step on the unit, you may fall down accidentally.

Do not install the indoor unit at outdoor. This is designed for indoor installation only. POWER SUPPLY Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire. To prevent overheating, fire or electric shock: • Do not share the same power outlet with other equipment. • Do not operate with wet hands. • Do not over bend the power supply cord. If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This unit is equipped with Residue Current Circuit Breaker (RCCB). It is strongly recommended to check the operation of the RCCB after installation and periodically after servicing or maintenance by authorized dealer to ensure it is in good working order. Otherwise, it may cause electrical shock or fire in case of malfunction. It is strongly recommended to install Residual Current Device (RCD) on-site to prevent electric shock or fire. Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure • The RCCB switches off by itself. • Burning smell, abnormal noise or vibration sound is observed when the unit is in use. • Hot water keeps on coming off the unit. Contact your local dealer immediately for maintenance/repair. It is recommended to wear gloves during servicing or maintenance in order to avoid hazard. This equipment must be earthed to prevent electrical shock or fire. Prevent electric shock by switching off the power supply when: - Before cleaning or servicing. - Extended non-use. This appliance is for multiple uses. All power supply circuits must be turn off before access to any of the terminals in the indoor unit, to avoid electrical shock, burn or fatal injury.

CAUTION INDOOR UNIT AND OUTDOOR UNIT Do not wash the indoor unit with water, benzene, thinner or scouring powder.

Do not install the unit close to any combustible equipment or at bathroom. Otherwise, it may cause electric shock or fire. Do not touch the water discharge pipe at the indoor unit during operation. Do not place anything on top or beneath of the unit. Do not touch the sharp aluminium fin, sharp parts may cause injury.

ENGLISH WARNING Do not use the system during sterilization to prevent scalding or overheat during shower.

Ensure drainage pipe is connected properly. Otherwise, leakage may occur. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. The sterilization function field settings must be configured by the authorized dealer according to local laws and regulation. CONTROL PANEL Do not let the control panel get wet. Otherwise, it may cause electric shock or fire. Do not press the buttons on the control panel with hard, pointed objects. Otherwise, it may damage the unit. Do not wash the control panel with water, benzene, thinner or scouring powder. Do not inspect or service the control panel by yourself. Please consult authorized dealer. Otherwise, it may cause injury if mishandling.

• Some functions describe in this manual may not be applicable to your unit.

• Consult your nearest authorized dealer for further information. • For normal operation, the

buttons are not in use. a

ACTUAL OOR OUTD TIMER C C SETTING STATUS E SERVIC

TLET R OU TANK QUIET

HEATER BOOSTER C ON OFF MONTUEWEDTHU FRI SAT SUN SOLAR REMOTE

DEFROST SETTING STATUS SERVICE C WATER OUTLET OFF /ON

Open cover for buttons selections.

OUTDOOR STATUS SETTING

TIMER SET OFF/ON SELECT QUIET HEATER CANCEL ERROR RESET CLOCK

CHECK MODE FORCE SEARCH

CONTROL PANEL’S DISPLAY Heat Mode OFF/ON Indicator

Timer/Clock Setting Display

Outdoor Ambient Temperature Display

Quiet Mode Indicator

Water Outlet Temperature Display

Backup Heater Enabled/Disabled Indicator

m Backup Heater Actual (OFF/ON) Indicator

Force Heater Request OFF/ON Indicator

Booster Heater Actual (OFF/ON) Indicator

External Thermo Controller Connected Display

System Defrost Operation OFF/ON Indicator

System Setting Mode OFF/ON Indicator

System Status Check Mode OFF/ON Indicator

Caution (Tank Temperature above 60°C) Indicator

System Service Mode OFF/ON Indicator

Timer Setting Group Buttons

Operation Mode Button

Force Heater Mode Button

Quiet Operation Button

System Service Mode Button

Indoor Unit Backup Heater Enabling Button

System Status Check Button

System Setting Mode Buttons

CONTROL PANEL PREPARATION Setting Current Day and Time

Notes: to set current day.

4. Repeat steps 2 and 3 to set the current time.

• The current day and time need to be set when:

- The power is turned on for the first time. - After a long time has elapsed since the power was last turned on. • The current time that has been set will be the standard time for all the Timer operations.

• After initial installation, you can manually adjust the settings. The initial setting remains active until the user changes it.

• The control panel can be used for multiple installations. Some functions may not be applicable to your unit. • Ensure the operation LED is in OFF condition before setting.

SET STATUS SETTING SET CHECK SELECT CANCEL

to browse functions.

to enable YES or disable NO function, or set other options.

External Thermo Controller (YES / NO) To set external thermo controller connection.

1. Press and simultaneously for 5 seconds to enter special setting mode.

“SETTING” and “STATUS” indicator is ON.

ENGLISH Indoor Backup Heater Capacity Selection (3kW / 6kW / 9kW)

To reduce the heater power whenever unnecessary. Options vary depending on model. Water System Freeze Prevention Function (YES / NO) To activate or deactivate water system freeze prevention function when unit is OFF.

TANK Tank Connection (YES / NO)

To set tank connection. Note: If select “Tank connection” is “NO”, Set 5 ~ 14 are skipped.

SOLAR Solar Priority (YES / NO)

To choose the solar use for water tank heat up.

HEAT Heating Priority (YES / NO)

To choose the room heating as priority during HEAT + TANK mode. Note: If select “Heating priority” is “YES”, Set 7 ~ 8 are skipped.

HEAT Heating operation Interval Set

To set timer for Heat mode during HEAT + TANK mode (0.5hour ~ 10 hours).

TANK Tank Heat-up Interval Set

To set timer for Tank during HEAT + TANK mode (5minutes ~ 1hour 35minutes).

BOOSTER Booster Heater Function (YES / NO)

To activate or deactivate tank booster heater function. Note: If select “Booster heater function” is “NO”, Set 10 is skipped.

BOOSTER Booster Heater Delay Timer Set

To set delay timer for booster heater to ON if water tank temperature is not reached (20minutes ~ 1hour 35minutes).

• Do not use the system during sterilization to prevent scalding or overheat during shower.

• The sterilization function field settings must be configured by the authorized dealer according to local laws and regulation.

Sterilization (YES / NO)

To set sterilization, if required. Note: If select “Sterilization” is “NO”, set 12 ~ 14 are skipped. Sterilization Day & Time Set To set timer for sterilization (only once a week, will operate even in standby condition). Sterilization Temperature Set To set temperature for sterilization function (40°C ~ 75°C). Sterilization Continue Time To set timer to maintain heating temperature in order to complete the sterilization function (5minutes ~ 1hour).

TO TURN ON OR OFF THE UNIT

• When unit is ON, operation LED is lit and the actual temperature for water outlet and outdoor ambient are shown on the control panel display.

• It is strongly recommended to contact the nearest authorized dealer to change the water temperature range.

• Using the control panel could set the temperature range for water outlet temperature and outdoor ambient temperature.

SYSTEM SETTING MODE Operation Mode

- To turn ON or OFF the panel/floor heating operation. - In this mode, the outdoor unit will provide heating capacity to the indoor unit. • HEAT + TANK MODE - In this mode, the outdoor unit will provide heating capacity to the sanitary tank and indoor unit. - This operation is not used when the sanitary water tank is not installed. • TANK MODE - To turn ON or OFF the sanitary tank operation. - In this mode, the outdoor unit will provide heating capacity to the sanitary tank. QUIET

• This operation reduces outdoor unit noise. In this condition, it may cause decrease in heating capacity.

• The backup heater provides extra heating capacity during cold outdoor temperature and only can operated at heat mode operation for indoor unit when he was enabled by pushing this button.

• The backup heater will automatically turn ON when the setting conditions is fulfilled. • To disabled the Heater operation manually, press the respective button again.

STATUS SEARCH CHECK SYSTEM STATUS CHECK MODE for 5 seconds to enter STATUS mode.

2.Press or to check the Water Inlet

Temperature, Tank Temperature, Compressor Running Frequency or Error History. CANCEL

to exit STATUS mode.

• Press • Once STATUS mode is entered, “STATUS” indicator is ON. • STATUS mode cannot be activated when the “SETTING” indicator is ON.

DEFROST SETTING STATUS SERVICE WATER OUTLET Parameter *

1. Press for 5 seconds to enter “SETTING” mode.

“SETTING” indicator is ON. 2. Press

to choose a parameter.

3. After selecting the desired parameter, press the parameter.

to set the desired temperature.

again to confirm the setting.

• Repeat steps 2 to 5 to set other parameters.

Operation Parameter * Description Mode Low outdoor ambient set temperature HEAT (-15°C ~ 15°C). High outdoor ambient set temperature HEAT (-15°C ~ 15°C). Water outlet set temperature at low outdoor HEAT ambient temperature (25°C ~ 65°C). Water outlet set temperature at high outdoor HEAT ambient temperature (25°C ~ 65°C). Water Temperature

HEAT OFF HEATER CHECK OUTDOOR HEAT CANCEL

SETTING MODE ON TANK Set temperature for turning OFF heating operation (5°C ~ 35°C).

Outdoor ambient set temperature for turning ON heater operation (-15°C ~ 20°C). Sanitary tank set temperature (40°C ~ 75°C).

WATER TEMPERATURE THERMO SHIFT SETTING SET

1. Press within 5 seconds.

• Repeat steps 3 to 5 to set the desired shift temperature (-5°C ~ 5°C). Notes: • Press

or wait 30 seconds to exit “SETTING” mode.

• The setting temperature will be stored in the system once confirm.

• “SETTING” mode cannot be activated when the “SERVICE” and “STATUS” indicator is ON.

6/24/2012 6:40:32 PM MONTUEWEDTHU FRI SAT SUN C Indicates the selected day

Lights up if Timer operation is selected 6 different programs can be set in a day (1 ~ 6)

MODE QUIET HEATER CANCEL Water temperature thermo shift (-5ºC ~ 5ºC)

OFF Timer - To automatically switch “OFF” the unit ON Timer - To automatically switch “ON” the unit Day to be selected Function

to select your desired day.

to select ON or OFF timer.

to select your desired time.

and desired shift temperature

6. Press to confirm program 1. The selected day will be highlighted with ▼.

• After 2 seconds, the display will move to the next program. 7. Repeat steps 4 to 7 to set programs 2 to 6. SET button is pressed the • During timer setup, if no button is pressed within 30 seconds, or if the setting at that moment is confirmed and timer setup is ended. Add/Modify timer

Repeat the steps above.

3. Press Cancel timer

until your desired day is shown, press

to check the set programs.

to confirm your selection.

until your desired day is shown, press

to confirm your selection.

to enter program setting. or

until your desired program is shown.

to cancel the program.

• You can set the Timer for each day of the week (Monday to Sunday) with 6 programs per day. • When the unit is switched on by the ON TIMER, it will use the previously set temperature to control the water outlet temperature. • Same timer program cannot be set in the same day. • You may also select collective days with same timer setting. • Promotes energy saving by allowing you to set up to 6 programs in any given day.

• Switch off the power supply before cleaning.

CLEANING INSTRUCTIONS HINT

• Do not use benzene, thinner or scouring powder.

• Use only soap ( pH7) or neutral household detergent. • Do not use water hotter than 40°C.

• To ensure optimal performance of the unit, cleaning maintenance has to be carried out at regular intervals.

Please consult authorized dealer.

MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

• Do not press or hit the glass cover with hard, pointed objects. This may damage the unit.

• Ensure that the water pressure is between 0.05 to

0.3 MPa (0.1 MPa = 1 bar). • In case the water pressure is out of the above range, please consult authorized dealer.

INDOOR UNIT & CONTROL PANEL

• Do not splash water directly. • Wipe the unit gently with a soft, dry cloth.

• Please clean the external filter at least once a year. Fail to do so might cause filter clogged, consequent system breakdown. Please consult authorized dealer.

• Do not obstruct the air inlet and air outlet vents, it may cause low performance or breakdown. Please remove obstacles to assure the ventilation. • During winter, please clean and remove the snow near outdoor unit so that the snow does not cover the air inlet and air outlet vents.

• In order to ensure optimal performance of the unit, seasonal inspections on the unit, external filter and field wiring have to be carried out at regular intervals. This maintenance should be carried out by authorized dealer. • Clear any obstruction at the air inlet and air outlet vents of outdoor unit.

T FOR EXTENDED NON-USE

• Turn off the power supply.

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation. • Water/foreign particles have entered the control panel. • Water leaks from Indoor unit. • Circuit breaker switches off frequently. • Power cord becomes unnaturally warm.

The following symptoms do not indicate malfunction.

SYMPTOM CAUSE Flowing sound during operation.

Operation is delayed a few minutes after restarting. Outdoor unit emits water/steam. Outdoor unit emits steam during heating mode.

Outdoor unit does not operate.

Air-to-Water Heatpump system operation will turn off.

System difficult to heat-up.

• • System cannot get warm instantly.

Backup heater turn ON automatically when it is not enabled.

Operation starts automatically even without ON Timer.

Refrigerant flow inside the unit.

The delay is a protection to the unit’s compressor. Condensation or evaporation occurs on pipes. This is due to defrost operation happens at the heat exchanger. When the outdoor temperature is out of the operation condition range, the heatpump system enter protection control. The heatpump system enter protection control. Compressor stops by water inlet temperature lower than 18°C; and backup heater power turn on by water inlet temperature lower than 23°C. When heating is operated by indoor unit together with floor heating or panel heater simultaneously, there may be case where warm water temperature is getting lower and cause floor heating or panel heater heat-up is weaken. When outdoor air temperature is low, it may be difficult to get warm. Is the snow pile blocking the discharge outlet or intake inlet of outdoor unit. When water outlet set temperature is low, it may be difficult to get warm. Due to the nature of the heatpump system, it may take some time to heat-up the water if the unit is operated from cold-start. The turn ON of backup heater is a protection to the indoor unit’s heat exchanger. The sterilization timer has been set.

ENGLISH TROUBLESHOOTING Check the following before calling for servicing.

SYMPTOM Heating operation is not working efficiently.

Noisy during operation.

The unit does not work. Operation LED is no lit or control panel display is blank.

► • Set the temperature correctly. • Is the panel heater valve closed. • Clear any obstruction at the air inlet and air outlet vents of outdoor unit. ► • Check if the unit has been installed at an incline or the cover is not closed properly. ► • Check if the circuit breaker is tripped. ► • Is the power supply off or power failure.

The operation LED blinks and error code appear on control panel display.

MONTUEWEDTHU FRI SAT SUN ON OFF

• Turn the unit off and reveal the error code to authorized dealer.

• Timer operation cancel when error code occur.

Force Heater Mode Button

• In case of a failure of the Air-to-Water Heatpump system, the backup heater can be used to heat

FORCE to switch on the backup heater. up the heating water. Press OFF / ON • Press to stop the force heater operation. • During Force Heater mode, all other operations are not allowed.

SETTING STATUS E SERVIC

DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

HEATER ON OFF MONTUEWEDTHU FRI SAT SUN

DEFROST SETTING STATUS SERVICE WATER OUTLET MONTUEWEDTHU FRI SAT SUN QUIET HEATER CANCEL MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

MONTUEWEDTHU FRI SAT SUN ON OFF SETTING STATUS E SERVIC TLET R OU

DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

HEATER ON OFF MONTUEWEDTHU FRI SAT SUN

SETTING SET TIMER DEFROST SETTING STATUS SERVICE WATER OUTLET Parámetro *

MONTUEWEDTHU FRI SAT SUN C MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

MONTUEWEDTHU FRI SAT SUN ON OFF SETTING STATUS E SERVIC

DEFROST SETTING STATUS SERVICE C WATER OUTLET OFF /ON

HEATER ON OFF MONTUEWEDTHU FRI SAT SUN

DEFROST SETTING STATUS SERVICE MONTUEWEDTHU FRI SAT SUN C MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

MONTUEWEDTHU FRI SAT SUN ON OFF SETTING STATUS E SERVIC

DEFROST SETTING STATUS SERVICE C WATER OUTLET OFF /ON

HEATER ON OFF MONTUEWEDTHU FRI SAT SUN

DEFROST SETTING STATUS SERVICE WATER OUTLET Indicatore

IMPOSTAZIONE SET MONTUEWEDTHU FRI SAT SUN C MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

MONTUEWEDTHU FRI SAT SUN ON OFF SETTING STATUS E SERVIC TIMER HEAT

TLET R OU TANK QUIET

HEATER C ON OFF MONTUEWEDTHU FRI SAT SUN SOLAR REMOTE C BOOSTER

DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

Indicator Controlestand Systeemstatus UIT/AAN

Indicator Systeemservicestand UIT/AAN

DEFROST SETTING STATUS SERVICE WATER OUTLET Parameter *

Indicator INSTELLING SET MONTUEWEDTHU FRI SAT SUN C INSTRUCTIE VOOR SCHOONMAKEN TIP MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

BINNEN-UNIT & CONTROLEPANEEL Co

OMSTANDIGHEDEN WAARIN U HULP MOET INROEPEN

MONTUEWEDTHU FRI SAT SUN ON OFF SETTING STATUS E SERVIC TLET R OU

TIMER HEAT TIMER TANK QUIET C SOLAR REMOTE C BOOSTER

DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

HEATER ON OFF MONTUEWEDTHU FRI SAT SUN

DEFROST SETTING STATUS SERVICE WATER OUTLET Parâmetro *

CONFIGURAÇÃO SET MONTUEWEDTHU FRI SAT SUN C MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

MONTUEWEDTHU FRI SAT SUN ON OFF ACTUAL HEATER R BOOSTET DEFROS SETTING STATUS E SERVIC T OUTLE

DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

C ON OFF MONTUEWEDTHU FRI SAT SUN

DEFROST SETTING STATUS SERVICE WATER OUTLET MONTUEWEDTHU FRI SAT SUN TIMER SET OFF/ON SELECT MODE C MONTUEWEDTHU FRI SAT SUN C DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

MONTUEWEDTHU FRI SAT SUN ON OFF SETTING STATUS E SERVIC TIMER HEAT

TLET R OU TANK QUIET

HEATER C ON OFF MONTUEWEDTHU FRI SAT SUN SOLAR REMOTE C BOOSTER

DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

VOLBA PROVOZNÍHO REŽIMU TIMER SELECT HEAT HEAT +TANK TANK QUIET TANK

ČINNOST ZÁLOŽNÍHO TOPENÍ

REŽIM PROVĚRKY STAVU SYSTÉMU HEATER BOOSTER DEFROST SETTING STATUS SERVICE WATER OUTLET Parametr*

NASTAVENÍ TEPLOTNÍHO POSUVU VODY CHECK

SET MONTUEWEDTHU FRI SAT SUN C ON OFF TIMER SET OFF/ON SELECT SOLAR REMOTE CLOCK MODE QUIET HEATER CANCEL MONTUEWEDTHU FRI SAT SUN C ON OFF DEFROST SETTING STATUS SERVICE WATER OUTLET OFF /ON

MONTUEWEDTHU FRI SAT SUN ON OFF INFORMATION/INFORMATIONS/INFORMACIÓN/

INFORMATIONEN/INFORMAZIONI/ INFORMATIE/ INFORMAÇÃO/ΠΛΗΡΟΦΟΡΙΕΣ/INFORMACE Information for Users on Collection and Disposal of Old Equipment These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Panasonic Corporation

Website: http://panasonic.net/ Printed in Malaysia
