KAGFLWAS10A - Washing machine Kogan - Free user manual and instructions

Product Type	Freestanding Washing Machine
Model	KAGFLWAS10A
Brand	Kogan
Capacity	10 kg
Spin Speed	1400 rpm
Energy Rating	A+++
Noise Level (Wash/Spin)	56 dB / 76 dB
Dimensions (W x H x D)	600 mm x 850 mm x 550 mm
Weight (Net)	70 kg
Power Supply	220-240 V, 50 Hz, 10 A
Wash Programs	15 including Cotton, Synthetics, Delicates, Quick, Eco, Wool, Hand Wash, Rinse & Spin, Drum Clean
Temperature Options	Cold, 20°C, 30°C, 40°C, 60°C, 90°C
Additional Features	Delay Start, Child Lock, Overflow Protection, Unbalanced Load Detection
Drum Material	Stainless Steel
Door Type	Front-loading, 180° opening
Water Consumption	55 L per cycle (Eco 40-60)
Annual Energy Consumption	150 kWh
Spare Parts Availability	Through Kogan official service centers or online store
Repairability Index	7.2 / 10
Maintenance	Clean lint filter monthly, run drum clean every 2 months
Certifications	CE, WEEE, RoHS

Frequently Asked Questions - KAGFLWAS10A Kogan

How do I install the washing machine?

Remove all packaging, connect the inlet hose to a water tap with a pressure of 0.05-1 MPa, insert the drain hose into a standpipe or sink, and level the machine using the adjustable feet. Refer to the manual for detailed steps.

What do I do if the machine displays an error code?

Check the error code in the manual. Common codes: E1 (water supply issue) – check tap and hose; E2 (drain problem) – clean filter; E4 (unbalanced load) – redistribute laundry. If persists, contact support.

How do I clean the lint filter?

Turn off and unplug the machine. Open the filter cover at the bottom front, turn the filter counterclockwise, pull it out, rinse under water, reinsert and secure.

Can I use liquid detergent?

Yes, but use the designated compartment. For front-loaders, pour liquid detergent into the main wash compartment (usually marked II). Do not exceed the MAX line.

Why is my laundry not spinning properly?

Check for unbalanced load – redistribute items evenly. Ensure the drain hose is not kinked and the filter is clean. Select a higher spin speed if needed.

How often should I run the drum cleaner program?

Every 2 months or after 30 washes. Use a drum cleaning agent or white vinegar. This prevents odors and mold.

What is the maximum load for different cycles?

10 kg for Cotton; 5 kg for Synthetics; 2.5 kg for Wool; 2 kg for Delicates. Overloading can cause poor wash results.

How do I enable child lock?

Press and hold the Child Lock button (usually a padlock icon) for 3 seconds until the indicator lights up. To disable, repeat.

Why is water leaking from the machine?

Check hose connections for tightness, inspect the door seal for damage, and ensure the filter cap is closed properly. If leak persists, call a technician.

What should I do if the machine vibrates excessively?

Ensure the transport bolts are removed. Level the machine with adjustable feet. Place on a solid, level floor. Reduce load size if necessary.

USER MANUAL KAGFLWAS10A Kogan

White portable washing machine with digital display and black door, no visible text or symbols on the device body

10KG FRONT LOAD INVERTER WASHING MACHINE

KAGFLWAS10A

SAFETY & WARNINGS

Warning

Thoroughly read these safety instructions before use. The items indicated here are very important safety precautions, which must be followed. Kogan.com cannot be held liable for any damage caused by non-compliance with the warning and safety instructions or resulting from incorrect use or operation.

Cleaning and user maintenance shall not be performed by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Ensure only the supplied hose-sets are used with this appliance. Do not re-use any old existing hoses.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they under supervision or instruction of an adult or carer.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
- Farmhouses;
- By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
- Areas for communal use in blocks of flats or launderettes.

Washing machines featuring ventilation openings in the base, must not be placed on carpeted surfaces.

Technical safety

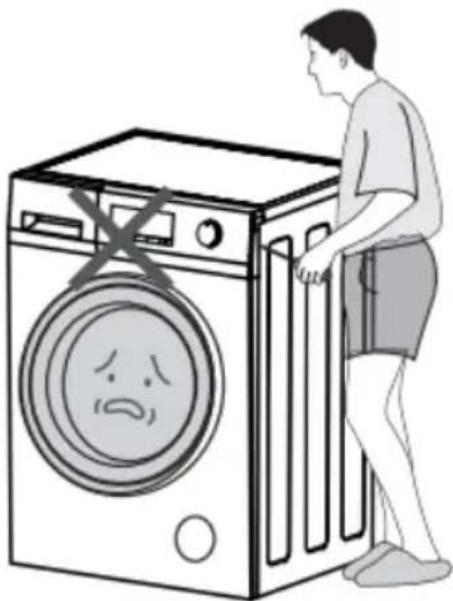

Illustration of a person standing beside a washing machine with a sad face on its side (no text or symbols present)

• Before setting up the washing machine, check for any external visible damage. Do not install or use a damaged washing machine.
• Before connecting the washing machine, ensure that the connection data on the data plate (voltage and current) match the electricity supply. If in any doubt, consult a qualified electrician.
• The electrical safety of this washing machine can only be guaranteed when it is plugged into a power socket which complies with current local and national safety regulations.
• It is important that this basic safety requirement is present and regularly tested. Where there is any doubt, the household wiring system should be inspected by a qualified electrician. Kogan.com cannot be held liable for the consequences of an inadequate electrical system.
• Do not connect the washing machine to the power outlet with an extension lead. Extension leads do not guarantee the required safety of the appliance.
• Unauthorised repairs could result in unforeseen dangers for the user, for which Kogan.com cannot accept liability. Repairs should only be undertaken by an approved service technician Ensure the washing machine is disconnected from the power outlet until after maintenance or repair work has been carried out.
• If the supply cord is damaged, it must be replaced by the Kogan.com or a service agent on behalf of Kogan.com.

Correct use

- To avoid the risk of personal injury or damage to the washing machine, do not install it in any damp areas or somewhere which is exposed to rain.

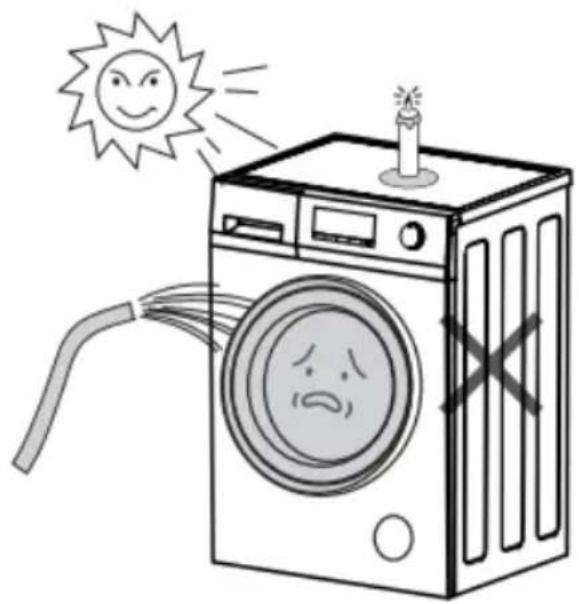

- Do not install the washing machine in areas with direct sun light, in which plastic or other components may be damaged. This will shorten the life of your washing machine.

Illustration of a washing machine emitting exhaust heat, with a smiling sun and a crossed-out 'X' mark indicating no text or symbols.

- Do not install the washing machine in areas where temperatures fall below 0°C. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

• Do not spray the washing machine with water during cleaning or maintenance.

- Keep the washing machine away from fire and other sources of heat.

- Before using the washing machine for the first time, check that the transit bolts at the rear of the machine have been removed. During spinning any transit bolts which are still in place may result in damage to both the machine and any adjacent furniture or appliances.

- Turn off the tap if the machine is to be left for any length of time (e.g. holiday); especially if there is no floor drain (gully) in the immediate vicinity.

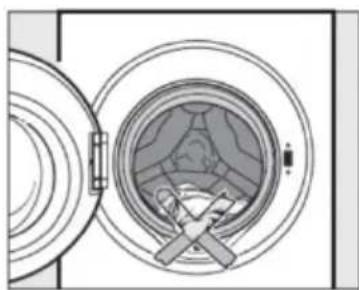

• Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. drum), which in turn can result in damage to the laundry.

• Do not wash water-repellent items (e.g. raincoats) with this washing machine.

- Only remove laundry from the washing machine once the drum has stopped turning. Reaching into a moving drum is extremely dangerous and could result in injury.

Safety with children

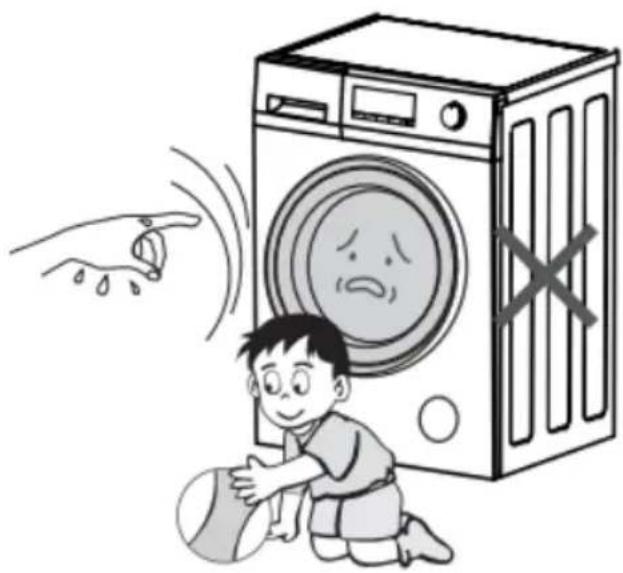

Illustration of a child cleaning a ball near a washing machine with a hand pointing to it (no text or symbols)

• Keep children away from the washing machine at all times. Do not allow children to play on or near the machine and its controls. Always supervise children whilst you are using it.
• Older children may only use the washing machine if its operation has been clearly explained to them and they are able to use it safely and can recognising the dangers of misuse.
• The door glass will be hot when washing at very high temperatures. Do not let children touch it.

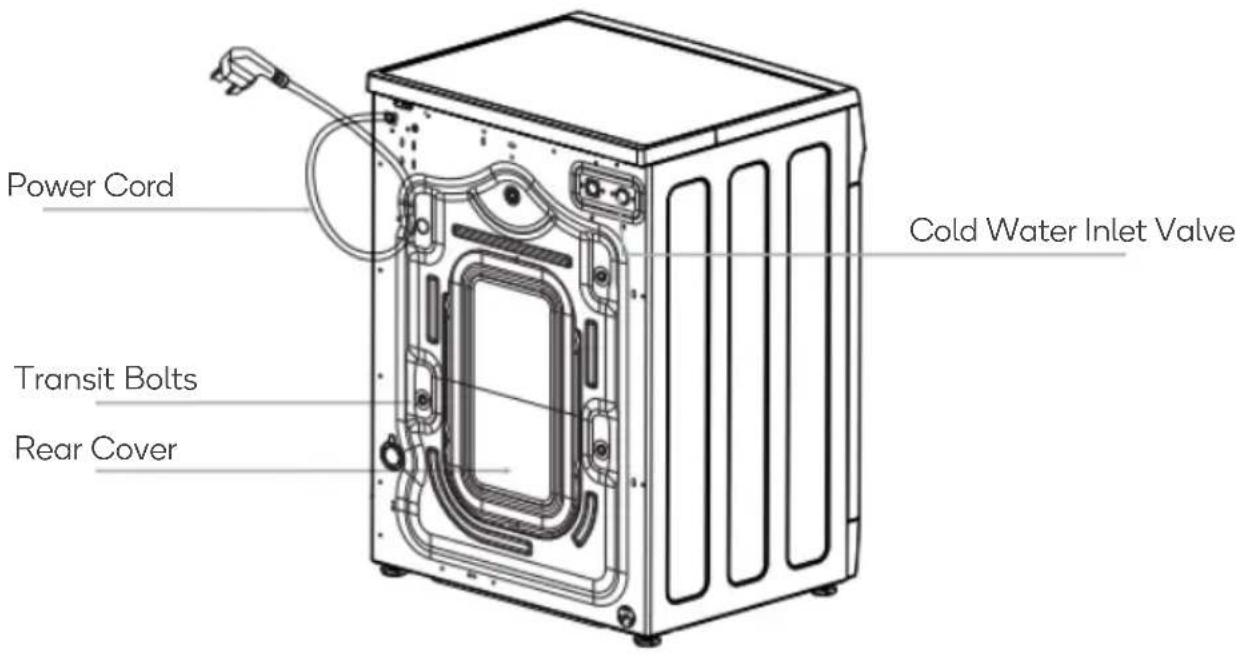

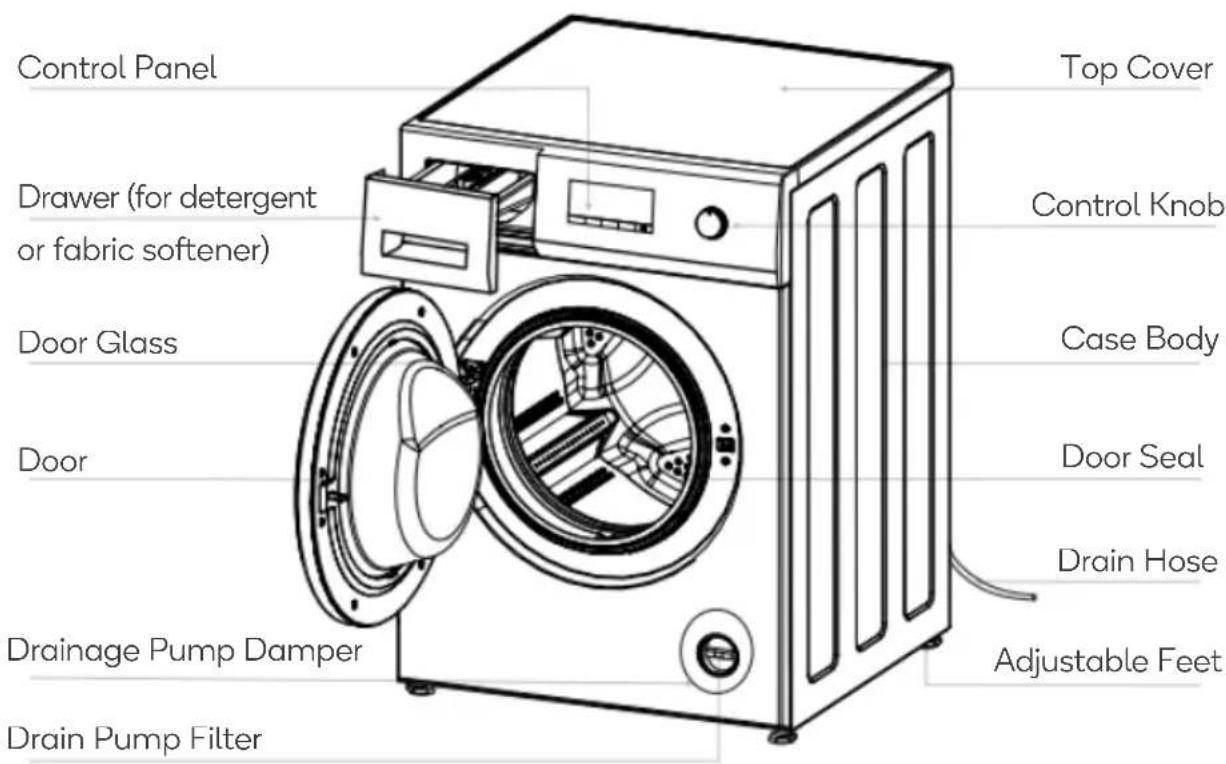

OVERVIEW

Note:

Unscrew the drain pump filter to allow the water to drain out when the machine is not used for an extended period.

Note:

The artwork in this user guide is intended for reference only and may differ from the actual product.

INSTALLATION

Packaging

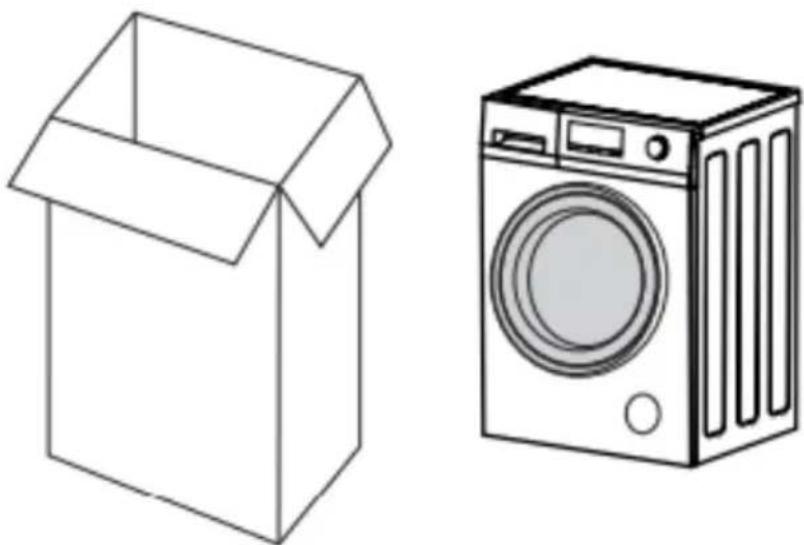

Line drawing of an open cardboard box next to a washing machine (no text or symbols)

• Remove all the packaging (Including the foam base).
  • Properly dispose of all the packaging and keep them out of the reach of children.
  • Some condensation may appear on the packaging plastic bag and the door glass.

Accessories

Make sure that you have received all of the items shown below. Do not dispose of any packaging before confirming.

Accessories	Name	Qty	Accessories	Name	Qty

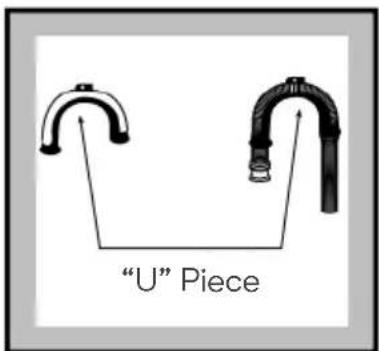

	Inlet hose 1			“U” piece 1
	Transit bolt caps	4		User guide 1

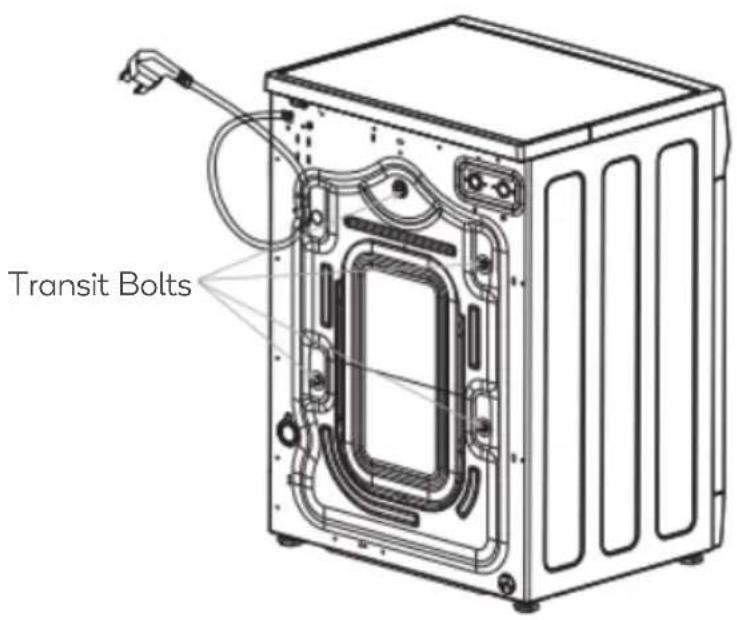

Removing transit bolts

• Remove all the transit bolts from the rear of the machine.
  • Plug the holes using the supplied transit bolt caps.

Note:

Strong vibration, noise or failures may occur if the transit bolts are not removed.

- Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted.

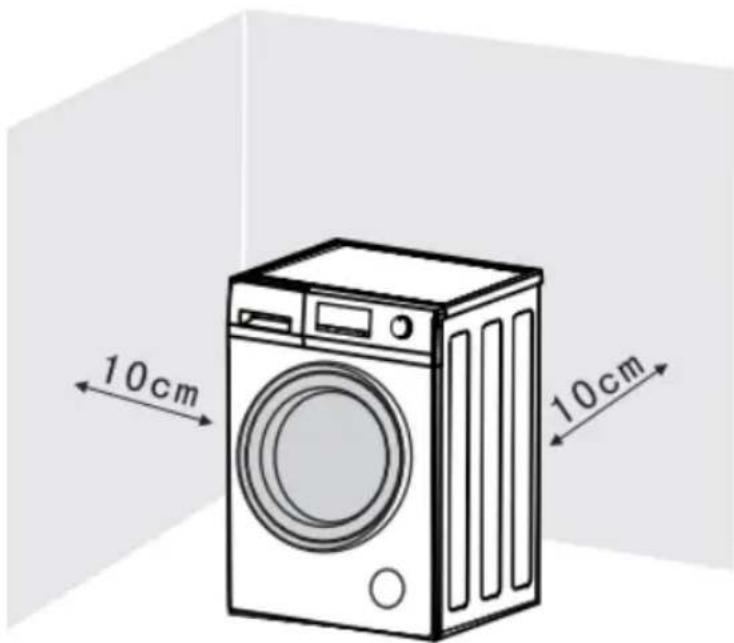

Installation position

• A concrete floor is the most suitable surface for the washing machine, being far less prone to vibrations during the spin cycle than other surfaces.
• The machine must be level and securely positioned. The distance between the machine and any walls must be more than 10cm.
• To avoid vibrations during spinning, the machine should not be installed on soft floor coverings.

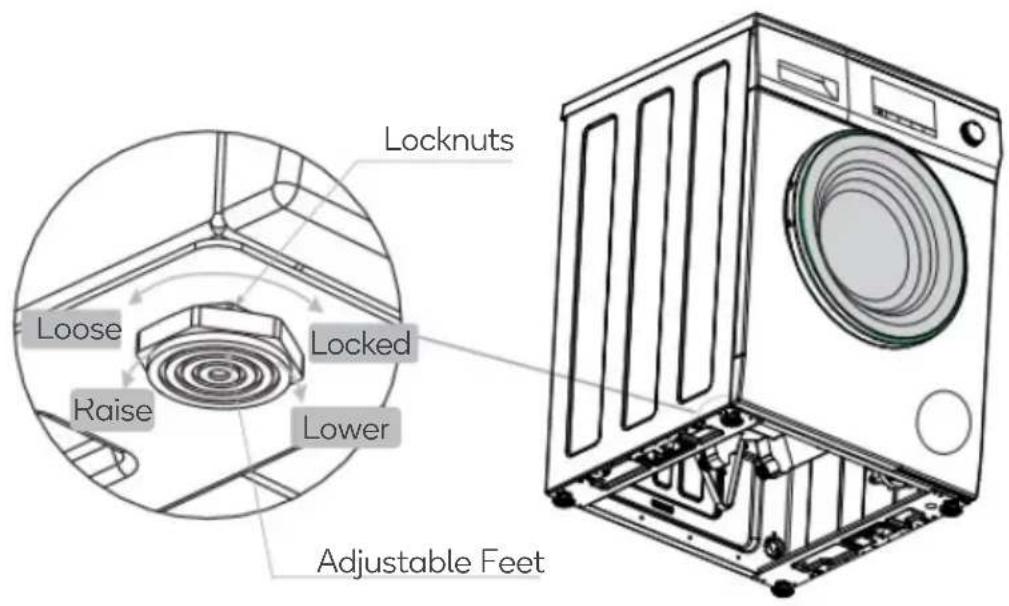

Level adjustment

The machine must stand perfectly level on all four feet to ensure safe and proper operation. Incorrect installation may increase electricity and water consumption and may cause the machine to move during usage.

The level can be adjusted using the adjustment feet on the bottom of the machine

• Using the spanner rotate the locknut in a clockwise direction. Then rotate the locknuts together with adjustable feet to raise or lower.
  • Use a spirit level to check the machine is level.
• Hold adjustable feet securely with a pipe wrench. Turn locknut again using the spanner until it sits firmly up against the housing.

Note:

Vibration and noise may occur if the locknuts do not sit firmly up against the washing machine housing.

Drain hose connection

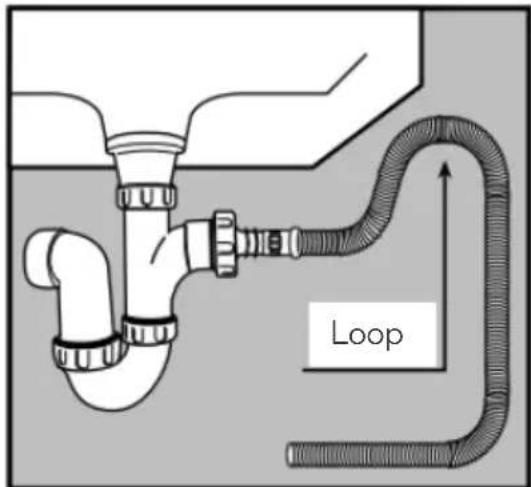

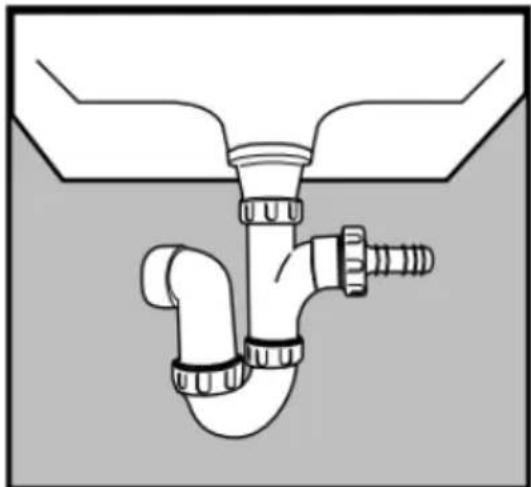

1. Direct into a sink:

• If the outlet spigot has not been used before, remove the blanking plug (if present).
- Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose to prevent any waste from the sink entering the washing machine.
• If required, the drain hose can be extended to a length of 4m.

Diagram of a subway drain with pipe fittings and valve (no text or labels)

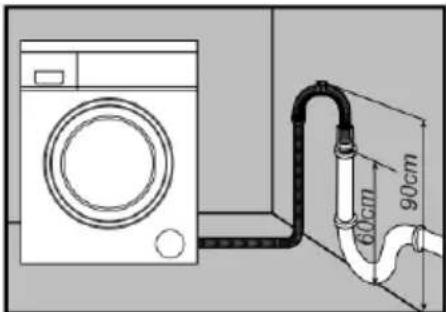

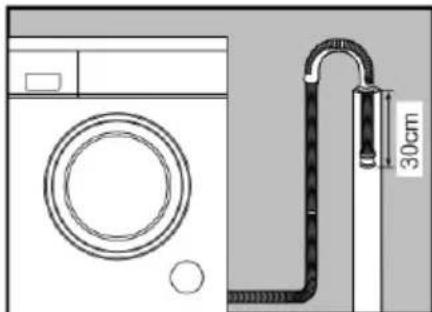

2. Connected securely to a standpipe:

• Firstly, form a hook shape at the end of the drain hose using the supplied "U" piece".
• Place the drain hose into the standpipe, which should have an internal diameter of approximately 38mm thus ensuring there is an air brake between the drain hose and standpipe.
• When discharging into a standpipe ensure that the top of the standpipe is no more than 90cm and no less than 60cm above floor level.

Line drawing of a washing machine with a 30cm pipe connection (no text or symbols)

Water inlet connection

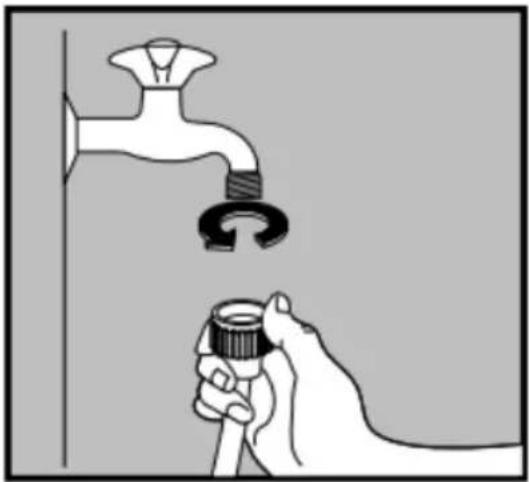

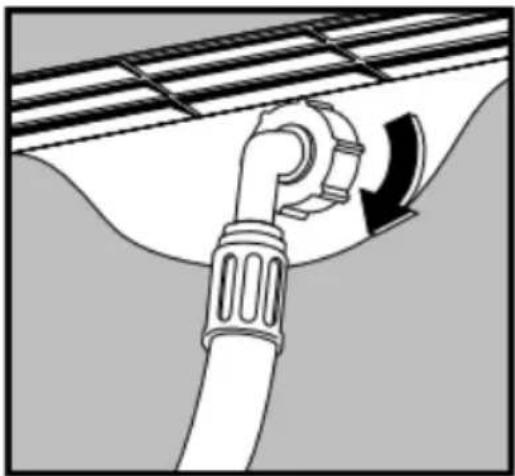

1. Connect the supplied inlet hose to a tap with a 3/4" thread.

2. Do not use any old existing hoses.

3. Installation should comply with your local water authority and building regulations' requirements.

Diagram of a pipe valve with a curved arrow indicating flow direction (no text or symbols)

Illustration of a hand holding a pipe with a faucet above it, no text or symbols present

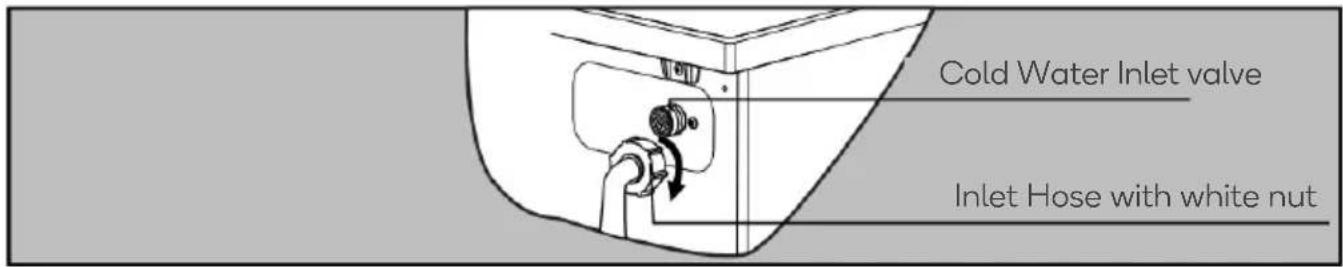

When there is a single inlet valve at the back of the machine, it must be connected to a cold-water supply. If there are two inlet valves, one is connected to a cold-water supply and the other is connected to a hot-water supply. Follow the indication of the picture below to complete the connection.

Washing preparation

1. Connect the inlet hoses and turn on the tap.

2. After making sure the power socket is grounded reliably, insert the power plug into the power socket. Switch on at wall.

3. Position the drainage hose well (ie, laundry sink or drain).

How to use Washer

Before washing clothes for the first time, you must run a complete cycle without clothes.

1. Turn the program select knob to "Cotton" position.

2. Press "Start/Pause" button.

If there is any water leftover from quality control testing, this will drain the water.

OPERATION

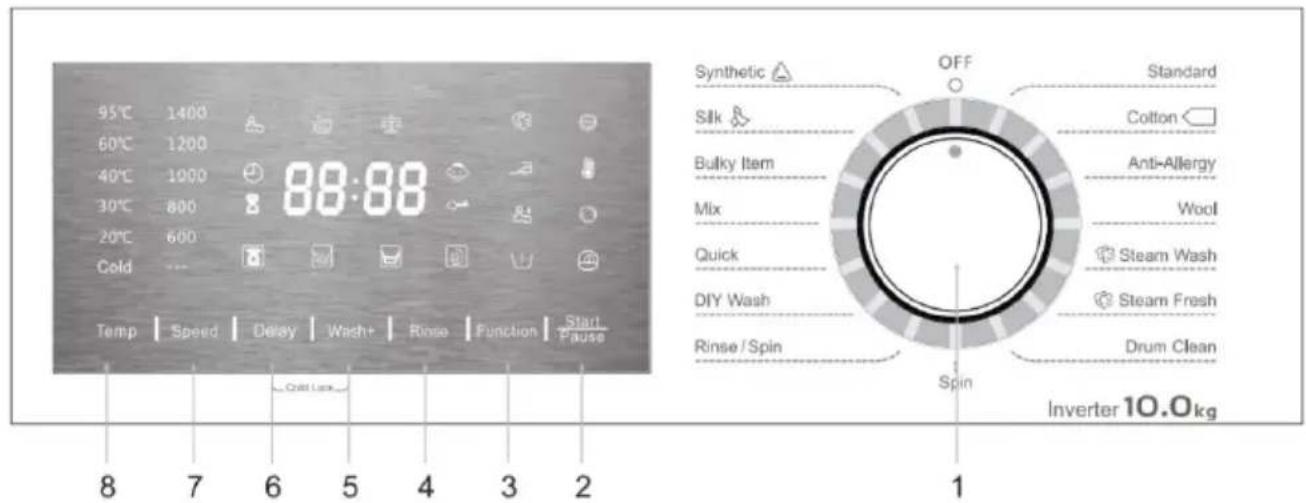

Control panel

1. Program Select Knob

Turn this knob clockwise or anti-clockwise to select the required wash program. (Note: At the end of a wash cycle, the knob must be returned to the "Off" position).

2. Start/Pause ()

Press this button to start or pause a wash cycle. The door can't be opened once the machine has started – the door will be unlocked when a full wash cycle has completed and the machine has cooled. You can press this button to pause the running cycle and turn the knob to select another program and then press this button again to start the selected wash cycle.

3. Function

There are four basic functions: "Soft", "Anti-Ironing", "Water+" and "Pre-Wash".

• Soft: This function can help reduce clothing wrinkles by running the "Steam Fresh" program after the rinse and spin.
• Anti-Ironing ☑: This function is to reduce the wrinkle of clothes during a washing cycle. Once this function is selected, the machine will not execute the last drain unless the "Start/Pause" button is pressed. (Note: The max running time of this function is 12 hours. If it exceeds 12 hours, the machine will drain and spin automatically)

• Water+ 🔊": This function will add an extra rinse on the program you selected.

- Pre-Wash ⬆: Select this function for very dirty clothes, the washing duration will be extended.

1. Rinse: This function will add an extra rinse on the program you selected.
2. Wash+: This function will add extra time on the program you selected.
3. Delay: Press this button to set the delay time of starting a wash cycle from 1 hour up to 24 hours.
4. Speed: Press this button to change the spin speed. Temp: Press this button to change the wash temperature.

Note:

• Do not turn the knob to the "off" position and remove clothes while the machine is running. The temperature of the water may be high and may scald you.
• The door lock will open automatically at the end of a wash cycle when the temperature of the drum has cooled down.

Child lock ("Delay" + "Wash")

The function of "Child lock" is to lock the control panel to prevent the misuse by children.

1. Press the "Delay" and "Wash" buttons at the same time for 3 seconds.
2. The Child Lock icon (😊) will light up on the screen.
3. With this function enabled, all keys and knobs are deactivated except for the "Off" position of the Program Selection Knob.
4. The child lock function can be selected during a washing cycle without interrupting it.

To cancel the child lock function when enabled:

1. Hold the "Delay" and "Wash" buttons simultaneously for 3 seconds. The function is cancelled when the Child Lock icon (💡) disappears on the screen.

Mute ("Rinse")

• The function of "Mute" is to disabled all prompt tone and alert sounds.
• To enable mute, press and hold the "Rinse" button for 3 seconds.
• To cancel when enabled, press and hold the "Rinse" button for 3 seconds again.

Control Panel Display

An overview of the symbols and icons that may appear on the Control Panel

8:88	Digital DisplayThis area will show the remaining time, delay hour and temperature.
	Inlet TimeoutThis icon will be displayed when the water inlet sensor times out. Please check the water tap and make sure it is open.
	DelayThis icon will display when a delay timer has been set.
	Foam ReducingIf there is too much foam during the wash, the machine will run a program to reduce the foam by itself and this icon will display.
	Balance ControlThe machine has a balance control device to check and make sure that the clothes have been evenly distributed into the drum before the spin. If the balance control fails more than three times, this icon will be displayed and the spin will be delayed.
	Child LockThis icon will display once the child lock function is selected.
	Door LockThis icon will display when the door lock is active.
1400-600	Spin SpeedDisplays the speed of the spin cycle.
	High Water LevelIf the machine is paused during a wash cycle, but the door can't be opened due to the high-water level, this icon will display.
	WeighingThe machine will weigh the clothes at the beginning of some programs. This icon will display until the weighing process is complete.Main WashThe icon will display in standby mode when this function is selected. This icon will flash during operation and will display when the machine is paused, the icon will be turn off when machine finishes washing.
	RinseThe icon will display in standby mode when this function is selected. This icon will flash during operation and will display when the machine is paused, the icon will be turn off when machine finishes washing.
	Final SpinThe icon will display in standby mode when this function is selected. This icon will flash during operation and will display when the machine is paused, the icon will be turn off when machine finishes washing.
	Water HotIf paused during a washing cycle, but the door can’t be opened due to the high water temperature (≥ 60°C), this icon will displayed until the button “Start/Pause” is pressed to start the machine again.
	Drum CleanIf this icon is displayed, please run the “Drum Clean” program to clean the drum.
	Pump CleanIf this icon is displayed, please check if the drain pump is still working.

Program guide:

Program	Weight (kg)	Time (min)	Temp (°C)	Rinse times	Spin speed (rpm)
Standard 10	79		00/20/30 /40/60/95	2	0/600/800/1000 /1200/1400
Cotton	10 289		00/20/30 /40/60/95	2	0/600/800/1000 /1200/1400
Anti-Allergy	6	130	95	2	0/600/800/1000 /1200/1400
Wool	4	42	00/20/30/40	3	0/600
Steam Wash	4.5	79	00/20/30 /40/60/95	2	0/600/800/1000 /1200/1400
Steam Fresh	2.5	15	---	---	---
Drum Clean	0	69	60/95	2	600
Spin	10	11	---	---	0/600/800/1000 /1200/1400
Rinse/Spin	10	17	---	1	0/600/800/1000 /1200/1400
DIY Wash 6	51		00/20/30 /40/60/95	2	0/600/800/1000 /1200/1400
Quick 3.5	18	00 2			0/600/800 /1000/1200
Mix	6	78	00/20/30/40/60	2	0/600/800/1000 /1200/1400
Bulky Item	10	86	00/20/30/40/60	2	0/600/800
Silk	4	42	00/20/30/40	2	0/600
Synthetic	5	72	00/20/30/40/60	2	0/600/800

Program	Function Options
	Weight	Delay	Pre-wash	Wash+	Rinse +	Anti-Ironing	Water +	Soft
Standard			(+25min)	(0/5/10/15/20min)
Cotton			(+25min)	(0/5/10/15/20min)
Anti-Allergy				(0/5/10/15/20min)
Wool				(0/5/10/15/20min)
Steam Wash				(0/5/10/15/20min)
Steam Fresh
Drum Clean
Spin
Rinse/Spin
DIY Wash			(+25min)	(0/5/10/15/20/25/30min)
Quick				(0/5/10/15min)
Mix			(+25min)	(0/5/10/15/20min)
Bulky Item			(+25min)	(0/5/10/15/20min)
Silk				(0/5/10/15min)
Synthetic			(+25min)	(0/5/10/15min)

Notes:

‘☐’ is for Standard Cotton program. Standard Cotton at 60^ C and 40^ C are suitable to clean normally soiled cotton laundry and they are the most efficient programs in terms of combined energy and water consumption for washing that type of cotton laundry; in addition, the actual water temperature may differ from the declared cycle temperature.

The running time above is for the default programs, which is only for reference and it, May different because of different laundries, weights and washing temperature. The "00" means the temperature of water is normal. The default options of the programs are in boldface.

Clothes Preparation

- Sort the laundry by colour and by care label. Most garments have a textile care label in the collar or side seam.

• Make sure all the pockets are empty. Foreign objects (such as nails, coins, paper clips, etc.) can cause damage to other garments as well as the machine.

- Close any zips, fasten hooks and toggles, etc, before washing (figure 1)

- Dark textiles often contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and coloureds separately.

- Badly soiled areas, stains etc. should be pre-treated with liquid detergent stain removers etc (figure 2)

- Turn over the clothes which pill easily and is with woollen surface before putting them into the machine (figure 3).

Line drawing of a long-sleeve shirt with buttoned collar (no text or symbols)

Figure 1

Line drawing of hands using a tool to clean or brush the paper (no text or symbols)

Figure 2

Line drawing of a sleeveless sweater with a strap band (no text or symbols)

Figure 3

Put clothes into washer

Unfold the laundry and load loosely into the drum. Mixing both large and small items gives better wash results and also helps distribute the load evenly during spinning. The most efficient use of energy and water is achieved when a full load is washed. However, do not overload as this causes creases and reduces cleaning efficiency.

Diagram of a double door with internal circular components and a cross symbol (no text or labels)

Note:

Make sure that no garments are caught between the door and the seal.

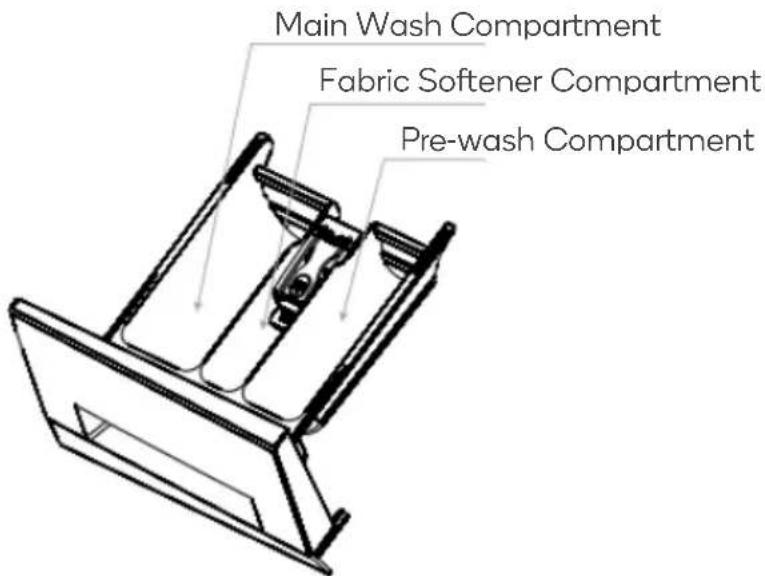

Using the detergent drawer

1. Open the drawer and add adequate detergent into the main wash compartment marked “””. II

2. Add the fabric softener into the compartment marked “☑” or “☒”. Do not exceed the maximum level mark.

3. Add the detergent into the pre-wash compartment marked "⊥" or "I" according to the program you select.

4. Close the drawer.

The correct amount of detergent will depend on the following:

• The quantity of laundry
• The soiling level of the laundry

○ Lightly soiled: No visible dirt or stains. Possibly slight body odour
○ Normally soiled: Visibly dirty and/or just a few slight stains
o Heavily soiled: Visible dirt and stains and/or dried on soiling

• The water hardness level.

Note: It is recommended to use low foaming powder for all washing programs.

Washing steps

1. Turn on the water tap and connect the power.

2. Open the door and load clothing into the drum one by one.

3. Close the door and put a suitable amount of detergent and fabric softener into the dispenser, then close the drawer.

4. Select the desired program by turning the control knob.

5. Press the "Temp" button and select a wash temperature.

6. Press the "Start/Pause" button to start the washing machine.

7. When the cycle is finished, a tone will sound.

Washing program chart

Program	Washing symbol	Fabric
Standard		Cotton, linens or cotton mix fabrics, e.g. towelling, underwear, T-shirts etc.
Cotton		Cotton, linens or cotton mix fabrics, e.g. table linen, underwear, T-shirts etc.
Anti-Allergy		Washing clothes at 95°^, which would help for sterilisation and disinfection.
Wool		Clothes made of wool.
Steam Wash		Cotton, underwear, sheet, pillows, children's clothes.
Steam Fresh		This program can be used to remove unwanted smells and folds from clothes
Drum Clean		This program is used to clean the drum. Don't put any clothes into the drum while running this program.
Spin		Separate spin for cotton and linen items
Rinse/Spin		This program can be used for rinsing items which can be washed in a Cotton program. Do not add any detergent.
DIY Wash		All the temperature, time, rinse times and other functions can be selected as you wish. This program will save the last settings automatically.
Quick		New clothes or a small number of clothes which are lightly dirty.
Mix		Dirty clothes made of cotton, synthetic fabric or a combination.
Bulky Item		Clothes with large volume.
Silk		Silk.
Synthetic		Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts.

Note:

This machine is fitted with a balance control device, which ensures the machine is stable during the spin. To protect the machine, it will cut in if the laundry is not evenly distributed in the drum. The laundry is redistributed by reversing the rotation of the drum. This may happen several times before the unbalance icon disappears and normal spinning can resume. If, after 15 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistributed the load manually and reselect the spin program.

Door lock

When the machine is started, the door is locked. The door can be opened if you press the "Start/Pause" button during a cycle except for in the following two cases:

• If the temperature inside the drum is above 53°C, the door will remain locked.
• When the water is above a certain level, the door will remain locked.

In most cases, we recommend running a wash cycle to completion to drain the water. After it has finished, and two minutes of cool-down time has passed, the door will unlock.

In an emergency, disconnect power from the washing machine and wait 2 minutes to open the door. CAUTION – Water may be hot, which could lead to scalding.

IMPORTANT: Do not try to open the door when the washing cycle is not finished, or power supply is cut off during the washing cycle. The temperature may be high enough to present a risk of scalding or burning.

Important:

Do not try to open the door if the washing cycle has not finished or power supply is cut off during the washing cycle. The temperature may be high and you may be scalded.

CLEANING & CARE

Disconnect the machine from the power socket before cleaning the machine.

The washing machine must not be hosed down.

Cleaning the exterior

Clean the exterior with a mild non-abrasive cleaning agent or soapy water using a well wrung-out cloth. Wipe dry using a soft cloth.

Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents. These may damage the plastic surfaces and other components because of the chemicals they contain.

Cleaning the drum

Clean the drum every 3 months using the "Drum Clean" program.

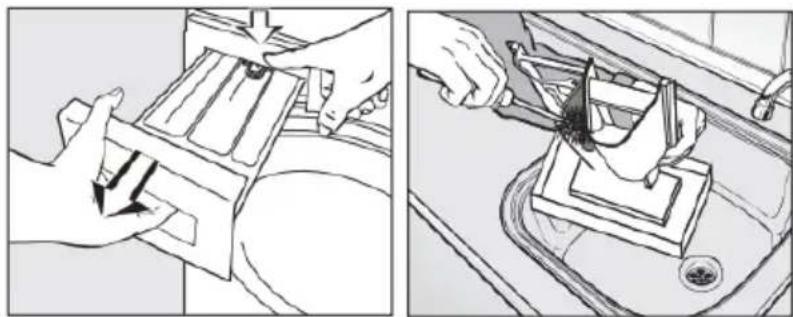

Cleaning the drawer

Clean the drawer of all detergent residues regularly.

• Pull out the drawer until it stops. Press the release catch at the same time as pulling the drawer to remove it from the machine.
• Remove the siphon from the compartment and clean it.
  • Clean the dispenser using a brush and warm water.

Two-step diagram showing hand tool application on a device, with one step and the other showing a tool interacting with a sink (no text or symbols present)

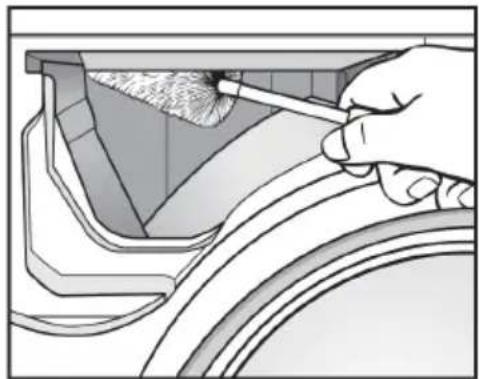

Cleaning the Drawer Housing

Use a bottle brush to remove detergent residues inside the drawer housing.

Illustration of a hand using a tool to clean or store material inside a container (no text or symbols visible)

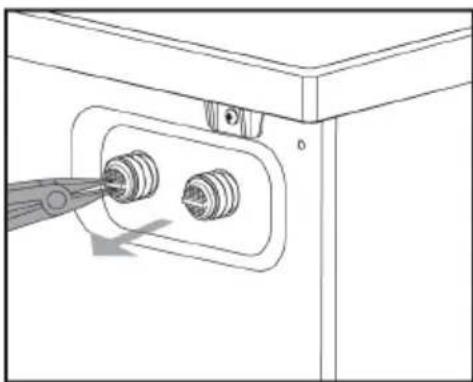

Cleaning the water inlet filter

Use pointed nose pliers to withdraw the plastic filter. After cleaning, put back and secure. These filters should be checked every 6 months, or more often if there are frequent interruptions to the water supply.

Technical line drawing of a mechanical component with two threaded fasteners inserted, showing a tool interacting with the ports (no text or symbols present)

Note:

The filter must be put back in place after cleaning.

Cleaning the drain pump filter

1. Disconnect the machine from the mains electricity supply and open the lower cover with a screwdriver.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

1. Place a container under the pump. Unscrew and remove the filter.

Illustration of a hand washing a sink with a circular object on the surface (no text or symbols)

1. Clean the filter carefully.

Illustration of two hands holding a small mechanical component with a tool (no text or symbols visible)

Note: The filter should be cleaned every 2 months, or when the "E03" is on screen.

SPECIFICATIONS

Power	220V-240V~,50Hz
Washing / spin capacity	10.0kg
Rated power	2000W
Water pressure	0.02-0.8MPa
Power of off-mode	0.38W
Power of left-on mode	0.38W
Program time (min)	304
Remaining moisture content	Class B
Average Energy consumption	1.05kWh
Average Water consumption	54.5L
Net weight / gross weight	69kg/74kg
Outer dimension (W x D x H) mm	595 x 665 x 845

Note:

Data can vary from the nominal values given depending on water pressure, water hardness, water inlet temperature, room temperature, type and volume of load, fluctuations in the electricity supply and any extra options selected.

Important:

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

1. Turn off the water tap.
2. Unscrew the inlet hose.
3. Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hose in a bowl. Run the spin program.
4. Disconnect the appliance from power.
5. Screw the inlet hose and reposition the drain hose.
6. When you intend to start the machine up again, make sure that the room temperature is above 0^ C.

TROUBLESHOOTING

Problem	Error Code	Possible Cause Solutions
The machine fills overtime.	“E01” is on the screen.	1. The water tap is not open.2. The drain hose is put down.3. The water inlet valve is damaged.	1. Open the water tap.2. Hook up the hose.3. Change the water inlet valve.
There is a Door lock alarm.	“DO” is on the screen.	1. The door is not locked well.2. A garment is caught between the door and the seal.3. The door lock is damaged.	1. Lock the door well.2. Put the garment into the drum.3. Change the door lock.
The machine drains overtime.	“E03” is on the screen.	1. The drain hose is squashed or kinked.2. The drain pump filter is blocked.3. The drainage system pipes are blocked.	1. Check the drain hose.2. Clean the filter.3. Check the drainage system and clean it.
Water overflows the machine./ Water sensor works abnormal.	“E04” is on the screen.	1. The water inlet valve is damaged.2. The connection between the water sensor and the wire is not secure.3. The water sensor is damaged.	1. Change the water inlet.2. Check the connection and ensure it is secure.3. Change the water sensor.
The motor does not work.	“E05” is on the screen.	1. The connection between the motor and the wire is not secure.2. The motor is protected because of over-heat.3. The motor is damaged.	1. Check the connection and ensure it is secure.2. Check if the machine is overloaded. Switch off the machine and retry when the motor becomes cool.3. Change the motor.
There is a heating tube fault.	“E06” is on the screen.	1. The connection between the heating tube and the wire is not secure.2. The heating tube is damaged.	1. Check the connection and ensure it is secure.2. Change the heating tube.
There is a temperature sensor fault.	“E07” is on the screen.	1. The connection between the temperature sensor and the wire is not secure.2. The temperature sensor is damaged.	1. Check the connection and ensure it is secure.2. Change the temperature sensor.
There is a signal fault.	“E09” is on the screen.	1. The signal transmission failed	1. Restart the machine
Inverter fails to start	“E10” is on the screen.	1. The connection between the inverter and wire is not secure.2. The inverter is damaged.	1. Check the connection and ensure it is secure.2. Change the inverter3. Restart the machine
High AC voltage	“H: AC” is on the screen.	1. The voltage of AC is too high.	1. It will be ok once the voltage returns to normal.
Low AC voltage	“L: AC” is on the screen.	1. The voltage of AC is too low.	1. It will be ok once the voltage returns to normal.

Disposal

This marking indicates that this appliance should not be disposed with other house-hold wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
