USER MANUAL TLC-360 Crow

MOUNTING THE DETECTOR

Choose location most likely to intercept an intruder. Refer to the detection pattern.

1. Hold the detector in your hand and release the mounting plate by turning it counter-clock-wise, and separate it from the case (Fig. 1).
2. Insert the wires through the hole in the center of the mounting plate (Fig. 2).
3. Mount the plate using the holes marked mounting holes.

WIRE SIZE REQUIREMENTS

Use #22 AWG (0.5 mm) or wires with a larger diameter. Use the following table to determine required wire gauge (diameter) and length of wire between the detector and the control panel.

Wire Length	m	200	300	400	800
Wire Diameter	mm	.5	.75	1.0	1.5
Wire Length	ft.	800	1200	2000	3400
Wire Gauge	#	22	20	18	16

TLC-360 FEATURES

* Fully sealed sensor chamber.
* VLSI Technology (Very Large Scale Integration).
* Maximum RFI & EMI Immunity.
* 4 Element Pyro Sensor.
* Pulse Count.
* Sophisticated signal processing.
* Memory function.
* Hard Spherical Lens 360° coverage.
* Bidirectional temperature compensation.
* Flourescent light stability.

INTRODUCTION

The TLC-360 is a 4-element passive infrared intrusion detector for use in electronic security systems in ceiling mount applications.

You will obtain optimum performance from your TLC-360 PIR detector by following this manual.

FIG. 1 OPEN60. EXTERNALOBS

Separate cover from base

The TLC-360 reduces false alarms to an unprecedented minimal level due to its effective elimination of background noises and nuisance stimuli. The TLC-360 employs Automatic Pulse Count making it extremely adaptable to various environments. The unique VLSI, using sophisticated signal processing, makes this detector virtually free of false alarms.

The TLC-360 integrates VLSI & SMD (surface mount device) to their full advantage. The detector is easy to install, with no necessary adjustments.

HARD SPHERICAL LENS

The TLC-360 is equipped with a special hard lens. This lens is the latest development in the security field and complies with all the new standards requirements. It gives wide coverage patterns, even at low mounting heights. It is especially immune to sunlight, halogen lights and fluorescent lights and is impervious to attack.

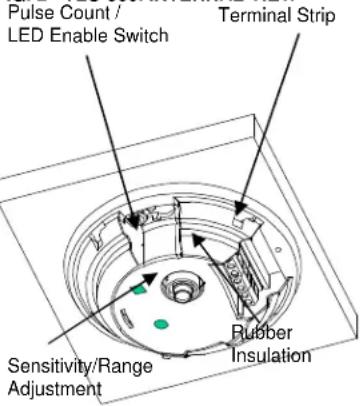

FIG. 2 - TLC-360. INTERNAL VIEW

7 8 9

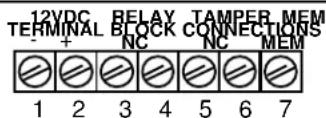

Run the cable through the cable entry hole and connect the wires in accordance with the following instructions:

Terminal 1 - Marked “-” (GND)

Connect to ground of the control panel.

Terminal 2 - Marked “ + ” (+ 12V )

Connect to a positive Voltage output of 8.2-16 Vdc source (usually from the alarm control unit).

Terminals 3 & 4 - Marked "RELAY"

These are the output relay contacts of the detector. Connect to a normally closed zone in the control panel.

Terminals 5 & 6 - Marked " TAMPER "

If a Tamper function is required connect

these terminals to a 24 hour normally closed protective zone in the control unit. If the front cover of the detector is opened, an immediate alarm signal will be sent to the control unit.

Terminal 7 - Marked "MEM"

The alarm memory function allows the identification of an alerting detector out of multiple detectors connected to one (or the same) zone of the control unit.

To enable this function, connect (switch on) the M terminal to a switched +12 to +16Vc source (e.g. Arm / Disarm voltage output from the control unit.)

In case of an alarm, the memory function stores the alarm event in the detector.

To identify the detector that alarmed, disconnect (switch off) (grounded) the voltage from MEM terminal.

The LED of the detector with the alarm event in memory will light constantly until memory function is reset.

To reset the memory function, switch on and switch off the M terminal.

PULSE COUNT /LED Enable DIP Switch (Fig.3 and DIP-SWITCH Setting).

To change positions of the DIP-switch you have to open the detector:

1. Turn the detector counter-clock wise and separate it from the mounting base.
2. Change position of the switch.
3. Close the detector and reinstall assembly screws.

10 11 12

FIG. 3 - TLC-360 BOTTOM VIEW

IMPORTANT:

1. Do not install the detector where it may encounter water, steam or oil.
2. Do not aim the detector directly at sources of rapid heating or cooling such as: forced air ducts, heaters.
3. Be sure to locate the detector so that valuables are well within its coverage pattern.
4. Range may vary in accordance with ambient temperature.

13 14 15

DIP-SWITCH SETTINGS

PULSE COUNT - DIP-SWITCH, "PULSE" provides control for normal or high risk operating environments.

Position "1" (OFF) - this setting is for a stable environment.

Position "Auto" (ON) - the TLC-360 will automatically select the appropriate pulse count level (2 or 3) according to the strength of the incoming signals. This setting is for operation within a harsh environment.

When an intrusion is detected, the LED will activate and the alarm relay will switch into alarm condition (open circuit) for 1.6 sec.

LED ENABLE - DIP-SWITCH, "LED" - to enable or disable the LED.

Position "ON" - LED enable. Position "OFF" - LED disable.

16 17 18

TECHNICAL SPECIFICATIONS (CONT.)

Warm Up Period 20 sec

LED Indicator	LED is blinking during warm up period and self testing, LED is ON during alarm
Operating Temperature	-20°C to+50°C (-4°F to +122°F)
RFI Protection	>30V/m 10 - 1000MHz
EMI Protection	50,000V of electrical interference from lightning or power through
Visible Light Protection	stable against halogen light 2.4m (8 ft) or reflected light
Dimensions	∅ 110mm x 45mm (∅ 4.33" x 1.77")
Weight	123 gr. (4.37 oz)

DETECTION PATTERN FOR TLC-360

Installation Height Detection Diameter(Effective Range)
2.4m 8 ft 11m 36 ft
3m 10ft 14m 46ft
3.6m 12ft 16m 52ft

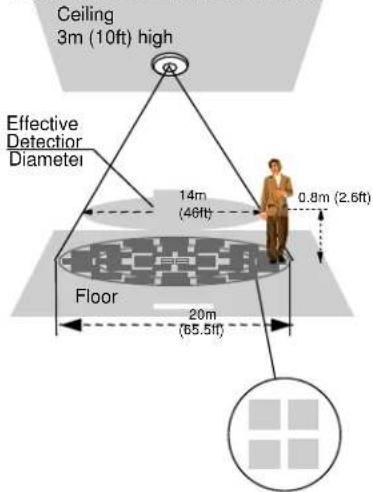

Example: (See Fig. 4). If install at a height of 3 m (10 ft) the detector will cover a circle of 20m (65.5 ft) at floor level, with an effective detection range of 14m (45.9 ft) in diameter.

Note: The detection range is the circle pattern at floor level. The effective range is the range at which an intruder will trigger an alarm.

WALK TEST

After the installation, perform a walk test to check that the detector operates properly.

FIG: BIEWLENS PATTERN

SIDE VIEW

CHF ELECTRICI NEERING LTD. ("Cnv") - LARGET NO LIC CR TEICHT

This Warranty Certificates is given in favor of the purchaser (here under the 9.1.1.1.4) such as the product derivative, Dev. or for. As a product derivative

Crow warrants these products to be too fast defects in a small and/or assembly under a use and service for a period of 21 months for the last day of the next and year. Those run bars are printed on the printed circuit and inside these products (hereunder the "T amath Fertic").

A possible the provisions of this Warranty Certificate, during the Warranty period, Crow undertakes, able sole disorder and subject Coor's procedures, as such procedures are broken into a repair or repair, free of charge for animals and/or lot or products proved to be defective in animals or other ownership under non-use and service; equipped parts shall be amounted for the remainder of the original Warranty Standard.

If transportation code and in-translal of loss on date related, directly or indirectly to products returned to Crocr for repair or motor shall shift a some solely the purchaser. Crocr's warranty under its Warranty Certificate does not cover products that be defective (or shall be better or defective) due to (a) alteration of the products (or any partnership); any anyone other than Crocr; b) accident at use, negligence, or property maintenance; (c) failure caused by a product a rich Crocr did not provide; (d) failure caused by soft are or hands are rich Crocr did not provide; (e) use or storage other than in accordance with Crocr's specified operating and storage instructions.

There are no rentals, expressed or in place, of merchantity or illness of the products for a particular purpose or other item, a high or bond beyond the description on the face hereof. This is limited Warranty Certificate is the purchaser's sole and excludes her equity against Croix and Croix's sole and exclusive liability tax and their purchaser in connection with the product, including without litigation - for defects or disfunctions of the products. This Warranty Certificate replaces other terms and lias, a higher oral form (non- and/or) stratery contractual in bar or otherwise.

In case shall Crow be able to anyone for any consequential or incident care agents (inductive of loss of profit, and he rather occasioned by negligence of the Crow or any third party on its behalf for breach of these any other entity, as pressed or filed, or upon any other case of liability) takeover. Crow does not represent that these products are not a proper or complete varied; that these products will prevent any person injury or penalty loss or damage by burglary, outcry, lie or other issue, or that these products fill all cases provide adequate arming or protection.

Furchaser understands that a properly installed and maintained products by in some cases reduce the risk of urgency, fire, etc. or other events occurring without providing an alarm, but it is not insurance or a guarantee that such will not occur or have there will be no personal injury or property loss or damage as a result.

Consequently, Cior shall have no liability of any personal injury, properly during age, contrary other loss based on class, that these products failed to give any arising. I Cior is held liable, neither directly or indirectly, for any loss or damage. In regards to these products regardless of cause or origin. Cior's an unaffily shall not in any case except the purchase price of these products, which shall be the correct and exclusive remedy against Cior.

FIG. 4 - TLC-360 DETECTION AREA

TECHNICAL SPECIFICATIONS

Power Input	8.2 - 16 Vdc
Current Draw	Active / Standby: 9 mA
Detection Method	4 (Four) element PIR
Sensitivity	2^ C( 3.6^ F) at 0.6 m/sec (2 ft/sec)
Detection Speed	0.5 - 1.5 m/sec (1.5 - 5 ft/sec)

Bi Directional

Temperature Pulse Count

Alarm Period Alarm Output

YES

1,2-automatic switch from 2 to 3 depending on

1.6 sec N.C 28VDC 0.1 A with 10 Ohm series protection resistor

Tamper Switch N.C 28VDC 0.1A with 10 Ohm series protection resistor - open when cover is removed
