Product Type	High Definition Plasma Display
Model	TH-50PD12U
Screen Size	50-inch (diagonal: 49.9" / 1269 mm)
Resolution (Max)	1,366 x 768 dots (FULL aspect)
Aspect Ratio	16:9
Power Consumption (On)	365 W
Standby Power (Save OFF)	0.9 W
Standby Power (Save ON)	0.4 W
Dimensions (W x H x D)	47.7" x 28.5" x 3.8" (1210 x 724 x 95 mm)
Weight (Main Unit)	Approx. 70.6 lbs (32 kg)
Weight (with Speakers)	Approx. 79.4 lbs (36 kg)
Power Source	110-127 V AC, 50/60 Hz
Video Input Terminals	VIDEO (BNC), S-VIDEO (Mini DIN 4-pin), COMPONENT/RGB (BNC x3)
PC Input Terminal	Mini D-sub 15-pin (DDC2B compatible)
Serial Control Terminal	D-sub 9-pin (RS-232C)
Audio Input Terminals	AUDIO1-3: RCA pin jacks, AUDIO4: M3 jack
Accessories Included	Remote control (N2QAYB000432), 2x AA batteries, fixing band, AC cord, operating instructions book, CD-ROM
Optional Accessories	Speakers (TY-SP50P8W-K), pedestal (TY-ST08-K), wall brackets (TY-WK42PV7, TY-WK42PR7, TY-WK42DR1), ceiling bracket (TY-CE42PS7), touch panel (TY-TP50P10S), anti-glare filter (TY-AR50P12W)
Panel Technology	AC-type 50-inch plasma display
Display Orientation Support	Landscape and Portrait (fan control for vertical installation)
Multi Display Support	Yes, up to 5x5 group (RS-232C control)

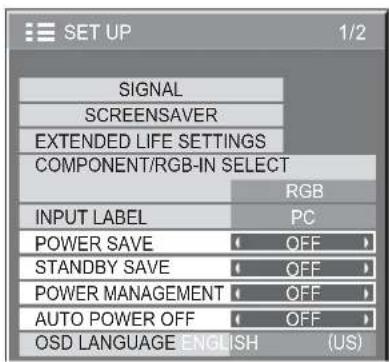

Energy Saving Features	Power Save, Standby Save, Power Management, Auto Power Off
Image Retention Reduction	Side bar adjust, wobbling (image shift), peak limit, scrolling bar, negative image, white screen
Maintenance	Clean panel with soft lint-free cloth; for stubborn dirt, use cloth dampened with 100:1 water-neutral detergent solution, then dry cloth. Avoid volatile substances.
Safety Features	Grounded plug, ventilation requirements, automatic power management, overheat protection

Frequently Asked Questions - TH-50PD12U PANASONIC

How do I connect a PC to the TH-50PD12U?

Connect the computer's monitor output to the PC input terminal (Mini D-sub 15-pin) using a compatible cable. If needed, use a conversion adapter. Also connect the audio output to the AUDIO4 (M3 jack) input. Ensure the computer's signal is within the supported range (horizontal: 15-110 kHz, vertical: 48-120 Hz). Then select INPUT4 (PC) using the remote control or unit button.

What should I do if there is no picture or sound?

First, check that the power cord is securely plugged into the AC outlet and the unit is turned on (power indicator should be green). Verify the input source is correct. Ensure the connected equipment is powered on. Check that the PICTURE and BRIGHTNESS controls are not set to minimum, and that the volume is not muted. If the problem persists, try a different input or consult the troubleshooting section of the manual.

How can I prevent image retention on the plasma screen?

Avoid displaying still images (like logos, video games, or 4:3 content) for long periods. Use the built-in SCREENSAVER functions: NEGATIVE IMAGE, SCROLLING BAR, OVERLAY SCROLLING BAR, or WHITE SCREEN. Enable WOBBLING (image shift) in the EXTENDED LIFE SETTINGS menu. Set SIDE BAR ADJUST to BRIGHT when viewing 4:3 content. The PEAK LIMIT feature also reduces contrast to prolong panel life.

How do I clean the plasma display screen?

Use a soft, lint-free cloth to gently wipe the screen. For stubborn dirt, dampen the cloth with pure water or a solution of water and neutral detergent (100:1 ratio) and then wipe with a dry cloth. Do not use volatile substances like insect sprays, solvents, or thinners. Avoid scratching the surface with hard objects.

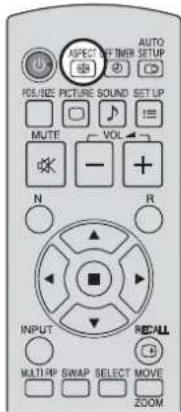

What aspect modes are available and how do I switch between them?

Press the ASPECT (IMAGE) button repeatedly to cycle through modes. Depending on the input signal, modes include 4:3, 16:9, ZOOM, JUST, 14:9, and more. For HD signals, additional modes like H-FILL are available. The All Aspect setting in the Options menu enables an extended list of aspect modes. The aspect mode is memorized separately for each input.

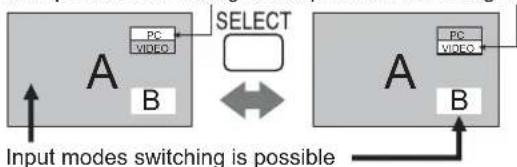

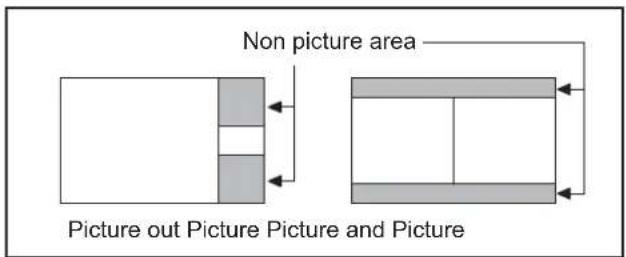

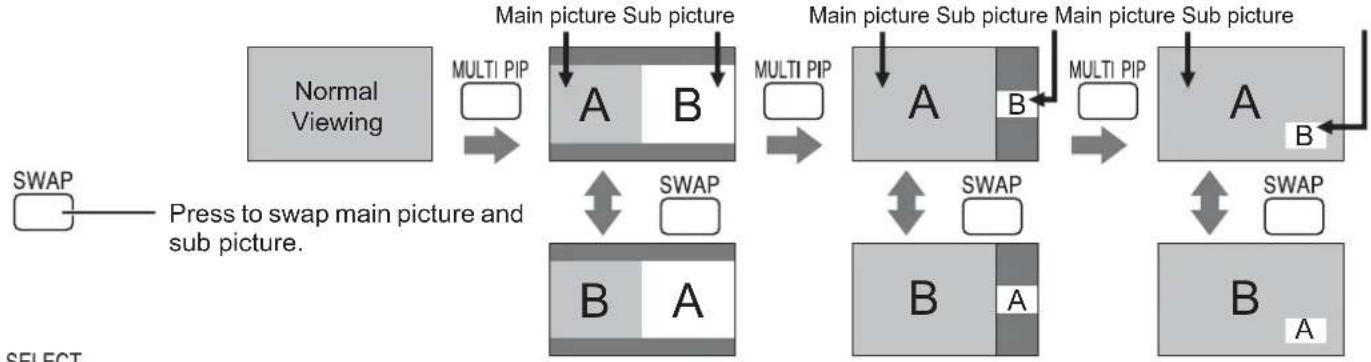

How does MULTI PIP work?

Press the MULTI PIP button repeatedly to cycle through modes: Picture and Picture, Picture in Picture, and Picture out Picture. Use SELECT to choose the active sub-picture, INPUT to change its source, and MOVE to reposition the sub-picture. Note that the same input cannot be selected for both main and sub pictures. Sound can be assigned to either picture via AUDIO OUT (PIP) in the Sound menu.

How can I reset the display to factory settings?

Press the MENU button on the unit until the SET UP menu appears. Use the volume buttons to select OSD LANGUAGE, then press and hold ENTER until the Shipping menu appears. Select YES and wait 10 seconds. This resets all settings to factory defaults, including adjustments in Picture, Sound, and Options menus.

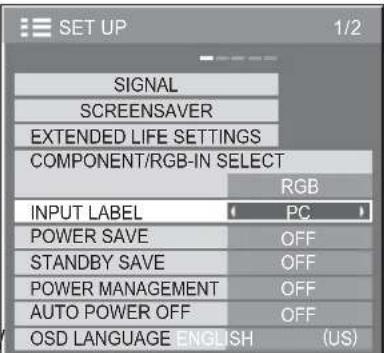

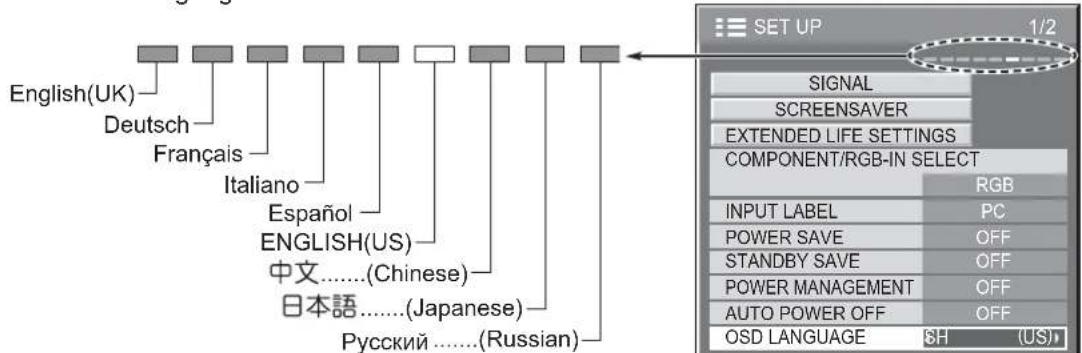

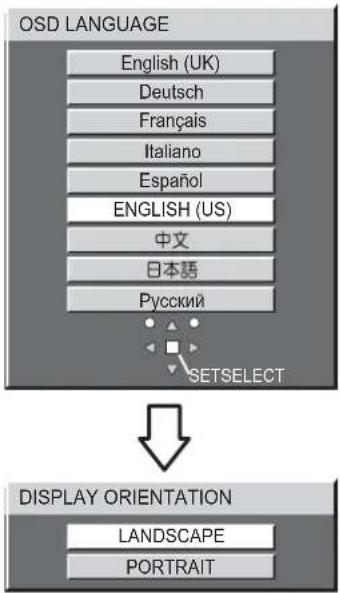

How do I change the on-screen menu language?

Press MENU to display the SET UP menu. Use the arrow keys to select OSD LANGUAGE and press ENTER. Choose your preferred language from the list (e.g., English, French, Spanish, etc.). The change takes effect immediately.

What is the power consumption of the TH-50PD12U in standby mode?

In standby mode with STANDBY SAVE set to OFF, power consumption is 0.9 W. When STANDBY SAVE is ON, it drops to 0.4 W. In power-off condition (unit fully off), consumption is 0.2 W.

What optional accessories are available for this plasma display?

Panasonic offers several optional accessories: Speakers (TY-SP50P8W-K), Pedestal (TY-ST08-K), Mobile stand (TY-ST58PF10), Wall-hanging brackets (vertical, angled, drawer type), Ceiling-hanging bracket (TY-CE42PS7), Touch panel (TY-TP50P10S), and Anti-glare filter (TY-AR50P12W). These are manufactured by Panasonic and designed specifically for this model.

USER MANUAL TH-50PD12U PANASONIC

Operating Instructions High Definition Plasma Display

Model No.

TH-42PD12U

TH-50PD12U

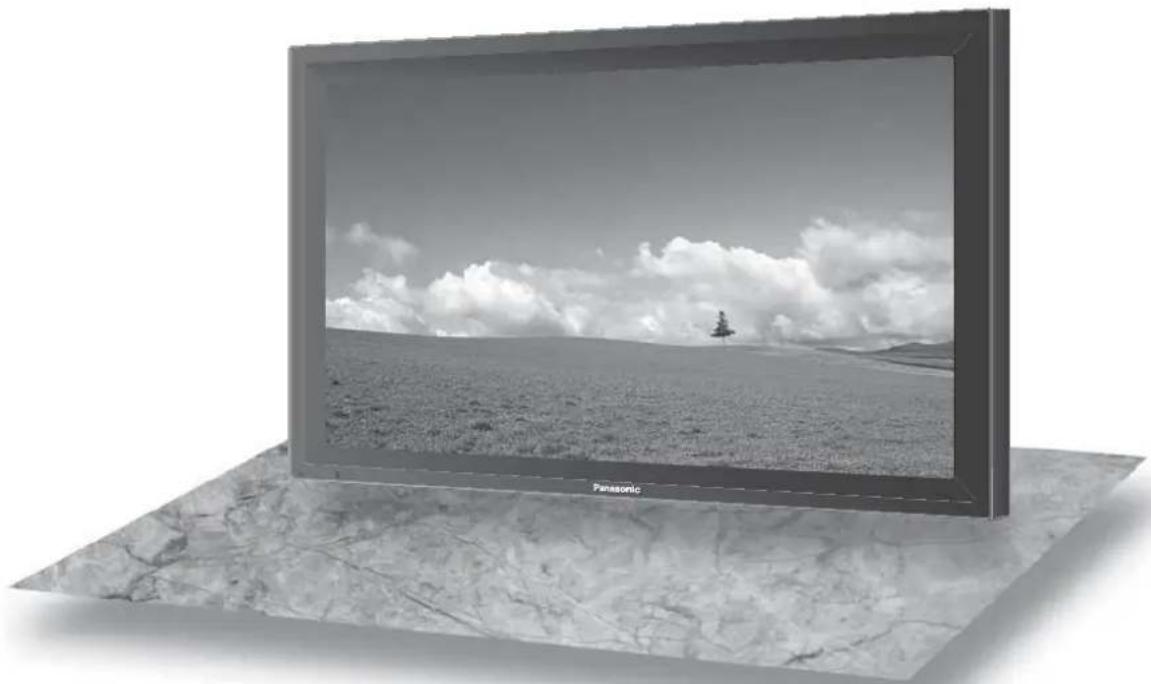

Black-and-white photo of a Panasonic TV displaying a landscape with a tree and cloudy sky (no text or symbols on the image itself)

The illustration shown is an image. Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrow-head within a triangle is in tended to tell the user that parts inside the product are a risk of electric shock to per sons.

The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the application.

WARNING : To prevent damage which may result in fire or shock hazard, do not expose this apparatus to rain or moisture.

Do not place containers with water (flower vase, cups, cosmetics, etc.) above the set. (including on shelves above, etc.)

WARNING: 1) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

2) Do not remove the grounding pin on the power plug. This apparatus is equipped with a three pin grounding-type power plug. This plug will only fit a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the grounding plug.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the AC cord power plug is securely connected.

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display.

To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference.

Retain your purchase receipt as well, and record the model number and serial number of your set in the space provided on the rear cover of these instructions.

Visit our Panasonic Web Site http://panasonic.net

Table of Contents

Important Safety Instructions .... 3

FCC STATEMENT 5

Safety Precautions 6

Maintenance....7

Accessories 8

Accessories Supplied 8

Remote Control Batteries 8

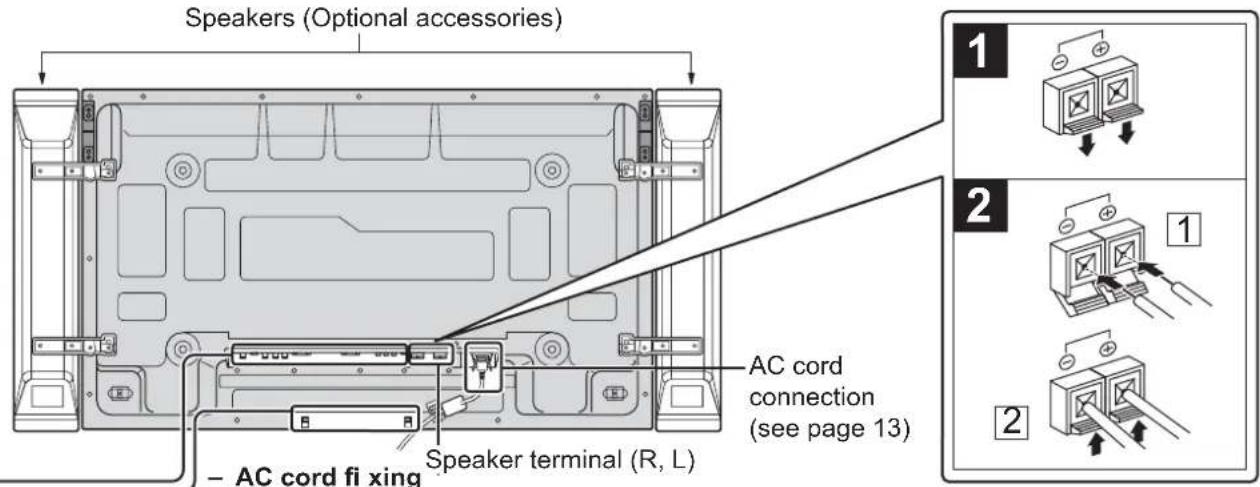

Connections......9

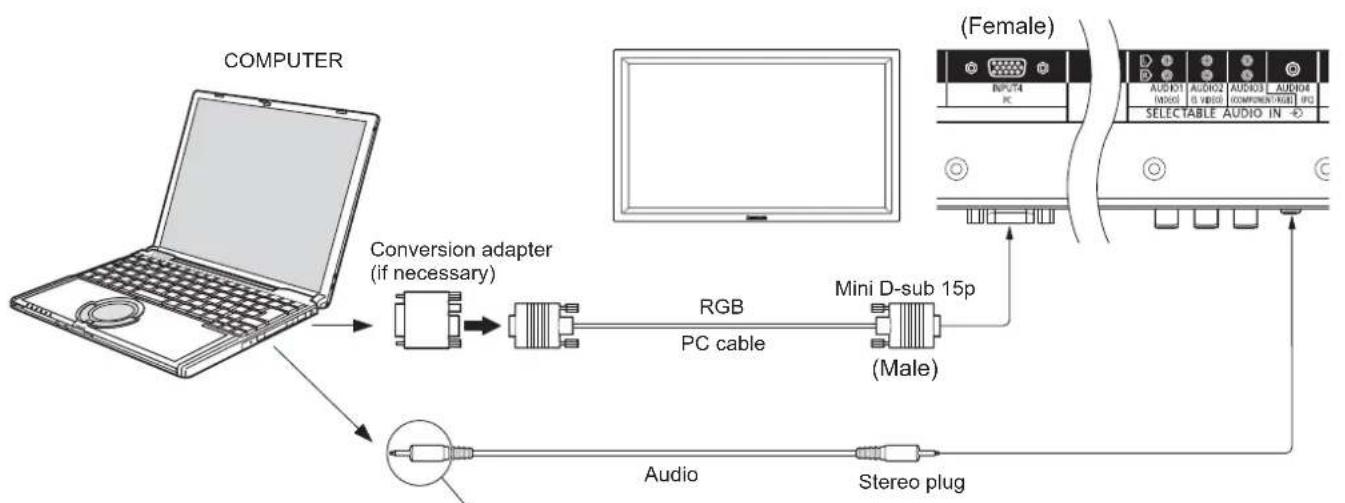

PC Input Terminals connection 10

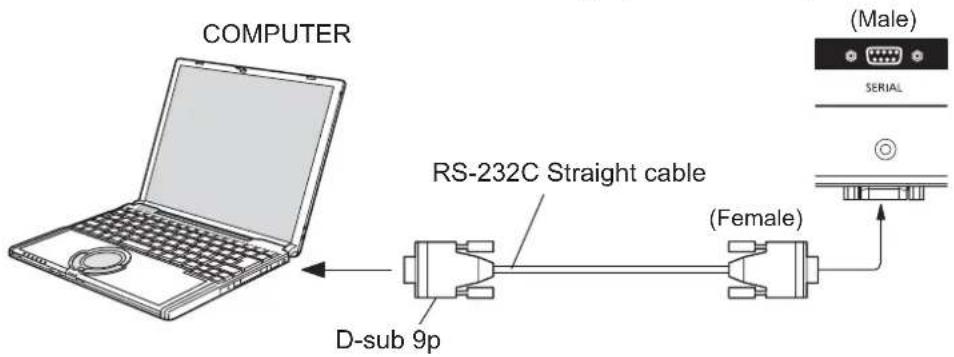

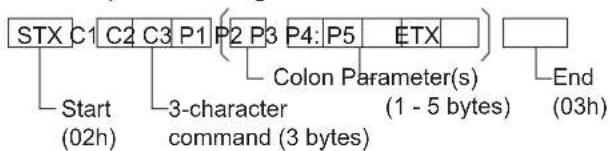

SERIAL Terminals connection ....11

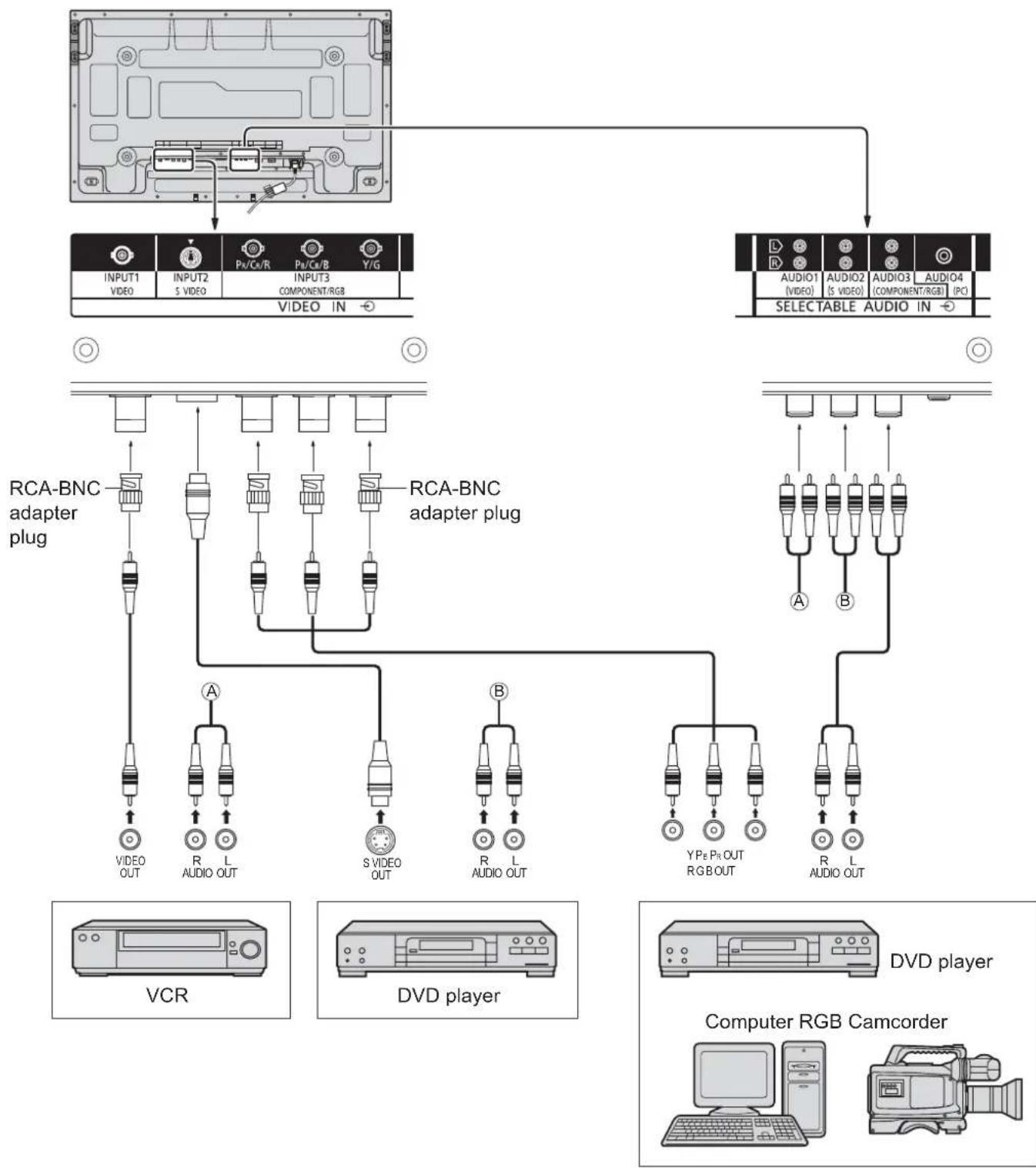

AV connection.... 12

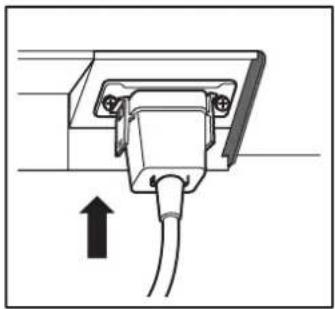

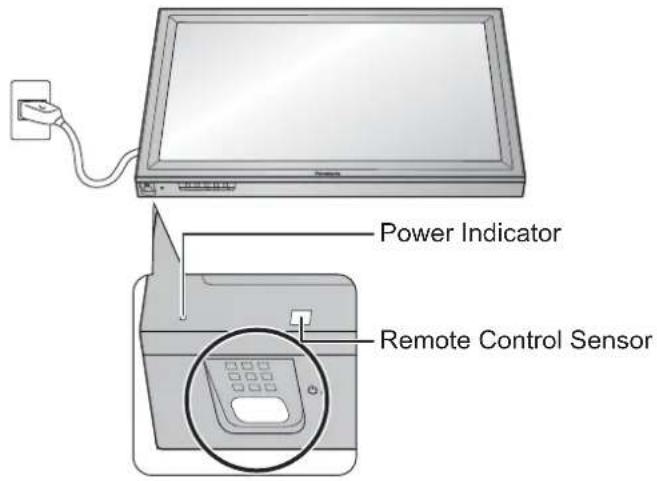

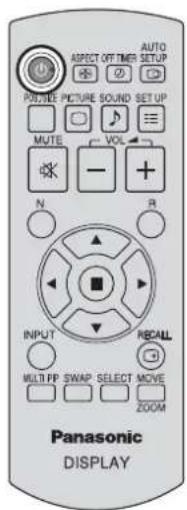

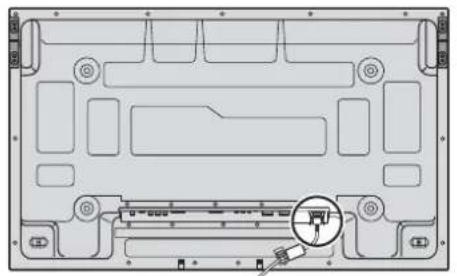

Power ON / OFF 13

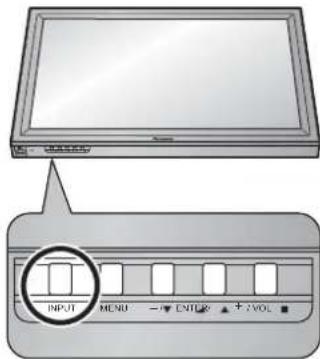

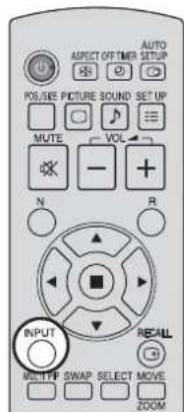

Selecting the input signal 15

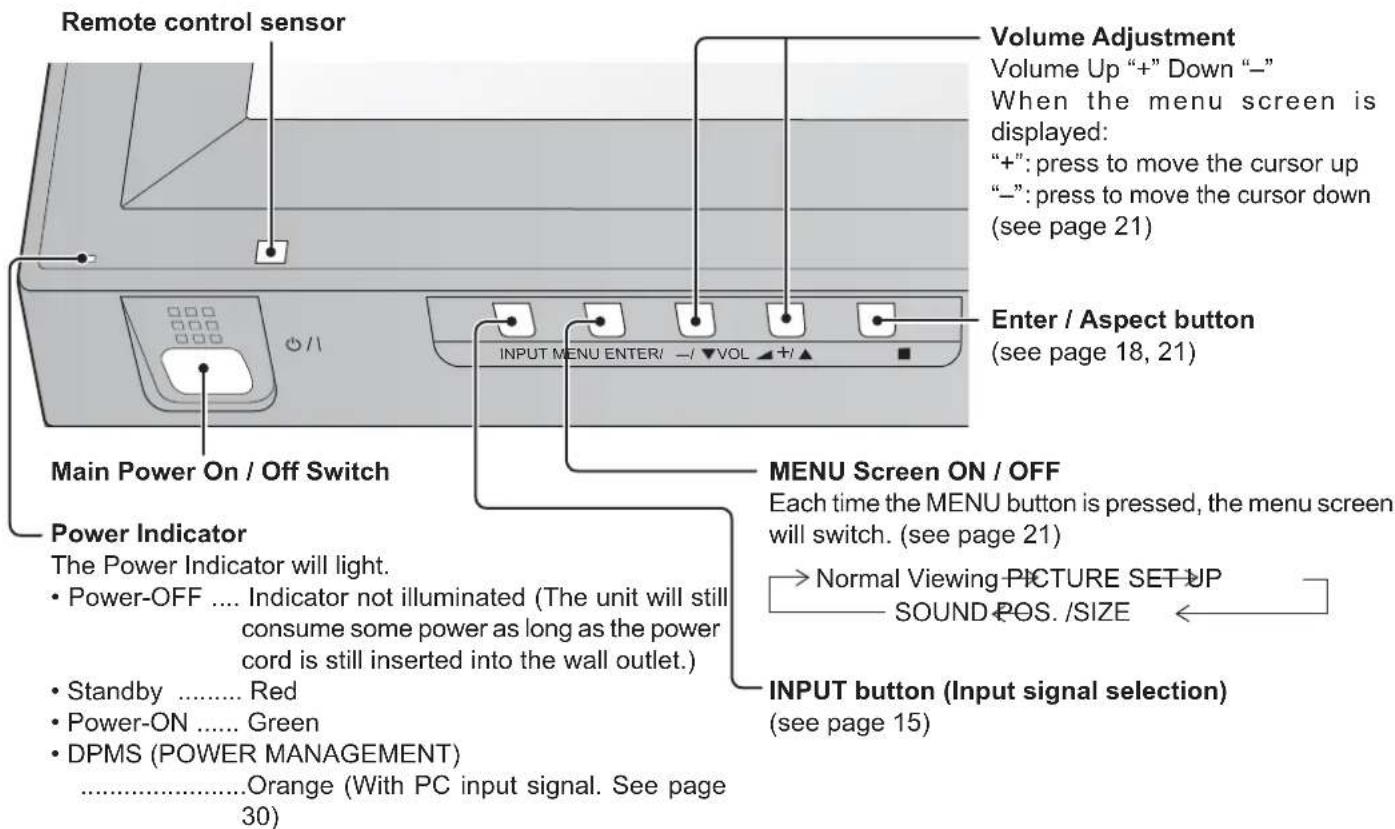

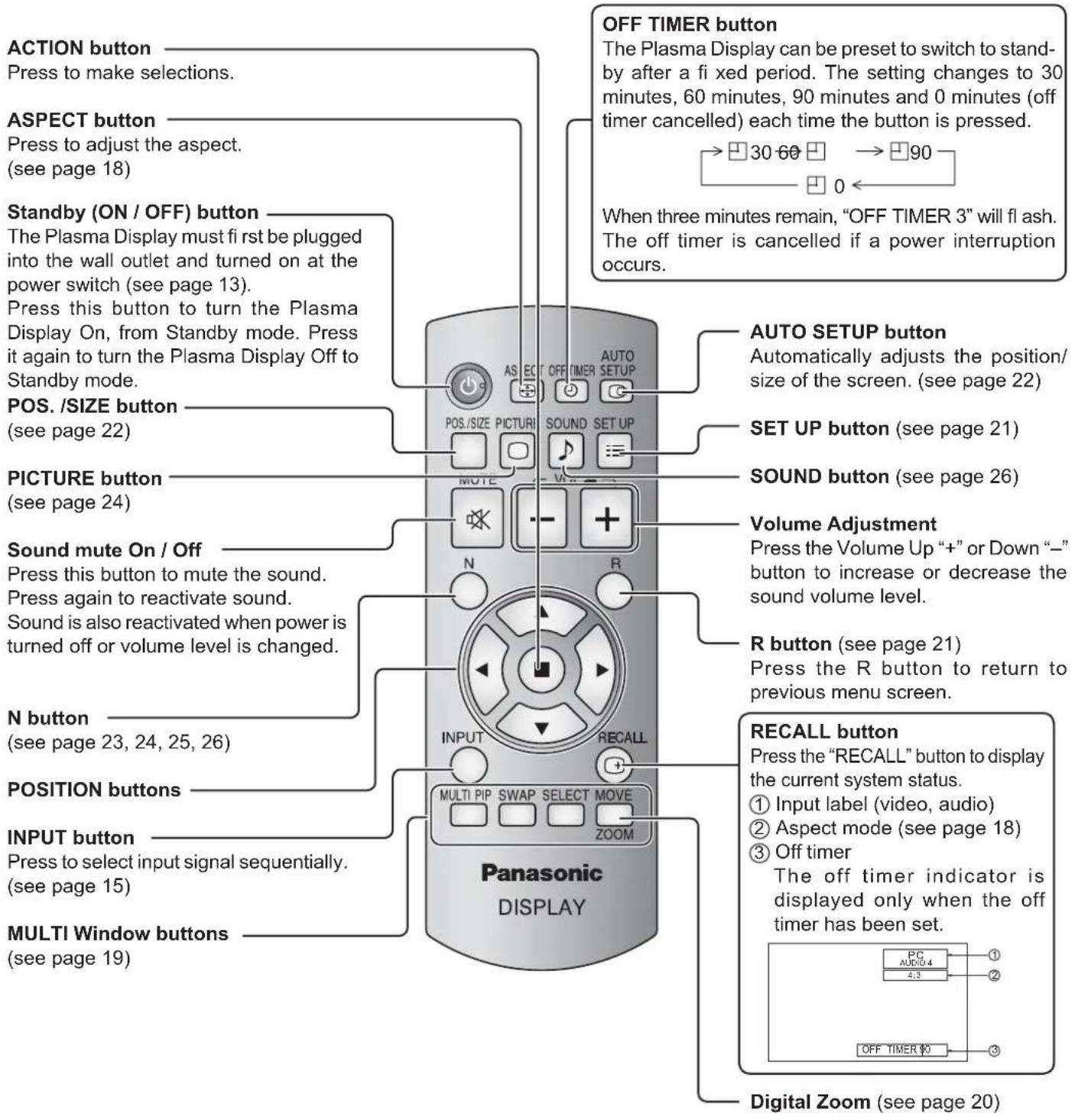

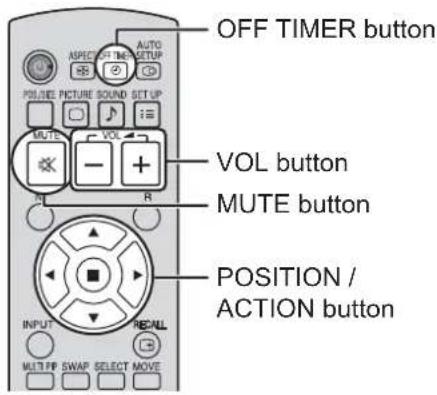

Basic Controls 16

ASPECT Controls 18

MULTI PIP 19

Digital Zoom 20

On-Screen Menu Displays 21

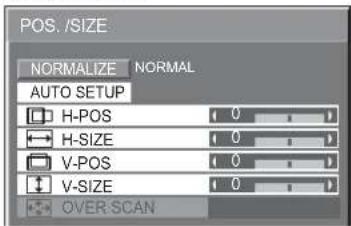

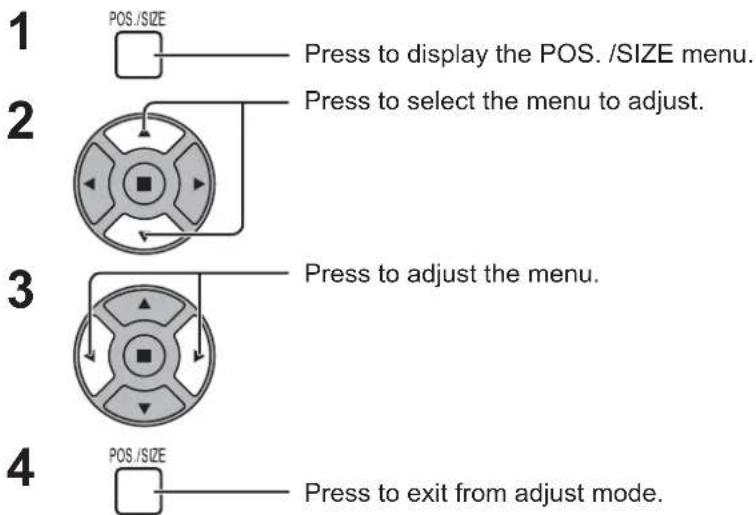

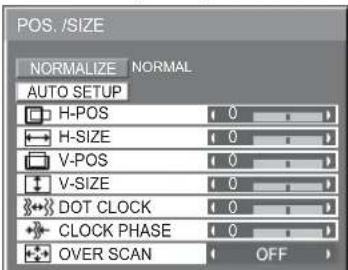

Adjusting POS. /SIZE 22

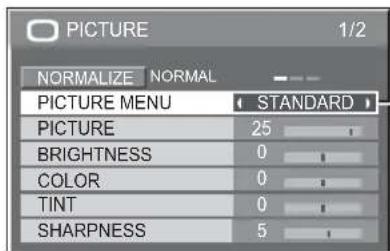

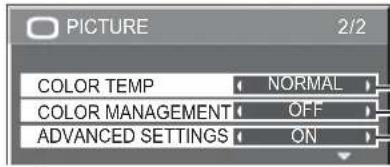

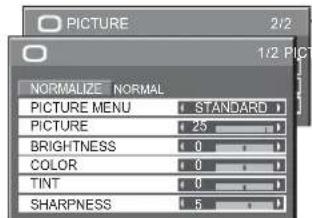

PICTURE Adjustments 24

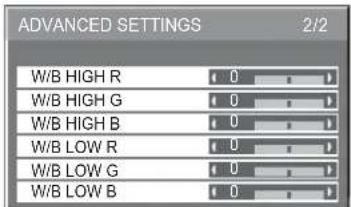

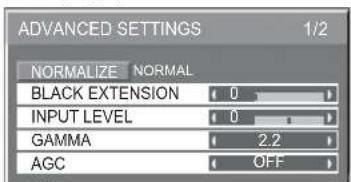

ADVANCED SETTINGS 25

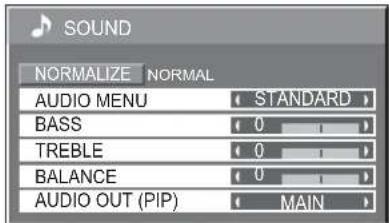

SOUND Adjustment 26

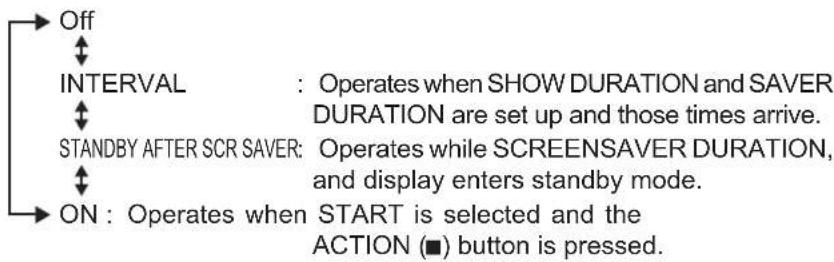

SCREENSAVER (For preventing image retention) .. 27

Setup of SCREENSAVER Time 27

Reduces screen image retention 28

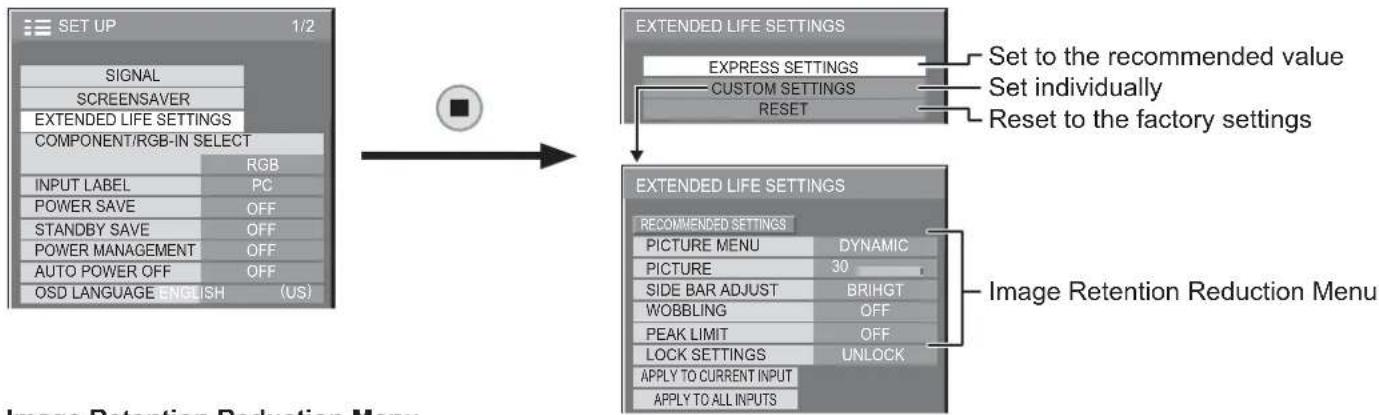

EXTENDED LIFE SETTINGS 28

Reduces power consumption 30

Customizing the Input labels 31

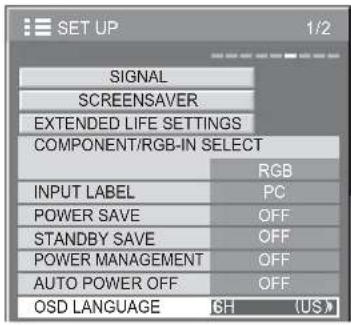

Selecting the On-Screen Menu Language .... 31

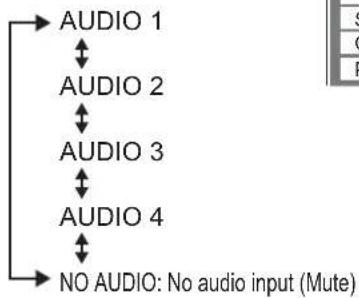

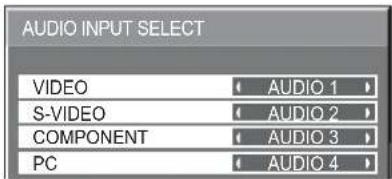

AUDIO INPUT SELECT 32

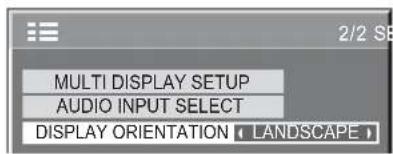

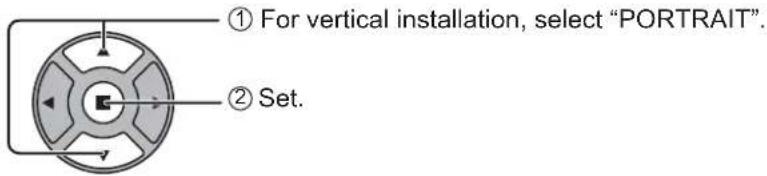

DISPLAY ORIENTATION 32

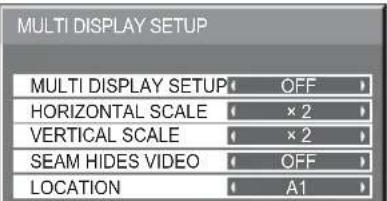

SET UP for MULTI DISPLAY 33

How to setup MULTI DISPLAY 33

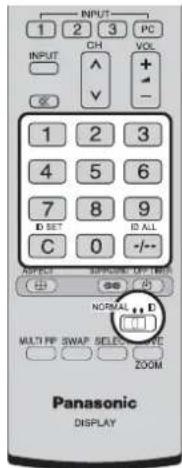

ID Remote Control Function 34

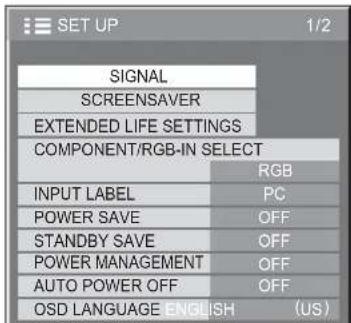

SET UP for Input Signals 35

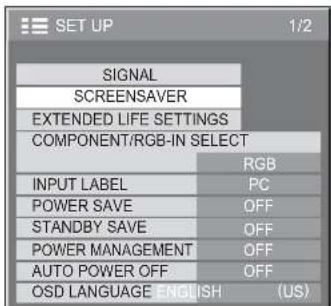

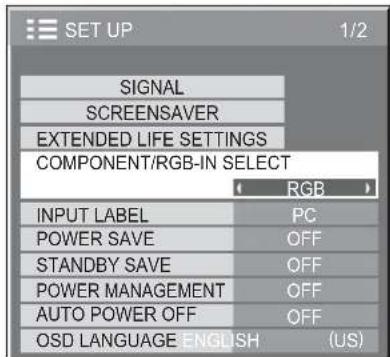

COMPONENT / RGB IN SELECT 35

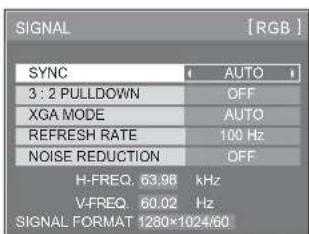

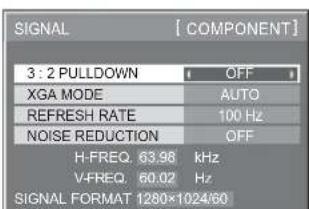

SIGNAL menu 35

3D Y/C FILTER 36

COLOR SYSTEM 36

3:2 PULLDOWN 37

XGA MODE 37

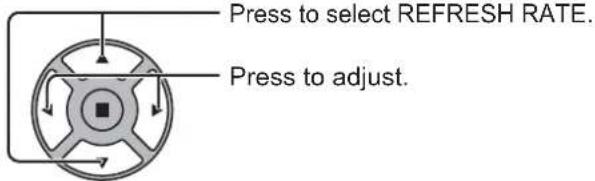

REFRESH RATE 38

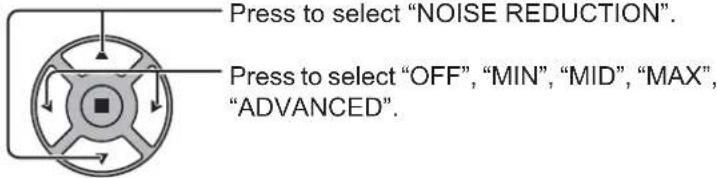

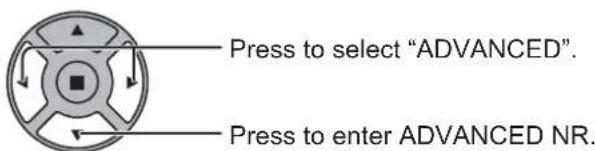

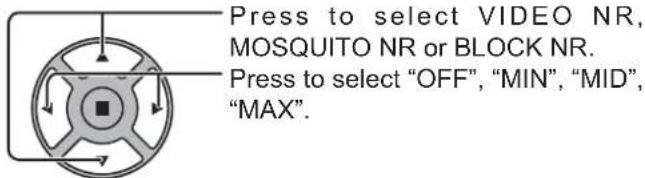

NOISE REDUCTION 38

SYNC 39

Input signal display 39

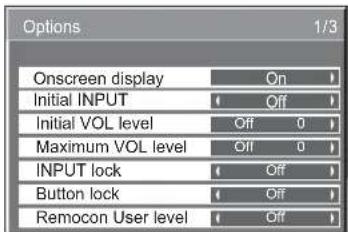

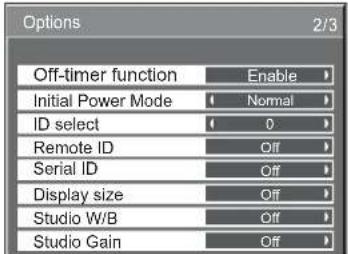

Options Adjustments 40

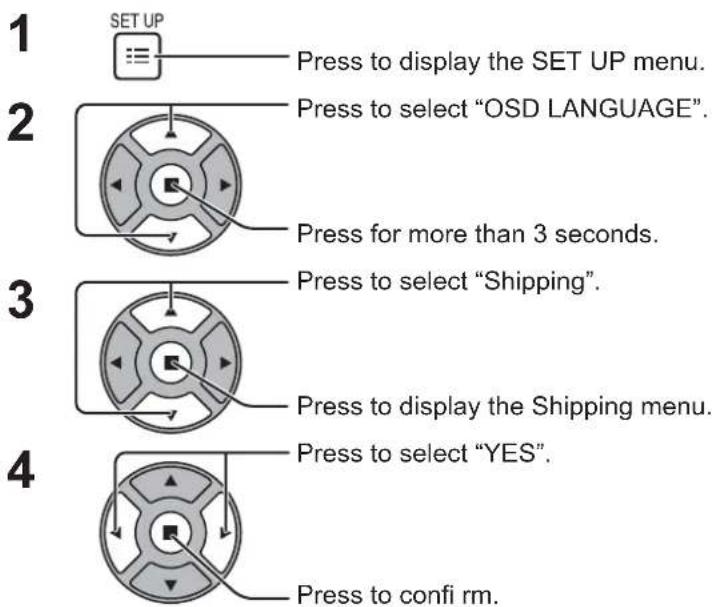

Shipping condition 43

Troubleshooting 44

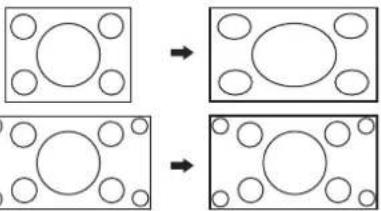

List of Aspect Modes 45

Applicable input signals 46

Specifications 47

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION:

To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of North America could void the user's authority to operate this device.

FCC Declaration of Conformity

Model No. TH-42PD12U, TH-50PD12U

Responsible Party: Panasonic Corporation of North America

One Panasonic Way 1F-10, Secaucus, NJ 07094

Contact Source: Panasonic Professional Display Company

Panasonic Plasma Concierge 1-800-973-4390

CANADIAN NOTICE:

This Class B digital apparatus complies with Canadian ICES-003.

Note:

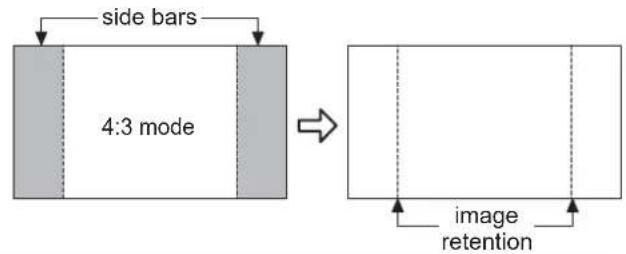

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Computer, USA.
• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.

Safety Precautions

CAUTION

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation.)

• Speakers ....TY-SP42P8W-K (for TH-42PD12U), TY-SP50P8W-K (for TH-50PD12U),
• Pedestal TY-ST08-K
• Mobile stand ....TY-ST58PF10
• Wall-hanging bracket (vertical) .....TY-WK42PV7
• Wall-hanging bracket (angled) ..... TY-WK42PR7
• Wall-hanging bracket (drawer type) ...... TY-WK42DR1
• Ceiling-hanging bracket.... TY-CE42PS7
• Touch Panel ....TY-TP42P10S (for TH-42PD12U), TY-TP50P10S (for TH-50PD12U)
• Anti Glare Filter ....TY-AR42P12W (for TH-42PD12U), TY-AR50P12W (for TH-50PD12U)

Always be sure to ask a qualified technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from being played with by young children, creating the potential risk of suffocation.

■ When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

- Top of the Plasma Display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries can happen if any body parts are brought too close. Placing any object near the top of the display could also result in heat damages to the object as well as to the Display if its ventilation holes are blocked.

Be sure to disconnect all cables before moving the Plasma Display.

- Moving the Display with its cables attached might damage the cables which, in turn, can cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it from becoming dusty.

- Built-up dust on the power cord plug can increase humidity which might damage the insulation and cause fire. Unplug the cord from the wall outlet and clean it with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment. Install your infrared sensor in a place away from direct or reflected light from your Plasma Display.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

WARNING

Setup

Do not place the Plasma Display on sloped or unstable surfaces.

- The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

- If water spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in fire or electric shock. If any foreign objects get inside the Plasma Display, please consult an Authorized Service Center.

Do not cover the ventilation holes.

- Doing so may cause the Plasma Display to overheat, which can cause fire or damage to the Plasma Display.

Transport only in upright position!

- Transporting the unit with its display panel facing upright or downward may cause damage to the internal circuitry.

If using the pedestal (optional accessory), leave a space of 3 15/16" (10 cm) or more at the top, left and right, and 2 3/4" (7 cm) or more at the rear, and also keep the space between the bottom of the display and the floor surface. If using some other setting-up method, follow the manual of it. (If there is no specific indication of installation dimension in the installation manual, leave a space of 3 15/16" (10 cm) or more at the top, bottom, left and right, and 2 3/4" (7 cm) or more at the rear.)

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.

■ AC Power Supply Cord

The Plasma Display is designed to operate on 110 - 127 V AC, 50/60 Hz.

Do not use any power supply cord other than that provided with this unit.

- Doing so may cause fire or electric shocks.

Securely insert the power cord plug as far as it will go.

- If the plug is not fully inserted, heat may be generated which could cause fi re. If the plug is damaged or the wall socket plate is loose, they should not be used.

Do not handle the power cord plug with wet hands.

- Doing so may cause electric shocks.

Do not do anything that might damage the power cable. When disconnecting the power cable, hold the plug, not the cable.

- Do not make any modifications, place heavy objects on, place near hot objects, heat, bend, twist or forcefully pull the power cable. Doing so may cause damage to the power cable which can cause fire or electric shock. If damage to the cable is suspected, have it repaired at an Authorized Service Center.

If the Plasma Display will not be used for a long period of time, unplug the power cord from the wall outlet.

■ If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odor is detected from the Plasma Display, unplug the power cord immediately.

- Continuous use of the Display under these conditions might cause fire or permanent damage to the unit. Have the Display evaluated at an Authorized Service Center. Services to the Display by any unauthorized personnel are strongly discouraged due to its high voltage dangerous nature.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damaged, disconnect the power cord plug immediately.

- A short may occur, which could cause fire. Contact an Authorized Service Center for any repairs that need to be made.

Maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until the surface is dry.
• Do not scratch or hit the surface of the panel with fingernails or other hard objects, otherwise the surface may become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC.

Accessories

Accessories Supplied

Check that you have the Accessories and items shown

Operating Instruction book

CD-ROM (Operating instructions)

Remote Control Transmitter N2QAYB000432

Batteries for the Remote Control Transmitter (2 × AA Size)

AC cordFixing band × 1

Line drawing of a cord with two connected electrical plugs (no text or symbols)

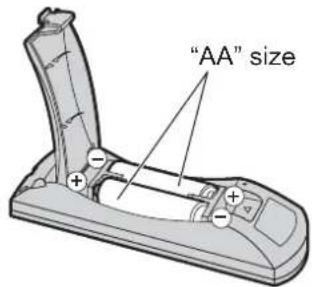

Remote Control Batteries

Requires two AA batteries.

1. Pull and hold the hook, then open the battery cover.

2. Insert batteries - note correct polarity (+ and -).

3. Replace the cover.

Illustration of a hand pressing down on a handheld device (no text or symbols visible)

Diagram of a handheld device with a scroll and handle, showing internal components (no text or symbols)

Helpful Hint:

For frequent remote control users, replace old batteries with Alkaline batteries for longer life.

Precaution on battery use

Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter. Disposal of batteries should be in an environment-friendly manner.

Observe the following precautions:

1. Batteries should always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: "Zinc Carbon" with "Alkaline").
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

5. Battery replacement is necessary when the remote control acts sporadically or stops operating the Plasma Display.

6. Do not burn or breakup batteries.

Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Connections

When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker's Installation Manual for details on speaker installation.

Note:
Make sure that the AC cord is locked on both the left and right sides.

① Plug the AC cord into the display unit.
Plug the AC cord until it clicks.

② Fix the AC cord with the clamper which is attached to the unit.
Close

Push until the hook clicks.

Open

2. Pull off.
1. Keep the knob pressed.

Unplug the AC cord

Unplug the AC cord pressing the two knobs.
When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet fi rst.

Note:

- Cable fi xing band

Secure any excess cables with band as required.

Note:

One fixing band is supplied with this unit. In case of securing cables at two positions, please purchase it separately.

Pass the attached cable fixing band through the clip as shown in the figure.

Simple line drawing of a tool with a bracket and handle, no text or symbols present

To secure cables connected to Terminals, wrap the cable fi xing band around them then pass the pointed end through the locking block, as shown in the fi gure. While ensuring there is suffi cient slack in cables to minimize stress (especially in the power cord), fi rmly bind all cables with the supplied fi xing band.

To loosen: Push the catch

Pure electrical circuit lines without any symbols

INPUT1: Video input terminal

INPUT2: S Video input terminal

INPUT3: Component/RGB Video input terminals

Connect a video device such as VCR or DVD player. (see page 12)

INPUT4: PC input terminal From EXTERNAL monitor terminal on computer (see page 10)

From SERIAL terminal on computer (see page 11)

From audio output terminal on external equipment connected to INPUT1 to 4 (see page 10, 12)

PC Input Terminals connection

Connect a cable which matches the audio output terminal on the computer.

Notes:

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110kHz and vertical scanning frequency of 48 to 120Hz . (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
• The display resolution is a maximum of 768 × 768 dots (TH-42PD12U), 1,024 × 768 dots (TH-50PD12U) when the aspect mode is set to "4:3", and 1,024 × 768 dots (TH-42PD12U), 1,366 × 768 dots (TH-50PD12U) when the aspect mode is set to "FULL". If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will need to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
  • Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specified frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• Change the "COMPONENT/RGB-IN SELECT" setting in the "SET UP" menu to "COMPONENT" (when COMPONENT signal connection) or "RGB" (when RGB signal connection). (see page 35)

Signal Names for Mini D-sub 15P Connector

Pin Layout for PC Input Terminal

Pin No.	Signal Name	Pin No.	Signal Name	Pin No.	Signal Name
1	R (P_R/C_R)	6	GND (Ground)	11	NC (not connected)
2	G (Y)	7	GND (Ground)	12	SDA
3	B (P_B/C_B)	8	GND (Ground)	13	HD/SYNC
4	NC (not connected)	9	+5 V DC	14	VD
5	GND (Ground)	10	GND (Ground)	15	SCL

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

Pin layout for SERIAL Terminal

Notes:

• Use the RS-232C straight cable to connect the computer to the Plasma Display.
  • The computer shown is for example purposes only.
  • Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface specification, so that the Plasma Display can be controlled by a computer which is connected to this terminal.

The computer will require software which allows the sending and receiving of control data which satisfies the conditions given below. Use a computer application such as programming language software. Refer to the documentation for the computer application for details.

Communication parameters

Signal level	RS-232C compliant
Synchronization method	Asynchronous
Baud rate	9600 bps
Parity	None
Character length	8 bits
Stop bit	1 bit
Flow control	-

Basic format for control data

The transmission of control data from the computer starts with a STX signal, followed by the command, the parameters, and lastly an ETX signal in that order. If there are no parameters, then the parameter signal does not need to be sent.

Notes:

• If multiple commands are transmitted, be sure to wait for the response for the first command to come from this unit before sending the next command.
• If an incorrect command is sent by mistake, this unit will send an "ER401" command back to the computer.

Signal names for D-sub 9P connector

Pin No.	Details
2	R X D
3	T X D
5	GND
4·6	Non use
78	(Shorted in this set)
1·9	NC

These signal names are those of computer specifications.

Command

Command	Parameter	Control details
PON	None	Power ON
POF	None	Power OFF
AVL	**	Volume 00 - 63
AMT	0	Audio MUTE OFF
	1	Audio MUTE ON
IMS	None	Input select (toggle)
	SL1	INPUT1 (VIDEO)
	SL2	INPUT2 (S-VIDEO)
	SL3	INPUT3 (COMPONENT)
	PC1	INPUT4 (PC)
DAM	None	Screen mode select (toggle)
	ZOOM	ZOOM (For Video/SD/PC signal)
	FULL	FULL
	JUST	JUST (For Video/SD signal)
	NORM	4:3 (For Video/SD/PC signal)
	SJST	JUST (For HD signal)
	SNOM	4:3 (For HD signal)
	SFUL	H-FILL (For HD signal)
	ZOM2	ZOOM (For HD signal)

With the power off, this display responds to PON command only.

AV connection

Notes:

• Additional equipment, cables and adapter plugs shown are not supplied with this set.
- Change the "COMPONENT/RGB-IN SELECT" setting in the "SET UP" menu to "COMPONENT" (when COMPONENT signal connection) or "RGB" (when RGB signal connection). (see page 35)
• SYNC ON G signal is needed. (see page 39)

Power ON / OFF

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 9)

Technical diagram of a laptop rear panel showing internal compartments and mounting points (no text or labels)

Diagram of a cable outlet plug with an upward arrow indicating direction (no text or symbols)

Connecting the plug to the Wall Outlet.

Note:

When disconnecting the AC cord, be absolutely sure to disconnect the AC cord plug at the socket outlet fi rst.

Press the Power switch on the Plasma Display to turn the set on: Power-On.

Power Indicator: Green

Press the Ⓑ button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the Ⓑ button on the remote control to turn the Plasma Display on.

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the Switch on the unit, when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns orange in the power off state.

When first switching on the unit

Following screen will be displayed when the unit is turned on for the first time. Select the items with the remote control. Unit buttons are invalid.

OSD LANGUAGE

DISPLAY ORIENTATION

Notes:

• Once the items are set, the screens won't be displayed when switching on the unit next time.
  • After the setting, the items can be changed in the following menus.
  OSD LANGUAGE (see page 31)
  DISPLAY ORIENTATION (see page 32)

From the second time on, the below screen is displayed for a while (setting condition is an example).

Selecting the input signal

Press to select the input signal to be played back from the equipment which has been connected to the Plasma Display.

Input signals will change as follows:

VIDEO: Video input terminal in INPUT1.

S-VIDEO: S Video input terminal in INPUT2.

COMPONENT: Component or RGB input terminal in INPUT3.

PC: PC input terminal in INPUT4.

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.
• The sound set with "AUDIO INPUT SELECT" is output. (see page 32)
• Select to match the signals from the source connected to the component/RGB input terminals. (see page 35)
• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.
• Image retention (image lag) may occur on the plasma display panel when a still picture is kept on the panel for an extended period. The function that darkens the screen slightly is activated to prevent image retention (see page 44), but this function is not the perfect solution to image retention.

Basic Controls

Main Unit

Remote Control Transmitter

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema format picture.

Press repeatedly to move through the aspect options:

For details about the aspect mode, please see "List of Aspect Modes" (page 45).

For VIDEO (S VIDEO) signal input:

The aspect mode changes each time the ENTER button is pressed.

For PC signal input:

For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):

For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:

[During MULTI PIP Operations]

• Picture and Picture, Picture in Picture :
- Others : Aspect switching is not possible.

Notes:

• The aspect mode is memorized separately for each input terminal.
• Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image retention to remain on the Plasma Display Panel.

All Aspect mode

Set "All Aspect" to "On" in Options menu to enable the extended aspect mode (page 42). When All Aspect mode, the aspect mode of pictures is switched as follows. For details about the aspect mode, please see "List of Aspect Modes" (page 45).

For VIDEO (S VIDEO) signal input:

For PC signal input:

For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):

For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:

MULTI PIP

MULTI PIP

Press repeatedly.

Each time pressing this button main picture and sub picture will be displayed as follows below.

[Picture and Picture] [Picture [Picture]t Picture]

SELECT

Press to select the input mode.

Under main Picture and sub picture display, select the picture which you would like to change input modes.

Notes:

• The sub picture sound is heard while a sub picture operation is underway.
• The sub picture operation automatically returns to the main picture operation if a sub picture operation has not been performed for about 5 seconds or if any of the remote control buttons is pressed (except INPUT button).

[Example]

Main picture label is bright Sub picture label is bright

INPUT

Press to change input signal.

Main picture label is changed Sub picture label is changed

MOVE

Press to move the sub picture.

Each time the location of the sub picture will be moved.

Notes:

• This button is effective only in the picture in picture.
• The sub picture may be hidden by the on screen display, depending on its position.

Notes:

• If "INPUT lock" in Options menu is set to other than "Off", MULTI PIP function isn't available.
  • Sound output is from the picture which is selected in AUDIO OUT (PIP) (see page 26).
• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.
• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals displayed on the main picture and depending on the 2-picture display mode.
• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.
• Computer screen picture is displayed in a simplified format, and it may not be possible to discern details on them satisfactorily.
• Following combinations of two signals cannot be displayed simultaneously; INPUT1 (Video) - INPUT2 (S Video), INPUT3 (Component) - INPUT4 (PC)
• Be aware that if you put the display in a public place for commercial purposes or a public showing and then use the MULTI PIP function to make a composite screen display, you may be violating the copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other people for commercial purposes without the prior permission of the copyright holder.

Digital Zoom

This displays an enlargement of the designated part of the displayed image.

1 Display the operation guide.

Press to access Digital Zoom. The operation guide will be displayed.

Pure geometric diagram showing two rectangles with dashed lines indicating hidden edges (no text or symbols)

During Digital Zoom, only the following buttons can be operated.

[Remote control]

2 Select the area of the image to be enlarged.

Press on the enlargement location to select.

The cursor will move.

3 Select the magnifi cation required for the enlarged display.

Each time this is pressed, the magnifi cation factor changes.

This is shown in the image being displayed.

4 Return to normal display (quit Digital Zoom).

-Press to exit from the Digital Zoom.

Notes:

• When power goes OFF (including "Off Timer" operation), Digital Zoom terminates.
• The Digital Zoom function cannot be selected while in the following operation state:
  "Multi-viewer" (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 19)
  When MULTI DISPLAY SETUP is ON (see page 33).
  When SCREENSAVER (except for NEGATIVE IMAGE) is running. (see page 27)
• While Digital Zoom is in operation, "Adjusting POS. /SIZE" cannot be used.

On-Screen Menu Displays

Remote Control Unit

1 Display the menu screen.

Press to select.
(Example: PICTURE menu)

Each time the MENU button is pressed, the menu screen will switch.

2 Select the item.

(Example: PICTURE menu)

3 Set.

4 Exit the menu.

Press. R
Press ⓣ to return to the previous menu.

Overview

Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

(see page 22, 23)

(see page 24, 25)

(see page 24, 25)

Panasonic
DISPLAY

(see page 27-39)

(see page 26)

(see page 35-39)

(see page 28)

(see page 28, 29)

(see page 33, 34)

(see page 32)

Adjusting POS. /SIZE

During "VIDEO (S VIDEO)" input signal.

During "COMPONENT", "RGB" and "PC" input signal.

Notes:

• Unadjustable items are grayed out.
  Adjustable items differ depending on the input signal and the display mode.
• Adjustment details are memorized separately for different input signal formats. (Adjustments for component signals are memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC signals are memorized for each frequency.)
• If a "Cue" or "Rew" signal from a VCR or DVD player is received, the picture position will shift up or down. This picture position movement cannot be controlled by the POS. /SIZE function.

AUTO H-POS/V-POS, H-SIZE/V-SIZE, DOT CLOCK and CLOCK PHASE are automatically adjusted when the SETUP INPUT3 (COMPONENT/RGB) or INPUT4 (PC) signal is received.

This setting is enabled under the following conditions:

• This setting only support single screen display. Two screen display or multiple display are not supported.
- When "COMPONENT/RGB-IN SELECT" in the "SET UP" menu (see page 35) is set to "RGB", this setting is enabled.
- When the signal is not PC format, this setting is enabled only if "OVER SCAN" (see page 23) is "OFF", and H-SIZE/V-SIZE is not automatically adjusted.

This setting will be invalid and will not work under the following conditions:

- Aspect is set to "JUST"

- "Display size" in the Options menu (see page 41) is set to "On"

- Aspect is set to "JUST" - "Display size" in the Options menu (see page 41) is set to "On"

Using Remote Control

AUTO SETUP on the remote control is pressed, "AUTO SETUP" will be executed. AUTO SETUP does not work, "INVALID" is displayed.

Auto mode

When the "Auto Setup" is set to "Auto" in the Options menu (see page 42), automatic position adjustment starts:

- When the display power is turned ON.

- When the input signal is switched.

- When the display power is turned ON. - When the input signal is switched.

Notes:

• If the dot clock frequency is 108 MHz or higher, DOT CLOCK and CLOCK PHASE cannot be made.
• AUTO SETUP may not work when a cropped or dark image is input. In such case, switch to a bright image with borders and other objects are clearly shown, and then try auto setup again.
• Depending on the signal, out of alignment may occur after AUTO SETUP. Carry out fine tuning for the position/size as required.
• If AUTO SETUP cannot set properly for vertical frequency 60Hz XGA signal (1024×768@60Hz, 1280×768@60Hz, and 1366×768@60Hz), pre-selecting the individual signal in "XGA MODE" (see page 37) may results in correct AUTO SETUP.
• AUTO SETUP does not work well when a signal such as additional information is superimposed out of valid image period or intervals between synchronizing and image signals are short, or for image signal with tri-level synchronizing signal added.
• If AUTO SETUP cannot adjust correctly, select “NORMALIZE” once and press ACTION (■) then adjust POS. /SIZE manually.

H-POS

Adjust the horizontal position.

Three schematic diagrams showing circular shapes with internal symbols and arrows, no text or labels present.

V-POS

Adjust the vertical position.

Three abstract geometric diagrams showing circular shapes with arrows, no text or symbols present.

H-SIZE Adjust the horizontal size. V-SIZE Adjust the vertical size.

Three abstract geometric shapes with internal ovals and a central circular element, shown in different orientations (no text or symbols)

Three technical diagrams showing a rectangular plate with internal oval and a circular component, each with alignment arrows (no text or symbols)

DOT (During "COMPONENT", "RGB" and "PC" input signal)

CLOCK Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this happens, adjust so that any such noise is minimized.

CLOCK (During "COMPONENT", "RGB" and "PC" input signal)

PHASE Eliminate the f l icking and distortion.

OVER Turn image over scan ON/OFF.

SCAN Conf i gurable signals are as follows:

525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p, 1125/60p, 1125/50p, 1125/30p, 1250/50i (Component Video, RGB)

Notes:

• When "OFF" is set, "H-SIZE" and "V-SIZE" cannot be adjusted.
• When the "Display size" is set to "On" in the Options menu, this setting will be invalid. (see page 41)

Helpful Hint ( Ⓞ NORMALIZE Normalization)

While the POS. /SIZE display is active, if either the N button on the remote control is pressed at any time or the ACTION (■) button is pressed during "NORMALIZE", then all adjustment values are returned to the factory settings.

PICTURE Adjustments

1

Press to display the PICTURE menu.

2

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by looking at the picture behind the menu.

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

Press to select "ON".

Press to enter Advanced Settings.

ADVANCED SETTINGS ON

Enables fi ne picture adjustment at a professional level (see next page).

ADVANCED SETTINGS OFF

Displays images with settings of the PICTURE menu.

Press the left ◀ or right ▶ button to switch between modes.

STANDARD

For viewing in standard (evening lighting) environments. This menu selects the normal levels of BRIGHTNESS and PICTURE.

DYNAMIC

For viewing in brighter environments.

This menu selects higher than normal levels of BRIGHTNESS and PICTURE.

CINEMA

Ideal for movies.

Note:

If you would like to change the picture and color of the selected PICTURE menu to something else, adjust using the items in the PICTURE menu. (see next page)

Press the left ◀ or right ▶ button to switch between modes.

COLOR MANAGEMENT ON

Enables vivid color adjustment automatically.

Helpful Hint ( ○ / NORMALIZE Normalization)

While the "PICTURE" menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION (■) button is pressed during "NORMALIZE", then all adjustment values are returned to the factory settings.

Item	Effect	Adjustments
PICTURE		Adjusts the proper picture contrast.
BRIGHTNESS		Adjusts for easier viewing of dark pictures such as night scenes and black hair.
COLOR		Adjusts color saturation.
TINT	[R 2AZY]	Adjusts for natural fl esh tones.
SHARPNESS		Adjusts picture sharpness.

Notes:

• "COLOR" and "TINT" settings cannot be adjusted for "RGB/PC" input signal.
• You can change the level of each function (PICTURE, BRIGHTNESS, COLOR, TINT, SHARPNESS) for each PICTURE MENU.
• The setting details for STANDARD, DYNAMIC and CINEMA respectively are memorized separately for each input terminal.
• The "TINT" setting can be adjusted for NTSC signal only during "VIDEO (S VIDEO)" input signal.
• In PICTURE, there is not a noticeable change even when contrast is increased with a bright picture or reduced with a dark picture.

ADVANCED SETTINGS

Item		Effect	Details
BLACK EXTENSION		Adjusts the dark shades of the image in gradation.
INPUT LEVEL		Adjustment of parts which are extremely bright and hard to see.
GAMMA		S CURVE 2.0 2.2 2.5
AGC		Increases the brightness of dark signal automatically.
W/B HIGH R		Adjusts the white balance for light red areas.
W/B HIGH G		Adjusts the white balance for light green areas.
W/B HIGH B		Adjusts the white balance for light blue areas.
W/B LOW R		Adjusts the white balance for dark red areas.
W/B LOW G		Adjusts the white balance for dark green areas.
W/B LOW B		Adjusts the white balance for dark blue areas.

Notes:

- Carry out "W/B" adjustment as follows.

1. Adjust the white balance of the bright sections using the "W/B HIGH R", "W/B HIGH G" and "W/B HIGH B" settings.
2. Adjust the white balance of the dark sections using the "W/B LOW R", "W/B LOW G" and "W/B LOW B" settings.
3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other's settings, so repeat each step in turn to make the adjustment.

• The adjustment values are memorized separately for each input terminal.
• The adjustment range values should be used as an adjustment reference.

Helpful Hint ( √)

NORMALIZE

Normalization)

On the remote control unit, while the "ADVANCED SETTINGS" menu is displayed, if either the N button is pressed at any time or the ACTION (■) button is pressed during "NORMALIZE", then all adjustment values are returned to the factory settings.

SOUND Adjustment

1

Press to display the SOUND menu.

2

Select to adjust each item.

Press to select the menu to adjust.

Select the desired level by listening to the sound.

3

Press to exit from adjust mode.

Item Details
AUDIO MENU	STANDARD: Emits the original sound.DYNAMIC: Accentuates sharp sound.
BASS	Adjusts low pitch sounds.
TREBLE	Adjusts high pitch sound.
BALANCE	Adjusts left and right volumes.
AUDIO OUT (PIP)	MAIN: Selects main picture sound.SUB: Selects PIP frame sound.	Musical note is displayed on right side of the audio output screen label.

Note: BASS and TREBLE settings are memorized separately for each AUDIO MENU.

Helpful Hint (N NORMALIZE Normalization)

While the “SOUND” menu is displayed, if either the N button on the remote control is pressed at any time or the ACTION(■ ) button is pressed during “NORMALIZE”, then all adjustment values are returned to the factory settings.

SCREENSAVER (For preventing image retention)

Do not display a still picture, especially in 4:3 mode, for any length of time. If the display must remain on, a SCREENSAVER should be used.

1

Press to display the SET UP menu.

2

Press to select the SCREENSAVER.

Press to select the SCREENSAVER screen.

3

FUNCTION selection

Press to select the FUNCTION.

Press to select the desired function.

NEGATIVE IMAGE : A negative image will be displayed on the screen.

SCROLLING BAR ONLY : A white bar will scroll from left to right. The image won't be displayed. OVERLAY SCROLLING BAR : The brightness of the image will be decreased and a white bar will scroll on it. WHITE SCREEN : The whole screen will be white.

4

MODE selection

Circular diagram with directional arrows and a central square, no text or symbols present

Press to select the MODE.

Press to select each mode items.

5

START setting

When the MODE is set to ON, press to select START.

Press to start SCREENSAVER.

The menu screen will disappear and the SCREENSAVER will be activated. To stop the SCREENSAVER under ON, press the R button or any buttons on the main unit.

Note: When the display is turned off, the SCREENSAVER will be deactivated.

Setup of SCREENSAVER Time

After selecting INTERVAL or STANDBY AFTER SCR SAVER, the relevant Time Setup will become available for selection and the Operating Time may be set. (Time cannot be set when "MODE" is "ON" or "OFF".)

Press to select SHOW DURATION / SAVER DURATION (When INTERVAL is selected).

Press to select SCREENSAVER DURATION (When STANDBY AFTER SCR SAVER is selected).

Press to setup. ▶ button: Forward

button: Back

Notes:

• Pressing "◀" or "▶" button once changes the Time 1 minute.
  [However, switching occurs every 15 minutes when Periodic Time is selected.]
• Pressing “◀” or “▶” button continuously changes the Time by 15 minutes.
• "SCREENSAVER DURATION" of the "STANDBY AFTER SCR SAVER" can be set from 0:00 to 23:59. When this is set to "0:00", "STANDBY AFTER SCR SAVER" will not be activated.

Reduces screen image retention

EXTENDED LIFE SETTINGS

The following settings are setup to reduce image retention:

Image Retention Reduction Menu

"EXTENDED LIFE SETTINGS" enables you to set the following 5 menus (Image Retention Reduction Menu) as recommended values or set them individually.

PICTURE MENU


"PICTURE MENU" and "PICTURE" are same as "PICTURE" menu items (see page 24). The settings of this menu will be reflected to the "PICTURE" menu.

SIDE BAR ADJUST

Do not display a picture in 4:3 mode for an extended period, as this can cause an image retention to remain on the side bars on either side of the display fi eld.

To reduce the risk of such an image retention, illuminate the side bars.

This function may be applicable to the non-picture area.

OFF: Darken both ends.

DARK: Make it dark gray.

MID: Make it gray.

BRIGHT: Make it light gray.

Notes:

• To reduce the occurrence of image retention, set the SIDE BAR ADJUST to BRIGHT.
- The side bar may flash (alternate black/white) depending on the picture being shown on the screen. Using Cinema mode will reduce such flashing.

WOBBLING

Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of sharper contour of image.

ON1: Shifts the image every 30 seconds.

ON2: Shifts the image at a dot level pitch depending on screen-detection.

PEAK LIMIT

ON: Suppresses image contrast (peak brightness).

Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 44)

EXPRESS SETTINGS

Set the "Image Retention Reduction" menu to the recommended settings.

All menus will be locked.

PICTURE MENU: STANDARD

PICTURE: 10

2 Select the input to apply the settings.

3 Select "YES".

CUSTOM SETTINGS

Set the individual "Image Retention Reduction" menu.

1 Select "CUSTOM SETTINGS".

2 To set each menu to the recommended setting: Select "RECOMMENDED SETTINGS".

Each menu will be set as same as the "EXPRESS SETTINGS".

3 Set each menu.

4 To lock each menu setting: Set the "LOCK SETTINGS" to "LOCK".

When a menu is locked, it is grayed out and cannot be set. "PICTURE MENU" and "PICTURE" will no longer be able to set in the "PICTURE" menu, and they are labeled with icon to indicate their locked status.

5 Select the input to apply the settings.

6 Select "YES".

RESET

Reset the "Image Retention Reduction" menu to the factory settings. Each menu will be unlocked.

1 Select "RESET".

2 Select the input to reset the settings.

3 Select "YES".

Reduces power consumption

• POWER SAVE: When this function is turned ON, luminous level of the Plasma Display is suppressed, so power consumption is reduced.
• STANDBY SAVE: When this function is turned ON, power consumption of the microcomputer is reduced during power supply standby (see page 13, 16, 17), so standby power of the set is reduced.
• POWER MANAGEMENT: When this function is set to ON, it operates under the following conditions to turn the power on or off automatically.

When no pictures (HD/VD sync signals) are detected for 30 or so seconds during PC signal input:

→Power is turned off (standby); the power indicator lights up orange.

When pictures (HD/VD sync signals) are subsequently detected:

→ Power is turned on; the power indicator lights up green.

Notes:

• This function operates only during PC signal input.

This function is effective when "SYN"

is set to "RGB" and during normal viewing (one picture screen).

- AUTO POWER OFF: Equipment power supply is turned OFF when there is no signal.

When this is set to On, the power supply of the unit goes Off 10 minutes after the input signals stop.

Note:

This function is effective during normal viewing (one picture screen) for input signals except PC terminal.

1

Press to select

"POWER SAVE"

"STANDBY SAVE"

"POWER MANAGEMENT"

"AUTO POWER OFF".

2

Press to select "ON" or "OFF".

On ←→ Off

3

Press to exit from SET UP.

Customizing the Input labels

This function can change the label of the Input signal to be displayed.

Select the input signal which you would like to change its label before customizing the Input labels. (see page 15, 17)

Press to select INPUT LABEL.

Press to change the INPUT LABEL.

INPUT LABELS for INPUT1, 2, 3 and 4:

[INPUT1] VIDEO / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV VCR / STB

[INPUT2] S-VIDEO / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB

[INPUT3] COMPONENT / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB

[INPUT4] PC / DVD1 / DVD2 / DVD3 / Blu-ray1 / Blu-ray2 / Blu-ray3 / CATV / VCR / STB

Selecting the On-Screen Menu Language

1

Press to display the SET UP menu.

2

Press to select OSD LANGUAGE.

Press to select your preferred language.

■ Selectable languages

AUDIO INPUT SELECT

Set up the sound when an image input (INPUT 1 to 4) is selected.

1

Press to display the SET UP menu.

2

Press to select the AUDIO INPUT SELECT.

3

Circular diagram with directional arrows and a central square, no text or symbols present

Press to display the "AUDIO INPUT SELECT" menu.

4

Press to select video input.

Press to select audio input.

Press to exit from adjust mode.

DISPLAY ORIENTATION

Sets the fan control and the display style of on-screen menu for vertical installation.

1

Press to display the SET UP menu.

2

Press to select DISPLAY ORIENTATION.

Press to select "LANDSCAPE" or "PORTRAIT".

3

Press to exit from adjust mode

Computer monitor with a blank screen and a gray header bar (no text or symbols visible)

Simple line drawing of a door frame with a window and door (no text or symbols)

LANDSCAPE PORTRAIT

Fan control for horizontal installation.

Fan control for vertical installation. On-screen menu will be rotated 90 degrees counterclockwise to be suitable for the setting.

Notes:

• Turn up the power switch for the upward direction when you set Display vertically.
• Fan control will be switched when turning on the unit next time.

SET UP for MULTI DISPLAY

By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across all screens. For this mode of operation, each plasma display has to be set up with a Display number to determine its location.

(Example)

group of 4 (2 × 2)

group of 9 (3 × 3)

group of 16 (4 × 4)

group of 25 (5 × 5)

Black-and-white photo of a palm tree by the sea, framed within a grid (no text or symbols)

Black-and-white photo of palm trees reflected in a grid-patterned mirror, with no visible text or symbols.

How to setup MULTI DISPLAY

1

Press to display the SET UP menu.

2

Press to select the MULTI DISPLAY SETUP.

Press to display the "MULTI DISPLAY SETUP" menu.

3

Press to select the MULTI DISPLAY SETUP.

Press to select "ON" or "OFF".

4

Press to exit from adjust mode.

Item Details
MULTI DISPLAY SETUP Select “ON” or “OFF”.
HORIZONTAL SCALE Select “×1”, “×2”, “×3”, “×4”, “×5”.
VERTICAL SCALE Select “×1”, “×2”, “×3”, “×4”, “×5”.
SEAM HIDES VIDEO	Select “ON” or “OFF”. To hide joints between displays. Suitable for moving image display. ON OFF Suitable for still image display.
LOCATION	Select the required arrangement number. (A1-E5: Refer to the following)Display Number locations for each arrangement.(Examples)(2×1)(2×3)(4×4)(4×2)(5×5)

ID Remote Control Function

You can set the remote control ID when you want to use this remote control on one of several different displays.

Note:

To operate this function, please purchase ID remote controller sold separately.

Object model : EUR7636070R

1 Switch to on the right side.
2 Press the button on the remote control.
3 Press one of 1, for the tens digit setting.
4 Press one of 1 - ,9 for the units digit setting.

Notes:

• The numbers in 2, 3 and 4 should be set up quickly.
• Adjustable ID number range is 0 - 99.
• If a number button is pressed more than two times, the first two numbers become the ID number for the remote control.

ID remote control button operation

The operation is the same as normal remote control except for the button.

ID Cancellation

Press button on remote control. (This has the same effect as pressing the , buttons at the same time.)

Notes:

• Set the Remote ID "On" to operate the ID remote control.
  If remote ID is set to "On", you can use the remote control without identical ID number during option menu display. (see page 41)
• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is not the same as the ID select number (see page 41).

SET UP for Input Signals

COMPONENT / RGB IN SELECT

Select to match the signals from the source connected to the COMPONENT / RGB input terminals.

Y, P_B , P_R signals “COMPONENT”

RGB signals "RGB"

1

Press to display the SET UP menu.

2

Circular diagram with directional arrows and a central square, no text or symbols present

Press to select the "COMPONENT / RGB-IN SELECT".

Press to select the desired mode. COMPONENT ←→ RGB

3

Press to exit from adjust mode.

Note:

Make setting of the selected input terminal.

SIGNAL menu

Note:

"SIGNAL" setup menu displays a different setting condition for each input signal.

1

Press to display the SET UP menu.

2

Press to select the "SIGNAL".

Press to display the SIGNAL menu.

3

Press to select the menu to adjust.

Press to adjust the menu.

4

Press to exit from adjust mode.

For VIDEO (S VIDEO)

For RGB

For COMPONENT

3D Y/C FILTER – For NTSC AV images

Select "SIGNAL" from the "SET UP" menu during VIDEO (S VIDEO) input signal mode. ("SIGNAL [VIDEO]" menu is displayed.)

Circular diagram with directional arrows and a central square, no text or symbols present

Press to select the "3D Y/C FILTER (NTSC)".

Press to set ON / OFF.

Note:

When ON, this setting only affects NTSC input signals.

COLOR SYSTEM

Select SIGNAL from the "SET UP" menu during VIDEO (S VIDEO) input signal mode. ("SIGNAL [VIDEO]" menu is displayed.)

Circular diagram with directional arrows and a central square, no text or symbols present

Press to select the "COLOR SYSTEM".

Press to select each function.

If the image becomes unstable:

With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases become unstable. Should this occur, set the system to match the format of the input signal.

COLOR SYSTEM:

Set the color system to match the input signal. When "AUTO" is set, COLOR SYSTEM will be automatically selected from NTSC/PAL/SECAM. However, M.NTSC signal may not be displayed properly. To display M.NTSC signal, select "M.NTSC" in COLOR SYSTEM.

3:2 PULLDOWN

3:2 PULLDOWN: When ON, the display attempts to reproduce a more natural interpretation of sources such as movie pictures, which are recorded at 24 frames per second.

If the picture is not stable, turn the setting to OFF.

Note:

When ON, this setting only affects the following signal input:

• NTSC / PAL signal input during "VIDEO (S VIDEO)" input signal.
• 525i(480i), 625i(575i), 1125(1080)/60i signal input during "COMPONENT" input signal.

Circular diagram with directional arrows and a central square, no text or symbols present

Press to select "3:2 PULLDOWN".

Press to set ON/OFF.

XGA MODE

This menu displays when INPUT3 (COMPONENT/RGB) and INPUT4 (PC) signals are selected.

This unit supports three types of XGA signals with 60Hz vertical frequency having different aspect ratios and sampling rates (1,024 × 768 @ 60Hz, 1,280 × 768 @ 60Hz and 1,366 × 768 @ 60Hz).

Circular diagram with directional arrows and a central square, no text or symbols present

Press to select "XGA MODE".

Press to select "AUTO", "1024×768", "1280×768", "1366×768".

AUTO: Automatically selected from 1024×768/1280×768/1366×768.

Switch the setting to suit the input signal for better display depends on the angle of view or display resolution condition.

Note:

After making this setting, be sure to make each adjustment (such as "AUTO SETUP") on the "POS. /SIZE" menu as necessary. (see page 22)

REFRESH RATE

This function sets the refresh rate of the display.

This menu is displayed when the input signal is 50 Hz system (50i, 50p, 25p, 24p, 24sF) of vertical scan rate.

100 Hz: Reduce screen flicker.

50 Hz: Enhance the resolution of moving images.

Note:

It is recommended to set to 100 Hz normally.

NOISE REDUCTION

Sets the following three NR (Noise Reduction) functions together. VIDEO NR, MOSQUITO NR, BLOCK NR

Advanced NR

Sets the three NR functions separately.

1

2

VIDEO NR: Automatically reduces unwanted picture noise.

MOSQUITO NR: Reduces mosquito noise around subtitles on MPEG videos.

BLOCK NR: Reduces block noise when playing MPEG videos.

Notes:

• NOISE REDUCTION cannot be adjusted while a PC signal is being applied.
• BLOCK NR cannot be adjusted while a HD signal is being applied.

SYNC

Select SIGNAL from the "SET UP" menu during RGB input signal.

Circular diagram with directional arrows and a central square, no text or symbols present

Press to select the "SYNC".

Press to adjust.

Setting RGB sync signal

Confir rm that the input is set to RGB INPUT (this setting is valid only for RGB INPUT signal).

AUTO: The H and V sync or synchronized signal are automatically selected. If both input, it is selected the H and V sync.

ON G: Uses a synchronized signal on the Video G signal, which is input from the G connector.

VBS: Uses a synchronized signal of Composite Sync input, which is input from the HD connector.

Input signal display

Displays the frequency and the type of the current input signal.

This display is valid only for COMPONENT/RGB/PC input signal.

Display range:

Horizontal 15 - 110 kHz

Vertical 48 - 120 Hz

Options Adjustments

1

Press to display the SET UP menu.

2

Press to select "OSD LANGUAGE".

Press for more than 3 seconds.

3

Press to select "Options".

Press to display the Options menu.

4

Circular diagram with directional arrows and a central square, no text or symbols present

Press to select your preferred menu.

Press to adjust the menu.

5

Press to exit from Options menu.

Item	Adjustments
Onscreen display	On: Displays all the following on screen.Power on displayInput signal switch displayNo signal displayMute and the remaining time of off-timer after was pressed.Off: Hides all the items above from view.
Initial INPUT	Off ↔ PC ↔ VIDEO ↔ S-VIDEO ↔ COMPONENTAdjusts the input signal when the unit is turned on.Notes:Only the adjusted signal is displayed. (see page 15)This menu is available only when “INPUT lock” is “Off”.
Initial VOL level	Press button to adjust the volume when the unit is turned on.Off ↔ OnOff: Sets normal volume.On: Sets your preferred volume.Notes:When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.
Maximum VOL level	Press button to adjust the maximum volume.Off ↔ OnOff: Sets auto maximum volume.On: Sets your preferred maximum volume.Notes:If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level” automatically becomes the same as the “Maximum VOL level”.The volume display can go up to 63 regardless of the settings.You can hear the changed volume regardless of your volume setting before opening the options menu if you adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.
Item Adjustments
INPUT lock	Off<PC VIDEO S-VIDEO COMPONENTLocks the input switch operation.Notes:Only the adjusted signal is displayed (see page 15).Input switch can be used when this is set to “Off”.In two screen display mode, if anything other than “Off” is set, the value will be fixed as the value input in the single screen display mode.
Button lock	Off←→MENU&ENTER<On>Off: All the buttons on main unit can be used.MENU&ENTER: Locks □ and □ buttons on main unit.On: Locks all the button on main unit.Sets Button lock with the unit buttons in the following procedure.Off: Press four times→Press four times→Press four times→Press □MENU&ENTER: Press four times→Press four times→Press four times→Press □ On: Press four times→Press four times→Press four times→Press □ ENTER■
Remocon User level	Off←→User1User2 User3>Off: You can use all of the buttons on the remote control.User1:You can only use @, @, @ buttons on the remote control.User2: You can only use @ button on the remote control.User3:Locks all the buttons on remote control.
Off-timer function	Enable: Enables the “Off-timer function”.Disable: Disables the “Off-timer function”.Note: When “Disable” is set, the Off-timer is cancelled.
Initial Power Mode	Normal←→Standby<On>Sets the power mode of the unit for when the power recovers from failure or after plugging off and in again.Normal: Power returns in as the same state as before the power interruption.Standby: Power returns in standby mode. (Power Indicator : red/orange)On: Power returns in power On. (Power Indicator : green)Note: When using multiple displays, “Standby” is preferred to be set in order to reduce a power load.
ID select	Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.Set value range: 0 - 100(Standard value: 0)
Remote ID	The setting of this menu is valid only when using ID remote control.Off: Disables ID remote control functions. You can use normal remote control operations.On: Enable ID remote control functions.
Serial ID	Sets the panel ID Control.Off: Disables external control by the ID.On: Enables the external control by the ID.
Display size	Adjusts the image display size on screen.Off: Sets the normal image display size on screen.On: Sets the image display size approximately 95 % of the normal image display.Off Notes:This setting is valid only when the input signals are as follows;NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (Video (S Video)) 525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p, 1125/30p, 1125/60p, 1125/50p, 1250/50 (Component Video, RGB)This setting is invalid when two screen display, digital zoom or Multi display is selected.When “Display size” is set to “On”, “H-POS” and “V-POS” in “POS. /SIZE” can be adjusted.
Studio W/B	Off: Nullify all the settings adjusted.On: Sets the color temperature for TV studio.Note: Valid only when the low is set as color temperature on screen adjustment.
Studio Gain	Sharpens the contrast for a better view when a part of the image is too light to see.Off: Disables “Studio Gain”.On: Enables “Studio Gain”.Note: This setting is valid only when the input signals are as follows:Component Video, RGB
Power On Screen Delay	Off ↔ 1 ↔ 3 ↔ 30 ↔You can set the power-on delay time of the displays to reduce the power load, when you press ⏻/I to turn on the multiple displays that are set together, for example, on MULTI DISPLAY system.Set each display’s setting individually.Off: The display will be turned on at the same time as ⏻/I is pressed.1 to 30 (sec.): Set the power-on delay time (second).After pressing |, the display will be powered on with time delay depending on this setting.Notes:During this function is working, the power indicator is blinking green.This function also works when the power recovers from failure or after plugging off and in again the power cord.
All Aspect	Sets All Aspect mode (advanced aspect setting) or default aspect mode.With each press of [IMAGE] button, the aspect changes in the selected mode.Off: Default aspect modeOn: All Aspect modeAspect mode of each setting is as follows:(Example: HD signal)Off 4:3→H-FILL→ZOOM→FULL→JUSTOn 4:3 (1)→4:3 (2)→4:3 Full→Zoom1→Zoom2→Zoom3→16:9→14:9→Just1→Just2
Auto Setup	Sets the operational mode of the automatic position adjustment in the POS./SIZE menu.Manual: Automatic position adjustment starts when it is pressed on the remote control or automatic position adjustment is executed from the POS./SIZE menu.Auto: Other than remote control or menu operation, automatic position adjustment starts:When the display power is turned ON.When the input signal is switched.
Rotate	Off: Does not rotate the image.On: Rotates the image 180 degrees.

Normalization

When both main unit buttons and remote control are disabled due to the "Button lock", "Remocon User level" or "Remote ID" adjustments, set all the values "Off" so that all the buttons are enabled again.

Press the □ button on main unit together with ○ button on the remote control and hold for more than 5 seconds. The "Shipping" menu is displayed and the lock is released when it disappears.

Shipping condition

This function allows you to reset the unit to the factory setting.

[from the unit]

1 Press the MENU button till the SET UP menu is displayed.
2 Press the Volume Up "+" or Down "-" button to select "OSD LANGUAGE".
3 Press and hold the ENTER button till the Shipping menu is displayed.
4 Press the Volume Up "+" or Down "-" button to select "YES".
5 Press the ENTER button and wait for 10 sec.

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms			Checks
Picture Sound
	Interference No.		Electrical AppliancesCars / MotorcyclesFluorescent light
	Normal Picture		Volume(Check whether the mute function has been activated on the remote control.)
	No Picture No S		Not plugged into AC outletNot switched onPICTURE and BRIGHTNESS/Volume setting(Check by pressing the power switch or stand-by button on the remote control.)
	No Picture Norm		If a signal with a non-applicable color system format, or frequency is input, only the input terminal indication is displayed.
	No Color Norma		Color controls set at minimum level. (see page 24, 25)COLOR SYSTEM (see page 37)
No remote control operations can be performed.			Check whether the batteries have discharged completely and, if they have not, whether they were inserted properly.Check whether the remote control sensor is exposed to an outdoor light or a strong fluorescent light.Check whether the remote control designed specifi cally for use with the unit is being used. (The unit cannot be operated by any other remote control.)
A cracking sound is sometimes heard from the unit.			If there is nothing wrong with the picture or sound, this is the sound of the cabinet undergoing very slight contractions in response to changes in the room temperature. There are no adverse effects on the performance or other aspects.
The top or bottom of the picture on the screen is cut off when I use the zoom function.			Adjust the position of the picture on the screen.
Areas at the top and bottom of the screen where the image is missing appear when I use the zoom function.			When using a video software program (such as a cinema size program) with a screen wider than one in the 16:9 mode, blank areas separate from the images are formed at the top and bottom of the screen.
I can hear sounds coming from inside the unit.			When the power is turned on, a sound of the display panel being driven may be heard: This is normal and not indicative of malfunctioning.
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the type of input signal. However, this is not a malfunction.

Plasma Display panel

Symptoms Check
The screen darkens slightly when bright pictures with minimal movements are shown.	The screen will darken slightly when photos, still images of a computer or other pictures with minimal movements are shown for an extended period. This is done to reduce image retention on the screen and the shortening of the screen's service life: It is normal and not indicative of malfunctioning.
It takes a while for the picture to appear.	The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As such, it sometimes takes a few moments for the picture to appear when the power has been turned on, when the input has been switched or when the images for the main picture and sub picture on the two screens are swapped.
The edges of the images flicker.	Due to the characteristics of the system used to drive the panel, the edges may appear to flicker in the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
The brightness on both sides of images in 4:3 mode changes.	When viewing the side panels at the “BRIGHT” or “MID” setting, the brightness on both sides may change depending on the kind of program shown: This is normal and not indicative of malfunctioning.
Some parts of the screen do not light up.	The plasma display panel is manufactured using an extremely high level of precision technology, however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a malfunction.
Image retention appears	Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to remain on the Plasma Display.Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.Note:The permanent image retention on the Plasma Display resulting from fixed image use is not an operating defect and as such is not covered by the Warranty.This product is not designed to display fixed images for extended periods of time.
Whirring sounds can be heard from the display unit.	The display unit is fitted with a cooling fan to dissipate heat generated during normal use. The whirring sound is caused by rotation of the fan and is not a malfunction.

List of Aspect Modes

Aspect mode		Picture ➔ Enlarged screen	Description
All Aspect: On	Factory setting All Aspect: Off
16:9 FULL			The display of the pictures fi lls the screen. In the case of SD signals, pictures with a 4:3 aspect ratio are enlarged horizontally, and displayed. This mode is suited to displaying anamorphic pictures with a 16:9 aspect ratio.
14:9 –			Letterbox pictures with a 14:9 aspect ratio are enlarged vertically and horizontally so that their display fi lls the screen vertically and is slightly smaller than the screen horizontally. The top and bottom edges of the pictures are cut off. Side panels are displayed at the left and right edges of the screen.
Just Just1	JUST		Pictures with a 4:3 aspect ratio are enlarged horizontally so that the picture distortion is minimized. The display of the areas around the left and right edges of the screen is slightly elongated.
Just2 JUST			Pictures with a 4:3 aspect ratio are enlarged horizontally so that the picture distortion is minimized. The left and right edges of the pictures are cut off. The display of the areas around the left and right edges of the screen is slightly elongated.
4:3 4:3 (1)	4:3		Pictures with a 4:3 aspect ratio are displayed with their original aspect ratio. Side panels are displayed at the left and right edges of the screen.
4:3 (2) 4:3			Pictures with a 4:3 aspect ratio are displayed with their original aspect ratio. The left and right edges of the pictures are masked by side panels.
4:3 Full H-FILL			Pictures with a 4:3 aspect ratio are enlarged horizontally so that their display fi lls the screen. The left and right edges of the pictures are cut off.
Zoom Zoom1	ZOOM		Letterbox pictures with a 16:9 aspect ratio are enlarged vertically and horizontally so that their display fi lls the screen. The top and bottom edges of the pictures are cut off.
Zoom2 ZOOM			Letterbox pictures with a 16:9 aspect ratio are enlarged vertically and horizontally so that their display fi lls the screen. The top and bottom edges as well as the left and right edges of the pictures are cut off.
Zoom3 –			Letterbox pictures with a 2.35:1 aspect ratio are enlarged vertically and horizontally so that their display fi lls the screen vertically and is slightly larger than the screen horizontally. The top and bottom edges as well as the left and right edges of the pictures are cut off.

Applicable input signals

*1: Based on SMPTE 274M standard.
*2: Based on SMPTE RP211 standard.
*3: Based on SMPTE 295M standard.
*4: When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.
*5: When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.

Note: Signals without above specification may not be displayed properly.

Specifications

		TH-42PD12U TH-50PD12U
Power Source		110 - 127 V AC, 50/60 Hz
Power Consumption
	Power on	255 W 365 W
	Stand-by condition	Save OFF 0.9 W, Save ON 0.4 W Save O	FF 0.9 W, Save ON 0.4 W
	Power off condition	0.2 W 0.2 W
Plasma Display panel		Drive method : AC type 42-inch,16:9 aspect ratio	Drive method : AC type 50-inch,16:9 aspect ratio
Screen size		36.2" (921 mm) (W) × 20.4" (518 mm) (H)× 41.6" (1,057 mm) (diagonal)	43.5" (1,106 mm) (W) × 24.4" (622 mm) (H)× 49.9" (1,269 mm) (diagonal)
		(No.of pixels)	786,432 (1,024 (W) × 768 (H))[3,072 × 768 dots]
Operating condition
	Temperature	32 °F - 104 °F (0 °C - 40 °C) 32 °F - 104 °F (0 °C - 40 °C)
	Humidity	20 % - 80 % 20 % - 80 %
Applicable signals
	Color System	NTSC, PAL, PAL60, SECAM, Modifi ed NTSC
	Scanning format	525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i · 50p· 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
	PC signals	VGA, SVGA, XGASXGA, UXGA··· (compressed)Horizontal scanning frequency 15 - 110 kHzVertical scanning frequency 48 - 120 Hz
Connection terminals
	VIDEO BNC	1.0 Vp-p (75 Ω)
	S VIDEO	MINI DIN 4PIN Y: 1.0 Vp-p (75 Ω), C: 0.286 Vp-p (75 Ω)
	COMPONENT/RGB	Y/G (BNC) with sync 1.0 Vp-p (75 Ω)Pb/B (BNC), PR/R (BNC) 0.7 Vp-p (75 Ω)
	PC	(HIGH-DENSITY MINI D-SUB 15PIN) Y or G with sync 1.0 Vp-p (75 Ω)Y or G without sync 0.7 Vp-p (75 Ω)B/Pb/Cb: 0.7 Vp-p (75 Ω)R/PR/CR: 0.7 Vp-p (75 Ω)HD/VD: 1.0 - 5.0 Vp-p (high impedance)
	SERIAL	EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE
	AUDIO1-3	RCA PIN JACK × 6 0.5 Vrms
	AUDIO4	M3 JACK 0.5 Vrms
	EXT SP	6 Ω, 16 W [8 W + 8 W] (10 % THD)
Accessories Supplied
	Remote Control Transmitter	N2QAYB000432
	Batteries	AA Size × 2
	Fixing band	TMME203 × 1
Dimensions (W × H × D)		40.2" (1,020 mm) × 24.1" (610 mm) × 3.5" (89 mm)	47.7" (1,210 mm) × 28.5" (724 mm) × 3.8" (95 mm)
Mass (weight)
	main unit only	approx. 50.7 lbs	approx. 70.6 lbs
	with speakers	approx. 59.6 lbs	approx. 79.4 lbs

Note:
Design and specifications are subject to change without notice. Mass and dimensions shown are approximate.

Customer's Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

© Panasonic Corporation 2009

Panasonic Professional Display Company

Unit of Panasonic Corporation of North America

Executive Office :

One Panasonic Way 1F-10, Secaucus, NJ 07094

EASTERN ZONE : One Panasonic Way 4E-7 Secaucus, NJ 07094 [phone]

Mid-Atlantic/New England : One Panasonic Way 4E-7 Secaucus, NJ 07094 [phone]

Southeast Region : 1225 Northbrook Parkway, Ste 1-160 Suwanee GA 30024 [phone]

Central Region : 1707 N Randall Road E1-C-1, Elgin, IL 60123 [phone]

WESTERN ZONE : 3330 Cahuenga Blvd W., Los Angeles, CA 90068 [phone]

Dallas Region : 6226 Abington Way, Houston, TX 77008 [phone]

No. CA/Northwest Region : 5870 Stone Ridge, #3, Pleasanton, CA [phone]

Government Marketing Department : 52 West Gude Drive, Rockville, MD 20850 [phone]

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3
