Product Type	Video Projector
Brand	Hitachi
Model	CP-X306
Display Technology	3LCD
Native Resolution	XGA (1024 x 768)
Brightness	2600 ANSI Lumens
Contrast Ratio	500:1
Lamp Type	UHB
Lamp Life	2000 Hours (Standard) / 3000 Hours (Economy)
Projection Lens	F=1.7-2.0, f=19.0-23.0mm
Keystone Correction	Vertical ±30°

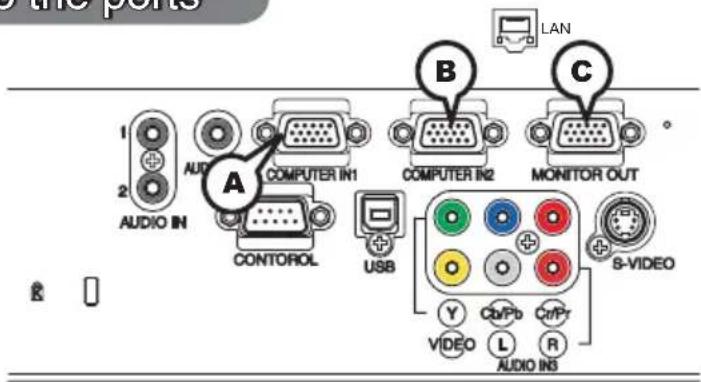

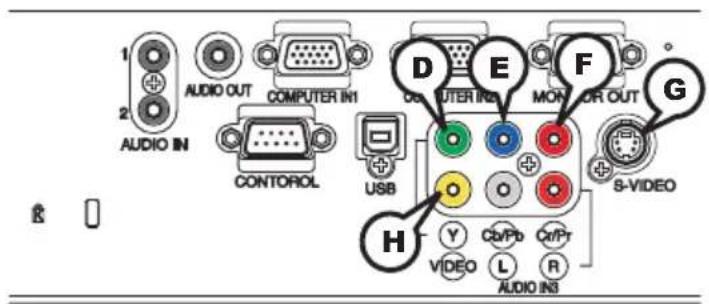

Inputs	HDMI, VGA, S-Video, Composite, Audio
Outputs	Monitor Out, Audio Out

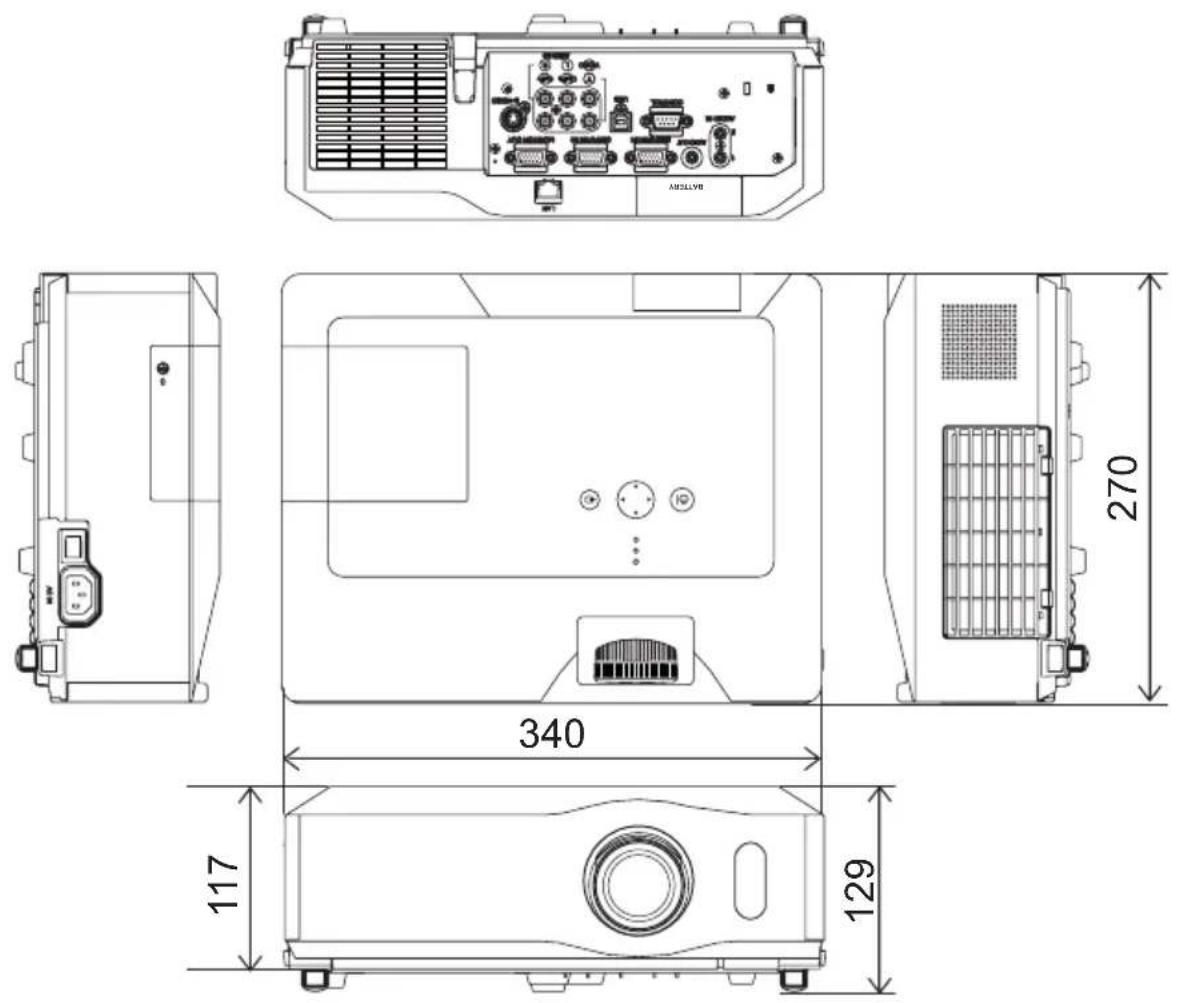

Dimensions (W x D x H)	306 x 249 x 116 mm
Weight	3.5 kg
Power Consumption	290W (Standard) / 210W (Economy)
Noise Level	35 dB (Standard) / 29 dB (Economy)
Built-in Speaker	1W
Remote Control	Yes
Security Features	Kensington Lock, Password Protection

Frequently Asked Questions - CP-X306 HITACHI

How do I replace the lamp on the Hitachi CP-X306?

Turn off the projector and unplug it. Allow the lamp to cool for at least 60 minutes. Remove the lamp cover by unscrewing the screws. Disconnect the lamp connector, remove the old lamp, insert the new one, and secure the cover.

How often should I clean the air filter?

Clean the air filter every 100 hours of use. Use a soft brush or vacuum to remove dust. If heavily soiled, replace the filter.

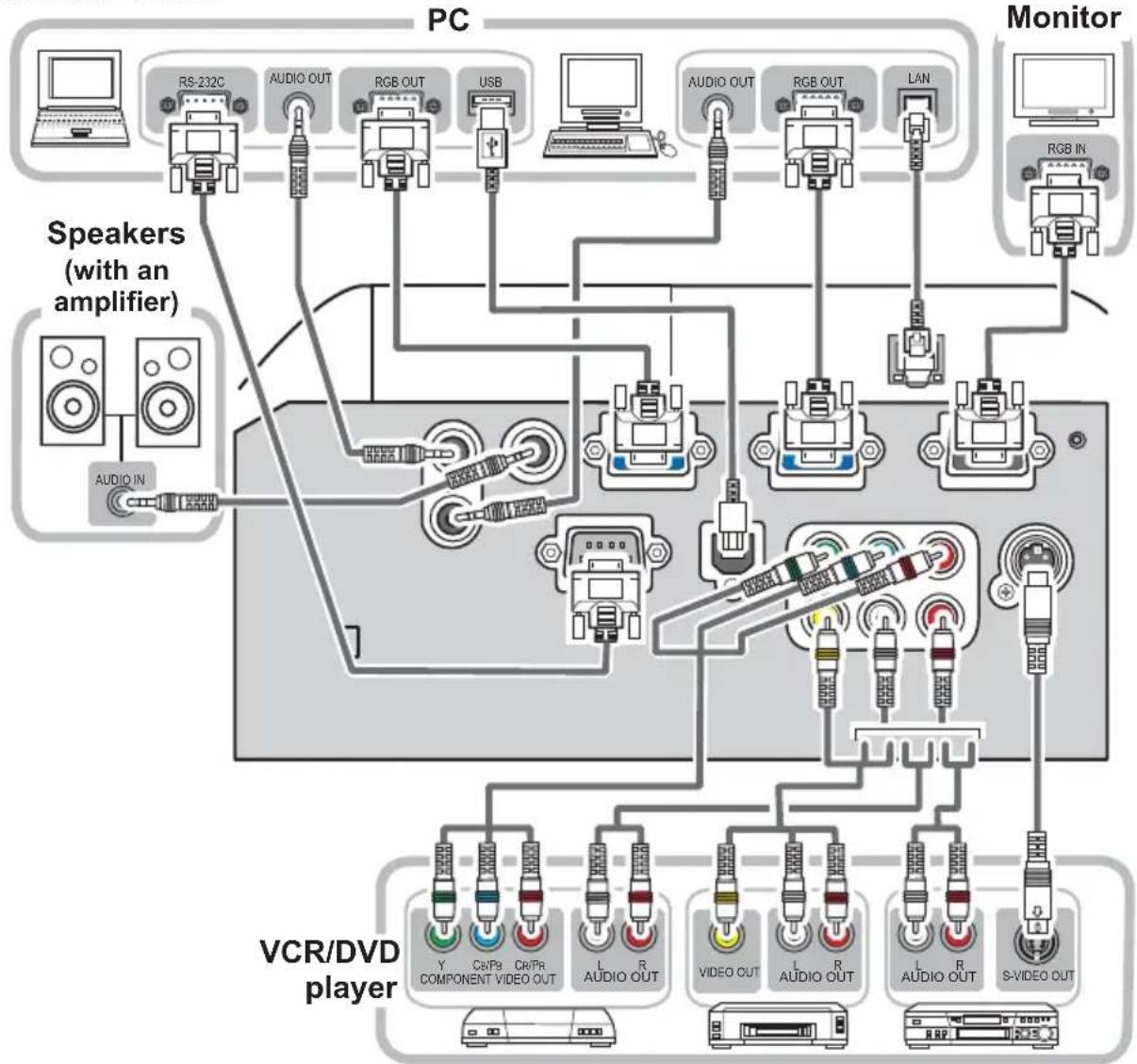

Can I connect my laptop to the CP-X306?

Yes, use a VGA cable to connect your laptop to the Computer In port. Alternatively, use an HDMI cable if available. Press the Source button to select the correct input.

Why is my projector overheating?

Ensure the air filter and vents are clean. Check that the projector has at least 30 cm of clearance on all sides. If the problem persists, replace the air filter.

How do I adjust keystone correction?

Press the Keystone button on the remote or control panel. Use the arrow keys to correct vertical distortion. The adjustment range is ±30°.

What is the expected lamp life?

The lamp lasts approximately 2000 hours in Standard mode and up to 3000 hours in Economy mode. When the lamp indicator lights up, replace the lamp.

How do I reset the lamp timer?

After replacing the lamp, go to the Menu > Lamp Timer and select Reset. Confirm to reset the counter. This is essential for accurate lamp life monitoring.

What does a blinking orange LED mean?

A blinking orange LED indicates a lamp failure or end of lamp life. Check the lamp status in the menu. If the lamp is new, reset the timer.

Can I mount the CP-X306 on the ceiling?

Yes, the projector is compatible with ceiling mounts. Use a standard ceiling mount kit. Ensure the mount supports the weight (3.5 kg) and follow the installation instructions.

Where can I download the user manual?

Visit the Hitachi support website and search for CP-X306. Manuals are available in PDF format. Alternatively, use notice-facile.com to access the manual online.

USER MANUAL CP-X306 HITACHI

User's Manual (detailed)

Operating Guide

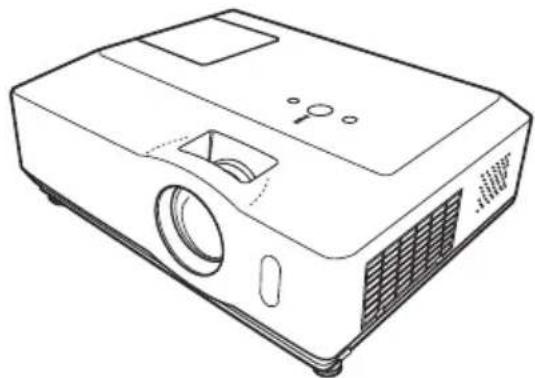

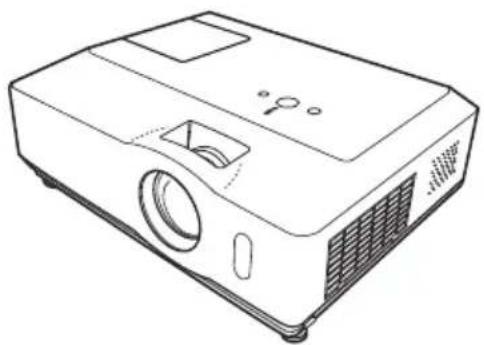

Line drawing of a projector with ventilation slots and a small screen (no text or symbols)

Thank you for purchasing this projector.

⚠ WARNING ▶ Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

⚠ WARNING This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

⚠️ CAUTION This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.

NOTE • The information in this manual is subject to change without notice.

- The manufacturer assumes no responsibility for any errors that may appear in this manual.

- The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Mac is a registered trademark of Apple Inc.
- Microsoft and Windows are registered trademarks of Microsoft Corporation.
• VESA and DDC are trademarks of the Video Electronics Standard Association.
• PowerPC is a registered trademark of International Business Machines Corporation.

All other trademarks are the properties of their respective owners.

Projector

User's Manual - Safety Guide

Thank you for purchasing this projector.

WARNING • Before using, read these user's manuals of this projector to ensure correct usage through understanding. After reading, store them in a safe place for future reference. Incorrect handling of this product could possibly result in personal injury or physical damage. The manufacturer assumes no responsibility for any damage caused by mishandling that is beyond normal usage defined in these manuals of this projector.

NOTE • The information in this manual is subject to change without notice.
- The manufacturer assumes no responsibility for any errors that may appear in this manual.
- The reproduction, transmission or use of this document or contents is not permitted without express written authority.

About The Symbols

Various symbols are used in this manual, the user's manual and on the product itself to ensure correct usage, to prevent danger to the user and others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the contents.

	WARNING	This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
	CAUTION	This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect handling.

Typical Symbols

This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents.

This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that disassembly is prohibited).

This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that the power plug should be disconnected from the power outlet).

Safety Precautions

WARNING

Never use the projector if a problem should occur.

Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. can cause a fire or electrical shock.

In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be dangerous.

- The power outlet should be close to the projector and easily accessible.

Use special caution for children and pets.

Incorrect handling could result in fire, electrical shock, injury, burn or vision problem.

Use special caution in households where children and pets are present.

Do not insert liquids or foreign object.

Penetration of liquids or foreign objects could result in fire or electrical shock. Use special caution in households where children are present.

If liquids or foreign object should enter the projector, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

• Do not place the projector near water (ex. a bathroom, a beach, etc.).
• Do not expose the projector to rain or moisture. Do not place the projector outdoors.
• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the projector.
• Do not place metals, combustibles, etc on or around the projector.
• To avoid penetration of foreign objects, do not put the projector into a case or bag together with any thing except the accessories of the projector, signal cables and connectors.

Never disassemble and modify.

The projector contains high voltage components. Modification and/or disassembly of the projector or accessories could result in fire or electrical shock.

• Never open the cabinet.
• Ask your dealer to repair and clean insider.

Do not give the projector any shock or impact.

If the projector should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

If the projector is shocked, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

Do not place the projector on an unstable surface.

If the projector should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

• Do not place the projector on an unstable, slant or vibrant surface such as a wobbly or inclined stand.
• Use the caster brakes placing the projector on a stand with casters.
• Do not place the projector in the side up position, the lens up position or the lens down position.
• In the case of a ceiling installation or the like, contact your dealer before installation.

Disconnect the plug from the power outlet.

Do not disassemble.

Safety Precautions (continued)

WARNING

Be cautious of High temperatures of the projector.

High temperatures are generated when the lamp is lit. It could result in fire or burn. Use special caution in households where children are present.

Do not touch about the lens, air fans and ventilation openings during use or immediately after use, to prevent a burn. Take care of ventilation.

• Keep a space of 30~cm or more between the sides and other objects such as walls.
• Do not place the projector on a metallic table or anything weak in heat.
• Do not place anything about the lens, air fans and ventilation openings of the projector.
• Never block the air fan and ventilation openings.
• Do not cover the projector with a tablecloth, etc.
• Do not place the projector on a carpet or bedding.

Never look through the lens or openings when the lamp is on.

The powerful light could adversely affect vision.

Use special caution in households where children are present.

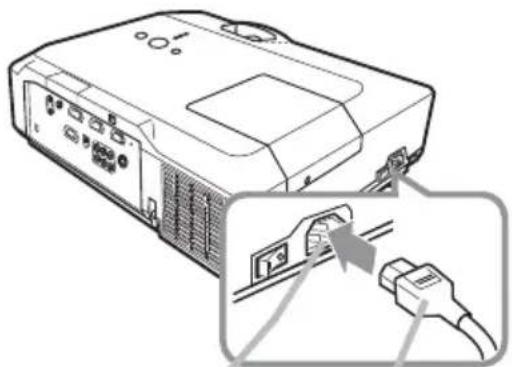

Use only the correct power cord and the correct power outlet.

Incorrect power supply could result in fire or electrical shock.

- Use only the correct power outlet depending on the indication on the projector and the safety standard.

- The enclosed power cord must be used depending on the power outlet to be used.

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

- Do not touch the power cord with a wet hand.

- Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.

- Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.

Be sure to connect with ground wire.

Connect the ground terminal of AC inlet of this unit with the ground terminal provided at the building using the correct power cord; otherwise, fire or electric shock can result.

- Don't take the core of power cord away.

Surely connect the ground wire.

Safety Precautions (continued)

WARNING

Be careful in handling the light source lamp.

The projector uses a high-pressure mercury glass lamp made of glass. The lamp can break with a loud bang, or burn out. When the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

Please carefully read the section "Lamp".

Be careful in handling the power cord and external connection cables.

If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat, pressure or tension to the power cord and cables.

If the power cord or cables is damaged (exposed or broken core wires, etc.), contact your dealer.

• Do not place the projector or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.
• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand holding the plug or connector.
• Do not place the cord near the heater.
• Avoid bending the power cord sharply.
• Do not attempt to work on the power cord.

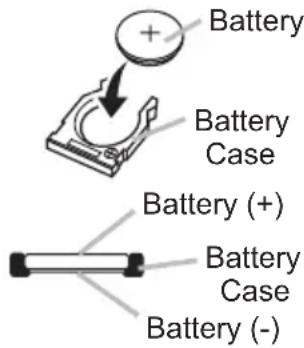

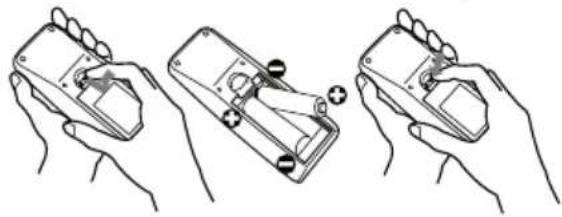

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.
• Do not allow the battery in a fire or water.
• Avoid fire or high-temperature environment.
• Do not hold the battery with the metallic tweezers.
• Keep the battery in a dark, cool and dry play.
• Do not short circuit the battery.
• Do not recharge, disassemble or solder the battery.
• Do not give the battery a physical impact.
• Use only the battery specified in the other manual of this projector.
• Make sure the plus and minus terminals are correctly aligned when loading the battery.
• If you observe a leakage of the battery, wipe out the flower and then replace the battery. If the flower adheres your body or clothes, rinse well with water.
• Obey the local laws on disposing the battery.

Safety Precautions (continued)

CAUTION

Be careful in moving the projector.

Neglect could result in an injury or damage.

• Do not move the projector during use. Before moving, disconnect the power cord and all external connections, and close the slide lens door or attach the lens cap.
• Avoid any impact or shock to the projector.
• Do not drag the projector.
• For moving the projector, use the enclosed case or bag if provided.

Do not put anything on top of the projector.

Placing anything on the projector could result in loss of balance or falling, and cause an injury or damage. Use special caution in households where children are present.

Do not attach anything other than specified things to the projector.

Neglect could result in an injury or damage.

- Some projector has a screw thread in a lens part. Do not attach anything other than specified options (such as conversion lens) to the screw thread.

Avoid a smoky, humid or dusty place.

Placing the projector in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place the projector near a smoky, humid or dusty place (ex. a smoking space, a kitchen, a beach, etc.). Do not place the projector outdoors.
• Do not use a humidifier near the projector.

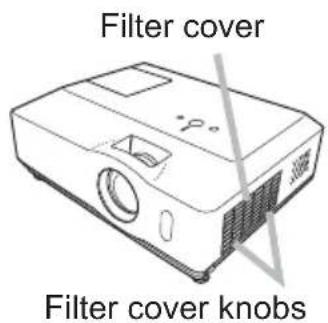

Take care of the air filter to normal ventilate.

The air filter should be cleaned periodically. If the air filter becomes clogged by dust or the like, internal temperature rises and could cause malfunction. The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

• When the indicators or a message prompts you to clean the air filter, clean the air filter as soon as possible.
• If the soiling will not come off the air filter, or it becomes damaged, replace the air filter.
• Use the air filter of the specified type only. Please order the air filter specified in the other manual of this projector to your dealer.
• When you replace the lamp, replace also the air filter. The air filter may be attached when you buy a replacement lamp for this projector.
• Do not turn on the projector without air filter.

Avoid a high temperature environment.

The heat could have adverse influence on the cabinet of the projector and other parts. Do not place the projector, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.

Avoid Magnetism.

Manufacture strongly recommends to avoid any magnetic contact that is not shielded or protected on or near the projector itself. (ie., Magnetic Security Devices, or other projector accessory that contains magnetic material that has not been provided by the manufacture etc.) Magnetic objects may cause interruption of the projector's internal mechanical performance which may interfere with cooling fans speed or stopping, and may cause the projector to completely shut down.

Safety Precautions (continued)

CAUTION

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the projector is not to be used for prolonged periods of time.
• Before cleaning, turn off and unplug the projector. Neglect could result in fire or electrical shock.

Ask your dealer to cleaning inside of the projector about every year.

Accumulations of dust inside the projector cause result in fire or malfunction. Cleaning inside is more effective if performed before every humid periods such as rainy season.

- Do not clean inside yourself because it is dangerous.

Disconnect the plug from the power outlet.

NOTE

Do not give the remote control any physical impact.

A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.
- Do not place the projector or heavy objects on the remote control.

Take care of the lens.

• Close the slide lens door or attach the lens cap to prevent the lens surface being scratched when the projector is not used.
• Do not touch the lens to prevent fog or dirt of the lens that cause deterioration of display quality.
• Use commercially available lens tissue to clean the lens (used to clean cameras, eyeglasses, etc.). Be careful not to scratch the lens with hard objects.

Take care of the cabinet and the remote control.

Incorrect care could have adverse influence such as discoloration, peeling paint, etc.

• Use a soft cloth to clean the cabinet and control panel of the projector and the remote control. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Do not use undiluted detergent directly.
• Do not use an aerosol sprays, solvents, volatile substances or abrasive cleaner.
• Before using chemical wipes, be sure to read and observe the instructions.
• Do not allow long-term close contact with rubber or vinyl.

About bright spots or dark spots.

Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and such do not constitute or imply a machine defect.

Be careful of printing of the LCD panel.

If the projector continues projecting a still image, inactive images or 16:9 aspect images in case of 4:3 panel, etc., for long time, the LCD panel might possibly be printed.

Safety Precautions (continued)

NOTE

About consumables.

Lamp, LCD panels, polarizers and other optical components, and air filter and cooling fans have a different lifetime in each. These parts may need to be replaced after a long usage time.

• This product isn't designed for continuous use of long time. In the case of continuous use for 6 hours or more, or use for 6 hours or more every day (even if it isn't continuous), or repetitious use, the lifetime may be shortened, and these parts may need to be replaced even if one year has not passed since the beginning of using.
• Any inclining use beyond the adjustment range explained in these user's manuals may shorten the lifetimes of the consumables.

Before turning on the power, make the projector cool down adequately.

After turning the projector off, pushing the restart switch or interrupting of the power supply, make the projector cool down adequately. Operation in a high temperature state of the projector causes a damage of the electrode and un-lighting of the lamp.

Avoid strong rays.

Any strong ray (such as direct rays of the sun or room lighting) onto the remote control sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause disordered image or noises.

- Avoid radio generator such as a mobile telephone, transceiver, etc. around the projector.

About displaying characteristic.

The display condition of the projector (such as color, contrast, etc.) depends on characteristic of the screen, because the projector uses a liquid crystal display panel. The display condition can differ from the display of CRT.

- Do not use a polarized screen. It can cause red image.

Turn the power on/off in right order.

To prevent any trouble, turn on/off the projector in right order mentioned below unless specifying.

- Power on the projector before the computer or video tape recorder.

- Power off the projector after the computer or video tape recorder.

Take care not to fatigue your eyes.

Rest the eyes periodically.

Set the sound volume at a suitable level to avoid bothering other people.

- It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

Connecting with notebook computer

When connecting with notebook computer, set to valid the RGB external image output (setting CRT display or simultaneous display of LCD and CRT).

Please read instruction manual of the notebook for more information.

Lamp

WARNING

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

About disposal of a lamp • This product contains a mercury lamp; do not put in trash. Dispose of in accord with environmental laws. For lamp recycling, go to www.lamprecycle.org. (in USA) For product disposal, contact your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada). For more information, call your dealer.

Disconnect the plug from the power outlet

• If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector's internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.
• If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.
• Before replacing the lamp, make sure the power switch is off and the power cable is not plugged in, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.

• Do not open the lamp cover while the projector is suspended from above. This is dangerous, since if the lamp's bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.
• Do not use the projector with the lamp cover removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

- Use the lamp of the specified type only. - If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, contact your local dealer or a service representative.

- Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

- Using the lamp for long periods of time, could cause it dark, not to light up or to burst. When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage.

Regulatory Notices

FCC Statement Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

INSTRUCTIONS TO USERS: This equipment complies with the requirements of FCC (Federal Communication Commission) equipment provided that the following conditions are met. Some cables have to be used with the core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For the Customers in CANADA

NOTICE: This Class B digital apparatus complies with Canadian ICES-003.

Warranty And After-Service

Unless seen any abnormal operations (mentioned with the first paragraph of WARNING in this manual), when a problem occurs with the equipment, first refer to the “Troubleshooting” section of the “Operating Guide”, and run through the suggested checks. If this does not resolve the problem contact your dealer or service company. They will tell you what warranty condition is applied.

Contents

About this manual.....1

Contents 2

Projector features.....3

Preparations .... 3

Contents of package .... 3

Fastening the lens cover . . . . . . . . 3

Part names ..... 4

Projector 4

Control panel 5

Rear panel

Remote control . 6

Setting up .... 7

Arrangement 7

Connecting your devices ..... 10

Connecting power supply . . . . . . . 12

Using the security bar and slot . . . .

Remote control ..... 1

Installing the batteries ..... 13

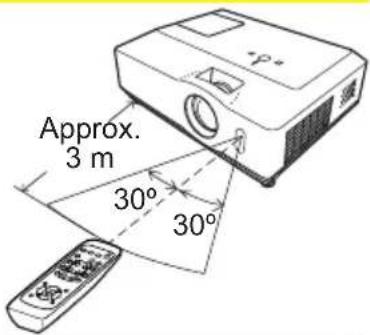

About the remote control signal . . .

Changing the frequency of remote control signal . . 14

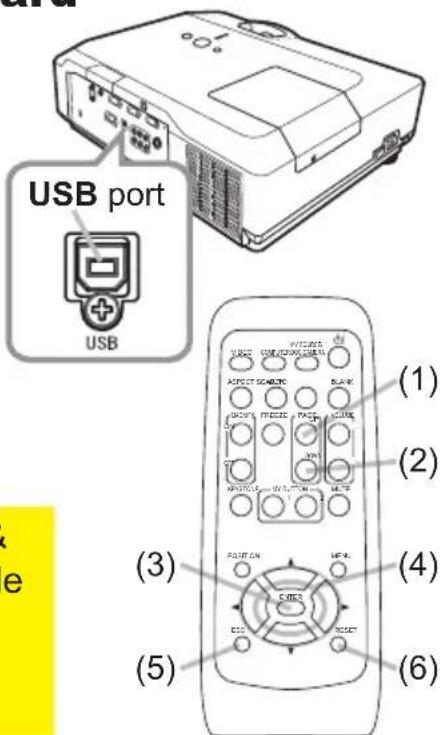

Using as a simple PC mouse & keyboard . . 14

Power on/off 15

Turning on the power ..... 1

Turning off the power ..... 1

Operating 16

Adjusting the volume ..... 16

Temporarily muting the sound ..... 16

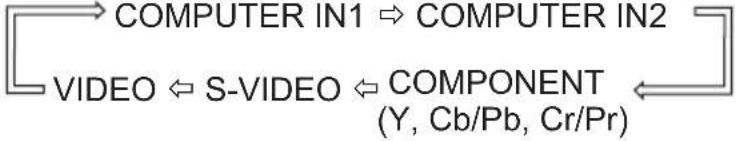

Selecting an input signal ..... 16

Searching an input signal ..... 17

Selecting an aspect ratio ..... 17

Adjusting the projector's elevator . . 18

Adjusting the zoom and focus ..... 18

Using the automatic adjustment feature...19

Adjusting the position . . . . . . . . . 19

Correcting the keystone distortions. . 20

Using the magnify feature ..... 20

Freezing the screen ..... 2

Temporarily blanking the screen . . . 2

Using the menu function ..... 2.

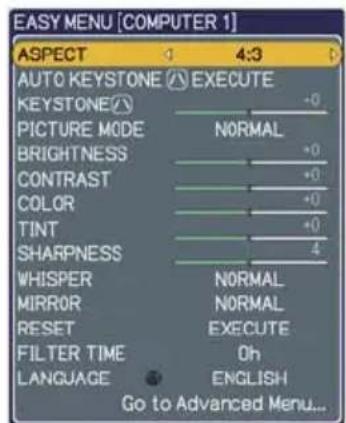

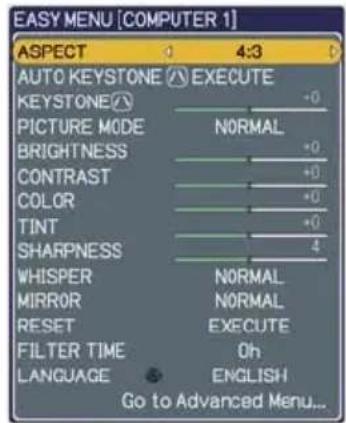

EASY MENU....24

ASPECT, AUTO KEYSTONE ☐ EXECUTE,

KEYSTONE ☐, PICTURE MODE, BRIGHTNESS,

CONTRAST, COLOR, TINT, SHARPNESS,

Whisper, Mirror, Reset, Filter time,

LANGUAGE, Go to Advanced Menu...

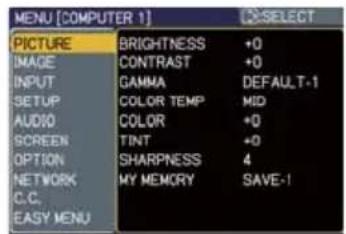

PICTURE menu ..... 2 6

BRIGHTNESS, CONTRAST, GAMMA,

COLOR TEMP, COLOR, TINT, SHARPNESS,

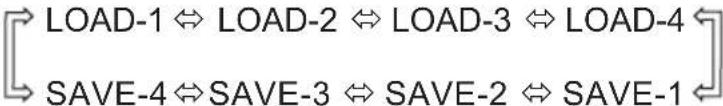

MY MEMORY

IMAGE menu ..... 2 9

ASPECT, OVER SCAN, V POSITION,

H POSITION, H PHASE, H SIZE,

AUTO ADJUST EXECUTE

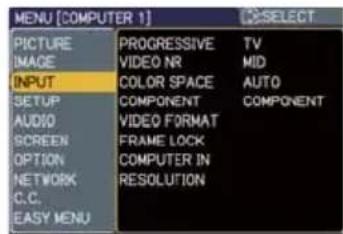

INPUT menu ....31

PROGRESSIVE, VIDEO NR, COLOR SPACE,

COMPONENT, VIDEO FORMAT, FRAME LOCK,

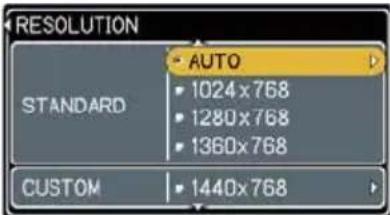

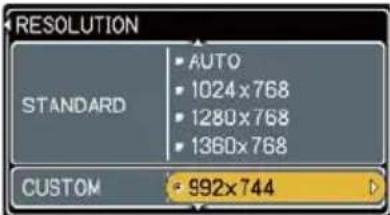

COMPUTER IN, RESOLUTION

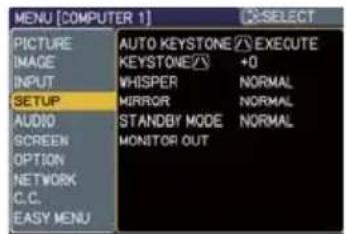

SETUP menu 34

AUTO KEYSTONE ☐ EXECUTE,

KEYSTONE ☐, WHISPER, MIRROR,

STANDBY MODE, MONITOR OUT

AUDIO menu 36

VOLUME, SPEAKER, AUDIO

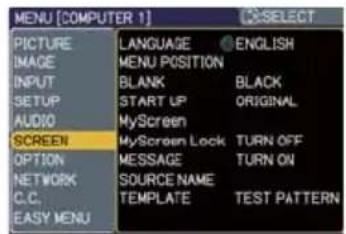

\$SCREEN menu....37

LANGUAGE, MENU POSITION, BLANK,

STARTUP, MyScreen, MyScreen Lock,

MESSAGE, SOURCE NAME, TEMPLATE

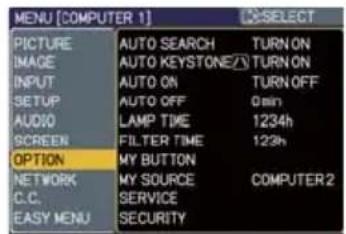

OPTION menu ..... 4 1

AUTO SEARCH, AUTO KEYSTONE ☐,

AUTO ON, AUTO OFF, LAMP TIME,

FILTER TIME, MY BUTTON,

MY SOURCE, SERVICE, SECURITY

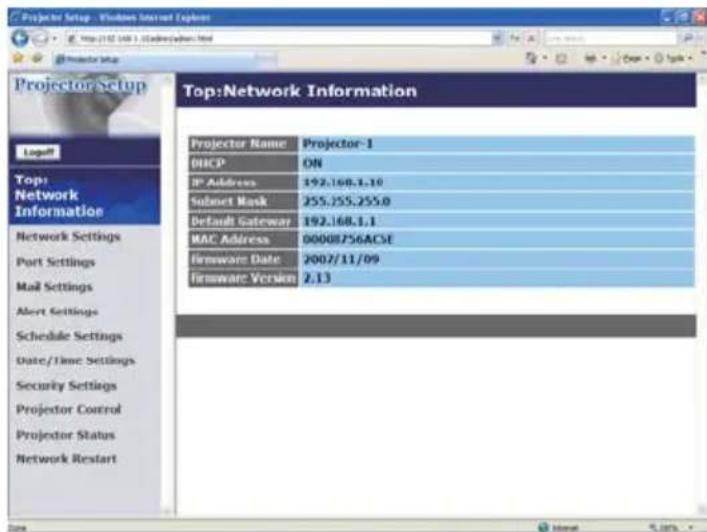

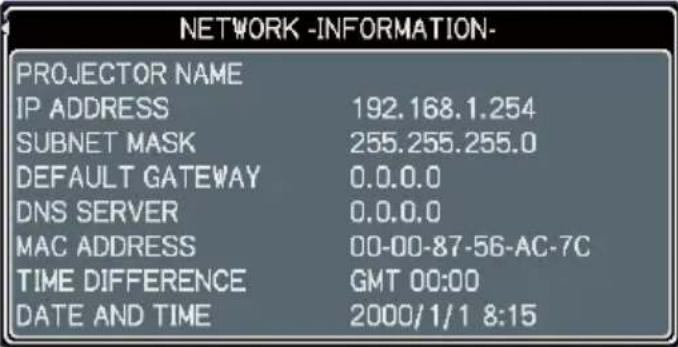

NETWORK menu....54

SETUP, PROJECTOR NAME, MY IMAGE,

INFORMATION, SERVICE

C.C. (closed caption) menu .. 59

DISPLAY, MODE, CHANNEL

Maintenance 60

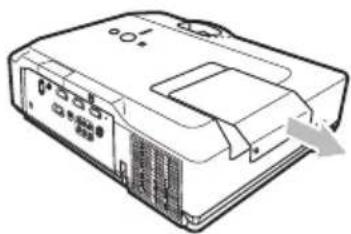

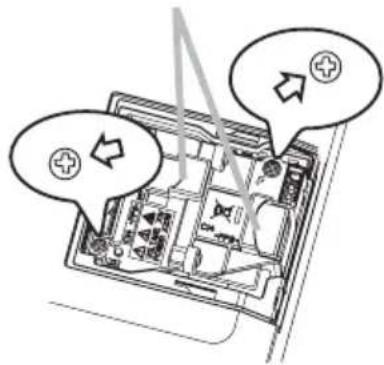

Replacing the lamp 60

Cleaning and replacing the air filter . . 62

Replacing the internal clock battery .. 64

Other care 65

Troubleshooting .....66

Related messages 66

Regarding the indicator lamps .... 67

Shutting the projector down ..... 68

Resetting all settings 68

Phenomena that may be easy to be mistaken for machine defects. . 69

Specifications 72

Projector features

The projector provides you with the broad use by the following features.

√ This projector has a variety of I/O ports that supposedly cover for any business scene.
√ This projector realizes the large projection image, even if in a small space.
√ The new double layer filter system is expected to function longer and offers you less maintenance frequency.
√ This projector can be controlled and monitored via LAN connection.

Preparations

Contents of package

Please see the “Contents of package” section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Contact immediately your dealer if anything is missing.

NOTE • Keep the original packing materials, for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens.

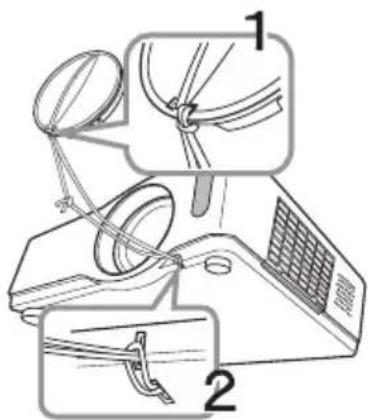

Fastening the lens cover

To avoid losing the lens cover, please fasten the lens cover to the projector using the enclosed strap.

1. Fix the strap to the strap hole of the lens cover. Thread one end of the strap through the strap hole of the lens cover and make the loop at the end, and let the other end of the strap through the loop. Not have a knot in the strap at either end.

1. Fix the strap to the strap hole of the projector. Thread the other end of the strap through the strap hole of the projector and make the loop there. Let the lens cover with the one end of strap though the loop.

Part names

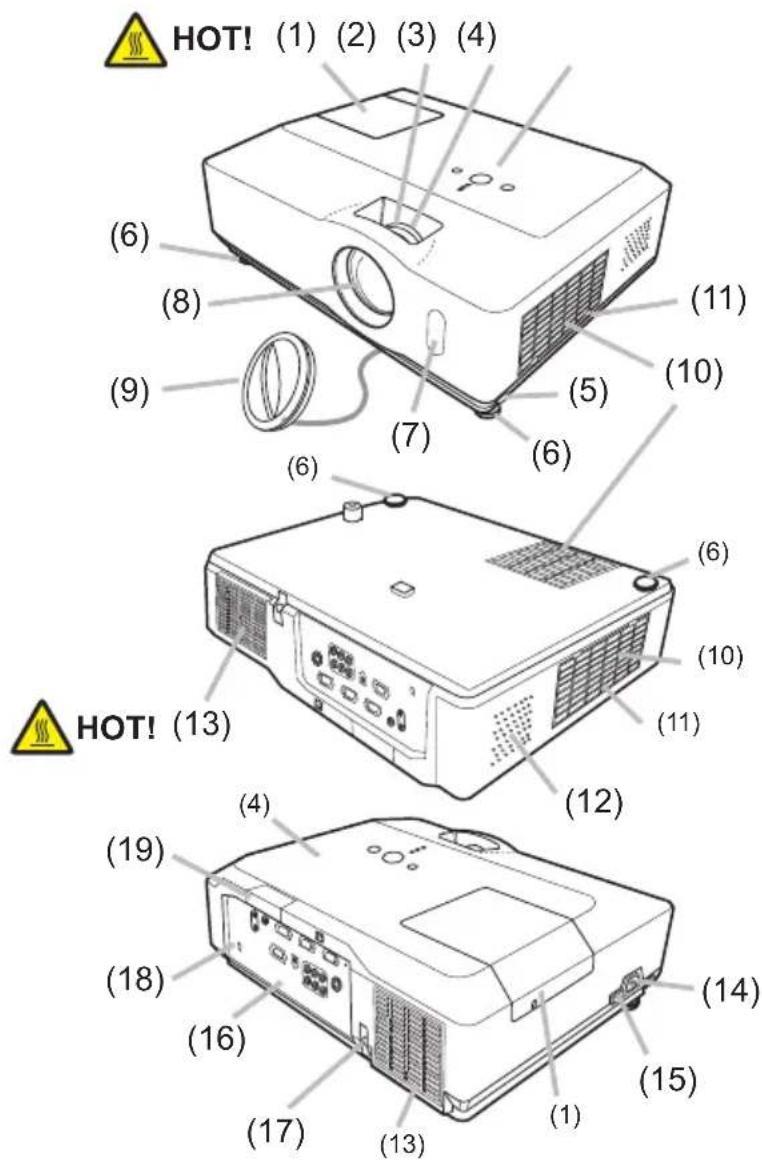

Projector

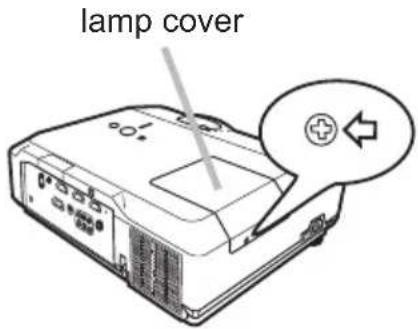

(1) Lamp cover (60) The lamp unit is inside.

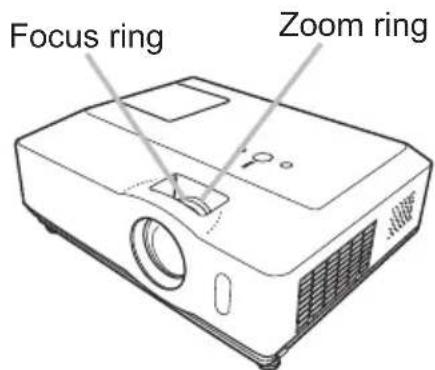

(2) Focus ring (18)
(3) Zoom ring (18)
(4) Control panel (5)
(5) Elevator buttons (x 2) (18)
(6) Elevator feet (x 2) (18)
(7) Remote sensor (13)
(8) Lens (65)
(9) Lens cover (3)
(10) Intake vents
(11) Filter cover 📄62) The air filter and intake vent are inside.
(12) Speaker (36)
(13) Exhaust vent
(14) AC IN (AC inlet) 12
(15) Power switch (15)
(16) Rear panel (5)

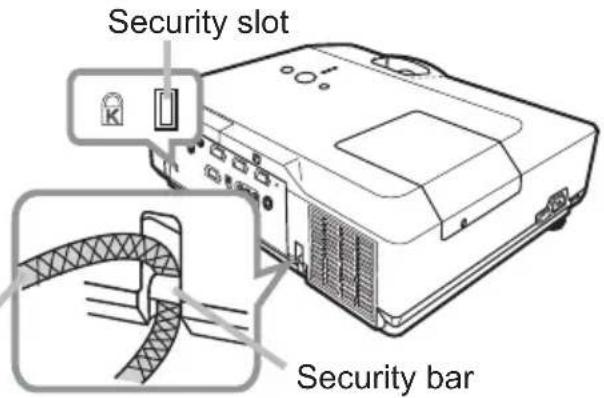

(17) Security bar (12)
(18) Security slot (12)

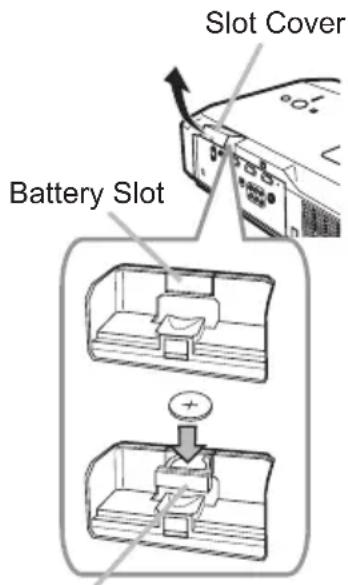

(19) Slot cover (64)
The internal clock battery is inside.

⚠ WARNING ▶HOT! : Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

▶ Do not look into the lens or vents while the lamp is on, since the strong light is not good for your eyes.
▶ Do not handle the elevator buttons without holding the projector, since the projector may drop down.

⚠️ CAUTION ▶ Maintain normal ventilation to prevent the projector from heating up. Do not cover, block or plug up the vents. Do not place anything that can stick or be sucked to the vents, around the intake vents. Clean the air filter periodically.

▶ Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it.

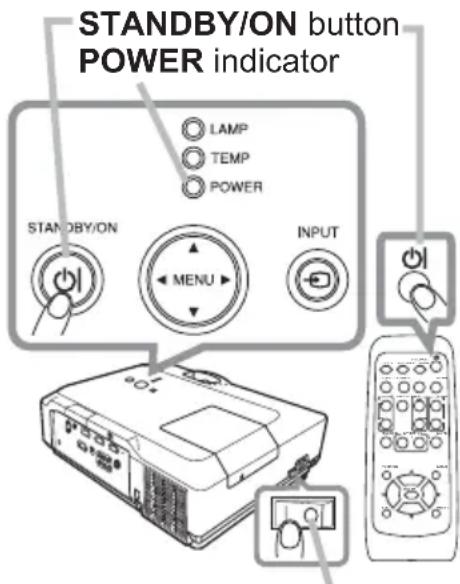

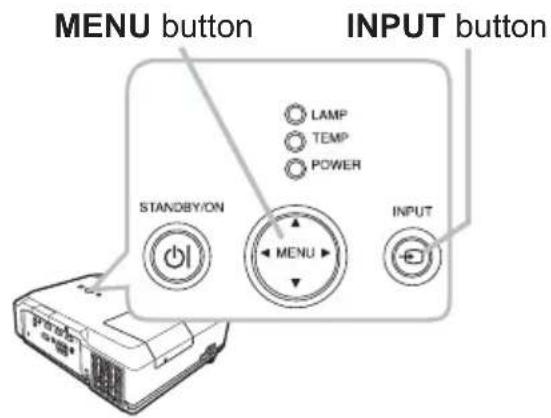

Control panel

(1) STANDBY/ON button (15)
(2) INPUT button (16, 22)
(3) MENU button (22) It consists of four cursor buttons.
(4) POWER indicator (15, 67)
(5) TEMP indicator (67)
(6) LAMP indicator (67)

(6)
(5)
(4)

(1) (2)(3)

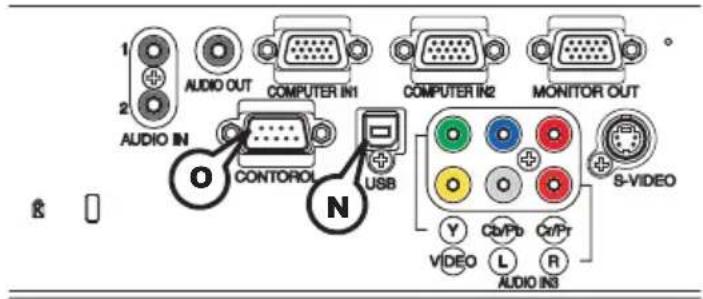

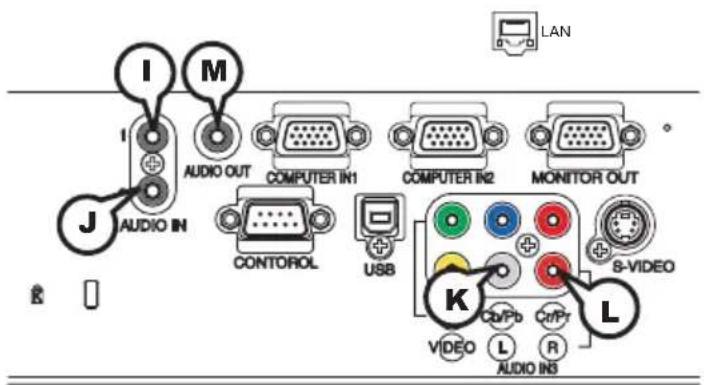

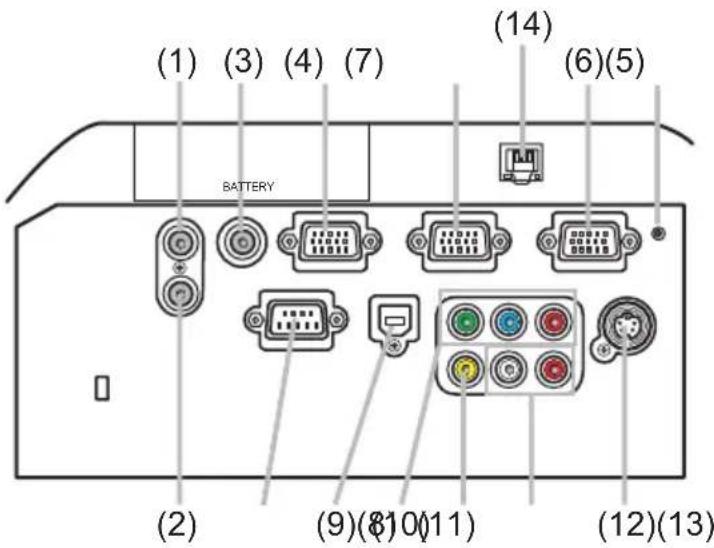

Rear panel (10)

(1) AUDIO IN1 port
(2) AUDIO IN2 port
(3) AUDIO OUT port
(4) COMPUTER IN1 port
(5) COMPUTER IN2 port
(6) MONITOR OUT port

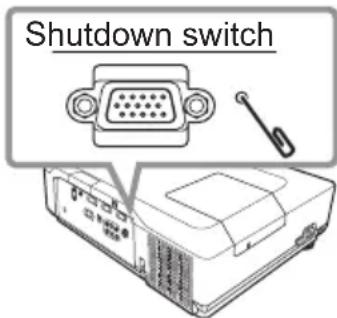

(7) Shutdown switch (68)
(8) CONTROL port

(9) USB port
(10) COMPONENT
(Y, Cb/Pb, Cr/Pr) ports
(11) VIDEO port
(12) S-VIDEO port
(13) AUDIO IN3 (L,R) ports

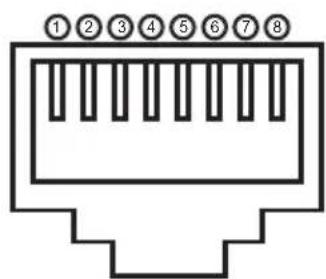

(14) LAN port

⚠️ CAUTION ▶ Use the shutdown switch only when the projector is not turned off by normal procedure, since pushing this switch stops operation of the projector without cooling it down.

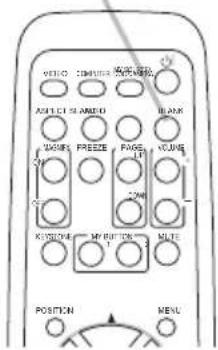

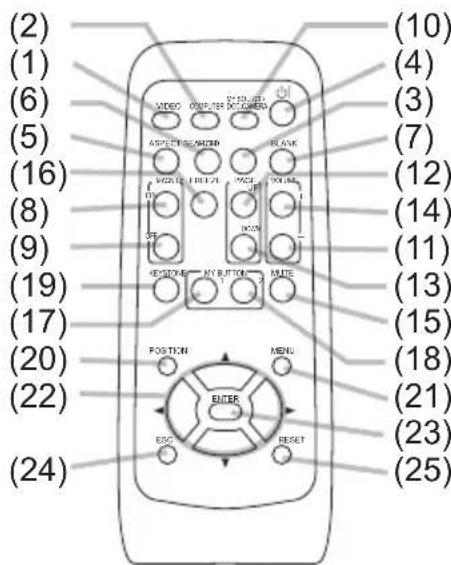

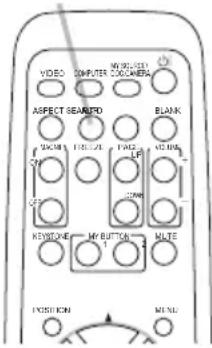

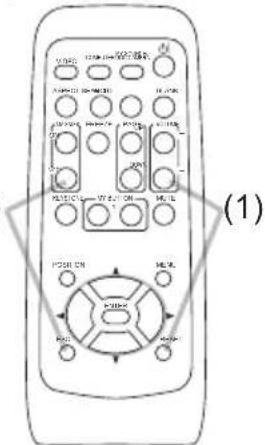

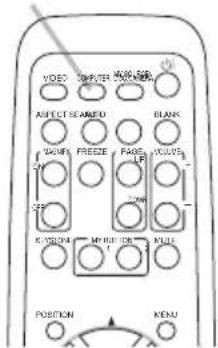

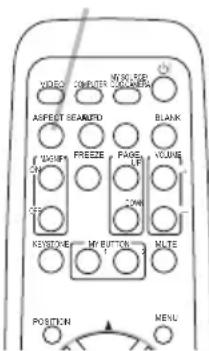

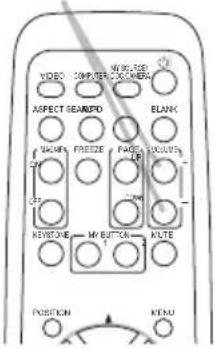

Remote control

(1) VIDEO button (17)
(2) COMPUTER button (16)
(3) SEARCH button (17)
(4) STANDBY/ON button (15)
(5) ASPECT button (17)
(6) AUTO button (19)
(7) BLANK button (21)
(8) MAGNIFY - ON button (20)
(9) MAGNIFY - OFF button (14, 20)
(10) MY SOURCE/DOC.CAMERA button (43)
(11) VOLUME - button (16)
(12) PAGE UP button (14)
(13) PAGE DOWN button (14)
(14) VOLUME + button (16)
(15) MUTE button (16)
(16) FREEZE button (21)
(17) MY BUTTON - 1 button (43)
(18) MY BUTTON - 2 button (43)
(19) KEYSTONE button (20)

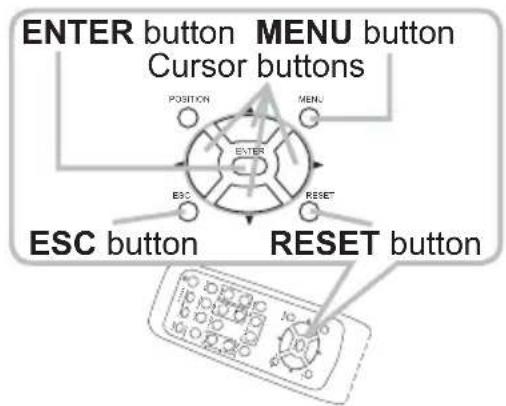

(20) POSITION button (19, 22)
(21) MENU button (22)
(22) ▲/▼/◄/► cursor buttons (14, 22, 23)
(23) ENTER button (14, 22, 23)
(24) ESC button (14, 22)
(25) RESET button (14, 22, 23)
(26) Battery cover (13)

Back of the remote control

Setting up

Install the projector according to the environment and manner the projector will be used in.

Arrangement

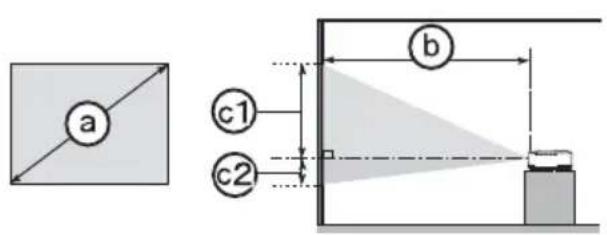

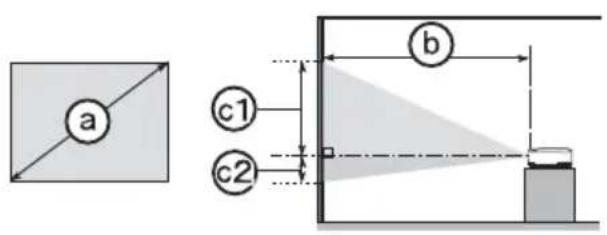

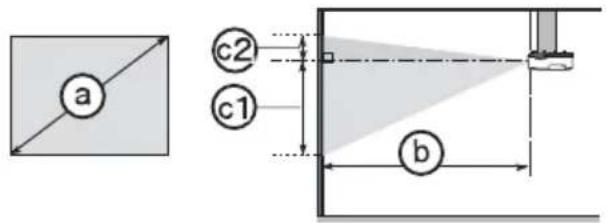

Refer to the illustrations and tables below to determine screen size and projection distance.

The values shown in the table are calculated for a full size screen: 1024×768

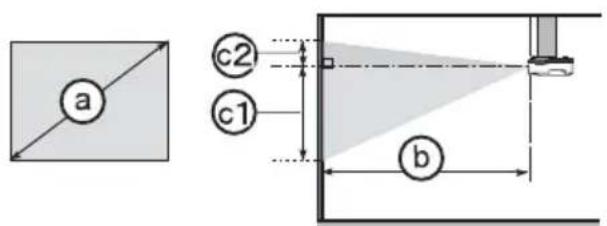

a Screen size (diagonal)
(b) Projection distance (±10%)
c1, c2 Screen height (±10%)

On a horizontal surface

Suspended from the ceiling

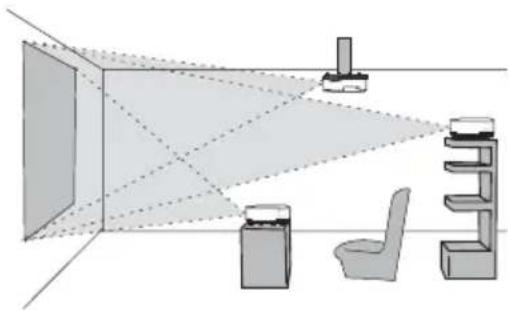

Diagram of a room layout with furniture and lighting equipment (no text or symbols)

• Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.
• Consult with your dealer before a special installation such as suspending from a ceiling.

aScreen size (diagonal)		4:3 screen 16:9 screen
		bProjection distance				c1Screen height		c2Screen height		bProjection distance				c1Screen height		c2Screen height
		min. max. min. max.
inch	m m inch	m inch	m inch	m inch	m inch	m inch	m inch	m inch	m inch
30	0.8	0.9	34	1.1	41	41	16	5	2	1.0	38	1.1	45	39	15	-1	0
40	1.0	1.2	46	1.4	56	55	22	6	2	1.3	50	1.5	61	51	20	-2	-1
50	1.3	1.5	58	1.8	70	69	27	8	3	1.6	63	1.9	76	64	25	-2	-1
60	1.5	1.8	70	2.1	84	82	32	9	4	1.9	76	2.3	91	77	30	-2	-1
70	1.8	2.1	81	2.5	98	96	38	11	4	2.3	89	2.7	107	90	35	-3	-1
80	2.0	2.4	93	2.8	112	110	43	12	5	2.6	102	3.1	122	103	41	-3	-1
90	2.3	2.7	105	3.2	126	123	49	14	5	2.9	115	3.5	138	116	46	-4	-1
100	2.5	3.0	117	3.6	140	137	54	15	6	3.2	127	3.9	153	129	51	-4	-2
120	3.0	3.6	140	4.3	169	165	65	18	7	3.9	153	4.7	184	154	61	-5	-2
150	3.8	4.5	176	5.4	211	206	81	23	9	4.9	192	5.8	230	193	76	-6	-2
200	5.1	6.0	235	7.2	282	274	108	30	12	6.5	256	7.8	307	257	101	-8	-3
250	6.4	7.5	294	9.0	353	343	135	38	15	8.1	320	9.8	384	322	127	-10	-4
300	7.6	9.0	352	10.8	423	411	162	46	18	9.8	384	11.7	461	386	152	-12	-5

Arrangement (continued)

The values shown in the table are calculated for a full size screen: 1024×768

① Screen size (diagonal)
⑥ Projection distance (±10%)
c1, c2 Screen height (±10%)

On a horizontal surface

Suspended from the ceiling

Diagram of a room layout with furniture and lighting equipment, no text or symbols present

• Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.
• Consult with your dealer before a special installation such as suspending from a ceiling.

aScreen size (diagonal)		4:3 screen 16:9 screen
		bProjection distance			c1Screenax.height		c2Screen height		bProjection distance				c1Screen height		c2Screen height
		min. max. min. min.
inch	m inch	m inch	cm inch	cm inch	m inch	m inch	cm inch	cm inch	ch
30	0.8	0.9	35	1.1	43	41	16	5	2	1.0	39	1.2	47	39	15	-1
40	1.0	1.2	47	1.4	57	55	22	6	2	1.3	52	1.6	62	51	20	-2
50	1.3	1.5	59	1.8	71	69	27	8	3	1.6	65	2.0	78	64	25	-2
60	1.5	1.8	71	2.2	86	82	32	9	4	2.0	78	2.4	94	77	30	-2
70	1.8	2.1	83	2.5	100	96	38	11	4	2.3	91	2.8	109	90	35	-3
80	2.0	2.4	95	2.9	115	110	43	12	5	2.6	104	3.2	125	103	41	-3
90	2.3	2.7	107	3.3	129	123	49	14	5	3.0	117	3.6	141	116	46	-4
100	2.5	3.0	119	3.6	144	137	54	15	6	3.3	130	4.0	156	129	51	-4
120	3.0	3.6	143	4.4	172	165	65	18	7	4.0	156	4.8	188	154	61	-5
150	3.8	4.6	179	5.5	216	206	81	23	9	4.9	195	6.0	235	193	76	-6
200	5.1	6.1	239	7.3	288	274	108	30	12	6.6	261	8.0	314	257	101	-8
250	6.4	7.6	299	9.1	360	343	135	38	15	8.3	326	10.0	392	322	127	-10
300	7.6	9.1	359	11.0	432	411	162	46	18	9.9	391	12.0	471	386	152	-12

Arrangement (continued)

⚠ WARNING ▶ Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in fire and/or electric shock.

• Do not place the projector on an unstable, slanted or vibrational surface such as a wobbly or inclined stand.
• Do not place the projector on its side, front or rear position.
• Consult with your dealer before a special installation such as suspending from a ceiling or somewhere else.

▶ Place the projector in a cool place, and ensure that there is sufficient ventilation. The high temperature of the projector could cause fire, burns and/or malfunction of the projector.

• Do not stop-up, block or otherwise cover the projector's vents.
• Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.
• Do not place the projector on metallic thing or anything weak in heat.
• Do not place the projector on carpet, cushions or bedding.
• Do not place the projector in direct sunlight or near hot objects such as heaters.
• Do not place anything near the projector lens or vents, or on top of the projector.
• Do not place anything that may be sucked into or stick to the vents on the bottom of the projector. This projector has some intake vents also on the bottom.

▶ Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause fire, electric shock and/or malfunction of the projector.

- Do not place the projector in a bathroom or the outdoors.

- Do not place anything containing liquid near the projector.

⚠️ CAUTION ▶ Avoid placing the projector in smoky, humid or dusty place.

Placing the projector in such places could cause fire, electric shock and/or malfunction of the projector.

- Do not place the projector near humidifiers, smoking spaces or a kitchen.

▶ Position the projector to prevent light from directly hitting the projector's remote sensor.

Connecting your devices

Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.
⚠ WARNING ▶ Do not disassemble or modify the projector and accessories.
▶ Be careful not to damage the cables, and do not use damaged cables.
⚠️ CAUTION ▶ Turn off all devices and unplug their power cords prior to connecting them to projector. Connecting a live device to the projector may generate extremely loud noises or other abnormalities that may result in malfunction or damage to the device and the projector.
▶ Use appropriate accessory or designated cables. Ask your dealer about non-accessory cables which may be required a specific length or a ferrite core by the regulations. For cables with a core only at one end, connect the end with the core to the projector.
▶ Make sure that devices are connected to the correct ports. An incorrect connection may result in malfunction or damage to the device and the projector.

Connecting your devices (continued)

NOTE • Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution.

- Be sure to consult to the administrator of the network. Do not connect LAN port to any network that might have the excessive voltage.

- Some signal may need an adapter to input this projector.

- Some PCs have multiple screen display modes that may include some signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA (1600X1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

- While connecting, make sure that the shape of the cable's connector fits the port to connect with. And be sure to tighten the screws on connectors with screws.

- When connecting a laptop PC to the projector, be sure to activate the PC's external RGB output. (Set the laptop PC to CRT display or to simultaneous LCD and CRT display.) For details on how this is done, please refer to the instruction manual of the corresponding laptop PC.

- When the picture resolution is changed on a PC depending on an input, automatic adjustment function may take some time and may not be completed. In this case, you may not be able to see a check box to select "Yes/No" for the new resolution on Windows. Then the resolution will go back to the original. It might be recommended to use other CRT or LCD monitors to change the resolution.

- In some cases, this projector may not display a proper picture or display any picture on screen. For example, automatic adjustment may not function correctly with some input signals. An input signal of composite sync or sync on G may confuse this projector, so the projector may not display a proper picture.

About Plug-and-Play capability

Plug-and-Play is a system composed of a PC, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a PC that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting an RGB cable to the COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

- Please use the standard drivers in your PC as this projector is a Plug-and-Play monitor.

Connecting power supply

At first, make sure that the power switch of the projector is set to OFF position (marked "O").

1. Put the connector of the power cord into the AC IN (AC inlet) of the projector.
2. Firmly plug the power cord's plug into the outlet.

Diagram of an electronic projector with a close-up showing the cable being inserted (no text or symbols present)

AC IN Power cord

⚠ WARNING ▶ Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in fire and/or electrical shock.

• Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one.
• Only plug the power cord into an outlet whose voltage is matched to the power cord. The power outlet should be close to the projector and easily accessible.
  Remove the power cord for complete separation.
• Never modify the power cord.

Using the security bar and slot

A commercial anti-theft chain or wire up to 10 ~mm in diameter can be attached to the security bar on the projector.

Also this product has the security slot for the Kensington lock.

For details, see the manual of the security tool.

Anti-theft chain or wire

⚠ WARNING ▶ Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it.
⚠ CAUTION ▶ Do not place anti-theft chain or wire near the exhaust vents. It may become too hot.

NOTE • The security bar and slot is not comprehensive theft prevention measures. It is intended to be used as supplemental theft prevention measure.

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

1. Holding the hook part of the battery cover, remove it.

2. Align and insert the two AA batteries (HITACHI MAXELL, Part No.LR6 or R6P) according to their plus and minus terminals as indicated in the remote control.

3. Replace the battery cover in the direction of the arrow and snap it back into place.

Three hand-drawn illustrations of a handheld device with a close-up view showing internal components (no text or symbols)

⚠ WARNING ▶ Always handle the batteries with care and use them only as directed. Improper use may result in battery explosion, cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries specified. Do not use batteries of different types at the same time. Do not mix a new battery with used one.
• Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Keep a battery away from children and pets.
• Do not recharge, short circuit, solder or disassemble a battery.
• Do not place a battery in a fire or water. Keep batteries in a dark, cool and dry place.
• If you observe battery leakage, wipe out the leakage and then replace a battery. If the leakage adheres to your body or clothes, rinse well with water immediately.
• Obey the local laws on disposing the battery.

About the remote control signal

The remote control works with the projector's remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

NOTE • The remote control signal reflected in the screen or the like may be available. If it is difficult to send the signal to the sensor directly, attempt to make the signal reflect.

- The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control's signal to the projector.

- The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter fluorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons
(2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION menu (45) of the projector to be controlled should be set to the same mode as the remote control.

(2)

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the PC, when the projector's USB port (B type) connects with the PC's USB port (A type) port via a mouse cable.

(1) PAGE UP key: Press PAGE UP button.
(2) PAGE DOWN key: Press PAGE DOWN button.
(3) Mouse left button: Press ENTER button.
(4) Move pointer: Use the cursor buttons ▲, ▼, ◀ and ▶.
(5) ESC key: Press ESC button.
(6) Mouse right button: Press RESET button.

⚠ WARNING ▶ Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a PC. Be sure to check your PC's manuals before connecting this product to the PC.

NOTE • When the simple mouse & keyboard function of this product does not work correctly, please check the following.

• When a USB cable connects this projector with a PC having a built-in pointing device (e.g. track ball) like a notebook PC, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.
• Windows 95 OSR 2.1 or higher is required for this function. And also this function may not work depending on the PC's configurations and mouse drivers.
• You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).
• This function is activated only when the projector is working properly. This function is not available while the lamp is warming up (the POWER indicator blinks green), and while adjusting the volume and display, correcting for keystone, zooming in on the screen, using the BLANK function, or displaying the menu screen.

Power on/off

Turning on the power

1. Make sure that the power cord is firmly and correctly connected to the projector and the outlet.
2. Remove the lens cover, and set the power switch to ON position (marked "I").
   The POWER indicator will light up in steady orange (67). Then wait several seconds because the buttons may not function for these several seconds.
3. Press STANDBY/ON button on the projector or the remote control.
   The projection lamp will light up and POWER indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in steady green (67).

To display the picture, select an input signal according to the section "Selecting an input signal"(16).

Power switch

Turning off the power

1. Press the STANDBY/ON button on the projector or the remote control. The message "Power off?" will appear on the screen for about 5 seconds.
   2 Press the STANDBY/ON button again while the message appears.
2. The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (67).
3. Make sure that POWER indicator lights in steady orange, and set the power switch to OFF position (marked "O").
   POWER indicator will go off. Attach the lens cover.

Do not turn the projector on for about 10 minutes or more after turning it off. Turning the projector on again too soon could shorten the lifetime of some consumable parts of the projector.

⚠ WARNING ▶ A strong light is emitted when the projector's power is on. Do not look into the lens of the projector or look inside of the projector through any of the projector's openings.

▶ Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

NOTE • Turn the power on/off in right order. Please power on the projector prior to the connected devices.

• When the AUTO ON of the OPTION menu is set to the TURN ON, and the power was turned off by the power switch last time, turning the power switch on makes the projection lamp light on without pushing the STANDBY/ON button (41).
• Use the shutdown switch (68) only when the projector is not turned off by normal procedure.

Operating

Adjusting the volume

VOLUME +/- button

1 Use the VOLUME +/VOLUME - buttons to adjust the volume.

A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after a few seconds.

• When ✗is selected for current picture input port, the volume adjustment is disabled. Please see AUDIO item of AUDIO menu (36).
• When the projector is in the standby mode, the volume can be adjusted if ✗ is not selected for the AUDIO OUT STANDBY of AUDIO (36).

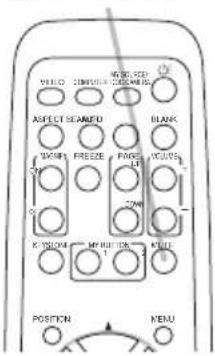

Temporarily muting the sound

1 Press MUTE button on the remote control.

A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the MUTE, VOLUME + or VOLUME - button. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

• When ✗ is selected for current picture input port, the sound is always muted. Please see AUDIO item of AUDIO menu (36).
• When the sound is muted while a signal from VIDEO(NTSC), S-VIDEO(NTSC) or COMPONENT(480i@60)) port is selected, the C.C. (Closed Caption) is automatically activated if the DISPLAY item of the C.C. menu is set to AUTO and the input signal supports the C.C. feature (59).

MUTE button

Selecting an input signal

1 Press INPUT button on the projector.

1. Each time you press the button, the projector switches its input port from the current port as below.

- While TURN ON is selected for AUTO SEARCH item in OPTION menu (41), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

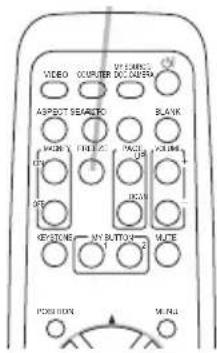

1 Press COMPUTER button on the remote control.

Each time you press the button, the projector switches its input port from the current port as below.

- While TURN ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (41). If COMPUTER button is pushed when VIDEO, S-VIDEO or COMPONENT port is selected, the projector will check COMPUTER IN1 port first.

INPUT button

COMPUTER button

(continued on next page)

Selecting an input signal (continued)

1 Press VIDEO button on the remote control.

- Each time you press the button, the projector switches its input port from the current port as below.

COMPONENT (Y, Cb/Pb, Cr/Pr) → S-VIDEO → VIDEO

VIDEO button

- While TURN ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (41). If VIDEO button is pushed when COMPUTER IN1 or COMPUTER IN2 port is selected, the projector will check COMPONENT port first.

Searching an input signal

1 Press SEARCH button on the remote control.

- The projector will start to check its input ports as below in order to find any input signals.

When an input is found, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

SEARCH button

- While TURN ON is selected for AUTO SEARCH item in OPTION menu (41), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

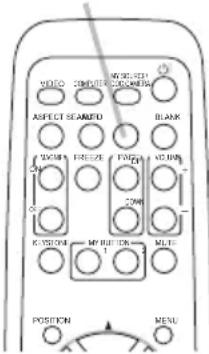

Selecting an aspect ratio

1 Press ASPECT button on the remote control.

- Each time you press the button, the projector switches the mode for aspect ratio in turn.

○ For a computer signal

NORMAL → 4:3 → 16:9 → SMALL

ASPECT button

- For a video signal, s-video signal or component video signal

4:3 → 16:9 → 14:9 → SMALL

○ For no signal

4:3 (fixed)

- ASPECT button does not work when no proper signal is inputted.

- NORMAL mode keeps the original aspect ratio setting.

Adjusting the projector's elevator

When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally.

Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 10 degrees.

Technical line drawing of a solar panel installation with 10° angle annotation (no text or symbols beyond basic geometry)

This projector has 2 elevator feet and 2 elevator buttons. An elevator foot is adjustable while pushing the elevator button on the same side as it.

1. Holding the projector, push the elevator buttons to loose the elevator feet.
   2 Position the front side of the projector to the desired height.
2. Release the elevator buttons in order to lock the elevator feet.
3. After making sure that the elevator feet are locked, put the projector down gently.
4. If necessary, the elevator feet can be manually twisted to make more precise adjustments. Hold the projector when twisting the feet.

Mechanical assembly diagram showing a component with a gear and adjustment knob (no text or symbols)

To loose an elevator foot, push the elevator button on the same side as it.

Illustration of a hand using a device to press or install a mechanical component, with an inset showing the internal mechanism (no text or symbols present)

To finely adjust, twist the foot.

⚠ CAUTION ▶ Do not handle the elevator buttons without holding the projector, since the projector may drop down.

▶ Do not tilt the projector other than elevating its front within 10 degrees using the adjuster feet. A tilt of the projector exceeding the restriction could cause malfunction or shortening the lifetime of consumables, or the projector itself.

Adjusting the zoom and focus

1. Use the zoom ring to adjust the screen size.
2. Use the focus ring to focus the picture.

Using the automatic adjustment feature

1. Press AUTO button on the remote control. Pressing this button performs the following.

○ For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted.

Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

AUTO button

○ For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (32). The vertical position and horizontal position will be automatically set to the default.

○ For a component video signal

The vertical position, horizontal position and horizontal phase will be automatically set to the default.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input. When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.
• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (44).

Adjusting the position

1. Press POSITION button on the remote control when no menu is indicated.

The “POSITION” indication will appear on the screen.

2 Use the ▲/▼/◄/► cursor buttons to adjust the picture position.

1. When you want to reset the operation, press RESET button on the remote control during the operation.

To complete this operation, press POSITION button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

POSITION button

• When this function is performed on a video signal, s-video signal or component video signal, some image such as an extra-line may appear at outside of the picture.
• When this function is performed on a video signal, s-video signal or component video signal, the range of this adjustment depends on OVER SCAN in IMAGE menu (29) setting. It is not possible to adjust when OVER SCAN is set to 10.
• If POSITION button is pressed when a menu is indicated on screen, the displayed picture does not move its position but the menu does.

Correcting the keystone distortions

KEYSTONE button

1. Press KEYSTONE button on the remote control. A dialog will appear on the screen to aid you in correcting the distortion.

1. Use the ▲/▼ cursor buttons to select AUTO or MANUAL operation, and press the ▶ button to perform the following.

(1) AUTO executes automatic vertical keystone correction.
(2) MANUAL displays a dialog for keystone correction.
Use the ▲/▼ buttons for adjustment.

To close the dialog and complete this operation, press KEYSTONE button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

• The adjustable range of this correction will vary among inputs. For some input, this function may not work well.
• When V:INVERT or H&V:INVERT is selected to the MIRROR item in the SETUP menu, if the projector screen is inclined or angled downward, this function may not work correctly.
• When the zoom adjustment is set to the TELE (telephoto focus), the automatic keystone distortion correction may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.
• When the projector is placed on the level (about ± 3^ ), the automatic keystone distortion correction may not work.
• When the projector is inclined to near ± 30 degree or over, this function may not work well.
• This function will be unavailable when Transition Detector is on(☐ 50).

Using the magnify feature

MAGNIFY ON/OFF button

1. Press the ON button of MAGNIFY on the remote control. The "MAGNIFY" indication will appear on the screen and the projector will go into the MAGNIFY mode. When the ON button of MAGNIFY is pressed first after the projector is started, the picture will be zoomed twice. The indication will disappear in several seconds with no operation.

1. Use the ▲/▼ cursor buttons to adjust the zoom level. The picture of video, s-video or component video signal can be zoomed in up to 2 times, and the picture of computer signal can be zoomed in up to 4 ti

To move the zoom area, press the POSITION button in the MAGNIFY mode, then use the ▲/▼/◄/► cursor buttons to move the area. And to finalize the zoom area, press the POSITION button again.

To exit from the MAGNIFY mode and restore the screen to normal, press the OFF button of MAGNIFY on the remote control.

• The projector automatically exits from the MAGNIFY mode when the input signal is changed or when the display condition is changed.
• In the MAGNIFY mode, the keystone distortion condition may vary, it will be restored when the projector exits from the MAGNIFY mode.

NOTE • The zoom level can be finely adjusted. Closely watch the screen to find the level you want.

Freezing the screen

1 Press the FREEZE button on the remote control.

- The “FREEZE” indication will appear on the screen (however, the indication will not appear when the TURN OFF is selected for the MESSAGE item in the SCREEN menu (39)), and the projector will go into the FREEZE mode, which the picture is frozen.

To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

FREEZE button

- The projector automatically exits from the FREEZE mode when some control buttons are pressed.

- If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

Temporarily blanking the screen

1 Press BLANK button on the remote control.

The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN menu (37).

To exit from the BLANK screen and return to the input signal screen, press BLANK button again.

- The projector automatically exits from the BLANK mode when some control buttons are pressed.

BLANK button

NOTE • The sound is not connected with the BLANK screen function. If necessary, set the volume or mute first.

Using the menu function

This projector has the following menus:

PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, C.C. and EASY MENU.

EASY MENU consists of functions often used, and the other menus are classified into each purpose and brought together as the Advanced Menu.

Each of these menus is operated using the same methods. The basic operations of these menus are as follows.

1 Press the MENU button on the remote control or the projector.

The Advanced Menu or EASY MENU, which has priority just after powered on will appear.

If you want to move the menu position, use the cursor buttons after pressing the POSITION button. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons.

In the EASY MENU

1. If you want to change it to the Advanced Menu, select the Go to Advanced Menu...
2. Use the ▲/▼ cursor buttons to select an item to operate.
3. Use the ◀/▶ cursor buttons to operate the item.

EASY MENU

(continued on next page)

Using the menu function (continued)

In the Advanced Menu

2 Use the ▲/▼ cursor buttons to select a menu.
2. If you want to change it to the EASY MENU, select EASY MENU.
Then press the ▶ cursor button, or ENTER button to select an item. The lower layer menu of the selected item will appear.

Advanced Menu

1. Use the ▲/▼ cursor buttons to select an item to operate. Then press the ▶ cursor button, or ENTER button to progress. The operation menu of the selected item will appear.

2. Use the ▲/▼ cursor buttons to operate the item.

3. Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

4. When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, H PHASE, VOLUME) cannot be reset.

5. In the Advanced Menu, when you want to return to the previous display, press the ◀ cursor button or ESC button on the remote control.

6. Press MENU button on the remote control again to close the menu and complete this operation. Even if you do not do anything, the dialog will automatically disappear after about 10 seconds.

EASY MENU

From the EASY MENU, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

Item Description
ASPECT	Using the ◀/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (29).
AUTO KEYSTONE/EXECUTE	Using the ► button executes the auto keystone function. See AUTO KEYSTONE/EXECUTE item in SETUP menu (34).
KEYSTONE	Using the ◀/► buttons corrects the vertical keystone distortion. See KEYSTONE item in SETUP menu (34).
PICTURE MODE	Using the ◀/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.→NORMAL ⇔ CINEMA ⇔ DYNAMIC ⇔ BOARD(BLACK)→DAYTIME ⇔ WHITEBOARD ⇔ BOARD(GREEN)
		COLOR TEMP GAMMA
	NORMAL #2 MID #1 DEFAULT
	CINEMA #3 LOW #2 DEFAULT
	DYNAMIC #1 HIGH #3 DEFAULT
	BOARD(BLACK) #4 Hi-BRIGHT-1 #4 DEFAULT
	BOARD(GREEN) #5 Hi-BRIGHT-2 #4 DEFAULT
	WHITEBOARD #2 MID #5 DEFAULT
	DAYTIME #6 Hi-BRIGHT-3 #6 DEFAULT
	When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is “CUSTOM”. Please refer to GAMMA (26) and COLOR TEMP (27) items in PICTURE menu.·When this function is performed, a certain extra such as a line may appear.

(continued on next page)

EASY MENU (continued)

Item Description
BRIGHTNESS	Using the ◀/► buttons adjusts the brightness.See BRIGHTNESS item in PICTURE menu (26).
CONTRAST	Using the ◀/► buttons adjusts the contrast.See CONTRAST item in PICTURE menu (26).
COLOR	Using the ◀/► buttons adjusts the strength of whole color.See COLOR item in PICTURE menu (27).
TINT	Using the ◀/► buttons adjusts the tint.See TINT item in PICTURE menu (27).
SHARPNESS	Using the ◀/► buttons adjusts the sharpness.See SHARPNESS item in PICTURE menu (28).
WHISPER	Using the ◀/► buttons turns off/on the whisper mode.See WHISPER item in SETUP menu (35).
MIRROR	Using the ◀/► buttons switches the mode for mirror status.See MIRROR item in SETUP menu (35).
RESET	Performing this item resets all of EASY MENU items except FILTER TIME and LANGUAGE.A dialog is displayed for confirmation. Selecting RESET using the▲ button performs resetting.
FILTER TIME	The usage time of the air filter is shown in the menu.Performing this item resets the filter time which counts usage time of the air filter.A dialog is displayed for confirmation. Selecting RESET using the▲ button performs resetting.See FILTER TIME item in OPTION menu (42).
LANGUAGE	Using the ◀/► buttons changes the display language.See LANGUAGE item in SCREEN menu (37).
Go to Advanced Menu...	Select Go to Advanced Menu... on the menu, and press the ▶ or ENTER button to use the menu of PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or C.C..

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description
BRIGHTNESS	Using the ▲/▼ buttons adjusts the brightness.Light ⇔ Dark
CONTRAST	Using the ▲/▼ buttons adjusts the contrast.Strong ⇔ Weak
GAMMA	Using the ▲/▼ buttons switches the gamma mode.#1 DEFAULT ⇔ #1 CUSTOM ⇔ #2 DEFAULT ⇔ #2 CUSTOM#6 CUSTOM #3 DEFAULT#6 DEFAULT #3 CUSTOM#5 CUSTOM ⇔ #5 DEFAULT ⇔ #4 CUSTOM ⇔ #4 DEFAULTTo adjust CUSTOMSelecting a mode whose name includes CUSTOM and then pressing the ▶ button or the ENTER button displays a dialog to aid you in adjusting the mode.This function is useful when you want to change the brightness of particular tones.Choose an item using the ◀/▶ buttons, and adjust the level using the ▲/▼ buttons.You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button.Each time you press the ENTER button, the pattern changes as below.No pattern ⇒ Gray scale of 9 steps →Ramp ⇔ Gray scale of 15 stepsThe eight equalizing bars correspond to eight tone levels of the test pattern (Gray scale of 9 steps), except the darkest in the left end. If you want to adjust the 2nd tone from left end on the test pattern, use the equalizing adjustment bar “1”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar.• When this function is performed, lines or other distortion may appear.
COLOR TEMP	Using the ▲/▼ buttons switches the color temperature mode.#1 HIGH ⇔ #1 CUSTOM ⇔ #2 MID ⇔ #2 CUSTOM#6 CUSTOM #3 LOW#6 Hi-BRIGHT-3 #3 CUSTOM#5 CUSTOM ⇔ #5 Hi-BRIGHT-2 ⇔ #4 CUSTOM ⇔ #4 Hi-BRIGHT-1To adjust CUSTOMSelecting a mode whose name includesCUSTOM and then pressing the ▶ button or theENTERbutton displays a dialog to aid you inadjusting the OFFSET and GAIN of the selected mode.OFFSET adjustments change the color intensityon the whole tones of the test pattern.GAIN adjustments mainly affect color intensityon the brighter tones of the test pattern.Choose an item using the ◀/► buttons, and adjust the level usingthe ▲/▼ buttons.You can display a test pattern for checking the effect of youradjustment by pressing the ENTERbutton.Each time you press the ENTERbutton, the pattern changes asbelow.No pattern ⇒ Gray scale of 9 steps →Ramp ⇔ Gray scale of 15 stepsWhen this function is performed, lines or other distortion mayappear.
COLOR	Using the ▲/▼ buttons adjusts the strength of whole color.Strong ⇔ WeakThis item can be selected only for a video signal, s-video orcomponent video signal.
TINT	Using the ▲/▼ buttons adjusts the tint.Greenish ⇔ ReddishThis item can be selected only for a video signal, s-video orcomponent video signal.
SHARPNESS	Using the ▲/▼ buttons adjusts the sharpness.Strong ⇔ WeakThere may be some noise and/or the screen may flicker for a moment when an adjustment is made. This is not a malfunction.
MY MEMORY	This projector has 4 memories for adjustment data (for all the items of PICTURE menu).Selecting a function using the ▲/▼ buttons and pressing the ▶ or ENTER button performs each function.LOAD-1, LOAD-2, LOAD-3, LOAD-4Performing a LOAD function loads the data from the memory linked in the number included in the function's name, and adjusts the picture automatically depending on the data.The LOAD functions whose linked memory has no data are skipped.Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.There may be some noise and the screen may flicker for a moment when loading data. This is not malfunction.You can perform the LOAD function using MY BUTTONs. Please see MY BUTTON item in OPTION menu (43).SAVE-1, SAVE-2, SAVE-3, SAVE-4Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function's name.Remember that the current data being stored of a memory will be lost by saving a new data into the memory.

IMAGE menu

From the IMAGE menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item.

Then perform it according to the following table.

Item Description
ASPECT	Using the ▲/▼ buttons switches the mode for aspect ratio.For a computer signalNORMAL ⇔ 4:3 ⇔ 16:9 ⇔ SMALLFor a Video signal, S-video signal or Component video signal4:3 ⇔ 16:9 ⇔ 14:9 ⇔ SMALLFor no signal4:3 (fixed)• The NORMAL mode keeps the original aspect ratio of the signal.
OVER SCAN	Using the ▲/▼ buttons adjusts the over-scan ratio.Large (It reduces picture) ⇔ Small (It magnifies picture)• This item can be selected only for a video, s-video and component video signal.• When this adjustment is too large, certain degradation may appear at the frame area of the picture. In such a case, please adjust small.
V POSITION	Using the ▲/▼ buttons adjusts the vertical position.Up ⇔ Down• Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting.Pressing RESET button when V POSITION is selected will reset V POSITION to the default setting.• When this function is performed on a video signal, s-video signal, or component video signal, the range of this adjustment depends on OVER SCAN (above) setting. It is not possible to adjust when OVER SCAN is set to 10.

(continued on next page)

IMAGE menu (continued)

Item Description
H POSITION	Using the ▲/▼ buttons adjusts the horizontal position.Left ⇔ RightOver-adjusting the horizontal position may cause noise to appear on the screen. If this occurs, please reset the horizontal position to the default setting. Pressing RESET button when H POSITION is selected will reset H POSITION to the default setting.When this function is performed on a video signal, s-video signal, or component video signal, the range of this adjustment depends on OVER SCAN (29) setting. It is not possible to adjust when OVER SCAN is set to 10.
H PHASE	Using the ▲/▼ buttons adjusts the horizontal phase to eliminate flicker.Right ⇔ LeftThis item can be selected only for a computer signal or component video signal.
H SIZE	Using the ▲/▼ buttons adjusts the horizontal size.Large ⇔ SmallThis item can be selected only for a computer signal.When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment by pressing the RESET button during this operation.
AUTO ADJUST EXECUTE	Executing this item performs the automatic adjustment feature.For a computer signalThe vertical position, the horizontal position and the horizontal phase (44) will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.For a video signal and s-video signalThe video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (32). The vertical position and horizontal position will be automatically set to the default.For a component video signalThe vertical position, horizontal position and horizontal phase will be automatically set to the default.The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input. When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (44).

INPUT menu

From the INPUT menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description
PROGRESSIVE	Using the ▲/▼ buttons switches the progress mode.TV ⇔ FILM ⇔ TURN OFFThis function is performed only for an interlaced signal at theVIDEO or S-VIDEO input, and for 480i@60 or 576i@50 signal at the COMPONENT input.When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select TURN OFF, even though the screen image may lose the sharpness.
VIDEO NR	Using the ▲/▼ buttons switches the noise reduction mode.HIGH ⇔ MID ⇔ LOWThis function is performed only for theVIDEO or S-VIDEO input, and for 480i@60 or 576i@50 signal at the COMPONENT input.When this function is excessive, it may cause a certain degradation of the picture.
COLOR SPACE	Using the ▲/▼ buttons switches the mode for color space.AUTO ⇔ RGB ⇔ SMPTE240 ⇔ REC709 ⇔ REC601This item can be selected only for a computer signal or component video signal except SCART RGB signal.The AUTO mode automatically selects the optimum mode.The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.
COMPONENT	Using the ▲/▼ buttons switches the function of the COMPONENT(Y,Cb/Pb,Cr/Pr) port.COMPONENT ⇔ SCART RGBWhen the SCART RGB is selected, COMPONENT (Y,Cb/Pb,Cr/Pr) and VIDEO ports will function as a SCART RGB port. A SCART cable is required for a SCART RGB input to the projector. For your reference, see the TECHNICAL part.

(continued on next page)

INPUT menu (continued)

Item Description
VIDEO FORMAT	The video format for S-VIDEO port and VIDEO port can be set.(1) Use the ◀/► buttons to select the input port.(2) Using the ▲/▼ buttons switches the mode for video format.AUTO ⇔ NTSC ⇔ PAL ⇔ SECAM N-PAL ⇔ M-PAL ⇔ NTSC4.43 This item is performed only for a video signal fromVIDEO port orS-VIDEO port.The AUTO mode automatically selects the optimum mode.The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.
FRAME LOCK	Set the frame lock function on/off for each port.(1) Using the ▲/▼ buttons to select one of following ports.QUIT ⇔ COMPUTER(IN)1 ⇔ COMPUTER(IN)2(2) Using the ◀/► buttons to turns the frame lock function on/off.TURN ON ⇔ TURN OFFThis item can be performed only on a signal with a vertical frequency of 50 to 60 Hz.When the TURN ON is selected, the moving pictures are displayed more smoothly.This function may cause a certain degradation of the picture. In such a case, please select TURN OFF.
COMPUTER IN	The computer input signal type forCOMPUTER IN1andIN2ports can be set.(1) Use the ◀/► buttons to select the input port to be set.COMPUTER (IN)1 ⇔ COMPUTER (IN)2(2) Use the ▲/▼ buttons to select the computer input signal type.SYNC ON G ON ⇔ SYNC ON G OFF Selecting SYNC ON G ON allows reception of sync on G signal.When SYNC ON G ON is selected, the picture may be distorted with certain input signals. In such a case, remove the signal connector first and select SYNC ON G OFF on the menu, and then reconnect the signal.

(continued on next page)

INPUT menu (continued)

Item Description
RESOLUTION	The resolution for the COMPUTER IN1 and IN2 input signals can be set on this projector.(1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and press the ► button.The RESOLUTION menu will be displayed.(2) In the RESOLUTION menu, select the resolution you wish to display using the ▲/▼ buttons.Selecting AUTO will set a resolution appropriate to the input signal.
	(3) STANDARDPressing the ► or ENTER button when selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and horizontal size and automatically select an aspect ratio.	STANDARD↓
	(3) CUSTOM(3)-1 To set a custom resolution use the ▲/▼ buttons to select the CUSTOM and the CUSTOM RESOLUTION box will be displayed. Set the horizontal (HORZ) and vertical (VERT) resolutions using the ▲/▼ /◄/► buttons. It is not guaranteed to work this function properly on any resolutions.(3)-2 To save the setting place the cursor on the right-most digit and press the ► button.The horizontal and vertical positions, clock phase and horizontal size will be automatically adjusted.(3)-3 To revert back to the previous resolution without saving changes place the cursor on the left-most digit and press the ◀ button.The screen will then return to the RESOLUTION menu displaying the previous resolution.• For some pictures, this function may not work well.	CUSTOM↓

SETUP menu

From the SETUP menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or the ENTER button to execute the item. Then perform it according to the following table.

Item Description
AUTO KEYSTONE EXECUTE	Selecting this item performs the automatic keystone distortion correction. Projector automatically corrects vertical keystone distortion due to the (forward/backward) setup angle by itself.This function will be executed only once when selected in the menu. When the slant of the projector is changed, execute this function again.The adjustable range for correction will vary among inputs. For some input, this function may not work well.When V:INVERT or H&V:INVERT is selected to the MIRROR item in the SETUP menu, if the projector screen is inclined or angled downward, this function may not work correctly.When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.When the projector is placed on the level (about ±3°), this function may not work.When the projector is inclined to near ±30 degree or over, this function may not work well.This function will be unavailable when the Transition Detector is on (50).
KEYSTONE	Using the ▲/▼ buttons corrects the vertical keystone distortion.Shrink the top of the image ⇔ Shrink the bottom of the imageThe adjustable range of this function will vary with the type of input signal. For some input, this function may not work well.This function will be unavailable when the Transition Detector is on (50).

(continued on next page)

SETUP menu (continued)

Item Description
WHISPER	Using the ▲/▼ buttons turns off/on the whisper mode.NORMAL ⇔ WHISPERWhen WHISPER is selected, acoustic noise and screen brightness are reduced.
MIRROR	Using the ▲/▼ buttons switches the mode for mirror status. NORMAL ⇔ H:INVERT ⇔ V:INVERT ⇔ H&V:INVERTIf the Transition Detector is TURN ON and MIRROR status is changed, Transition Detector Alarm (50) will be displayed when projector is restarted after the power switch is turned off.
STANDBY MODE	Using ▲/▼ buttons switches the standby mode setting between NORMAL and SAVING.NORMAL ⇔ SAVINGWhen SAVING is selected, the power consumption in the standby mode is lowered with some functional restriction as below:When SAVING is selected, the communication control (RS-232C, network) is disabled except to turn the projector on while the projector is in the standby mode.When SAVING is selected, any setting of the MONITOR OUT (below) and AUDIO (36) in the standby mode is invalid, and no signal is output from both of MONITOR OUT and AUDIO OUT ports in the standby mode.
MONITOR OUT	The combination of a picture shown on screen and output from the MONITOR OUT port can be arranged in the menu.The picture coming into the port selected in the (2) is output to the MONITOR OUT port while an image from the port chosen in the (1) is on screen.(1) Choose a picture input port using ▲/▼ buttons.QUIT ⇔ COMPUTER(IN)1 ⇔ COMPUTER(IN)2↑↑↑↑STANDBY ⇔ VIDEO ⇔ S-VIDEO ⇔ COMPONENT(Y, Cb/Pb, Cr/Pr)Choose STANDBY, to select the output signal from the MONITOR OUT port in the standby mode.While QUIT is selected, pressing the ◀ button returns to the previous menu.(2) Select one of the COMPUTER IN ports using ◀/► buttons.Choosing the COMPUTER 1 allows the following choice.1 (COMPUTER IN1) ⇔ OFFChoosing the COMPUTER 2 allows the following choice.2 (COMPUTER IN2) ⇔ OFFChoosing other input or STANDBY allows the following choice.1 (COMPUTER IN1) ⇔ 2 (COMPUTER IN2) ⇔ OFFOFF disables the MONITOR OUT port.

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or the ENTER button to execute the item. Then perform it according to the following table.

Item Description
VOLUME	Using the ▲/▼ buttons adjusts the volume.High ⇔ Low
SPEAKER	Using the ▲/▼ buttons turns on/off the built-in speaker.TURN ON ⇔ TURN OFFWhen TURN OFF is selected, the built-in speaker does not work.
AUDIO	The combination of a picture and audio input port can be arranged in the menu.The audio coming into the port selected in the (2) is output while an image from the port chosen in the (1) is on screen.(1) Choose a picture input port using the ▲/▼ buttons. QUIT COMPUTER(IN)1 COMPUTER(IN)2 AUDIO OUT STANDBY VIDEO S-VIDEO COMPONENT (Y, Cb/Pb, Cr/Pr)Choose AUDIO OUT STANDBY, to select the audio output to the AUDIO OUT port in the standby mode. The built-in speaker does not work in the standby mode.While QUIT is selected, pressing the◀button returns to the previous menu.(2) Select one of the AUDIO IN ports using◀/▶ buttons.1 (AUDIO IN1) ⇔ 2 (AUDIO IN2) ⇔ 3 (AUDIO IN3) ⇔ ✗disables the audio output.When ✗is selected to VIDEO, S-VIDEO or COMPONENT port, the C.C. (Closed Caption) is automatically activated, if the C.C. is set to AUTO in the DISPLAY menu of the C.C. menu and the signal from the input port supports the C.C. feature (59).

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item.

Then perform it according to the following table.

Item Description
LANGUAGE	Using the ▲/▼ buttons switches the OSD (On Screen Display) language.ENGLISH ⇔ FRANÇAIS ⇔ DEUTSCH ⇔ ESPAÑOL ⇔ ITALIANO↑↓TÜRKÇE↑↓POLSKI↑↓SUOMI↑↓PYССКИЙ ⇔ SVENSKA ⇔ 한글 ⇔ 繁體中文 ⇔ 筒体中文 ⇔ 日本語↑↓NORSKNEDERLANDS↑↓PORTUGUÊSPYССКИЙ ⇔ SVENSKA ⇔ 한글 ⇔ 繁體中文 ⇔ 筒体中文 ⇔ 日本語
MENU POSITION	Using the ▲/▼/◄/► buttons adjusts the menu position.To quit the operation, press MENU button on the remote control or keep no operation for about 10 seconds.
BLANK	Using the ▲/▼ buttons switches the mode for the BLANK screen.The BLANK screen is a screen for the temporarily blanking feature(21). It is displayed by pressing BLANK button.MyScreen ⇔ ORIGINAL ⇔ BLUE ⇔ WHITE ⇔ BLACK↑→
	MyScreen
	ORIGINAL Screen preset as the standard screen.
	BLUE, WHITE,BLACK

(continued on next page)

SCREEN menu (continued)

Item Description
START UP	Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.MyScreen ⇔ ORIGINAL ⇔ TURN OFF
	MyScreen Screen can be registered by the MyScreen item (below).
	ORIGINAL Screen preset as the standard screen.
	TURN OFF Plain black screen.
	• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the BLANK screen (37) after several minutes. If also the BLANK screen is the MyScreen or ORIGINAL, the plain black screen is instead used.• When the TURN ON is selected to the MyScreen PASSWORD of SECURITY item in OPTION menu (47), the START UP is fixed to MyScreen.
MyScreen	This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.1. Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen.Please wait for the target image to be displayed, and press the ENTER button when the image is displayed. The image will freeze and the frame for capturing will appear.To stop performing, press the RESET or ESC button.2. Using the ▲/▼/◄/► buttons adjusts the frame position.Please move the frame to the position of the image which you want to use.The frame may not be able to be moved for some input signals.To start registration, press the ENTER button.To restore the screen and return to the previous dialog, press the RESET or ESC button.Registration takes several minutes. (continued)

(continued on next page)

SCREEN menu (continued)

Item Description
MyScreen(continued)	When the registration is completed, the registered screen and the following message are displayed for several seconds:“MyScreen registration is finished.”If the registration failed, the following message is displayed:“A capturing error has occurred. Please try again.”This function cannot be selected when the TURN ON is selected to the MyScreen Lock item (below).This function cannot be selected when TURN ON is selected to the MyScreen PASSWORD of SECURITY item in OPTION menu (47).
MyScreen Lock	Using the ▲/▼ buttons turns on/off the MyScreen lock function.TURN ON ⇔ TURN OFFWhen the TURN ON is selected, the MyScreen item is locked. Use this function for protecting the current MyScreen.This function cannot be selected when TURN ON is selected to the MyScreen PASSWORD of SECURITY item in OPTION menu (47).
MESSAGE	Using the ▲/▼ buttons turns on/off the message function.TURN ON ⇔ TURN OFFWhen the TURN ON is selected, the following message function works.“AUTO IN PROGRESS” while automatically adjusting“NO INPUT IS DETECTED”“SYNC IS OUT OF RANGE”“Searching...” while searching for the input“Detecting...” while an input signal is detectedThe indication of the input signal displayed by changingThe indication of the aspect ratio displayed by changingThe indication of the PICTURE MODE displayed by changingThe indication of the MY MEMORY displayed by changingThe indication of “FREEZE” and “II” while the projector is in the FREEZE mode.If the projector goes into the FREEZE mode while the TURN OFF is selected, the picture on screen is frozen without any messages, which is not a malfunction (21).

(continued on next page)

SCREEN menu (continued)

Item Description
SOURCE NAME	Each input port for this projector can have a name applied to it.(1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE NAME and press the ▶ button.The SOURCE NAME menu will be displayed.(2) Use the ▲/▼ buttons on the SOURCE NAME menu to select the port to be named and press the ▶ button. Right side of the menu is blank until a name is specified.The SOURCE NAME dialog will be displayed.(3) The current name will be displayed on the first line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. The RESET button can be used to erase 1 character at a time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push the ENTER or INPUT button, 1 character or all characters will be erased. The name can be a maximum of 16 characters.(4) To change an already inserted character, press the ▲ button to move the cursor to the first line, and use the ◀/► buttons to move the cursor on the character to be changed.After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (3) above.(5) To finish entering text, move the cursor to the SAVE on screen and press the ENTER or INPUT button. To revert to the previous name without saving changes, move the cursor to the CANCEL on screen and press the ENTER or INPUT button.
TEMPLATE	Using ▲/▼ buttons switches the mode for the template screen. The selected template pattern can be displayed when the MY BUTTON allocated to the TEMPLATE function is pressed (43).DOT-LINE4 ⇔ DOT-LINE3 ⇔ DOT-LINE2↑ ↑↓TEST PATTERN ⇔ DOT-LINE1

OPTION menu

From the OPTION menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.

Item Description
AUTO SEARCH	Using the ▲/▼ buttons turns on/off the automatic signal search function.TURN ON ⇔ TURN OFFWhen the TURN ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.
AUTO KEYSTONE	Using the ▲/▼ buttons turns on/off the automatic keystone function.TURN ON ⇔ TURN OFFTURN ON: Automatic keystone distortion correction will be executed whenever changing the slant of the projector.TURN OFF: This function is disabled. Please execute the AUTO KEYSTONE ☑ EXECUTE in the SETUP Menu for automatic keystone distortion correction.When the projector is suspended from the ceiling this feature will not function properly so select the TURN OFF.This function will be unavailable when the Transition Detector is on (50).
AUTO ON	Using the ▲/▼ buttons turns on/off the AUTO ON function.TURN ON ⇔ TURN OFFWhen set to the TURN ON, the lamp in projector will be automatically turned on without the usual procedure (15), only when the projector is supplied with the power after the power was cut while the lamp was on.This function does not work as long as the power has been supplied to the projector while the lamp is off.After turning the lamp on by the AUTO ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO OFF function (42) is disabled.

(continued on next page)

OPTION menu (continued)

Item Description
AUTO OFF	Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.Long (max. 99 minutes) ⇔ Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically.When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off.If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to theCONTROL port during the corresponding time, projector will not be turned off.Please refer to the section “Turning off the power” (15).
LAMP TIME	The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the OPTION menu.Pressing RESET button or the ► button displays a dialog.To reset the lamp time, select RESET using the ▲ button.RESET ⇔ CANCEL· Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.· For the lamp replacement, see the section “Replacing the lamp” (60).
FILTER TIME	The filter time is the usage time of the air filter, counted after the last resetting. It is shown in the OPTION menu.Pressing the RESET button or the ► button displays a dialog.To reset the filter time, select the RESET using the ▲ button.RESET ⇔ CANCEL· Please reset the filter time only when you have cleaned or replaced the air filter, for a suitable indication about the air filter.· For the air filter cleaning, see the section “Cleaning and replacing the air filter” (62).
Item Description
MY BUTTON	This item is to assign one of the following functions to MY BUTTON 1 and 2 on the remote control (6).Choose 1 or 2 on the MY BUTTON menu using the ◀/► button first. Then using the ▲/▼ buttons sets one of the following functions to the chosen button.COMPUTER1: Sets port to COMPUTER IN1.COMPUTER2: Sets port to COMPUTER IN2.COMPONENT: Sets port to COMPONENT(Y, Cb/Pb, Cr/Pr)S-VIDEO: Sets port to S-VIDEO.VIDEO: Sets port to VIDEO.INFORMATION: Displays the INPUT -INFORMATION- (45), NETWORK -INFORMATION- (58) or nothing.The displayed dialog is switched as below every time the MY BUTTON is pushed.When an input signal is found:↔INPUT -INFORMATION- ⇔ NETWORK -INFORMATION- ⇔ OFFWhen an input signal is not found:NETWORK -INFORMATION- ⇔ OFFAUTO KEYSTONE:Performs automatic keystone distortion correction (34).MY MEMORY: Loads one of adjustment data stored (28).When more than one data are saved, the adjustment changes every time the MY BUTTON is pushed.When no data is saved in memory, the dialog “No saved data” appears.When the current adjustment is not saved to memory, the dialog as shown in the right appears.If you want to keep the current adjustment, please press the ◀ button to quit. Otherwise loading a data will lose the current adjusted condition.PICTURE MODE: Changes the PICTURE MODE (24).FILTER RESET: Displays the filter time reset confirmation dialogue (42).AV MUTE: Turns the picture and audio on/off.TEMPLATE: Makes the template pattern selected to the TEMPLATE item (40) appear or disappear.MY IMAGE: Displays the MY IMAGE menu (57).
MY SOURCE	Using ▲/▼ buttons selects the picture input port to be selected with pressing the MY SOURCE/DOC.CAMERA button on the remote control.Select the picture input that is connected with a document camera.COMPUTER (IN)1 ⇔ COMPUTER (IN)2VIDEO ⇔ S-VIDEO ⇔ COMPONENT(Y, Cb/Pb, Cr/Pr)
SERVICE	Selecting this item displays the SERVICE menu.Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button to execute the item.FAN SPEED ⇔ AUTO ADJUST ⇔ GHOST ⇔ FILTER MESSAGE ⇔ KEY LOCKFACTORY RESET ⇔ INFORMATION ⇔ REMOTE FREQ.

(continued on next page)

OPTION menu (continued)

Item Description
SERVICE(continued)	FAN SPEEDUsing the▲/▼buttons the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. Note that the projector is noisier when the HIGH is selected.HIGH ⇔ NORMAL
	AUTO ADJUSTUsing the▲/▼buttons to select one of the mode.When the DISABLE is selected, the automatic adjustment feature is disabled.FINE ⇔ FAST ⇔ DISABLEFINE: Finer tuning including H.SIZE adjustment.FAST: Faster tuning, setting H.SIZE to prearranged data for the input signal.Depending on conditions, such as input image, signal cable to the projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.
	GHOST1. Select a color element of ghost using the◄/►buttons.2. Adjust the selected element using the▲/▼buttons to disappear ghost.
	FILTER MESSAGEUse the▲/▼button to set the timer for the interval to show the message for cleaning up the air filter.500h ⇔ 1000h ⇔ 1500h ⇔ 2000h ⇔ TURN OFFAfter choosing an item except TURN OFF, the message “REMINDER *** HRS PASSED AFTER THE LAST FILTER CHECK” will appear after the timer reaches the interval time set by this feature (66).When the TURN OFF is chosen, the message will not appear.Utilize this feature to keep the air filter clean, setting the suitable time according to your environment of this projector.Please check and clean the air filter periodically, even if there is no message. If the air filter becomes to be blocked by dust or others, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.Please be careful with the operating environment of the projector and the condition of the air filter.
Item Description
SERVICE(continued)	KEY LOCKUsing the ▲/▼ buttons turns on/off the key lock feature. When TURN ON is selected, the buttons on the projector except the STANDBY/ON button are locked.TURN ON ⇔ TURN OFF• Please use to avoid a mischief and touching accidentally. This function does not have any effect on the remote control.
	REMOTE FREQ.Use the ▲/▼ button to change the projector's remote sensor setting.1:NORMAL ⇔ 2:HIGH Items with a checkmark are on. The factory default setting is for both 1:NORMAL and 2: HIGH to be on. If the remote control does not function correctly, set this to either only 1 or only 2 (14).Neither can be turned off at the same time.
	INFORMATIONSelecting this item displays a dialog titled “INPUT -INFORMATION-”. It shows the information about the current input. • The “FRAME LOCK” message on the dialog means the frame lock function is working (32).• The “SCART RGB” message means the COMPONENT port is working as a SCART RGB input port. Please refer to the COMPONENT item in INPUT menu (31).• This item can't be selected for no signal and sync out.• When the MY TEXT DISPLAY is set to TURN ON, the MY TEXT is displayed together with the input information in the INPUT -INFORMATION-box (52).
	FACTORY RESETSelecting RESET using the button ▲ performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, SECURITY and NETWORK settings are not reset. RESET ⇔ CANCEL
Item Description
SECURITY	This projector is equipped with security functions.User registration is required before using the security functions.Please ask your local dealer.
	1. Using Security Features1.1 Inputting the PASSWORD1.1-1 Use the ▲/▼ buttons on the OPTION menu to select SECURITY and press the ▶ button. The ENTER PASSWORD box will be displayed. The factory default PASSWORD is 6971.This PASSWORD can be changed (1.2 Changing the PASSWORD (below)).It is strongly recommended the factory default PASSWORD to be changed as soon as possible.1.1-2 Use the ▲/▼/◄/► buttons to enter the registered PASSWORD. Move the cursor to the right side of the ENTER PASSWORD box and press the ► button to display the SECURITY menu.If an incorrect PASSWORD is input, the ENTER PASSWORD box will be displayed again. If incorrect PASSWORD is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect PASSWORD is input.1.2 Changing the PASSWORD1.2-1 Use the ▲/▼ buttons on the SECURITY menu to select SECURITY PASSWORD CHANGE and press the ► button to display the ENTER NEW PASSWORD box. 1.2-2 Use the ▲/▼/◄/► buttons to enter the new PASSWORD.1.2-3 Move the cursor to the right side of the ENTER NEW PASSWORD box and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again. 1.2-4 Move the cursor to the right side of the NEW PASSWORD AGAIN box and press the ► button and the NOTE NEW PASSWORD box will be displayed for about 20 seconds, please make note of the PASSWORD during this time.Pressing the ENTER button will close the NOTE NEW PASSWORD box.Please do not forget your PASSWORD.

(continued on next page)

OPTION menu (continued)

Item Description
SECURITY(continued)	1.3 If you have forgotten your PASSWORD1.3-1 Follow the procedure in 1.1-1 to display the ENTER PASSWORD box.1.3-2 While the ENTER PASSWORD box is displayed, press and hold the RESET button for about 3 seconds, or press and hold the INPUT button for 3 seconds while pressing the ▶ button on the projector.The 10-digit Inquiring Code will be displayed.• If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will close. If necessary, repeat the process from 1.3-1.1.3-3 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed.
	2. Using the MyScreen PASSWORD FunctionThe MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.2.1 Turning on the MyScreen PASSWORD Function2.1-1 Use the ▲/▼ buttons on the SECURITY menu to select MyScreen PASSWORD and press the ▶ button to display the MyScreen PASSWORD on/off menu.2.2 Setting the PASSWORD2.2-1 Display the MyScreen PASSWORD on/off menu using the procedure in 2.1-1.2.2-2 Use the ▲/▼ buttons on the MyScreen PASSWORD on/off menu to select TURN ON. The ENTER PASSWORD box (small) will be displayed.2.2-3 Use the ▲/▼/◄/► buttons to enter the PASSWORD.Move the cursor to the right side of the ENTER PASSWORD box (small) and press the ►button to display the PASSWORD AGAIN box, enter the same PASSWORD again.

(continued on next page)

OPTION menu (continued)

Item Description
SECURITY(continued)	2.2-4 Move the cursor to the right side of the PASSWORD AGAIN box and press the ▶ button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time.Pressing the ENTER button will return to MyScreen PASSWORD on/off menu.When a PASSWORD is set for MyScreen:The MyScreen registration function (and menu) will be unavailable.The MyScreen Lock menu will be unavailable.The START UP setting will be locked on MyScreen (and the menu will be unavailable).Turning the MyScreen PASSWORD off will allow normal operation of these functions.Please do not forget your MyScreen PASSWORD.2.3 Turning the PASSWORD off2.3-1 Follow the procedure in 2.1-1 to display the MyScreen PASSWORD on/off menu.2.3-2 Select TURN OFF to display the ENTER PASSWORD box (large).Enter the registered PASSWORD and the screen will return to the MyScreen on/off menu.If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 2.3-1.2.4 If you have forgotten your PASSWORD2.4-1 Follow the procedure in 2.1-1 to display the MyScreen PASSWORD on/off menu.2.4-2 Select TURN OFF to display the ENTER PASSWORD box (large). The 10-digit Inquiring Code will be displayed inside the box.2.4-3 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed.
	3. Using the PIN LOCK FunctionPIN LOCK is a function which prevents the projector from being used unless a registered Code is input.3.1 Registering the PIN Code3.1-1 Use the ▲/▼ buttons on the SECURITY menu to select PIN LOCK and press the ▶ button or the ENTER button to display the PIN LOCK on/off menu.
Item Description
SECURITY(continued)	3.1-2 Use the ▲/▼ buttons on the PIN LOCKon/off menu to select TURN ON and thePIN BOX will be displayed.3.1-3 Input a 4 part PIN Code using the ▲,▼,◀,▶,COMPUTER and INPUT buttons.A PIN Code again box will appear. Reenterthe same PIN Code. This will complete thePIN Code registration.If there is no key input for about 55 seconds while the PIN BOX or thePIN Code again box are displayed, the menu will close. If necessary,repeat the process from 3.1-1.Afterwards, anytime the projector is restarted after AC power is turned offthe PIN BOX will be displayed. Enter the registered PIN Code.The projector can be used after entering the registered PIN Code. If anincorrect PIN Code is input, the PIN BOX will be displayed again.If an incorrect PIN Code is input 3 times, the projector will turn off.Afterwards the projector will turn off every time an incorrect PIN Code isinput. The projector will also turn off if there is no key input for about 5minutes while the PIN BOX is displayed.This function will activate only when the projector is started after ACpower is turned off.Please do not forget your PIN Code.3.2 Turning Off the PIN LOCK Function3.2-1 Follow the procedure in 3.1-1 to display the PIN LOCK on/off menu.Use the ▲/▼ buttons to select TURN OFF and the PIN BOX will bedisplayed.Enter the registered PIN Code to turn the PIN LOCK function off.If an incorrect PASSWORD is input 3 times, the menu will close.3.3 If you have forgotten your PIN Code3.3-1 While the PIN BOX is displayed, pressand hold the RESET button on the remotecontrol for 3 seconds, or press and hold theINPUTbutton for 3 seconds while pressingthe ▶ button on the projector. The 10-digitInquiring Code will be displayed.If 5 minutes pass after the PIN BOX is displayed, the projector will turnoff.3.3-2 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORDwill be sent after your user registration information is confirmed.

(continued on next page)

OPTION menu (continued)

Item Description
SECURITY(continued)	4. Using the Transition Detector FunctionWhile the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below.Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.Transition Detector alarm might appear on screen, if the MIRROR setting has been changed.Keystone adjustment feature has been prohibited as long as the Transition Detector function is ON.4.1 Turning On the Transition Detector Function4.1-1 Use the ▲/▼ buttons on the SECURITY menu to select TRANSITION DETECTOR and press the ► or the ENTER button to display the TRANSITION DETECTOR on/off menu.Select TURN ON and the current angle and mirror setting will be recorded.This feature may not function properly if the projector is not in a stable position when TURN ON is selected.4.1-2 If this function is set to TURN ON when the vertical angle of the projector or mirror setting at which the projector is turned on is different than the previously recorded, the Transition Detector alarm will be displayed and the projector will not display the input signal.Set the Transition Detector off in the SECURITY menu to display the input signal.If the Transition Detector alarm is displayed for about 5 minutes, the lamp will turn off. This function will activate only when the projector is started after turning off the AC power.4.2 Setting the Transition Detector PASSWORD4.2-1 Use the ▲/▼ buttons on the SECURITY menu to select TRANSITION DETECTOR and press the ► or the ENTER button to display the TRANSITION DETECTOR on/off menu.4.2-2 Use the ▲/▼ buttons on the TRANSITION DETECTOR on/off menu to select TURN ON. The ENTER PASSWORD box (small) will be displayed.4.2-3 Use the ▲/▼/◄/► buttons to enter a PASSWORD. Move the cursor to the right side of the ENTER PASSWORD box (small) and press the ► button to display the PASSWORD AGAIN box, enter the same PASSWORD again.

(continued on next page)

OPTION menu (continued)

Item Description

SECURITY(continued)

4.2-4 Move the cursor to the right side of the PASSWORD AGAIN box and press the ▶ button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time.Pressing the ENTER button will return to the TRANSITION DETECTOR on/off menu.Please do not forget your Transition Detector PASSWORD.4.3 Setting the Transition Detector off4.3-1 Follow the procedure in 4.1-1 to display the TRANSITION DETECTOR on/off menu.4.3-2 Select TURN OFF to display the ENTER PASSWORD box (large). Enter the registered PASSWORD and the screen will return to the TRANSITION DETECTOR on/off menu. If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 4.3-1.4.4 If you have forgotten your PASSWORD4.4-1 Follow the procedure in 4.1-1 to display the TRANSITION DETECTOR on/off menu.4.4-2 Select TURN OFF to display the ENTER PASSWORD box (large). The 10-digit Inquiring Code will be displayed inside the box.4.4-3 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed.

(continued on next page)

OPTION menu (continued)

Item Description
SECURITY(continued)	5. Using the MY TEXT PASSWORD functionThis item allows you to display your own message (MY TEXT) on the START UP screen and INPUT-INFORMATION. It can be protected by a password to prevent it from being overwritten.5.1 Writing the MY TEXT(1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT WRITING menu and press the ▶ button. The MY TEXT WRITING dialog will be displayed.(2) The current MY TEXT will be displayed on the first 3 lines. If not yet written, the lines will be blank.Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. The RESET button can be used to erase 1 character at a time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push the ENTER or INPUT button, 1 character or all characters will be erased. The MY TEXT can be input up to 24 characters on each line.(3) To change an already inserted character, press the ▲/▼ button to move the cursor to one of the first 3 lines, and use the ◀/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.(4) To finish entering text, move the cursor to the SAVE on screen and press the ENTER or INPUT button. To revert to the previous MY TEXT without saving changes, move the cursor to the CANCEL on screen and press the ENTER or INPUT button.• The MY TEXT WRITING function is available only when the MY TEXT PASSWORD function is set to TURN OFF.5.2 Displaying the MY TEXT(1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY menu and press the ▶ button to display the MY TEXT DISPLAY on/off menu.(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select on or off.TURN ON ⇌ TURN OFFWhen it is set TURN ON, the MY TEXT will be displayed on the START UP screen and the INPUT-INFORMATION- dialog [IMAGE]• This function is available only when the MY TEXT PASSWORD function is set to the TURN OFF.
	MY TEXT DISPLAY on/off menu

(continued on next page)

OPTION menu (continued)

Item Description

SECURITY(continued)

5.3 Turning on the MY TEXT PASSWORDThe MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten.5.3-1 Turning on the MY TEXT PASSWORD function(1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT PASSWORD menu and press the ▶ button to display the MY TEXT PASSWORD on/off menu.5.3-2 Setting the MY TEXT PASSWORD(1) Display the MY TEXT PASSWORD on/off menu using the procedure in 5.3-1(2) Use the ▲/▼ buttons on the MY TEXT PASSWORD menu to select TURN ON. The ENTER PASSWORD BOX (small) will be displayed.(3) Use the ▲/▼/◄/► buttons to enter the PASSWORD. Move the cursor to the right side of the ENTER PASSWORD BOX (small) and press the ▶ button to display the PASSWORD AGAIN BOX, and then enter the same PASSWORD again.(4) Move the cursor to the right side of the PASSWORD AGAIN BOX and press ▶ button to display the PASSWORD for about 20 seconds, then please make note of the PASSWORD during this time.Pressing the ENTER button on the remote control or INPUT button on the projector will return to the MY TEXT PASSWORD on/off menu. When the PASSWORD is set for the MY TEXT;• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.5.3-3 Turning the MY TEXT PASSWORD off(1) Follow the procedure in 5.3-1 to display the MY TEXT PASSWORD on/off menu.(2) Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the MY TEXT PASSWORD on/off menu.If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 5.3-3(1)5.3.4 If you have forgotten your PASSWORD.(1) Follow the procedure in 5.3-1 to display the MY TEXT PASSWORD on/off menu.(2) Select TURN OFF to display the ENTER PASSWORD BOX (large). The 10 digit inquiring code will be displayed inside the box.(3) Contact your dealer with the 10 digit inquiring code. Your PASSWORD will be sent after your user registration information is confirmed.

NETWORK Menu

Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network.

From the NETWORK menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶cursor button or ENTER button to execute the item. Then perform it according to the following table.

See the User's Manual - Network Guide for details of NETWORK operation.

NOTE • If you are not utilizing SNTP (Date/Time Settings of the User's Manual - Network Guide), then you must set the DATE AND TIME (55) during the initial installation.

- The network communication control is disabled while the projector is in standby mode if the STANDBY MODE item of SETUP menu is set to SAVING. Please connect the network communication to the projector after setting the STANDBY MODE to NORMAL (35).

Item Description
SETUP	Selecting this item displays the SETUP Menu for the network.Use the ▲/▼ buttons to select an item, and the ▶ or ENTER button on the remote control to perform the item.
	DHCP (Dynamic Host Configuration Protocol)	Use the ▲/▼ buttons to turn DHCP on/off.ON ⇔ OFFSelect OFF when the network does not have DHCP enabled.When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”.

(continued on next page)

NETWORK Menu (continued)

Item Description
SETUP(continued)	IPADDRESS	Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF. • The IP ADDRESS is the number that identifies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.• The IP ADDRESS “0.0.0.0” is prohibited.
	SUBNETMASK	Use the ▲/▼/◄/► buttons to enter the same SUBNET MASK used by your PC. This function can only be used when DHCP is set to OFF. • The SUBNET MASK “0.0.0.0” is prohibited.
	DEFAULTGATEWAY	Use the ▲/▼/◄/► buttons to enter the DEFAULT GATEWAY (a node on a computer network that serves as an access point to another network) address. This function can only be used when DHCP is set to OFF.
	DNSSERVER	Use the ▲/▼/◄/► buttons to input the DNS SERVER address. The DNS SERVER is a system to control domain names and IP addresses on the Network.
	TIMEDIFFERENCE	Use the ▲/▼ buttons to enter the TIME DIFFERENCE.Set the same TIME DIFFERENCE as the one set on your PC. If unsure, consult your IT manager. Use the ◀ button to return to the menu after setting the TIME DIFFERENCE.
	DATEANDTIME	Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute. • The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings of the User's Manual - Network Guide)
PROJECTOR NAME	(1) Use the▲/▼buttons on the NETWORK Menu to select the PROJECTOR NAME menu and press the ▶ button. The PROJECTOR NAME dialog will be displayed.(2) The current PROJECTOR NAME will be displayed on the first 3 lines. If not yet written, the lines will be blank.Use the▲/▼/◄/►buttons and theENTERor INPUTbutton to select and enter characters. The RESETbutton can be used to erase 1 character at a time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push theENTERor INPUTbutton, 1 character or all characters will be erased.The PROJECTOR NAME can be input up to 64 characters.(3) To change an already inserted character, press the▲/▼button to move the cursor to one of the first 3 lines, and use the◄/►buttons to move the cursor on the character to be changed. After pressing theENTERor INPUTbutton, the character is selected. Then, follow the same procedure as described at the item (2) above.(4) To finish entering text, move the cursor to the SAVE on screen and press theENTERor INPUTbutton. To revert to the previous PROJECTOR NAME without saving changes, move the cursor to the CANCEL on screen and press theENTERor INPUTbutton.

(continued on next page)

NETWORK Menu (continued)

Item Description
MY IMAGE	Selecting this item displays the MY IMAGE menu.The application software “PJImage” is required to store image(s) into the projector.Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE (My IMAGE (Still Image Transfer) Display of the User's Manual - Network Guide) and the ▶ or ENTER button to display the image.The item without image stored cannot be selected.The image names are each displayed in 16 characters or less.To switch the image displayedUse the ▲/▼ buttons.To return to the menuPress the ◀ or ESC button on the remote control.To erase the image displayed and its source file in the projector.(1) Press the RESET button on the remote control while displaying an image to display the MY IMAGE - RESET menu.(2) Press the ENTER button on the remote control or the INPUT button on the projector to perform to erase.To stop erasing, press the ESC button on the remote control or the ◀ button on the projector.
INFORMATION	Selecting this item displays the NETWORK -INFORMATION- dialog for confirming the network settings.The PROJECTOR NAME is displayed in the “PROJECTOR NAME” field. Nothing (blank) is shown in the “PROJECTOR NAME” field until you setup the item (56).When the voltage level of the battery for the built in clock decreases, the set time may become incorrect even though accurate date and time are input. Replace the battery suitably (64).IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP server.
SERVICE	Executing this item restarts and initializes the network functions.Choose the RESTART using the button ▶.Then use the button ▲ to execute.Network will be once cut off when choose restart.If DHCP is selected ON, IP address may be changed.After selecting RESTART, NETWORK Menu may not be controlled approx. 30 seconds.

C.C. (Closed Caption) menu

The closed caption setting can be changed through C.C. menu in the advance menu. Please select the item that you will change using ▲/▼ cursor buttons.

- The C.C. (Closed Caption) is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function.

Item Description
DISPLAY	Select Closed Caption DISPLAY setting from following options using ▲/▼buttons.TURN OFF ⇔ TURN ON ⇔ AUTO TURN OFF: Closed Caption is OFFTURN ON: Closed Caption is ONAUTO: Closed Caption automatically displays when the volume is muted.The caption is not displayed when the OSD menu is active.The Closed Caption is the function to display the dialogue, narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.
MODE	Select Closed Caption MODE setting from following options using ▲/▼buttons.CAPTIONS ⇔ TEXT CAPTIONS: Display Closed CaptionTEXT: Display Text data, which is for additional information such as news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.
CHANNEL	Select Closed Caption CHANNEL from following options using ▲/▼buttons.1 ⇔ 2 ⇔ 3 ⇔ 41: Channel 1, primary channel / language2: Channel 23: Channel 34: Channel 4The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

Maintenance

Replacing the lamp

A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

Preparation of a new lamp and early replacement are recommended. To prepare a new lamp, make contact with your dealer and tell the lamp type number.

Type number : DT00911

Replacing the lamp

1. Turn the projector off, and unplug the power cord. Allow the projector to cool for at least 45 minutes.
2. Prepare a new lamp. If the projector is mounted on a ceiling, or if the lamp has broken, also ask the dealer to replace the lamp.

In case of replacement by yourself, follow the following procedure.

1. Loosen the screw (marked by arrow) of the lamp cover and then slide the lamp cover to the side to remove it.
2. Loosen the 2 screws (marked by arrow) of the lamp, and slowly pick up the lamp by the handles.

3. Insert the new lamp, and retighten firmly the 2 screws of the lamp that are loosened in the previous process to lock it in place.

4. Slide the lamp cover back in place and firmly fasten the screw of the lamp cover.

5. Turn the projector on and reset the lamp time using the LAMP TIME item in the OPTION menu.

(1) Press the MENU button to display a menu.
(2) Point at the Go to Advanced Menu ... in the menu using the ▼/▲ button, then press the ▶ button.
(3) Point at the OPTION in the left column of the menu using the ▼/▲button, then press the ▶ button.

Line drawing of a projector device with a scroll wheel and ventilation slots (no text or symbols)

Handles

(4) Point at the LAMP TIME using the ▼/▲ button, then press the ▶ button. A dialog will appear.
(5) Press the ▲ button to select RESET on the dialog. It performs resetting the lamp time.

⚠ CAUTION ▶ Do not touch any inner space of the projector, while the lamp is taken out.

NOTE • Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.

Replacing the lamp (continued)

Lamp warning

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

⚠ WARNING ▶ The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

▶ About disposal of a lamp: This product contains a mercury lamp; do not put it in a trash. Dispose of it in accordance with environmental laws.

• For lamp recycling, go to www.lamprecycle.org (in the US).
• For product disposal, consult your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada).

For more information, call your dealer.

Disconnect the plug from the power outlet

• If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector's internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.
• If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.
• Before replacing the lamp, turn the projector off and unplug the power cord, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp

- Never unscrew except the appointed (marked by an arrow) screws.

- Do not open the lamp cover while the projector is suspended from a ceiling. This is dangerous, since if the lamp's bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.

- Do not use the projector with the lamp cover removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

- Use only the lamp of the specified type.

- If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, consult your local dealer or a service representative.

- Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

- Using the lamp for long periods of time, could cause it dark, not to light up or to burst. When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage.

Cleaning and replacing the air filter

The air filter unit of this projector consists of a filter cover, two kinds of filters, and a filter frame. The new double large filters system is expected to function longer. However, please check and clean it periodically to keep ventilation needed for normal operation of the projector.

When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. Replace the filters when they are damaged or too soiled. To prepare new filters, make contact with your dealer and tell the following type number.

Type number : MU05611

When you replace the lamp, please replace the air filter. An air filter of specified type will come together with a replacement lamp for this projector.

1. Turn the projector off, and unplug the power cord. Allow the projector to sufficiently cool down.
2. Use a vacuum cleaner on and around the filter cover.
3. Pull the filter cover knobs while lifting it, to take the filter unit off.
4. Use a vacuum cleaner for the filter vent of the projector and both sides of the filter unit.

If the filters are damaged or too soiled, replace them according to the following procedure number 5 to 7. Otherwise, please jump to the procedure number 8.

1. Pull the filter frame's knob up while holding the filter cover to remove the filter frame, then take the filters out.

2. Set new filters where former filters were. Put the larger meshed filter into a filter cover first. Then put the finer meshed filter on the larger meshed one.

3. Put the filter frame back where it was.

4. Put the filter unit back into the projector.

Filter (finer meshed)

Filter (larger meshed)

Filter cover

(continued on next page)

Cleaning and replacing the air filter (continued)

9. Turn the projector on and reset the filter time using the FILTER TIME item in the EASY MENU.

(1) Press the MENU button to display a menu.
(2) Point at the FILTER TIME using the ▼/▲ button, then press the ▶ button. A dialog will appear.
(3) Press the ▲ button to select RESET on the dialog. It performs resetting the filter time.

⚠ WARNING ▶ Before taking care of the air filter, make sure the power switch is off and the power cable is not plugged in, then allow the projector to cool sufficiently. Taking care of the air filter in a high temperature state of the projector could cause an electric shock, a burn or malfunction to the projector.

▶ Use only the air filter of the specified type. Do not use the projector without the air filter or the filter cover. It could result in a fire or malfunction to the projector.
▶ Clean the air filter periodically. If the air filter becomes clogged by dust or the like, internal temperatures rise and could cause a fire, a burn or malfunction to the projector.

NOTE • Please replace the air filter when it is damaged or too soiled.

• When you replace the projection lamp, please replace the air filter. An air filter of specified type will come together with a replacement lamp for this projector.
• Please reset the filter time only when you have cleaned or replaced the air filter, for a suitable indication about the air filter.
• The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

Replacing the internal clock battery

This projector has internal clock that uses a battery. When the clock of the network function does not work correctly, please try solution by replacement of the battery:

HITACHI MAXELL, part number CR2032.

1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.
2. After making sure that the projector has cooled adequately, pull the slot cover forward, pushing slightly its edge up, and remove it from the projector.
   3 Remove the battery case.
   Hold the battery case gutter by finger nail or other thing and pull out the battery case slowly from the battery slot. While the projector is installed upside down, such as a ceiling mount, please remember the battery will drop down as soon as pulling the battery case out.
3. Take the old battery out from the battery case.
4. Replace a new battery.
   Put a new battery into battery case. Please make sure that the + is facing upward. Insert the battery case slowly into the battery slot until you hear the snap.
   6 Close the slot cover.
5. Replace the slot cover by reversing the procedure used when removing the cover.

Battery Case

NOTE • The internal clock will be initialized by removing the battery. For setting the clock, see the User's Manual - Network Guide.

⚠ WARNING ▶ Be careful of handling a battery, as a battery can cause explosion, cracking or leakage, which could result in a fire, an injury, and environment pollution.

• Use only the specified and perfect battery. Do not use a battery with damage, such as a scratch, a dent, rust or leakage.
• When a battery leaked, wipe the leakage out well with a waste cloth. If the leakage adhered to your body, immediately rinse it well with water. When a battery leaked in the battery holder, replace the batteries after wiping the leakage out.
• Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Do not work on a battery; for example recharging or soldering.
• Keep a battery in a dark, cool and dry place. Never expose a battery to a fire or water.
• Keep a battery away from children and pets.
• Obey the local laws on disposing a battery.

Other care

Inside of the projector

In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year.

Caring for the lens

If the lens is flawed, soiled or fogged, it could cause deterioration of display quality. Please take care of the lens, being cautious of handling.

1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.
2. After making sure that the projector is cool adequately, lightly wipe the lens with a commercially available lens-cleaning wipe. Do not touch the lens directly with your hand.

Caring for the cabinet and remote control

Incorrect care could have adverse influence such as discoloration, peeling paint, etc.

1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.
2. After making sure that the projector is cool adequately, lightly wipe with gauze or a soft cloth.
   If the projector is extremely dirty, dip soft cloth in water or a neutral cleaner diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

⚠ WARNING ▶ Before caring, make sure the power cord is not plugged in, and then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector.

▶ Never try to care for the inside of the projector personally. Doing is so dangerous.
▶ Avoid wetting the projector or inserting liquids in the projector. It could result in a fire, an electric shock, and/or malfunction to the projector.
- Do not put anything containing water, cleaners or chemicals near the projector.
- Do not use aerosols or sprays.

⚠️ CAUTION ▶ Please take right care of the projector according to the following. Incorrect care could cause not only an injury but adverse influence such as discoloration, peeling paint, etc.

▶ Do not use cleaners or chemicals other than those specified in this manual.

▶ Do not polish or wipe with hard objects.

Troubleshooting

If an abnormal operation should occur, stop using the projector immediately.

⚠ WARNING ▶ Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact to your dealer or service company.

Otherwise if a problem occurs with the projector, the following checks and measures are recommended before requesting repair.

If this does not resolve the problem, please contact your dealer or service company. They will tell you what warranty condition is applied.

Related messages

When some message appears, check and cope with it according to the following table. Although these messages will be automatically disappeared around several minutes, it will be reappeared every time the power is turned on.

Message Description
	There is no input signal.Please confirm the signal input connection, and the status of the signal source.
	The horizontal or vertical frequency of the input signal is not within the specified range.Please confirm the specs for your projector or the signal source specs.
	An improper signal is input.Please confirm the specs for your projector or the signal source specs.
	The internal temperature is rising.Please turn the power off, and allow the projector to cool down at least 20 minutes. After having confirmed the following items, please turn the power ON again.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?If the same indication is displayed after the remedy, please set FAN SPEED of the SERVICE item in the OPTION menu to HIGH.
	A note of precaution when cleaning the air filter.Please immediately turn the power off, and clean or change the air filter referring to the “Cleaning and replacing the air filter” section of this manual. After you have cleaned or changed the air filter, please be sure to reset the filter timer (62).

Regarding the indicator lamps

When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table.

POWER indicator	LAMP indicator	TEMP indicator	Description
Lighting In Orange	Turned off	Turned off	The projector is in a standby state.Please refer to the section “Power on/off”.
Blinking In Green	Turned off	Turned off	The projector is warming up.Please wait.
Lighting In Green	Turned off	Turned off	The projector is in an on state.Ordinary operations may be performed.
Blinking In Orange	Turned off	Turned off	The projector is cooling down.Please wait.
Blinking In Red	(discretionary)	(discretionary)	The projector is cooling down. A certain error has been detected.Please wait until POWER indicator finishes blinking, and then perform the proper measure using the item descriptions below.
Blinking In Red or Lighting In Red	Lighting In Red	Turned off	The lamp does not light, and there is a possibility that interior portion has become heated.Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?If the same indication is displayed after the remedy, please change the lamp referring to the section “Lamp”.
Blinking In Red or Lighting In Red	Blinking In Red	Turned off	The lamp cover has not been properly fixed.Please turn the power off, and allow the projector to cool down at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp cover. After performing any needed maintenance, turn the power on again.If the same indication is displayed after the remedy, please contact your dealer or service company.
Blinking In Red or Lighting In Red	Turned off	Blinking In Red	The cooling fan is not operating.Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation that no foreign matter has become caught in the fan, etc., and then turn the power on again.If the same indication is displayed after the remedy, please contact your dealer or service company.
Blinking In Red or Lighting In Red	Turned off	Lighting In Red	There is a possibility that the interior portion has become heated.Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?If the same indication is displayed after the remedy, please set FAN SPEED of SERVICE item in OPTION menu to HIGH (44).
Lighting In Green	Simultaneous blinking in Red		It is time to clean the air filter.Please immediately turn the power off, and clean or change the air filter referring to the section “Cleaning and replacing the air filter”. After cleaning or changing the air filter, please be sure to reset the filter timer.After the remedy, reset the power to ON.
Lighting In Green	Alternative blinking in Red		There is a possibility that the interior portion has become overcooled.Please use the unit within the usage temperature parameters (5°C to 35°C).After the treatment, reset the power to ON.
Blinking in Green for approx. 3 seconds	Turned off	Turned off	At least 1 Power ON schedule is saved to the projector.Please refer to Schedule Settings section of User's Manual-Network Guide.

NOTE • When the interior portion has become overheated, for safety purposes, the projector is automatically shut down, and the indicator lamps may also be turned off. In such a case, disconnect the power cord, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.

Shutting the projector down

Only when the projector can not be turned off by usual procedure (15), please push the shutdown switch using a pin or similar, and disconnect the power plug from the power outlet. Before turning it on again, wait at least 10 minutes to make the projector cool down enough.

Resetting all settings

When it is hard to correct some wrong settings, the FACTORY RESET function of SERVICE item in OPTION menu (45) can reset all settings(except LANGUAGE, FILTER TIME, LAMP TIME, FILTER MESSAGE, NETWORK settings and etc.) to the factory default.

Phenomena that may be easy to be mistaken for machine defects

About the phenomenon confused with a machine defect, check and cope with it according to the following table.

Phenomenon Cases not involving a machine defect		Reference page
Power does not come on.	The electrical power cord is not plugged in.Correctly connect the power cord.	12
	The main power source has been interrupted during operation such as by a power outage (blackout), etc.Please disconnect the power plug from the power outlet, and allow the projector to cool down at least 10 minutes, then turn the power on again.	12, 15
	Either there is no lamp and/or lamp cover, or either of these has not been properly fixed.Please turn the power off and disconnect the power plug from the power outlet, and allow the projector to cool down at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.	60, 61
Neither sounds nor pictures are outputted.	The signal cables are not correctly connected.Correctly connect the connection cables.	10
	Signal source does not correctly work.Correctly set up the signal source device by referring to the manual of the source device.	-
	The input changeover settings are mismatched.Select the input signal, and correct the settings.	16, 17
	The BLANK function for pictures and the MUTE function for sounds are working.AV MUTE may be active.Refer to the item “Sound does not come out” and “No pictures are displayed” on the next page to turn off the MUTE and BLANK functions.	43, 16, 21
Sound does not come out.	The signal cables are not correctly connected.Correctly connect the audio cables.	10
	The MUTE function is working.Restore the sound pressing MUTE or VOLUME +/- button on the remote control.	16
	The volume is adjusted to an extremely low level.Adjust the volume to a higher level using the menu function or the remote control.	16
	The AUDIO/SPEAKER setting is not correct.Correctly set the AUDIO/SPEAKER in AUDIO menu.	36
No pictures are displayed.	The lens cover is attached.Remove the lens cover.	4, 15
	The signal cables are not correctly connected.Correctly connect the connection cables.	10
	The brightness is adjusted to an extremely low level.Adjust BRIGHTNESS to a higher level using the menu function.	25, 26
	The computer cannot detect the projector as a plug and play monitor.Make sure that the computer can detect a plug and play monitor using another plug and play monitor.	11
	The BLANK screen is displayed.Press BLANK button on the remote control.	21
Video screen display freezes.	The FREEZE function is working.Press FREEZE button to restore the screen to normal.	21
Colors have a faded-out appearance, or Color tone is poor.	Color settings are not correctly adjusted.Perform picture adjustments by changing the COLOR TEMP, COLOR, TINT and/or COLOR SPACE settings, using the menu functions.	25, 27, 31
	COLOR SPACE setting is not suitable.Change the COLOR SPACE setting to AUTO, RGB, SMPTE240, REC709 or REC601.	31
Pictures appear dark.	The brightness and/or contrast are adjusted to an extremely low level.Adjust BRIGHTNESS and/or CONTRAST settings to a higher level using the menu function.	25, 26
	The WHISPER function is working.Select NORMAL for WHISPER item in the SETUP menu.	25, 35
	The lamp is approaching the end of its product lifetime.Replace the lamp.	60, 61
Pictures appear blurry.	Either the focus and/or horizontal phase settings are not properly adjusted.Adjust the focus using the focus ring, and/or H PHASE using the menu function.	18, 30
	The lens is dirty or misty.Clean the lens referring to the section “Caring for the lens”.	65
RS-232C does not work.	The SAVING function is working.Select NORMAL for STANDBY MODE item in the SETUP menu.	35
Network does not work.

NOTE • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and it does not constitute or imply a machine defect.

Specifications

Specification

Item Specification		tation
Product name=Liquid cryst		tal projector
Liquid Crystal Panel	Panel size=1.6	cm (0.63 type)
	Drive system=	TFT active matrix
	Pixels=786,432	pixels (1024 horizontal x 768 vertical)
Lens		Zoom lens, CP-X206 F=1.7~1.9 f=18.9~22.6mm F=1.7~1.9 f=19.5~23.4mm (approximately)
Lamp=220W UHB
Audio output=7 W
Power supply=AC 100-120V/3.5A, AC220-240V/1.5A
Power consumption=320 W
Temperature range=5 ~ 35°C (Operating)
Size		340 (W) x 117 (H) x 270 (D) mm* Not including protruding parts. Please refer to the following figure.
Weight (mass)=approx. 4.0 kg
Ports		Computer input portCOMPUTER IN1 ....D-sub 15 pin mini x1COMPUTER IN2 ....D-sub 15 pin mini x1Computer output portMONITOR OUT ....D-sub 15 pin mini x1Video input portY, Cb/Pb, Cr/Pr (Component video) ....RCA x3S-VIDEO ....mini DIN 4 pin x1VIDEO ....RCA x1Audio input/output portAUDIO IN1 ....Stereo mini x1AUDIO IN2 ....Stereo mini x1AUDIO IN3 ....RCA x2AUDIO OUT ....Stereo mini x1OthersUSB ....USB-B x1CONTROL ....D-sub 9 pin x1LAN....RJ45 x1
Optional parts		Lamp: DT00911Air filter: MU05611* For more information, please consult your dealer.

Specifications (continued)

[unit: mm]

Projector

CP-X206/CP-X306

User's Manual (detailed)

Network Guide

Line drawing of a projector with ventilation slots and a small screen (no text or symbols)

Thank you for purchasing this projector.

This projector has the network function that brings you the following main features.

√ Web control

The projector can be controlled and monitored by a web browser software on your PC, which can help you to setup and maintain the projector.

√ MY IMAGE (Still Image Transfer) Display

The projector can display still images that are transferred via the network.

This manual is only intended to explain Network function only.

For safety, operations or any other issues, refer to the Safety Guide and User's Manual (concise and detailed).

⚠ WARNING ▶ Before using this product, be sure to read all manuals for this product.

After reading them, store them in a safe place for future reference.

NOTE • The information in this manual is subject to change without notice.

- The manufacturer assumes no responsibility for any errors that may appear in this manual.

- The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Microsoft and Internet explorer, Windows, Windows Vista are registered trademarks of Microsoft Corporation.
• JavaScript is a registered trademark of Sun Microsystems, Inc.

All other trademarks are the properties of their respective owners.

Content

About this manual.... 1

Content 2

1. Main functions .... 3

1.1 Configuring and controlling via a web browser 3
1.2 MY IMAGE (Still image Transfer) Display 3

2. Equipment connection and network setting.... 4

2.1 Required equipment preparation 4
2.2 Manual network connection setting.... 5

2.2.1 Equipments connection 5
2.2.2 Network settings....5
2.2.3 "Internet Option" setting....8
2.2.4 Check connection....9

3. Management with Web browser software 10

3.1 Configuring and controlling the projector via a web browser 11

3.1.1 Logon 13
3.1.2 Network Information 14
3.1.3 Network Settings 15
3.1.4 Port Settings.... 17
3.1.5 Mail Settings.... 18
3.1.6 Alert Settings 19
3.1.7 Schedule Settings 21
3.1.8 Date/Time Settings 23
3.1.9 Security Settings 25
3.1.10 Projector Control 27
3.1.11 Projector Status 30
3.1.12 Network Restart....31
3.1.13 Logoff 31

3.2 E-mail Alerts....32
3.3 Projector Management using SNMP 34
3.4 Event Scheduling 35
3.5 MY IMAGE (Still Image Transfer) Display 38
3.6 Command Control via the Network 40

1. Main functions

1.1 Configuring and controlling via a web browser

You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network.

Logon the network from the web browser and it offers the menus to configure the network settings, monitor the projector and so on.

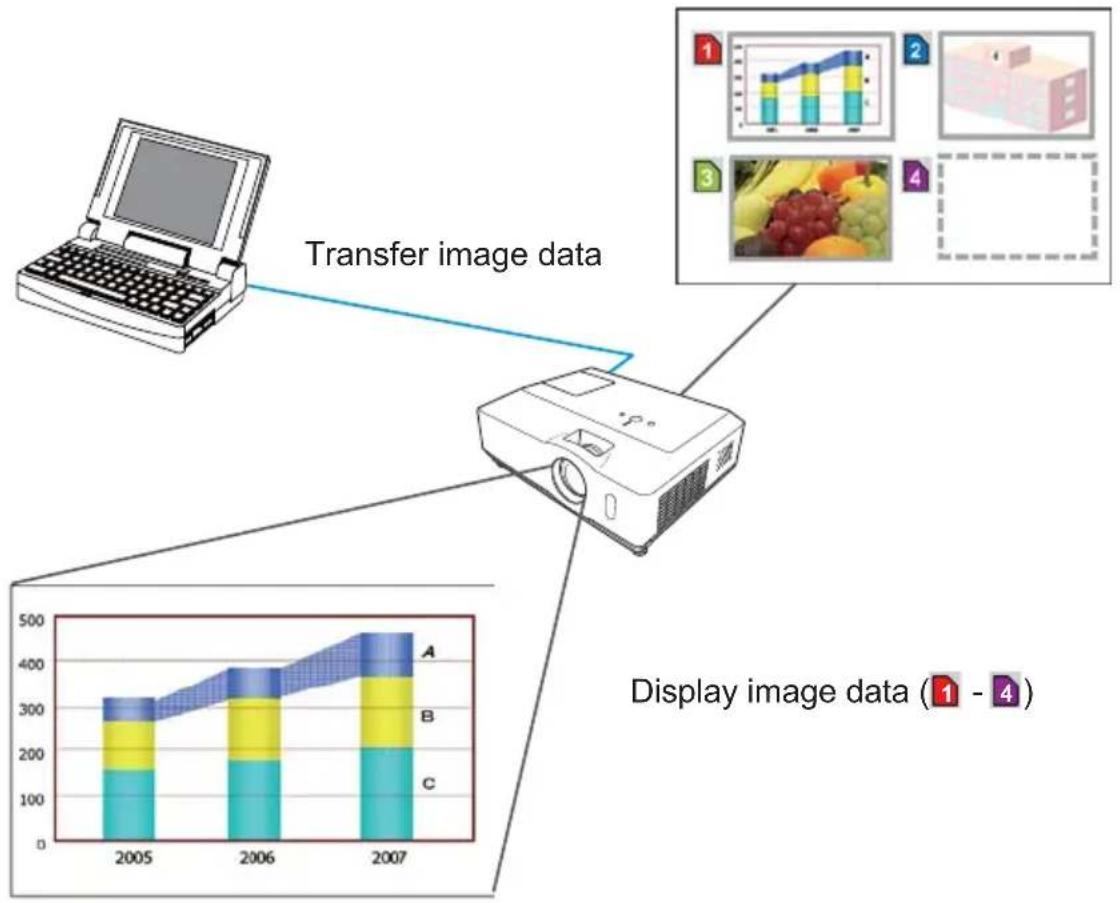

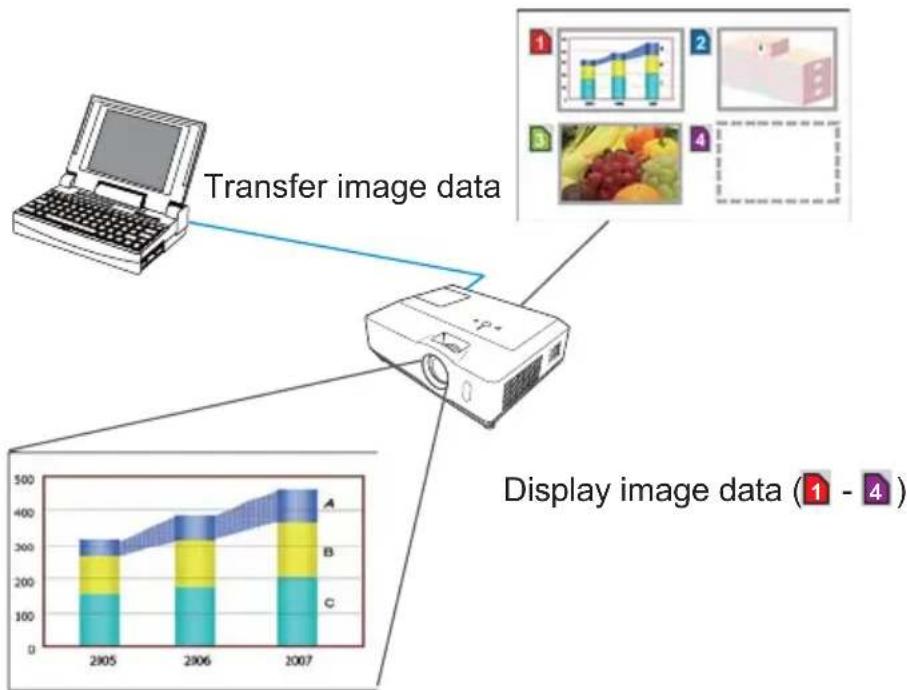

1.2 MY IMAGE (Still image Transfer) Display

Image files can be sent via the network, and up to 4 image data can be stored in the projector and displayed on screen one by one. (38)

2. Equipment connection and network setting

2.1 Required equipment preparation

The following equipments are required to connect the projector to your PC through the network.

PC : 1) equipped with the network feature

2) installed a web browser software (11)

LAN cable : CAT-5 or greater

NOTE • The system for using the network function of the projector requires communication environment conforming 100Base-TX or 10Base-T. • The network communication control is disabled while the projector is in standby mode if the STANDBY MODE item is set to SAVING. Please connect the network communication to the projector after setting the STANDBY MODE to NORMAL (SETUP Menu in the User's Manual (detailed) – Operating Guide).

2.2 Manual network connection setting

2.2.1 Equipments connection

Connect the projector and PC with a LAN cable.

* Before connecting with an existing network, contact the network administrator.

Next, please check the PC setting as explained below.

2.2.2 Network settings

This is the explanation of network connection settings for Windows XP and Internet Explorer.

1) Log on to Windows XP as administrator authority. (*)
2) Open "Control Panel" from "Start" menu.
3) Open "Network and Internet Connections" in "Control Panel". (Fig. 2.2.2.a)
* Administrator authority is the account, which can access to all functions.

Fig. 2.2.2.a "Network and Internet Connections" window

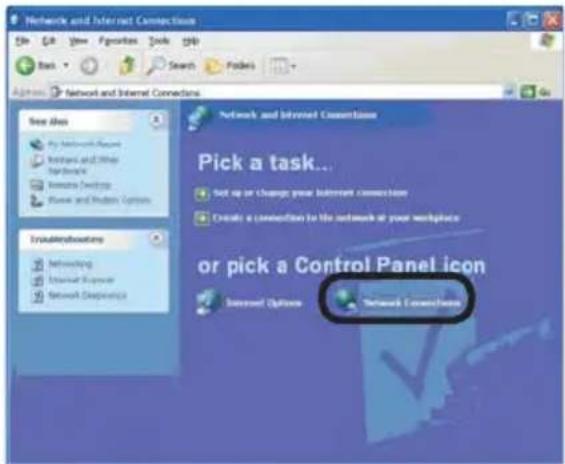

4) Open "Network Connections". (Fig.2.2.2.b)

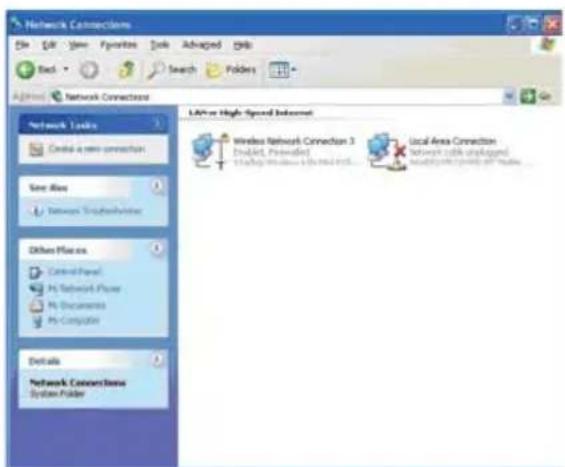

Fig. 2.2.2.b "Network Connections" window

2.2 Manual network connection setting (continued)

5) Open "Local Area Connection Properties" window you use for network device. (Fig. 2.2.2.c)

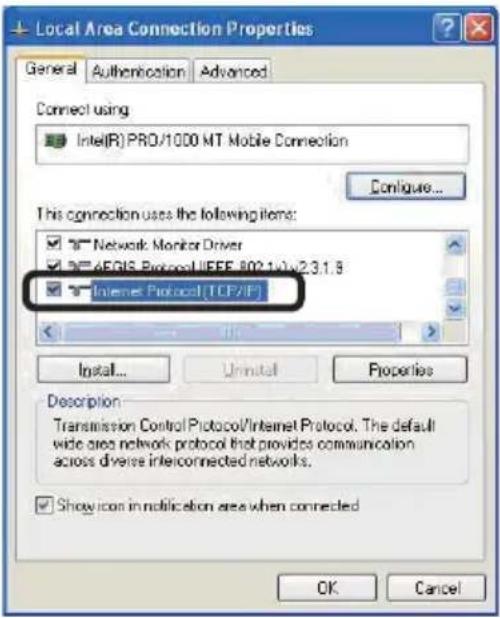

Fig. 2.2.2.c "Local Area Connection Properties" window

6) Set used protocol as "TCP/IP" and open "Internet Protocol (TCP/IP) Properties" window.

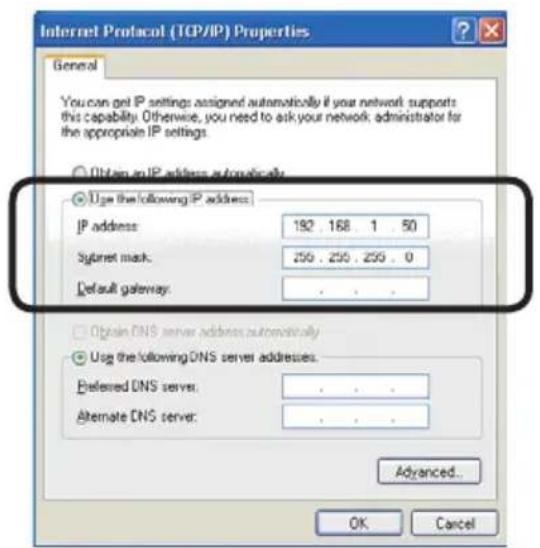

Fig. 2.2.2.d "Internet Protocol (TCP/IP) Properties" window

7) Set IP address, subnet mask and default gateway for PC.

2.2 Manual network connection setting (continued)

[About IP address]

■ Setting manually

The Network address portion included in the IP address set into your PC should be common with projector's one. And the entire IP address in the PC should not be overlapped with other equipments in the same network, including the projector.

For example

The projector's initial settings are as follows.

IP address: 192.168.1.10

Subnet mask: 255.255.255.0

(Network address: 192.168.1 in this case)

Therefore, specify PC's IP address as follows.

IP address: 192.168.1.xxx (xxx shows decimal number.)

Subnet mask: 255.255.255.0

(Network address: 192.168.1 in this case)

Select from 1 to 254 for “xxx” not duplicating with any other equipments. In this case, projector has “192.168.1.10” IP address, specify from 1 to 254 except 10 for PC.

NOTE • "0.0.0.0" cannot be set to the IP address.

• The projector's IP address can be changed by using the configuration utility via a web browser. (11)
• If the projector and PC exist in the same network (i.e. network address is common), default gateway can be blank.
• When the projector and PC exist in different networks, default gateway setting is necessary. Contact the network administrator in detail.

■ Setting automatically

When DHCP server exists in network, it is possible to assign IP address to the projector and PC automatically.

* DHCP is abbreviation for “Dynamic Host Configuration Protocol” and has the function to provide necessary setting for network like IP address from server to client. A server that has DHCP function is called DHCP server.

2.2 Manual network connection setting (continued)

2.2.3 "Internet Option" setting

1) Click "Internet Options" in "Network and Internet Connections" window (Fig. 2.2.3.a) to open "Internet Properties" window. (Fig.2.2.3.b)

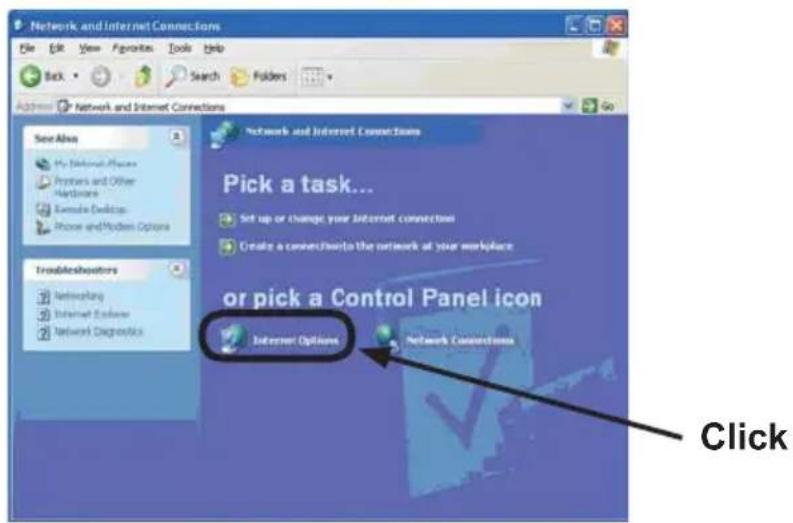

Fig. 2.2.3.a "Network and Internet Connections" window

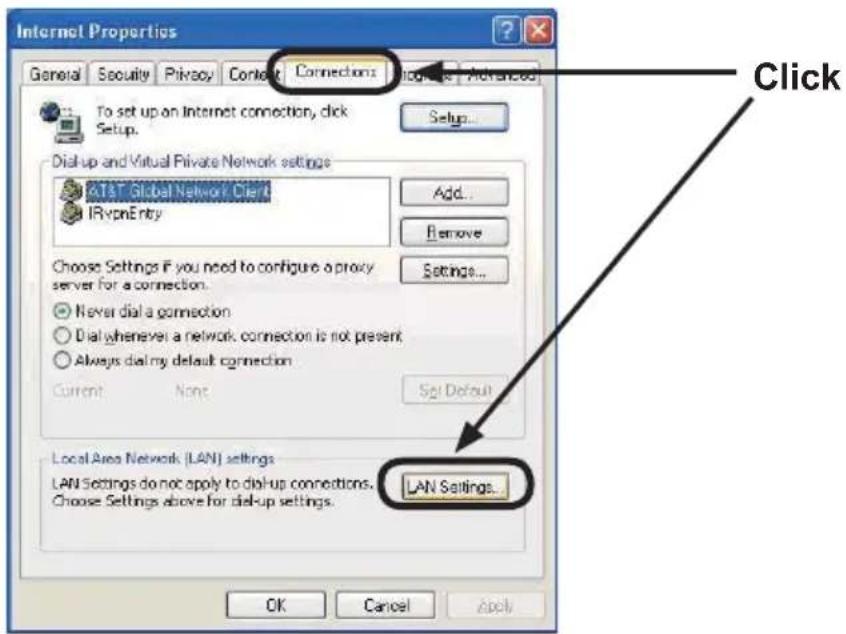

Fig. 2.2.3.b "Internet Properties" window

2) Click "Connections" tab and then click [LAN Settings] button to open "Local Area Network (LAN) settings". (Fig. 2.2.3.c)

2.2 Manual network connection setting (continued)

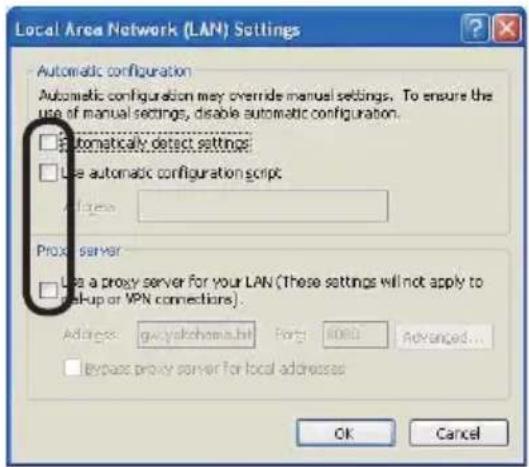

Fig. 2.2.3.c "Local Area Network (LAN) Settings" window

3) Uncheck all boxes in "Local Area Network (LAN) Settings" window. (Fig. 2.2.3.c)

2.2.4 Check connection

Check PC and projector are connected properly here. If it is not connected, check cable connections and settings are properly or not.

1) Start browser in PC and specify following URL, then click "→" button.

URL: http://(Projector IP address)/

For example, if projector IP address is 192.168.1.10, specify

URL: http://192.168.1.10/

2) If Fig. 2.2.4 appears, it succeeds.

Fig. 2.2.4 "Logon Menu"

3. Management with Web browser software

3. Management with Web browser software

This projector is equipped with the following network functions by using a web browser software.

Configuring and Controlling the Projector via a Web Browser

You can change the settings of or control the projector via a network by using a web browser from a PC that is connected to the same network.

E-mail Alerts

The projector can automatically send an alert to specified e-mail addresses when the projector requires maintenance or has encountered an error.

Projector Management using SNMP

This projector is SNMP (Simple Network Management Protocol) compliant, allowing you to monitor it from a remote location using SNMP software. In addition, the projector is able to send failure & warning alerts to a specified PC.

Event Scheduling

You can schedule the projector to perform various functions according to the date and time.

MY IMAGE (Still Image Transfer) Display

The projector can display still images that are transferred via the network.

Command Control via the Network

The projector can be controlled using RS-232C commands over a network.

3.1 Configuring and controlling the projector via a web browser

You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network.

NOTE • Internet Explorer 5.5 or later is required.

• If JavaScript is disabled in your web browser configuration, you must enable JavaScript in order to use the projector web pages properly. See the Help files for your web browser for details on how to enable JavaScript.
• You can communicate using SSL (Secure Socket Layer) if you are using Windows XP Service Pack 2 or earlier versions of Microsoft Windows. Please specify “https://” when you enter the IP address of the projector on the web browser. You can't communicate the projector using SSL on Windows Vista.
• It is recommended that all web browser updates are installed. It is especially recommended that all users running Internet Explorer on a Microsoft Windows version prior to Windows XP Service Pack 2 install security update Q832894 (MS04-004) or the web browser interface may not be displayed correctly.
  And when using an earlier version of Internet Explorer, during operations the browser will log out after 50 seconds.

3.1 Configuring and controlling the projector via a web browser (continued)

When configuring or controlling the projector via a web browser, an ID and password are required. There are two types of IDs, Administrator ID and User ID. The following chart describes the differences between Administrator and User IDs.

Item Description	Administrator User
Network Information	Displays the projector's current network configuration settings.	√	√
Network Settings	Displays and configures network settings.	√ N/A
Port Settings	Displays and configures communication port settings.	√ N/A
Mail Settings	Displays and configures e-mail addressing settings.	√ N/A
Alert Settings	Displays and configures failure & warning alerts.	√ N/A
Schedule Settings	Displays and configures schedule settings.	√ N/A
Date/Time Settings	Displays and configures the date and time settings.	√ N/A
Security Settings	Displays and configures passwords and other security settings.	√ N/A
Projector Control Controls the projector. √ √
Projector Status Displays the current projector status. √ √
Network Restart	Restarts the projector's network connection.	√ N/A

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.1 Logon

Refer to the following for configuring or controlling the projector via a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser and press "Enter" key or click "→" button. The screen in Fig. 3.1.1a will be displayed.

2) Enter your ID and password and click [Logon].

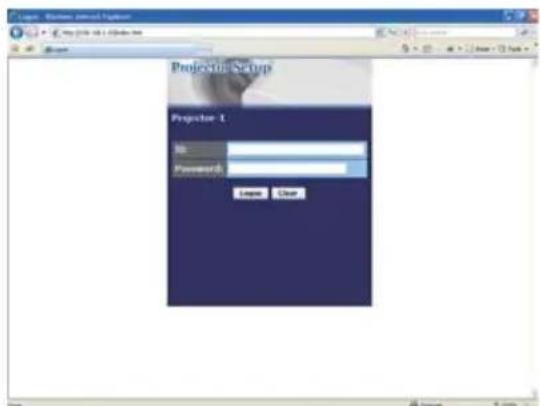

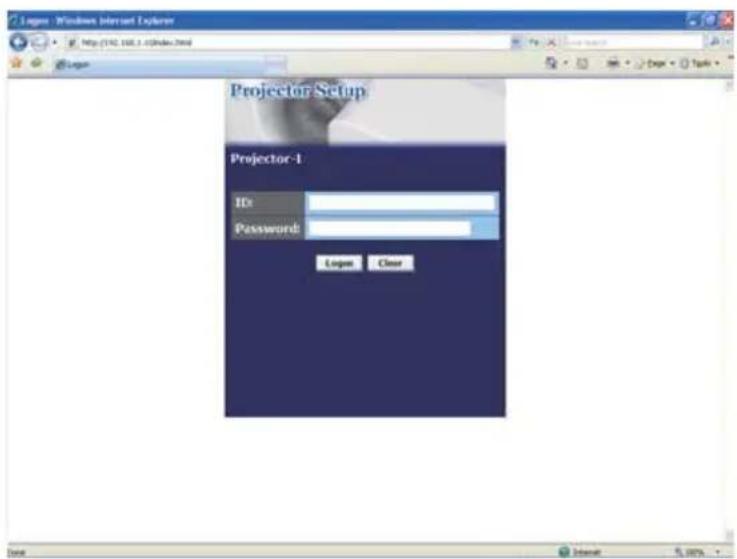

Fig. 3.1.1 a "Logon Menu"

Below are the factory default settings for Administrator ID, User ID and passwords.

Item ID Password
Administrator Administrator
User User

If the logon is successful, either the Fig. 3.1.1 b or Fig. 3.1.1 c screen will be displayed.

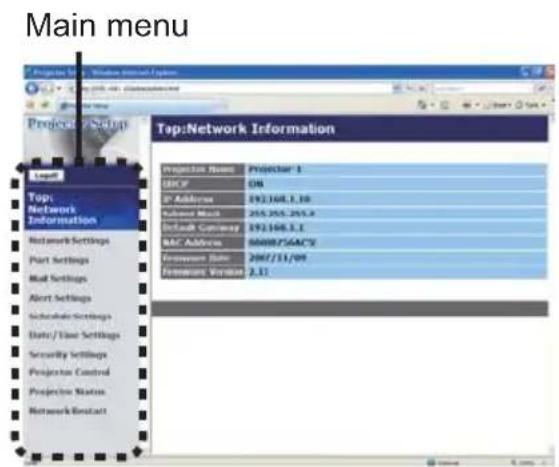

Fig. 3.1.1 b "Logon with Administrator ID"

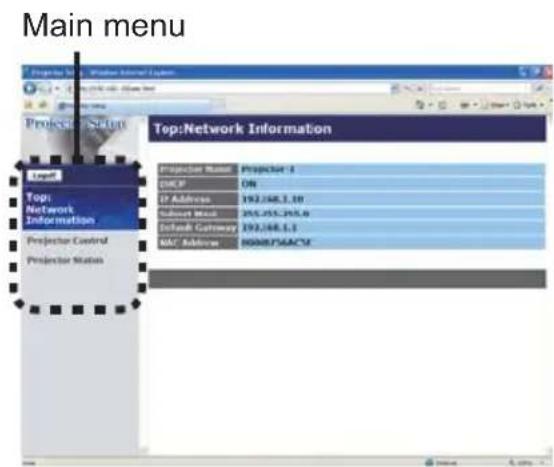

Fig. 3.1.1 c "Logon with User ID"

3) Click the desired operation or configuration item on the main menu located on the left-hand side of the screen.

3.1 Configuring and controlling the projector via a web browser (continued)

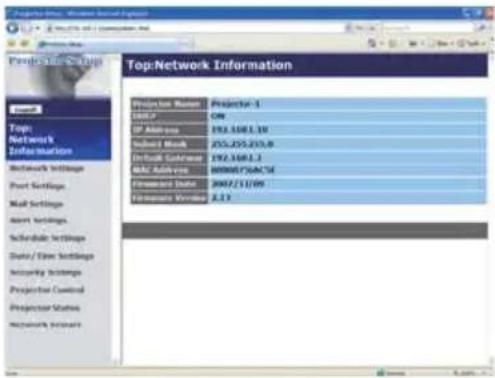

3.1.2 Network Information

All screen drawings in this manual are shown when you logon with the Administrator ID. Any functions that are available only for the Administrator will not be shown when you logon with the User ID. Refer to the table. (13)

Displays the projector's current network configuration settings.

Item Description
Projector Name Displays the projector name settings.
DHCP Displays the DHCP configuration settings.
IP Address Displays the current IP address.
Subnet Mask Displays the subnet mask.
Default Gateway Displays the default gateway.
MAC Address Displays the ethernet MAC address.
Firmware Date	Displays the network firmware time stamp. This information is only displayed when logged on using an Administrator ID.
Firmware Version	Displays the network firmware version number. This information is only displayed when logged on using an Administrator ID.

3.1 Configuring and controlling the projector via a web browser (continued)

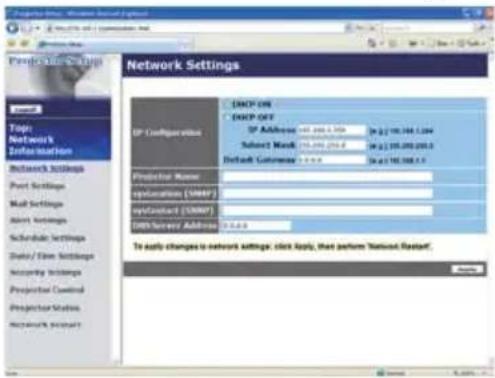

3.1.3 Network Settings

Displays and configures network settings.

Item Description
IP Configuration Configures network settings.
	DHCP ON Enables DHCP.
	DHCP OFF Disables DHCP.
	IP Address Configures the IP address when DHCP is disabled.
	Subnet Mask Configures the subnet mask when DHCP is disabled.
	Default Gateway Configures the default gateway when DHCP is disabled.
Projector Name		Configures the name of the projector.The length of the Projector Name can be up to 64 alphanumeric characters. Only alphabets, numbers and following symbols can be used. !"#$%&'()*+,-./:;<=>?@[^_^_{}~ and space
sysLocation (SNMP)		Configures the location to be referred to when using SNMP.The length of the sysLocation can be up to 255 alphanumeric characters. Only numbers '0-9' and alphabet 'a-z', 'A-Z' can be used.
sysContact (SNMP)		Configures the contact information to be referred to when using SNMP.The length of the sysContact can be up to 255 alphanumeric characters. Only numbers '0-9' and alphabet 'a-z', 'A-Z' can be used.
DNS Server Address Configures the DNS server address.

Click [Apply] button to save the settings.

3.1 Configuring and controlling the projector via a web browser (continued)

NOTE • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

- If you connect the projector to an existing network, consult a network administrator before setting server addresses.

3.1 Configuring and controlling the projector via a web browser (continued)

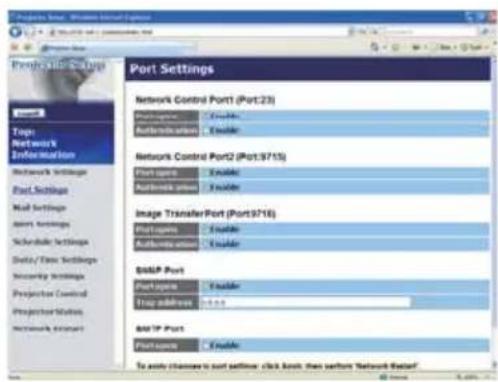

3.1.4 Port Settings

Displays and configures communication port settings.

Item Description
Network Control Port1 (Port:23)		Configures command control port 1 (Port:23).
	Port open Click [Enable]	check box to use port 23.
	Authentication	Click [Enable] check box when authentication is required for this port.
Network Control Port2 (Port:9715)		Configures command control port 2 (Port:9715).
	Port open Click [Enable]	check box to use port 9715.
	Authentication	Click [Enable] check box when authentication is required for this port.
Image Transfer Port (Port:9716)		Configures the image transfer port (Port:9716).
	Port open Click the [Enable]	check box to use port 9716.
	Authentication	Click the [Enable] check box when authentication is required for this port.
SNMP Port Configures the SNMP port.
	Port open Click [Enable]	check box to use SNMP.
	Trap address	Configures the destination of the SNMP Trap in IP format.• The address allows not only IP address but also domain name if the valid DNS server is setup in the Network Settings. The maximum length of host or domain name is up to 255 characters.
SMTP Port Configures the SMTP port.
	Port open Click [Enable]	check box to use the e-mail function.

Click [Apply] button to save the settings.

NOTE • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

3.1 Configuring and controlling the projector via a web browser (continued)

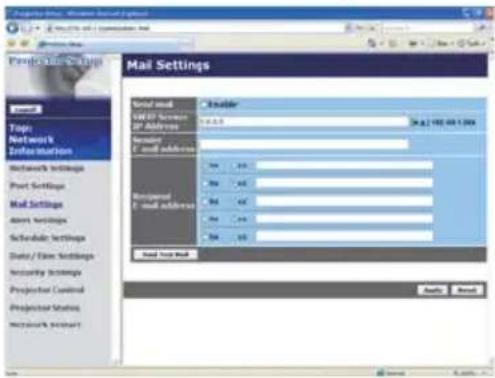

3.1.5 Mail Settings

Displays and configures e-mail addressing settings.

Item Description
Send mail	Click [Enable] check box to use the e-mail function.Configure the conditions for sending e-mail under the Alert Settings.
SMTP Server IP Address	Configures the address of the mail server in IP format.• The address allows not only IP address but also domain name if the valid DNS server is setup in the Network Settings. The maximum length of host or domain name is up to 255 characters.
Sender E-mail address	Configures the sender e-mail address.The length of the sender e-mail address can be up to 255 alphanumeric characters.
Recipient E-mail address	Configures the e-mail address of up to five recipients. You can also specify [TO] or [CC] for each address. The length of the recipient e-mail address can be up to 255 alphanumeric characters.

Click [Apply] button to save the settings.

NOTE • You can confirm whether the mail settings work correctly using [Send Test Mail] button. Please enable Send mail setting before clicking [Send Test Mail].

- If you connect the projector to an existing network, consult a network administrator before setting server addresses.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.6 Alert Settings

Displays and configures failure & alert settings.

Alert Item Description
Cover Error The lamp cover has not been properly fixed.
Fan Error The cooling fan is not operating.
Lamp Error	The lamp does not light, and there is a possibility that interior portion has become heated.
Temp Error	There is a possibility that the interior portion has become heated.
Air Flow Error The internal temperature is rising.
Lamp Time Error Lamp time over.
Cold Error	There is a possibility that the interior portion has become overcooled.
Filter Error Filter time over.
Other Error	Other error.If displaying this error, please contact your dealer.
Schedule Execution Error	Schedule Execution error. (21)
Lamp Time Alarm Lamp time over Alarm Time setting.
Filter Time Alarm Filter time over Alarm Time setting.
Transition Detector Alarm	Transition Detector Alarm. OPTION Menu in the User's Manual (detailed) – Operating Guide)
“CHANGE THE LAMP” is displayed.	“CHANGE THE LAMP” is displayed.
Cold Start	The Power switch is turned on.(Off → standby mode)
Authentication Failure	The SNMP access is detected from the invalid SNMP community.

Refer to "Troubleshooting" in the User's Manual (detailed) – Operating Guide for further detailed explanation of Error except Other Error and Schedule Execution Error.

3.1 Configuring and controlling the projector via a web browser (continued)

The Alert Items are shown below.

Setting Item Description
Alarm Time	Configures the time to alert.(Only Lamp Time Alarm and Filter Time Alarm.)
SNMP Trap Click [Enable]	check box to enable SNMP Trap alerts.
Send Mail	Click [Enable] check box to enable e-mail alerts.(Except Cold Start and Authentication Failure.)
Mail Subject	Configures the subject line of the e-mail to be sent.The length of the subject line can be up to 100 alphanumeric characters.(Except Cold Start and Authentication Failure.)
Mail Text	Configures the text of the e-mail to be sent.The length of the text can be up to 1024 alphanumeric characters.(Except Cold Start and Authentication Failure.)

Click [Apply] button to save the settings.

NOTE • The trigger of Filter Error e-mail is depending on the FILTER MESSAGE setting in the SERVICE item of the OPTION Menu which defines the period until the filter message is displayed on the projector screen. The e-mail will be sent when the filter timer exceeds 500, 1000, 1500 or 2000 hours based on the configuration. No notification e-mail will be sent if the FILTER MESSAGE is set to TURN OFF. (OPTION Menu in the User's Manual (detailed) – Operating Guide)

• Lamp Time Alarm is defined as a threshold for e-mail notification (reminder) of the lamp timer. When the lamp hour exceeds this threshold that is configured through the Web page, the e-mail will be sent out.
• Filter Time Alarm is defined as a threshold for e-mail notification (reminder) of the filter timer. When the filter hour exceeds this threshold, the e-mail will be sent out.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.7 Schedule Settings

Displays and configures schedule settings.

Item Description

Daily Configures the daily schedule.

Sunday Configures the Sunday schedule.

Monday Configures the Monday schedule.

Tuesday Configures the Tuesday schedule.

Wednesday Configures the Wednesday schedule.

Thursday Configures the Thursday schedule.

Friday Configures the Friday schedule.

Saturday Configures the Saturday schedule.

Specific date No.1 Configures the specific date (No.1) schedule.

Specific date No.2 Configures the specific date (No.2) schedule.

Specific date No.3 Configures the specific date (No.3) schedule.

Specific date No.4 Configures the specific date (No.4) schedule.

Specific date No.5 Configures the specific date (No.5) schedule.

3.1 Configuring and controlling the projector via a web browser (continued)

The schedule settings are shown below.

Item Description
Schedule Click [Enable] check box to enable the schedule.
Date (Month/Day)	Configures the month and date.This item appears only when Specific date (No. 1-5) is selected.

Click [Apply] button to save the settings.

The current event settings are displayed on the schedule list. To add additional functions and events, set the following items.

Item Description
Time Configures the time to execute commands.
Command[Parameter]	Configures the commands to be executed.
Power Configures the parameters for power control.
Input Source Configures the parameters for input switching.
Display Image	Configures the parameters for display of transferred image data (38).

Click [Register] button to add new commands to the schedule list.

Click [Delete] button to delete commands from the schedule list.

Click [Reset] button to delete all commands and reset the schedule settings from the schedule list.

NOTE • After the projector is moved, check the date and time set for the projector before configuring the schedules. Strong shock may make the date and time settings (23) get out of tune.

3.1 Configuring and controlling the projector via a web browser (continued)

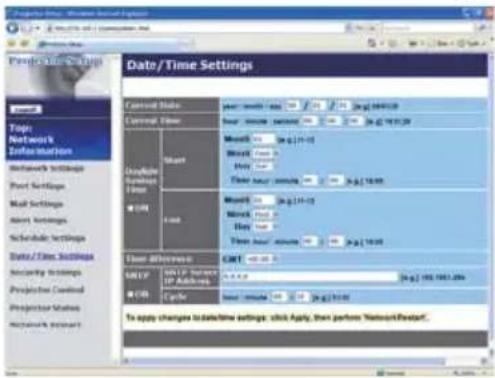

3.1.8 Date/Time Settings

Displays and configures the date and time settings.

Item Description
Current Date Configures the current date in year/month/day format.
Current Time			Configures the current time in hour:minute:second format.
Daylight Savings Time			Click [ON] check box to enable daylight savings time and set the following items.
Start Configures the date and time daylight savings time begins.
Month Configures the month daylight savings time begins (1~12).
Week			Configures the week of the month daylight savings time begins (First, 2, 3, 4, Last).
Day			Configures the day of the week daylight savings time begins (Sun, Mon, Tue, Wed, Thu, Fri, Sat).
Time	hour Configures the hour daylight savings time begins (0 ~ 23).
	minute Configures the minute daylight savings time begins (0 ~ 59).
End Configures the date and time daylight savings time ends.
Month Configures the month daylight savings time ends (1 ~ 12).
Week			Configures the week of the month daylight savings time ends (First, 2, 3, 4, Last).
Day			Configures the day of the week daylight savings time ends (Sun, Mon, Tue, Wed, Thu, Fri, Sat).
Time	hour Configures the hour daylight savings time ends (0 ~ 23).
	minute Configures the minute daylight savings time ends (0 ~ 59).

3.1 Configuring and controlling the projector via a web browser (continued)

Item Description
Time difference		Configures the time difference. Set the same time difference as the one set on your PC. If unsure, consult your IT manager.
SNTP		Click the [ON] check box to retrieve Date and Time information from the SNTP server and set the following items.
		SNTP Server IP Address
		Cycle

Click [Apply] button to save the settings.

NOTE • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

• If you connect the projector to an existing network, consult a network administrator before setting server addresses.
• To enable the SNTP function, the time difference must be set.
• The projector will retrieve Date and Time information from the time server and override time settings when SNTP is enabled.
• The internal clock's time may not remain accurate. Using SNTP is recommended to maintain accurate time.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.9 Security Settings

Displays and configures passwords and other security settings.

Item Description
Administrator authority Configures the Administrator ID and password.
Administrator ID	Configures the Administrator ID.The length of the text can be up to 32 alphanumeric characters.
Administrator Password	Configures the Administrator password.The length of the text can be up to 255 alphanumeric characters.
Re-enter Administrator Password	Reenter the above password for verification.
User authority Configures the User ID and password.
User ID	Configures the User ID.The length of the text can be up to 32 alphanumeric characters.
User Password	Configures the User password.The length of the text can be up to 255 alphanumeric characters.
Re-enter User Password	Reenter the above password for verification.

3.1 Configuring and controlling the projector via a web browser (continued)

Item Description
Network Control	Configures the Authentication password for the command control.
Authentication Password	Configures the Authentication password. The length of the text can be up to 32 alphanumeric characters.
Re-enter Authentication Password	Reenter the above password for verification.
SNMP Configures the community name if SNMP is used.
Community name	Configures the community name. The length of the text can be up to 64 alphanumeric characters.

Click [Apply] button to save the settings.

NOTE • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

- Only numbers ‘0-9’ and alphabet ‘a-z’, ‘A-Z’ can be used.

3.1 Configuring and controlling the projector via a web browser (continued)

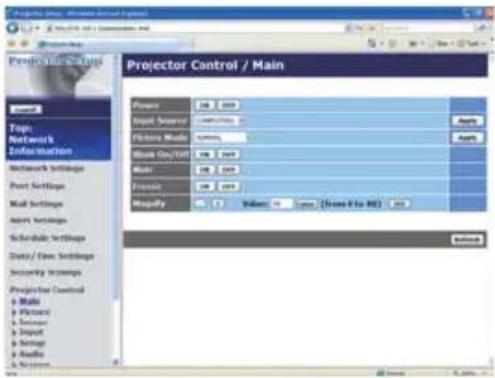

3.1.10 Projector Control

The items shown in the table below can be performed using the Projector Control menu. Select an item using the up and down arrow keys on the PC. Most of the items have a submenu. Refer to the table below for details.

NOTE • The setting value may not match with the actual value if the user changes the value manually. In that case, please refresh the page by clicking [Refresh] button.

Controls the projector.

Item Description
Main
		Power Turns the power on/off.
		Input Source Selects the input source.
		Picture Mode Selects the picture mode setting.
		Blank On/Off Turns Blank on/off.
		Mute Turns Mute on/off.
		Freeze Turns Freeze on/off.
		Magnify Controls the magnify setting.In some input signal sources, it might stop “Magnify” even though it does not reach to maximum setting value.
		Brightness Adjusts the brightness setting.
		Contrast Adjusts the contrast setting.
		Gamma Selects the gamma setting.
		Color Temp Selects the color temperature setting.
		Color Adjusts the color setting.
		Tint Adjusts the tint setting.
		Sharpness Adjusts the sharpness setting.
		MyMemory Save Saves the MyMemory data.
		MyMemory Recall Recalls the MyMemory data.
	Aspect Selects the aspect setting.
	Over Scan Adjusts the over scan setting.
	V Position Adjusts the vertical position.
	H Position Adjusts the horizontal position.
	H Phase Adjusts the horizontal phase.
	H Size Adjusts the horizontal size.
	Auto Adjust Execute Performs the automatic adjustment.
Input
	Progressive Selects the progressive setting.
	Video NR Selects the video noise reduction setting.
	Color Space Selects the color space.
	Component Selects the COMPONENT port setting.
	C-Video Format Selects the video format setting.
	S-Video Format Selects the s-video format setting.
	Frame Lock-Computer1	Turns the frame lock-COMPUTER1 function on/off.
	Frame Lock-Computer2	Turns the frame lock-COMPUTER2 function on/off.
	Computer in-1 Selects the COMPUTER IN1 input signal type.
	Computer in-2 Selects the COMPUTER IN2 input signal type.
Setup
	Auto Keystone Execute	Performs the automatic keystone distortion correction.
	Keystone V	Adjusts the vertical keystone distortion setting.
	Whisper Selects the whisper mode.
	Mirror	Selects the mirror status.
	Standby Mode	Selects the Standby mode.
	Monitor Out-Computer1	Assigns the MONITOR OUT when the COMPUTER IN1 port is selected.
	Monitor Out-Computer2	Assigns the MONITOR OUT when the COMPUTER IN2 port is selected.
	Monitor Out-Component	Assigns the MONITOR OUT when the COMPONENT port is selected.
	Monitor Out-S-Video	Assigns the MONITOR OUT when the S-VIDEO port is selected.
	Monitor Out-Video	Assigns the MONITOR OUT when the VIDEO port is selected.
	Monitor Out-Standby	Assigns the MONITOR OUT in the standby mode.
Audio
		Volume Adjusts the volume setting.
		Speaker Turns the built-in speaker on/off.
		Audio-Computer1 Assigns the AUDIO-COMPUTER IN1 input port.
		Audio-Computer2 Assigns the AUDIO-COMPUTER IN2 input port.
		Audio-Component Assigns the AUDIO-COMPONENT input port.
		Audio-S-Video Assigns the AUDIO-S-VIDEO input port.
		Audio-Video Assigns the AUDIO-VIDEO input port.
		Audio Out Standby Assigns the AUDIO OUT in the standby mode.
Screen
		Language Selects the language for the OSD.
		Menu Position V Adjusts the vertical Menu position.
		Menu Position H Adjusts the horizontal Menu position.
		Blank Selects the Blank mode.
		Startup Selects the startup screen mode.
		MyScreen Lock Turns MyScreen lock function on/off.
		Message Turns the message function on/off.
		Template Selects the template setting.
Option
		Auto Search Turns the automatic signal search function on/off.
		Auto Keystone Turns the automatic keystone distortion correction function on/off.
		Auto on Turns the auto on function on/off.
		Auto off Configures the timer to shut off the projector when no signal is detected.
		My Button-1 Assigns the functions for the MY BUTTON1 button on the included remote control.
		My Button-2 Assigns the functions for the MY BUTTON2 button on the included remote control.
		My Source Selects the My Source setting.
		Remote Freq. Normal Enables/Disables the remote control signal frequency normal.
		Remote Freq. High Enables/Disables the remote control signal frequency high.
Closed Caption
		Display Selects Closed Caption DISPLAY setting.
		Mode Selects Closed Caption MODE setting.
		Channel Selects Closed Caption CHANNEL setting.

3.1 Configuring and controlling the projector via a web browser (continued)

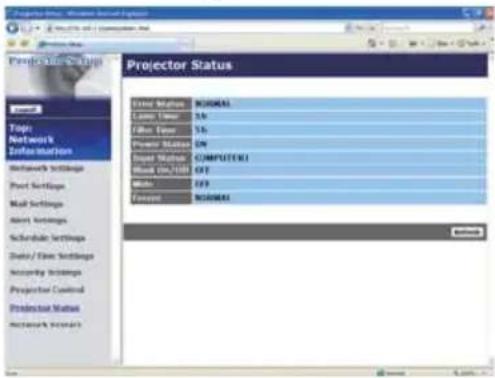

3.1.11 Projector Status

Displays the current projector status.

Item Description
Error Status Displays the current error status
Lamp Time Displays the usage time for the current lamp.
Filter Time Displays the usage time for the current filter.
Power Status Displays the current power status.
Input Status Displays the current input signal source.
Blank On/Off Displays the current Blank on/off status.
Mute Displays the current Mute on/off status.
Freeze Displays the current Freeze status.

3.1 Configuring and controlling the projector via a web browser (continued)

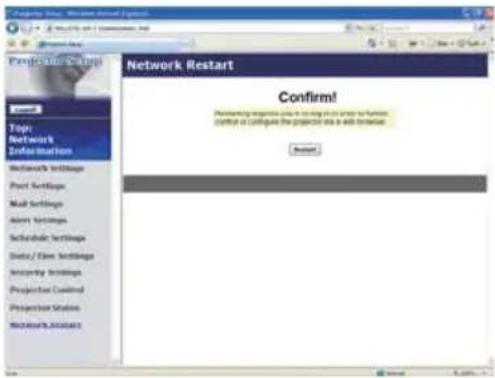

3.1.12 Network Restart

Restarts the projector's network connection.

Item Description
Restart	Restarts the projector's network connection in order to activate new configuration settings.

NOTE • Restarting requires you to re-log on in order to further control or configure the projector via a web browser. Wait 1 minute or more after clicking [Restart] button to log on again.

- The Logon menu (13) is displayed after restarting the projector's network connection if the DHCP is set to ON.

3.1.13 Logoff

When [Logoff] is clicked, the Logon menu is displayed. (13)

3.2 E-mail Alerts

The projector can automatically send an alert message to the specified e-mail addresses when the projector detects a certain condition that is requiring maintenance or detected an error.

NOTE • Up to five e-mail addresses can be specified.

- The projector may be not able to send e-mail if the projector suddenly loses power.

Mail Settings (18)

To use the projector's e-mail alert function, please configure the following items through a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.
2) Enter the Administrator ID and password and click [Logon].
3) Click [Port Settings] on the main menu.
4) Click [Enable] check box to open the SMTP Port.
5) Click [Apply] button to save the settings.

NOTE • A Network Restart is required after the SMTP Port configuration settings have changed. Click [Network Restart] and configure the following items.

6) Click [Mail Settings] and configure each item. Refer to the item 3.1.5 Mail Settings (18) for further information.
7) Click [Apply] button to save the settings.

NOTE • Click [Send Test Mail] button in [Mail Settings] to confirm that the e-mail settings are correct. The following mail will be delivered to the specified addresses.

Subject line :Test Mail

Date Time IP Address MAC Address

3.2 E-mail Alerts (continued)

8) Click [Alert Settings] on the main menu to configure the E-mail Alerts settings.
9) Select and configure each alert item. Refer to the item 3.1.6 Alert Setting

(19) for further information.

10) Click [Apply] button to save the settings.

Failure/Warning e-mails are formatted as follows:

Subject line :

Text :

Date

Time

IP Address

MAC Address

3.3 Projector Management using SNMP

The SNMP (Simple Network Management Protocol) enables to manage the projector information, which is a failure or warning status, from the computer on the network. The SNMP management software will be required on the computer to use this function.

NOTE • It is recommended that SNMP functions be carried out by a network administrator.

- SNMP management software must be installed on the computer to monitor the projector via SNMP.

SNMP Settings (17)

Configure the following items via a web browser to use SNMP.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.
2) Enter the Administrator ID and Password and click [Logon].
3) Click [Port Settings] on the main menu.
4) Click [Enable] check box to open the SNMP Port. Set the IP address to send the SNMP trap to when a Failure/Warning occurs.

NOTE • A Network Restart is required after the SNMP Port configuration settings have been changed. Click [Network Restart] and configure the following items.

5) Click [Security Settings] on the main menu.
6) Click [SNMP] and set the community name on the screen that is displayed.

NOTE • A Network Restart is required after the Community name has been changed. Click [Network Restart] and configure the following items.

7) Configure the settings for Trap transmission of Failures/Warnings. Click [Alert Settings] on the main menu and select the Failure/Warning item to be configured.
8) Click [Enable] check box to send out the SNMP trap for Failures/Warnings. Clear [Enable] check box when SNMP trap transmission is not required.
9) Click [Apply] button to save the settings.

3.4 Event Scheduling

The scheduling function enables to setup scheduled events including power on / power off. It enables to be “self-management” projector.

NOTE • You can schedule the following control events: Power ON/OFF, Input Source and Transferred Image Display.

- The power on / off event has the lowest priority among the all events that are defined at the same time.

• There are 3 types of Scheduling, 1) daily 2) weekly 3) specific date. (21)

- The priority for scheduled events is as follows 1) specific date 2) weekly 3) daily.

- Up to five specific dates are available for scheduled events. Priority is given to those with the lower numbers when more than one event has been scheduled for the same date and time (e.g., 'Specific date No. 1' has priority over 'Specific date No. 2' and so on.

- Be sure to set the date and time before enabling scheduled events. (23)

3.4 Event Scheduling (continued)

Schedule Settings (21)

Schedule settings can be configured from a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.
2) Enter the Administrator ID and password and click [Logon].
3) Click [Schedule Settings] on the main menu and select the required schedule item. For example, if you want to perform the command every Sunday, please select [Sunday].
4) Click [Enable] check box to enable scheduling.
5) Enter the date (month/day) for specific date scheduling.
6) Click [Apply] button to save the settings.
7) After configure the time, command and parameters, click [Register] to add the new event.
8) Click [Delete] button when you want to delete a schedule.

There are three types of scheduling.

1) Daily: Perform the specified operation at a specified time every day.
2) Sunday \~ Saturday: Perform the specified operation at the specified time on a specified day of the week.
3) Specific date: Perform the specified operation on the specified date and time.

NOTE • In standby mode the power indicator will flash green for approx. 3 seconds when at least 1 “Power ON” schedule is saved.

- When the schedule function is used, the power cord must be connected to the projector and the outlet and the power switch must be turned on, [ | ]. The schedule function does not work when the power switch is turned off, [O] or the breaker in a room is tripped. The power indicator will lights orange or green when the projector gets is receiving the power.

3.4 Event Scheduling (continued)

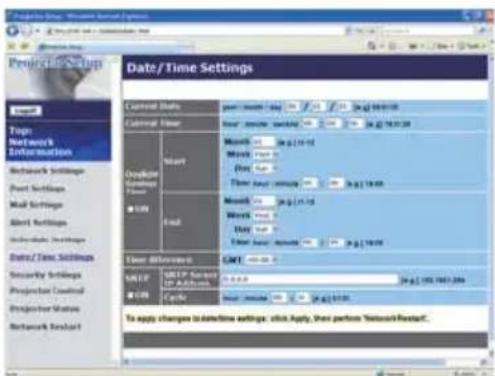

Date/Time Settings (23)

The Date/Time setting can be adjusted via a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser. Enter the Administrator ID and Password and click [Logon].
2) Click [Date/Time Settings] on the main menu and configure each item. Refer to the item 3.1.8 Data/Time Settings for further information.
3) Click [Apply] button to save the settings.

NOTE • A Network Restart is required after the Daylight Savings Time or SNTP configuration settings have been changed.

- The battery for the built in clock may be dead if the clock loses time even when the date and time have been set correctly. Replace the battery by following “Replacing the internal clock battery” section of the User's Manual (concise).

- The internal clock's time may not remain accurate. Using SNTP is recommended to maintain accurate time.

3.5 MY IMAGE (Still Image Transfer) Display

The projector can display still images that are transferred via the network.
Fig. 3.5 Still Image Transfer

MY IMAGE transmission requires an exclusive application for your PC. You can download it from the Hitachi web site (http://hitachi.us/digitalmedia or http://www.hitachidigitalmedia.com). Refer to the manual for the application for instructions.

To display the transferred image, select the MY IMAGE item in the NETWORK Menu. For more information, please see the description of the MY IMAGE item of the NETWORK Menu. (NETWORK Menu in User's Manual (detailed) – Operating Guide)

NOTE • It is possible to allocate the image file up to 4 in the maximum.
- The image file also can be displayed by using schedule function from the web browser. Refer to the item 3.4 Event Scheduling (35) in detail.

3.5 MY IMAGE (Still Image Transfer) Display (continued)

Configure the following items from a web browser when MY IMAGE is used.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.

2) Enter the Administrator ID and password and click [Logon].

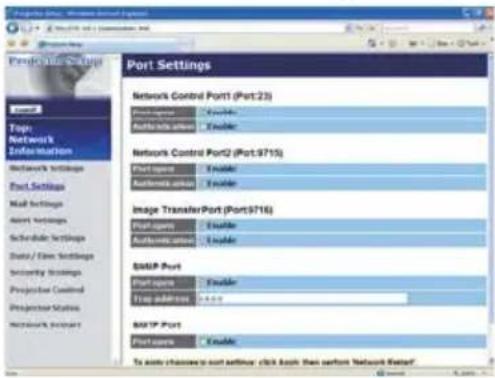

3) Click [Port Settings] on the main menu.

4) Click the [Enable] check box to open the Image Transfer Port (Port: 9716). Click the [Enable] check box for the [Authentication] setting when authentication is required, otherwise clear the check box.

5) Click the [Apply] button to save the settings.

When the authentication setting is enabled, the following settings are required.

6) Click [Security Settings] on the main menu.
7) Select [Network Control] and enter the desired authentication password.
8) Click the [Apply] button to save the settings.

NOTE • The Authentication Password will be the same for Network Control Port1 (Port: 23), Network Control Port2 (Port: 9715), and Image Transfer Port (Port: 9716).

- The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

3.6 Command Control via the Network

You can configure and control the projector via the network using RS-232C commands.

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

NOTE • Command control is not available via communication port (TCP #9716) (17) that is used for the MY IMAGE transmission function.

Command Control Settings (17)

Configure the following items from a web browser when command control is used.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.
2) Enter the Administrator ID and password and click [Logon].

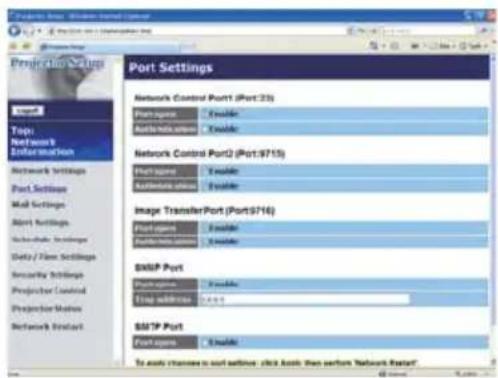

3) Click [Port Settings] on the main menu.

4) Click [Enable] check box to open Network Control Port1 (Port: 23) to use TCP #23. Click [Enable] check box for [Authentication] setting when authentication is required, otherwise clear the check box.
5) Click [Enable] check box to open Network Control Port2 (Port: 9715) to use TCP #9715. Click [Enable] check box for [Authentication] setting when authentication is required, otherwise clear the check box.
6) Click [Apply] button to save the settings.

3.6 Command Control via the Network (continued)

When the authentication setting is enabled, the following settings are required.

7) Click [Security Settings] on the main menu.
8) Click [Network Control] and enter the desired authentication password.

* See NOTE.

9) Click [Apply] button to save the settings.

NOTE • The Authentication Password will be the same for Network Control Port1 (Port: 23), Network Control Port2 (Port: 9715), and Image Transfer Port (Port: 9716).

- The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

3.6 Command Control via the Network (continued)

Command Format

Command formats differ among the different communication ports.

- TCP #23

You can use the RS-232C commands without any changes. The reply data format is the same as the RS-232C commands. However, the following reply will be sent back in the event of authentication failure when authentication is enabled.

Reply Error code
0x1F 0x04 0x00

- TCP #9715

Send Data format

The following formatting is added to the header (0x02), Data length (0x0D), Checksum (1byte) and Connection ID (1 byte) of the RS-232C commands.

Header Data length RS-232C command Check Sum				Connection ID
0x02 0x0D 13 bytes 1 byte 1 byte

Header → 0x02, Fixed

Data length → RS-232C commands byte length (0x0D, Fixed)

RS-232C commands → RS-232C commands that start with 0xBE 0xEF (13 bytes)

Check Sum → This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

Connection ID → Random value from 0 to 255 (This value is attached to the reply data)

3.6 Command Control via the Network (continued)

Reply Data format

The connection ID (the data is same as the connection ID data on the sending data format) is attached to the RS-232C commands reply data.

Reply	Connection ID
0x06 1 byte

Reply	Connection ID
0x15 1 byte

Reply Error code	Connection ID
0x1C 2 bytes 1 byte

Reply Data	Connection ID
0x1D 2 bytes 1 byte

Reply Status code	Connection ID
0x1F 2 bytes 1 byte

Reply	Authentication Error code		Connection ID
0x1F 0x04 0x00 1 byte

3.6 Command Control via the Network (continued)

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the Authentication Password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the Authentication Password is set to “password” and the random 8 bytes are “a572f60c”.

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the Authentication Password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm. It will be "e3d97429adffa11bce1f7275813d4bde".
5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data. Send "e3d97429adffa11bce1f7275813d4bde"+command.
6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

Projector

CP-X206/CP-X306

User's Manual (detailed)

Technical

Example of PC signal

Resolution (H x V)	H. frequency (kHz)	V. frequency (Hz)	Rating Signal mode
720 x 400 37.9	85.0 VESA TEXT
640 x 480 31.5	59.9 VESA VGA (60Hz)
640 x 480 37.9	72.8 VESA VGA (72Hz)
640 x 480 37.5	75.0 VESA VGA (75Hz)
640 x 480 43.3	85.0 VESA VGA (85Hz)
800 x 600 35.2	56.3 VESA SVGA (56Hz)
800 x 600 37.9	60.3 VESA SVGA (60Hz)
800 x 600 48.1	72.2 VESA SVGA (72Hz)
800 x 600 46.9	75.0 VESA SVGA (75Hz)
800 x 600 53.7	85.1 VESA SVGA (85Hz)
832 x 624 49.7	74.5 Mac 16" mode
1024 x 768 48.4	60.0 VESA XGA (60Hz)
1024 x 768 56.5	70.1 VESA XGA (70Hz)
1024 x 768 60.0	75.0 VESA XGA (75Hz)
1024 x 768 68.7	85.0 VESA XGA (85Hz)
1152 x 864 67.5	75.0 VESA
1280 x 960 60.0	60.0 VESA
1280 x 1024 64.0	60.0 VESA SXGA (60Hz)
1280 x 1024 80.0	75.0 VESA SXGA (75Hz)
1280 x 1024 91.1	85.0 VESA SXGA (85Hz)
1600 x 1200 75.0	60.0 VESA UXGA (60Hz)
1280 x 768 47.7	60.0 VESA W-XGA (60Hz)
1400 x 1050 65.2	60.0 VESA $XGA+ (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

- Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.

- Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.

- Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.

- Automatically adjustment may not function correctly with some input signals. - The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in IMAGE menu.

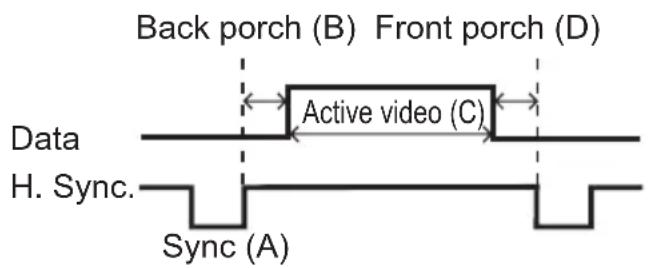

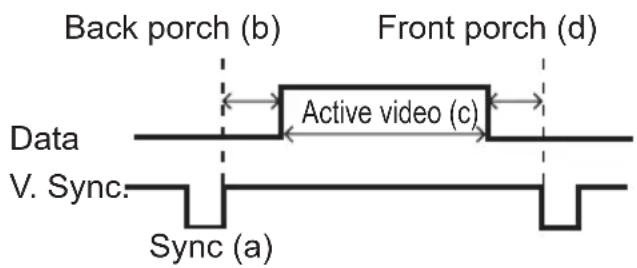

computer Signal	Horizontal signal timing (μs)				computer Signal	Vertical signal timing (lines)
	(A)	(B)	(C)	(D)	(a)	(b)	(c)	(d)
TEXT 2.0	3.0	20.3	1.0	TEXT 3	4	2	400	1
VGA (60Hz)	3.8	1.9	25.4	0.6	VGA	(60Hz)	2	33	480
VGA (72Hz)	1.3	4.1	20.3	0.8	VGA	(72Hz)	3	28	480
VGA (75Hz)	2.0	3.8	20.3	0.5	VGA	(75Hz)	3	16	480
VGA (85Hz)	1.6	2.2	17.8	1.6	VGA	(85Hz)	3	25	480
SVGA (56Hz)	2.0	3.6	22.2	0.7	SVGA	(56Hz)	2	22	600
SVGA (60Hz)	3.2	2.2	20.0	1.0	SVGA	(60Hz)	4	23	600
SVGA (72Hz)	2.4	1.3	16.0	1.1	SVGA	(72Hz)	6	23	600
SVGA (75Hz)	1.6	3.2	16.2	0.3	SVGA	(75Hz)	3	21	600
SVGA (85Hz)	1.1	2.7	14.2	0.6	SVGA	(85Hz)	3	27	600
Mac 16" mode	1.1	3.9	14.5	0.6	Mac 16" mode	3	39	624	1
XGA (60Hz)	2.1	2.5	15.8	0.4	XGA	(60Hz)	6	29	768
XGA (70Hz)	1.8	1.9	13.7	0.3	XGA	(70Hz)	6	29	768
XGA (75Hz)	1.2	2.2	13.0	0.2	XGA	(75Hz)	3	28	768
XGA (85Hz)	1.0	2.2	10.8	0.5	XGA	(85Hz)	3	36	768
1152 x 864 (75Hz)	1.2	2.4	10.7	0.6		1152 x 864 (75Hz)	3	32	864
1280 x 960 (60Hz)	1.0	2.9	11.9	0.9		1280 x 960 (60Hz)	3	36	960
SXGA (60Hz)	1.0	2.3	11.9	0.4		SXGA(60Hz)	3	38	1024
SXGA (75Hz)	1.1	1.8	9.5	0.1		SXGA (75Hz)	3	38	1024
SXGA (85Hz)	1.0	1.4	8.1	0.4		SXGA (85Hz)	3	44	1024
UXGA (60Hz)	1.2	1.9	9.9	0.4		UXGA (60Hz)	3	46	1200
W-XGA (60Hz)	1.7	2.5	16.0	0.8	W-XGA	(60Hz)	3	23	768
SXGA+ (60Hz)	1.2	2.0	11.4	0.7		SXGA+ (60Hz)	3	33	1050

Connection to the ports

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
- Composite sync. Signal: TTL level

Pin	Signal Pin Signal
1	Video Red 10 Ground
2	Video Green 11 (No connection)
3	Video Blue	12	A: SDA (DDC data)B, C: (No connection)
4	(No connection)
5	Ground 13 H. sync / Composite sync.
6	Ground Red 14 V. sync.
7	Ground Green	15	A: SCL (DDC clock)B, C: (No connection)
8	Ground Blue
9	(No connection) --

COMPONENT VIDEO Ⓓ Y, Ⓔ Pb/Cb, Ⓕ Pr/Cr

RCA jack x3

- System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60

Port S	gnal
Y	Component video Y, 1.0±0.1Vp-p, 75Ω terminator with composite
Pb/Cb	Component video Pb/Cb, 0.7±0.1Vp-p, 75Ω terminator
Pr/Cr	Component video Pr/Cr, 0.7±0.1Vp-p, 75Ω terminator

©S-VIDEO

Mini DIN 4pin jack

Pin Signal
1	Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2	Brightness signal, 1.0Vp-p, 75Ω terminator
3	Ground
4	Ground

HVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• 1.0±0.1Vp-p, 75Ω terminator

①AUDIO IN1, ②AUDIO IN2

To input SCART RGB signal to the projector, use a SCART to RCA cable. Connect the plugs refer to above ex.. For more reference, please consult your dealer.

USB

USB B type jack

Pin	Signal
1	+5V
2	- Data
3	+ Data
4	Ground

CONTROL

D-sub 9pin plug

- About the details of RS-232C communication, please refer to the following page.

Pin S	Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)

LAN

RJ-45 jack

Pin	Signal Pin	Signal Pin	Signal
1	TX +	4 -	7 -
2	TX -	5 -	8 -
3	RX +	6 RX -	- -

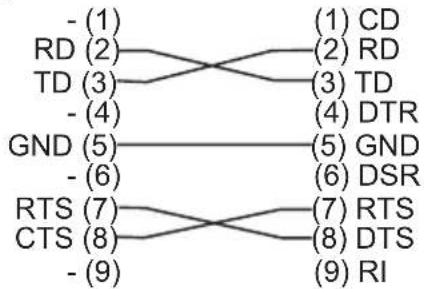

RS-232C Communication

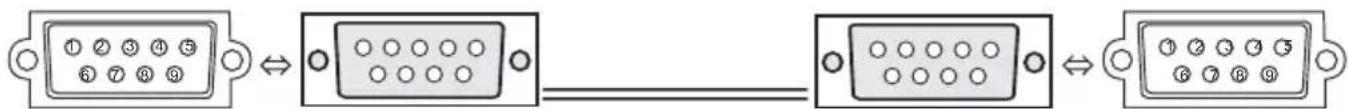

CONTROL port RS-232C cable (cross) RS-232C port of the projector of the computer

Connecting the cable

1. Turn off the projector and the computer.
2. Connect the CONTROL port of the projector with a RS-232C port of the computer by a RS-232C cable (cross). Use the cable that fulfills the specification shown in the previous page.
3. Turn the computer on, and after the computer has started up turn the projector on.

Communications setting

19200bps, 8N1

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high CRC_low: Lower byte of CRC flag for command data CRC_high: Upper byte of CRC flag for command data

3. Command data

Command data chart

byte_0 byte_1 byte	2 byte_3 byte_4 byte_5
Action Type Setting code
low high low high low high

Action (byte_0 - 1)

Action Classification Content

1 Set Change setting to desired value.

2 Get Read projector internal setup value.

4 Increment Increment setup value by 1.

5 Decrement Decrement setup value by 1.

6 Execute Run a command.

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 2 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + \text { type } (2 \text { bytes) } $$

(2) The projector returns the response code '1DH' + data (2 bytes) to the PC.

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 1 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + \text { type (2 bytes) } + \text { setting code (2 bytes)) } $$

(2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code '06H' to the PC.

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 6 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + \text { type } (2 \text { bytes) } $$

(2) The projector changes the specified setting to the default value.

(3) The projector returns the response code '06H' to the PC.

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 4 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + \text { type } (2 \text { bytes) } $$

(2) The projector increases the setting value on the above setting code.

(3) The projector returns the response code '06H' to the PC.

Decreasing the projector setting value (Decrement command)

(1) The PC sends the following decrement code to the projector.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 5 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + \text { type } (2 \text { bytes) } $$

(2) The projector decreases the setting value on the above setting code.

(3) The projector returns the response code '06H' to the PC.

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code '15H' is sent back to the PC.

Sometimes the projector cannot properly receive the command. In such a case, the command is not executed and the error code '15H' is sent back to the PC. If this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code '1CH' + 'xxxxH' is sent back to the PC.

When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, an error code will be returned to the PC.

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

• Provide an interval of at least 40ms between the response code and any other code.
• The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.

Command Control via the Network

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Command Control Settings

Configure the following items form a web browser when command control is used.

Port Settings
Netowrk Control Port1 (Port: 23)	Port open	Click the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is “Enable”.
	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Disable”.
Network Control Port2 (Port: 9715)	Port open	Click the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is “Enable”.
	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Enable”.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network Control	Authentication Password	Enter the desired authentication password. This setting will be the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
	Re-enter Authentication Password

Command Format

[TCP #23]

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low: Lower byte of CRC flag for command data

CRC_high: Upper byte of CRC flag for command data

3. Command data

Command data chart

byte_0 byte_1 byte	2 byte_3 byte_4 byte_5
Action Type Setting code
low high low high low high

Action (byte_0 - 1)

Action Classification Content

1 Set Change setting to desired value.

2 Get Read projector internal setup value.

4 Increment Increment setup value by 1.

5 Decrement Decrement setup value by 1.

6 Execute Run a command.

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.

Header + Command data ('02H' + '00H' + type (2 bytes) + '00H' + '00H')

(2) The projector returns the response code '1DH' + data (2 bytes) to the PC.

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.
Header + Command data ('01H' + '00H' + type (2 bytes) + setting code (2 bytes))
(2) The projector changes the setting based on the above setting code.
(3) The projector returns the response code '06H' to the PC.

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.
Header + Command data ('06H' + '00H' + type (2 bytes) + '00H' + '00H')
(2) The projector changes the specified setting to the default value.
(3) The projector returns the response code '06H' to the PC.

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.
Header + Command data ('04H' + '00H' + type (2 bytes) + '00H' + '00H')
(2) The projector increases the setting value on the above setting code.
(3) The projector returns the response code '06H' to the PC.

Decreasing the projector setting value (Decrement command)

(1) The PC sends the following decrement code to the projector.

Header + Command data ('05H' + '00H' + type (2 bytes)

(2) The projector decreases the setting value on the above setting code.
(3) The projector returns the response code '06H' to the PC.

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code '15H' is sent back to the PC.

Sometimes the projector cannot properly receive the command. In such a case, the command is not executed and the error code '15H' is sent back to the PC. If this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code '1CH' + 'xxxxH' is sent back to the PC.

When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, an error code will be returned to the PC.

When authentication error occurred.

When authentication error occurred, the error code the '1FH' + '0400H' is sent back to the PC.

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

• Provide an interval of at least 40ms between the response code and any other code.
• Commands are not accepted during warm-up.

[TCP #9715]

1. Protocol

Consist of header (1 byte) + data length (1 byte) + command data (13 bytes) + check sum (1 bytes) + connection ID (1 byte).

2. Header

02, Fixed

3. Data Length

Network control commands byte length (0D, Fixed)

4. Command data

Network control commands that start with BE EF (13bytes).

5. Check Sum

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

6. Connection ID

Random value from 0 to 255 (This value is attached to the reply data).

7. Reply Data

The connection ID (the data is same as the connection ID data on the sending data format) is attached to the Network control commands reply data.

ACK reply: '06H' + 'xxH' NAK reply: '15H' + 'xxH' Error reply: '1CH' + 'xxxxH' + 'xxH' Data reply: '1DH' + 'xxxxH' + 'xxH' Projector busy reply: '1FH' + 'xxxxH' + 'xxH' Authentication error reply: '1FH' + '0400H' + 'xxH' ('xxH': connection ID)

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the authentication password is set to “password” and the random 8 bytes are “a572f60c”.

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the authentication password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm. It will be "e3d97429adffa11bce1f7275813d4bde".
5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data. Send "e3d97429adffa11bce1f7275813d4bde"+command.
6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

RS-232C communication/Network Command table

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
Power	Set Turn off BE EF 03 06 00 2A		D3 01 00 00	60 00 00
	Turn on BE EF 03 06 00 BA D2 01 00 D0 60 01 00
	Get BE EF 03 06 00 19 D3 02 00 D0 60 00 00
					[Example return]00 00 [Off]	01 00 [On]	02 00[Cool down]
Input Source	Set COMPUTER1 BE EF 03 06		00 FE D2 01	00 00 20	00 00
	COMPUTER2 BE EF		03 06 00 3E	D0 01	00 00 20 04 00
	COMPONENT		BE EF 03	06 00 A	E D1 01 00 00	20 05 00
	S-VIDEO		BE EF 03	06 00 9E	D3 01 00 00	20 02 00
	VIDEO		BE EF 03	06 00 6E	D3 01 00 00	20 01 00
	Get BE EF 03 06		00 CD D2 02	00 00 20	00 00
Error Status	Get BE EF 03 06		00 D9 D8 02	00 20 60	00 00
			[Example return]00 00 [Normal]	01 00 [Cover error]	02 00 [Fan error]	03 00 [Lamp error]
			04 00 [Temp error]	05 00 [Air flow error]	06 00 [Lamp time error]	07 00 [Cold error]
			08 00 [Filter error]
BRIGHTNESS	Get BE EF 03 06		00 89 D2 02 00	03 20	00 00
	Increment		BE EF 03	06 00 E	D2 04 00 03	20 00 00
	Decrement		BE EF	03	06 00	3E D3	05 00	03 20	00 00
BRIGHTNESS Reset	Execute		BE EF 03	06 00	58 D3 06	00 00 70 00	00
CONTRAST	Get BE EF 03 06		00 FD D3 02	00 04 20	00 00
	Increment		BE EF 03	06 00 9E	D3 04 00 04	20 00 00
	Decrement		BE EF 03	06 00 4A	D2 05 00 04	20 00 00
CONTRAST Reset	Execute		BE EF 03	06 00 A	D2 06 00 01	70 00 00
PICTURE MODE	Set	NORMAL	BE EF	03	06 00	23 F6	01 00	BA 30	00 00
		CINEMA	BE EF	03	06 00	B3 F7	01 00	BA 30	01 00
		DYNAMIC	BE EF	03	06 00	E3 F4	01 00	BA 30	04 00
		BOARD(BLACK) BE EF	03 06 00 E3 EF	01 00 BA 30	20 00
		BOARD(GREEN)	BE EF 03	06 00 7E	EE 01 00 BA 30	21 00
		WHITEBOARD	BE EF 03	06 00 8E	EE 01 00 BA 30	22 00
		DAYTIME	BE EF	03	06 00	E3 C7	01 00	BA 30	40 00
	Get		BE EF	03	06 00	10 F6	02 00	BA 30	00 00
			[Example return]00 00 [Normal]	01 00 [Cinema]	04 00 [Dynamic]	10 00 [Custom]
			20 00 [BOARD(BLACK)]	21 00 [BOARD(GREEN)]	22 00 [WHITEBOARD]	40 00 [DAY TIME]
GAMMA	Set	#1 DEFAULT	BE EF	03	06 00	07 E9	01 00	A1 30	20 00
		#1 CUSTOM	BE EF	03	06 00	07 FD	01 00	A1 30	10 00
		#2 DEFAULT	BE EF	03	06 00	97 E8	01 00	A1 30	21 00
		#2 CUSTOM	BE EF	03	06 00	97 FC	01 00	A1 30	11 00
		#3 DEFAULT	BE EF	03	06 00	67 E8	01 00	A1 30	22 00
		#3 CUSTOM	BE EF	03	06 00	67 FC	01 00	A1 30	12 00
		#4 DEFAULT	BE EF	03	06 00	F7 E9	01 00	A1 30	23 00
		#4 CUSTOM	BE EF	03	06 00	F7 FD	01 00	A1 30	13 00
		#5 DEFAULT	BE EF	03	06 00	C7 EB	01 00	A1 30	24 00
		#5 CUSTOM	BE EF	03	06 00	C7 FF	01 00	A1 30	14 00
		#6 DEFAULT	BE EF	03	06 00	57 EA	01 00	A1 30	25 00
		#6 CUSTOM	BE EF	03	06 00	57 FE	01 00	A1 30	15 00
	Get		BE EF	03	06 00	F4 F0	02 00	A1 30	00 00
User Gamma Pattern Set Off		Set Off	BE EF 03 06 00 FB FA 01 00 80 30 00 00
			9 steps gray scale	BE EF	03	06 00	6B FB	01 00	80 30	01 00
			15 steps gray scale	BE EF	03	06 00	9B FB	01 00	80 30	02 00
			Ramp BE EF 03 06 00 0B FA 01 00 80 30 03 00
		Get		BE EF 03 06 00 08 FA 02 00 80 30 00 00
User Gamma Point 1	Get		BE EF	03	06 00	08 FE	02 00	90 30	00 00
	Increment		BE EF 03 06 00 6E FE 04 00 90 30 00 00
	Decrement		BE EF 03 06 00 BF FF 05 00 90 30 00 00
User Gamma Point 2	Get		BE EF	03	06 00	F4 FF	02 00	91 30	00 00
	Increment		BE EF 03 06 00 92 FF 04 00 91 30 00 00
	Decrement		BE EF 03 06 00 43 FE 05 00 91 30 00 00
User Gamma Point 3	Get		BE EF	03	06 00	B0 FF	02 00	92 30	00 00
	Increment		BE EF 03 06 00 D6 FF 04 00 92 30 00 00
	Decrement		BE EF 03 06 00 07 FE 05 00 92 30 00 00
User Gamma Point 4	Get		BE EF	03	06 00	4C FE	02 00	93 30	00 00
	Increment		BE EF 03 06 00 2A FE 04 00 93 30 00 00
	Decrement		BE EF 03 06 00 FB FF 05 00 93 30 00 00
User Gamma Point 5	Get		BE EF	03	06 00	38 FF	02 00	94 30	00 00
	Increment		BE EF 03 06 00 5E FF 04 00 94 30 00 00
	Decrement		BE EF 03 06 00 8F FE 05 00 94 30 00 00
User Gamma Point 6	Get		BE EF	03	06 00	C4 FE	02 00	95 30	00 00
	Increment		BE EF 03 06 00 A2 FE 04 00 95 30 00 00
	Decrement		BE EF 03 06 00 73 FF 05 00 95 30 00 00
User Gamma Point 7	Get		BE EF	03	06 00	80 FE	02 00	96 30	00 00
	Increment		BE EF 03 06 00 E6 FE 04 00 96 30 00 00
	Decrement		BE EF 03 06 00 37 FF 05 00 96 30 00 00
User Gamma Point 8	Get		BE EF	03	06 00	7C FF	02 00	97 30	00 00
	Increment		BE EF 03 06 00 A FF 04 00 97 30 00 00
	Decrement		BE EF 03 06 00 CB FE 05 00 97 30 00 00
COLOR TEMP	Set	#1 HIGH	BE EF	03	06 00	0B F5	01 00	B0 30	03 00
		#1 CUSTOM	BE EF	03	06 00	CB F8	01 00	B0 30	13 00
		#2 MID	BE EF	03	06 00	9B F4	01 00	B0 30	02 00
		#2 CUSTOM	BE EF	03	06 00	5B F9	01 00	B0 30	12 00
		#3 LOW	BE EF	03	06 00	6B F4	01 00	B0 30	01 00
		#3 CUSTOM	BE EF	03	06 00	AB F9	01 00	B0 30	11 00
		#4 Hi-BRIGHT-1	BE EF	03	06 00	3B F2	01 00	B0 30	08 00
		#4 CUSTOM	BE EF	03	06 00	FB FF	01 00	B0 30	18 00
		#5 Hi-BRIGHT-2	BE EF	03	06 00	AB F3	01 00	B0 30	09 00
		#5 CUSTOM	BE EF	03	06 00	6B FE	01 00	B0 30	19 00
		#6 Hi-BRIGHT-3	BE EF	03	06 00	5B F3	01 00	B0 30	0A 00
		#6 CUSTOM	BE EF	03	06 00	9B FE	01 00	B0 30	1A 00
	Get		BE EF	03	06 00	C8 F5	02 00	B0 30	00 00
COLOR TEMP GAIN R	Get		BE EF	03	06 00	34 F4	02 00	B1 30	00 00
	Increment		BE EF	03	06 00	52 F4	04 00	B1 30	00 00
	Decrement		BE EF	03	06 00	83 F5	05 00	B1 30	00 00
COLOR TEMP GAIN G	Get		BE EF	03	06 00	70 F4	02 00	B2 30	00 00
	Increment		BE EF	03	06 00	16 F4	04 00	B2 30	00 00
	Decrement		BE EF	03	06 00	C7 F5	05 00	B2 30	00 00

(continued on next page)

Names Operation Type Header						Command Data
						CRC Action Type Setting Code
COLOR TEMP GAIN B	Get		BE EF	03	06 00	8C F5	02 00	B3 30
	Increment BE EF 03		06 00 EA F5	04 00	B3 30 00 00
	Decrement BE EF 03		06 00 3B F4	05 00	B3 30 00 00
COLOR TEMPOFFSET R	Get BE EF 03 06		00 04 F5 02	00 B5	30 00 00
	Increment BE EF 03		06 00 62 F5	04 00	B5 30 00 00
	Decrement BE EF 03		06 00 B3 F4	05 00	B5 30 00 00
COLOR TEMPOFFSET G	Get BE EF 03 06		00 40 F5 02	00 B6	30 00 00
	Increment BE EF 03		06 00 26 F5	04 00	B6 30 00 00
	Decrement BE EF 03		06 00 F7 F4	05 00	B6 30 00 00
COLOR TEMPOFFSET B	Get BE EF 03 06		00 BC F4 02	00 B7	30 00 00
	Increment BE EF 03		06 00 DA F4	04 00	B7 30 00 00
	Decrement BE EF 03		06 00 0B F5	05 00	B7 30 00 00
COLOR Get BE	EF 03 06 00 B5 72 02 00 02 22		00 00
	Increment BE EF 03		06 00 D3 72	04 00	02 22	00 00
	Decrement BE EF 03		06 00 02 73	05 00	02 22	00 00
COLOR Reset	Execute		BE EF	03	06 00	80 D0	06 00	0A 70
TINT	Get BE EF 03 06		00 49 73 02	00 03 22	00 00
	Increment BE EF 03		06 00 2F 73	04 00	03 22	00 00
	Decrement BE EF 03		06 00 FE 72	05 00	03 22	00 00
TINT Reset	Execute		BE EF	03	06 00	7C D1	06 00	0B 70
SHARPNESS	Get BE EF 03 06		00 F1 72 02	00 01 22	00 00
	Increment BE EF 03		06 00 97 72	04 00	01 22	00 00
	Decrement BE EF 03		06 00 46 73	05 00	01 22	00 00
SHARPNESS Reset	Execute		BE EF	03	06 00	C4 D0	06 00	09 70
MY MEMORY Load	Set	1	BE EF	03	06 00	0E D7	01 00	14 20
		2	BE EF	03	06 00	9E D6	01 00	14 20
		3	BE EF	03	06 00	6E D6	01 00	14 20
		4	BE EF	03	06 00	FE D7	01 00	14 20
MY MEMORY Save	Set	1	BE EF	03	06 00	F2 D6	01 00	15 20
		2	BE EF	03	06 00	62 D7	01 00	15 20
		3	BE EF	03	06 00	92 D7	01 00	15 20
		4	BE EF	03	06 00	02 D6	01 00	15 20
PROGRESSIVE	Set	TURN OFF	BE EF	03	06 00	4A 72	01 00	07 22
		TV	BE EF 03	06 00	DA 73 01 00	07 22	01 00
		FILM	BE EF 03	06 00	A 73 01 00	07 22	02 00
	Get BE EF 03 06		00 79 72 02	00 07 22	00 00
VIDEO NR	Set	LOW	BE EF	03	06 00	26 72	01 00	06 22
		MID	BE EF 03	06 00	D6 72 01 00	06 22	02 00
		HIGH	BE EF 03	06 00	D6 73 01 00	06 22	03 00
	Get BE EF 03 06		00 85 73 02	00 06 22	00 00
ASPECT	Set	4:3	BE EF	03	06 00	9E D0	01 00	08 20
		16:9	BE EF 03	06 00	D1 01 00	08 20	01 00
		14:9	BE EF	03	06 00	CE D6	01 00	08 20
		SMALL	BE EF	03	06 00	FE D1	01 00	08 20
		NORMAL	BE EF	03	06 00	5E DD	01 00	08 20
	Get		BE EF	03	06 00	AD D0	02 00	08 20

(continued on next page)

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
OVER SCAN Get BE EF 03 06 00 91 70 02 00 09			22 00 00
			Increment BE EF 03	06 00 F7 70	04 00	09 22 00 00
			Decrement BE EF 03	06 00 26 71	05 00	09 22 00 00
OVER SCAN Reset			Execute	BE EF	03	06 00	EC D9	06 00	27 70
V POSITION			Get BE EF 03 06	00 0D 83 02	00 00	1 00 00
			Increment BE EF 03	06 00 6B 83	04 00	00 21 00 00
			Decrement BE EF 03	06 00 BA	82 05 00	00 21 00 00
V POSITION Reset			Execute	BE EF	03	06 00	E0 D2	06 00	02 70
H POSITION			Get BE EF 03 06	00 F1 82 02	00 01	1 00 00
			Increment BE EF 03	06 00 97 82	04 00	01 21 00 00
			Decrement BE EF 03	06 00 46 83	05 00	01 21 00 00
H POSITION Reset			Execute	BE EF	03	06 00	1C D3	06 00	03 70
H PHASE			Get BE EF 03 06	00 49 83 02	00 03	21 00 00
			Increment BE EF 03	06 00 2F 83	04 00	03 21 00 00
			Decrement BE EF 03	06 00 FE 82	05 00	03 21 00 00
H SIZE			Get BE EF 03 06	00 B5 82 02	00 02	21 00 00
			Increment BE EF 03	06 00 D3 82	04 00	02 21 00 00
			Decrement BE EF 03	06 00 02 83	05 00	02 21 00 00
H SIZE Reset			Execute	BE EF	03	06 00	68 D2	06 00	04 70
AUTO ADJUST			Execute	BE EF	03	06 00	91 D0	06 00	0A 20
COLOR SPACE	Set	AUTO	BE EF	03	06 00	0E 72	01 00	04 22	00 00
		RGB BE EF 03	06 00 9E 73	01 00	04 22 01 00
		SMPTE240	BE EF 03	06 00	6E 73 01 00	04 22 02 00
		REC709	BE EF 03	06 00	FE 72 01 00	04 22 03 00
		REC601	BE EF 03	06 00	CE 70 01 00	04 22 04 00
	Get BE EF 03 06		00 3D 72 02	00 04	22 00 00
COMPONENT	Set	COMPONENT	BE EF	03	06 00	4A D7	01 00	17 20	00 00
		SCART RGB	BE EF	03	06 00	DA D6	01 00	17 20	01 00
	Get BE EF 03 06		00 79 D7 02	00 17	20	00 00
C-VIDEO FORMAT	Set	AUTO	BE EF	03	06 00	A2 70	01 00	11 22	0A 00
		NTSC	BE EF 03	06 00	C2 74	01 00 11 22	4 00
		PAL	BE EF	03	06 00	52 75	01 00	11 22	05 00
		SECAM	BE EF 03	06 00	52 70 01 00	11 22 09 00
		NTSC4.43	BE EF 03	06 00	62 77 01 00	11 22 02 00
		M-PAL	BE EF	03	06 00	C2 71	01 00	11 22	08 00
		N-PAL	BE EF 03	06 00	62 74 01 00	11 22 07 00
	Get BE EF 03 06		00 31 76 02	00	11 22 00 00
S-VIDEO FORMAT	Set	AUTO	BE EF	03	06 00	E6 70	01 00	12 22	0A 00
		NTSC	BE EF 03	06 00	66 74 01 00	12 22 04 00
		PAL	BE EF	03	06 00	16 75	01 00	12 22	05 00
		SECAM	BE EF 03	06 00	66 70 01 00	12 22 09 00
		NTSC4.43	BE EF 03	06 00	66 77 01 00	12 22 02 00
		M-PAL	BE EF 03	06 00	66 71 01 00	12 22 08 00
		N-PAL	BE EF 03	06 00	66 74 01 00	12 22 07 00
	Get BE EF 03 06		00 75 76 02	00 12	22 00 00

(continued on next page)

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
FRAME LOCK-COMPUTER1	Set	TURN OFF BE EF 03 06	00 3B C2 01	00 50 30	00 00
		TURN ON BE EF	03 06 00 AB	C3 01	00 50 30 01	00
	Get BE EF 03 06		00 08 C2 02	00 50 30	00 00
FRAME LOCK-COMPUTER2	Set	TURN OFF BE EF 03 06	00 7F C2 01	00 54 30	00 00
		TURN ON BE EF	03 06 00 EF	C3 01	00 54 30 01	00
	Get BE EF 03 06		00 4C C2 02	00 54 30	00 00
COMPUTER IN1	Set	SYNC ON G ON	BE EF	03	06 00	CE D6	01 00	10 20	03 00
		SYNC ON G OFF	BE EF	03	06 00	5E D7	01 00	10 20	02 00
	Get BE EF 03 06		00 0D D6 02	00 10	20 00 00
COMPUTER IN2	Set	SYNC ON G ON	BE EF	03	06 00	32 D7	01 00	11 20	03 00
		SYNC ON G OFF	BE EF	03	06 00	A2 D6	01 00	11 20	02 00
	Get BE EF 03 06		00 F1 D7	02 00	11 20	00 00
KEYSTONE V	Get BE EF 03 06		00 B9 D3 02	00 07	20 00 00
	Increment		BE EF	03	06 00	DF D3	04 00	07 20	00 00
	Decrement		BE EF	03	06 00	OE D2	05 00	07 20	00 00
KEYSTONE V Reset	Execute		BE EF	03	06 00	08 D0	06 00	0C 70	00 00
AUTO KEYSTONE EXECUTE	Execute		BE EF 03	06 00	E5 D1 06 00	0D 20	00 00
WHISPER	Set	NORMAL	BE EF	03	06 00	3B 23	01 00	00 33	00 00
		WHISPER	BE EF 03	06 00	AB 22 01 00	00 33 01 00
	Get BE EF 03 06		00 08	23 02 00	00 33 00 00
MIRROR	Set	NORMAL	BE EF	03	06 00	C7 D2	01 00	01 30	00 00
		H:INVERT	BE EF 03	06 00	7 D3 01 00	01 30 01 00
		V:INVERT	BE EF 03	06 00	A7 D3 01 00	01 30	02 00
		H&V:INVERT	BE EF 03	06 00	7 D2 01 00	01 30 03 00
	Get BE EF 03 06		00 F4 D2 02	00 01	30 00 00
STANDBY MODE	Set	NORMAL	BE EF	03	06 00	D6 D2 01	00 01 60 00	00
		SAVING	BE EF	03	06 00	46 D3 01	00 01	60	01 00
	Get BE EF			03	06 00	E5 D2 02	00 01 60 00	00
MONITOR OUT-COMPUTER1	Set	COMPUTER1	BE EF 03	06 00		3E F4 01	00 B0 20 00	00
		TURN OFF	BE EF 03	06 00		CE B5 01	00 B0 20	FF 00
	Get BE EF 03 06		00			0D F4 02	00 B0	20	00 00
MONITOR OUT-COMPUTER2	Set	COMPUTER2	BE EF 03	06 00		CE F7 01	00 B4	20	04 00
		TURN OFF	BE EF 03	06 00		FE B4 01	00 B4 20	FF 00
	Get BE EF			03	06 00	3D F5 02	00 B4	20	00 00
MONITOR OUT-VIDEO	Set	COMPUTER1	BE EF	03	06 00	C2 F5 01	00 B1	20	00 00
		COMPUTER2	BE EF 03	06 00		02 F7	01 00	B1 20	04 00
		TURN OFF	BE EF 03	06 00		32 B4 01	00 B1	20	FF 00
	Get BE EF 03 06		00			F1 F5 02	00 B1	20	00 00
MONITOR OUT-S-VIDEO	Set	COMPUTER1	BE EF 03	06 00		86 F5	01 00	B2 20	00 00
		COMPUTER2	BE EF 03	06 00		46 F7	01 00	B2 20	04 00
		TURN OFF	BE EF 03	06 00		76 B4 01	00 B2	20	FF 00
	Get BE EF 03 06		00			B5 F5 02	00 B2 20 00	00

(continued on next page)

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
MONITOR OUT - COMPONENT	Set	COMPUTER1	BE EF 03	06 00		F2 F4 01	00 B5 20 00	00
		COMPUTER2	BE EF 03	06 00		32 F6 01	00 B5 20 04	00
		TURN OFF	BE EF 03	06 00		02 B5 01	00 B5 20 FF	00
	Get BE EF 03 06 00					C1 F4 02	00 B5 20 00	00
MONITOR OUT - STANDBY	Set	COMPUTER1	BE EF 03	06 00		F2 F4 01	00 BF 20 00	00
		COMPUTER2	BE EF 03	06 00		32 F6 01	00 BF 20 04	00
		TURN OFF	BE EF	03	06 00	02 B5 01	00 BF 20 FF	00
	Get BE EF			03	06 00	C1 F4 02	00 BF 20 00	00
VOLUME-COMPUTER1	Get BE EF 03 06 00 CD CC 02 00 60 20 00 00
	Increment		BE EF	03	06 00	AB CC	04 00	60 20	00 00
	Decrement		BE EF	03	06 00	7A CD	05 00	60 20	00 00
VOLUME-COMPUTER2	Get		BE EF	03	06 00	FD CD	02 00	64 20	00 00
	Increment		BE EF	03	06 00	9B CD	04 00	64 20	00 00
	Decrement		BE EF	03	06 00	4A CC	05 00	64 20	00 00
VOLUME-COMPONENT	Get BE EF 03 06 00 01 CC 02 00 65 20 00 00
	Increment		BE EF	03	06 00	67 CC	04 00	65 20	00 00
	Decrement		BE EF	03	06 00	B6 CD	05 00	65 20	00 00
VOLUME-S-VIDEO	Get		BE EF	03	06 00	75 CD	02 00	62 20	00 00
	Increment		BE EF	03	06 00	13 CD	04 00	62 20	00 00
	Decrement		BE EF	03	06 00	C2 CC	05 00	62 20	00 00
VOLUME-VIDEO	Get		BE EF	03	06 00	31 CD	02 00	61 20	00 00
	Increment		BE EF	03	06 00	57 CD	04 00	61 20	00 00
	Decrement		BE EF	03	06 00	86 CC	05 00	61 20	00 00
VOLUME-AUDIO OUT STANDBY	Get		BE EF 03	06 00	D9 CF	02 00 6F	20 00 00
	Increment		BE EF 03	06 00	BF CF	04 00 6F	20 00 00
	Decrement		BE EF 03	06 00	6E CE	05 00 6F	20 00 00
MUTE	Set	TURN OFF	BE EF	03	06 00	46 D3	01 00	02 20	00 00
		TURN ON	BE EF	03	06 00	D6 D2	01 00	02 20	01 00
	Get BE EF 03 06 00 75 D3 02 00 02 20 00 00
SPEAKER	Set	TURN ON	BE EF	03	06 00	FE D4	01 00	1C 20	01 00
		TURN OFF	BE EF	03	06 00	6E D5	01 00	1C 20	00 00
	Get BE EF 03 06 00 5D D5 02 00 1C 20 00 00
AUDIO-COMPUTER1	Set	AUDIO1	BE EF	03	06 00	6E DC	01 00	30 20	01 00
		AUDIO2	BE EF	03	06 00	9E DC	01 00	30 20	02 00
		AUDIO3	BE EF	03	06 00	OE DD	01 00	30 20	03 00
		Turn off	BE EF	03	06 00	FE DD	01 00	30 20	00 00
	Get BE EF 03 06 00 CD DD 02 00 30 20 00 00
AUDIO-COMPUTER2	Set	AUDIO1	BE EF	03	06 00	5E DD	01 00	34 20	01 00
		AUDIO2	BE EF	03	06 00	AE DD	01 00	34 20	02 00
		AUDIO3	BE EF	03	06 00	3E DC	01 00	34 20	03 00
		Turn off	BE EF	03	06 00	CE DC	01 00	34 20	00 00
	Get		BE EF	03	06 00	FD DC	02 00	34 20	00 00
AUDIO-COMPONENT	Set	AUDIO1	BE EF	03	06 00	A2 DC	01 00	35 20	01 00
		AUDIO2	BE EF	03	06 00	52 DC	01 00	35 20	02 00
		AUDIO3	BE EF	03	06 00	C2 DD	01 00	35 20	03 00
		Turn off	BE EF	03	06 00	32 DD	01 00	35 20	00 00
	Get BE EF 03 06 00 01 DD 02 00 35 20 00 00

(continued on next page)

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
AUDIO-S-VIDEO Set	AUD	O1 BE EF 03 06 00 D6 D	D 01 00 32	20 01 00
		AUDIO2 BE EF	03 06 00 26	DD 01 00	0 32 20 02 00
		AUDIO3 BE EF	03 06 00 B6	DC 01 00	0 32 20 03 00
		Turn off BE EF	03 06 00 46	DC 01 00	0 32 20 00 00
	Get		BE EF 03	06 00 75	DC 02 00	32 20 00 00
AUDIO-VIDEO	Set	AUDIO1 BE EF 03 06 00	02 DD 01 00	31 20 01 00
		AUDIO2 BE EF	03 06 00 62	DD 01 00	0 31 20 02 00
		AUDIO3 BE EF	03 06 00 F2	DC 01 00	0 31 20 03 00
		Turn off BE EF	03 06 00 02	DC 01 00	0 31 20 00 00
	Get		BE EF 03	06 00 31	DC 02 00	31 20 00 00
AUDIO OUT STANDBY	Set	AUDIO1	BE EF	03	06 00	7A DF	01 00	3F 20	01 00
		AUDIO2	BE EF	03	06 00	8A DF	01 00	3F 20	02 00
		AUDIO3	BE EF	03	06 00	1A DE	01 00	3F 20	03 00
		Turn off	BE EF	03	06 00	EA DE	01 00	3F 20	00 00
	Get		BE EF	03	06 00	D9 DE	02 00	3F 20	00 00
REMOTE FREQ. NORMAL	Set	Off	BE EF	03	06 00	FF 3D	01 00	30 26	00 00
		On	BE EF	03	06 00	6F 3C	01 00	30 26	01 00
	Get		BE EF	03	06 00	CC 3D	02 00	30 26	00 00
REMOTE FREQ. HIGH	Set	Off	BE EF	03	06 00	03 3C	01 00	31 26	00 00
		On	BE EF	03	06 00	93 3D	01 00	31 26	01 00
	Get		BE EF	03	06 00	30 3C	02 00	31 26	00 00
LANGUAGE	Set	ENGLISH	BE EF	03	06 00	F7 D3	01 00	05 30	00 00
		FRANÇAIS	BE EF	03	06 00	67 D2	01 00	05 30	01 00
		DEUTSCH	BE EF	03	06 00	97 D2	01 00	05 30	02 00
		ESPAÑOL BE EF	03 06 00	07 D3	01 00	05 30 03 00
		ITALIANO	BE EF	03	06 00	37 D1	01 00	05 30	04 00
		NORSK	BE EF	03	06 00	A7 D0	01 00	05 30	05 00
		NEDERLANDS	BE EF	03	06 00	57 D0	01 00	05 30	06 00
		PORTUGUÊS	BE EF 03	06 00 C7	D1 01 00	05 30 07 00
		日本語	BE EF	03	06 00	37 D4	01 00	05 30	08 00
		简体中文	BE EF 03	06 00	A7 D5 01 00	05 30 09 00
		繁體中文	BE EF 03	06 00	37 DE 01 00	05 30 10 00
		한글	BE EF	03	06 00	57 D5	01 00	05 30	0A 00
		SVENSKA BE EF	03 06 00 C7	D4 01 00	05 30 0B 00
		PYCCKIЙ	BE EF	03	06 00	F7 D6	01 00	05 30	0C 00
		SUOMI	BE EF	03	06 00	67 D7	01 00	05 30	0D 00
		POLSKI	BE EF	03	06 00	97 D7	01 00	05 30	0E 00
		TÜRKÇE	BE EF	03	06 00	07 D6	01 00	05 30	0F 00
	Get		BE EF 03	06 00 C4	D3 02 00	05 30 00 00
MENU POSITION H	Get		BE EF	03	06 00	04 D7	02 00	15 30	00 00
	Increment		BE EF	03	06 00	62 D7	04 00	15 30	00 00
	Decrement		BE EF	03	06 00	B3 D6	05 00	15 30	00 00
MENU POSITION H Reset	Execute		BE EF 03	06 00 D2	C6 06 00	43 70 00 00
MENU POSITION V	Get		BE EF	03	06 00	40 D7	02 00	16 30	00 00
	Increment		BE EF	03	06 00	26 D7	04 00	16 30	00 00
	Decrement		BE EF	03	06 00	F7 D6	05 00	16 30	00 00
MENU POSITION V Reset	Execute		BE EF	03	06 00	A8 C7	06 00	44 70	00 00

(continued on next page)

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
BLANK Set MyScreen	Screen	BE EF 03 06 00 FB CA	01 00 00 30	20 00
		ORIGINAL	BE EF 03	06 00	FB E2 01 00	00 30 40 00
		BLUE	BE EF 03	06 00	CB D3 01 00	00 30 03 00
		WHITE	BE EF 03	06 00	B D0 01 00	00 30 05 00
		BLACK	BE EF 03	06 00	B D0 01 00	00 30 06 00
	Get		BE EF	03	06 00	08 D3	02 00	00 30	00 00
BLANK On/Off	Set	TURN OFF	BE EF	03	06 00	FB D8	01 00	20 30	00 00
		TURN ON BE EF	03 06 00 6B	D9 01	00 20 30 01	00
	Get		BE EF 03	06 00	C8 D8 02 00	20 30 00 00
START UP Set MyScreen	Screen	BE EF 03 06 00 CB CB	01 00 04 30	20 00
		ORIGINAL	BE EF 03	06 00	B D2 01 00	04 30 00 00
		TURN OFF	BE EF 03	06 00	B D3 01 00	04 30 01 00
	Get		BE EF	03	06 00	38 D2	02 00	04 30	00 00
MyScreen LOCK	Set	TURN OFF	BE EF	03	06 00	3B EF	01 00	C0 30	00 00
		TURN ON	BE EF	03	06 00	AB EE	01 00	C0 30	01 00
	Get		BE EF	03	06 00	08 EF	02 00	C0 30	00 00
MESSAGE	Set	TURN OFF	BE EF	03	06 00	8F D6	01 00	17 30	00 00
		TURN ON BE EF	03 06 00	1F D7	01 00 17 30	01 00
	Get		BE EF 03	06 00	BC D6 02 00	17 30 00 00
TEMPLATE	Set	TEST PATTERN	BE EF	03	06 00	43 D9	01 00	22 30	00 00
		DOT-LINE1	BE EF 03	06 00	D3 D8 01 00	22 30 01 00
		DOT-LINE2	BE EF	03	06 00	23 D8	01 00	22 30	02 00
		DOT-LINE3	BE EF 03	06 00	B3 D9 01 00	22 30 03 00
		DOT-LINE4	BE EF 03	06 00	B3 DB 01 00	22 30 04 00
	Get		BE EF	03	06 00	70 D9	02 00	22 30	00 00
AUTO SEARCH	Set	TURN OFF	BE EF	03	06 00	B6 D6	01 00	16 20	00 00
		TURN ON	BE EF	03	06 00	26 D7	01 00	16 20	01 00
	Get		BE EF	03	06 00	85 D6	02 00	16 20	00 00
AUTO KEYSTONE	Set	TURN OFF	BE EF	03	06 00	EA D1	01 00	OF 20	00 00
		TURN ON	BE EF	03	06 00	7A D0	01 00	OF 20	01 00
	Get		BE EF 03	06 00	D9 D1 02 00	OF 20 00 00
AUTO ON	Set	TURN OFF	BE EF	03	06 00	3B 89	01 00	20 31	00 00
		TURN ON	BE EF	03	06 00	AB 88	01 00	20 31	01 00
	Get		BE EF	03	06 00	08 89	02 00	20 31	00 00
AUTO OFF	Get		BE EF	03	06 00	08 86	02 00	10 31	00 00
	Increment		BE EF	03	06 00	6E 86	04 00	10 31	00 00
	Decrement		BE EF	03	06 00	BF 87	05 00	10 31	00 00
LAMP TIME	Get		BE EF	03	06 00	C2 FF	02 00	90 10	00 00
LAMP TIME Reset	Execute		BE EF	03	06 00	58 DC	06 00	30 70	00 00
FILTER TIME	Get		BE EF	03	06 00	C2 F0	02 00	A0 10	00 00
FILER TIME Reset	Execute		BE EF	03	06 00	98 C6	06 00	40 70	00 00

(continued on next page)

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
MY BUTTON-1	Set	COMPUTER1	BE EF 03	06 00	A 33 01 00	00 36 00 00
		COMPUTER2	BE EF 03	06 00	A 31 01 00	00 36 04 00
		COMPONENT	BE EF 03	06 00	A 30 01 00	00 36 05 00
		S-VIDEO	BE EF	03 06	00 5A 32 01	00 00 36 02 00
		VIDEO	BE EF 03	06 00	A 32 01 00	00 36 01 00
		INFORMATION	BE EF	03 06	00 FA 3E 01	00 00 36 00 00
		AUTO KEYSTONE V	BE EF	03 06	00 6A 3F 01	00 00 36 11 00
		MY MEMORY	BE EF	03 06	00 9A 3F 01	00 00 36 12 00
		PICTURE MODE	BE EF	03 06	00 0A 3E 01	00 00 36 13 00
		FILTER RESET	BE EF 03	06 00	A 3C 01 00	00 36 14 00
		MY IMAGE	BE EF 03	06 00	A 3D 01 00	00 36 16 00
		AV MUTE BE EF	03 06 00 AA	38 01	00 00 36 19 00
		TEMPLATE	BE EF 03	06 00	CA 39 01 00	00 36	1B 00
	Get		BE EF 03	06 00	09 33 02 00	00 36 00 00
MY BUTTON-2	Set	COMPUTER1	BE EF	03 06	00 C6 32 01	00 01 36 00 00
		COMPUTER2	BE EF 03	06 00	6 30 01 00	01 36 04 00
		COMPONENT	BE EF 03	06 00	6 31 01 00	01 36 05 00
		S-VIDEO	BE EF	03 06	00 A6 33 01	00 01 36 02 00
		VIDEO	BE EF 03	06 00	6 33 01 00	01 36 01 00
		INFORMATION	BE EF	03 06	00 06 3F 01	00 01 36 10 00
		AUTO KEYSTONE V	BE EF 03	06 00	6 3E 01 00	01 36 11 00
		MY MEMORY	BE EF 03	06 00	6 3E 01 00	01 36 12 00
		PICTURE MODE	BE EF	03 06	00 F6 3F 01	00 01 36 13 00
		FILTER RESET	BE EF	03 06	00 C6 3D 01	00 01 36 14 00
		MY IMAGE	BE EF 03	06 00	A6 3C 01 00	01 36 16 00
		AV MUTE BE EF	03 06 00 56	39 01	00 01 36 19 00
		TEMPLATE	BE EF 03	06 00	6 38 01 00	01 36	1B 00
	Get		BE EF 03	06 00	F5 32 02 00	01 36 00 00
MY SOURCE	Set	COMPUTER1	BE EF	03 06	00	FA 30 01	00 20 36 00	00
		COMPUTER2	BE EF 03	06 00		3A 3A 01	00 20 36 04	00
		COMPONENT	BE EF 03	06 00		AA 3B 01	00 20 36 05	00
		S-VIDEO	BE EF	03 06	00	9A 39 01	00 20 36 02	00
		VIDEO	BE EF 03	06 00	6A 39 01 00	20 36 01 00
	Get		BE EF 03	06 00		C9 38 02	00 20 36 00	00
MAGNIFY	Get		BE EF 03	06 00	7C D2 02 00	07 30 00 00
	Increment		BE EF 03	06 00	1A D2 04 00	07 30 00 00
	Decrement		BE EF	03	06 00	CB D3	05 00	07 30	00 00
FREEZE	Set	NORMAL BE EF	03 06 00 83	D2 01	00 02 30 00	00
		FREEZE	BE EF 03	06 00	13 D3 01 00	02 30 01 00
	Get		BE EF 03	06 00	80 D2 02 00	02 30 00 00
CLOSED CAPTION DISPLAY	Set	TURN OFF	BE EF	03 06	00	FA 62	01 00	00 37 00	00
		TURN ON	BE EF 03	06 00		6A 63	01 00	00 37 01	00
		AUTO	BE EF 03	06 00		9A 63	01 00	00 37 02	00
	Get		BE EF	03 06	00	C9 62	02 00	00 37 00	00
CLOSED CAPTION MODE	Set	CAPTIONS	BE EF 03	06 00		06 63	01 00	01 37 00	00
		TEXT	BE EF 03	06 00		96 62	01 00	01 37 01	00
	Get		BE EF 03	06 00		35 63	02 00	01 37 00	00
CLOSED CAPTION CHANNEL	Set		BE EF 03	06 00		D2 62	01 00	02 37 01	00
		2	BE EF 03	06 00		22 62	01 00	02 37 02	00
		3	BE EF 03	06 00		B2 63	01 00	02 37 03	00
		4	BE EF	03 06 00		82 61	01 00	02 37 04	00
	Get		BE EF 03	06 00		71 63	02 00	02 37 00	00
MY IMAGE	Set	OFF	BE EF	03	06 00	3A C3	01 00	00 35	00 00
		IMAGE1	BE EF	03	06 00	AA C2	01 00	00 35	01 00
		IMAGE2	BE EF	03	06 00	5A C2	01 00	00 35	02 00
		IMAGE3	BE EF	03	06 00	CA C3	01 00	00 35	03 00
		IMAGE4	BE EF	03	06 00	FA C1	01 00	00 35	04 00
	Get		BE EF	03	06 00	09 C3	02 00	00 35	00 00
MY IMAGE IMAGE1 Delete	Execute		BE EF	03	06 00	71 C3	06 00	01 35	00 00
MY IMAGE IMAGE2 Delete	Execute		BE EF	03	06 00	35 C3	06 00	02 35	00 00
MY IMAGE IMAGE3 Delete	Execute		BE EF	03	06 00	C9 C2	06 00	03 35	00 00
MY IMAGE IMAGE4 Delete	Execute		BE EF	03	06 00	BD C3	06 00	04 35	00 00

HITACHI

Inspire the Next

Hitachi,Ltd.

ConsumerBusinessGroup

Shin-OtemachiBldg5f,2-1,Otemachi2-Chome,

Chiyoda-Ku, Tokyo100-0004Japan

HITACHIEUROPELTD.

ConsumerAffairsDepartment

POBox3007

Maidenhead

BerkshireSL68ZE

UNITEDKINGDOM

Tel:[phone]

Email: [e-mail]

HITACHIEUROPES.A.

364,KifissiasAve.&1,DelfonStr.

15233Chalandri

Athens

GREECE

Tel:[phone]

Fax:[phone]

Email: [e-mail]

HITACHIEUROPEGmbH

MunichOffice

DornacherStrasse3

Hotline:[phone](12ct/min.)

Email: [e-mail]

HITACHIEUROPES.A.

GranViaCarlesIII,86Planta5 ^4

Email: [e-mail]

HITACHIEUROPEAB

Box77

S-16494KISTA

SWEDEN

Tel:[phone]

Fax:[phone]

Email: [e-mail]

HITACHIEUROPES.A.S

LyonOffice

B.P.45,69671BronCedex

FRANCE

Tel:[phone]

Fax:[phone]

NorwegianBranchOffice

Strandveien18

1366Dysaker

NORWAY

Tel:[phone]

Fax:[phone]

Email [e-mail]

HITACHIEUROPELTD.

BeneluxBrancheOffice

Bergensesteenweg421

1600Sint-Pieters-Leeuw

BELGIUM

TEL:[phone]

FAX:[phone]

Email:[e-mail]
