Product Type	Bluetooth Speaker
Brand	Magnavox
Model	MSB5300
Dimensions (W x D x H)	6.3 x 6.3 x 6.6 inches (16 x 16 x 16.8 cm)
Weight	1.5 lbs (0.68 kg)
Power Supply	Rechargeable Lithium-Ion battery, 5V DC via micro USB
Battery Life	Up to 8 hours at moderate volume
Wireless Range	Up to 33 ft (10 m)
Speaker Driver	1x 3-inch full-range driver
Output Power	5W RMS
Frequency Response	100 Hz - 20 kHz
Connectivity	Bluetooth 5.0, 3.5mm AUX input
Controls	Power, Volume +/-, Play/Pause, Pairing button
Microphone	Built-in for hands-free calls
Water Resistance	IPX4 (splash-proof)
Included Accessories	Micro USB charging cable, AUX cable, user manual
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use harsh chemicals.
Safety Warnings	Do not expose to extreme heat or moisture. Keep away from children.
Spare Parts Availability	Contact Magnavox support for replacement parts.

Frequently Asked Questions - MSB5300 MAGNAVOX

How do I pair the MSB5300 with Bluetooth?

Press and hold the Pairing button until the LED flashes blue and red. On your device, select 'Magnavox MSB5300' from the Bluetooth list.

What is the battery life of this speaker?

The built-in rechargeable battery provides up to 8 hours of playtime at moderate volume levels.

How do I charge the speaker?

Connect the included micro USB cable to the speaker and a USB power source (5V). The LED indicator will turn red while charging and go off when fully charged.

Can I use the speaker while charging?

Yes, you can listen to music while the speaker is charging via the micro USB port.

How do I reset the speaker?

To reset, press and hold the Power and Volume + buttons simultaneously for 5 seconds. The speaker will turn off and reset.

Why won't my device connect via Bluetooth?

Ensure Bluetooth is enabled on your device and the speaker is in pairing mode (LED flashing). Try moving closer and avoid interference from other devices.

Does the speaker have a microphone for calls?

Yes, the MSB5300 has a built-in microphone for hands-free calling. When a call comes in, press the Play/Pause button to answer.

Is the speaker waterproof?

It has an IPX4 rating, meaning it is splash-proof but not fully waterproof. Avoid submerging it.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners or liquids. Ensure the charging port is dry before charging.

What if the speaker stops working or the battery won't charge?

Try a different charging cable and power source. If the issue persists, contact Magnavox support for further assistance.

USER MANUAL MSB5300 MAGNAVOX

Please visit our website at WWW.MAGNAVOX.COM

for online Owner's Manual

MAGNAVOX

MAGNAVOX is a registered trademark of Philips Electronics North America Corporation and is used by Funai Electric Co., Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America

Supplied accessories

Expandable Soundbar

Sub woofer
(MSB5305 only)

Quick Start Guide

Remote Control and Battery

Mounting Bracket

3.5mm MP3/Headphone

Speaker feet
for table
1
AnalogAudio L/R cable
[Non-Text]
[Non-Text]
connection cable
(3.5mm-3.5mm)

AC-DCAdapter and AC power cord AC-DCAdapter and AC power cord for Soundbar for Subwaveform

for Soundbar

or Subwoofer (MSB) 3(1) only

Before you move to Step 1

You must take an insulation sheet out before you use the remote control

Step1 Adjusting the length of this Soundbar

You can adjust the length of the unit to fit your TV screen size (from 32 to 46 inch) using rotary knob at rear of this unit.

(The factory default is minimum length of the unit.)

To extend the Soundbar

• Tum rotary knob clockwise.

To shorten the Soundbar

Turn rotary knob counter clockwise

Check Soundbar rear jack panel and its layout before you proceed with Step 2.

Step2 Connect to your TV

f your TV has an Audio Out L /

OR
If your TV has no Audio Out L / R, but has Headphone jack

- If you connect to your TV through supplied 3.5mm MP3 / Headphon connection cable, make sure that any surround mode, auto volume function and TV speakers on your TV are Off. (See reverse page for volume setup

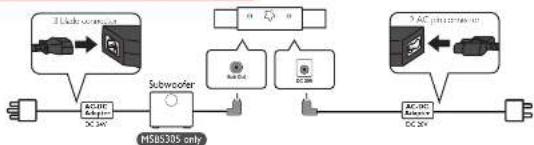

Step3 Connect to the Power and Subwoofer

• Make sure that the Soundbar is not muted after you. I um the unit Or

Step4 Place the Soundbar

1 Table top placemen

1 For secure table top placement, affix 2 self-adhesive rubber feet to the bottom of the expanded part of this unit using the below guide.

2 Wall mounting using bracket

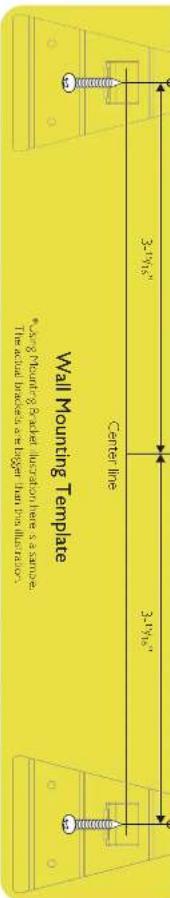

You can use the Wall Mounting Template on the back of this page to mark the Top screw positions. (Mounting Bracket Screws are not included

1 Measure your TV width to find the center, then 3 15/16 from the center line mark the 2 top screw positions which are 2" (min.) to 2-½" (max.) from the bottom edge of the TV. Then mark the other 4 bottom screw positions using the brackets.

Continued in 2 above.

2 Continued

2 It is recommended to use drywall Molly anchors that have a minimum of 5 lbs. holding strength to use with these brackets. Mount the 2 Mounting Brackets where you marked the six screw holes for the Molly anchor locations.

• Make sure that both brackets are securely mounted to the drywall.
• Make sure that the width of this Soundbar fits your TV screen size and the power cord / audio cables are securely connected before wall mounting the Expandable Soundbar.
  3 Hook the Soundbar onto Mounting Brackets

Controls and functions

Control panel

Remote control

① ⏻ (POWER-ON/STANDBY-ON

Press to Turn the unit On or go into Standby mode

② srs

TruSurround HC

TruVolum

To Turn On the SRS Trusurround H

To Turn On SRS TruVolum

WOW

To Turn On SRS WOV

③ Volume

Control panel]

Touch to adjust volume dk/up (>) for Soundbar

[Remote con

MAIN Press to adjust volume up (+)/down (−) for Soundbar.

SUB ^® Press to adjust volume up +)/down (−) for Subwoofer

* This function only works for MSB5305

④ Source

Press to select source 1 (AUX1) or source 2 (AUX2) of conn

devices to this Soundbar

⑤ Mute

Press to mute the sound and recover the sound.

⑥ Infrared sensor

Receives IR signals from remote co

Subwoofer (MSB5305 only)

⑦ Main power switch*

To turn the Subwoofer's main power On c

* This function only works for MSB5305.

⑧ DC 24V IN

⑨ Power On indicator

Lights up green when Subwoofer is Tume

Lights up red when Subwoofer goes into Standby mode.

Subwoofer will go into Standby mode automatically if there is no signal

input from the Soundbar for 10 seconds.

• To completely Turn Off the unit, you must unplug the AC power con

Hint for better acoustic setting

What is SRS acoustic advantage?
*Many movies and much music has been recorded at studios by applying SRS technology to enhance better sound reproduction and clarity for maximum entertainment.You can find one that works best for you
SRS TruSurroundHD :	Creates an immersive, feature-rich surround sound experience from two Speakers, complete with rich sass, high frequency and clear speech.(Note: It includes SRS WOW effect already; so n need to Turn On SRS WOW at the same time
SRS TruVolume :	Maintain the steady volume between different signal sources such as TV, Music, and MP3 and sr on without volume fluctuation. It works on TV commercials where some TV commercial increase volume level.
SRS WOW :	Significantly improves the playback quality of Audio, with dynamic deep, rich bass. It works when you, have decreased volume but need good bass sound.

How to adjust Soundbar volume level for optimum acoustic performance

When you connect to your TV through supplied 3.5mm MP3 / Headphone connection cable
1	Adjust I V Volume to 0
2	Adjust Soundbar volume to turn on level indicator three or four
3	Adjust TV volume to your desired level
When you connect to your MP3 player through supplied 3.5mm MP3 / Headphone connection cable
1	Adjust MP3 player volume about 1/4 level of full volume.
2	Adjust Soundbar volume at your desired volume.You can adjust Soundbar volume from MP3 player

If your TV is connected to Soundbar by Audio Out L/R

If your TV connection to Soundbar is made by RCA Audio L/R, then you can connect your MP3 Player by using 3.5mm wire connector supplied

SAFETY INSTRUCTIONS

Read and understand all instructions before you use your SoundBar. If damage is caused by failure to follow instructions, the warranty does not apply

Risk of electric shock or fire

• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact iunai Corporation Inc. to have the product checked before use.
  • Never place the product and accessories near naked flames or other heat sources, including direct sunlight.
• Never insert objects into the ventilation slots or other openings on the product.
  • Where the AC plug or an appliance coupler is used as the disconnect
  device, the disconnect device shall remain readily operable.
• Disconnect the product from the power outlet before lightning storms.
• When you disconnect the power cord, always grasp the plus, never the cable
  Risk of short circuit or fire
• Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Risk of injury or damage to the SoundBar

• for wall-mountable products, use only the supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Funai Corporation Inc. bears no responsibility for improper wall mounting that results in accident, injury or damage.
  • Never place the product or any objects on power cords or on other electrical equipment.
• If the product is transported in temperatures below 43°F (5°C), unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.
  • -handle with care to avoid injury and damage.
• Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

Risk of overheating

• Never install this product in a confined space

- Always leave a space of at least 2 inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination

• Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type.
• Remove batteries if they are exhausted or if the remote control is not to be used for a long time.
  • Batteries contain chemical substances, they should be disposed of properly. Risk of swallowing batteries
• The product / remote control may or may not contain a coin / button typ battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death.

IMPORTANT NOTES

1. Severe internal burns can occur within two hours of ingestion.
2. f the battery has been swallowed, seek immediate medical attention.
3. When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery.
   • If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer

Trademark Information

SRS is a trademark of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc. SRS TruSurround HD™ creates an immersive feature-rich surround sound experience from two speakers, complete with rich bass, high-frequency detail and clear dialog.
SRS is a trademark of SRS Labs, Inc. TruVolume technology is incorporated under license from SRS Labs, Inc.
TruVolume™ maintains a steady volume, allowing listeners to set their desired volume level once to enjoy television, music and all other content without annoying volume fl ectuations

Troubleshooting

Symptom Remedy
No power	• 'take sure the AC power cord is plugged in• 'make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that the AC outlet operates normally• 1 a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself
No sound or distorted sound.	• Check if the Power is On.• Check whether all the cables are connected to the correct Output jack of your device.• 'make sure that the selected source is connected to the working Input jack• 'make sure that the sound is not muted.• 'make sure that SKS functions and Auto volume settings of your 1V are I turned Off when yo connect to your TV or MP3 player through supplied 3.5mm MP3 / Headphone cable
No reaction to the remote control.	• 'make sure the AC power cord is plugged in• Check the battenes in the remote control to ensure they are good.• Reduce the distance to the unit.• Re-insert the batteries with their polarities (+/-) as indicated.
Control buttons do not work.	• Press only one button at a time. Do NO I press more than one button at the same time• Jnplug the AC power cord and wait for about 1 minute, then plug the AC power cord and Turn On the unit again.
No bass.	• 'make sure the AC power cord is plugged into the Subwoofer• 'make sure Subwoofer's main power Switch is Turned Or

Specifications:

Model #	MSBS305	MSBS300
Power requirements
Soundbar	DC 20V
Subwoofer	DC 24V	-
Dimensions (W x D x H)
Soundbar	30.3~44.3 x 3.4 x 4.3 inches(769~112.3 x 86 x 109 mm)
Subwoofer	9.8 x 13.4 x 7.3 inches(223 x 339 x 185 mm)	-
Weight
Soundbar	7.48 lbs. (3.4 kg)
Subwoofer	7.7 lbs. (3.5kg)	-

- Specifications are subject to change without prior notice - For detail specification, please see our online Owner's Manual.

LIMITED WARRANTY

-UNAI CORP: will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:
DURATION: PARTS: -UNAI CORP: will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Certain parts are excluded from this warranty.
LABOR: -UNAI CORP will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.
Note: Any product sold and identified as refurbished or renewed carries a ninety (90) days labor and parts limited warranty. LIMITS AND EXCLUSIONS:
THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL
This warranty shall not be extended to any other person or transfere
This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States
This warranty only covers failures due to defects in material or workmanship which occur during normal use. It does not cover damage which occurs in shipment or failures which are caused by repairs, alterations or products not supplied by FUNAI CORP, or damage, which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product, or damage which results from fire, flood, lightning or other acts of God.
THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS. FINAL CORRAND ITS REPRESENTATIVES OR AGENTS SHALL UNNO EVENT RELIABLE FOR ANY GENERAL
INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASKONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF RUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED BY RUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES. ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER
THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER
F NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIR COSTS WILL BE CHARGIN
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME JURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACI ON WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP
FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE
WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIR:

To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP will not reimburse you for any service done by unauthorized service providers without prior written approval.
I to locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at

Funai Corporation Inc. Tel: [phone]

www.magnavox.com/support

2200 Spiegel Drive, Groveport, OH 43125

Printed in China
