ITTB775B - Turntable iLive - Free user manual and instructions

Product Type	All-in-One Turntable with Bluetooth, Radio & Stereo Speakers
Brand	iLive
Model	ITTB775B
Turntable Size	8 inches
Speeds	33 1/3, 45, 78 RPM
Bluetooth	Yes, wireless range up to 60 feet
FM Radio	Built-in with up to 20 memory presets
Audio Input	Aux In (3.5mm)
Built-in Speakers	Yes
Audio Output	RCA stereo (red/white)
Display	Negative LCD with blue backlight
Lighting	LED lighting effects
Power Source	DC input with included AC/DC adapter
Included Accessories	AC/DC power adapter, 45 RPM adapter
Auto Stop	Yes, with ON/OFF switch
Tone Arm Lift	Yes, for safe lowering
Cleaning	Dry cloth only
Safety	Double insulation, FCC Class B
Stylus Protection	Protective shroud and lock provided

Frequently Asked Questions - ITTB775B iLive

How do I pair my Bluetooth device with the turntable?

Set the function dial to BT, then press and hold the Play/Pause/Pair button until the pairing indicator flashes blue quickly. On your device, search for ITTB775 in Bluetooth settings and select it. If asked for a password, enter 0000.

How do I play a 45 RPM record?

Place the included 45 RPM adapter onto the turntable spindle before placing the record. Then set the speed dial to 45 RPM.

The turntable stops before the end of the record. What should I do?

Some records have their auto stop area outside the unit's range. Set the Auto Stop Switch to OFF and use the Tone Arm Lift Switch to manually raise the stylus at the end.

How do I preset FM radio stations?

First, tune to the desired station using the Skip Rev/Tun - or Skip Fwd/Tun + buttons. Then press the Mem button to store it. You can store up to 20 presets.

Can I connect external speakers to this turntable?

Yes, use the RCA Audio Output (red/white) on the back to connect to an external stereo system. Requires RCA cables (not included).

The stylus is not producing sound. What could be wrong?

Ensure the protective shroud has been removed from the stylus and the tone arm lock is released. Also check that the turntable is properly connected to power and the function dial is set to Phone.

How should I clean the turntable?

Use only a dry cloth for cleaning. Do not use any liquids or sprays. For the stylus, use a soft brush gently.

What is the power adapter voltage?

The turntable uses a DC input with an included AC/DC power adapter. The adapter is designed for standard household outlets (check adapter label for exact voltage, typically 100-240V).

How do I use the Aux In feature?

Plug a 3.5mm audio cable (not included) into the Aux In on the unit and the other end into your audio source. Set the function dial to Aux and control playback from your device.

The LED lights are not working. What can I do?

Press the Lights button on the unit to cycle through lighting effects. If still not working, ensure the unit is powered on. If the issue persists, contact support at 1-888-999-4215.

USER MANUAL ITTB775B iLive

Black-and-white photo of a vintage portable radio with a CD, open lid, and control knobs (no visible text or symbols)

All-in-one Turntable

with Bluetooth, Radio & Stereo Speakers

User's Guide for Model ITTB775 v1339-01

For the most up-to-date version of this User's Guide, go to www.iLiveElectronics.com

Important Safety Instructions

Important Safety Instructions

- Read these instructions.

- Keep these Instrucln - Used all Warrings

- Follow all instructions.

• Do not use this apparatus near water.

- Clean only with a dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat.

- Do not absorb from any item sources such as indicators, notes, registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

- Protect the power cord from being walled on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally; or has been dropped.

- Use only with a cart, stand, tripod, bracket, or table specified by the manufactures, or sold with the apparatus. When a cart is used, use caution when moving the car/apparatus combination to avoid injury from tip-over.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

Warnings and Precautions

FCCWarnings

Warning: Changes or modifications to this unit nor expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Plan 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference in radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Additional Warnings and Precautions

• CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. AVIS: Pour réduire le risque d'incendie ou de chose électrique, ne pas exposer cet appareil sous la plaine et l'humidité.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
  CAUTION: Danger of explosion il battery is incorrectly replaced. Replace only with the same or equivalent type. AVIS: Danger d'explosion si les pîles sont remplacées de façon incorrect. Remplacer les pîles seulement par le même type de pule ou l'équivalent.
• WARNING: There is a danger of explosion if you attempt to change standard Alkaline batteries in the unit. Only use rechargeable NiMH batteries.
• WARNING: The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste
• WARNING: Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.

Connecting Devices to the Turntable 10

Pairing a Bluetooth Devio

Playing Audio Wirelessly

Using the Aux In (3.5mm Audio Input)

Connecting to External Systems.... 11

RCA Audio Output

Company Information....12

Contact Information

Warranty

International Support

Green Initiative

Introduction & Setup

Features

- 8 inch, 3 speed turntable plays 33 1/3, 78, and

45 rpm records

• Supports Bluetooth

- Wireless range: 60 feet

• Built-in FM radio with up to 20 memory presets

- Aux In 3.5mm audio input

• Built-in speakers

• RCA stereo audio outputs

• LED lighting

• Negative LCD display with blue backlight

- DC power input:

requires an AC/DC power adapter (included)

Includes

- AC/DC power adapter

Power

Plug the small end of the power cord into the DC Input on the back of the unit, and the large plug into a standard wall outlet.

Line drawing of a printer with attached power outlet and cable (no text or symbols)

Orientation

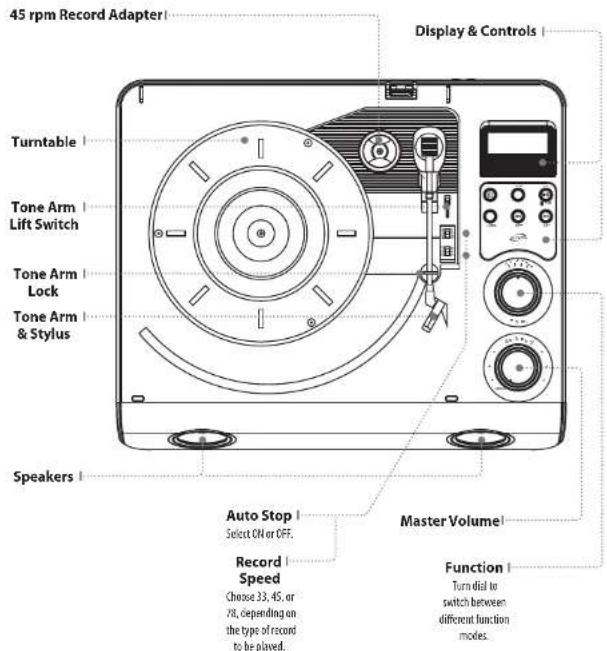

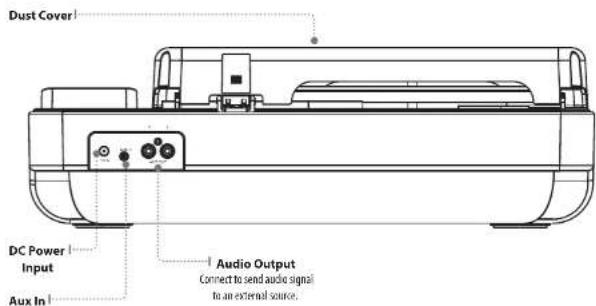

Main Features Rear Inputs

Controls

Power

Press to power the unit ON or OFF.

Mem

Press to begin programming FM

memory presets.

M+/Play/Pause/Pair

Press to cycle FM Memory Presets

Press to play/pause an

audio track.

Press and hold to begin pairing to

a Bluetooth device.

Lights

Press to activate LED light effects.

Skip Rev/Tun -

Press to skip back an audio track.

In FM Mode, press to adjust down

for FM tuning.

Skip Fwd/Tun +

Press to skip ahead an audio track.

In FM Mode, press to adjust up for

FM tuning

Operation

Playing a Record

It is recommended that you use extreme care when manipulating the tone arm, stylus, and other components of this turntable. These parts are very sensitive and can easily break or become damaged if they are carelessly handled.

1. Set the Source Dial to Phone.
2. Lift open the turntable dust cover, remove the shroud that protects the stylus, and release the lock that holds the Tone Arm in place in it's resting position.

Pure mechanical component diagram without any text, numbers, or symbols

LockUnlock

1. Select the correct turntable speed based on the type of record you wish to play, and place the record on the turntable. If you are playing a 45 rpm record, use the included adapter and place it between the turntable and the record.

Illustration of a portable gas stove with a CD emitting a flame (no text or symbols)

33 1/3 rpm 12in diameter

78 rpm 10in diameter

45 rpm & adapter 7in diameter

1. Use the Tone Arm Lift Switch to raise the Tone Arm from its catch.
2. Using your hand, gently swing the Tone Arm into the desired location over the record. The turntable will start spinning as the Tone Arm is moved into position.
3. Use the Tone Arm Lift Switch to safely lower the stylus onto the record. Using the Lift Switch instead of your hand will reduce the chance of accidentally damaging the record or the stylus.
4. Slide the Auto Stop Switch to ON to enable the Auto Stop feature. When the record is finished playing, it will automatically stop the turntable. Use the Lift Switch to raise the stylus off of the record, and gently return the Tone Arm to the catch by hand. Note: Some records place their Auto Stop area outside of the range of this unit. In these cases, the record will stop playing before the last track is reached. Set the Auto Stop Switch to OFF and use the Tone Arm Lift Switch to safely raise the stylus off the record when the end of the record has been reached.
5. When not in use, secure and lock the Tone Arm in its resting position and replace the protective shroud over the stylus. This will minimize the risk of accidental damage to these sensitive parts.

Connecting Devices to the Turntable

Pairing a Bluetooth Device

1. Set the Function Dial to BT and press and hold the Play/Pause/Pair button.
   The pairing indicator will flash blue quickly. When pairing, remain within 3 feet of the unit.
2. Using the controls on your Bluetooth device, search for and select ITTB775 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0. Refer to the user's manual for your specific device for Instructions on pairing and connecting Bluetooth devices.
3. When successfully paired and connected, an audible chime will sound and the Pairing Indicator on the display will stop flashing. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired or you find it is unable to connect, repeat the above steps or press & hold the Play/Pause/Pair button again.

Playing Audio Wirelessly

1. After pairing to a bluetooth device, use the controls on your connected Bluetooth Device to select a track.
2. Play, pause or skip a selected track using the controls on the connected Bluetooth Device or the controls on the turntable.
3. Audio played through the connected Bluetooth device will now be heard through the speakers.

Using the Aux In (3.5mm Audio Input)

Requires 3.5 mm audio input cable (not included).

1. Plug a 3.5 mm audio input cable into the Aux In on the unit and the audio output/headphone output on an MP3 Player or other audio source.
2. Set the Function Dial to Aux and use the controls on your connected music player to select and play audio.
3. Audio played through the connected device will now be heard through the speakers.

Line drawing of a mobile phone connected to a printer with cable (no text or symbols)

Connecting to External Systems

RCA Audio Output

Requires RCA audio cables (red/white, not included). Use to connect the turntable to an external stereo, television, or other source.

1. Connect RCA audio cables to the RCA Audio Output on the back of the turntable, and to the audio input of an external stereo system.
2. Adjust the external stereo system to accept input from the turntable.
3. Audio played through the turntable will now be heard through the connected stereo system.

Contact Information

Website: www.iLiveElectronics.com

Email Support: [e-mail]

Email Parts: [e-mail]

Phone Support: 1-888-999-4215

Warranty

For Warranty Information and the most up-to-date version of this User's Guide, go to: www.iLiveElectronics.com

International Support

To download this User's Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

Our Environmental Commitment to "Protect for Today and Sustain for Tomorrow". On a continual basis DPI, Inc. is making efforts to sustain the environment and improve the recyclability of its products and packaging.

Focusing on “protecting for today and sustaining for tomorrow” DPI, Inc. has committed to reducing packaging size, increasing the usage of recyclable plastics, and ensuring that packaging and manuals are made with up to 85% recycled material. In addition to material consideration, DPI, Inc. has also focused on the finer details that positively impact the environment such as employing the usage of soy-based inks.

DPI, Inc. also ensures that the factories that produce the company's wide variety of consumer electronics adhere to environmentally friendly air and water restrictions. This is yet another example that every step of the way DPI, Inc. is making efforts to lessen any impact on the environment.

In 2011 DPI, Inc. also began conversations with Energy Star in order to ensure that the consumer electronics being produced meet high standards of energy efficiency. The ultimate goal is keeping energy costs for consumers low while providing quality, feature-rich products.

Protect for Today Sustain for Tomorrow

Copyright © 2015 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.
