USER MANUAL PJ452 VIEWSONIC

PJ450D/PJ452D/PJ455D DLP Projector

- User Guide

- 使別三刊

- 使用手册

Compliance Information

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient of relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Compliance Information for Canada

Notice: This class B digital apparatus complies with Canada ICES-003.

Compliance Information for European Countries

CE Conformity

The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art. 5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art. 13 with regard to “Safety.”

User Information for all Countries

Notice: Use the cables which are included with the projector or specified.

Important Safety Instructions

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this unit near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs. convenience receptacles and the point where they exit from the unit. Be sure that the power outlet is located near the unit so that it is easily accessible.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the unit. When a cart is used, use caution when moving the cart/unit combination to avoid injury from tip-over
13 Unplug this unit when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.

Copyright © ViewSonic Corporation, 2004. All rights reserved.

Apple, Mac and ADB registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo and OnView are registered trademarks of ViewSonic Corporation.

VESA and SVGA are registered trademarks of the Video Electronics Standards Association.

DPMS and DDC are trademarks of VESA.

PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Electronic Warranty Registration

To meet your future needs, and to receive any additional product information as it becomes available, please register your projector's warranty on the Internet at: http://www.viewsonic.com

For Your Records

Product Name:

PJ450D/PJ452D/PJ455D

Model Number:

ViewSonic DLP Projector

Document Number:

VS10732

PJ450D/PJ452D/PJ455D-1_UG_ENG

Rev. 1A 12-24-04

Serial Number:

Purchase Date:

Symbols Used

Warning symbols are used on the unit and in this manual to alert you of hazardous situations.

The following boxes are used in this manual to alert you to important information.

Note:

Provides additional information on the topic at hand.

Important:

Provides additional information that should not be overlooked.

Caution:

Alerts you to situations that may damage the unit.

Warning:

Alerts you to situations that may damage the unit, create a hazardous environment, or cause personal injury.

Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example:

"Push the Menu button on the remote control to open the Main menu."

Main Features

• Lightweight unit, easy to pack away and transport
• Compatible with all major video standards including NTSC, PAL, and SECAM
• A high brightness rating allows for presentations in daylight or in lit rooms
  • Supports resolutions up to SXGA at 16.7 million colors to deliver crisp, clear images
• Flexible setup allows for front rear and ceiling projection
• Line-of-vision projections remain square, with advanced keystone correction for angled projections
• Input source automatically detected

Remote Control

The remote control has a laser for pointing out items on a screen.

DANGER: Do not point the laser in the eyes. Doing so can damage the eyes permanently.

General Safety Information

Do not open the unit case. Aside from the projection lamp, there are no user-serviceable parts in the unit. For servicing, contact qualified service personnel.
➢ Follow all warnings and cautions in this manual and on the unit case.
The projection lamp is extremely bright by design. To avoid damage to eyes, do not look into the lens when the lamp is on.
Do not place the unit on an unstable surface, cart, or stand.
- Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place heavy objects such as books or bags on the unit.

Power Safety

▶ Only use the supplied power cord.
Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.
Remove the batteries from the remote control when storing or not in use for a prolonged period.

Replacing the Lamp

Replacing the lamp can be hazardous if done incorrectly. Refer to "Replacing the Projection Lamp" on page 26 for clear and safe instructions for this procedure.
▶ Unplug the power cord.
➢ Allow the lamp sufficient time to cool.

Cleaning the Projector

➢ Unplug the power cord before cleaning. Refer to “Cleaning the Projector” on page 28.
- Allow the lamp sufficient time to cool.

About this manual

This manual is intended for end users and describes how to install and operate the DLP projector. Wherever possible, relevant information—such as an illustration and its description—has been kept on one page. This printer-friendly format is both for your convenience and to help save paper and thereby protect the environment. It is suggested that you only print sections that are relevant to your needs.

Table of contents

GETTING STARTED....1

PACKING CHECKLIST 1

VIEWS OF PROJECTOR PARTS....2

Front-left view....2

Top view—OSD buttons and LEDs....3

Rear view—connectors 5

Bottom view....7

REMOTE CONTROL PARTS 8

REMOTE CONTROL OPERATING RANGE....9

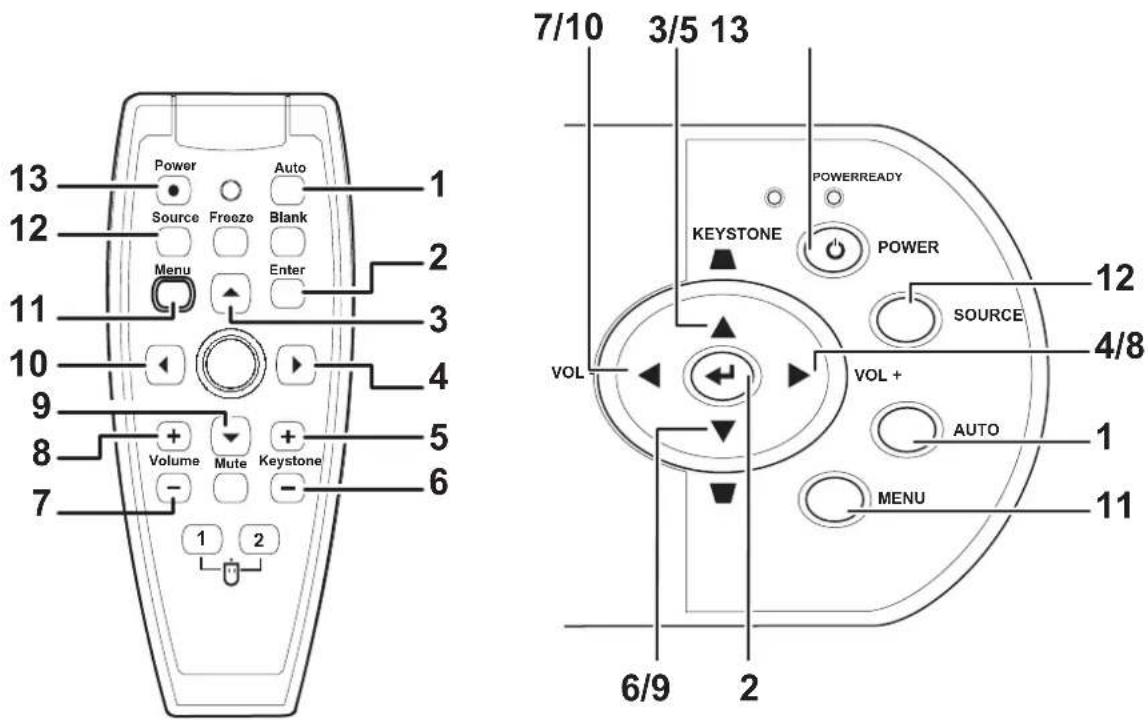

PROJECTOR AND REMOTE CONTROL BUTTONS....10

SETUP AND OPERATION....11

INSERTING THE REMOTE CONTROL BATTERIES .... 11

CONNECTING INPUT DEVICES 12

STARTING AND SHUTTING DOWN THE PROJECTOR....13

ADJUST THE ZOOM, FOCUS AND KEYSTONE 15

ADJUSTING THE VOLUME 16

ON-SCREEN DISPLAY MENU SETTINGS....17

ON-SCREEN DISPLAY MENU CONTROLS.... 17

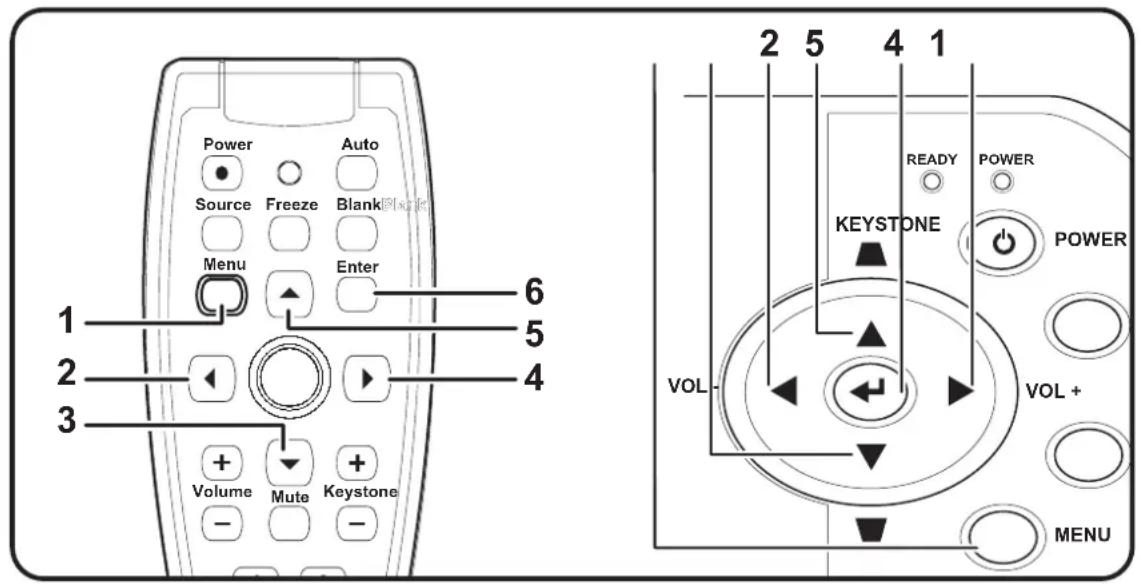

Navigating the OSD 17

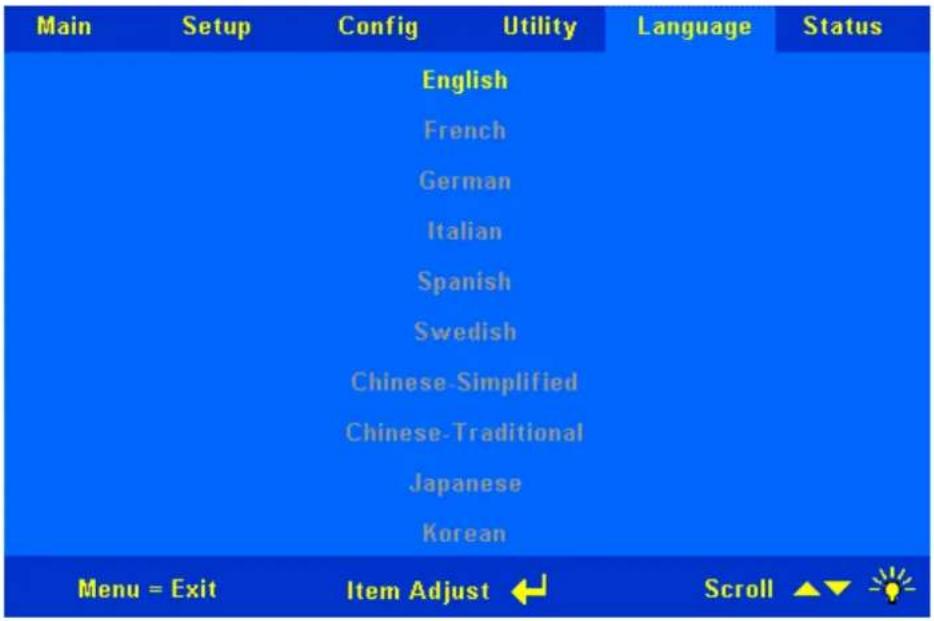

Setting the OSD Language....18

Main Menu....19

Setup Menu 21

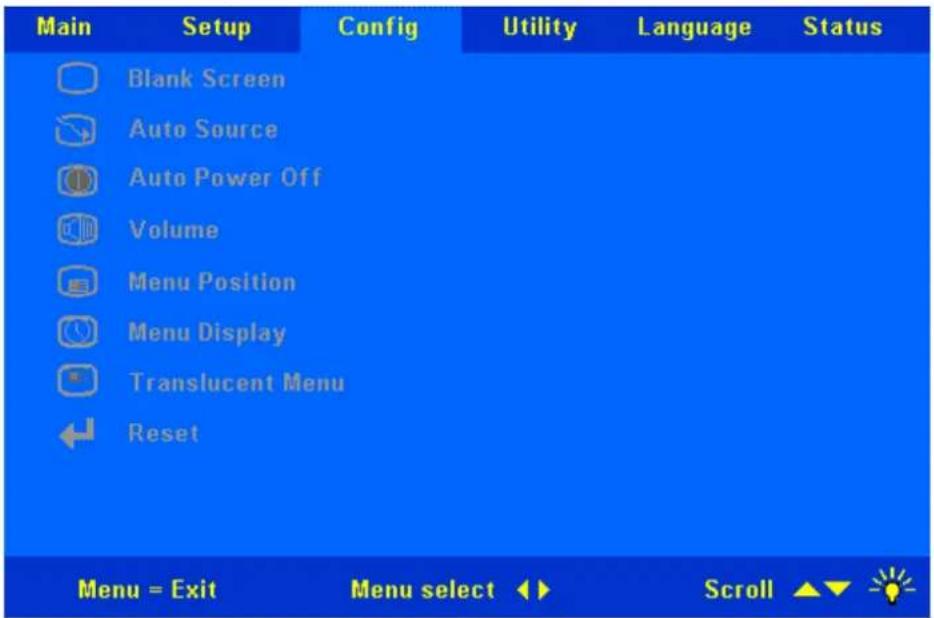

Config Menu 22

Utility Menu 23

Language Menu 24

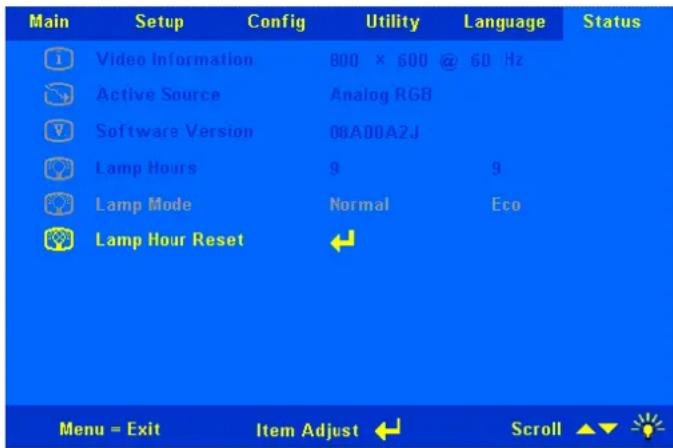

Status Menu 25

MAINTENANCE AND SECURITY....26

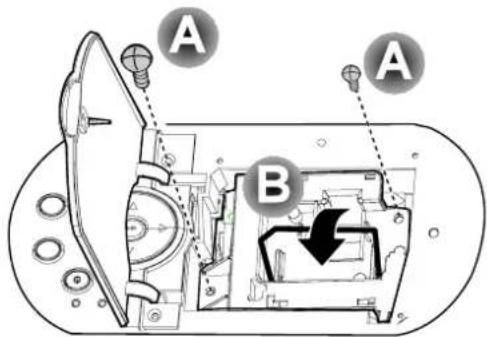

REPLACING THE PROJECTION LAMP....26

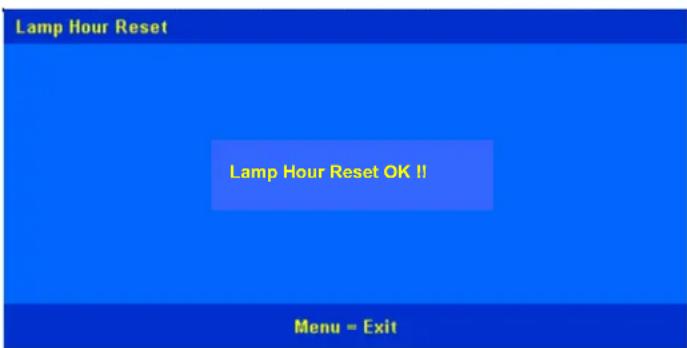

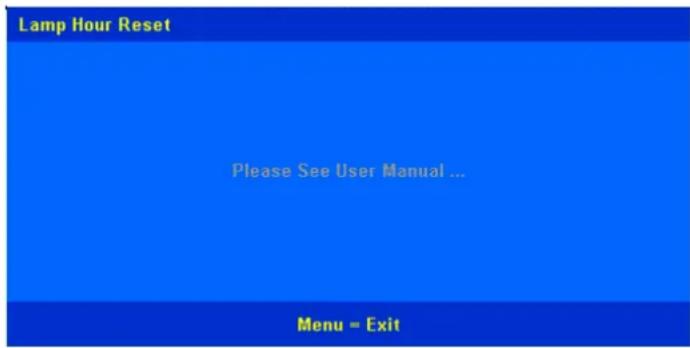

Resetting the Lamp....27

CLEANING THE PROJECTOR....28

Cleaning the Lens 28

Cleaning the Case....29

USING THE KENSINGTON LOCK 29

TROUBLESHOOTING 30

COMMON PROBLEMS AND SOLUTIONS....30

TIPS FOR TROUBLESHOOTING 30

LED ERROR MESSAGES....31

IMAGE PROBLEMS....31

LAMP PROBLEMS 32

REMOTE CONTROL PROBLEMS 32

AUDIO PROBLEMS....32

HAVING THE PROJECTOR SERVICED 33

SPECIFICATIONS....34

SPECIFICATIONS....34

Input/output connectors 35

PROJECTION DISTANCE VERSUS PROJECTION SIZE 36

TIMING MODE TABLE 37

DIMENSIONS 38

Packing Checklist

Carefully unpack the projector and check that the following items are included:

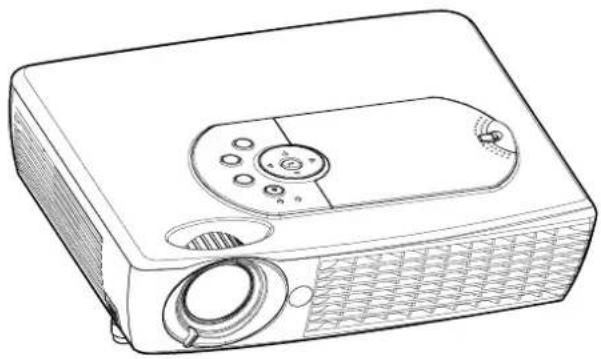

Line drawing of a projector device with front panel and control buttons (no text or symbols)

DLP PROJECTOR WITH LENS CAP

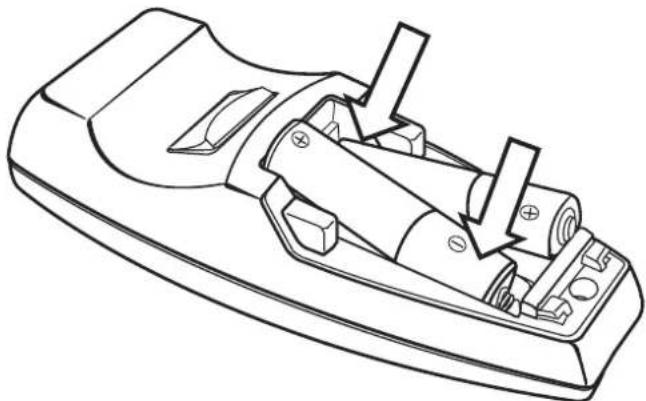

Line drawing of a remote control with buttons and two batteries (no text or symbols)

REMOTE CONTROL (WITH TWO AAA BATTERIES)

250V POWER CABLE

Line drawing of a USB cable with multiple connectors (no text or symbols)

USB CABLE

S-VIDEO CABLE

MULTI-LANGUAGE QUICK START GUIDE

Line drawing of an open suitcase with lid and handle (no text or symbols)

CARRYING CASE

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

Caution:

1. Avoid using the projector in dusty environments.
2. Leave the power cable plugged in (for 5-10 minutes) until the projector returns to room temperature before placing the projector inside the soft case. Placing the projector into the case soon after switching off the power could cause the projector to break down. Be sure to attach the lens cap and place the projector into the soft case.

Views of Projector Parts

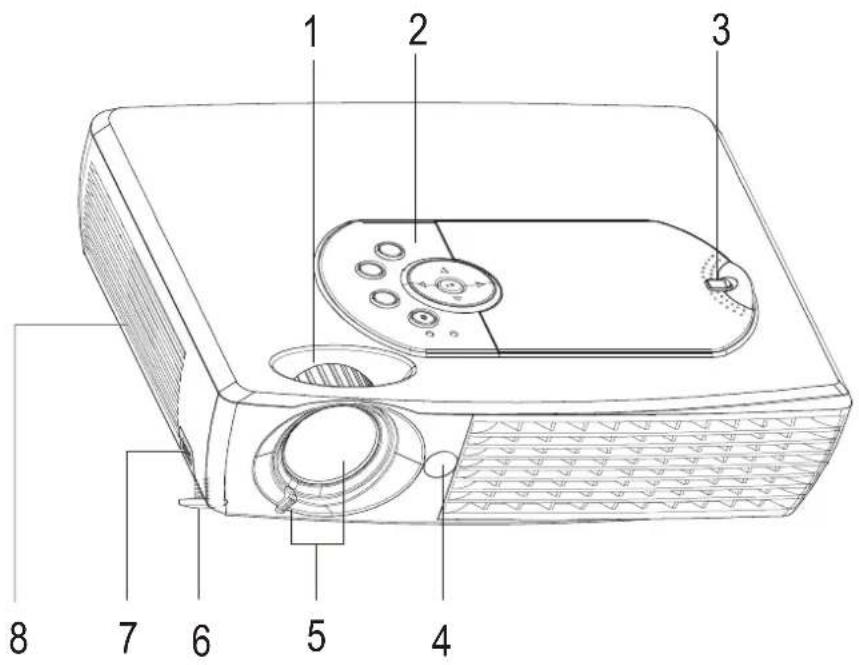

Front-left view

ITEM	LABEL	DESCRIPTION	SEE PAGE:
	Zoom Enlarge or shrink the projected image		15
	See OSD buttons and LEDs next page		3
1.	Projection lamp cover	Remove when changing lamp	26
2.	IR receiver Receiver for IR signal from remote control		9
3.	Lens/focus Remove cover, turn the lens to focus		15
4.	Height adjuster Adjusters drop down when adjuster button is pushed		14
5.	Height adjuster button	Push to release height adjuster
6.	Speaker	Built-in mono speaker

Important:

Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the grill openings.

Top view—OSD buttons and LEDs

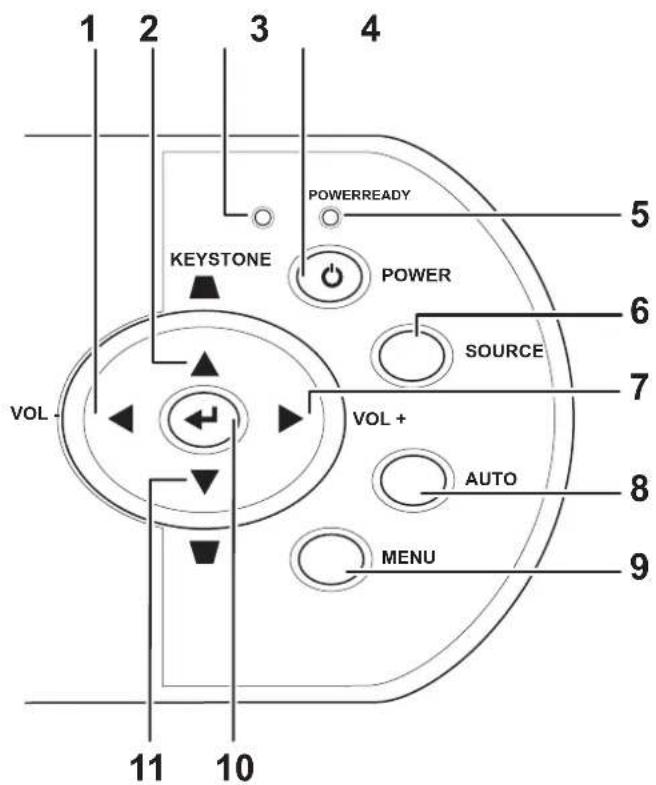

ITEM	LABEL	DESCRIPTION		SEE PAGE:

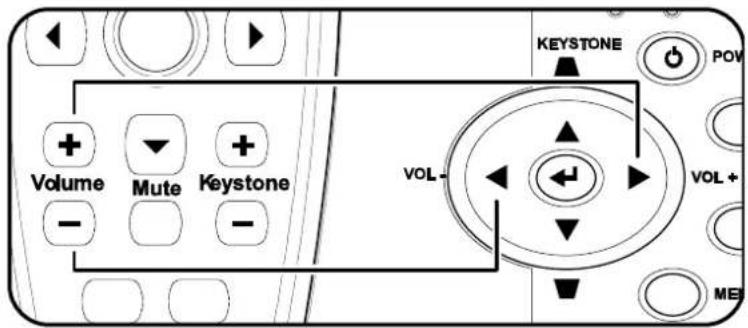

1.	Volume/left cursor	Decreases volumeNavigates and changes settings in the OSD		16
2.	Keystone/Up cursor	Corrects image-trapezoid (narrower top) effectNavigates and changes settings in the OSD		15
3.	Ready (LED)	Orange Lamp ready—you can safely turn on or off the projector
		Flashing Lamp not ready—do not press the power button
4.	Power Turns the projector on or off (main power switch must be turned on first, see item 8 on page 5)			13
5.	Power (LED)	Green Unit is powered on and working correctly
		Off Unit is powered off
		Flashing Operational error code(refer to “LED Error Messages” on page 31)
6.	Source Detects the input device			13
7.	Volume/right cursor	Increases volumeNavigates and changes settings in the OSD		17

ITEM	LABEL	DESCRIPTION	SEE PAGE:
8.	Auto Optimizes image size, position, and resolution		17
9.	Menu Opens/exits the On-Screen Display (OSD)
10.	Enter Changes settings in the OSD
11.	Keystone/Down cursor	Corrects image-trapezoid (narrower bottom) effect Navigates and changes settings in the OSD	15

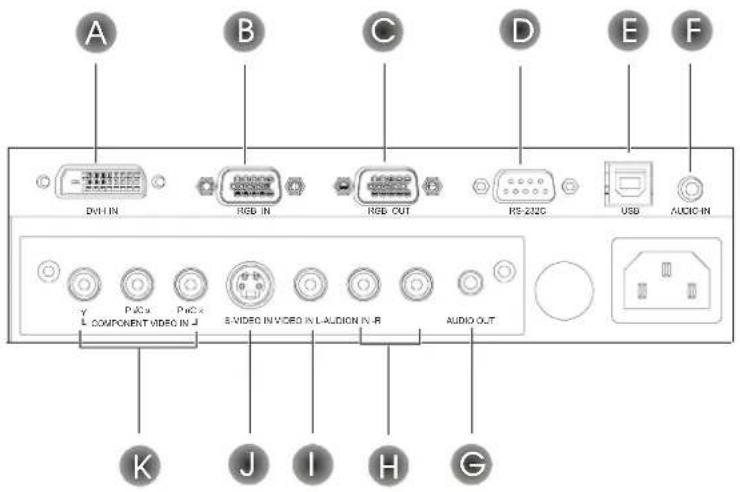

Rear view—connectors

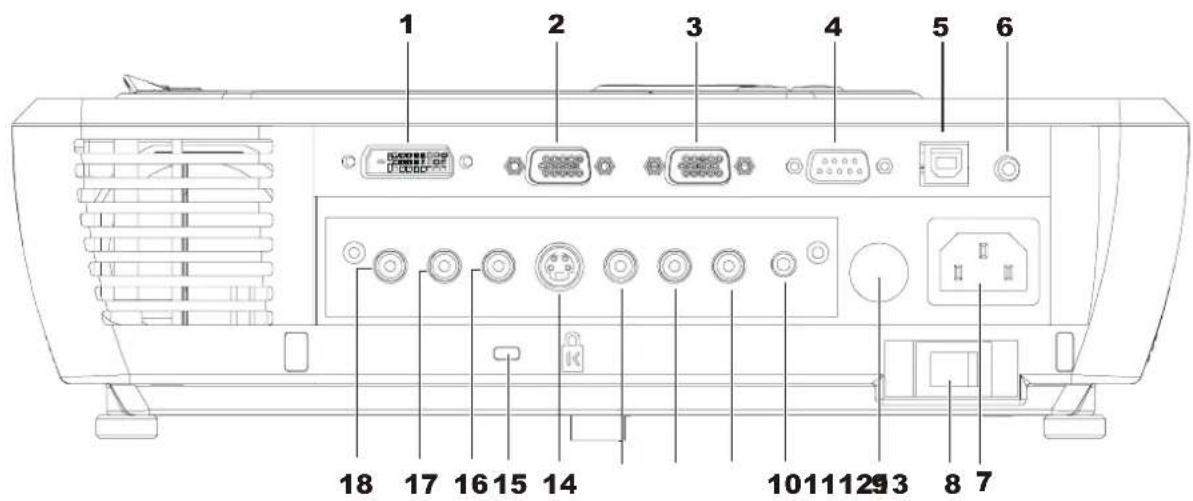

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	DVI-I Connect the	DVI cable (supplied) from a computer	12
2.	RGB IN Connect a VGA cable (not supplied) from a computer
3.	RGB OUT Connect to a monitor
4.	RS-232 Installation control and firmware upgrades
5.	USB Connect the USB cable (supplied) from a computer
6.	Audio-in Connect the audio cable (supplied) from the input device
7.	Power connector Connect the supplied power cord

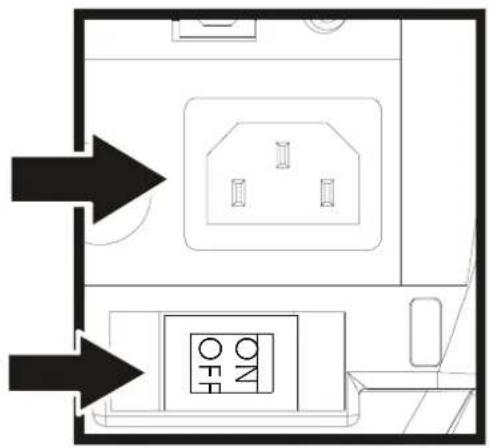

8.	Main power Turns the main power on or off
9.	IR receiver	Receiver for IR signal from remote control	9
10.	Audio-out	Audio output	12
11.	Audio-in-R	Connect an RCA audio cable (not supplied) from the input device right channel
12.	Audio-in-L	Connect an RCA audio cable (not supplied) from the input device left channel
13.	Video	Connect a composite video cable (not supplied) from a video device
14.	S-video	Connect the supplied S-video cable from a video device
15.	Kensington Lock	Secure to permanent object with a Kensington Lock system	29

ITEM	LABEL		DESCRIPTION	SEE PAGE:
16.	Pr/Cr	Component video in	Connect a component video enabled device	12
17.	Pb/Cb
18.	Y

Note:

If your video equipment has both S-video and RCA jacks (composite video) connect to the S-video connector.

S-video provides a better quality signal.

Bottom view

1

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	Height adjuster buttons Push to release height adjusters		14
2.	Height adjusters Adjusters drop down when adjuster buttons are pushed
3.	Ceiling support holes Contact your dealer for information on mounting the projector on a ceiling.

Remote Control Parts

Important:

1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation.

2. Be sure nothing obstructs the path between the remote control and the projector. If the path between remote and projector is obstructed, you can bounce the remote signal off certain reflective surfaces such as projector screens.

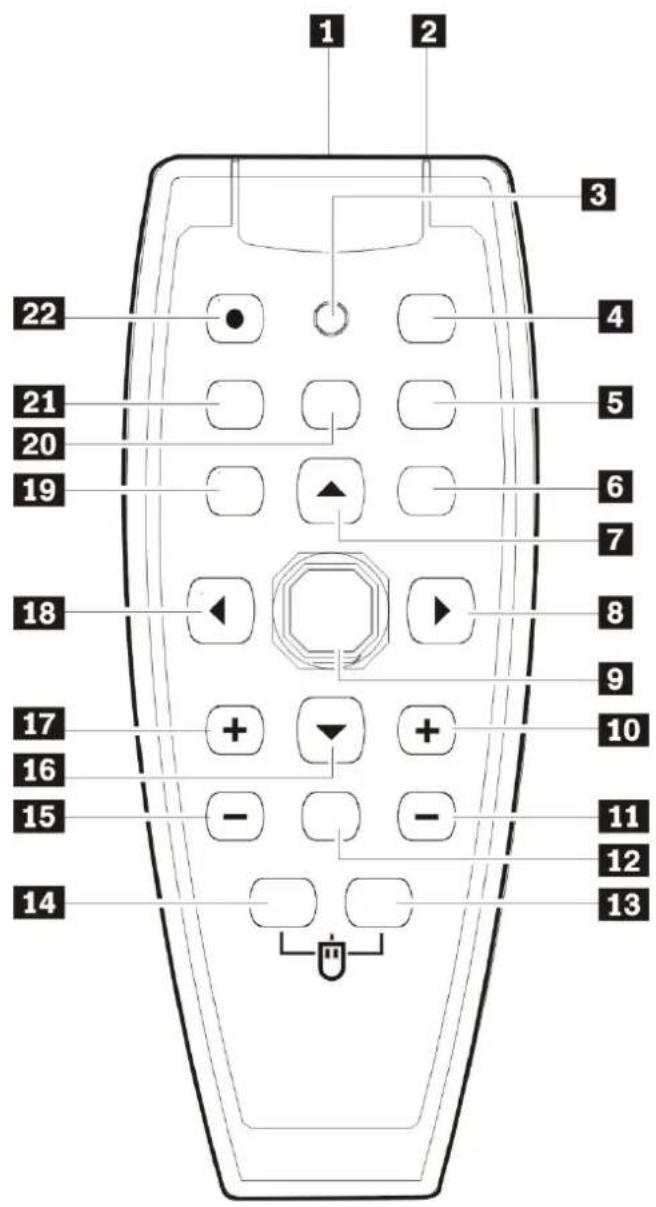

ITEM	LABEL	DESCRIPTION	SEE PAGE:
1.	Laser Use as on-screen pointer. DO NOT POINT IN EYES.
2.	IR transmitter	Transmits signals to projector
3.	Status LED Lights when the remote control is used
4.	Auto Optimizes image size, position, and resolution
5.	Blank Makes the screen blank		22
6.	Enter Changes settings in the OSD		17
7.	Up cursor	Navigates and changes settings in the OSD
8.	Right cursor
9.	Cursor pad Moves the on-screen cursor when connected to a PC
10.	Keystone top	Corrects image-trapezoid (narrower top/bottom) effect	15
11.	Keystone bottom
12.	Mute Mutes the built-in speaker
13.	Right mouse Functions as right mouse button when connected to a PC
14.	Left mouse Functions as left mouse button when connected to a PC
15.	Volume down	Adjusts volume	16
16.	Volume up
17.	Down cursor	Navigates and changes settings in the OSD	17
18.	Left cursor
19.	Menu Opens the On-Screen Display (OSD)
20.	Freeze Freeze/unfreezes the on-screen picture
21.	Source	Detects the input device	13
22.	Power	Turns the projector on or off	13

Remote Control Operating Range

The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote functions within a radius of about (7) meters (23 feet) and 30 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer.

Projector and Remote Control Buttons

The projector can be operated using the remote control or the buttons on the top of the projector. All operations can be carried out with the remote control; however the buttons on the projector are limited in use. The following illustration shows the corresponding buttons on the remote control and on the projector.

Some buttons on the projector have two functions. For example, item 7/10 on the projector functions both as the volume down button and as the left cursor key in OSD menus.

Inserting the Remote Control Batteries

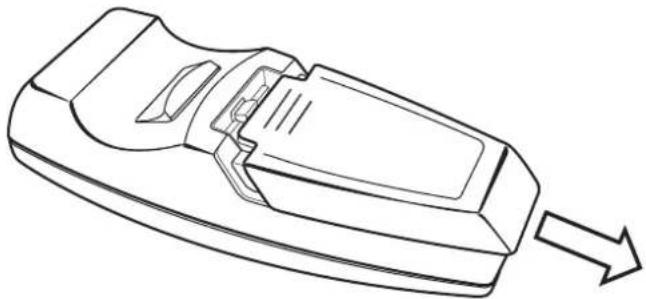

1. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Line drawing of a remote control device with a directional arrow indicating motion (no text or symbols)

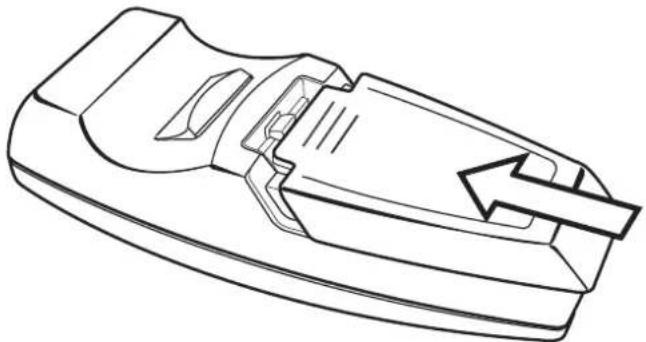

1. Insert the supplied batteries taking note of the polarity (+/-) as shown here.

Line drawing of a remote control device with handle and buttons (no text or symbols)

1. Replace the cover.

Line drawing of a mechanical component with internal structure and an arrow indicating direction (no text or symbols)

Caution:

1. Only use AAA alkaline batteries.
2. Dispose of used batteries according to local ordinance regulations.
3. Remove the batteries when not using the projector for prolonged periods.

Connecting Input/output Devices

A PC or notebook computer as well as video devices can be connected to the projector at the same time. Video devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras. Check the user manual of the connecting device to confirm it has the appropriate input/output connector.

ITEM LABEL DESCRIPTION
	DVI-I	Connect the supplied DVI cable from a computer.
	RGB in	Connect a VGA cable (not supplied) from a computer.
	RGB out	Connect a VGA cable (not supplied) to a monitor.
	RS-232	Reserved for installation control and firmware upgrades.
	USB	Connect the supplied USB cable from a computer.
	Audio-in	Connect an audio cable (not supplied) from the computer's audio-out connector.
	Audio-out	Audio output.
	L-Audio in-R	Connect the audio cable (not supplied) from an audio input device.
	Video	Connect a composite video cable (not supplied) from a video device.
	S-video	Connect the supplied S-video cable from a video device.
	Component video in	Connect a component video cable (not supplied) from a video device.

Warning:

As a safety precaution, disconnect all power to the projector and connecting devices before making connections.

Starting and Shutting down the Projector

1. Connect the power cord to the projector. Connect the other end to a wall outlet. (A) Turn on the power switch. (B) The Power LED and Lamp-ready LED turn on.
2. Remove the lens cover.
3. Turn on the connected devices.
4. Ensure the Lamp-ready LED is on a steady (not flashing) orange and then press the Power button to turn on the projector.

The projector splash screen displays and connected devices are detected. If the connected device is a PC, press the appropriate Fn hot keys on the computer keyboard to switch the display output to the projector. (Check the PC user manual to determine the appropriate Fn hot keys to change display output.)

1. If more than one input device is connected, press the Source button repeatedly to switch among devices.
2. To turn off the projector, press the Power button. The projector prepares for shutdown and a "Wait a moment please..." message appears.
3. When the "Power Off?/Press Power again" message appears, press the Power button. The projector turns off.

Analog RGB

800×600/60Hz

Attention : Power off the projector normally and unplug the power cord before moving the projector

Adjusting the Projector Level

Take note of the following when setting up the projector:

• The projector table or stand should be level and sturdy.
  • Position the projector so that it is perpendicular to the screen.
• Be sure cables are not in the way or can cause the projector to be knocked over.

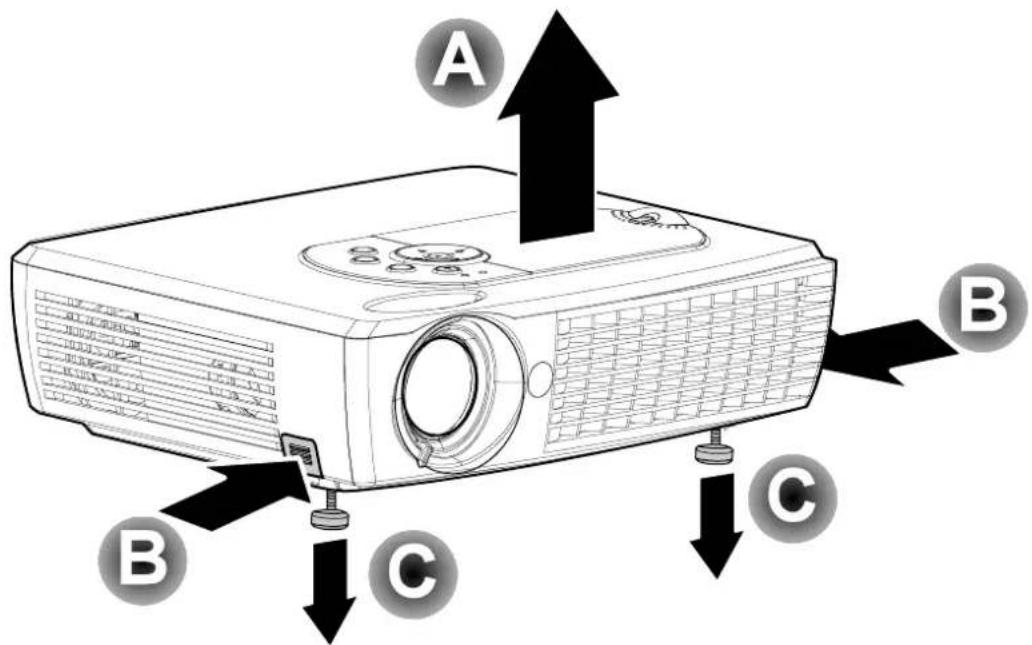

1. To raise the level of the projector, lift the projector [A] and press the height-adjuster buttons [B].

The height-adjusters drop down [C].

1. To lower the level of the projector, press the height-adjuster buttons and push down on the top of the projector.

Adjust the Zoom, Focus and Keystone

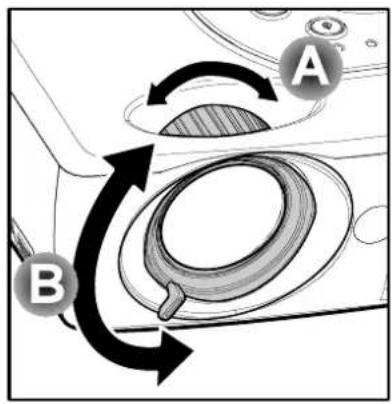

1. Use the Image-zoom control (on the projector only) to resize the projected image and screen size A.
2. Use the Image-focus control (on the projector only) to sharpen the projected image B

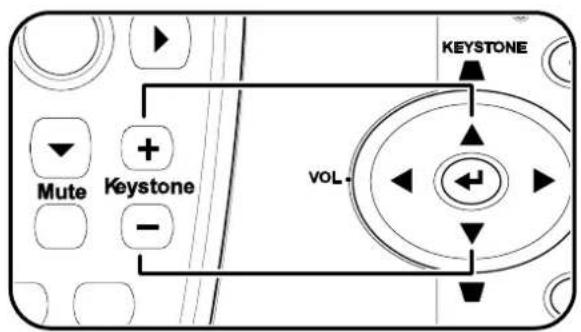

3. Use the Keystone buttons (on the projector or the remote control) to correct image-trapezoid (wider top or bottom) effect.

The keystone control appears on the display.

Keystone

0

Adjusting the Volume

1. Press the Volume +/- buttons on the projector or the remote control. The volume control appears on the display.

2. Use the Volume +/- buttons to adjust the level.

1. Press the Mute button (on the remote control only) to turn off the volume.

2. Press Volume +/- or Mute on the remote control to turn off mute.

On-Screen Display Menu Controls

The projector has an On-Screen Display (OSD) that lets you make image adjustments and change various settings.

Navigating the OSD

You can use the remote control or the buttons on the top of the projector to navigate and make changes to the OSD. The following illustration shows the corresponding buttons on the remote control and on the projector.

Setting the OSD Language

You may want to reference the OSD on your projector while reading this section. Set the OSD language to your preference before continuing. (The default language is English.)

1. Press the Menu button. The Main menu appears.

1. Press ◀▶ until Language is highlighted.

1. Press ▲▼ until the language you want is highlighted.
2. Press the Enter button to select the language.
3. Press the Menu button twice to close the OSD.

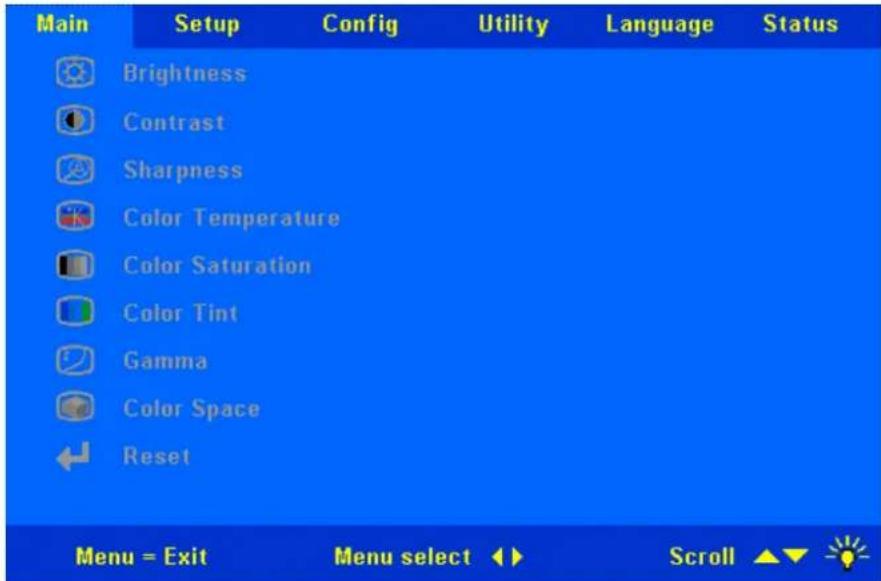

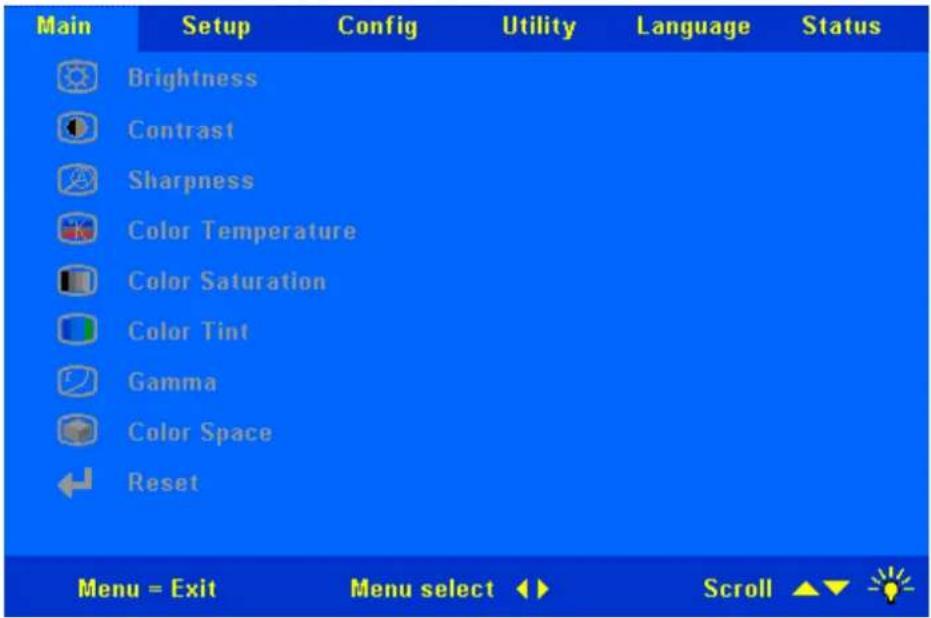

Main Menu

Press the Menu button to open the OSD menu. If necessary, press ◀▶ to move to the Main menu. Press ▲▼ to move up and down in the Main menu. Press ◀▶ to change values for settings, and then press Enter to confirm the new setting.

ITEM DESCRIPTION DEFAULT
Brightness	Press ◀▶ to adjust the brightness. (Range: 0—100) 50
Contrast	Press ◀▶ to adjust the contrast. (Range: 0—100) 50
Sharpness	Press ◀▶ to adjust the display sharpness (Range: 1-5) 3
Color Temperature	Press ◀▶ to adjust the video tint/hue.(Range: Cool/Normal/Warm)			Normal
Color Saturation	Press ◀▶ to adjust the video saturation. (Range: 0—100)			50
Color Tint	Press ◀▶ to adjust the video tint/hue. (Range: 0—100)			50
Gamma	Press ◀▶ to adjust the gamma correction of the display.Input Gamma BrightnessPC 2.2 HighMAC 1.8 HighVideo 2.4 LowChart 2.2 LowB&W 2.4 High			PC
Color Space Press ◀▶ to adjust the color space.(Range: Auto—RGB—YPbPr—YCbCr)				Auto
Reset	Resets all Main items settings except Color Saturation to default values			-

Main Menu Items Supported for Each Input Source

Depending on the video source not all items in the OSD are available. Items that are available for each input source are marked with "X". Items that are not available can not be selected in the OSD.

Function	RGB	DVI	Component Video	Composite Video	S-Video
Brightness	X	X	X	X	X
Contrast	X	X	X	X	X
Sharpness	X	X	X	X	X
Color Temperature	X	X	X	X	X
Color Saturation			X X X
Color Tint			X X X
Gamma	X	X	X	X	X

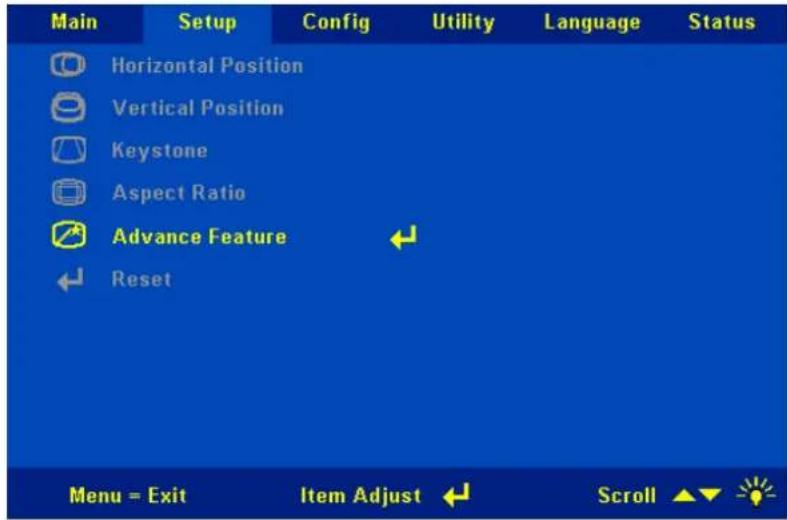

Setup Menu

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Setup menu. Press ▲▼ to move up and down in the Setup menu. Press ◀▶ to change values for settings, and then press Enter to confirm the new setting.

ITEM DESCRIPTION DEFAULT
Horizontal Position	Press ◀▶ to move the image left or right. (Range: 0—100) 50
Vertical Position	Press ◀▶ to move the image up or down. (Range: 0—100) 50
Keystone	Press ◀▶ to correct distortion of the projected image. (Range: -50—50)	0
Aspect Ratio	Press ◀▶ to toggle between the 4:3 standard format and 16:9 High Definition TV (HDTV) format.	4:3
Reset Resets	Keystone and Aspect Ratio to default values

Setup Menu Items Supported for Each Input Source

Depending on the video source not all items in the OSD are available. Items that are available for each input source are marked with "X". Items that are not available can not be selected in the OSD.

Function	RGB	DVI	Component Video	Composite Video	S-Video
Horizontal Position	X
Vertical Position	X
Keystone	X	X	X	X	X

Config Menu

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Config menu. Press ▲▼ to move up and down in the Config menu. Press ◀▶ to change values for settings, and then press Enter to confirm the new setting.

ITEM DESCRIPTION DEFAULT
Blank Screen Press	◀▶ to select a background color for blank screen(Range: Black – Red—Green—Blue—White)	Blue
Auto Source Press	◀▶ to enable or disable automatic source detection(Range: On—Off)	On
Auto Power Off	Press ◀▶ to enable or disable automatic shut-down of lamp after 10 minutes of inactivity (Range: On—Off)	Off
Volume	Press ◀▶ to adjust the audio volume level (Range: 0 - 10) 5
Menu Position	Press ◀▶ to position the OSD on screen(Range: Left—Right—Center—Down—Up)	Center
Menu Display	Press ◀▶ to determine the timeout delay of the OSD(Range: 10 - 20 sec.)	15
Translucent Menu	Press ▲▼ to set menu screen translucency(Range: On—Off)	Off
Reset	Resets all Config screen items to default values

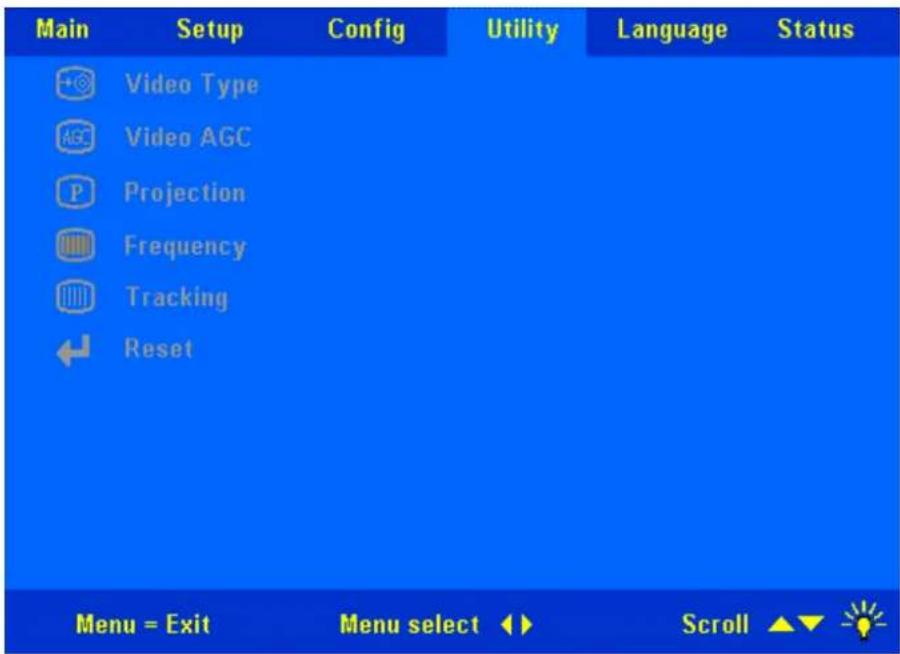

Utility Menu

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Utility menu. Press ▲▼ to move up and down in the Utility menu. Press ◀▶ to change values for settings, and then press Enter to confirm the new setting.

ITEM DESCRIPTION DEFAULT
Video Type Press	◀▶ to select the video standard.(Range: Auto—NTSC—PAL—SECAM)	Auto
Video AGC Press	◀▶ to enable or disable automatic gain control for the video source. (Range: On—Off)	On
Projection	Press ◀▶ to choose from four projection methods:P Desktop mount, front of screenq Desktop mount, rear of screend Ceiling mount, front of screenb Ceiling mount, rear of screen	Desktop frontP
Frequency	Press ◀▶ to adjust the A/D sampling clock.(Range: 0—180)	Auto detected
Tracking	Press ◀▶ to adjust the A/D sampling number.(Range: 0—100)	Auto detected
Reset Resets Video Type, Video AGC, and Projection to default values

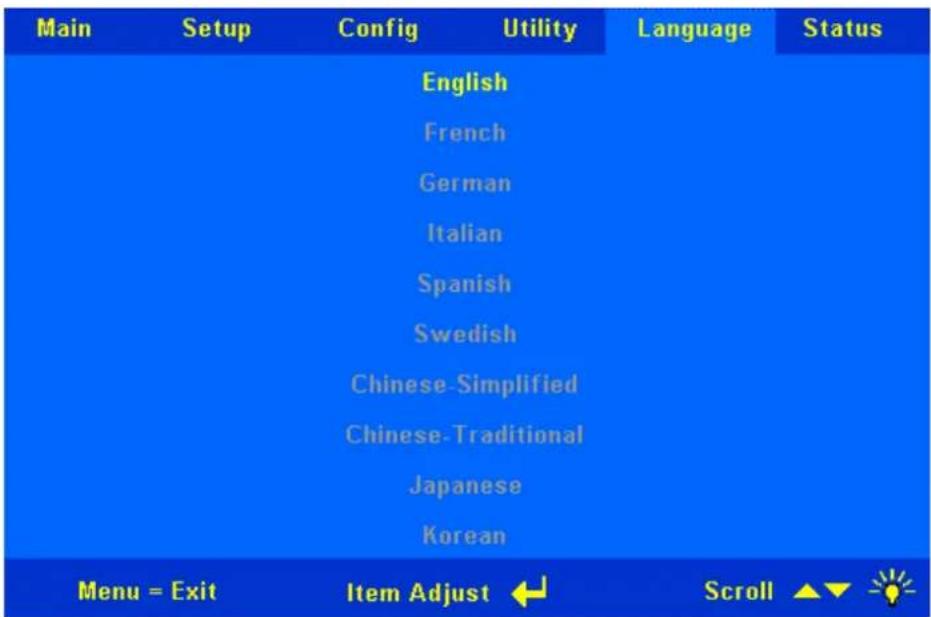

Language Menu

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Language menu. Press ▲▼ to move up and down in the Language menu.

ITEM DESCRIPTION DEFAULT
English	Press the cursor ▲▼ button to move up and down in the menu. Press the Enter button to select the language.	English
French
German
Italian
Spanish
Swedish
Chinese Simplified
Chinese Traditional
Japanese
Korean

Status Menu

Press the Menu button to open the OSD menu. Press ◀▶ to move to the Status menu. Press ▲▼ to move up and down in the Status menu. Press ◀▶ to change values for settings, and then press Enter to confirm the new setting.

Main	Setup	Config	Utility	Language	Status
	Video Information		800 × 600 @ 60 Hz
	Active Source		Analog RGB
	Software Version		08A00A2J
	Lamp Hours		9	9
	Lamp Mode		Normal	Eco
	Lamp Hour Reset
Menu = Exit		Menu select ◀▶		Scroll ▲▼

ITEM DESCRIPTION DEFAULT
Video Information	Displays the resolution and refresh rate of the connected video device.	These items are display only.
Active Source Displays the active source.
Software Version	Information about the firmware version.
Lamp Hours Number of hours lamp has been in Normal use and number of hours lamp has been in Eco use.
Lamp Mode Toggles between Normal and ECO lamp modes. ECO mode uses less power but decreases the lamp brightness.		Normal
Lamp Hour Reset	After replacing the lamp, this item should be reset. Refer to “Replacing the Projection Lamp” on page 26.	—

Replacing the Projection Lamp

The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer.

Important:

1. The lamp contains a certain amount of mercury and should be disposed of according to local ordinance regulations.
2. Avoid touching the glass surface of the new lamp: Doing so may shorten its operation life.

Warning:

1. Be sure to turn off and unplug the projector at least an hour before replacing the lamp. Failure to do so could result in a severe burn.

2. It is recommended that you do not attempt to replace the lamp while the projector is installed on a ceiling. If you do attempt this, wear protective goggles to prevent glass from a ruptured lamp getting into your eyes.

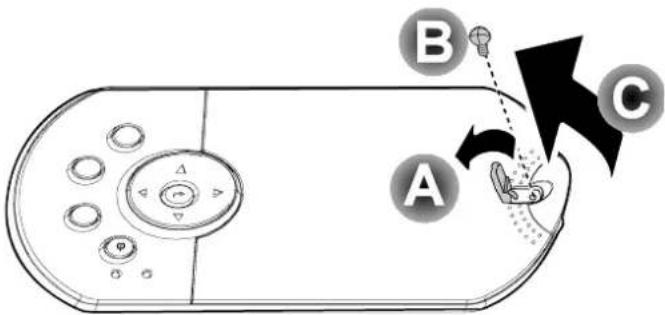

3. Lift the screw cover (A). Remove the screw on the lamp compartment cover (B) and then lift the lamp compartment cover (C).

1. Remove the two screws from the lamp module (A) and then lift the module handle up (B).

1. Pull up firmly to remove the lamp module.

1. Reverse Steps 1 to 4 to install the new lamp module. Note: The lamp module should be oriented as shown here when replacing.

Resetting the Lamp

After replacing the lamp, reset the lamp hour counter to zero. Refer to the following:

1. Press the Menu button to open the Main menu.
2. Press the cursor button to move to the Status menu.

3. Press the cursor ▲button to move to Lamp Hour Reset.

4. Press the Enter button. A message screen appears.

5. Press the cursor buttons in this order: ▼; ▲; ◀▶

The “Lamp Hour Reset OK !!” message appears. Then the Status menu appears again showing the Lamp Hours reset to zero.

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.

Warning:

1. Be sure to turn off and unplug the projector at least an hour before cleaning. Failure to do so could result in a severe burn.
2. Use only a dampened cloth when cleaning. Do not allow water to enter the ventilation openings on the projector.
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated room for several hours before using.
4. If a lot of water gets into the projector interior when cleaning, have the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the projector lens.

1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.

Caution:

1. Do not use abrasive cleaners or solvents.
2. To prevent discoloration or fading, avoid getting cleaner on the projector case.

Cleaning the Case

Refer to the following to clean the projector case.

1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.

Caution:

To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.

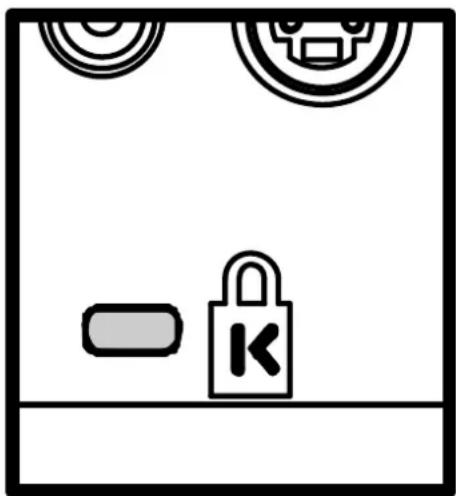

Using the Kensington Lock

If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable.

Simple line drawing of a padlock and circular components (no text or symbols)

Note:

Contact your vendor for details on purchasing a suitable Kensington security cable.

Common problems and solutions

These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance.

Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

• Use some other electrical device to confirm that the electrical outlet is working.
- Ensure the projector is turned on.
- Ensure all connections are securely attached.
- Ensure the attached device is turned on.
- Ensure a connected PC is not in suspend mode.
- Ensure a connected notebook computer is configured for an external display. (This is usually done by pressing an Fn-key combination on the notebook.)

Tips for Troubleshooting

In each problem-specific section, try the steps in the order suggested. This may help you to solve the problem more quickly.

Try to pin point the problem and thus avoid replacing non-defective parts.

For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step.

Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel.

LED Error Messages

LED	STATUS/ NUMBER OF FLASHES	DESCRIPTION	REMEDY
Power	Flashing Lamp not ready Do not press the power button.
	3 System overheated Allow the projector to cool down.
	4 System interface error Contact your dealer for assistance.
	5 Lamp error Replace the lamp module.
	6 Fan error Refer to Ready LED status in this table to determine which fan.
	7 Lamp cover open Close the lamp cover.
	8 DLP driver error		Contact your dealer for assistance. error
	9 Color wheel
Ready	Flashing	Valid only when fan error indicated by Power LED flashing 6 times.
	1	Blower fan	Contact your dealer for assistance.
	2	Optical engine
	3 Lamp fan or Optical fan

Image Problems

Problem: No image appears on the screen

1. Verify the settings on your notebook or desktop PC.
2. Turn off all equipment and power up again in the correct order.

Problem: The image is blurred

1. Adjust the Focus on the projector.
2. Press the Auto button on the remote control or projector.
3. Ensure the projector-to-screen distance is within the 8-meter (26-feet) specified range.
4. Check that the projector lens is clean.
5. Make sure the output resolution from the PC is 800 x 600 (SVGA model) or 1024 x 768 (XGA model), the native resolution of the projector.

Problem: The image is wider at the top or bottom (trapezoid effect)

1. Position the projector so it is as perpendicular to the screen as possible.
2. Use the Keystone button on the remote control or projector to correct the problem.

Problem: The image is reversed or upside down

1. Check the Projection setting on the Utility menu of the OSD.

Problem: The image is streaked

1. Set the Frequency and Tracking settings on the Utility menu of the OSD to the default settings.
2. To ensure the problem is not caused by a connected PC's video card, connect to another computer.

Problem: The image is flat with no contrast

1. Adjust the Contrast setting on the Main menu of the OSD.

Problem: The color of the projected image does not match the source image.

1. Adjust the Color Temperature and Gamma settings on the Main menu of the OSD.

Lamp Problems

Problem: There is no light from the projector

1. Check that the power cable is securely connected.
2. Ensure the power source is good by testing with another electrical device.
3. Restart the projector in the correct order and check that the Power LED is green.
4. If you have replaced the lamp recently, try resetting the lamp connections.
5. Replace the lamp module.
6. Put the old lamp back in the projector and have the projector serviced.

Problem: The lamp goes off

1. Power surges can cause the lamp to turn off. Press the power button twice to turn off the projector. When the Lamp Ready LED is on, press the power button.
2. Replace the lamp module.
3. Put the old lamp back in the projector and have the projector serviced.

Remote Control Problems

Problem: The projector does not respond to the remote control

1. Ensure the path between remote and sensor is not obstructed.
2. Turn off any fluorescent lights in the room.
3. Check the battery polarity of the remote control.
4. Replace the batteries.
5. Turn off other Infrared-enabled devices in the vicinity.

6. Have the remote control serviced.

7. Direct the remote control towards the remote sensor on the projector.

Audio Problems

Problem: There is no sound

1. Adjust the projector volume.
2. Adjust the volume of the audio source.
3. Check the audio cable connection.
4. Test the source audio output with other speakers.
5. Have the projector serviced.

Problem: The sound is distorted

1. Check the audio cable connection.
2. Test the source audio output with other speakers.
3. Have the projector serviced.

Having the Projector Serviced

If you are unable to solve the problem, you should have the projector serviced. Pack the projector in the original carton. Include a description of the problem and a checklist of the steps you took when trying to fix the problem. The information may be useful to the service personnel. Return the projector to the place you purchased it.

Specifications

	XGA
Power consumption < 300 watts
Lamp	200W(ECO mode 160W)
Display type TI DMD 0.7-inch, 12 deg. DDR
Resolution XGA 1024 x 768 native
Bandwidth Up to SXGA 1280 x 1024 @ 60 Hz
Color 16.7 Million (24-bits/pixel)
Weight 3.55 kg (7.8 lbs)
Projection distance 1.5 to 8 meter (4.9 to 26 feet)
Projection screen size 0.94 to 6.1 meter (37 inches to 240 inches)
Projection lens Manual zoom and focus
Zoom ratio 1.22:1
Vertical keystone correction +/ - 15
Projection methods Desktop front/rear; ceiling front/rear
Data Compatibility IBM PC or compatibles (VGA, SVGA), Mac
HDTV	Video
Video compatibility NTSC/NTSC 4.43, PAL (B/G/H/I/M/N 60), SECAM
H-Sync	15,31 - 70 kHz
V-Sync	50 - 85 Hz
Safety certification FCC Class B, UL, CUL, CE, CB, TUV-GS, CCC
Operation temperature	10^ 35^

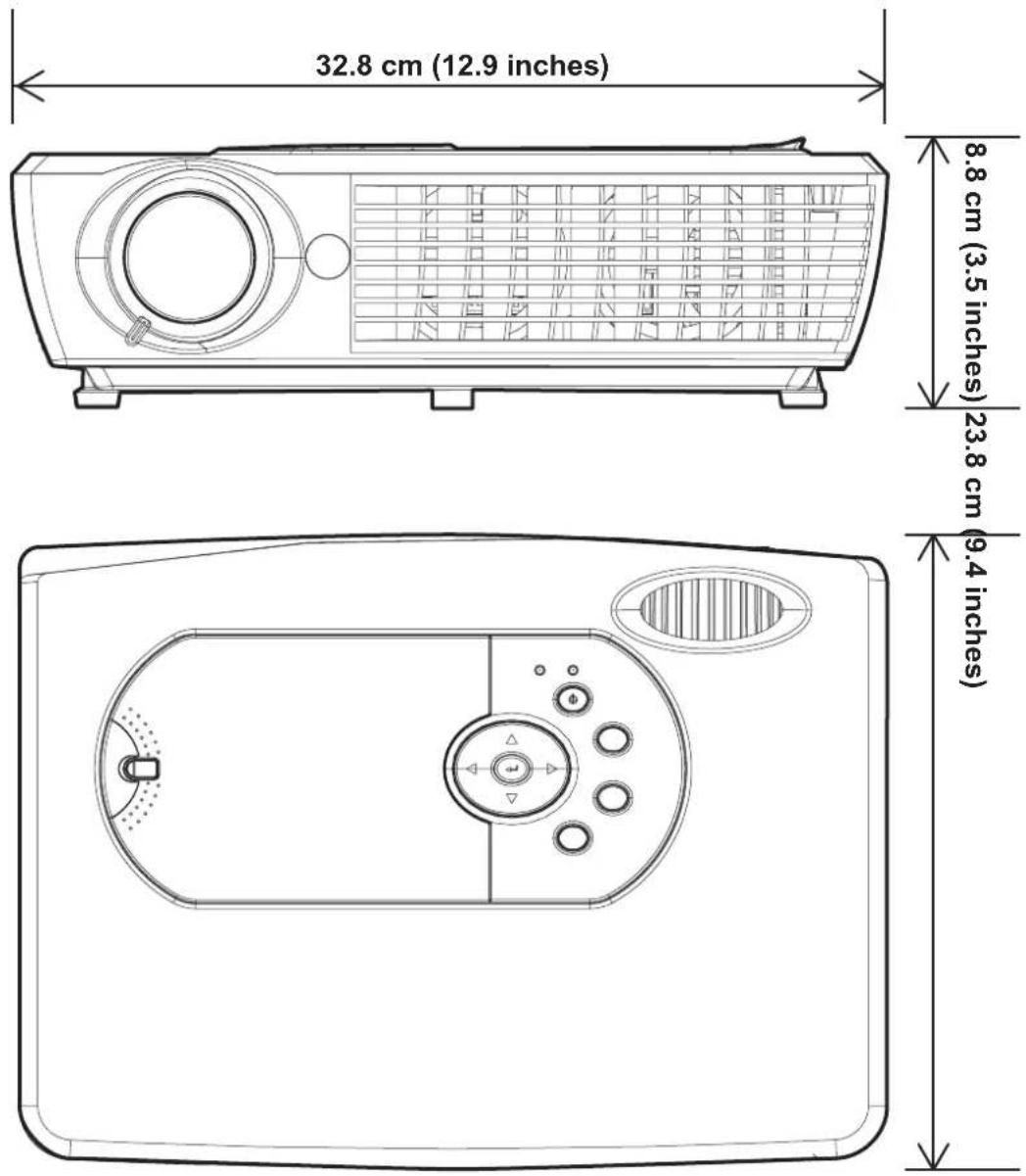

Dimensions	32.8 x 23.8 x 8.8 cm (12.9 x 9.4 x 3.5 inches)
Standby	< 20 watts
Noise	36 dB typical
Audio speaker	2W mono speaker
Uniformity	80 %

Input/output connectors

PC	DVI-I
	RGB in
	RGB out
	USB
Video	Composite video (RCAx1)
	S-Video (Mini-DIN)
	Component video Y,Pb/Cb,Pr/Cr (RCAx3)
Audio	Mini-jack in
	Mini-jack out
	Right and left in (RCAx2)
Service/upgrades	RS-232
Security	Kensington slot

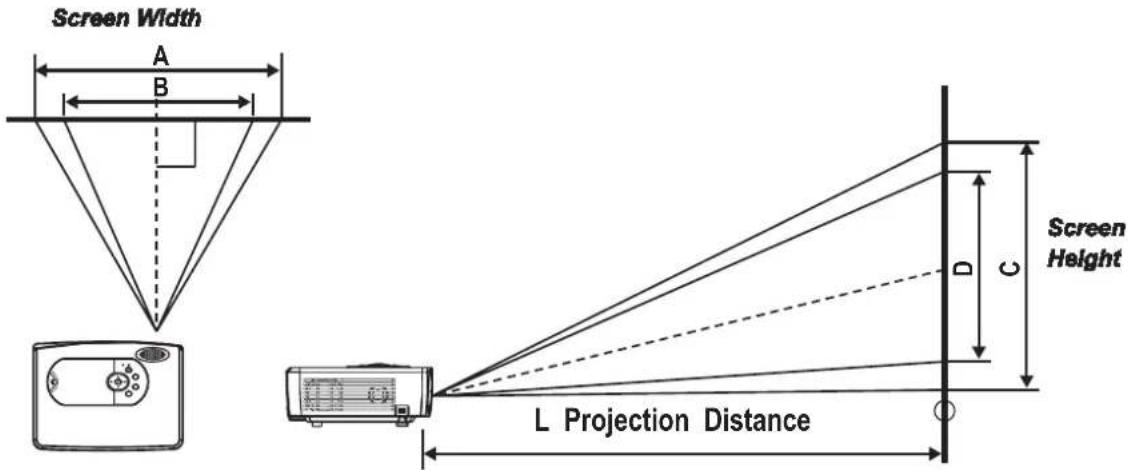

Projection Distance versus Projection Size

Projection Distance	Max. Screen Size Min. Screen Size
	Diagonal	Width A C	Height	Diagonal	Width B D	Height
L
1.5m	1.14m	0.91m	0.68m	0.94m	0.75m	0.56m
4.92'	45"	36"	27"	36.88"	29.5"	22.1"
2m	1.52m	1.22m	0.91m	1.25m		1m
6.56'	60"	48"	36"	49.18"	39.34"	29.51"
2.4m	1.83m	1.46m	1.1m	1.5m	1.20m	0.90m
7.87'	72"	57.6"	43.2"	59"	47.2"	35.4"
2.8m	2.13m	1.71m	1.28m	1.75m	1.4m	1.05m
9.18'	84"	67.2"	50.4"	68.85"	55.08"	41.31"
3.2m	2.44m	1.95m	1.46m		2m	1.6m	1.20
10.5'	86"	68.8"	51.6"	70.49"	56.39"	42.29"
3.6m	2.74m	2.19m	1.65m	2.25m	1.80m	1.35m
11.81'	108"	86.4"	64.8"	88.52"	70.82"	53.11"
4m	3.05m	2.44m	1.83m	2.5m	2.00m	1.50m
13.12'	120"	96"	72"	98.36"	78.69"	59.02"
4.4m	3.35m	2.68m	2.01m	2.75m	2.2m	1.65m
14.43'	132"	105.6"	79.2"	108.19"	86.55"	64.91"
4.8m	3.66m	2.93m	2.19m	3.00m	2.40m	1.80m
15.74'	144"	115.2"	86.4"	118.03"	94.42"	70.82"
5.2m	3.96m	3.17m	2.38m	3.25m	2.60m	1.95m
17.06'	156"	124.8"	93.6"	127.86"	102.29"	76.72"
5.6m	4.27m	3.41m	2.56m	3.50m	2.80m	2.10m
18.37'	168"	134.4"	100.8"	137.7"	110.16"	82.62"
6m	4.57m	3.66m	2.74m	3.75m	3.00m	2.25m
19.68'	180"	144"	108"	147.54"	118.03"	88.52"
8m	6.10m	4.88m	3.66m	5.00m	4.00m	3.00m
26.24'	240"	192"	144"	196.72"	157.38"	118.03"

Timing Mode Table

The native resolution is 800 x 600 for the SVGA series and 1024 x 768 for the XGA series. Resolution other than native mode may display with uneven size of text or lines.

The following table shows the supported timing modes.

Signal Resolution		Frequency H. (KHz)	Frequency V. (Hz)	Video Digital Analog
NTSC -- 15.734	60.0 O -- --
PAL / SECAM --	15.625 50.0 O	-- --
VESA	640 x 350	37.9	85.1	--	O	O
	720 x 400	31.5	70.0	--	O	O
	720 x 400	37.9	85.0	--	O	O
	640 x 480	31.5	60.0	--	O	O
	640 x 480	37.9	72.8	--	O	O
	640 x 480	37.5	75.0	--	O	O
	640 x 480	43.3	85.0	--	O	O
	800 x 600	37.9	60.3	--	O	O
	800 x 600	46.9	75.0	--	O	O
	800 x 600	48.1	72.2	--	O	O
	800 x 600	53.7	85.1	--	O	O
	1024 x 768	48.4	60.0	--	O	O
	1024 x 768	56.5	70.1	--	O	O
	1024 x 768	60.0	75.0	--	O	O
	1024 x 768	68.7	85.0	--	O	O
	1280 x 1024	64.0	60.0	--	O	O
Apple Macintosh	640 x 480	35.0	66.7	--	O	O
	832 x 624	49.7	74.5	--	O	O
	1024 x 768	60.2	74.9	--	O	O
	1152 x 870	68.7	75.1	--	O	O
HDTV	1920 x 1080	33.8	60.0	O	--	--
	1920 x 1080	28.1	50.0	O	--	--
	1280 x 720	45.0	60.0	O	--	--
SDTV	720 x 576	31.3	50.0	O	--	--
	720 x 480 31.5	60.0 O --

Frequency supported

-- Frequency not supported

For XGA series only

Dimensions
