MDWF2SS - Dishwasher MIDEA - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Midea
Model	MDWF2SS
Dimensions (H x W x D)	84.5 x 45 x 60 cm
Weight	32 kg
Color	Stainless Steel
Place Settings	10
Energy Efficiency Class	A+
Annual Energy Consumption	268 kWh
Annual Water Consumption	3360 L
Noise Level	49 dB(A)
Number of Programs	6 (Eco, Auto, Intensive, Normal, Quick, Rinse)
Drying System	Condensation Drying
Water Connection	Cold Water Only
Power Supply	220-240 V, 50 Hz
Rated Power	1930 W
Control Type	Electronic Display
Salt and Rinse Aid Indicator	Yes
Maintenance	Clean filters regularly; descale every 3 months
Safety Features	Child Lock, Overflow Protection
Spare Parts Availability	Contact Midea service center; parts include racks, filters, spray arms
Repairability Index	7.5/10
Warranty	2 years

Frequently Asked Questions - MDWF2SS MIDEA

How do I install the dishwasher?

Ensure the appliance is level and connected to water supply (cold only). Connect drain hose to a standpipe or sink drain. Plug into a grounded outlet. For detailed steps, refer to the installation section of the manual.

What are the available wash programs?

The MDWF2SS offers 6 programs: Eco (energy-saving), Auto (sensors adjust cycle), Intensive (heavily soiled), Normal (everyday), Quick (30 min), and Rinse (preliminary rinse).

How do I clean the filters?

Turn off the dishwasher. Remove lower rack, then twist and lift out the cylindrical microfilter and flat filter. Rinse under running water and scrub with a soft brush. Reassemble in reverse order. Clean filters every 2-4 weeks.

Why is the dishwasher not draining?

Check if the drain hose is kinked or blocked. Clean the filters. Also ensure the garbage disposal (if connected) is not clogged. If problem persists, inspect the drain pump for obstructions.

What does the error code E1 mean?

Error code E1 indicates a water inlet issue. Ensure the water tap is fully open and the inlet hose is not kinked. If the problem continues, the inlet valve may need replacement.

Can I use regular dish soap?

No, use only dishwasher detergent (powder, gel, or tablets). Regular dish soap creates excessive suds that can damage the appliance and cause leaks.

How often should I run a cleaning cycle?

Run a cleaning cycle (e.g., with a dishwasher cleaner or vinegar) every 3 months to remove grease and limescale. For hard water areas, more frequent descaling may be needed.

Is the dishwasher child-safe?

Yes, it features a child lock function. To activate, press and hold the Start button for 3 seconds. This locks the buttons to prevent accidental operation.

What is the noise level?

The noise level is 49 dB(A), which is typical for a standard dishwasher. It may vary slightly depending on the program and load.

Where can I get spare parts?

Contact Midea customer service or visit authorized service centers. Common spare parts include racks, spray arms, filters, and door seal. Provide model MDWF2SS when ordering.

USER MANUAL MDWF2SS MIDEA

47dBA, 15 place settings with cutlery rack, adjustable top rack, Delay Start Function

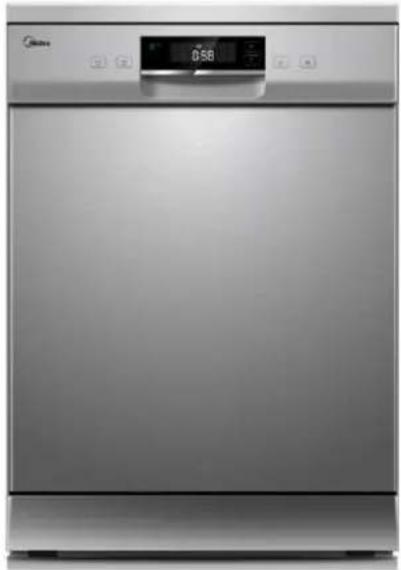

Exterior view of a stainless steel multi-level kitchen appliance (no visible text or symbols)

Benefits

15 place settings with cutlery rack

Adjustable top basket

8 Programs

1-24 hours Delay Start Function

47dBA noise level

LED Display

Noise Level

Delay Start Function

Quick Wash

Auto Wash

Capacity

Number of Place Settings: 15

Performance

WELS Water Rating: 5 Stars

Water Consumption: 11.8L

Energy Rating: 4 Stars

Voltage: 220-240

Frequency: 50Hz

Operating Noise: 47dBA

Design

Colour: Stainless Steel

Number of Spray Levels: 2

Technology

Motor Type: Inverter

MDWF2SS

60cm Stainless Steel Freestanding Dishwasher

47dBA, 15 place settings with cutlery rack, adjustable top rack, Delay Start Function

Drying System: Residual dry

Water Inlets: Cold

Control Features

Program Controls: Electronic button control

Screen Type: LED

Tablet Detergent Option: Yes

Delay Start: 1-24 hours

Half Load Option: Yes

Time Remaining Display: Yes

Electronic Rinse Aid Indicator: Yes

Flexibility

Height Adjustable Upper Rack: Yes

Upper Basket Supports: Yes

Lower Basket Supports: Yes

Built-Under Installation: Yes

Can accommodate Large Dishes: Yes

Removable Top for Built-Under

Installation: Yes

Included Accessories

Cutlery Basket: No

Wash Programs & Functions

Programs:

8 (Auto, Intensive, Heavy, Eco, Glass, 90min, Quick Wash, Soak)

Auxiliary Functions:

Extra drying

MDWF2SS

60cm Stainless Steel Freestanding Dishwasher

47dBA, 15 place settings with cutlery rack, adjustable top rack, Delay Start Function

Safety

Water Safety System: Yes

Fault Indicator: Yes

Dimensions & Weights

Unpacked Height: 845mm

Unpacked Width: 598mm

Unpacked Depth: 600mm

Unpacked Weight: 40.5kg

Packaged Height: 884mm

Packaged Width: 645mm

Packaged Depth: 645mm

Packaged Weight: 45.5kg

Country of Origin: China

EAN Code: 6939962603728

Manufacturer's Warranty: 3 years

MDWF2SS

60cm Stainless Steel Freestanding Dishwasher

47dBA, 15 place settings with cutlery rack, adjustable top rack, Delay Start Function

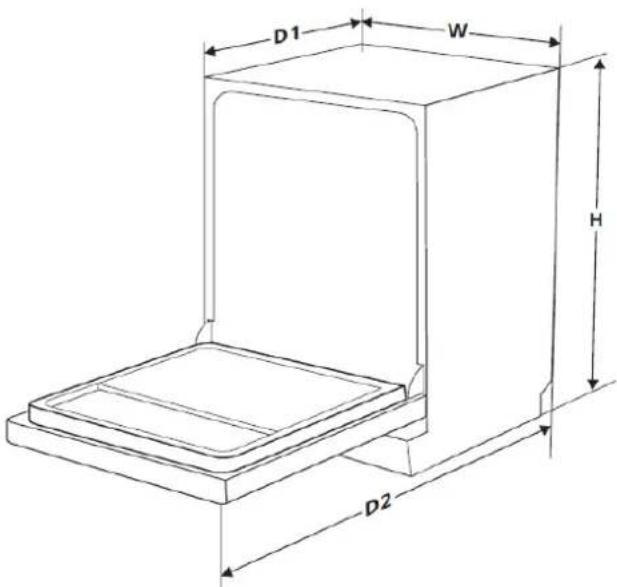

Height (H)	845mm
Width (W)	598mm
Depth (D1)	600mm (with the door closed)
Depth (D2)	1175mm (with the door opened 90° )
