LK1501CR - Faucet Elkay - Free user manual and instructions

Type	Faucet
Brand	Elkay
Model	LK1501CR
Material	Chrome-plated brass
Mounting type	Deck mounted
Number of handles	Single handle
Handle type	Lever
Spray type	Pull-down spray
Spray head material	Plastic with rubber nozzles
Flow rate	1.5 GPM (5.7 L/min)
Valve type	Ceramic disc
Number of installation holes	1 hole
Faucet height	Approximately 15 inches
Spout height	Approximately 8 inches
Spout reach	Approximately 9 inches
Weight	Approximately 5 lbs
Warranty	Limited lifetime warranty

Frequently Asked Questions - LK1501CR Elkay

What is the recommended water pressure for this faucet?

The recommended water pressure range is 30–80 psi (0.2–0.5 MPa) for optimal performance.

How do I clean the pull-down spray head?

Soak the spray head in a vinegar solution to remove mineral deposits. Rinse thoroughly and reattach.

Can I install this faucet on a 2-hole sink?

No, this faucet is designed for a 1-hole installation. An escutcheon plate may be used to cover extra holes.

What is the warranty period for the LK1501CR?

Elkay offers a limited lifetime warranty on the faucet body and finishes.

Is this faucet compatible with standard kitchen sinks?

Yes, it fits standard 1-hole sink decks with a maximum thickness of 2 inches.

How do I replace the cartridge?

Turn off water supply, remove the handle and retaining nut, then pull out the old cartridge and install a new one. Refer to the manual for specific steps.

Does the spray head have a pause button?

Yes, the pull-down spray head features a pause button that temporarily stops water flow.

What type of finish is available?

The LK1501CR comes in a chrome finish, which is resistant to tarnishing and corrosion.

How do I install the weight for the spray hose?

Attach the weight to the hose at the correct position so that the spray head retracts fully. Adjust by sliding the weight up or down.

Where can I find replacement parts?

Contact Elkay customer service or visit their website to order genuine replacement parts like cartridges, hoses, and spray heads.

USER MANUAL LK1501CR Elkay

You choose the flow rate!

This faucet ships with an eco-friendly 1.5GPM flow regulator installed.

If you desire higher flow rate, a 2.2GPM flow regulator has also been included in the box.

Switching the flow regulator is simple! See the "Flow Regulator Replacement" section for details.

Line drawing of a double faucet with handle and base (no text or symbols)

LK1501

Line drawing of a faucet with handle and base, labeled LK1500 (no other text or symbols)

INCLUDES:

Line drawing of a kitchen faucet with multiple washers and a handle, plus additional rings (no text or symbols)

Line drawing of a faucet with multiple circular components (no text or symbols)

OPTIONAL 2.2GPM AERATOR

RECOMMENDED TOOLS:

Groove joint pliers

Wrench

(2) 1/2 in Supply Lines

Screwdriver

Sealant Tape

Plumber's Putty

WARNING: Please carefully read and properly follow the instructions for installation found in this manual.

STEPS:

1

Line drawing of a hand holding a mechanical component with a circular base and textured top (no text or symbols)

Shut off water supply at angle stop. Clean sink surface in preparation for new faucet.
If your model has a spray, proceed to step 2. If your model does not have a spray skip to step 4.

2

For models with spray: Insert spray support through far right hole on sink. Screw hold - down nut (1) onto shank and hand tighten. Place faucet in position on sink. Install rubber washer (2) and metal washer (3) onto the threaded mounting shank. Thread nut (4) onto mounting shank. Do not overtighten.

3

Diagram of a kitchen sink with faucet and tubing (no text or labels)

For models with spray: Insert spray hose down through the support and sink. Attach the spray hose to the connection beneath the faucet by aligning the tabs on quick connector. Push quick connector housing firmly upward and snap onto receiving tube tab. Pull down moderately to ensure connection has been made. If it is necessary to remove the quick connector, squeeze tabs on hose between index finger and thumb, then pull down to disconnect.

4

Diagram of a kitchen sink with a valve and mechanical components (no text or labels)

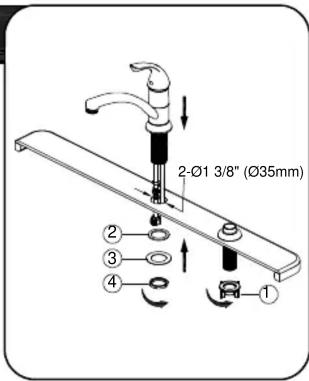

Place faucet in position on sink. From underneath sink, install rubber washer (1) and metal washer (2) onto the threaded mounting shank. Thread nut (3) onto mounting shank. Do not overtighten.

5

Make connections to water lines. Use 1/2" I.P.S. faucet connections (1) or use coupling nuts (3) with 3/8" O.D.ball-nose riser(2). Use wrenches to tighten connections. Do not overtighten.

6

Line drawing of a kitchen faucet with a drain and handle, no text or symbols present

Important: After installation is completed, remove aerator assembly. Turn on hot and cold water supplies. Turn handle to full open position for one minute. Check for leaks. Replace aerator.

1

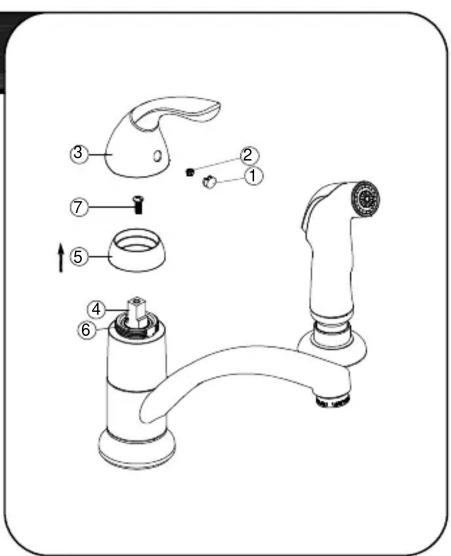

Shut off water supply. Remove set screw plug (1). With valves in "closed" position, unscrew set screw (2) and remove handle (3) from valve stem (4). Loosen the screw (7) from valve stem (4). Loosen the cap (5) from the sleeve (6).

2

Loosen sleeve (1) by turning it counter-clockwise and lift out the cartridge (2). Remove the old cartridge and replace with the new cartridge. Replace sleeve and tighten. Reinstall the handle.

FLOW REGULATOR REPLACEMENT

This faucet ships with a 1.5GPM aerator installed. An optional 2.2GPM aerator is also included in the box.

To switch the flow rate of the faucet:

1. Disassemble aerator assembly by separating the aerator shell (1), aerator (2) and washer (3). Remove

existing aerator (2) and install the new aerator. (2.2GPM=Red, 1.5GPM=Green)

1. Reinstall the aerator assembly.

CARE AND CLEANING INSTRUCTIONS

Congratulations on your purchase of an Elkay product. Although your product is extremely durable, attention should be given to the care, cleaning and maintenance of this product. Cleaning agents and abrasives may cause damage, which may result in oxidation and discoloration.

By following these simple guidelines for proper care and cleaning, it will give you years of enjoyment:

TO CLEAN: Simply wipe gently with a damp cloth and blot dry with a soft towel. A common rule of thumb is: when you dry off, dry off your product.

• Avoid build-up of soap, toothpaste or mineral deposits, as these tend to have an adverse effect on the appearance of the product.
• NEVER use cleaning products of any kind on this product - especially those containing ammonia, bleach or alcohol - or those with any form of abrasive.

FOR CARE AND MAINTENANCE:

• The water in certain areas of the world can be very caustic - standing water around the product can cause damage. Be sure to remove standing water with a dry, soft cloth as soon as possible.
• For polished brass finishes, as often as once a week, you can apply a paste wax or special, non-abrasive, brass coating (DO NOT APPLY POLISH).
• Before applying a protective coating, gently brush the entire fixture using a soft tooth brush. This will remove any dirt or deposit build-up.
• These simple steps will add temporary protective coating to your faucet and extend the life of the finish.

Failure to follow care and cleaning will void your warranty. For additional information, please visit elkayusa.com.

WARRANTY

ELKAY LIMITED LIFETIME WARRANTY

ELKAY LIMITED LIFETIME WARRANTY

Elkay warrants that all parts and finishes of the Elkay Residential brand faucets are free from defects in materials and workmanship for the life of the product, if purchased after 1996. This warranty covers the original consumer purchaser of the product only.

If the product should leak or drip during normal use, Elkay will provide, free of charge, a replacement cartridge. For other defects in material or workmanship, Elkay will, at its option, supply replacement parts (or if no longer available a comparable product). Elkay reserves the right to examine product in question and its installation prior to replacement.

What is not covered:

1. Damage caused by accident, negligence, misuse, abuse, improper installation or operation or failure to follow care or installation instructions enclosed with your product.

2. Damage occurring during shipment of the product (claims must be presented to the carrier).

3. Normal wear and tear.

4. Labor charges, costs of removal and reinstallation, and any damages to other property.
5. All industrial, commercial and business use whose purchasers are hereby extended a limited lifetime on mechanical parts and 5 years on finish.

What you must do to obtain warranty service:

Either write to Elkay, attention Customer Care, 2222 Camden Court, Oak Brook, IL 60523 or call 1-800-223-5529. Please provide date of purchase and installation, description of nature of the defect, and model number or description of model and/or component part.

THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER WARRANTIES, EXPRESSED IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS LIMITED WARRANTY MAY NOT BE ALTERED, VARIED, OR EXTENDED, EXCEPT BY A WRITTEN INSTRUMENT EXECUTED BY ELKAY. THE REMEDY OF REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT OCCASIONED BY NEGLIGENCE OF ELKAY, INCLUDING WITHOUT LIMITATION DAMAGES FOR LOSS OF USE, COSTS PROPERTY DAMAGE OR OTHER MONETARY LOSS.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

This warranty covers product installed in the United States and Canada.

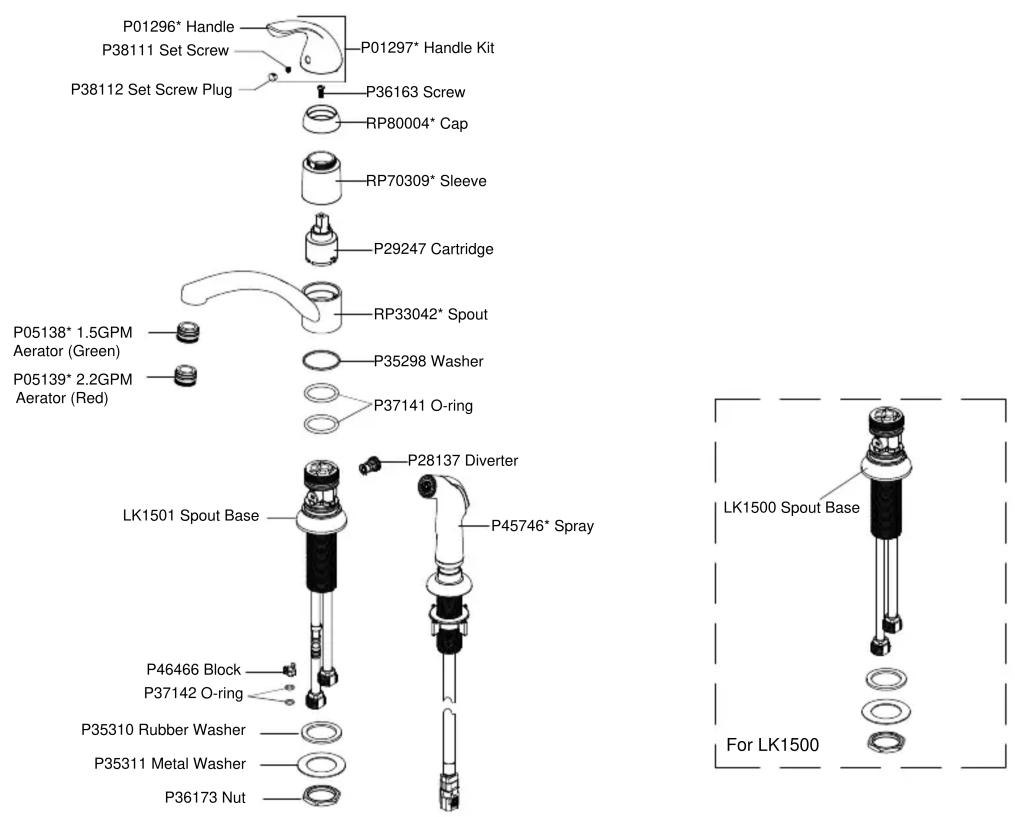

REPLACEMENT PARTS
