Product Type	Radar/Laser Detector with GPS Navigation features (Compass, Car Voltage)
Detection Bands	X, K, Ka, Ku, Pop, VG-2, Spectre 1, Laser, Safety Alert, Strobe Alert
Display	ExtremeBright DataGrafix OLED, full color, customizable (Multi-Color, Red, Blue, Orange, Green)
Power Source	12V DC from vehicle cigarette lighter (straight or coiled cord included)
Mounting	Windshield (suction cups) or dashboard (hook-and-loop fastener)
Special Features	Super-Xtreme Range Superheterodyne, LaserEye (360° laser detection), IntelliShield false signal rejection, IntelliMute (RPM-based auto mute), SmartPower (auto standby), Voice Alert, 8-point Compass, Car Battery Voltage display
Audio Alerts	Voice or Tone with adjustable volume, auxiliary audio jack for external speaker
Programming	EasySet programming for user and alert settings; restore factory defaults
Safety Alert	Detects emergency vehicles, road hazards, trains (Safety Alert traffic warning system)
Strobe Alert	Detects emergency vehicle strobes (3M Opticom, Tomar) for traffic signal preemption
Compass	8-point digital compass, requires calibration after mounting
Car Battery Voltage	Displays voltage continuously; low voltage warning (below 11.9V) triggers SmartPower mode
Display Timeout	Adjustable from 15 seconds to always on; extends screen life
Weight	Not specified; typical radar detector weight ~200 g
Dimensions	Not specified; typical size ~3 x 5 x 1.5 inches
Warranty	1-year limited warranty (U.S.A. only)
Accessories Included	Straight 12V power cord, coiled 12V power cord, windshield mounting bracket, dual port power adapter (optional)
Maintenance	No routine maintenance; check power cord connection and fuse (2A) if issues occur
Legal Note	Federal law allows reception of radar transmissions; local laws may vary. Not for use in violation of local regulations.

Frequently Asked Questions - XRS 9940 COBRA

How do I mount the Cobra XRS 9940 on my windshield?

Attach the suction cups to the bracket, clean the windshield, press the bracket firmly, then attach the detector. Ensure the unit is parallel to the road. Plug in the power cord and insert the lighter adapter.

How do I set the IntelliMute feature?

Go to User Settings > Set IntelliMute. Press Mute to begin, then hold the accelerator at desired RPM (e.g., 300-600 RPM above idle) and press Mute again. The detector will store the activation point.

How do I calibrate the compass?

Ensure Compass mode is ON in User Settings. Then select Set Compass, press Mute, drive in two complete circles in a safe area, and press Mute again to store calibration.

What do the different alert tones mean?

A slow-to-fast repeating tone indicates police radar. A single tone may be a false alarm. Instant full-speed tone indicates sudden radar activation. Pop mode tone indicates a Pop radar gun. Laser alerts are always real.

Can I change the display color?

Yes. Go to User Settings > Color Theme. Choose from Multi-Color, Red, Blue, Orange, or Green to match your dashboard.

How do I mute an alert temporarily?

Press the Mute button once to silence the current alert. Press it again to restore audio. The next alert will be heard at full volume.

What is SmartPower mode?

SmartPower automatically puts the detector into low-power standby 15 minutes after the engine is turned off to save the car battery. It can be turned on or off in User Settings.

How do I restore factory settings?

Go to User Settings > Restore Factory Settings. Press Mute to confirm. The detector will reset all user and alert settings to defaults.

Does the XRS 9940 detect VG-2 and Spectre 1?

Yes. The detector is undetectable by VG-2 or Spectre 1 and can alert you when such devices are in use. Turn on VG-2 Detect and/or Spectre 1 Detect in Alert Settings.

What should I do if the detector does not turn on?

Check the power connection: ensure the lighter adapter is fully seated, the socket is clean, and the fuse (2A) inside the adapter is intact. Replace the fuse if blown with a 2A fuse only.

USER MANUAL XRS 9940 COBRA

The Cobra line of quality products Includes:

CB Radios

microTALK® Radios

Radar/Laser Detectors

Safety Alert® Traffic Warning Systems

Mobile GPS Navigation Systems

HighGear® Accessories

CobraMarine® VHF Radios

Marine Chartplotters

Power Inverters

Accessories

For more information or to

crite any of our products, please visit our website.

www.cobra.com

S Cobra

12 BAND S-XRS

Operating Instructions

12BAND

MAXIMUMPERFORMANCE

DIGITALRADAR/LASER

DETECTORWITHSUPER-XTREME RANGE SUPERHETERYXNE™

RANGLESUPERHETERODTNE TECHNOLOGY

XRS9940

1. 2004 年 12月

Section 2

Important Information and

Customer Assistance

Important Information

Federal Laws Governing the Use of Radar Detectors

It is not against federal law to receive radar transmissions with your Cobra radar/laser detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action.

Safety Alert

Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra Safety Alert transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area.

Safe Driving

Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws.

Security of Your Vehicle

Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft.

Customer Assistance

Should you encounter any problems with this product, or not understand its many feat. please refer to this owner's manual. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

For Assistance in the U.S.A.

Automated Help Desk English only. 24 hours a day. 7 days a week. 773-889-3087 (pl Customer Assistance Operators English and Spanish. 9:00 a.m. to 6:00 p.m. Central Ti Mon. through Fri. (except holidays) 773-889-3087 (phone).

Questions English and Spanish. Faxes can be received at 773-622-2269 (tax).

Technical Assistance English only. www.cobra.com (on-line; Frequently Asked Questions). English and Spanish. product [e-mail] (e-mail).

For Assistance Outside the U.S.A.

Contact Your Local Dealer

©2016-2017 ECONOC GRAPION

Chicago Brobe 10707 USA

66600000

Nothing Comes Close to a Coora.

Nothing Comes Close to a Cobra

English

Radar/Laser Detectors

Safety Alert® Traffic Warning Systems

Mobile GPS Navigation Systems

[Non-Text]

[Non-Text]

[Non-Text]

information or to

y of our products,

visit our website

www.cobra.com

· = 0

Nothing Comes Close to a Cobra

English

1. 实验原理

· = 0

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

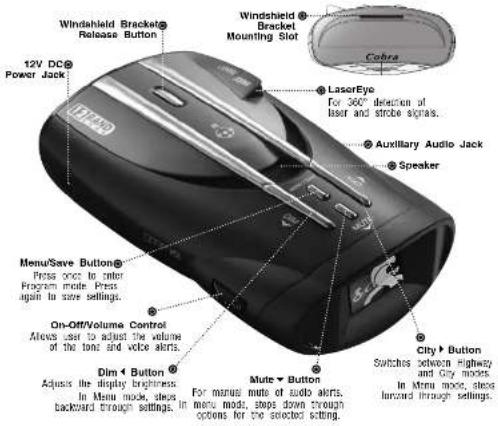

Controls, Indicators, Connections and Display

Controls, Indicators, Connections and Display

ExtremeBright DataGraffxDisplay® Full color and sunlight-readable, the extreme bright display provides intuitive graphical interaction and alert screens.

English

Product_Features

Product Features

Congratulations! You've made a smart choice by purchasing an ultra high performance digital radar/laser detector from Cobra. Just look at some of the sophisticated features and capabilities your new unit includes:

Super-Xtreme Range

Superheterodyne Technology With super-fast sweep circuitry, S-XRS provides maximum detection range and the best possible advance warning to even the fastest radar guns

Maximum Performance

Provides advanced warning with maximum detection range for total protection

Detection and Separate Alerts For radar signals (X, K, Ka and Ku ha with signal strength indicated), laser signals, Safety Alert signals, Strabe Ale signals, VG-2 signals. Spectre 1 signals

8-Point Compass

Displays direction of travel

Lasereye

For 300° detection of laser and strobe signals

Instant-On Ready

Detects radar guns with "instant-on" (very fast) speed monitoring capabilities

Detects the latest super-fast radar guns the instant-on or single-pulse type Voice or Tone Alert

with adjustable volume

ExtremeBright DataGrafix Display With easy-to-read graphical user interface

IntelliShield False Signal Rejection Reduces falsing in urban areas with Highway mode and three levels of City mode settings

Safety Alert

Traffic warning system distinguishes important safety alerts from other K band signals

Strobe Alert

Emergency vehicle warning system

Manual Mule or Auto Mule

A Muts function of audio alerts

Intellinite

A Flute function which automatically reduces false alerts by sensing engine RPMs SmartPower A timed power saving function that saves your car's battery

EasySet Programming

User-friendly mode selection and action with visual evidence

Selling with Visual Gardenas Ray, Battery, Neutral, Display

Can battery voltage display Car battery voltage can be shown continuously on the display

Car Battery Low Voltage Warning Provides an alert when the car battery voltage drops below 11.9 volts

Customizable Display Colors

Customize the display colors to match

yao: that marthranch Auxilom: Audio loely

Extral, external speaker, parvraction

Mounting

Mounts easily on windshield or dashboard

WARNING Most barriers or parts substitutions not approved by Eco2 Ercfons, Corporation (Rty), 2018; HR: 549, and sold your authority to operate its equipment.

Nothing Citrus Citrus to a Collet A3

Accessories Order Info

Ordering From U.S.A.

Call 773-089-3087 for pricing or visit www.pobra.com.

For Credit Card Orders

Call 773-889-3087 [Press one from the main menu] 8:00 a.m. to 6:00 p.m. Central Time.

Monday through Friday.

Make Check or Money Order Payable To

Cobra Electronics, Attn: Accessories Dept., 2500 West Capital Street, Chicago, IL 60797 LLC A

0356 WES: Corporate Street, Chicago, 12 001-07 8.5A

to Order Online

Please visit our website: www.doora.com

Item & Description

420-030-A-00'	Straight 12V Power Cord
420-026-A-00'	Coiled 12V Power Cord
545-159-A-00'	Windshalic Mounting Bracket
GLP-2B	Dual Fort Power Adapter

missedustika

Contents

Introduction

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Customer Assistance ....A1 Alert Settings ....20

Controls, Indicators, Pop Alert 20

Connections and Display . . . . . . A2 X Band Alert 20 Product Features A3 K Band Alert 20

Product Features ....... As K Band Alert ....... 20 Overview. Ku Zand Alert . . . . . . . . . . . . . . . . . . . . . . . . . .

Ku Band Alert 20 VIG 2 Alert 20

Your Detector 93-2 Alert 20 Installation V3-7 Audio Mode 20

Getting Started Spectra 1 Alert 20

Power On/Off Spectre 1 Audio Mode 21

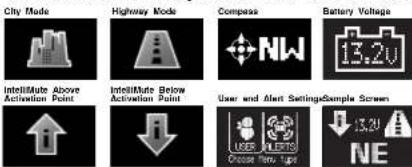

Standby Screen Icons 7 Safety Alert 21

Display Brightness Control Detection

Display Timeout Signals Detected 21

IntelliShield Highway / City Modes 8 Audio Alerts 21

Muting an Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Auxiliary Audio Jack 9 Instant-On Detection 25

EasySet Programming 10 Pop Detection 25

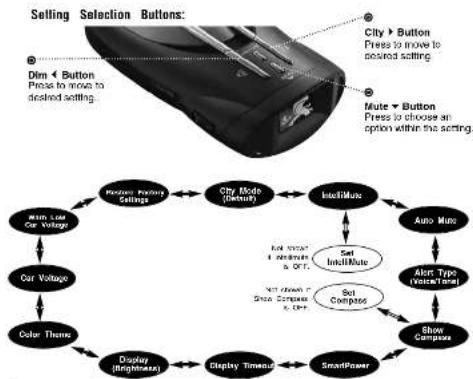

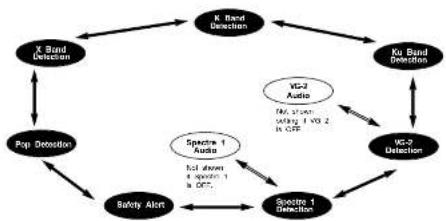

Program Flow Diagrams 12 Responding to Alerts 25

Settings .... Understanding Radar and Laser .. 26

User Settings Maintenance 28

City Mode Default 14Specifications 29

IntellMute Mode 14 Warranty

Set Intelligence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-Year Warranty .... 30

Auto Muts Moda 16 Customer Assistance Veins as Tons Moda 16

Voice of Tone Mode 1 Product Service 31

Compass Mode 10 Trademark Acknowledgement . . . 32 Set Compass

Set Domplass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18. Optional Accessories ..... 33

Smart-Over Mode 10 Accessories Order Info 37 Customizable Display Colors 18

Customizable Display Colors...16 Dim Mode Default 18 Appendix - Menu Guides

Car Battery Voltage User Programming 34

Display Moda 1Alert Programming 36

Car Battery Low

Voltage Warning 19

Restore Factory Settings . . . . 19

Introduction

Overview

This manual describes the simple steps for mounting, setting up and using your detector. It also provides helpful information about how radar and laser guns are used and how you can interpret the alerts you receive.

Before you begin your installation, please read the important information section on page A1 and use the descriptions and feature lists on pages A2 and A3 to become familiar with your new detector.

About Your Detector

Display

This detector's innovative new display provides more, easier-to-use information than any technology to date. Using an OLED (Organic Light Emitting Diode) screen, the display offers large graphical alerts to signals as they are detected. Do not be alarmed by the nearly blank display you see when you first turn the unit on. The detector will function and alerts will appear as signals are detected. You can also elect to turn on the built-in Compass, IntellMute and Car Voltage so that they appear during normal operation. The initial and startup screens are shown on page 6.

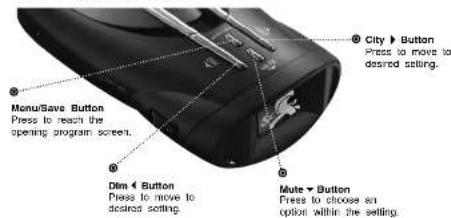

Programming

EasySet Programming lets you conveniently customize the operation of your detector by changing the settings. You may want to start using the detector with the factory settings and then make changes after you are more familiar with the unit.

About This Manual

Please take a moment to learn about some special features of this manual.

Modular Descriptions

Once the detector is in use, this manual can be used as a ready reference to individual topics as needed. Each topic is completely covered in its section and cross-references to related topics are included where appropriate.

Appendix

The appendix pages 34–36 provide quick reference charts on the programming features of your detector.

English

Installation

Installation

Where to Mount Your Unit

You will get optimum performance from your detector if you mount it at a point approximately in the center of the vehicle, as low as possible on the front windshield without obstructing the unit's view of the road either to the front or rear. You can also mount it directly on the dashboard.

The unit's lens must not be blocked and the LaserEye should have a clear view out the back window to allow 360° detection.

Radar and laser signals pass through glass but not through other materials and objects. Objects that can block or weaken incoming signals include:

■ Windshield wiper blades
■ Mirrored sun screens
■ Dark tinting at the top of the windshield
■ Heated windshields currently available on some vehicles (Instaclear for Ford, Electriclear for GM). Consult your dealer to see if you have this option.

Nothing Currns Currns to a Cofes 3

Windshield Mounting

1. Attach the number cups to the bracket.
2. Make sure the rubber cups and your windshield are cl
3. Push the bracket firmly onto the windshield.
4. Attach the detector to the bracket. Check that the unit is parallel to the road's surface.
5. To adjust the angle if necessary, gently push or pull on the bracket to be it. DO NOT use the detector to bend the bracket.
6. Plug the power cord into the detector.
7. Plug the cigarette lighter adapter on the power cord into your vehicle's cigarette lighter.

Installation

Dashboard Mounting

1. Place the detector on the dashboard to find a location where the unit has a clear view of the road and is pa to the road's surface. The angle CAMVOT be adjusted after mounting.
2. Remove the paper backin from one side of the hoo and-loop fastener.
3. Attach the pad to the dashboard at your chosen location and remove the other paper backing.
4. Attach the detector to the hook-and-loop fastener. You can remove and resttach the unit as often as you like.
5. Plug the power cord into the detector.
6. Plug the cigarette lighter adapter on the power cord into your vehicle's cigarette lighter.

Getting Started

Power On/Off

Rotate the On-Off/Volume control clockwise (away from you)	Tone	Visual Display	Voice
	Testing, then three boops		Testing, then three boops System Ready
Unit will cycle through Power On / Sell Test and display the Standby screen when complete. Standby screen will show City or Highway Icon Car Battery Voltage Compass, and Ins-Make will also show it turned on (less note).	None		Voice Alert
Display changes to Display Timeout after 30 seconds (factory default).	None None

NOTE

When the system is first turned on from new, only the City or Highway icon will show a the screen because the Snow Compass, IntelliMate and Show Car Battery Voltage functions are set to off at the factory. See pages 14, 16 and 19 to turn these functions on.

NOTE

In some vehicles, power is supplied to the cigarette lighter even while the ignition is off. This is the case with your vehicle and you have turned the SmartPower off, you should turn off or unplug your detector when parking for lengthy periods. Coora recommends leaving SmartPower at the factory setting, which is on. See page 18.

English

Getting Started

Standby Screen Icons

Your detector uses the following icons to indicate modes and functions when set:

City Mode Highway Mode Compass Battery Voltage

IntellMute Above Activation Point

IntellMute Below Activation Point

Ums and Alert Section

NOTE

For example, the sample screen indicates that IntelliMute is active, the Compass is calibrated, your system is set to Highway mode and your vehicle's battery voltage is charged to 13.8 volts.

Display Brightness Control

Your detector has a Bright display mode (for daytime driving)

and three levels of the Dim display mode:

■ Dim for dusk driving.
■ Dimmer for night driving.
■ Dark to prevent all visual alerts from displayingpt moving back and forth
The factory setting is Dim. This level can be changed toward the bottom of the
In programming mode (see page 10.)
You can toggle between Brinh and Dim modes
by pressing the Dimnution.

NOTE

When you change to Dim mode, the unit will enter whichever dim default mode is set at the time.

Nothing Curras Curras to a Curras 7

Getting Started

DisplayTimeoutMode

Your detector has a Display Timeout mode to prolong the life of your screen. Touch any button to exit Display Timeout and recall the Standby screen.

The factory default is for Display Timeout to engage from the Standby screen after 30 seconds. You can change the time interval or deactivate Display Timeout in programming mode (see page 10).

In Display Timeout mode, the display will show a small dot moving slowly back and forth to indicate the unit is turned on.

IntelliShield Highway/City Modes

Your detector is equipped with IntelliShield false signal rejection technology which consists of a Highway mode and three different levels of City modes: City X, City X Beep Off and City X+K.

Highway mode provides full response to all signals detected. The City modes reduce false alerts while you are driving in or near urban areas where there are many sources for conflicting X or K band signals such as microwave towers and automatic door openers. The factory setting is Highway. The factory City mode default setting is City X; it can be changed in programming mode (see page 11).

You can toggle between Highway and City modes by pressing▶ butterfly

City ▶ Button Press and release

When you change to City mode, the unit will enter whichever city default mode is set at the time.

English

Getting Started

Muting an Alert

Your detector allows you to quickly turn off an Audio Alert by momentarily pressing the Mute button. If you press the Mute button a second time during the alert, the Audio Alert will be turned back on. After the current alert is gone, the next alert will be heard.

Two other features are incorporated in your detector to automatically mute or reduce the volume of alerts. See pages 14 and 16 for Intellimate and Auto Mute modes.

Auxiliary Audio Jack

The Auxiliary Audio Jack can be used to connect external speakers in environments with high ambient noise levels. The internal speaker will be disconnected. (This uses a mini stereo audio connector.)

Nothing Currns Currn to a Currns 9

EasySet Programming

EasySet Programming

EasySet Programming

EasySet Programming gives you quick and easy access to all the settings on your detector. It is used to program both:

■ User Settings (see pages 14 and 15) User Programming Menu Guide (see pages 34 and 35)
■ Alert Settings (see page 20) Alert Programming Menu Guide (see page 36).

Refer also to the Program Flow Diagrams for User Settings and Alert Settings programming to easily navigate to the setting you want to change (see pages 12 and 13). All settings are stored in memory when the power is turned off and will be recalled when the power is turned back on.

NOTE

You cannot enter Program mode during an alert. The unit will not detect signals while in Program mode. During programming, if no buttons are pressed for 15 seconds, the unit will automatically exit Program mode and save the most recent settings.

EasySet Programming Buttons:

English

To use EasySel program mode:

1. Press the Menu/Save button to reach the opening program screen.
   Choose whether you want to change.
   a. User Settings — press the Dinton to enter the User Setting loop (see page 12)
   b. Alert Settings — press the button to enter the Alert Setting loop (see page 13)
2. Press the Other Dim < buttons to step forward or backward through the chosen settings loop until the desired option is reached.

NOTE

Press and release the button to move one option.

1. Press the Mule ▼ button to toggle the option on or off or to step through its multiple choices.
2. Repeat steps 3 and 4 to move to and set the next desired option(s).
3. Press the Menu/Save button when finished to save the settings and exit EasySet program mode. Or, simply wait 15 seconds without pressing any buttons.

NOTE

If power is turned off while in Program mode, option settings are saved to those in effect before Program mode was entered.

Program Flow Diagrams

Program Flow Diagrams

User Settings Programming

User Programming allows you to adjust the unit's display and sounds to your preferences. The User Settings can be selected using the Dim ◀ and City ▶ buttons by scrolling through the settings as shown in the program flow diagram below. The User Programming Menu Guide on page 34 is a handy reference showing the tone, visual display and voice prompts that accompany each setting. After selecting a setting, use the Muten to choose an option within the setting.

NOTE

When you choose User Settings (page 11, step 2a), the system displays whichever setting was last changed.

English

Alert Settings Programming

Alert Programming allows you to selectively turn on or off detection of some signals. The Alert Settings can be selected using the DIM and City buttons by scrolling through the settings as shown in the program flow diagram below. The Alert Programming Menu Guide on page 36 is a handy reference showing the tone, visual display and voice prompts that accompany each setting. After selecting a setting use the Mutelton to choose an option within the setting.

NOTE

When you choose Alert Settings (page 11, Step 2b), the system displays whichever setting was last changed.

This detector allows you to customize its operation by changing settings in the User Programming and the Alert Programming modes. (See page 11 for entering the EasySet Programming mode.) Also, refer to the Appendix (pages 34-36) while programming. These show the lists of User and Alert settings. Features of the programmable settings are described on the following pages.

Nothing Currns Currn to a Currs 13

Settings

User Settings

IntelliShield City Mode Default

City Mode Default makes three levels of Audio Alert suppression available when you toggle from Highway to City mode (see page 8). The factory setting is City X.

City X sounds a single beep when an x band signal is first detected. The alert then sounds when signal strength reaches level 3.

City X+K combines the City X mode with prevention of K band audio alerts until the signal strength reaches level 2.

City X Beep Off blocks all X band audio alerts until the signal strength reaches level 3.

IntellMute Mode

IntelliMute is a unique feature that allows you to avoid alerts you don't need to hear because you are stopped or moving slowly. By sensing the "revs" (RPMs) of your engine, IntelliMute knows when you are at low speed and automatically mutes alerts (except for strobe signals from emergency vehicles). It works with all City and Auto Mute modes.

Before IntelliMute will work, you must set an activation point for your engine's revs (see page 15). Whenever the revs are below that point, IntelliMute will begin muting. The activation point will be stored in memory and recalled each time the power is turned on. The factory setting is IntelliMute off.

An IntelliMate icon will appear in the display when IntelliMate is on and activation is sat. Whenever engine revs are below the activation point, the arrow points down. When revs are above the activation point the arrow points up.

Above

Below

H. H. H.

If, for any reason, the unit stops sensing your engine's revs. IntellMute will indicate an error and automatically turn off.

English

Settings

NOTES

IntallMute may not work with some vehicles because it cannot sense the engine's revs. In such cases, you can reduce unwanted audio alerts by using Auto Mute and City mode when appropriate.

NOTES

The rev point must be reset if you use your detector in a different vehicle.

NOTES

When initially choosing your IntellMute activation point, a setting of approximately 300 to 600 RPMs above idle is recommended. You can reset the activation point at any time to fit your individual preferences and driving style.

CAUTION

Do not attempt to set the row point while driving. Your vehicle should be parked and idling to avoid a collision during the process.

Set IntelliMute

After the detector is installed in your vehicle and the unit is turned on, advance through the User Settings Programming to the Set IntelliMute setup screen where the activation point can be set.

Setting the activation point progresses from the setup screen shown on the User Programming Menu Guide (see page 34). From that screen:

1. Press the Mutel button to begin the setting process.

2. Press and hold the vehicle accelerator at the desired engine RPMs.

3. Press the Mute button to complete the setting process.

The system will store the engine RPM setting and provide a completion message on the display as well as a tone or voice message.

NOTE

If the unit is unable to sense usable pulses within three seconds or if you do not set a rev point within 30 seconds of beginning the setup, Intellute will indicate an error. If you do not try again within five seconds, it will automatically turn off. The unit will provide corresponding messages for these conditions.

Once an activation point has been set, you can easily change it by going directly to Set IntelliMute in User Settings Programming and repeating the three-step setup process.

Nothing Currns Currn to a Currs 15

Settings

Auto Mute Mode

When Auto Mute is on, it automatically reduces the audio volume of all alerts after they have sounded for four seconds. The signals will remain muted for as long as the signal is detected. When Auto Mute is off, the alerts will sound at full volume for as long as the signal is detected. The factory setting for Auto Mute is on.

Voice or Tone Mode

You can set your detector to sound alerts and confirm program settings with either a Voice or a Tone Alert. Voice Alert provides voice messages in addition to tones. Tone Alert provides tones only. The factory setting is Voice Alert.

Compass Mode

Your detector includes an internal 8-point Compass that can continuously display your current direction of travel: N, NE, E, SE, S, SW, W, or NW.

BeforetheCompasswillwork, itmustbe

calibrated(see page 17). Calibration allows the Compass electronics to measure and store information about the magnetic fields generated by your vehicle so direction indications will be accurate. The factory setting is Compass off.

A Compass Icon and directional heading will appear in the display when the Compass is on and calibrated.

The Compass will remain accurately calibrated as long as your detector is mounted in the same place in your vehicle. If you change the location where the unit is mounted or move it to another vehicle, you must recalibrate the Compass. You should also recalibrate the Compass if you suspect it is providing inaccurate directions.

The Compass temporarily may not provide accurate readings if you are inside a building or enclosure, or are close to a large metal tractor/trailer, truck, or train. Once you are away from such a location, the Compass will work correctly again.

English

Settings

Set Compass

After the detector is installed in your vehicle and Compass is turned on (see page 34), the system will automatically advance to the Set Compass calibration screen from which the calibration can be performed.

WARNING

Before calibrating the Compass, go to a large parking lot or other sale, low-traffic area.

NOTE

When the instructions direct you to drive in two circles, make two complete loops (in either direction) from any starting orientation at any convenient speed. The loops need not be perfect and can be circles, small squares, four three-point turns, or any pattern that makes at least two complete turns within two minutes of starting the maneuver.

Calibrating the Compass progresses from the Calibrate Compass screen shown on the User Programming Menu Guide (see page 34). From that screen:

1. Press the Mule button to advance to the Compass screen.

2. Drive your vehicle in two circles.

3. Press the Mutebutton to complete the setting process

The system will store the calibration data and provide a completion message on the display as well as a tone or voice message.

NOTE

If you do not press the Mule button within two minutes after beginning the Set Compass process, Compass calibration will automatically terminate. The unit will provide a corresponding message.

Once the initial calibration is complete, you can go to Set Compass in User Settings Programming and recalibrate the Compass as needed by repeating the three-step calibration process.

Settings

SmartPower Mode

Your detector includes the SmartPower feature that, when turned on, will put the unit into Standby mode (low power) 15 minutes after the car's engine has been turned off.

Before SmartPower enters Standby mode, you will hear three beeps and SmartPower will flash on the display. To return the unit to normal Power mode and exit Standby mode, start the car, press any button or turn the unit off and then on again. The factory setting is SmartPower on.

SmartPower Entering Standby Mode (Flashing)

Display Timeout

Display timeout determines how long the Standby screen is illuminated before switching the unit to Dark. The factory default is 30 seconds.

You can set the time interval to 15 seconds, 30 seconds, one minute, three minutes, or Always On (see User Settings Programming described on page 12).

Dim Mode Default (Display Brightness)

You can set the default level for the Dim mode (Dim, Dimmer or Dark) as discussed in the Display Brightness Control section on page 7. The factory setting is Dim.

Customizable Display Colors

Your detector includes the Color Theme feature that allows you to customize the display screen color scheme to match your car's dash illumination: Multi-Color, Red, Blue, Orange, or Green. The factory setting is Multi-Color.

English

Settings

Car Battery Voltage Display Mode

Your detector can sense your vehicle's electrical system voltage (Car Battery Voltage) and show it on the display during normal operation of the unit. The factory setting is Car Battery Voltage on.

Car Battery Low Voltage Warning

In addition to displaying system voltage, your detector can provide a warning that battery voltage is low so that timely steps can be taken to correct the problem. The Car Battery Low alert is triggered when the voltage drops below 11.9 volts. Following the alert, the unit enters SmartPower mode to avoid further draining your car battery (see page 18). The factory setting is Car Battery Low off.

From the Restore Factory Settings screen, you can quickly and conveniently restore your detector to its original settings. Confirmation messages are provided during the process.

Settings

Detection

Alert Settings

Pop Alert

When Pop Detect mode is on, Pop radar signals will be detected and an alert will be given. During the alert, the unit will continue to detect other signals. The factory setting is Pop Detect off.

X Band Alert

When X Band Detect mode is on, X Band radar signals will be detected and an alert will be given. During the alert, the unit will continue to detect other signals. The factory setting is X Band Detect on.

K Band Alert

When K Band Detect mode is on, K Band radar signals will be detected and an alert will be given. During the alert, the unit will continue to detect other signals. The factory setting is K Band Detect on.

Ku Band Alert

When Ku Band Detect mode is on, Ku Band radar signals will be detected and an alert will be given. During the alert, the unit will continue to detect other signals. The factory setting is Ku Band Detect off.

VG-2 Alert

The detector is undetectable by VG-2 detection devices and can alert you when such a device is in use near your vehicle. When VG-2 Detect mode is on, VG-2 signals will be detected and an alert will be given. During the alert, the unit will continue to detect other signals. The factory setting is VG-2 Detect off.

VG-2 Audio Mode

When VG-2 Audio mode is on, alerts will be sounded as well as being displayed on the screen. This setting is only available if VG-2 Alert is on. The factory setting is VG-2 Audio off.

Spectre 1 Alert

The detector is undetectable by Spectre 1 detection devices and can alert you when such a device is in use near your vehicle. When Spectre 1 Detect mode is on, Spectre 1 signals will be detected and an alert will be given. During the alert, the unit will continue to detect other signals. The factory setting is Spectre 1 Detect off.

English

Spectre 1 Audio Mode

When Spectre 1 Audio mode is on, alerts will be sounded as well as being displayed on the screen. This setting is only available if Spectre 1 Alert is on. The factory setting is Spectre 1 Audio off.

Safety Alert

When Safety Alert mode is on, Safety Alert radar signals will be detected and an alert will be given. During the alert, the unit will continue to detect other signals. The factory setting is Safety Alert on.

Detection

Signals Detected

The tables on the following pages show the types of Signals your detector will detect, as well as the visual alerts it provides for each of them.

Audio Alerts

A distinctly different Alert tone is used for each type of signal detected (including separate tones for each laser signal). For X, K, Ka and Ku band radar signals, the tones will repeat faster as you approach the signal source. The repeat rate of the tones gives you useful information about the signal detected. See responding to alerts on page 25.

Visual Display

An Indication of the type of signal detected will appear in the OLED Data Display. During X, K, Ka and Ku alerts, you will also see the numbers from one to five, indicating the strength of the signal detected.

Nothing Curves Close to a Cofes 21

Detection

Signal Strength Chart

Signal Strength = 1

Signal Strength = 2

Signal Strength = 3

Signal Strength = 4

Signal Strength = 5

(Weakest Signal)

(Strongest Signal)

Radar Signals and Visual Displays

Type of Signal Visual Display Voice
X Band Radar X	Alert
	RADAR X1
K Band Radar K	Alert
	RADAR K2
Ka Band Radar Ka	Alert
	RADAR Ka3
Ku Band Radar Ku	Alert
	RADAR Ku4
Pop Radar Mode Pop	Alert
	RADAR POP

English

Detection

Laser Signals and Visual Displays

Type of Signal Visual Display Voice
LTI 20-20* Laser Alert
	20/20
LTI Ultra-Lyte* Laser Alert
	ULTRA LYTE
Kustone Signals ProLaser*	PRO LASER	Laser Alert
Kustone Signals ProLaser III*	PRO LASER 3	Laser Alert

* Your detector provides 360 detection of these signals.

NOTE

Beep rate changes with different laser alerts.

Strobe Alert Signals and Visual Displays

Type of Signal Visual Display Voice
3M Opticom or Tomar*		Emergency Vehicle Approaching

Your detector provides 360 detection of these signals.

Nothing Come to a Cofes 23

Your De

Detection

Safety Alert Signals and Visual Displays

Type of Signal Visual Display Voice
Emergency Vehicles	Emergency Vehicle EMERGENCY EV	Approaching
Road Hazards Road	Hazard Ahead ROAD HAZARD RH
Trains Train Approaching
	RAILROAD RR

NOTE

are different tones for each Safety Alert.

VG-2 and Spectre 1 Alert Signals and Visual Displays

Type of Signal Visual Display Voice
VG-2 Alert VG-2 Alert
	RADARVG2
Spectre 1 Spectre Alert
	RADARSP1

NOTE

There are different tones for each alert.

English

Detection

Instant-On Detection

Your detector is designed to detect Instant-On speed monitoring signals, which can suddenly appear at full strength.

NOTE

You should take appropriate action immediately whenever an instant-on alert is given.

Pop Detection

Your detector is designed to detect single pulse mode radars. These radars are designed to have a low probability of detection. You should note that these radar puns have a much shorter range while in this mode.

Responding to Alerts

Description Interpretation		Recommended Response
Tone repeats slowly at first, then specks up rapidly.	Prudably police nadar, FULL ALERT
Tone sounds one time only.	Probably a false alarm, but possibly pushed nadar, Spectre 1 or VG-2 mercy.	Exercise caution
Tone instantly begins repeating rapidly.	Ricar, Spectre 1 or VG-2 nadar has been activated suddenly.	FULL ALERT
Pop mode tone. Pop mode pun very close. FULL ALERT
Tone repeats slowly as you approach at hill or bridge, the specks up simply as you reach it.	Prudably police mendar beyond the hill or bridge.	FULL ALERT
Tone repeats slowly for a short period.	Prudably a false alarm.	Exercise caution
Any type of laser alert.	Laser alerts are never false alarms.	FULL ALERT
Any Safety Alert or Stroo Alert.	You are meaning an emergen- vehicle, railroad dressing, or road hazard (construction, academic, etc.).	Exercise caution

Understanding Radar and Laser

Understanding Radar and Laser

Understanding Radar and Laser

Radar Speed Monitoring Systems

Three band frequencies have been approved by the Federal Communications Commission (FCC) for use by speed monitoring radar equipment:

X band 10.525 GHz

K band 24.150 GHz

Ka band 33.400 - 36.00 GHz

Your detector detects signals in all three radar bands, plus Ku band (13.435 GHz), which is an approved frequency used in parts of Europe and Asia.

VG-2 and Spectre 1

VG-2 and Spectre 1 are "detector detectors" that work by detecting low-level signals emitted by most radar detectors. Your detector does not emit signals that can be detected by VG-2 or Spectre 1, but does detect VG-2 and Spectre 1 signals and will alert you when a device is in use near your vehicle, if you so choose.

Safety Alert Traffic Warning System SAFETY ALERT

FCC-approved Safety Alert transmitters emit microwave radar signals that indicate the presence of a safety-related concern. Depending on the frequency of the signal emitted, it can indicate a speeding emergency vehicle or train, or a stationary road hazard.

Because these microwave signals are within the K band frequency, most conventional radar detectors will detect Safety Alert signals as standard K band radar. Your detector, however, is designed to differentiate between standard K band and Safety Alert signals, and give separate alerts for each.

Safety Alert technology is relatively new. Safety Alert transmitters can be found in limited numbers in all 50 states, but the number is growing. Depending on your location, you may not receive these alerts regularly and may often encounter emergency vehicles, trains and road hazards without being alerted. As the number of transmitters increases, these alerts will become more common.

When you receive such an alert, please watch for emergency vehicles ahead of you, on cross streets and behind you. If you see an emergency vehicle approaching, please pull over to the right side of the road and allow it to pass.

English

Strobe Alert

Special strobes mounted on the light bars of authorized emergency vehicles (fire trucks, police cars, ambulances) automatically change traffic signals as the vehicle approaches an intersection. These strobes and the special strobe detectors located on the traffic signals, introduced fairly recently by 3M and Tomar, are already in use in more than 1000 cities nationwide. Cobra's exclusive Strobe Alert detector will detect these special strobes and give an emergency vehicle alert.

When you receive such an alert, please watch for an approaching emergency vehicle and pull over to allow it to pass. To inquire about coverage in your area, contact your local fire and police departments.

LIDAR (Laser)

The correct name for the technology that most people refer to as laser is actually LIDAR, which stands for Light Detection and Ranging. LIDAR operates much like radar. Its signal spreads out like a radar signal, though not as widely. Unlike radar, LIDAR must have a clear line of sight to its target vehicle throughout the entire measurement interval. Obstructions such as sign posts, utility poles, tree branches, etc., will prevent valid speed measurement.

Some common questions about LIDAR include:

■ Does weather have any affect on LIDAR?

Yes. Rain, snow, smoke, fog, or airborne dust particles will reduce the effective range of LIDAR and can, if dense enough, prevent its operation.

■ Can LIDAR operate through glass?

Yes. Newer LIDAR guns can obtain readings through most types of glass. However, the laser pulse also can be received through glass to trigger an alarm by your detector.

■ Can LIDAR operate while in motion?

No. Because LIDAR operates by line of sight, the person using it cannot drive the vehicle, aim and operate the gun all at the same time.

■ Is LIDAR legal to use?

Yes. It is legal in all 50 states.

Nothing Currns Ciss to a Cottes 27

Maintenance

Pop Radar Guns

The Pop mode Radar Gun is a single pulse Doppler radar that is a feature of a K and Ka (Bee III Ka radar gun) band Instant-On radar gun. It uses a single short time pulse to measure the target vehicle's speed. Despite the fact that the short, single pulse makes the unit very sensitive to officer hand and vehicle movement and reduces the range of the gun in Pop mode to 50% of its range in Continuous Wave mode, this feature is added in an attempt to make the radar gun invisible to Radar Detectors.

Although your detector can sense Pop signals beyond the effective range of Pop radar guns, there will be a signal to sense only if a gun is triggered. In addition, the Pop mode receiver section is more prone to false alerts because of its extra sensitivity. This is especially so in urban areas. As a result, you should consider using the Pop Detect mode only in highway and rural situations. Cobra Electronics has included a user selectable on or off Pop Detect mode.

Maintenance

Maintenance of Your Radar Detector

Your detector is designed and built to give you years of trouble-free performance without the need for service. No routine Maintenance is required.

If your unit does not appear to be operating properly, please follow these troubleshooting steps:

■ Make sure the power cord is properly connected.
■ Make sure the socket of your vehicle's cigarette lighter
is clean and free of corrosion.
■ Make sure the power cord's cigarette lighter adapter is firmly seated in your cigarette lighter.
- Check the power cord fuse. (Unscrew the ribbed end cap of the cigarette lighter adapter and examine the fuse. If required, replace it with a 2-amp fuse only.)

English

Specifications

Specifications

Band and Frequencies

Band Frequencies
X Band 10.525 ± 0.050 GHz
K Band 24.125 ± 0.125 GHz
Safety Alert 24.070 ± 0.010 GHz
Traffic Warning System	24.110 ± 0.010 GHz
	24.190 ± 0.010 GHz
	24.230 ± 0.010 GHz
Ka Band 34.700 ± 1.300 GHz
Ku Band 13.435 ± 0.050 GHz
VG-2 11.500 ± 0.250 GHz
Spectra 1	13.300 ± 0.200 GHz
Laser	910	± 50	nm
Stroke	730	+ 300	nm

This radar detector is covered by one or more of the following U.S. patents: 5,497,148; 5,594,432; 5,612,685; 6,078,279; 6,094,148; 6,621,447. Additional patents may be listed inside the product or pending.

Warranty

Product Service

Limited 1-Year Warranty

For Products Purchased in the U.S.A.

Cobra Electronics Corporation warrants that its Cobra 12 Band Radar/Laser Detectors, and the component parts thereof, will be free of defects in workmanship and materials for period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.

Cobra will, without charge, repair or replace, at its option, defective 12 Band Radar/Laser Detectors, products or component parts upon delivery to the Cobra Factory Service Department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra's expense, if the product is repaired or replaced under warranty.

This warranty gives you specific rights, and you may also have other rights which vary from state to state.

Exclusions: This limited warranty does not apply:

1. To any product damaged by accident.

2. In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs.

3. If the serial number has been altered, defaced or removed.

4. If the owner of the product resides outside the U.S.A.

All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty.

Cobra shall not be liable for any incidental, consequential or other damages including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

Product Service

For any questions about operating or installing this new Cobra product, or if parts are missing...PLEASE CALL COBRA FIRST...do not return this product to the store. See customer assistance on page A1.

If this product should require factory service, please call Cobra before sending the product. This will ensure the fastest turn-around time on any repair. If Cobra asks that the product be sent to its factory, the following must be furnished to have the product serviced and returned:

1. For Warranty Repair Include some form of proof-of-purchase, such as a mechanical reproduction or carbon of a sales receipt. Make sure the date of purchase and product model number are clearly readable. If the originals are sent, they cannot be returned;

2. Send the entire product:

3. Enclose a description of what is happening with the product. Include a typed or clearly printed name and address of where the product is to be returned, with phone number (required for shipment).

4. Pack product securely to prevent damage in transit. If possible, use the original packing material;

5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or Priority Mail to avoid loss in transit to: Cobra Factory Service Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 U.S.A.;

6. If the product is in warranty, upon receipt of the product it will either be repaired or exchanged depending on the model. Please allow approximately 3 - 4 weeks before contacting Cobra for status. If the product is out of warranty, a letter will automatically be sent with information as to the repair charge or replacement charge.

For any questions, please call 773-889-3087 for assistance.

English

Nothing Curves Cross to a Cofes 31

Trademark Acknowledgement

Accessories

Trademark Acknowledgement

Coara ^2 , Dig|View, EasySet, Extra Sensory Detection IntellMute, IntellShield ^3 , LaserEye ^4 , Nothing Comes Close to a CobraSafety Alert Traffic Warning System, Strobe Alert VG-2 Alert Super-Xtreme Range Superheterodyne ^5 and the snake design are registered trademarks of Cobra Electronics Corporation, USA.

Cobra Electronics Corporation™, 12 Band™, ExtremeBright DataGrafix™, IntelliLink™, Revolution™ Series, SmartPower™, Spectre Alert™, SuperXtreme Range Superheterodyne™, S-XRS™, UltraBright™, and Voice Alert™ are trademarks of Cobra Electronics Corporation, USA.

Opticom™ is a trademark of 3M Corporation. InstaMarFord is a registered trademark of Ford Motor Company, Inc. Electriclear GM is a registered trademark of General Motors Corporation. 20-20™ and Ultra-Lyte™ are trademarks of Laser Technology, Inc. ProLaser™ and ProLaser III™ are trademarks of Kustom Signals, Inc. Bee III™ and Pop™ are a trademarks of MPH Industries. Spectre™ is a trademark of Stalcar. Interceptor VG-2™ is a trademark of TechniSonic Industries LTD. Tomar registered trademark of TOMAR Electronics, Inc.

Optional Accessories

You can find quality Cobra products and accessories at your local Cobra dealer, or in the U.S.A., you can order directly from Cobra. See order info on page 37.

Straight 12V DC Power Cord

Includes plug and fuse Item # 420-030-N-001

Windshield Mounting Bracket

Includes suction cups Item # 545-159-N-001

Coiled 12V DC Power Cord

Includes plug and fuse Item # 420-026-N-001

Dual Port Power Adapter

Includes adjustable plug (up to 90) and fuse Item ♦ CLP-28

English

Nothing Currns Currn to a Currns 33

Appendix

User Programming Menu Guide

Mode Tone		Visual Display	Voice
Set City mode defaultPage 14	Two beeps	CITY MODEX ONLY	City X
	Orc beep	CITY MODEX + K	CityX, K
	One beep	CITY MODENO BEEP	City XBeepOff
Set IntelliMute modePage 15	Two beeps	INTELLIMUTEOFF	IntelliMuteOff
	Orc beep	INTELLIMUTEON	IntelliMuteOn
Set IntelliMute setup*Page 16	Two beeps	INTELLIMUTESETUPPressTo Begin	SetEngineReys

Not shown if IntellMuts is off. Complete instructions for Institute setup are shown on the referenced page.

Mode	Tone	Visual Display	Voice
Set AutoMute mode	Two beeps	AUTO MUTE ON	Auto Mute On
Page 16	One beep	AUTO MUTE OFF	Auto Mute Off
Set Voice or Tone mode	None Voice	ALERT TYPE VOICE	Alert
Page 16	None	ALERT TYPE TONE	Tone Alert
Set Compass mode	Two beeps	SHOW COMPASS OFF	Compass Off
Page 17	One beep	SHOW COMPASS ON	Compass On
Set Compass** Page 17	Two beeps	CALIBRATE COMPASS Press Drive 2 circles.	Set Compass

** Not shown if Compass is all. Complete Instructions for calibrating the Compass are shown on the referenced page and on the separate insert.

NOTE

Factory defaults are highlighted in light gray. See referenced pages for more information on the modes

English

Appendix

User Programming Menu Guide (continued)

Mode	Tone	Visual Display	Voice
Set Smart-Power modePage 19	Two beeps	SMART POWER ON	Smart Power On
	One beep	SMART POWER OFF	Smart Power Off
Set Display Timeout IntervalPage 19	One beep	DISPLAY TIMEOUT 15 SEC	None
	One beep	15 SECONDS	None
	One beep	SECONDS	None
	One beep	ONE MINUTE	None
	One beep	THREE MINUTES	None
	One beep	ALWAYS ON	None
Set Display Dim mode defaultPage 18	One beep	DISPLAY DIMMER	Dimmer
	One beep	DISPLAY DARK	Dark

Mode Tone		Visual Display	Voice
Set customizable display colors * Page 18	Two beeps	COLOR THEME MULTI	Multi
	One beep	COLOR THEME	Red Blue Orange Green
Set car battery voltage display mode Page 19	Two beeps	CAR VOLTAGE 13.9V OFF	Display Car Voltage Off
	One beep	CAR VOLTAGE 13.9V ON	Display Car Voltage On
Set battery low car voltage warning Page 19	Two beeps	WARN LOW CAR VOLTAGE OFF	Car Voltage Warning Off
	One beep	WARN LOW CAR VOLTAGE ON	Car Voltage Warning On
Restore factory settings Page 19	Two beeps	RESTORE FACTORY SETTINGS	Restore Factory Settings

*** Press Dim ◀ repeatedly for all optional colors.

NOTE

Factory defaults are highlighted in light gray. See referenced pages for more information on the modes.

Nothing Currns Currn to a Currs 35

Appendix

Alert Programming Menu Guide

Mode	Tone	Visual Display	Voice
Set Pop Detect mode	Two beeps	POP DETECTIONOFF	Pop On
Page 20	One beep	POP DETECTIONON	Pop On
Set X Band Detect mode	Two beeps	X BAND DETECTIONON	X On
Page 20	One beep	X BAND DETECTIONOFF	X Off
Set K band detect mode	Two beeps	K BAND DETECTIONON	K On
Page 20	One beep	K BAND DETECTIONOFF	K Off
Set Ku Band Detect mode	Two beeps	Ku BAND DETECTIONON	Ku On
Page 20	One beep	Ku BAND DETECTIONOFF	Ku Off
Set VG-2 Detect mode	Two beeps	VG-2 DETECTIONON	VG-2 On
Page 20	One beep	VG-2 DETECTIONOFF	VG-2 Off

Mode	Tone	Visual Display	Voice
Set VG-2 Audio mode*	Two beeps	VG-2 Audio ON	VG-2 Audio On
Page 20	One beep	VG-2 Audio OFF	VG-2 Audio ON
Set Spectre 1 Detect mode	Two beeps	SPECTRE 1 DETECTION ON	Spectre On
Page 20	One beep	SPECTRE 1 DETECTION OFF	Spectre Off
Set Spectre 1 Audio mode**	Two beeps	SPECTRE 1 AUDIO ON	Spectre Audio On
Page 21	One beep	SPECTRE 1 AUDIO OFF	Spectre Audio ON
Set Safety Alert mode	Two beeps	SAFETY ALERT ON	Safety Alert On
Page 21	One beep	SAFETY ALERT OFF	Safety Alert On

* Not shown II VG-2 Detect is off.

** Not shown if Specire 1 (Select) is off

NOTE

Factory defaults are highlighted in light gray. See referenced pages for more information on the modes.

Nothing comes close to a Cohne 36
