MotoActv Golf Edition - Smartwatch MOTOROLA - Free user manual and instructions

Product Type	Smartwatch (Golf Edition)
Brand	Motorola
Model	MotoActv Golf Edition
Dimensions (Case)	45 x 45 x 12 mm
Weight	50 g
Display	1.6-inch color touchscreen
Battery	Rechargeable lithium-ion, 300 mAh
Charging	Proprietary charging cable
Connectivity	Bluetooth 4.0, GPS
Water Resistance	5 ATM (50 meters)
Material	Polymer case, silicone strap
Golf Features	Preloaded golf courses, shot tracking, scorecard, distance measurement
Fitness Tracking	Step counter, heart rate monitor, calories burned
Notifications	Call, message, app alerts
Memory	2 GB internal storage for music and apps
Operating System	Motorola Actv proprietary OS
Includes	Smartwatch, charging cable, quick start guide
Care Instructions	Wipe with soft dry cloth; avoid solvents; store in cool dry place
Safety	Consult physician before use; not a medical device; keep away from children
Spare Parts & Repairability	Contact Motorola support for strap and battery replacement
Operating Temperature	0°C to 40°C

Frequently Asked Questions - MotoActv Golf Edition MOTOROLA

How do I pair the MotoActv Golf Edition with my smartphone?

Enable Bluetooth on your phone and open the MotoActv app. On the watch, go to Settings > Bluetooth and select your phone. Follow the on-screen prompts to complete pairing.

What type of battery does it use and how long does it last?

The watch uses a 300 mAh rechargeable lithium-ion battery. With typical golf use (GPS active), battery life is approximately 8 hours; in watch-only mode, it lasts up to 3 weeks.

Is the MotoActv Golf Edition waterproof?

Yes, it has a 5 ATM water resistance rating, meaning it can withstand pressures equivalent to 50 meters depth. It is suitable for swimming and showering, but not for diving or high-velocity water activities.

How many golf courses are preloaded?

The device comes with over 20,000 preloaded golf course maps worldwide. You can also download additional courses via the MotoActv app.

Can I track my heart rate with this watch?

Yes, the MotoActv Golf Edition includes a built-in optical heart rate sensor. You can view real-time heart rate during workouts and check historical data in the app.

How do I charge the device?

Use the included proprietary charging cable. Connect the cable to the watch’s charging port and plug the USB end into a computer or USB power adapter. A full charge takes approximately 2 hours.

Does it support notifications from my phone?

Yes, after pairing via Bluetooth, you can receive call, text, and app notifications. You can customize which apps send notifications in the MotoActv app settings.

What should I do if the screen is unresponsive?

First, try restarting the watch by holding the power button for 10 seconds. If that fails, perform a factory reset from Settings > System > Reset. Contact Motorola support if the issue persists.

Can I replace the strap?

Yes, the strap is replaceable. It uses a standard 22 mm pin mechanism. You can purchase replacement straps from Motorola or third-party retailers.

How do I update the software?

Ensure the watch is connected to your phone via Bluetooth. Open the MotoActv app and go to Settings > Software Update. If an update is available, follow the instructions to install it. Keep the watch charged above 50% during the update.

USER MANUAL MotoActv Golf Edition MOTOROLA

Introducing the MOTOACTV Golf Edition, a cutting-edge GPS golf tracker, virtual caddy, and online clubhouse. Track your golf game right from your wrist.

AT A GLANCE 2
GOLF COURSES.... 3
SET UP & GO 4
START A ROUND 5
GREENS & HAZARDS.... 6
TRACK YOUR SHOTS 7
BALL LIE & CLUBS 8
TRACK YOUR PUTTS 9
FINISH A HOLE.... 10
ADVANCE TO THE NEXT HOLE 11
END THE ROUND 12
ONLINE CLUBHOUSE....13
TIPS.... 14
WANT MORE?......15

AT A GLANCE

Tip: Use the main MOTOACTV guide to get set up, then check out this Golf Edition for all the best golf action.

Caution: Before charging or using your device for the first time, please read the important legal and safety information packaged with your product.

2 At a glance

GOLF COURSES

To manage your courses on the device, touch Workout > Golf > Courses, and then:

• To view courses on your device, touch My Courses.
- To update golf course data on your device, touch My Courses > Update when you're within Wi-Fi range.
• To delete courses, touch the course package you want to delete, scroll down, and touch Delete.
- To download new courses, make sure your device is connected to Wi-Fi, then touch Available for Download and select the course package.

Tip: For help with Wi-Fi, see your main MOTOACTV guide.

SET UP & GO

Set up your golf round before you start. Touch Workout > Golf > Settings :

• Play Mode: Select Fast Play, Simple Shot Tracking, or Detailed Shot Tracking mode for your round.
• Scoring Preference: Select scoring based on strokes or making par.
• Tee Location: Choose your tee location.
• Clubs Profile: Set your average club distances.
• Putt Distances: Customize your putt distance ranges.

Tip: These preferences remain set for every round you play until you change them.

START A ROUND

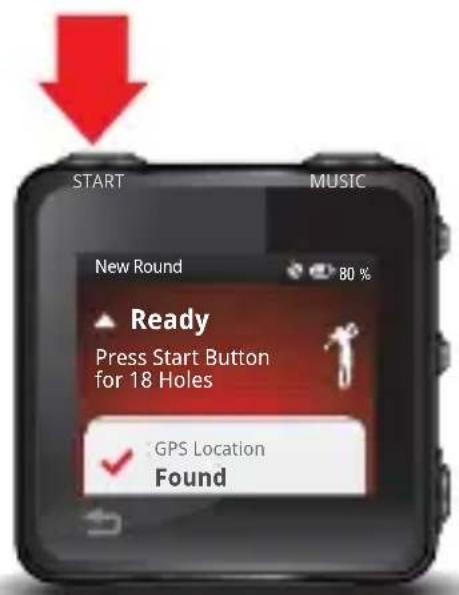

1 To start a round of golf, touch Workout > Golf > New Round and wait for MOTOACTV to acquire a GPS signal.

Note: When your device locates a GPS signal, it shows you a list of nearby courses. (GPS acquisition may take a couple of minutes. Stand in an open area with a clear view of the sky.)

2 Choose your course, confirm your tee location, select how many holes you are playing, and then press the Start key.

GREENS & HAZARDS

See your distance to the front, center, and back of the green. Swipe the screen to the left to check how far you are from hazards.

TRACK YOUR SHOTS

In Simple and Detailed Shot Tracking play modes, you can track GPS location of your shots.

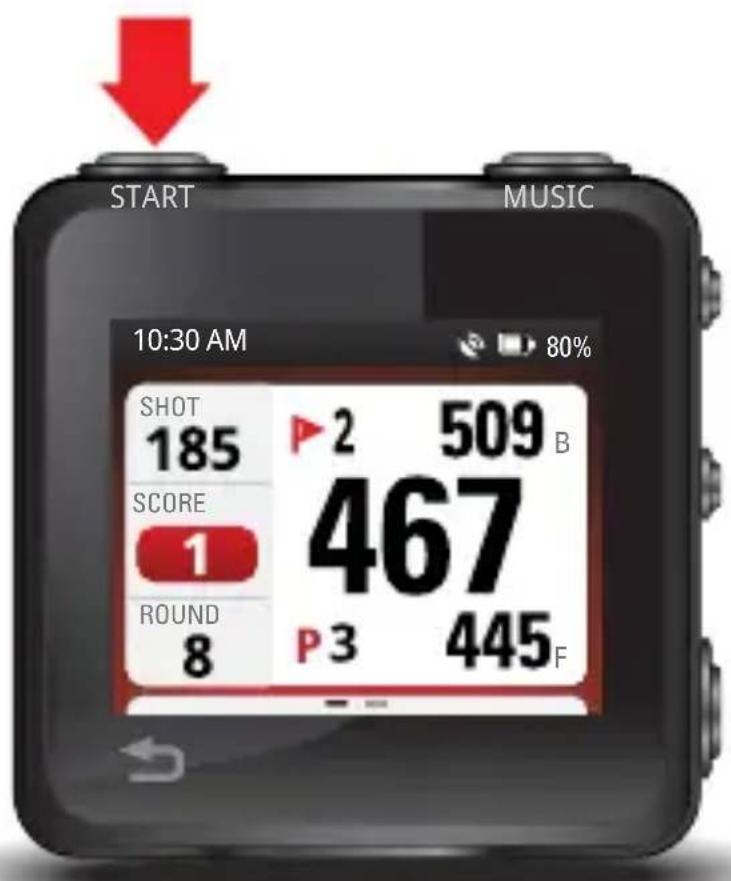

1 When you're at the tee, press the Start key to mark your ball location. Then, make your shot.
2 Before each of your next shots, press the Start key to mark each ball location.

Note: When you mark your new ball location, MOTOACTV shows you the distance of your last shot.

Mark the ball location.

BALL LIE & CLUBS

To track ball lie and the club you use for each shot, set Play Mode to Detailed Shot Tracking. See “SET UP & GO” on page 4.

Press the Start key to mark your ball location and see what club MOTOACTV recommends for your next shot. Adjust it based on your preferences. You can also mark details of the ball lie.

Tip: To change the details of your last marked shot, double-press the Start key and reenter your shot info.

TRACK YOUR PUTTS

When you use Detailed Shot Tracking mode, you can track the details of your putts. The putts tracking screen appears automatically when you choose Putter for your club and Green for the ball lie. You can record your long, medium, short, and gimmie putts, as well as the distance of your final putt.

FINISH A HOLE

1 When you finish playing a hole, touch SCORE to see the hole scoring.

Tip: To make corrections, touch- or+.

2 When you're done, touch END HOLE or OK.

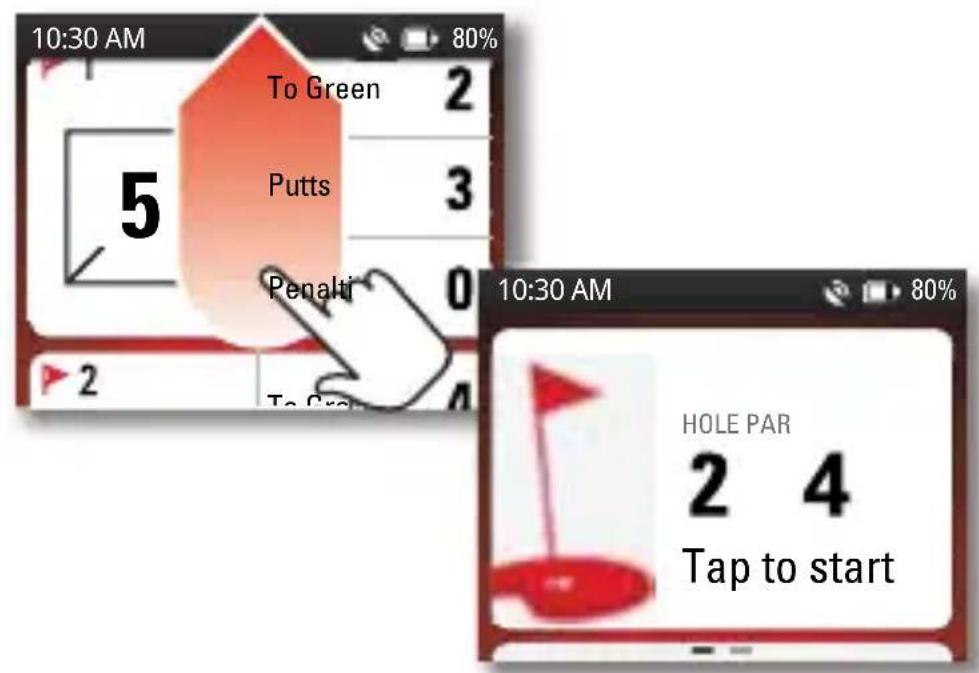

ADVANCE TO THE NEXT HOLE

To advance to the next hole, drag the screen up.

Tap the screen to start a new hole.

Tip: Starting a new hole will automatically end and score the previous hole.

END THE ROUND

When you finish the last hole of your round, touch END ROUND to see your scorecard. Tap on a hole to view or edit the score details. If you want, record the weather conditions or your handicap.

Tip: To end the round at any time, press and hold the Start key.

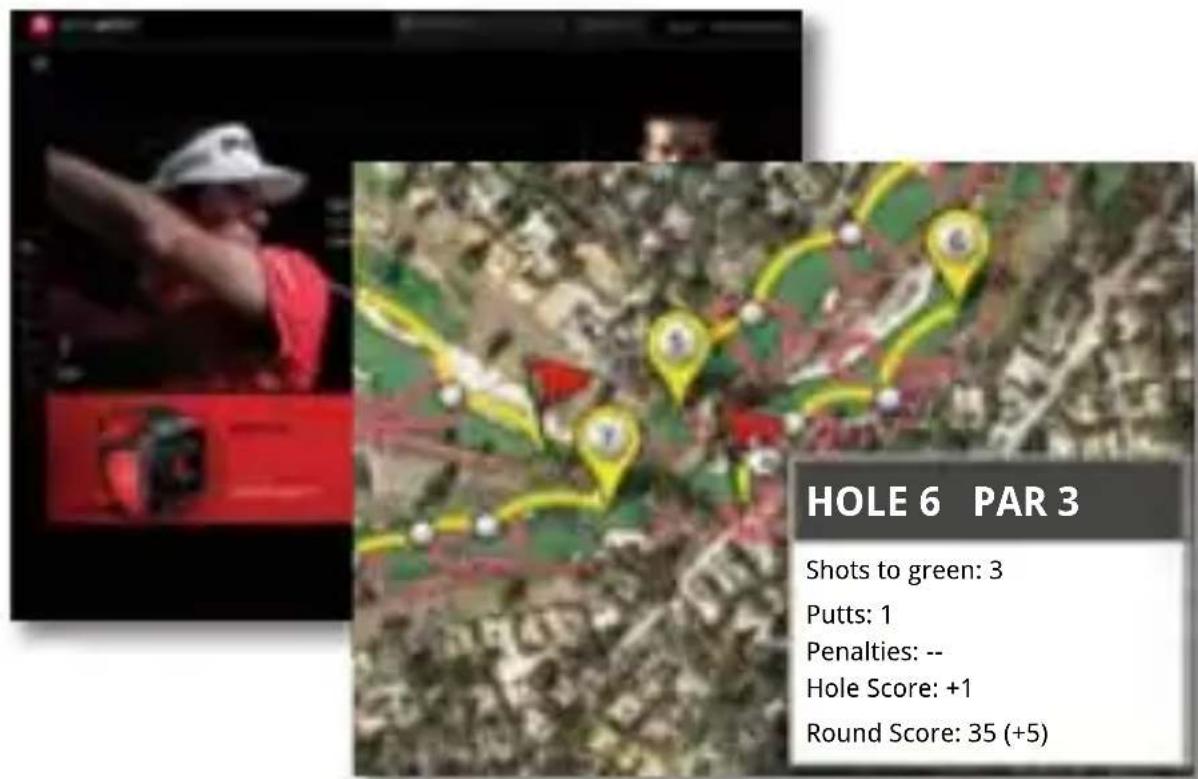

ONLINE CLUBHOUSE

Sync your completed round to MOTOACTV.com for these great features:

• See a virtual representation of your game using a satellite view of the course.
- Move your mouse over the arc of the ball flight to see shot details.
• View and share a detailed scorecard for any of your games with your MOTOACTV friends.
- Compare your round to any of your previous rounds on the same course.

Tip: If you can't log on to MOTOACTV.com, see your main MOTOACTV Guide.

TIPS

• To review and make scoring adjustments, you can tap the screen for a completed hole at any time.
• To make sure MOTOACTV gives you the best club recommendations for your shots, keep your clubs profile up-to-date in Settings > Workout > Clubs Profile.
• During round setup, you can choose your play mode:

Fast Play: Use this mode if you want to see only distance to green and hazards during your round without tracking your shots. Choose Simple Scorecard to record par and score for each hole.

Simple Shot Tracking: Use this mode to record the GPS location of your shots when you press the Start key.

Detailed Shot Tracking: Use this mode to track all details of your round including GPS location of each shot, club selection, ball lie, putts information, and penalty shots.

WANT MORE?

Get what you need:

• Answers: User guides, online help: www.motorola.com/support
• Forums: https://forums.motorola.com
• Accessories: A wristband, arm band, bike clip, and more: www.motorola.com/products.

- Social: News, tips & tricks, videos:

YouTube™ www.youtube.com/motorola

Facebook™ www.facebook.com/motorola

Twitter www.twitter.com/motomobile

Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details.

All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

Note: The images in this guide are examples only.

MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. All other product or service names are the property of their respective owners.

© 2012 Motorola Mobility, Inc. All rights reserved.

Product ID: MOTOACTV™ Golf Edition

Manual Number: 68016988001-B
