Product Type	Loudspeaker
Brand	Klipsch
Model	THX-5002-L
THX Certification	THX Ultra2
Frequency Response	48 Hz – 20 kHz (±3 dB)
Sensitivity	92 dB (2.83V @ 1m)
Impedance	8 ohms
Power Handling (Continuous)	150 W
Power Handling (Peak)	600 W
Dimensions (H x W x D)	15.75 x 7.5 x 11.5 inches
Weight	18 lbs each
Finish	Black matte vinyl
Driver Complement	1x 1" Titanium dome tweeter, 1x 6.5" Cerametallic cone woofer
Crossover Frequency	2,200 Hz
Enclosure Type	Bass-reflex (rear ported)
Binding Posts	Dual gold-plated (bi-wire/bi-amp capable)
Grille	Magnetic, detachable
Warranty	5 years from Klipsch

Frequently Asked Questions - THX-5002-L KLIPSCH

What is the recommended amplifier power for the THX-5002-L?

Klipsch recommends an amplifier with at least 50W per channel, but up to 150W continuous is ideal to match the speaker's power handling. For THX reference levels, a 100-200W channel is preferred.

Can the THX-5002-L be used as a bookshelf or surround speaker?

Yes, the THX-5002-L is designed as a THX Ultra2 certified bookshelf speaker suitable for both front and surround channels in a home theater setup. It can also be used in stereo systems.

How do I clean the speaker grille and cabinet?

Use a soft, dry cloth to dust the cabinet. For the grille, gently vacuum with a brush attachment or use a lint roller. Avoid liquids and abrasive cleaners to prevent damage.

What is the correct placement for optimal sound?

Place the speakers at ear level when seated. For stereo, form an equilateral triangle with the listening position. Keep at least 6 inches from rear walls to allow port bass reflex to operate effectively.

Does the THX-5002-L require a subwoofer?

While capable of reproducing bass down to 48Hz, for full-range THX reference experience, a matching subwoofer like the Klipsch THX-5002-SW is recommended to handle the lowest frequencies.

Can I bi-wire or bi-amp the speaker?

Yes, the speaker has dual binding posts. Remove the metal jumpers to bi-wire or bi-amp. Ensure you observe correct polarity and amplifier stability.

What is the impedance of the THX-5002-L?

The nominal impedance is 8 ohms, making it compatible with most amplifiers. It drops to a minimum of 5.8 ohms, so ensure your amplifier is stable into 4 ohms if driving multiple pairs.

How do I break in the speakers?

Play music at moderate levels (70-80 dB) for 20-30 hours. Avoid extremely high volume initially. This helps loosen the suspension and improves bass and transient response.

Are the speakers magnetically shielded?

No, they are not magnetically shielded. Keep them at least 12 inches away from CRT televisions or magnetic media to avoid interference.

What is the THX Ultra2 certification on these speakers?

THX Ultra2 certification ensures the speaker meets strict performance standards for home theater, including consistent frequency response, high output capability, and low distortion for reference level playback in large rooms.

USER MANUAL THX-5002-L KLIPSCH

OWNERS MANUAL

Klipsch®

PROFESSIONAL SERIES

THX

PLACEMENT

PLACEMENT

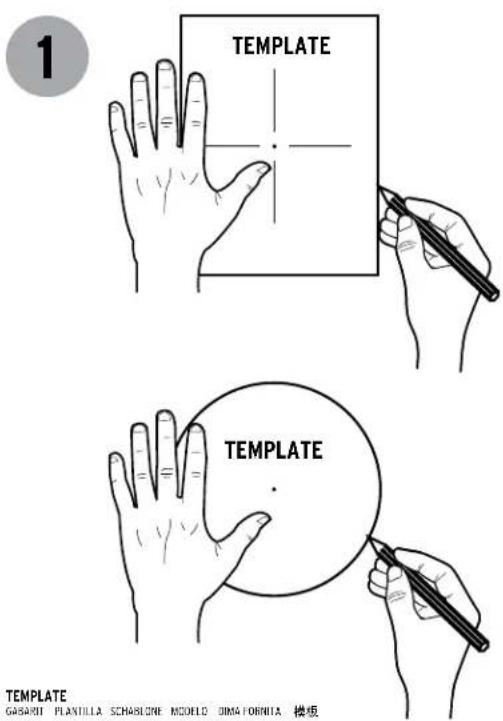

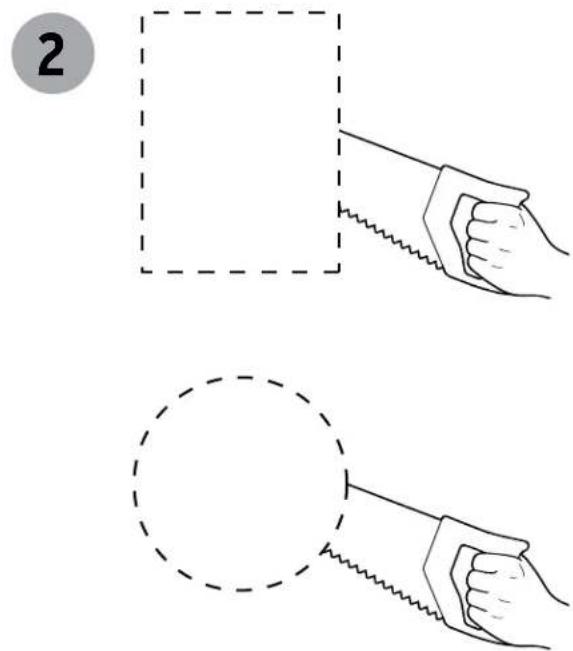

CUT OUT

DÉCOUPER SEPARAR AUSGESCHNITTEN RECORTAR RITAGLIARE 剪下

TEMPLATE GABARII PLANTILLA SCHABLONE MODELO DIMA FORNITA 楼板

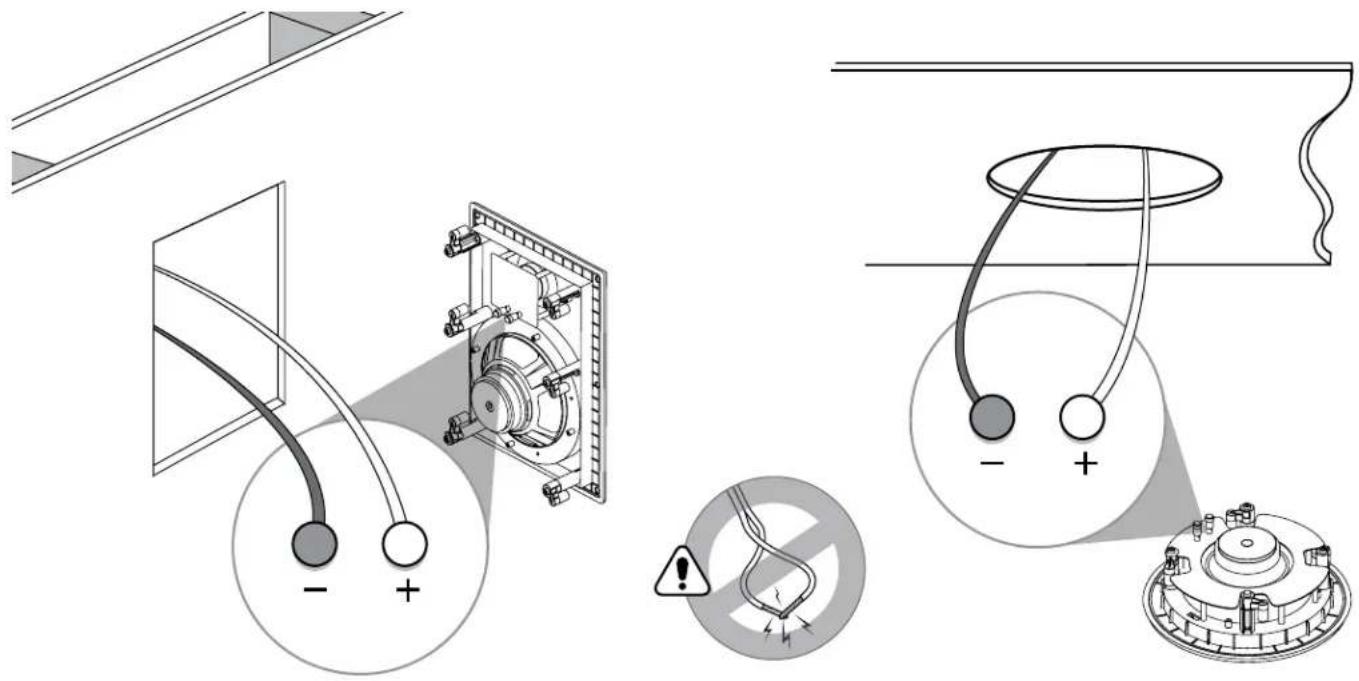

CONNECTIONS

BRANCHEMENTS CONEXIONES ANSCHLÜSSE CONNESSIONI CONEXÕES 连接

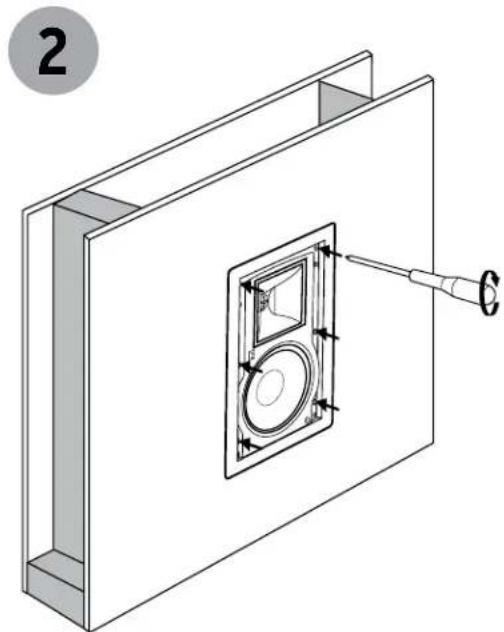

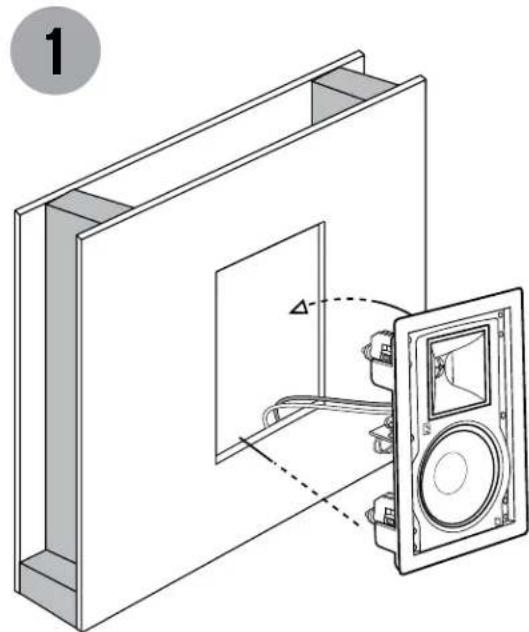

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

Technical line drawing of a device with an open panel and a speaker, showing no text or symbols

Technical line drawing of a mechanical component with a central circular component and a screwdriver inserted (no text or symbols)

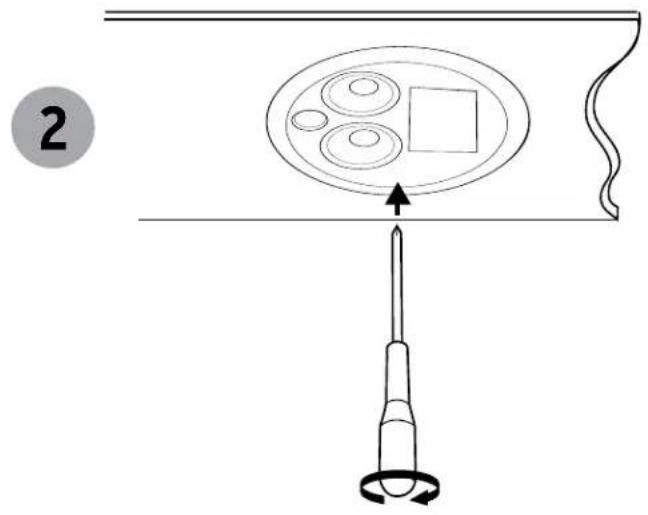

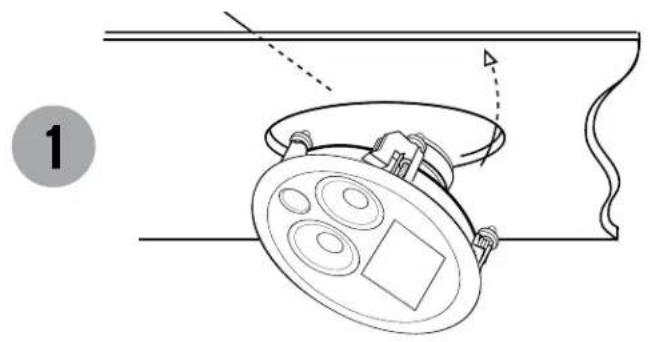

INSTALLATION

INSTALLATION CONFIGURACIÓN INSTALLATION APPRONTAMENTO INSTALAÇÃO 设置

Diagram of a ceiling-mounted lamp with three circular components and a curved base, showing no text or symbols.

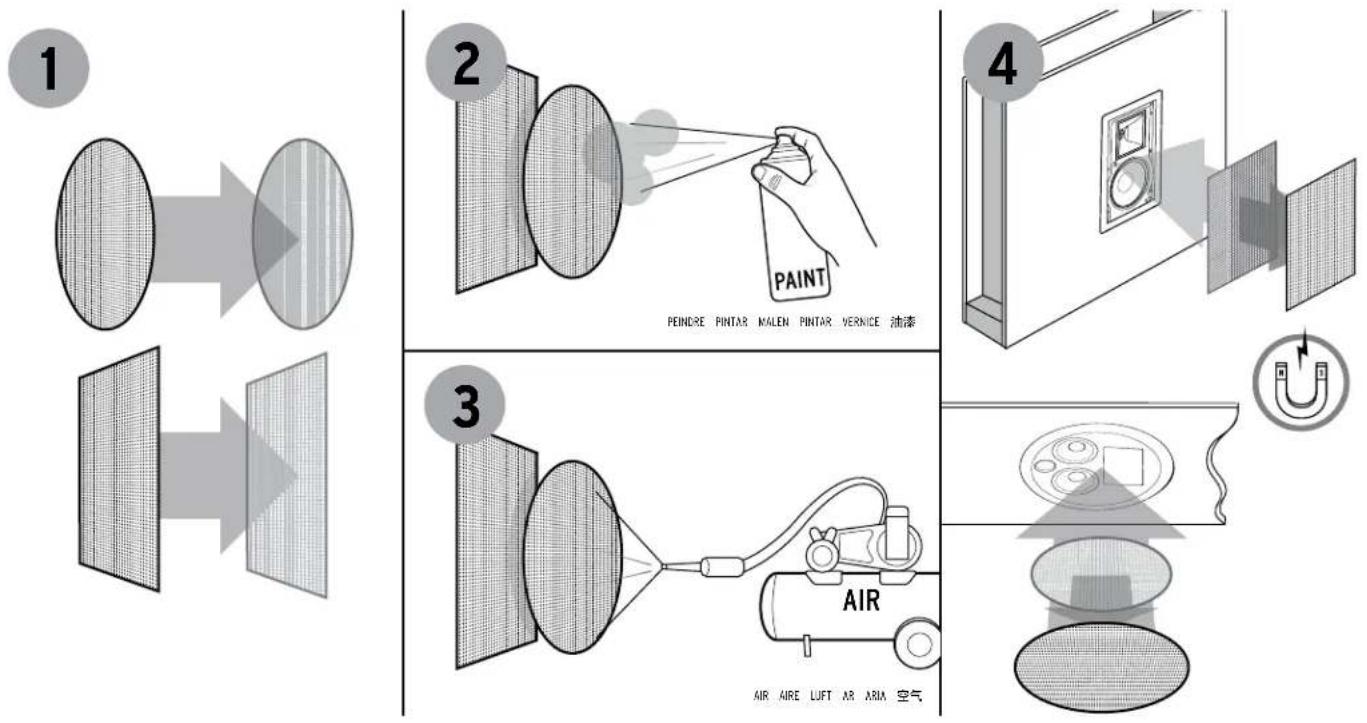

PAINTING

PEINDRE PINTAR MALEN PINTAR VERNICE 油漆

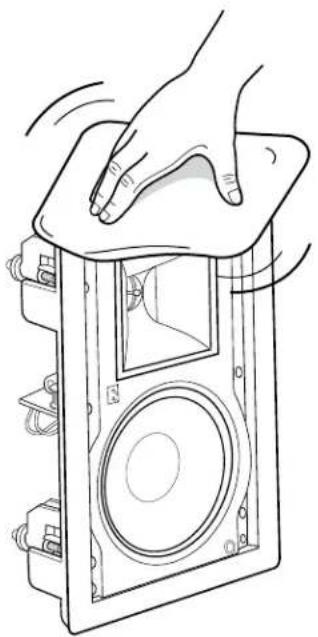

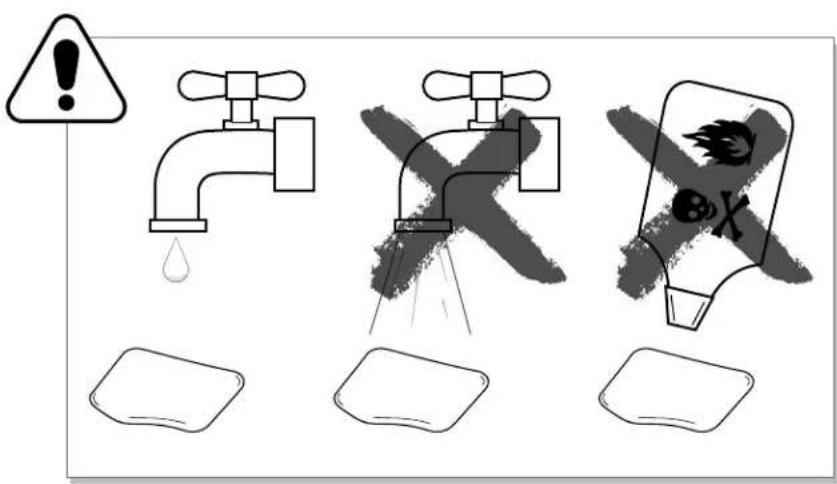

CARE AND CLEANING

ENTRETIEN ET NETTOYAGE CUIDADO Y LIMPIEZA PFLEGE UND REINIGUNG CURA E PULIZIA CUIDADOS E LIMPEZA 保养与清洁

Line drawing of a hand cleaning a speaker into a device (no text or symbols)

Klipsch®

KEEPERS OF THE SOUND

3502 WOODVIEW TRACE, INDIANAPOLIS, IN, USA

KLIPSCH.COM

1-800-KLIPSCH ©2014 KLIPSCH GROUP, INC. ALL RIGHTS RESERVED. KLIPSCH AND KEEPERS OF THE SOUND ARE REGISTERED TRADEMARKS OF KLIPSCH GROUP, INC. IN THE USA AND OTHER COUNTRIES. A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION.

V02-0512
