Product Type	Rear View Camera
Brand	Boyo
Model	VTL422CLS
Image Sensor	1/4" Color CMOS (OV7959)
System	NTSC
Effective Pixels	656×492
Horizontal Resolution	420 TVL
Viewing Angle	150°
Min. Illumination	0.5 lux (0 lux with LED on)
Waterproof Rating	IP67
Video Output	RCA connector, 1.0Vp-p, 75Ω
Supply Voltage	DC 7-24V
Current Consumption	60mA (Max 100mA)
Operating Temperature	-4°F ~ 140°F
Storage Temperature	-22°F ~ 149°F
LED Lights	3 Watt (with on/off switch)
Special Features	Reverse/Non-reverse Image Switch, Distance Guideline on/off
Included Accessories	Extension Cable, Screws, Screwdriver
Safety Warning	LED lights must be off when not in reverse.
Maintenance	Clean lens with soft cloth.

Frequently Asked Questions - VTL422CLS Boyo

How do I install the VTL422CLS camera?

Connect the RCA video output to your monitor's reverse camera input. Connect the power wires (red to reverse light positive, black to ground). Mount the camera using the included screws and bracket. Ensure the LED lights are only powered when the vehicle is in reverse.

What is the viewing angle of the camera?

The camera has a wide 150° viewing angle, providing a broad rear view.

Is the camera waterproof?

Yes, the camera has an IP67 waterproof rating, meaning it is protected against dust and temporary submersion in water.

What voltage does the camera require?

The camera operates on a wide voltage range of DC 7-24V, suitable for most vehicles.

Can I use this camera as a dash cam?

This camera is designed as a rear view backup camera, not a dash cam. It does not record video continuously. It is intended for reverse assistance.

How do I turn on the LED lights?

The LED lights are controlled by the built-in switch. They should be set to on only when the vehicle is in reverse. The manual advises turning them off otherwise.

How do I switch between reverse and non-reverse image?

Use the Reverse/Non-reverse Image Switch on the camera. Flipping it will mirror the image horizontally.

What is the resolution of the camera?

The camera has an effective pixel resolution of 656x492, providing 420 TVL horizontal resolution.

Does the camera come with a power cable?

The package includes an extension cable with RCA and power connectors. You will need to connect the power wires to your vehicle's reverse light circuit.

How to clean the camera lens?

Use a soft, dry cloth to gently wipe the lens. Avoid using harsh chemicals or abrasive materials.

USER MANUAL VTL422CLS Boyo

Coiled cable with connectors and three separate connectors (no text or symbols visible)

B Camera Extension CableX1

C Screw×2

D Screwdriver x1

2. Specifications

Key features

High sensitive 1/4"DSP Color CMOS built-in

420TVL Horizontal resolution

0.5 lux at F2.0 (0 lux with LED lights on)

Excellent Auto White Balance

Waterproof(IP67)

Reverse/Non-reverse Image Switch

Distance Guideline on/off Switch

3 Watt LED Lights on/off Switch

Caution

The LED lights and camera must be turned off

if the vehicle is not in reverse.

The camera with the built-in lights are to be installed

so that it turns on only in reverse mode.

Specification

Image Sensor	1/4"Color CMOS (OV7959)
System	NTSC
Effective Pixels	656X492
Horizontal Resolution	420TVL
Viewing Angle	150°
Min. Illumination	0.5 lu (0 lux with LED lights on)
Waterproof	IP67
Video Output	RCA connector, 1.0Vp-p, 75Ω
Current Consumption	60mA, Max100mA
Supply Voltage	DC7-24V
Operating Temperature	-4°F ~140°F, RH95%MAX
Storage Temperature	-22°F ~149°F, RH95%MAX

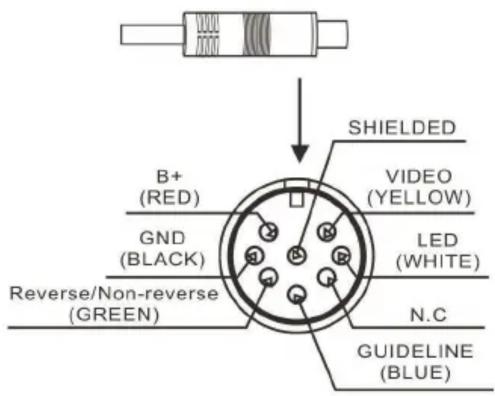

3. Dimension (inch) & Wiring
