Brand	Barska
Model	Floatmaster
Product Type	Binoculars
Magnification	10x
Objective Lens Diameter	42 mm
Field of View	6° (315 ft @ 1000 yds)
Exit Pupil	4.2 mm
Eye Relief	15 mm
Close Focus	6 ft (1.8 m)
Prism System	Roof prism (Bak-4)
Lens Coating	Fully multi-coated
Waterproof	Yes (nitrogen purged, IPX7 rated)
Fogproof	Yes (argon filled)
Focus System	Center focus with diopter adjustment
Dimensions (HxWxD)	5.9 x 5.1 x 2.0 in (150 x 130 x 50 mm)
Weight	21 oz (595 g)
Included Accessories	Carrying case, neck strap, lens caps, cleaning cloth
Power Source	None (optical)
Maintenance	Clean lenses with microfibre cloth; store in dry place
Warranty	Limited lifetime warranty

Frequently Asked Questions - Floatmaster Barska

How do I focus the Barska Floatmaster binoculars?

Turn the central focus wheel while looking through the binoculars until the image is sharp. If you wear glasses, adjust the diopter ring on the right eyepiece first.

How do I adjust the diopter for my eyesight?

Close your left eye and focus on a distant object using the central wheel. Then close your right eye and adjust the diopter ring on the right eyepiece until the object is sharp. Open both eyes for clear view.

Are these binoculars waterproof?

Yes, the Floatmaster is nitrogen purged and IPX7 rated, meaning it can be submerged in up to 1 meter of water for 30 minutes without damage.

How should I clean the lenses?

Use the included lens cloth or a microfiber cloth. For stubborn dirt, blow off dust first, then gently wipe in a circular motion. Avoid using paper towels or rough fabrics.

Can I use these binoculars with eyeglasses?

Yes, the eyecups are twist-up and can be adjusted for eyeglass wearers. Twist them down to bring your eyes closer to the lenses for a full field of view.

What is the warranty on Barska Floatmaster?

Barska offers a limited lifetime warranty against defects in materials and workmanship. Registration may be required; check the official website.

How do I mount the binoculars on a tripod?

The Floatmaster has a tripod adapter socket located under the front hinge. Use a standard binocular tripod adapter (not included) to attach to a tripod.

What does 'Floatmaster' mean?

The name indicates these binoculars are designed to float if dropped in water, thanks to special buoyant materials. They are ideal for marine or outdoor use near water.

How do I adjust the interpupillary distance (IPD)?

Hold the binoculars up to your eyes and pivot the two halves around the central hinge until you see a single circular image. The IPD scale on the hinge shows your setting.

What is the best way to store these binoculars?

Store them in the carrying case in a cool, dry place. Remove the batteries if any (none for this model). Keep lens caps on to protect from dust.

USER MANUAL Floatmaster Barska

III. WATERPROOF/FOG-PROOF (select models)

Your binocular may be designed and built utilizing the latest waterproof and fog-proof technology. Waterproof models are O-ring sealed for complete protection. Fog proof protection is achieved from dry nitrogen purging to remove all internal moisture.

IV. EYECUPS

Your binocular is fitted with either rubber roll-down or rubber pop-up eyecups designed for your comfort and to exclude extraneous external light. If you wear sun/eye glasses, roll down the eyecups. This will bring your eyes closer to the binocular lens thus providing improved field of view.

Fig.4 BINOCULAR EYECUPS

V. INSTRUCTIONS FOR CARE

If handled with care, this binocular will provide years of trouble-free service. Like any fine optical instrument your binocular should be given sensible care. Non waterproof models should not be exposed to excessive moisture.

1. Keep the lens covers (that come with your binocular, except compact models) on the lenses when binoculars are not in use.
2. Store binoculars with the eyecups up. Thus avoiding excessive stress and wear on the eyecups in the down position.
3. Avoid banging and dropping.
4. Store in a cool, dry place.
5. Looking directly at the sun with your binocular may be very harmful to you eyes.

VI. CLEANING

1. Blow away any dust or debris on the lens (or use a soft lens brush)
2. To remove dirt or fingerprints, clean with a soft cotton cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage.
3. For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth-never directly on the lens.

VERY IMPORTANT

Never attempt to clean your binocular internally or try to take it apart.

CAUTION: DIRECTLY VIEWING THE SUN OR ANY LIGHT SOURCE WITH THIS OPTICAL DEVICE CAN CAUSE PERMANENT EYE DAMAGE.

©2010 BARSKA® | La Verne, CA 91750

www.barska.com BC152

BINOCULAR INSTRUCTIONS

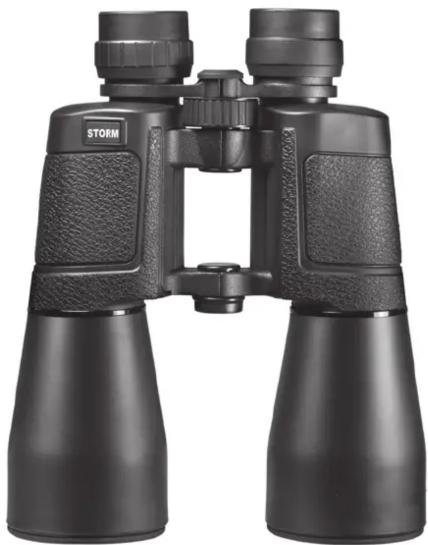

Black binoculars with no visible text or symbols on the device itself

©2010 BARSKA® | La Verne, CA 91750 models may vary www.barska.com

INSTRUCTIONS FOR USE

This binocular is a precision instrument designed to provide many years of pleasurable viewing. This booklet will help you achieve optimum performance by explaining how you can adjust the binocular to your eyes, and how to care for this instrument. Read the instructions carefully before using your binoculars.

CAUTION: DIRECTLY VIEWING THE SUN OR ANY LIGHT SOURCE WITH THIS OPTICAL DEVICE CAN CAUSE PERMANENT EYE DAMAGE.

I. EYE ADJUSTMENTS (FIGURE 1)

Fig.1 INTERPUPILLARY DISTANCE ADJUSTMENT

The distance between the eyes, called “interpupillary distance” (IPD), varies from person to person. To achieve perfect alignment of lens to eye, follow these simples steps.

1. Hold your binocular in the normal viewing position.
2. Grasp each barrel firmly. Move the barrels closer together or further apart until you see a single circular field. Always re-set your binocular to this position before using.

HOW TO ADJUST FOR INDIVIDUAL EYE STRENGTH

Human eyes are as individual as fingerprints. This binocular has a feature which allows you to adjust the binocular to your vision. Follow the focusing instructions for your binocular style.

II. FOCUSING

Binoculars have three primary focusing systems, center, individual and focus-free. "Zoom" binoculars utilize the center focus system.

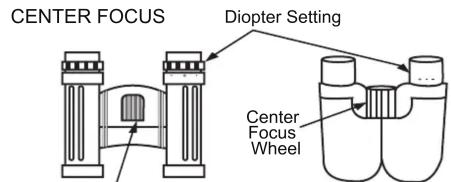

CENTER FOCUS-has a central focusing wheel between the barrels.

INDIVIDUAL FOCUS-each eyepiece is focused separately. Most typically with waterproof/fog-proof models.

FOCUS FREE-binocular require no focusing adjustment.

Center For Wheel
Fig.2 DIOPTER SETTINGS

1. Adjust interpupillary distance (Figure 1)
2. Keep both eyes "open" at all times.
3. Using a lens cover or your hand, cover the objective (front) lens of the side with the "diopter setting"
4. Using the center focus wheel, focus the distant object being viewed.
5. Cover the other objective lens, then view the same object as explained above.
6. Using the "diopter setting" adjustment ring, focus the same object being viewed. Caution should be used as over turning or forcing the diopter eyepiece can damage or cause the eyepiece to break away from the chassis.
7. Your binocular should be adjusted for your eyes. Focus at both far and near distance can now be attained simply by turning the center focus wheel.

INDIVIDUAL FOCUS (select models)

1. Adjust interpupillary distance. Make a note of the number which appears on the central hinge scale. Always re-set your binocular to this position before using. (To see a single

2. Cover right objective (front) lens with your hand. Rotate left eyepiece until image is focused.

3. Follow the same procedure for the right eye. The eyepiece should be turned in a counterclockwise direction for more distant objects. With the image now in focus, make a note of the diopter setting for future use.

FOCUS-FREE (select models)

Focus-free binoculars offer “never needs focusing” optical systems.

"ZOOM" FEATURE (select models)

1. Follow the steps for focusing as outlined under "Center Focus"
2. When focusing a “zoom” binocular, it is best to begin at the highest power. This will provide a more comfortable focus at the lower powers. Set the “zoom” lever at high power.

Fig.2 "ZOOM" SETTINGS

1. Adjust your binocular for individual eye strength using the "diopter setting"

Your binocular is now adjusted properly for your eyes. You may now “zoom” “out” or “in” on any distant object.

Note: to focus on an object at a closer distance, focus on the object at high power first and then adjust the “zoom” lever to the desired lower power. With any “zoom” instrument, better quality images are possible at lower powers.
