USER MANUAL VS481A ATEN

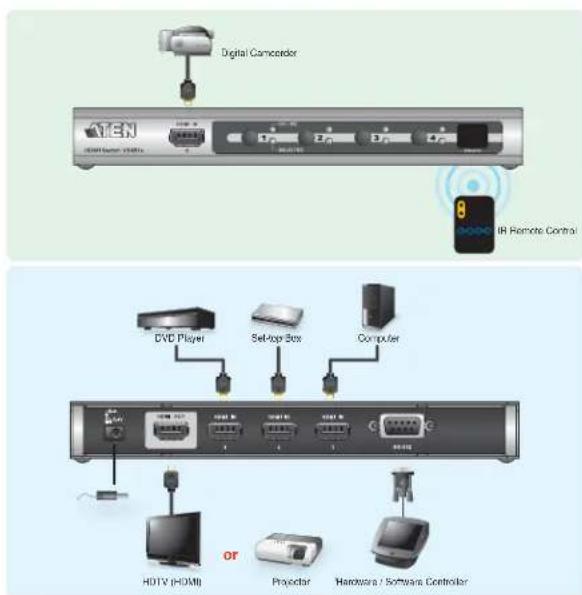

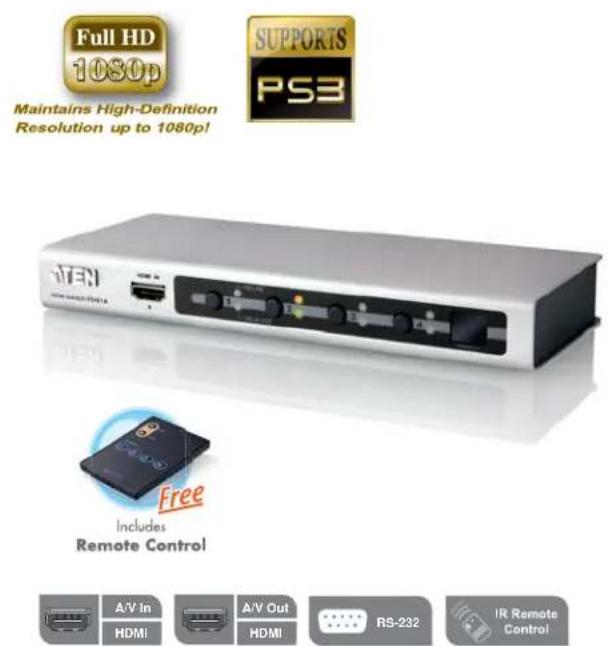

The VS481A 4-Port HDMI Switch allows you to quickly and easily connect 4 HDMI input sources to your HDMI display device. The VS481A allows convenient switching between digital devices such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.
Features
- Allows up to four HDMI A/V sources to be connected to one HDMI display
- Toggle between A/V sources using remote control or front panel pushbuttons
• Supports high-resolution video – HDTV resolutions of 480p, 720p, 1080l, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200) and WUXGA (1920x1200)
• Supports 12-bit Deep Color for HDMI formats
• Supports Dolby True HD and DTS HD Master Audio
• Up to 60 Hz refresh rate - Long distance transmission – up to 20 m (24 AWG) and 15 m (28 AWG)
• Built-in bi-directional RS-232 serial remote port for high-end system control - Plug-and-play – no software installation required
- DDC Compatible
• HDMI 1.3b compliant
• HDCP 1.1 compliant
• Supports HDMI Type A 19-pin female connector
• Signaling rates up to 2.25 Gbits in support of 1080p display - All-metal casing
• LED indication of video source devices - Easy and affordable way to add four HDMI inputs to your home theater system
Setup
Specifications
| Function | VS481A | ||
| Display Connections 1 | |||
| Connectors | Device HDMI In 4 x HDMI Type A Female (Black) | ||
| Display HDMI Out 1 x HDMI Type A Female (Black) | |||
| RS-232 Port 1 x DB-9 Female (Black) | |||
| Power 1 x DC Jack | |||
| LEDs | On Line 4 (Orange) | ||
| Selected | 4 (Green) | ||
| Video | HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), WUXGA (1920x1200) | ||
| Power Consumption DC5.3V, 2.4W | |||
| Environment | Operating Temp. 0–50°C | ||
| Storage Temp. -20 | -60°C | ||
| Humidity | 0–80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 0.47 kg | ||
| Dimensions (L x W x H) | 20.00 X 8.00 X 2.50 cm | ||
* The specifications and pictures are subject to change without notice.
Brand : ATEN
Model : VS481A
Category : Network switch
